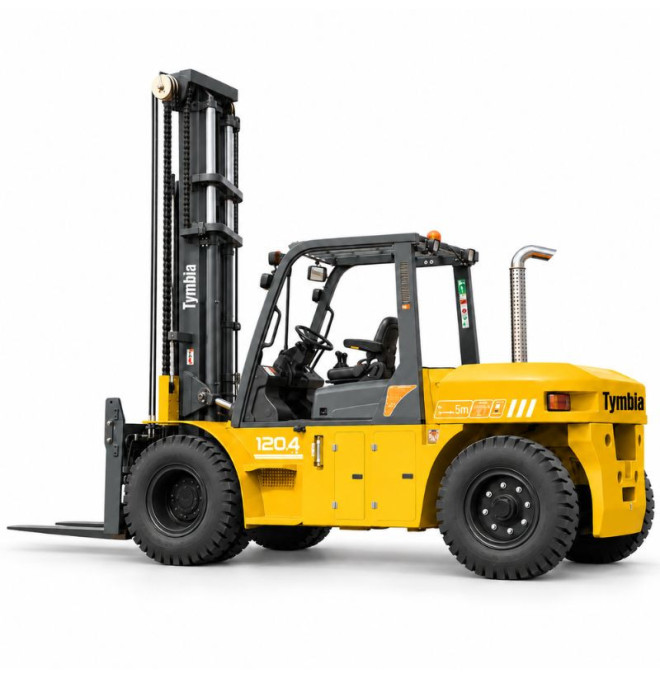

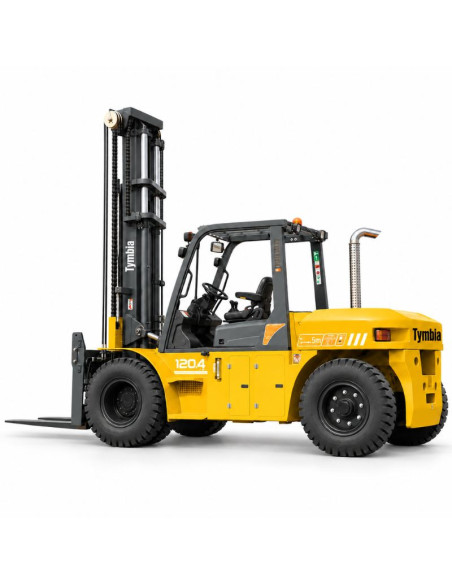

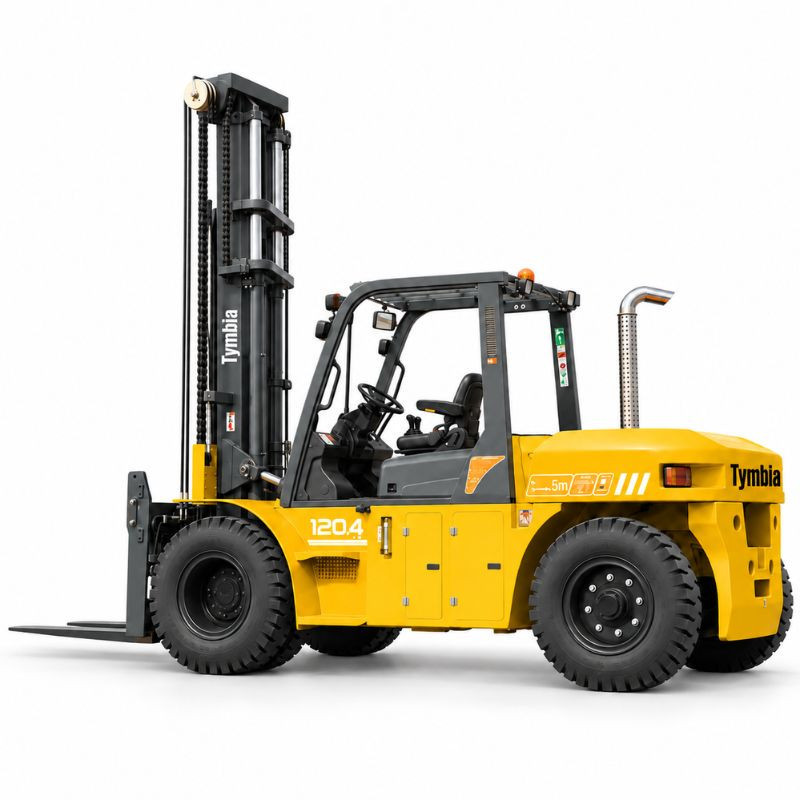

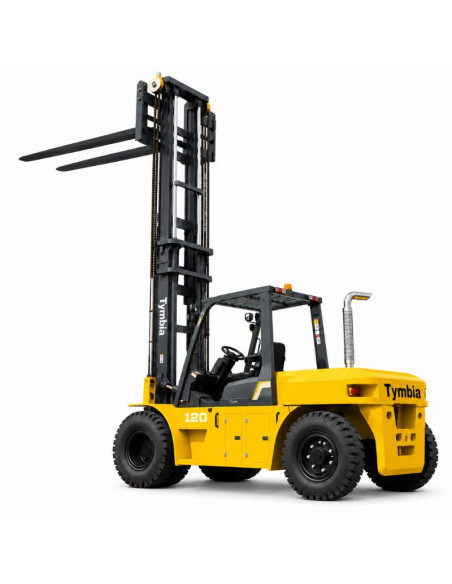

The forklift Diesel Tymbia H Series of 12 tons is designed for highly demanding professional operations, ports, logistics terminals, warehouses and heavy load manipulation areas. Its robust structure, its high capacity and its cummins motorization allow to face intensive work while maintaining a good balance between power, stability and maneuverability.

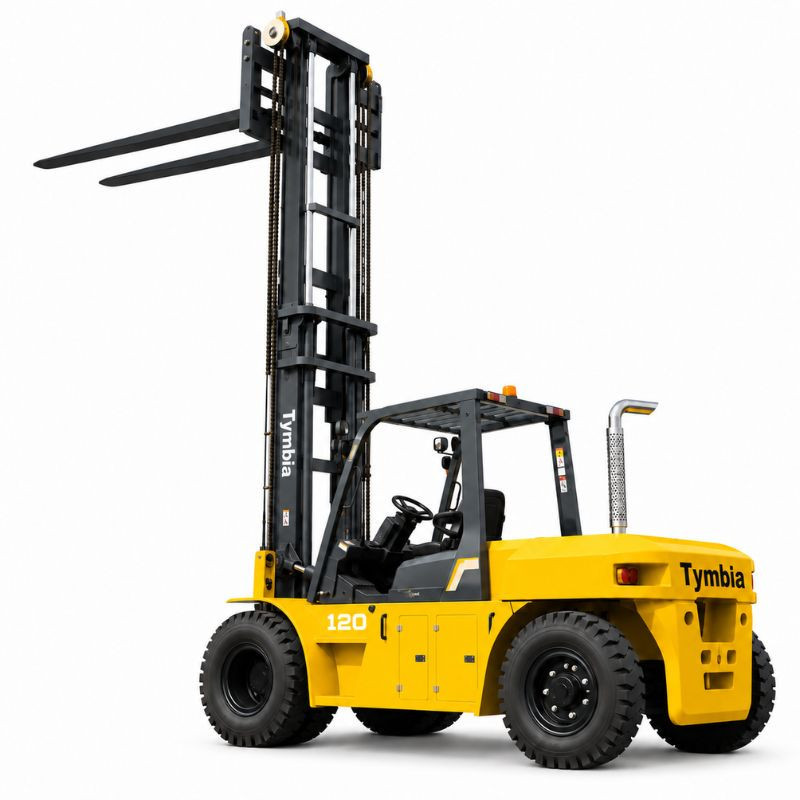

Its nominal capacity of 12000kg to a 600mm cargo center allows you to manipulate good tonnage goods safely. The standard configuration incorporates a lifting height of 3000 mm, 1370mm forks and side adjustment of forks between 420 and 2200mm, facilitating adaptation to different loading dimensions.
It equip a cummins B6.7 diesel engine with Euro V-approval, capable of developing 142.9KW to 2200rpm. This motorization provides the necessary power to work with large loads and maintain constant performance in intensive industrial applications.
In displacement, it reaches speeds of 28 km / h with load and 30 km / h without load, while its lifting speed with load is 390mm / s. In addition, it has an overlap maximum slope of 28%, providing work capacity in ramps and surfaces with unevenness.

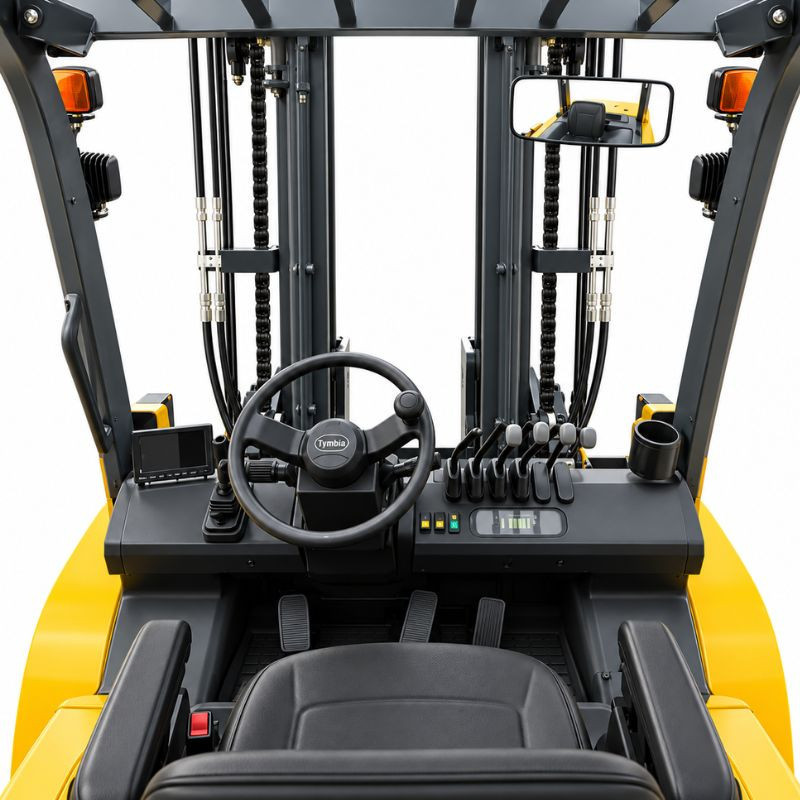

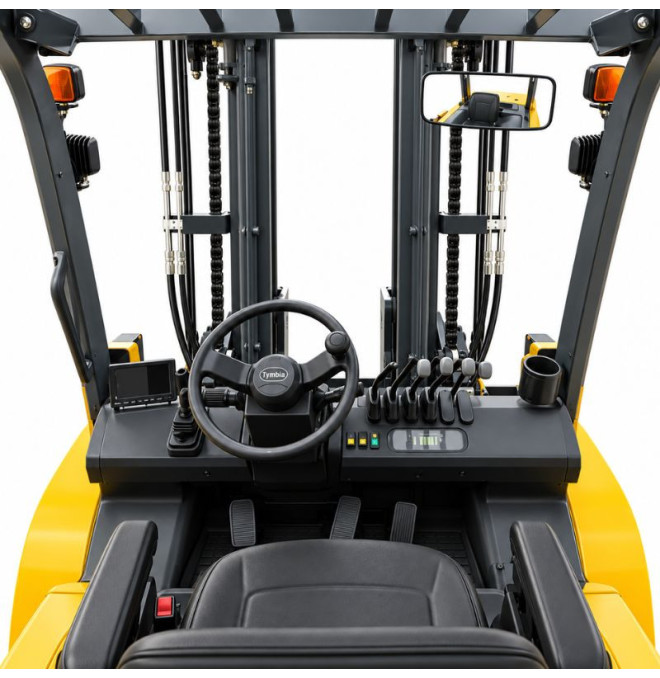

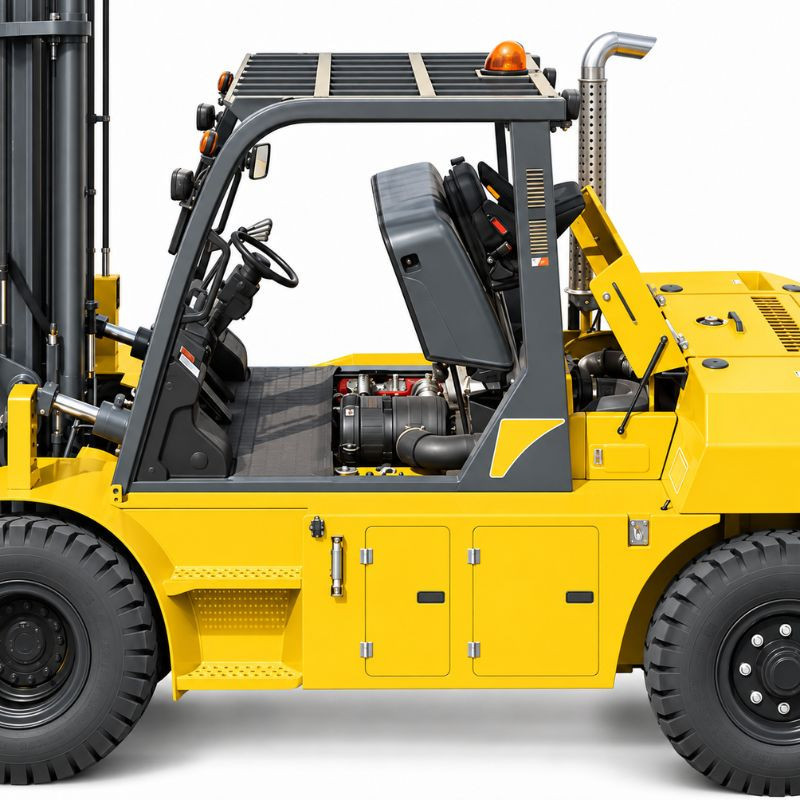

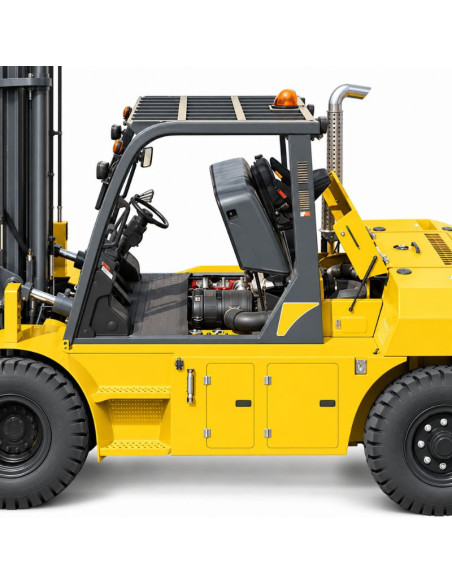

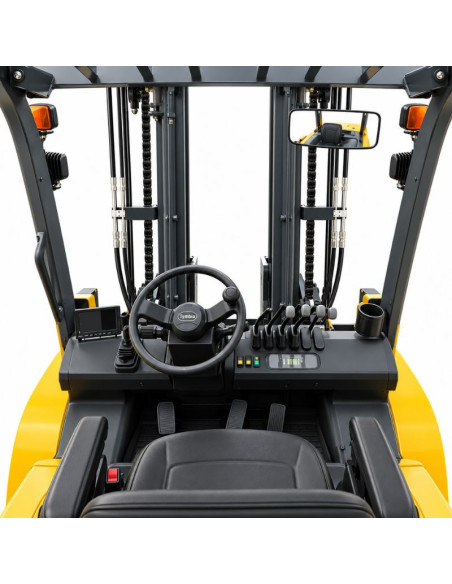

The driving position is designed to offer good visibility, lower level of vibrations and a comfortable operative during prolonged days. The extensive access for maintenance, the arrangement of the components and the specific transmission system facilitate periodic reviews and contribute to reducing the stop times.
Featured features:
- Nominal capacity of 12000kg
- 600mm cargo center
- Cummins B6.7 engine
- Euro V
- Nominal power of 142,9KW
- Standard lifting height of 3000mm
- Speed up to 30 km / h
- Maximum overlap of 28%
- 1370mm forks
- Side adjustment of forks from 420 to 2200mm
- Industrial tires 10.00-20
- Robust design for great tonnage applications
Advantages:
- High capacity for handling loads up to 12 tons
- Cummins engine prepared for intensive professional use
- Good performance in displacement and elevation
- Great stability for operations with heavy loads
- Wide side adjustment of hairpins
- Different mast configurations available
- Confort-oriented driving position and visibility
- Easy access to the main components for maintenance
- Suitable for continued operations in demanding industrial environments
Uses:
- Logistic ports and terminals
- Heavy industry
- Shipyards
- Warehouses of great tonnage
- Manipulation of machinery and heavy components
- Production centers
- Movement of industrial materials
- Loading and unloading of great weight goods
** They must have their own discharge means.
