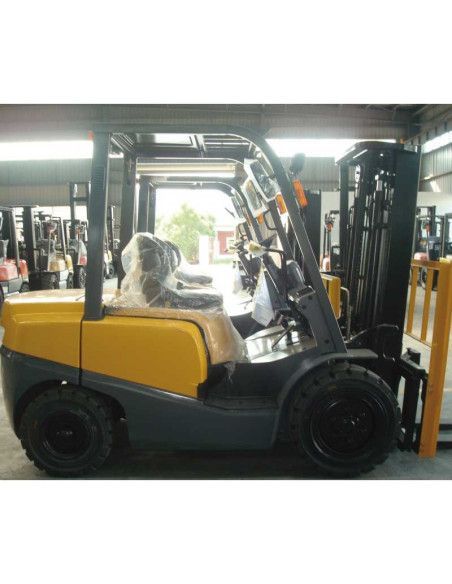

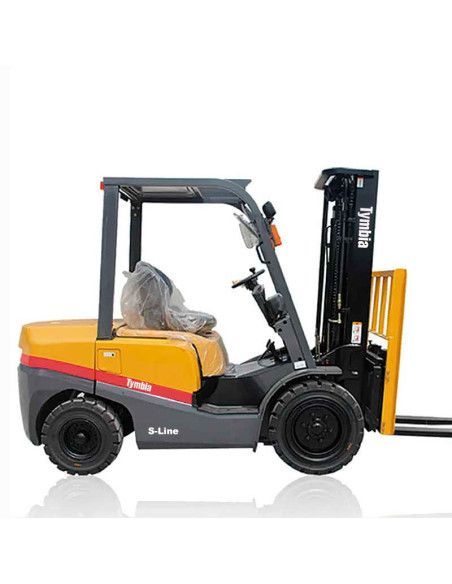

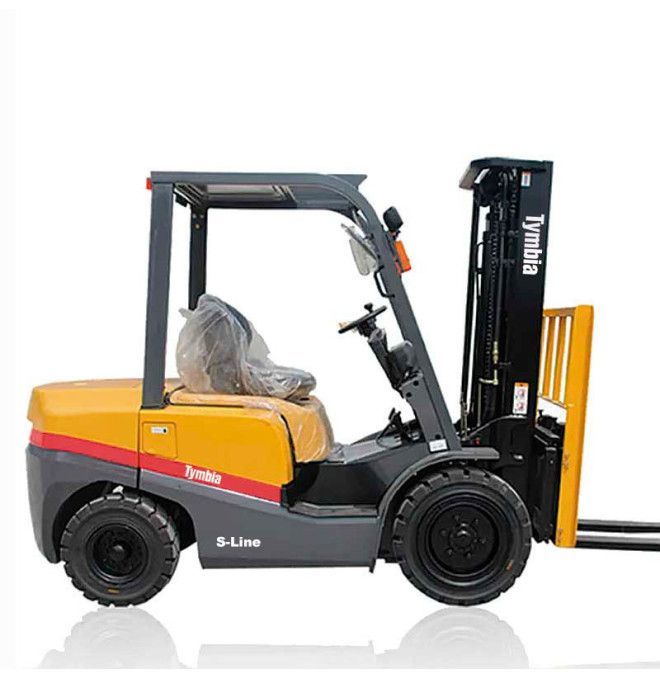

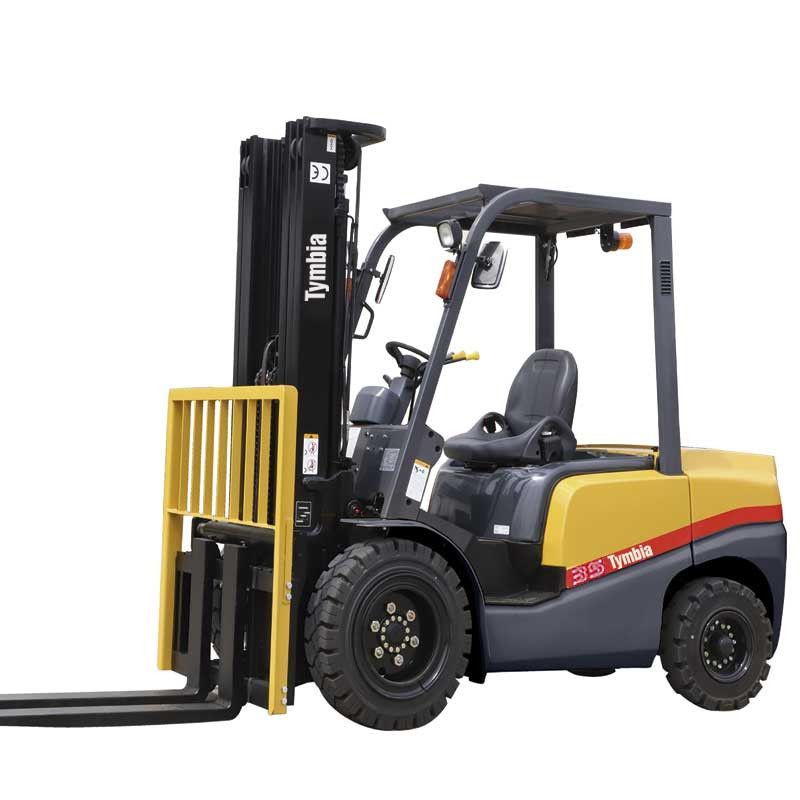

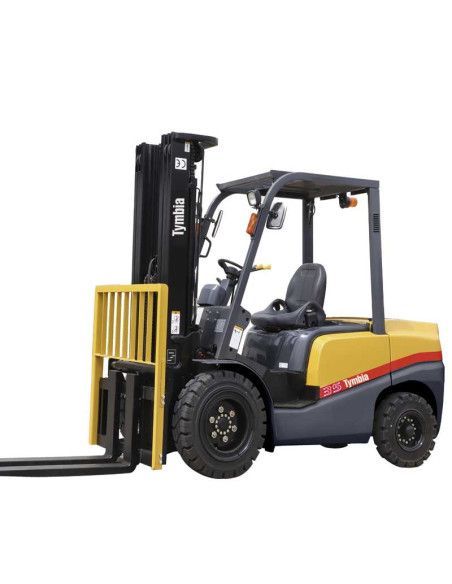

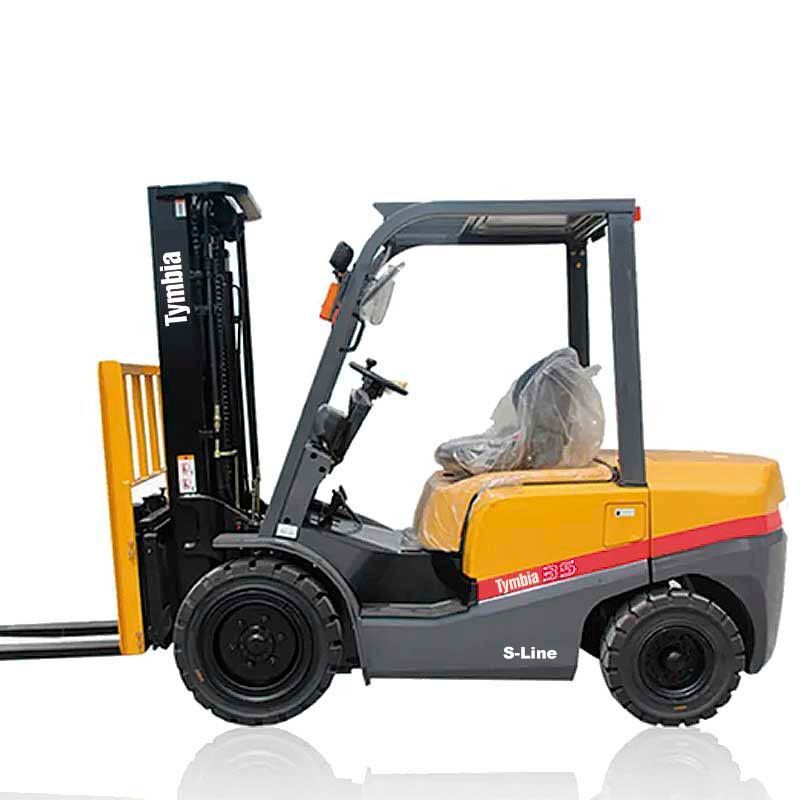

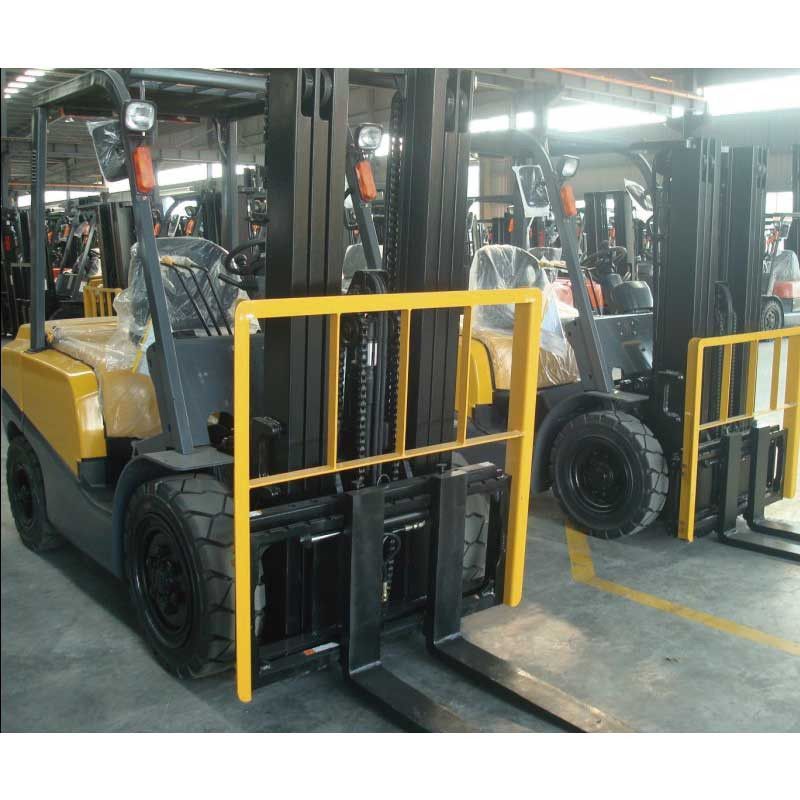

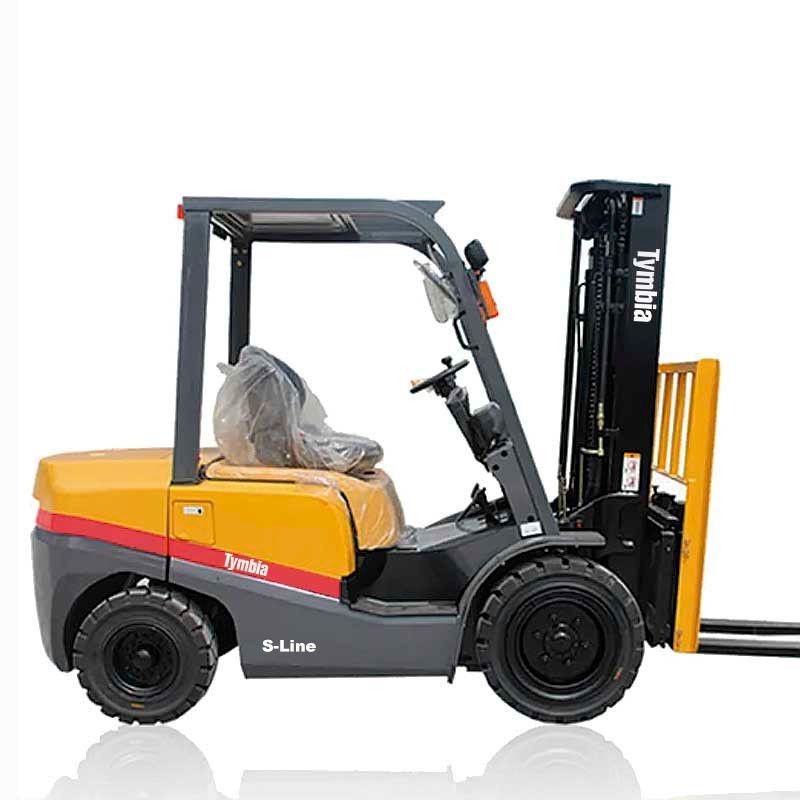

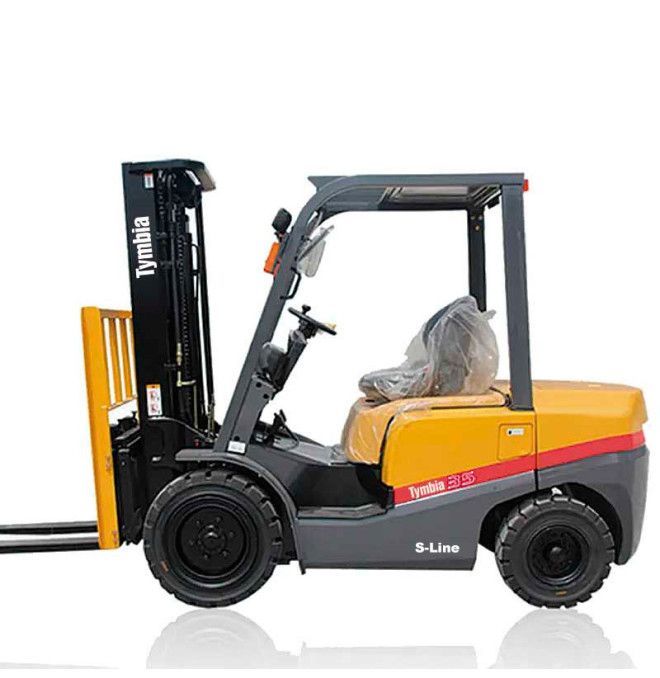

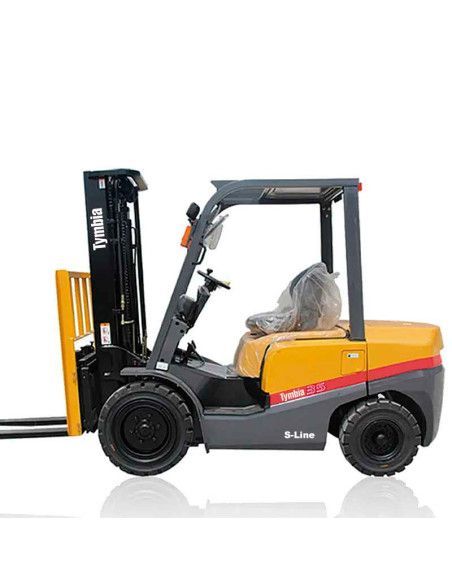

Forklift Diesel 3500kg - triplex mast 4500mm

The Tymbia diesel forklift, with a load capacity of 3500 kg is a robust and high performance solution for material handling.

Its TRIPLEX mast configuration allows you to reach a maximum lifting height of 4.5 meters, facilitating stacking and discharge operations at height.

Main features:

• Charging capacity: It can lift up to 3500 kg, allowing manipulating a wide variety of goods safely.

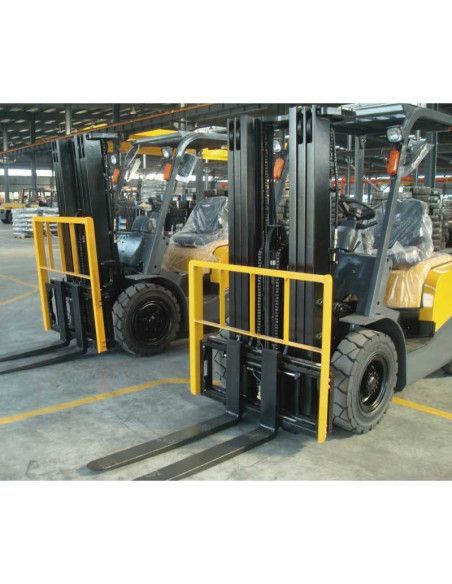

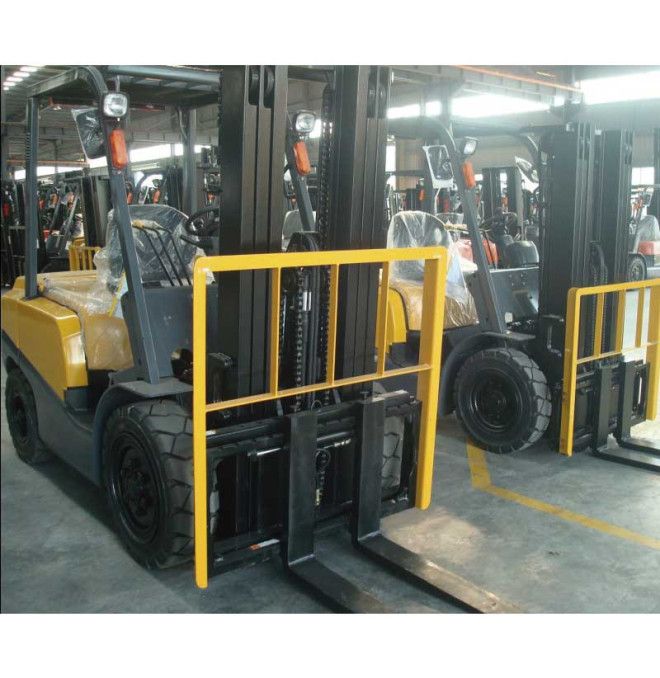

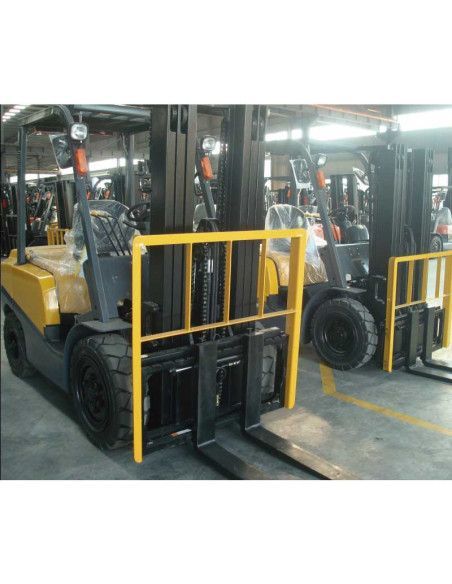

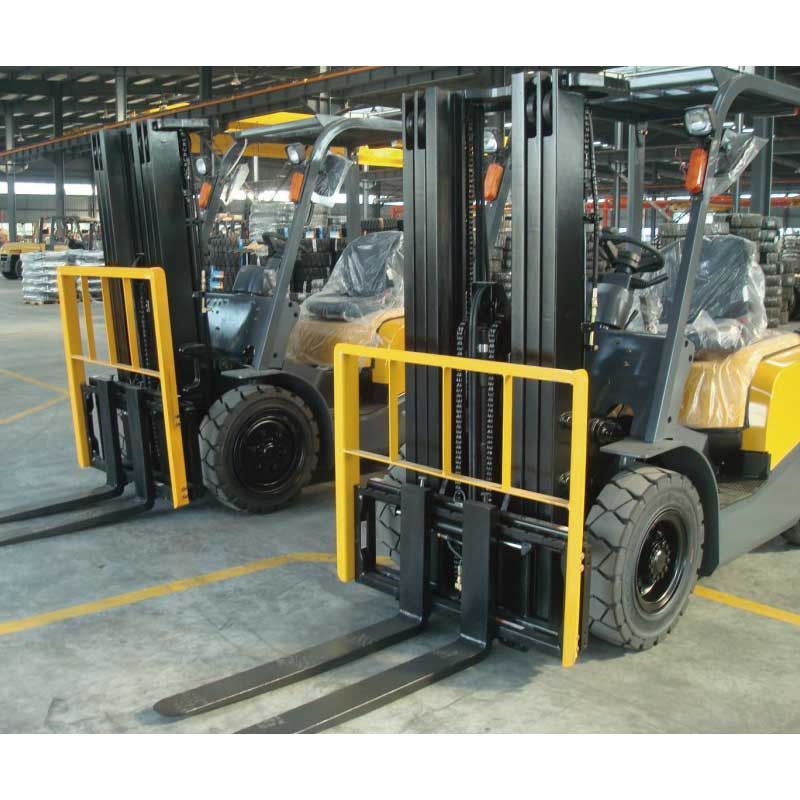

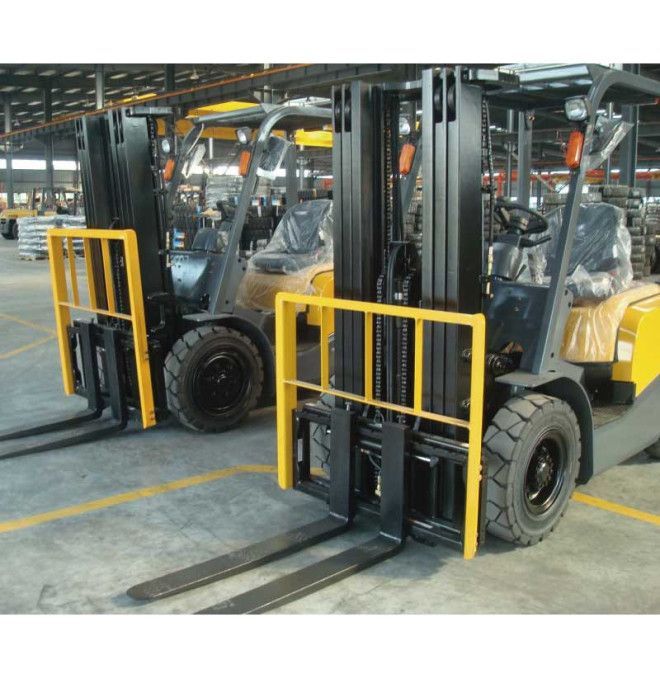

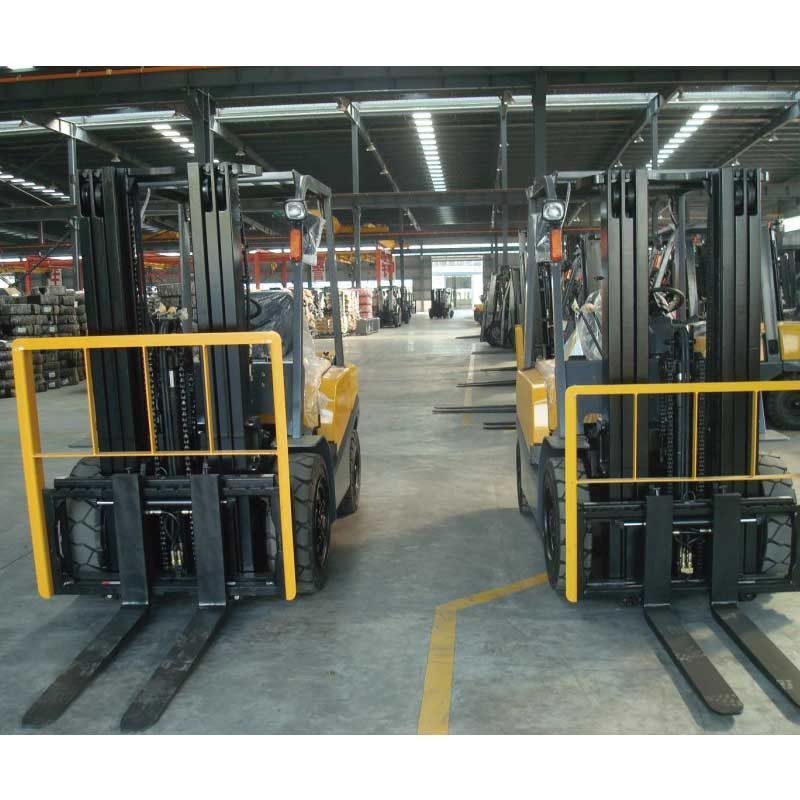

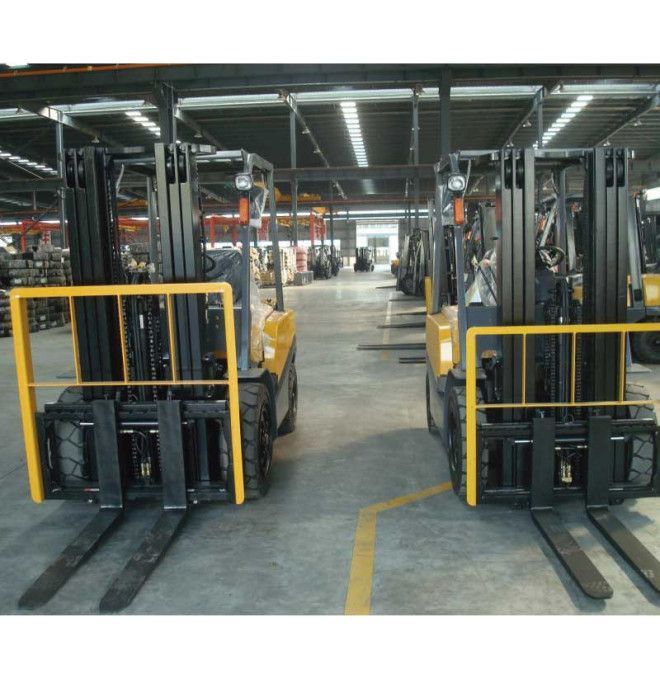

• Triplex mast: Its three-stage mast reaches 4500 mm, maximizing the use of vertical space in your warehouse or work area.

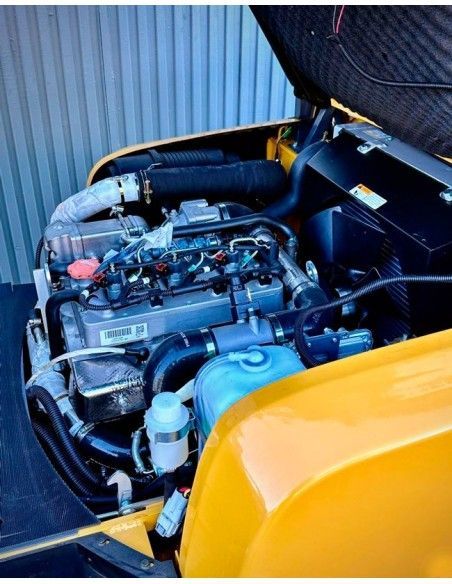

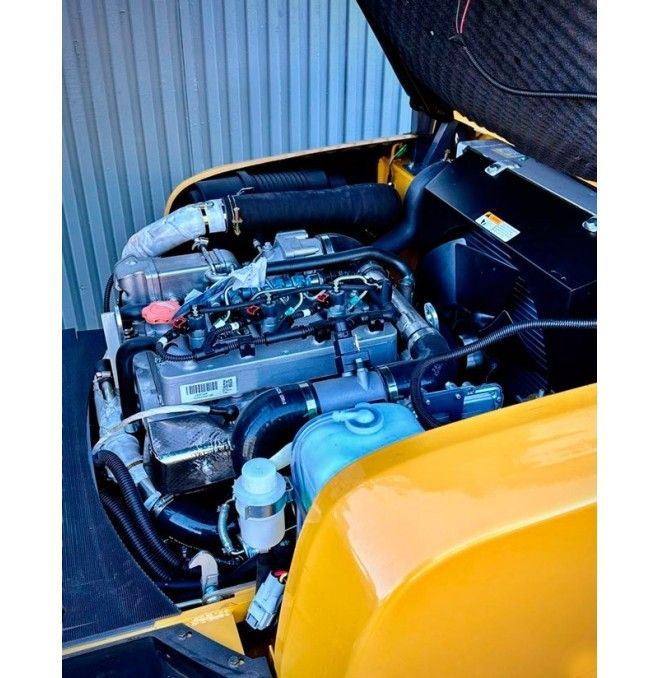

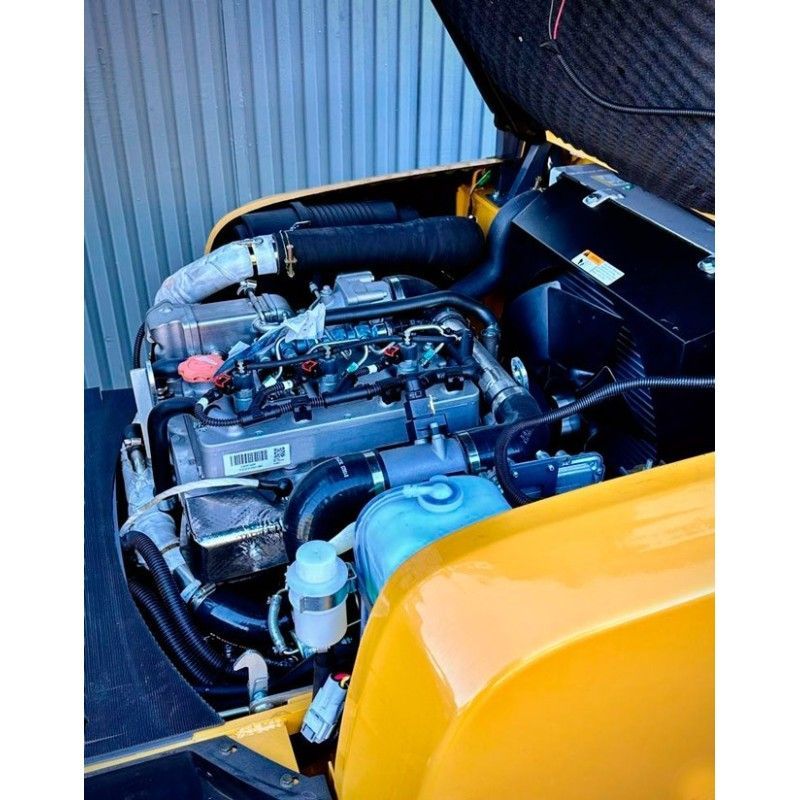

• Powerful and reliable diesel engine: Equipped with a diesel engine that provides the force necessary to perform demanding elevations and displacements, even with the maximum load.
• Robust and lasting structure: Manufactured with resistant materials to withstand the most difficult working conditions, ensuring a long life.
• Effective maneuverability: Despite its great capacity, it offers a good maneuver capacity to operate in various work environments.

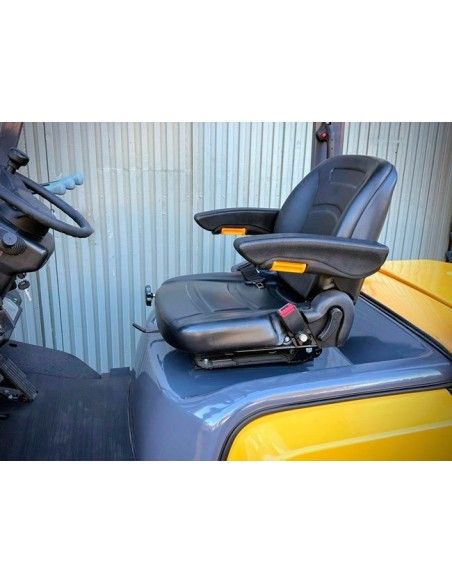

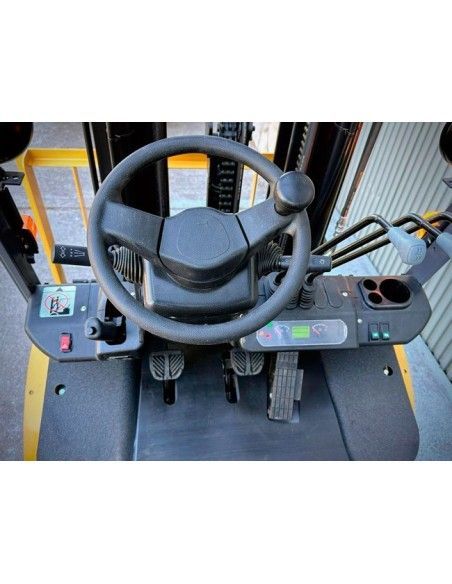

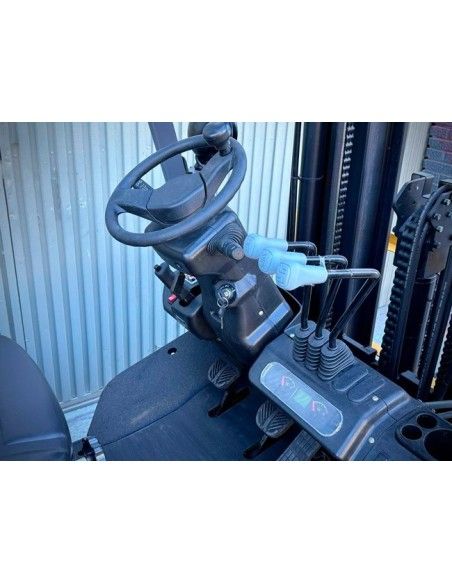

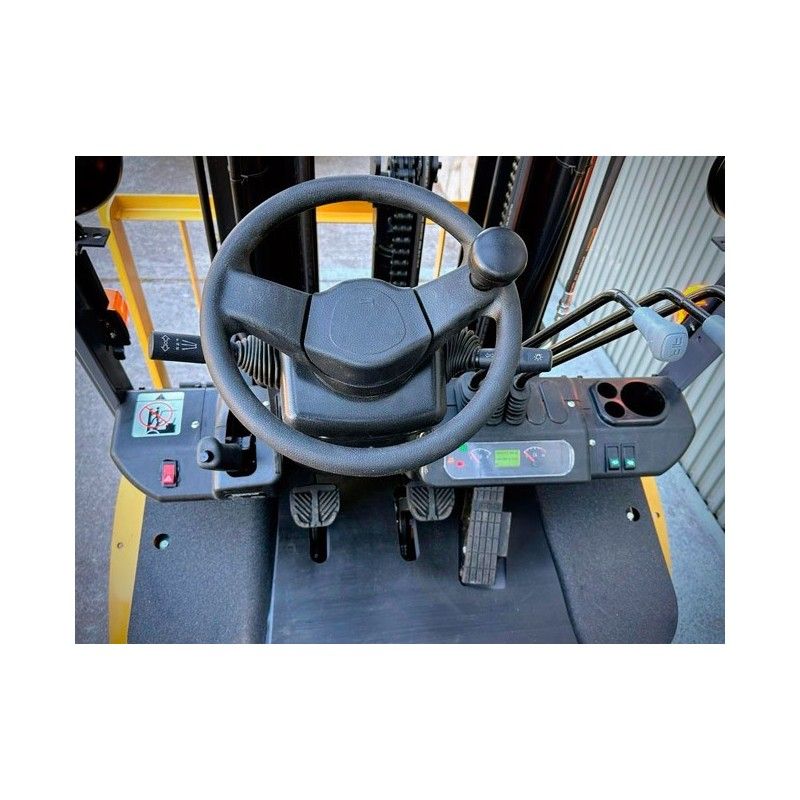

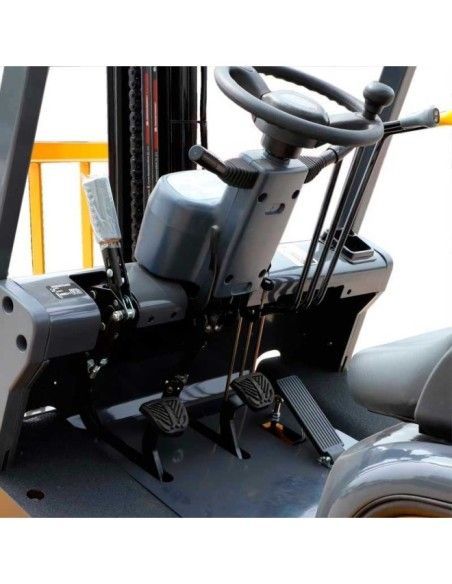

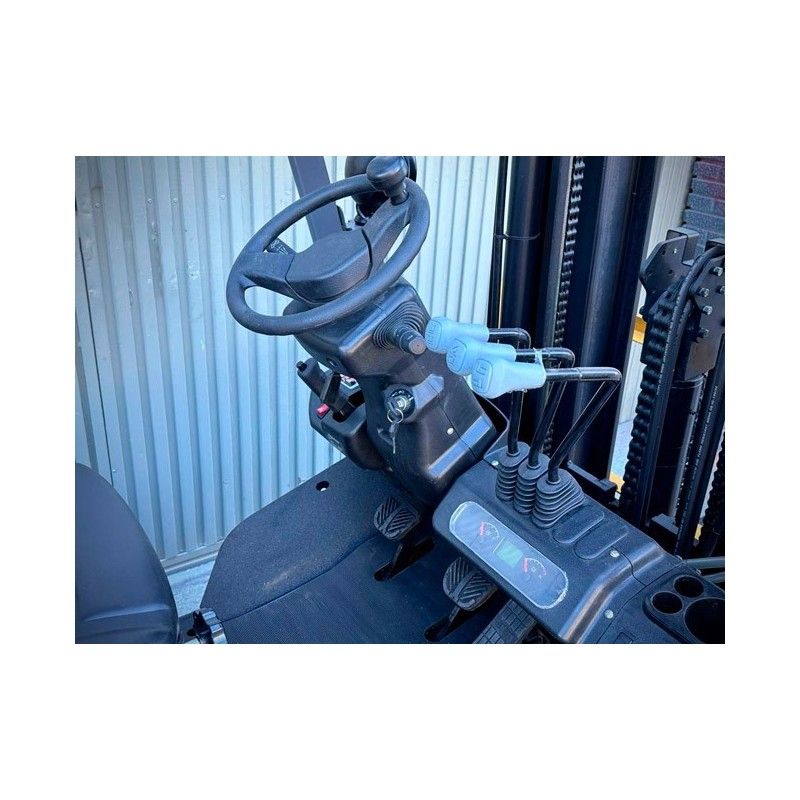

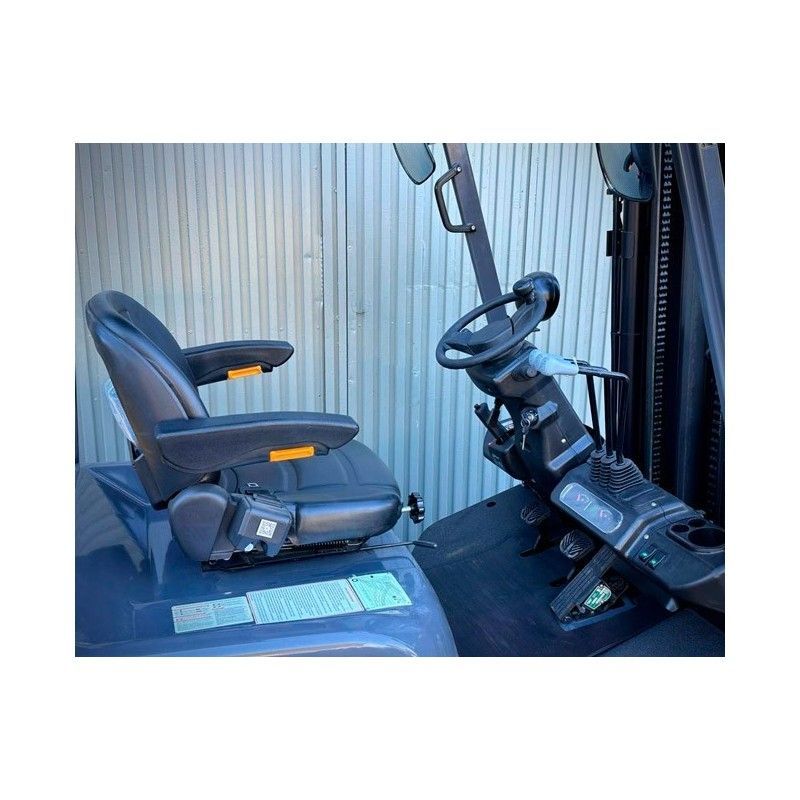

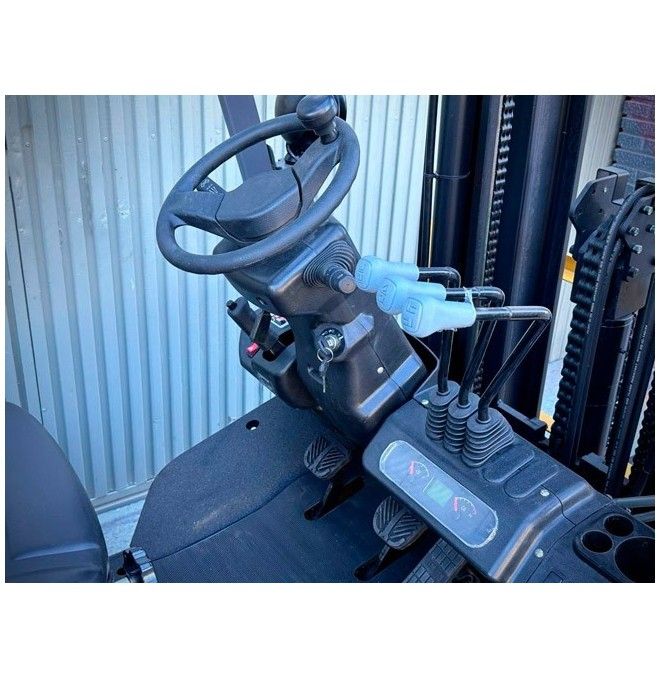

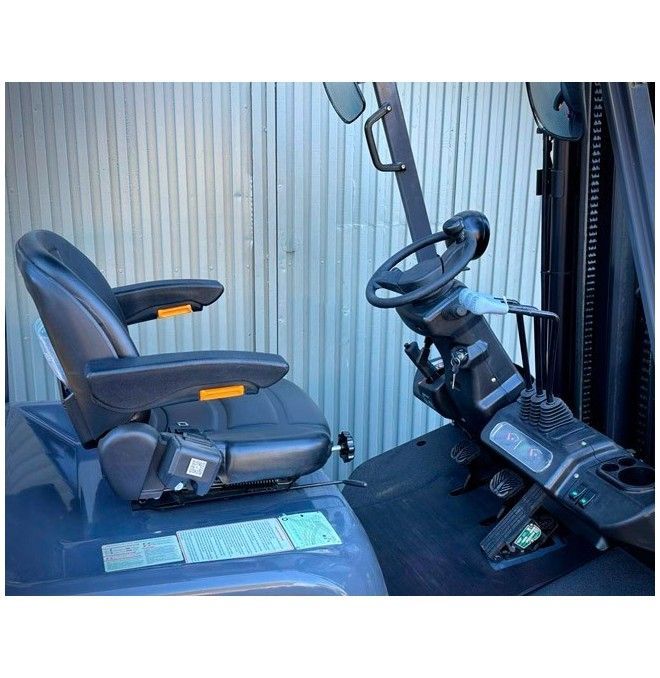

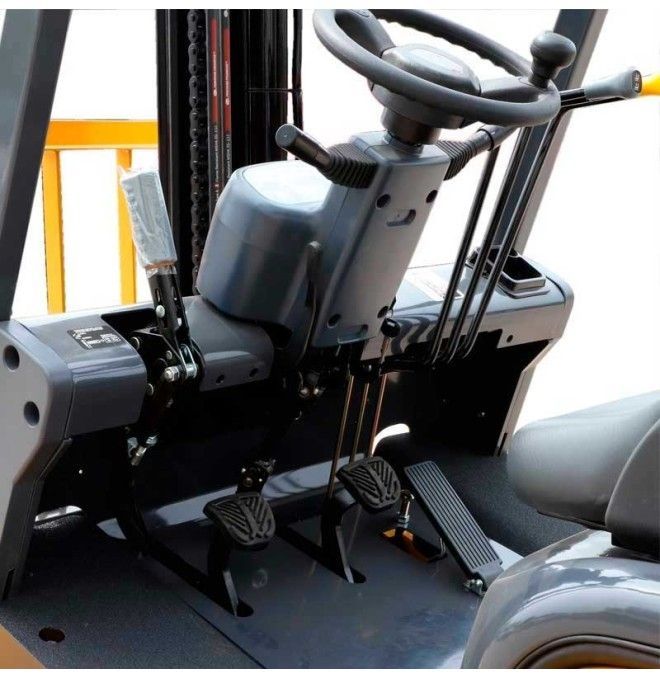

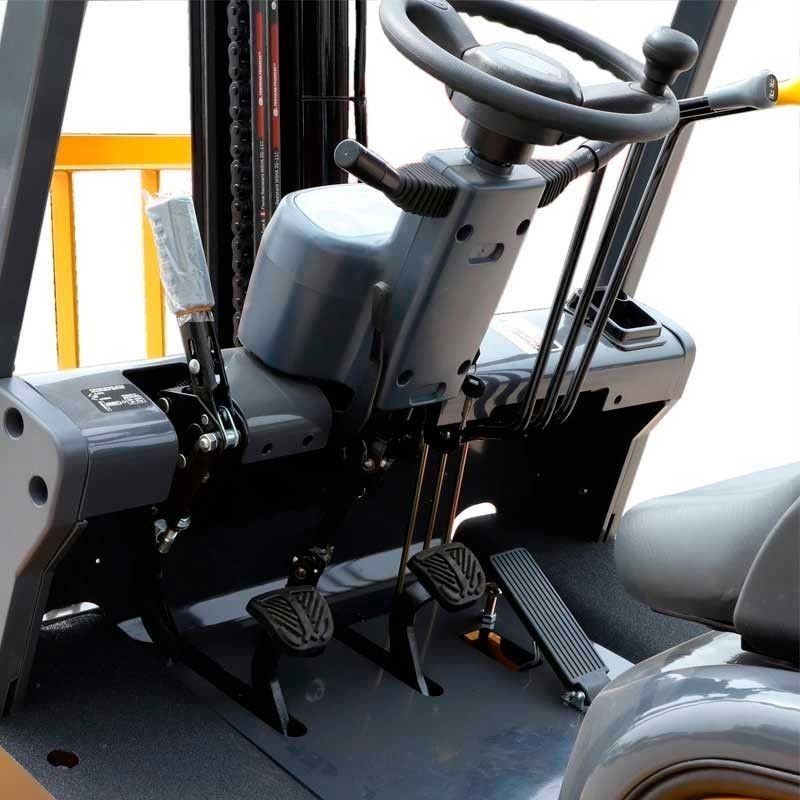

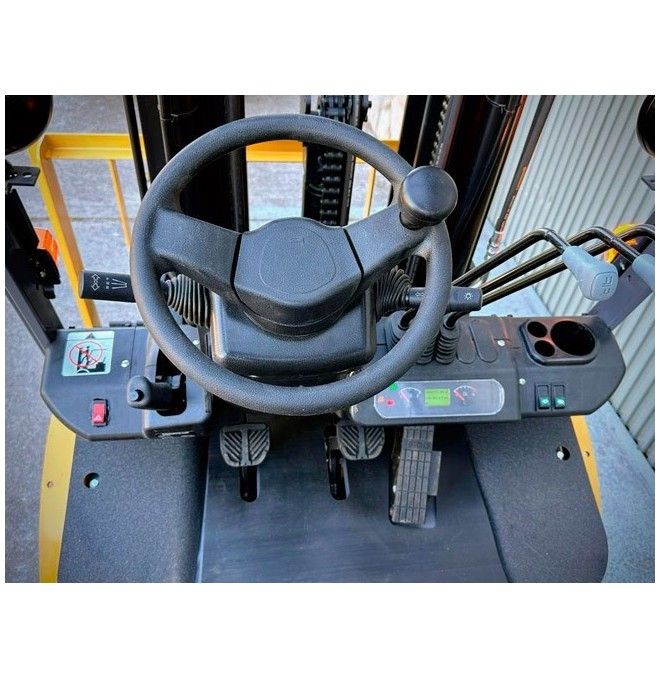

• Single handling: Designed with intuitive controls to facilitate their use and reduce the weariness of the operator.

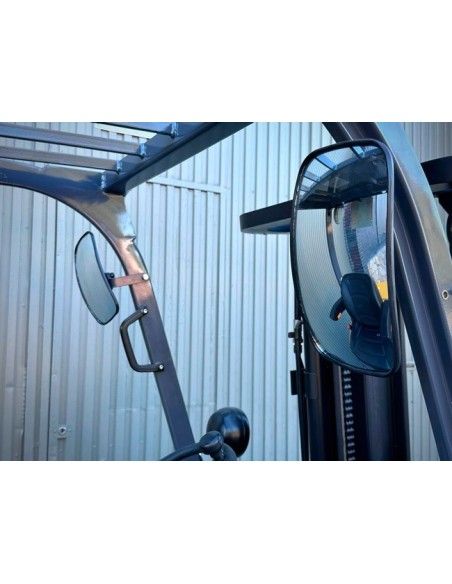

• Built-in security: It integrates standard security elements for operator and merchandise protection that is being handled.

Technical specifications:

• Model: FD35T (Tymbia)
• Load capacity: 3500 kg
• Engine: Diesel XC 4 cylinders
• Maximum lifting height: 4500 mm (TriPlex mast)

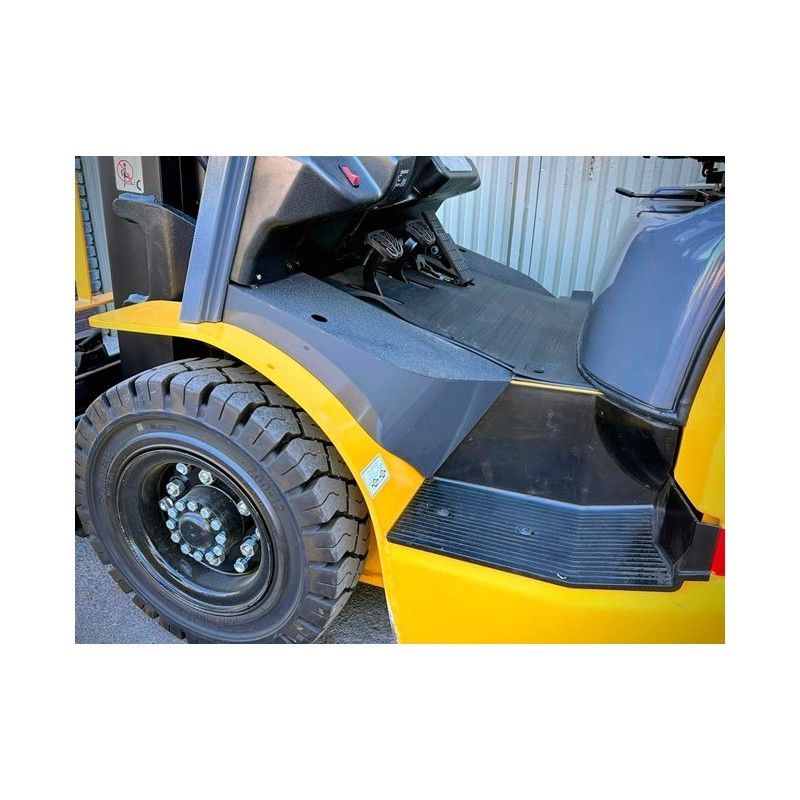

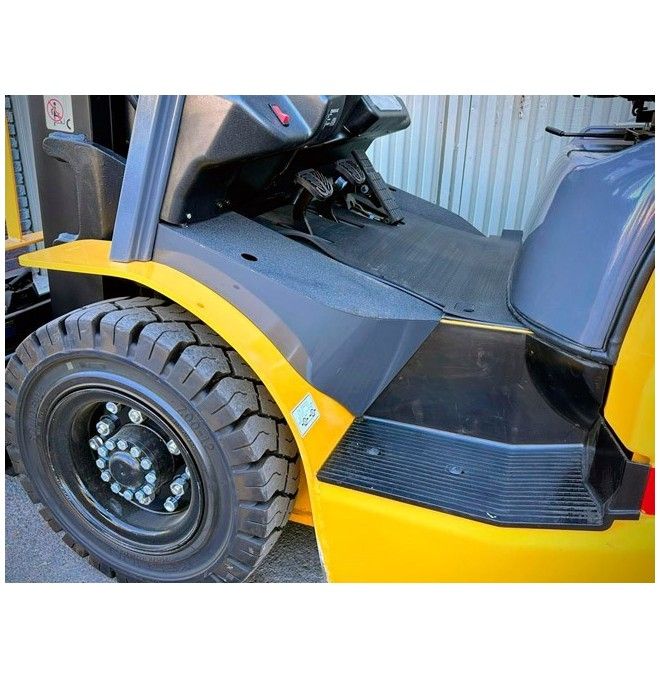

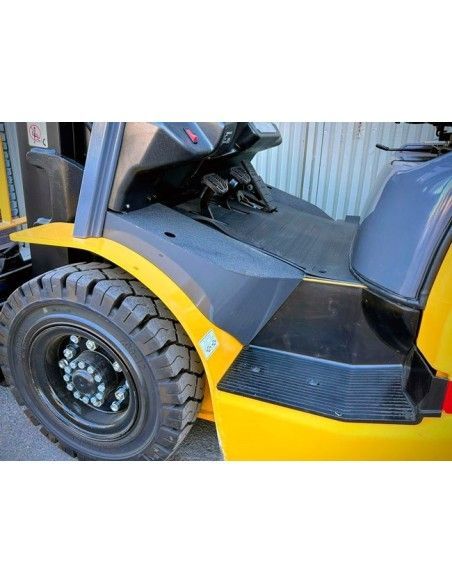

• Solid wheels
• Wheels size (front / rear): 28x9-15-12pr / 6.50-10-10pr
• Fork Size (L X W X T): 1070x125x50
• Tilt angle (Further / Back): 6/12
• Total length (without fork): 2750 mm
• Total width: 1285 mm
• Radio of rotation: 2980 mm
• Mast height downloaded: 2150 mm
• Head protector height: 2140 mm
• Weight: 4970 kg
• Scroll speed (without load / cargo): 18 / 19.5 km / h
• Lifting speed (without load / with loading): 450/500 mm / s
• Drop speed (without load / loading): 450/420 mm / s
• Overlap slope (without load / with loading): 20 / 18º

Key Benefits:

• Optimization of height storage: Thanks to its triple stage of 4500 mm, you can reach the upper levels of your shelves, taking full advantage of the available vertical space.
• Constant performance in plaintiffs: Its high reliability diesel engine provides the necessary power for heavy and continuous work, both indoors and the weather.
• Durability for demanding environments: its solid manufacture guarantees a long service life and great resistance even in the most difficult working conditions.
• Adaptability to various manipulation needs: Its versatile design makes it suitable for a wide variety of movement tasks and lifting materials.

** They must have their own discharge means.
