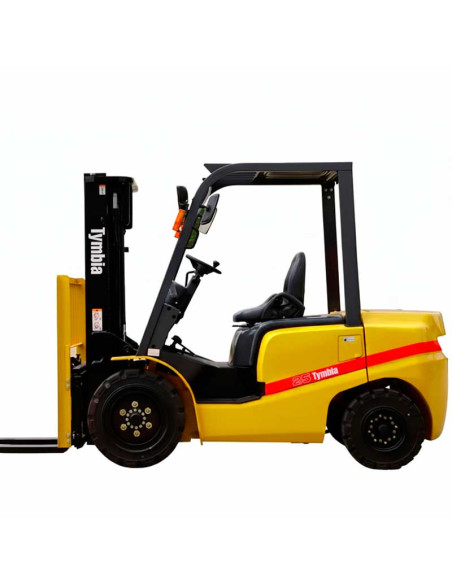

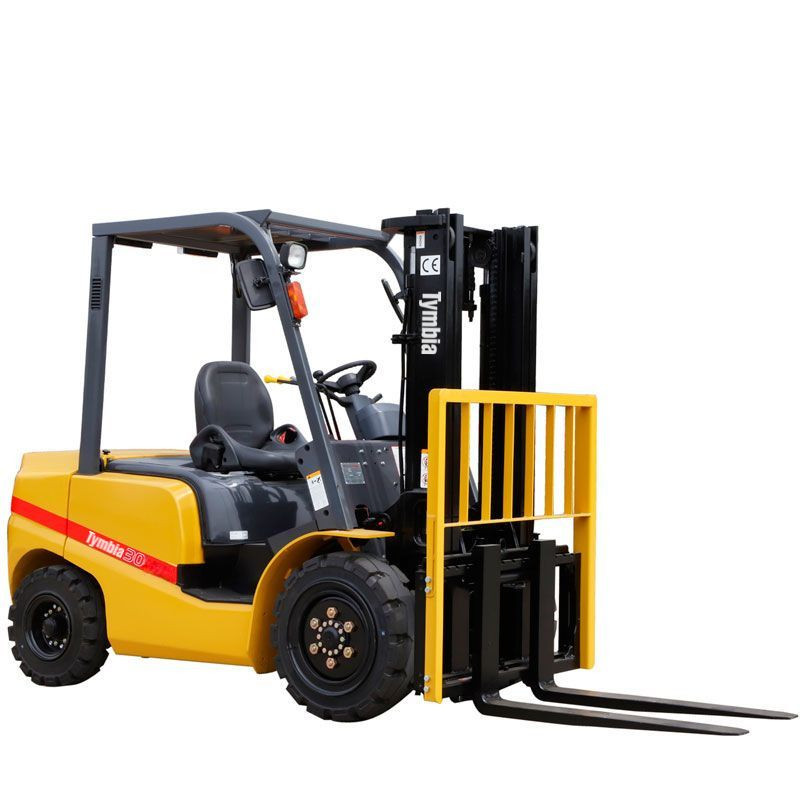

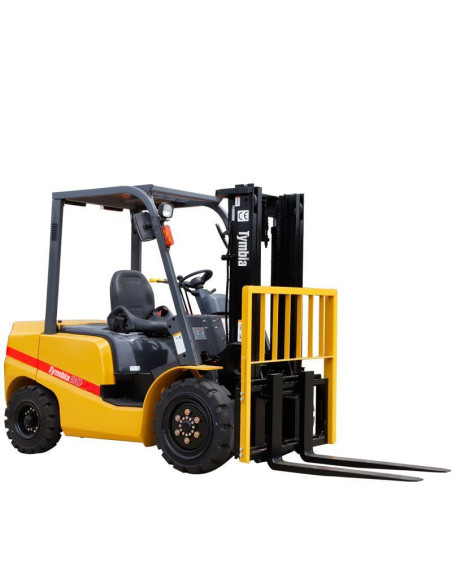

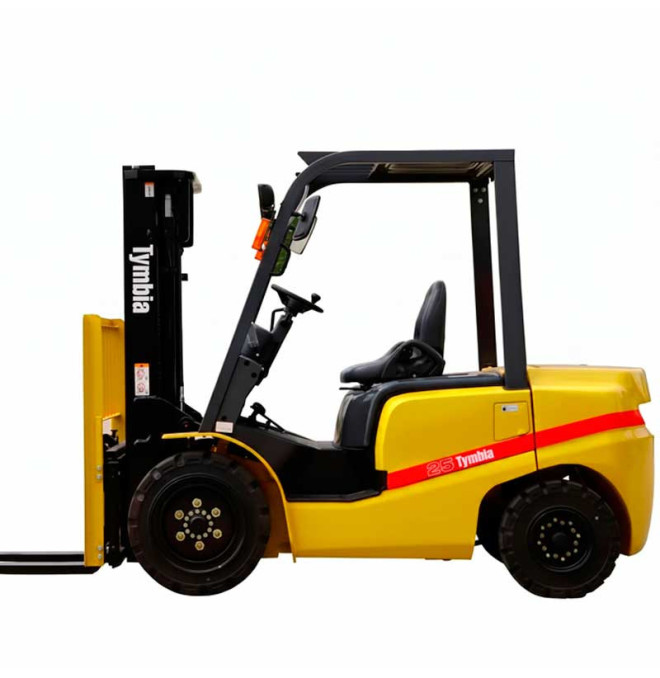

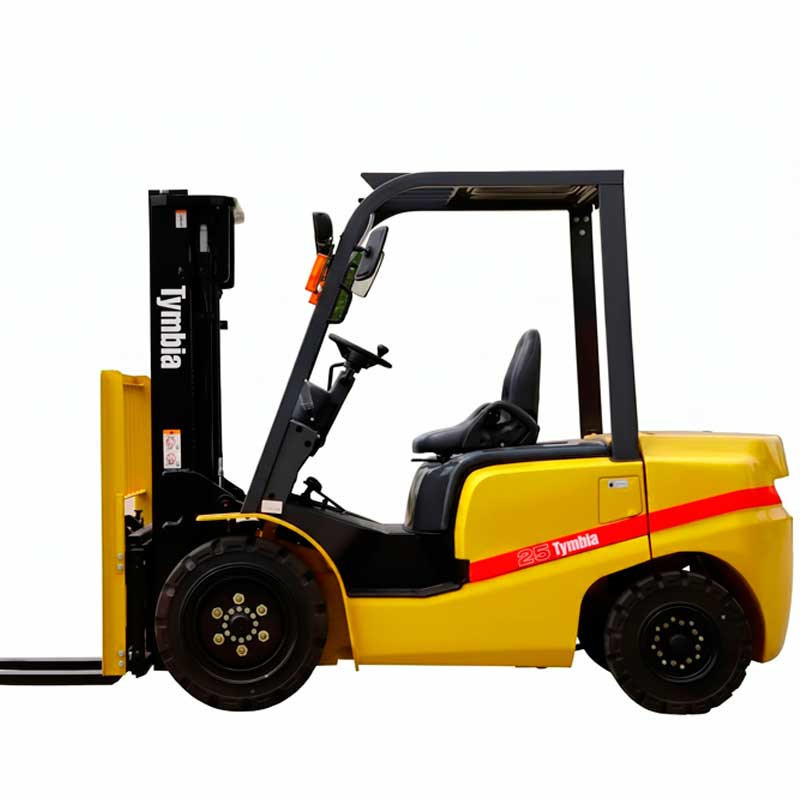

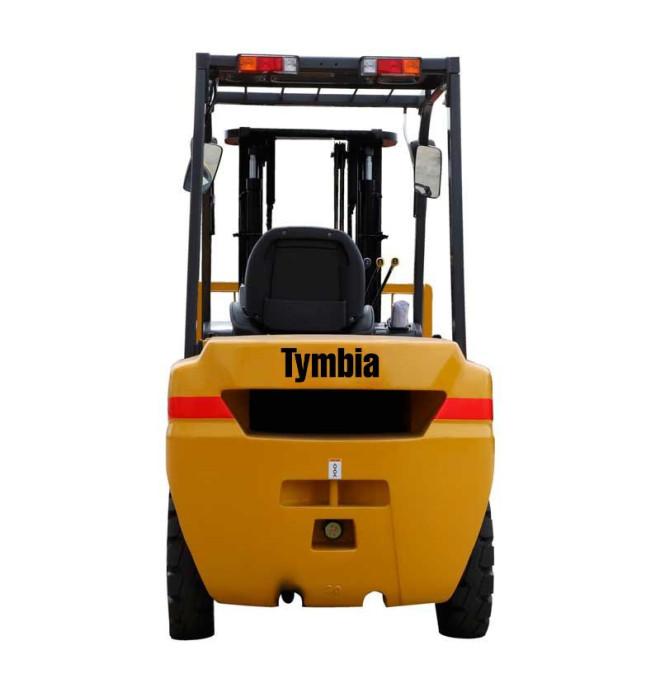

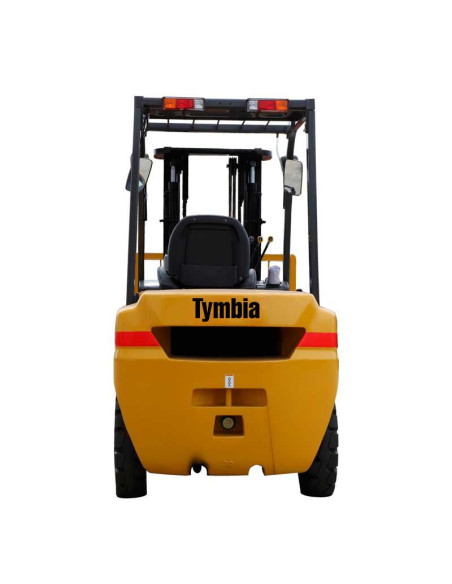

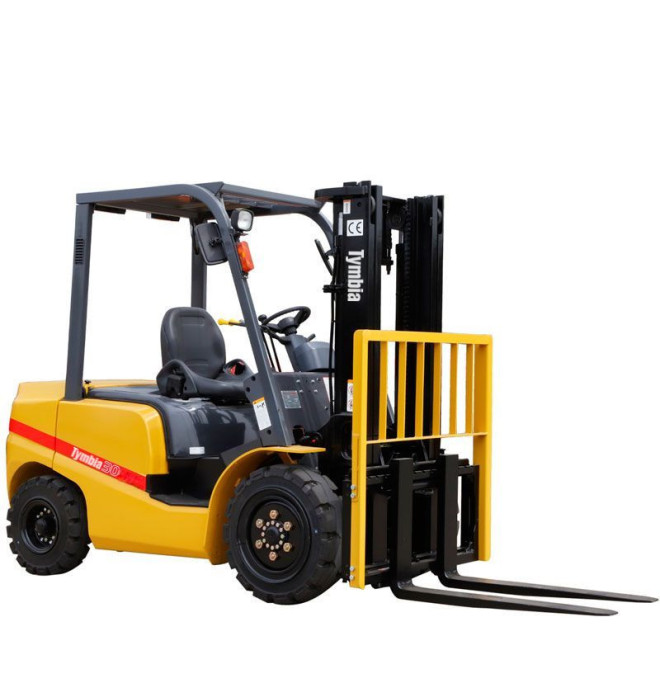

The forklift diesel TYMBIA 2,5TN is designed to offer power, stability and efficiency in demanding industrial and logistics environments. With a maximum lifting capacity of 2,500 kg and a 500 mm load center, this model integrates a diesel engine compatible with Euro5 regulation, guaranteeing a cleaner and more efficient operation. Its automatic transmission Power SHIFT (1-1) and its hydraulic system with working pressure of 180 kg / cm² allow fluid work cycles, with lifting speeds of up to 580 mm / s (without load) and 550 mm / s.
Equipped with tires and a battle of 1,600 mm, the FD25 offers a solid traction and an outer turning radius of only 2,240 mm, facilitating maneuver on narrow corridors (stacking hall at right angle: 2.690 mm). It includes hydraulic service and mechanical parking brake brakes, 12V / 80Ah battery and a fuel tank of 70 liters for prolonged days. Its operating weight of 3,670 kg and balanced load distribution ensure ramp stability of up to 23% with maximum load.
Featured features (FD25 model)
- Maximum capacity: 2,500kg | Loading center: 500mm
- Engine and regulations: Diesel (EURO5 compliance)
- Transmission: Power SHIFT T / M (1 March / 1 March)
- Large aluminum radiator
- Phonabsorbent material
- Tires: Tires | Strikers: 7.00-12-12pr | Rear: 6.00-9-10PR. Superelastic wheels
- Main dimensions:
- Total length without forks: 2.530 mm
- Total width: 1,150 mm
- Mast height (forks lowered): 1,995 mm
- Total height with elevated forks (with backup): 4.030 mm
- Lifting performance:
- Lifting height: 4,700 mm | FREE ELEVATION: 160 mm
- Speed Lifting: 550 mm / s (load) / 580 mm / s (without load)
- Raised speed: 450 mm / s (load) / 550 mm / s (without load)
- Maneuverability and traction:
- Outside radius: 2,240 mm
- Hall Stacking 90 °: 2.690 mm
- Max tensile force: 1,650 kg (load) / 830 kg (without load)
- Overlado pending (1.6 km / h): 23% (load) / 18% (without load)
- Systems and autonomy:
- Brakes: Hydraulic service (pedal) | Mechanical parking (lever).

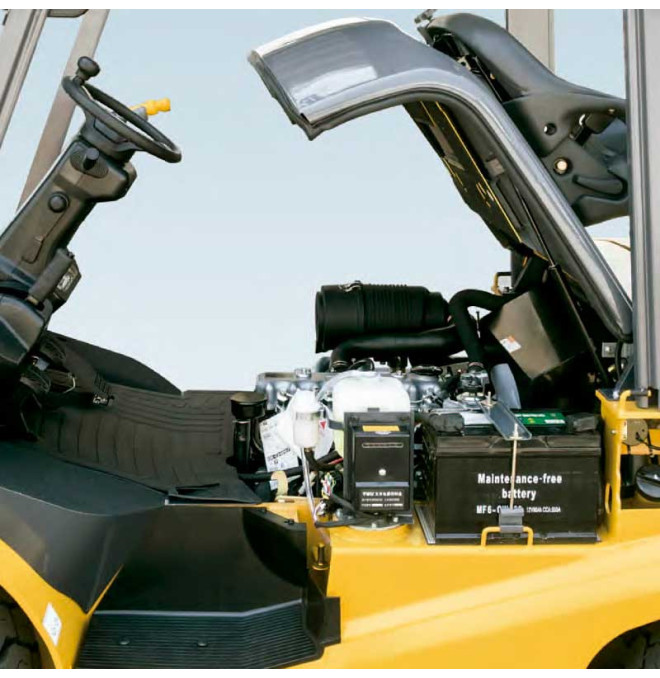

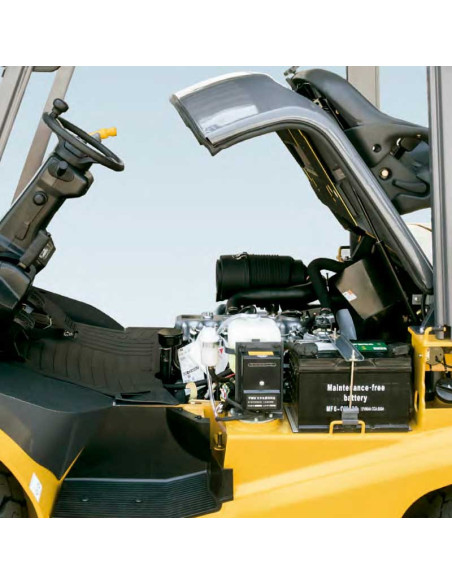

- Battery: 12V / 80AH | Fuel tank: 70 L
- Pressure Hydraulic System: 180 kg / cm²
- Team weight: 3.670 kg
- Equipment and security:

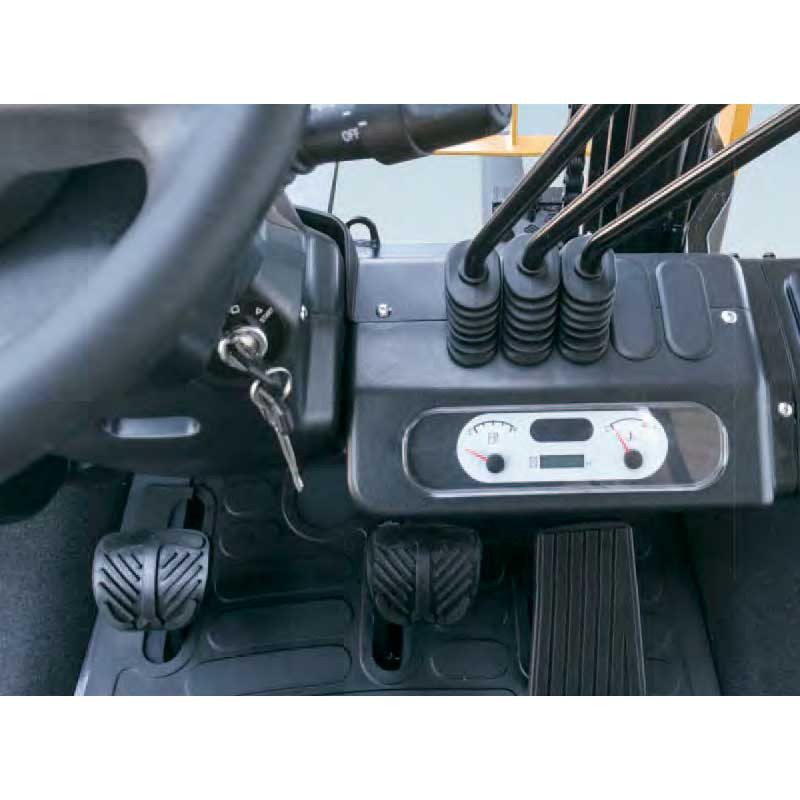

- Premium Display
- Seat with suspension and safety switch
- PVC roof
- Full system of lighting Led
- Light rotary
- Buzzer
- Reverse alarm lights
- Spherical mirror
Advantages
- Regulatory compliance and efficiency: diesel technology aligned to Euro5, combined with a 70 L tank that allows extensive days without frequent interruptions.
- Maneuverability in reduced spaces: A 2,240 mm rotation radius and a stacking corridor of 2.690 mm optimize the use of space in compact stores.
- Fast and stable hydraulic operation: pressure of 180 kg / cm² and lifting speeds / downhow (up to 580/550 mm / s) for agile load cycles without compromising control.
- Traction and slope capacity: Configuration with tires and chassis of 3,670 kg that guarantees a slope capacity of 23% with full load, ideal for ramps and irregular terrain.
- Double operational security: Precision hydraulic braking for the daily service and mechanical hand brake for secure parking, backed by a balanced weight distribution.
Recommended uses (Capacity-based, configuration and environment)
- Logistics and warehouses: Movement of pallets and unitary loads up to 2,500 kg in narrow corridors and loading / unloading areas.
- Manufacturing and heavy industry: Manipulation of raw materials, metallic components and finished products in production environments.
- Mixed environments Interior / outdoor: Thanks to its tires and robust traction, it is suitable for cargo, docks, works of construction And warehouses with unpaved surfaces.
- Sectors with slope requirements: operations in access ramps, high platforms or terrains with unevenness of up to 23% with maximum load.
- High Autonomy Applications: Long Distribution Days, Materials construction and agriculture where the 70 l deposit and the reliability of the Power Shift diesel system are critical.
** They must have their own discharge means.
