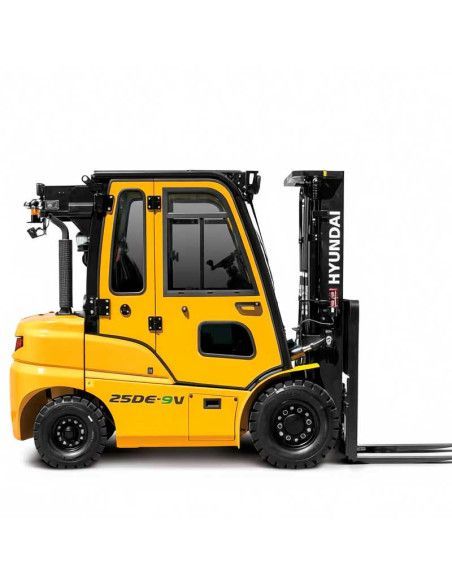

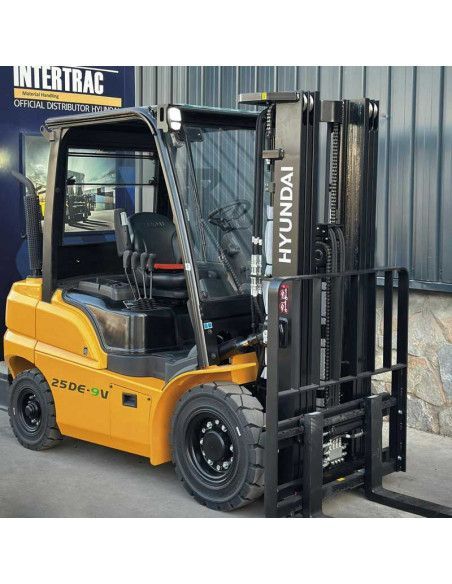

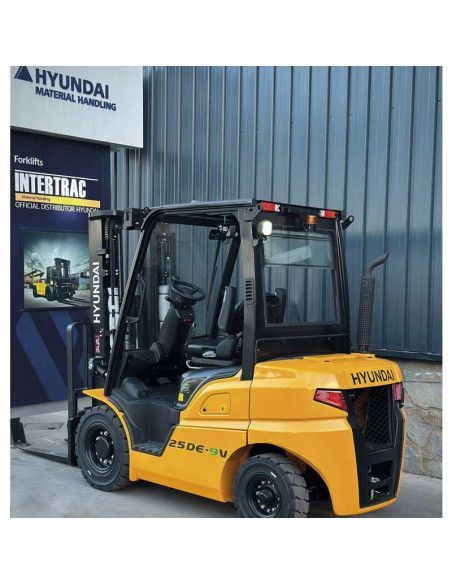

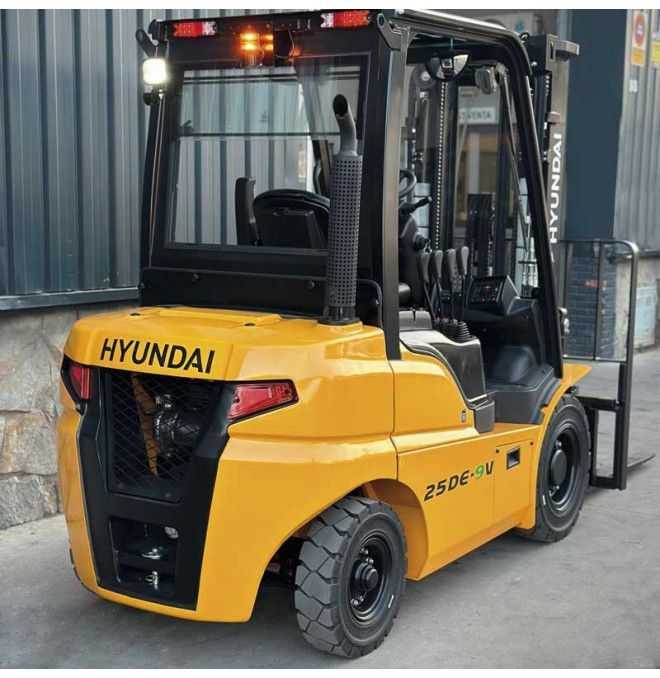

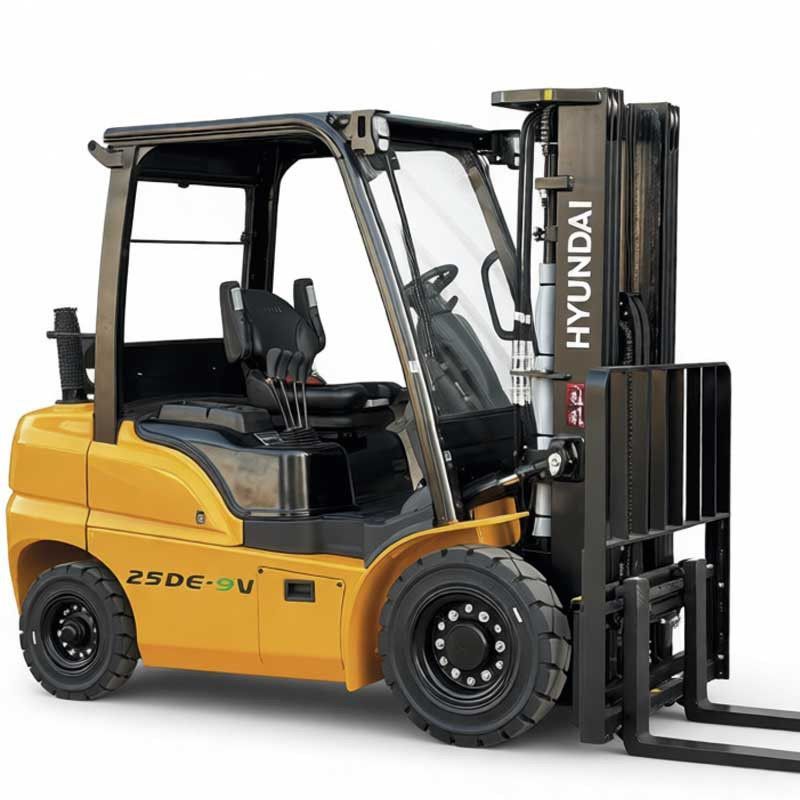

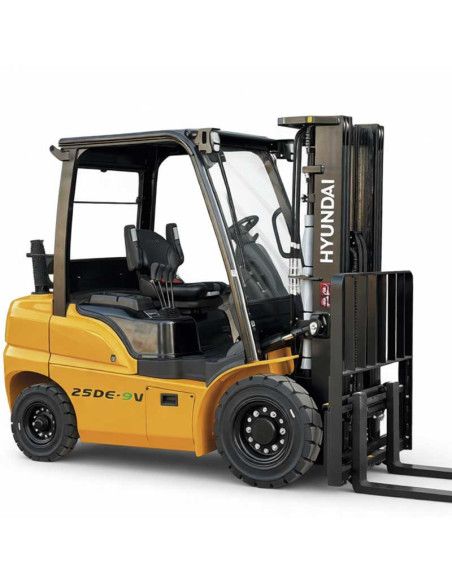

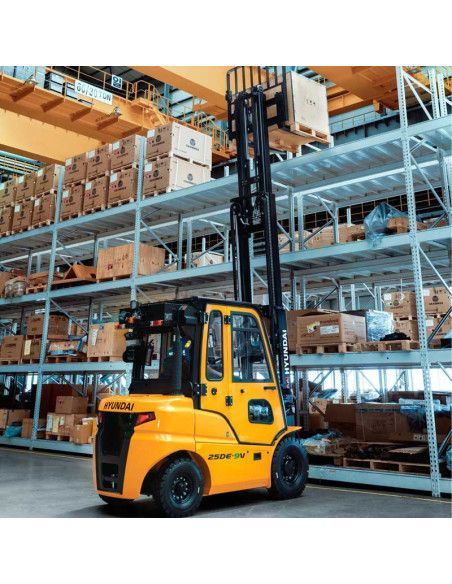

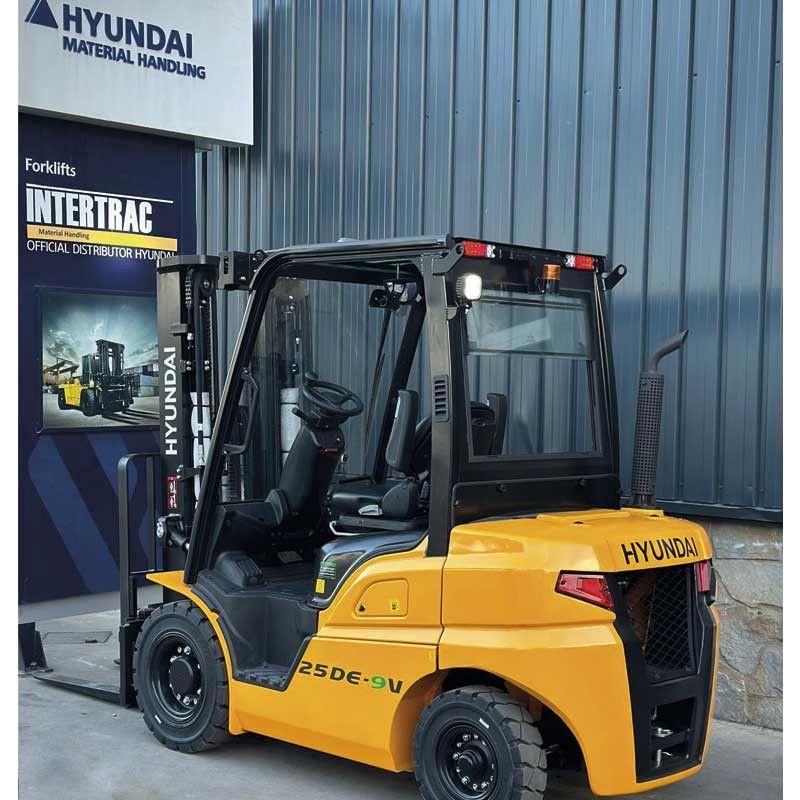

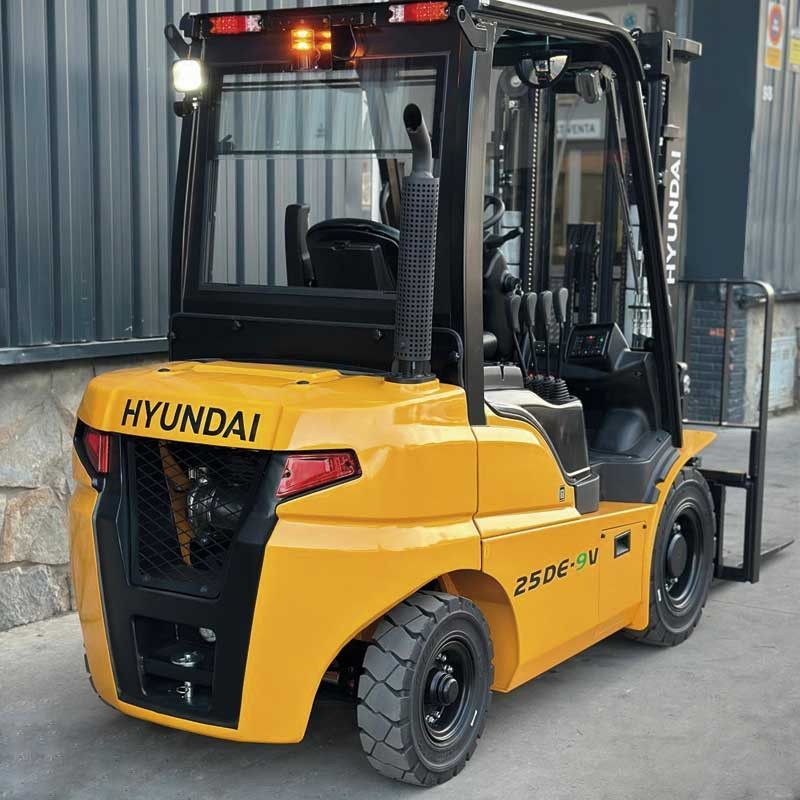

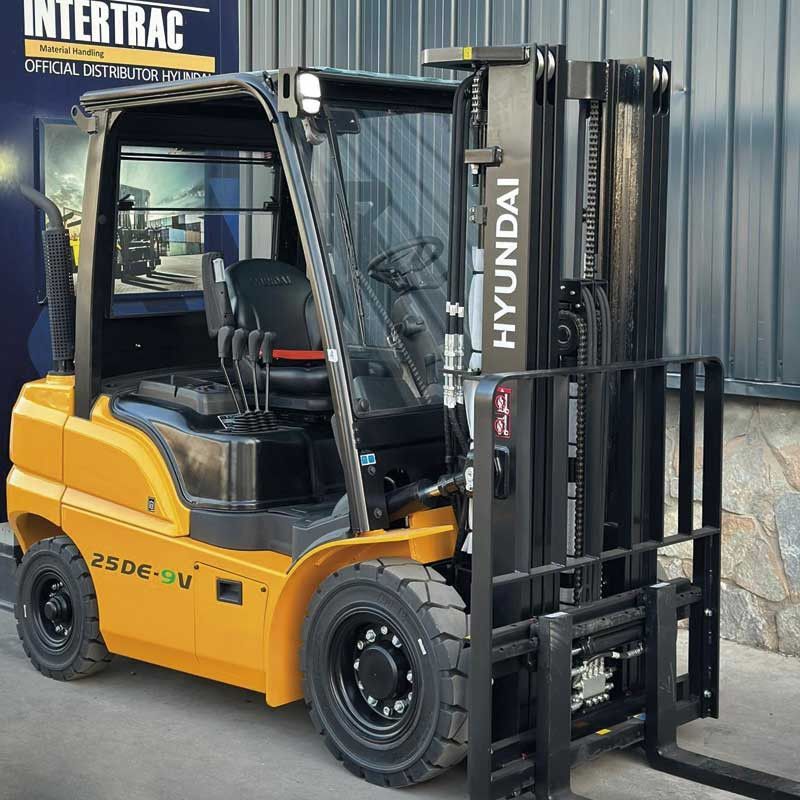

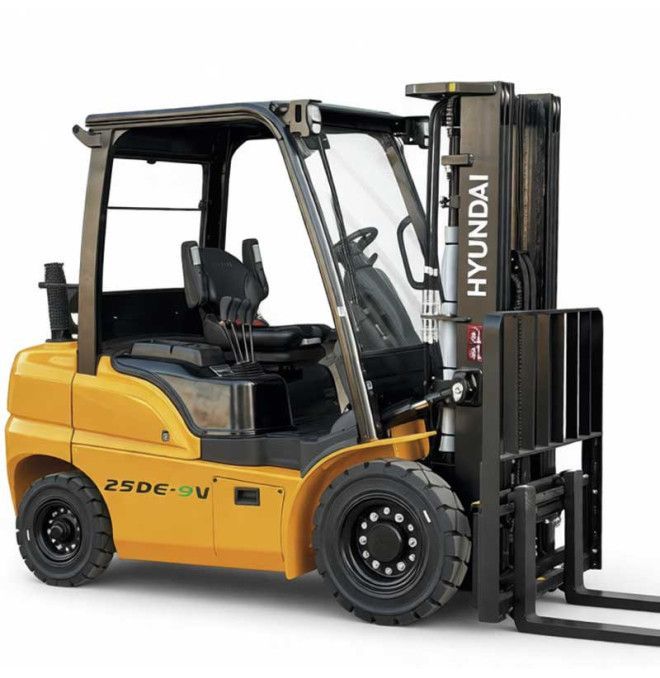

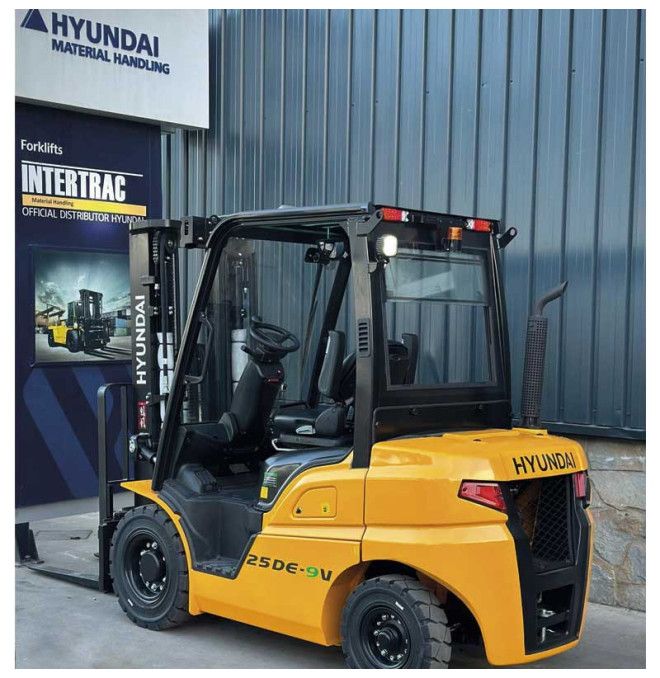

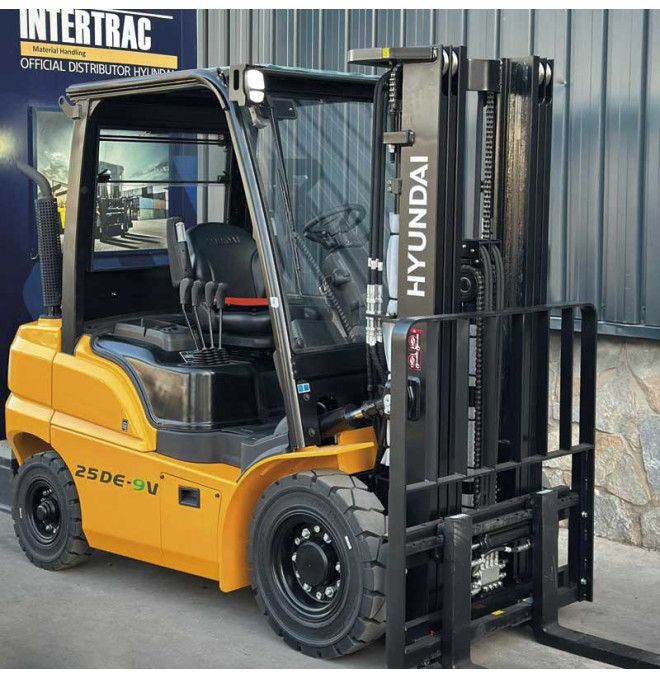

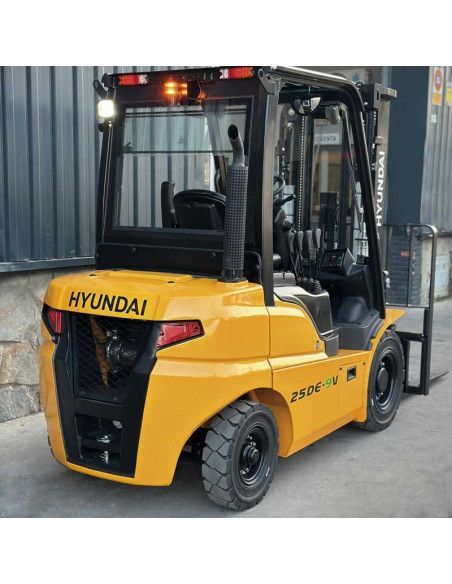

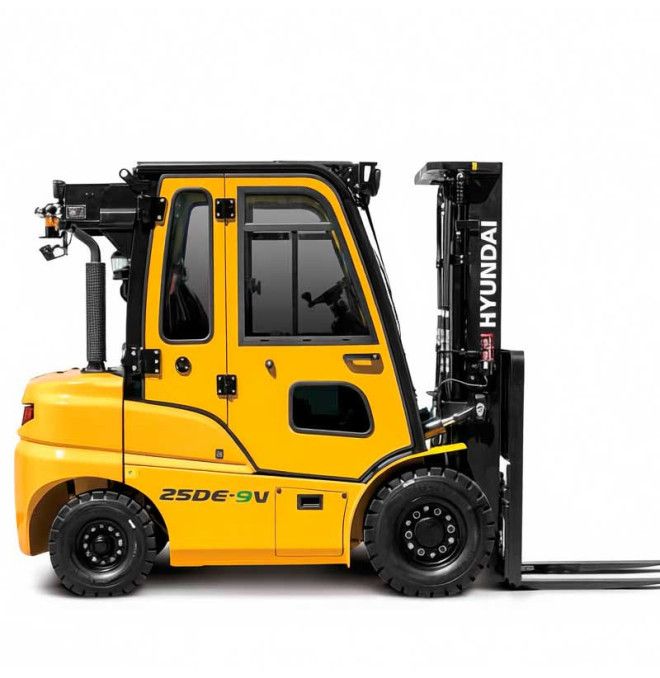

25DE-9V 2500 kg diesel forklift - Triplex 4700mm mast

The Diesel Forklift Hyundai 25de-9V It is the perfect solution for demanding logistics operations that require high efficiency and environmental compliance. Equipped with the HDI DN02 engine of 49.1 kW (67 hp) that complies with the Euro Stage V regulations, it offers a maximum torque of 25 kgf · M to OLO 1,600 rpm, guaranteeing powerful performance even at low Revolutions

• Cabin: front windshield wiper, upper and rear (semicabine)

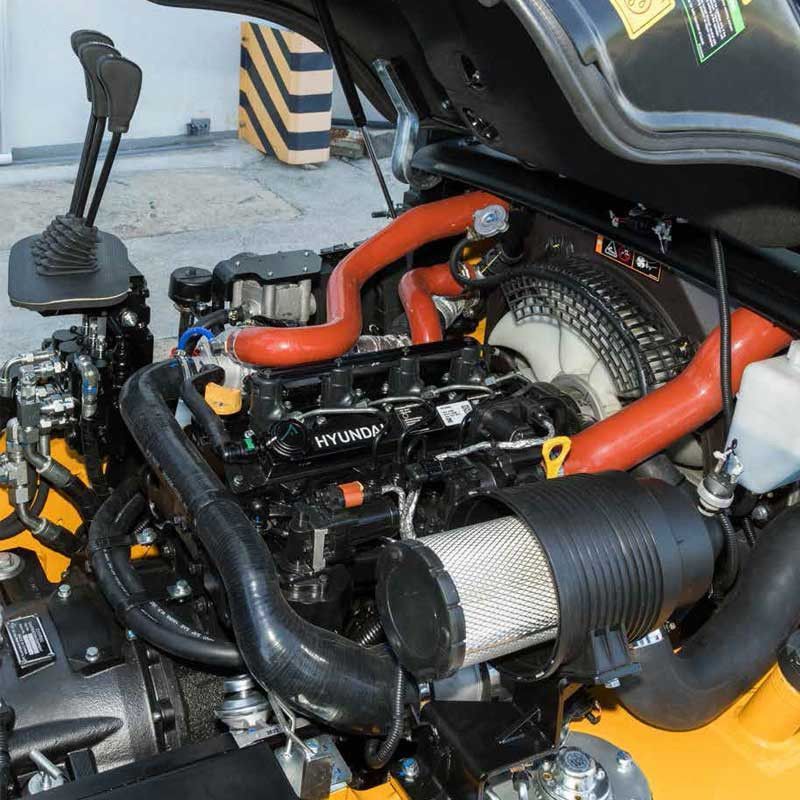

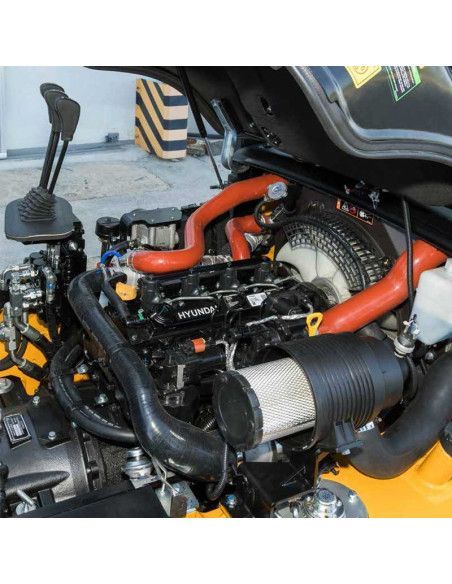

• Engine: Hyundai DN02

Designed for durability and comfort, it incorporates a Power SHIFT transmission with high efficiency torque converter, ideal for heavy work and irregular terrain. In addition, it has selectable operation mode (STD / PWD), allowing the operator to adjust the power of the motor according to the task and save up to 4% more fuel in standard mode.

Advanced security:

• Automatic parking brake
• System HAC (Attended Attendance)
• OPSS (operator presence detection system)
• Safety belt interlock (optional)
• Programmable speed limit
• Password protection of boot (up to 10 users)

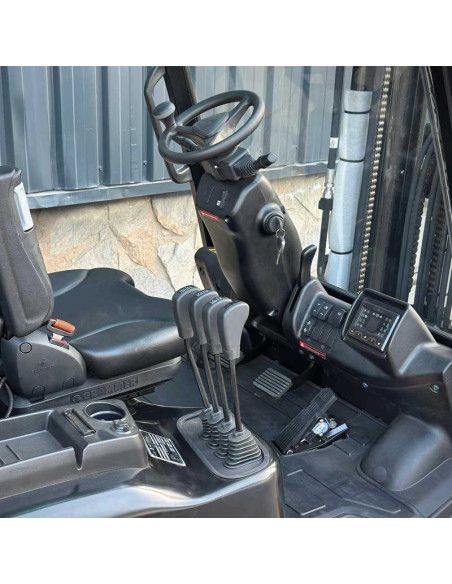

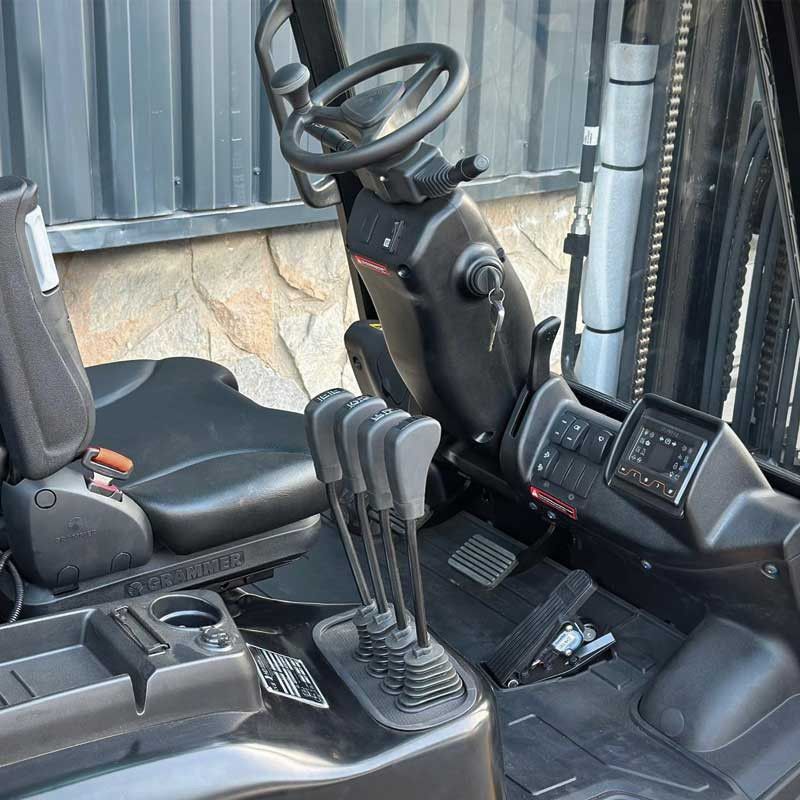

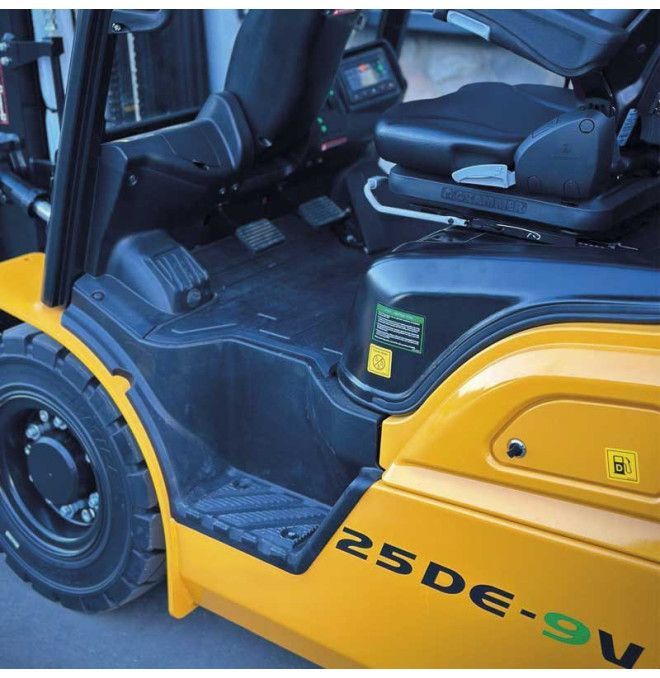

Ergonomics and comfort:

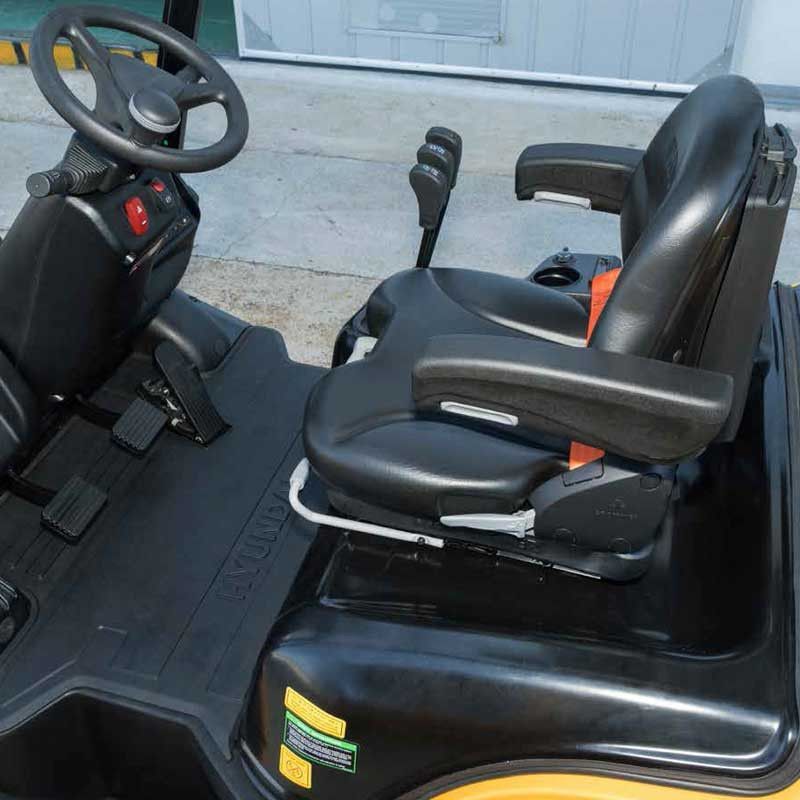

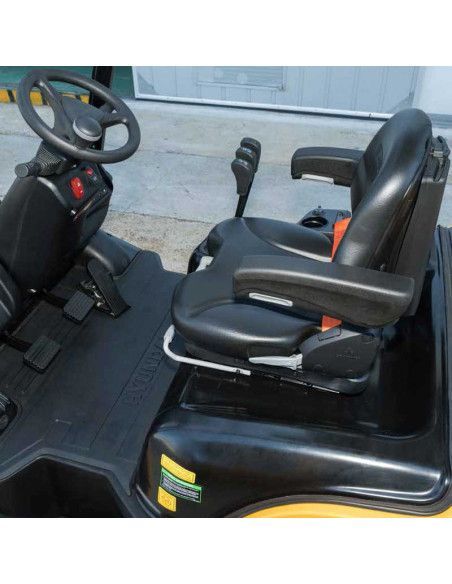

• Grammer seat with full suspension (optional with heating, armrest and belt sensor)
• Steering wheel with reduced diameter and hydraulic power steering (HPS)

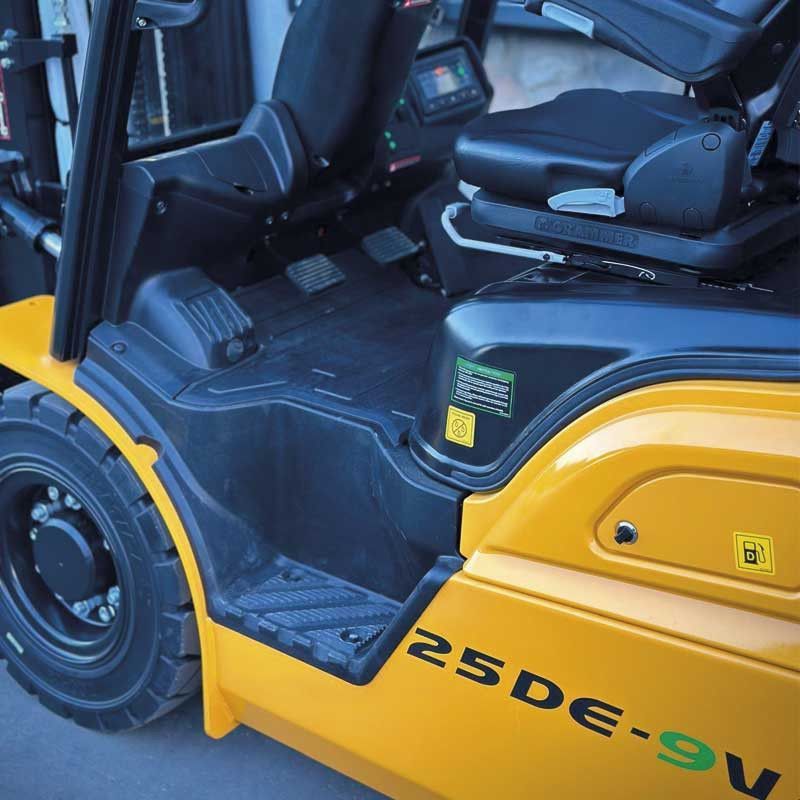

• Ergonomic pendant pedals

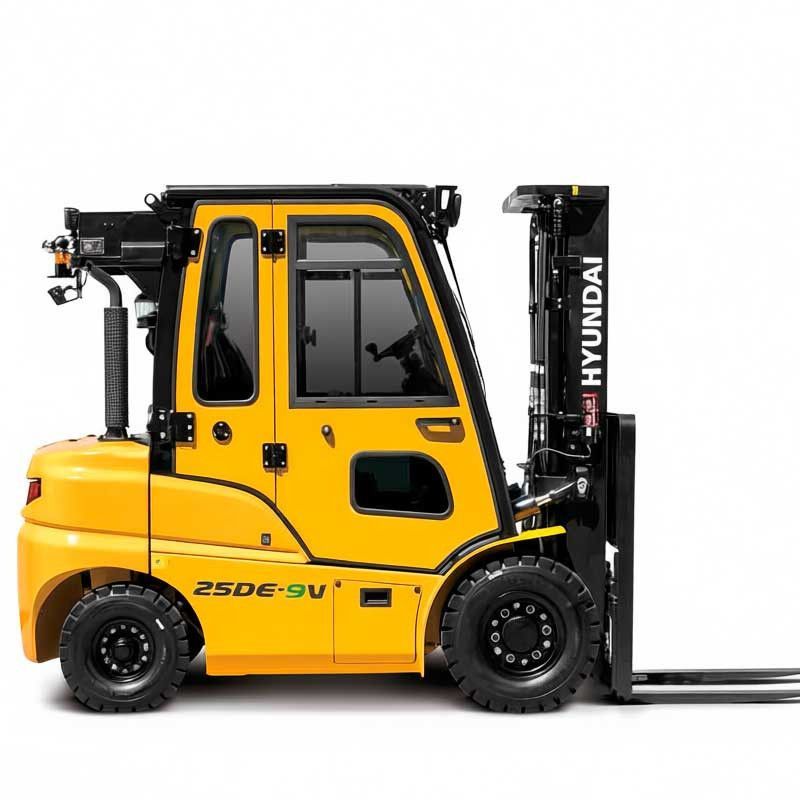

• Optional cabins with air conditioning and heating
• Digital color monitor with integrated diagnosis (MCU)

Simplified maintenance:

• Remote motor oil oil filter
• Fuse box Stanca (resistant to dust and water)
• Side plates and floor without tools
• Integrated management of the Doc / DPF system without dismantling counterweight
• Long-lasting LED lamps

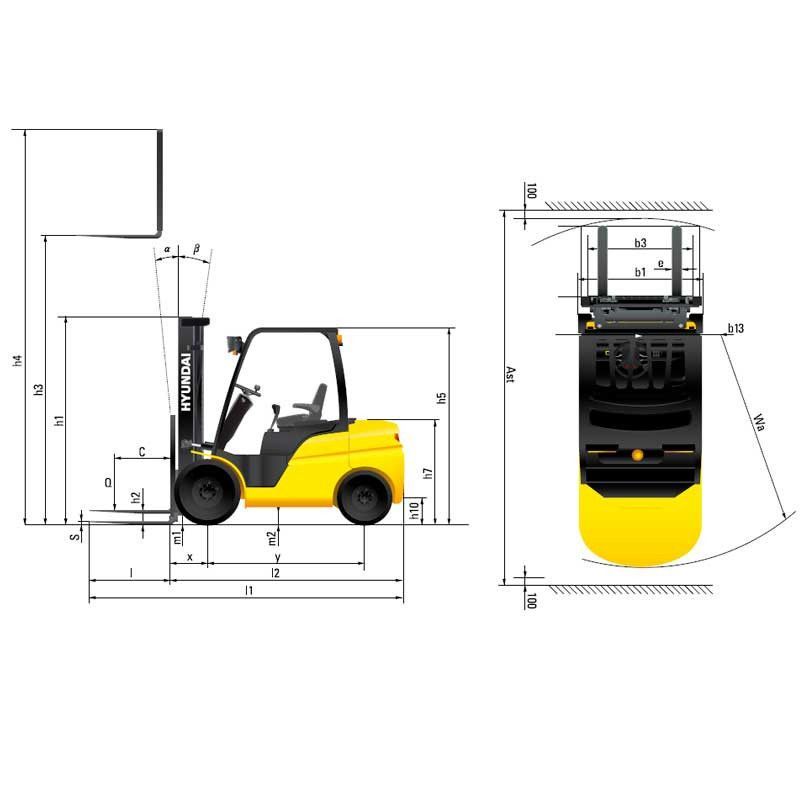

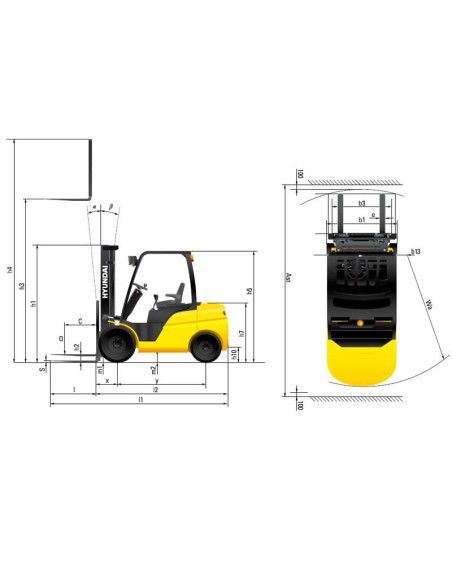

Key technical data (25DE-9V):

• Load capacity: 2,500 kg
• Mast: Triplex 4700 mm
• Cargo center: 500 mm
• Standard lifting height: 3.305 mm
• Scroll speed (downloaded): 18.8 km / h
• Ramp capacity (loaded): 36.2%

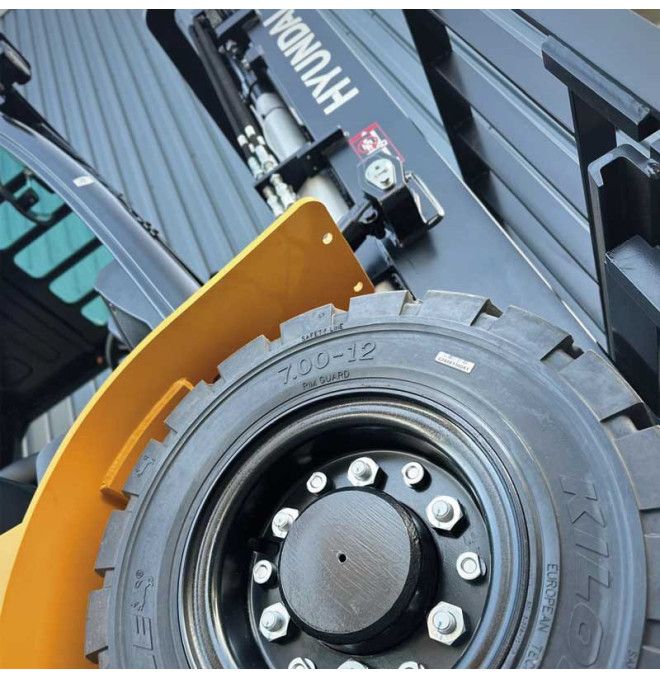

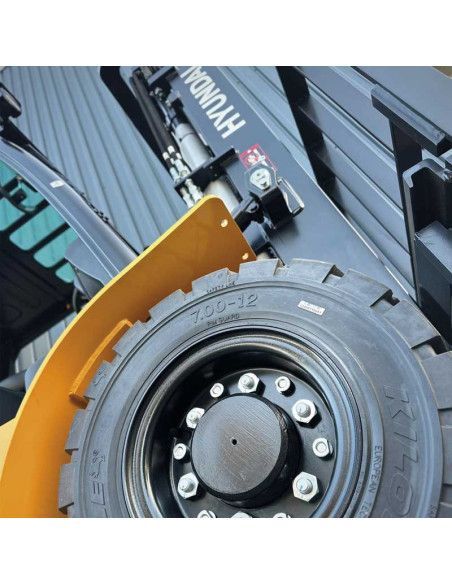

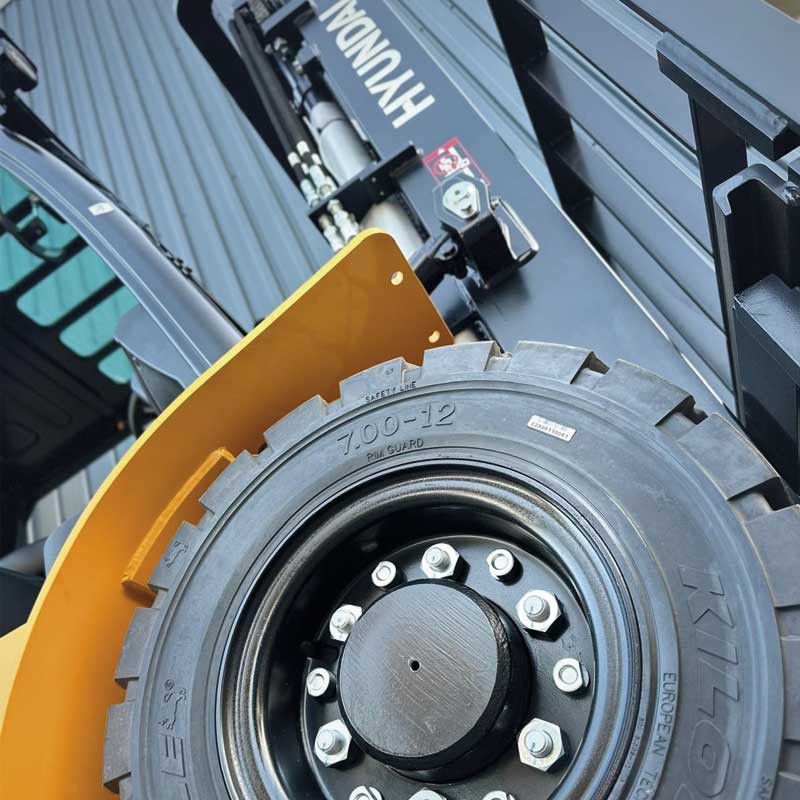

• Front tires: 7.00-12-14pr
• Rear tires: 6.00-9-10pr
• Radio of rotation: 2.355 mm
• Fuel consumption (VDI cycle): 5.2 l / h
• Implement: FMN01 + lateral displacer Anqing (Hook-on)
• Load back
• Handle: (45 × 122) × 1200 mm
• Hydraulics: 4-way valve, Mast with 4 integrated hydraulic lines
• Safety system: OPSS limits translation and elevation
• Cabin: front windshield wiper, upper and rear (semicabine)
• Seat: Grammer PVC with armrest left and right
• Safety belt: with standard EU lock
• Visibility: Panoramic mirror
• Warning Light: Amber LED Balliza
• Lighting: Front and rear LED Lighthouse LED
• Safety lamps: Not equipped
• Rear handle with horn push button
• Engine: Hyundaii DN02 Stage V
• Wheels: Simple solids
• Weight: 3657kg

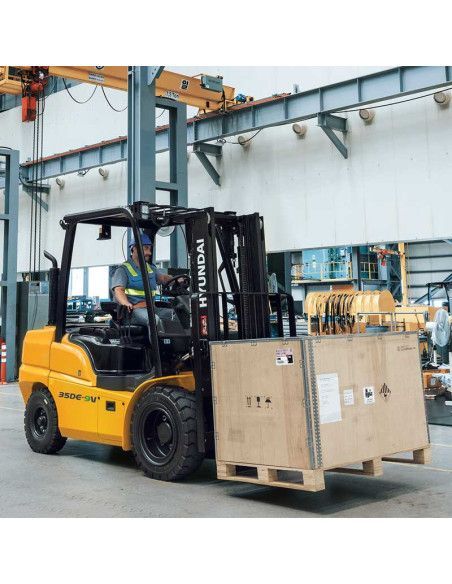

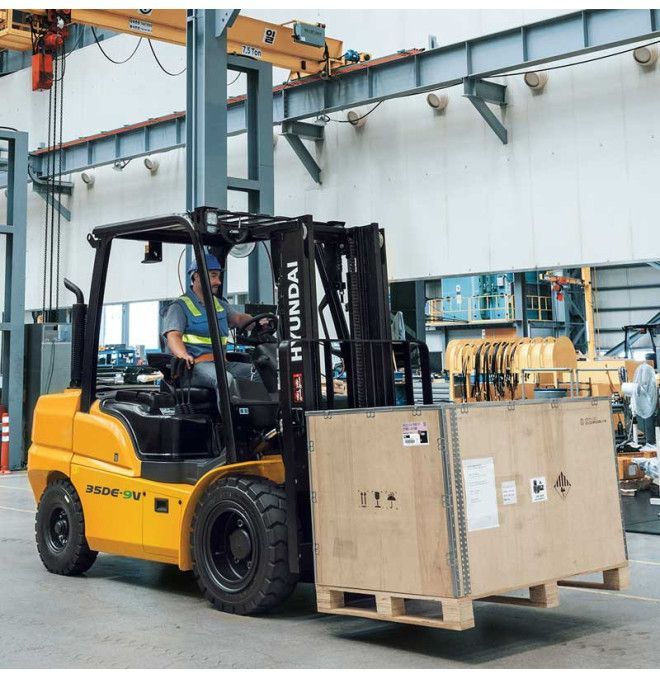

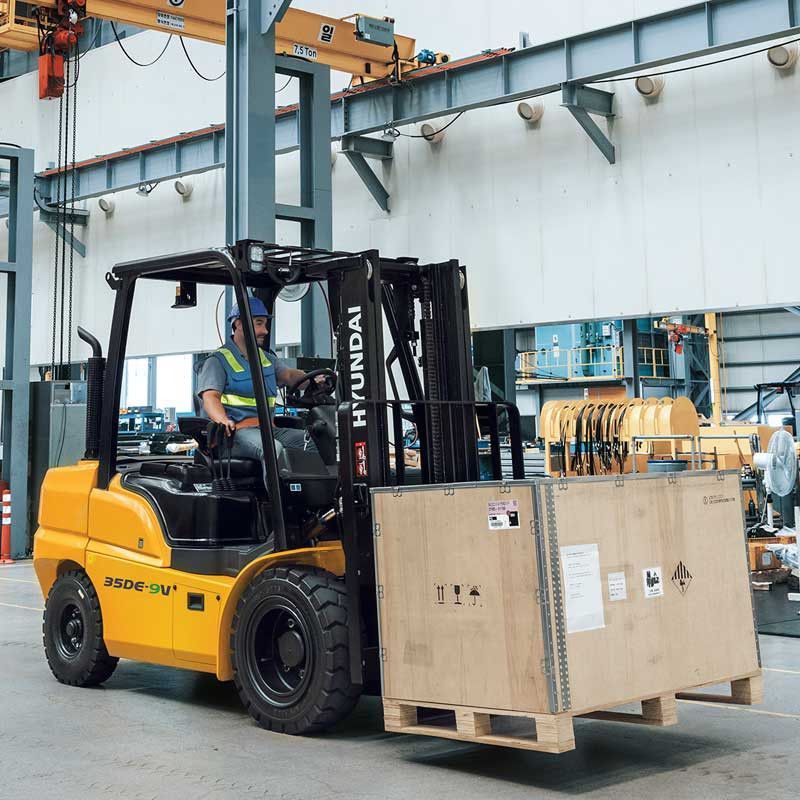

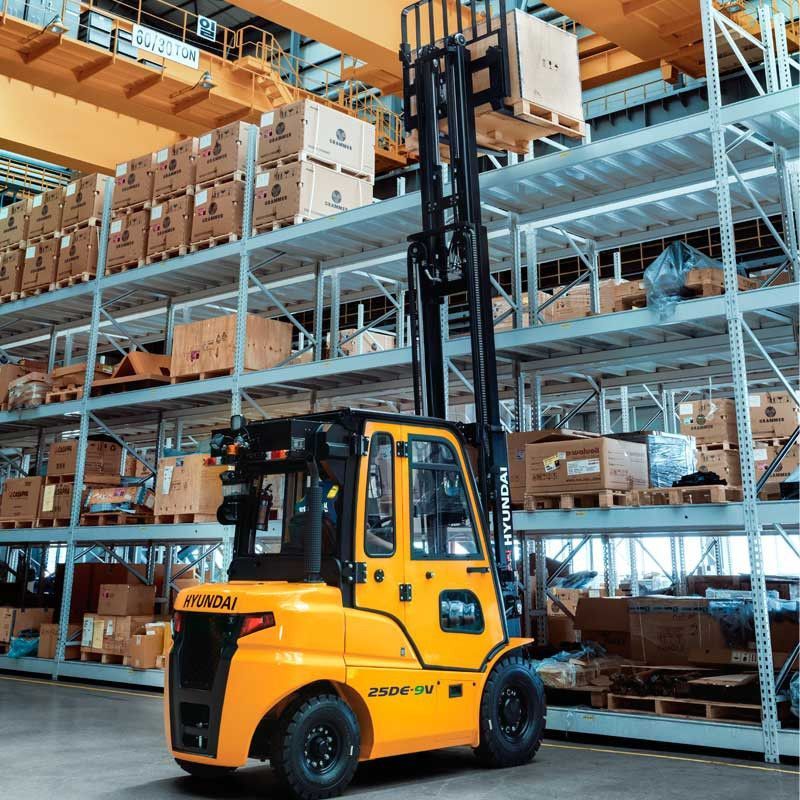

Ideal for warehouses, ports, construction and any industrial environment required reliability, energy efficiency and environmental compliance.

** They must have their own discharge means.
