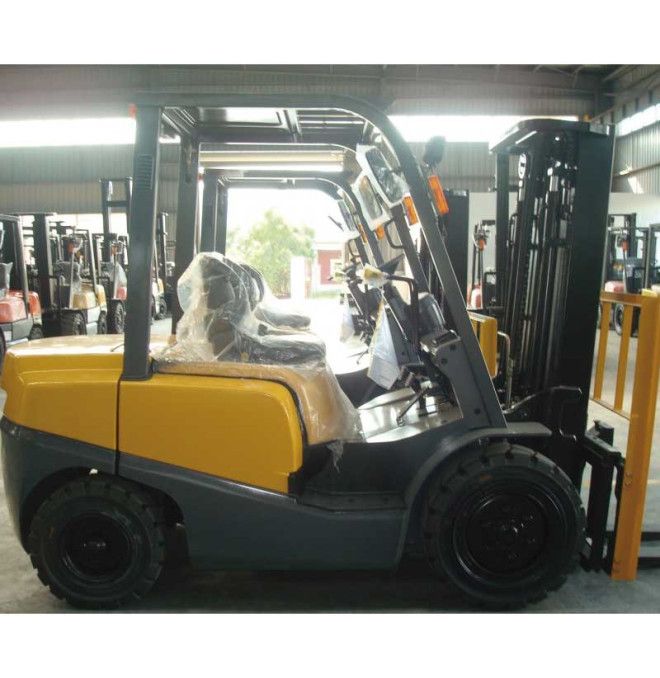

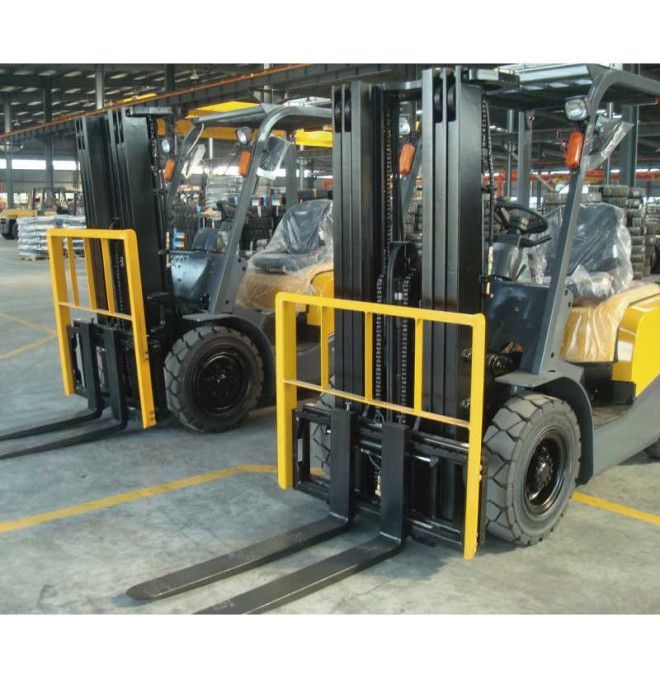

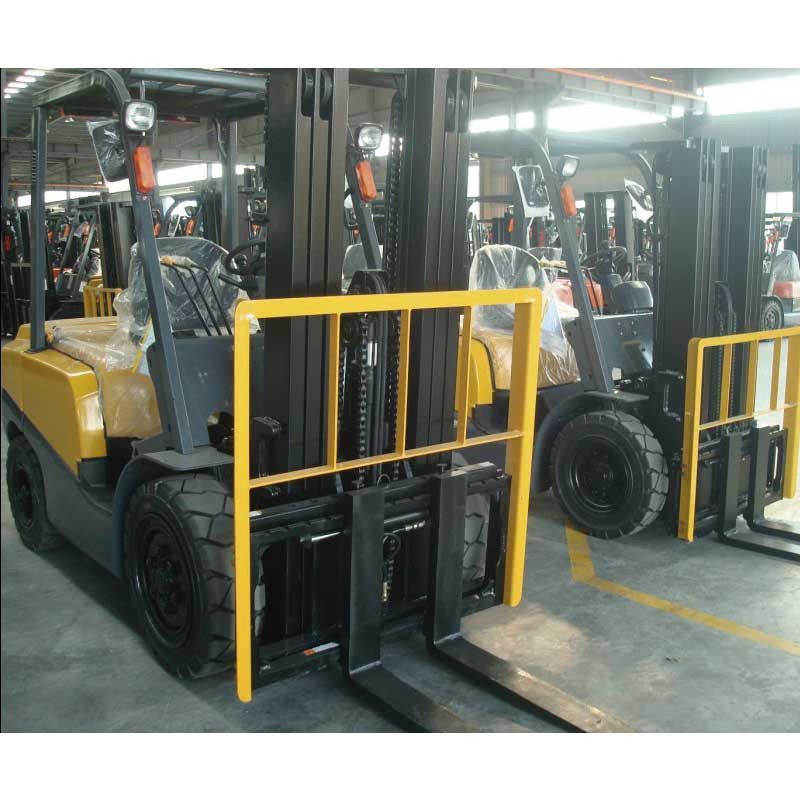

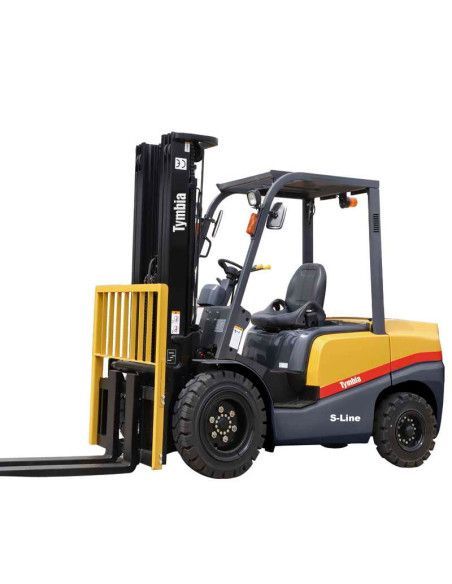

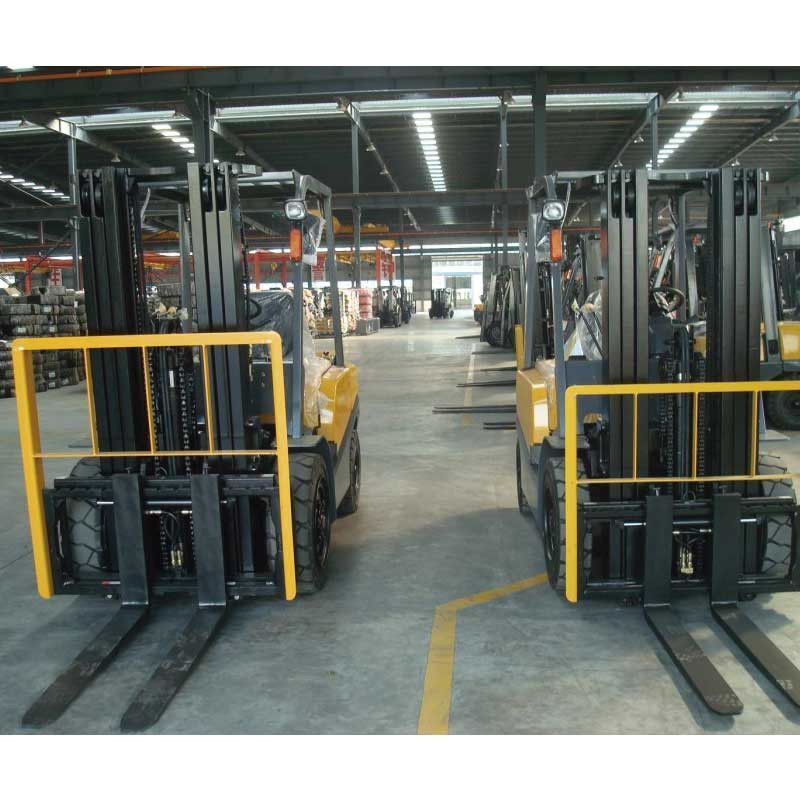

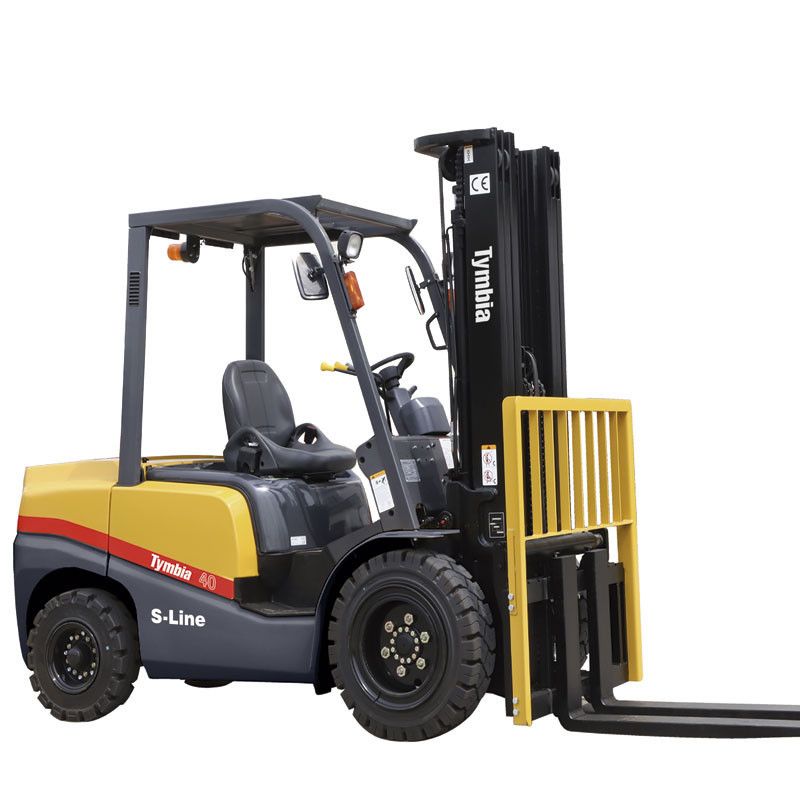

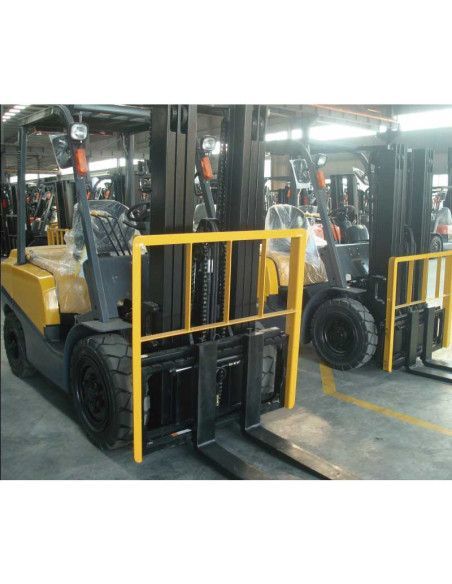

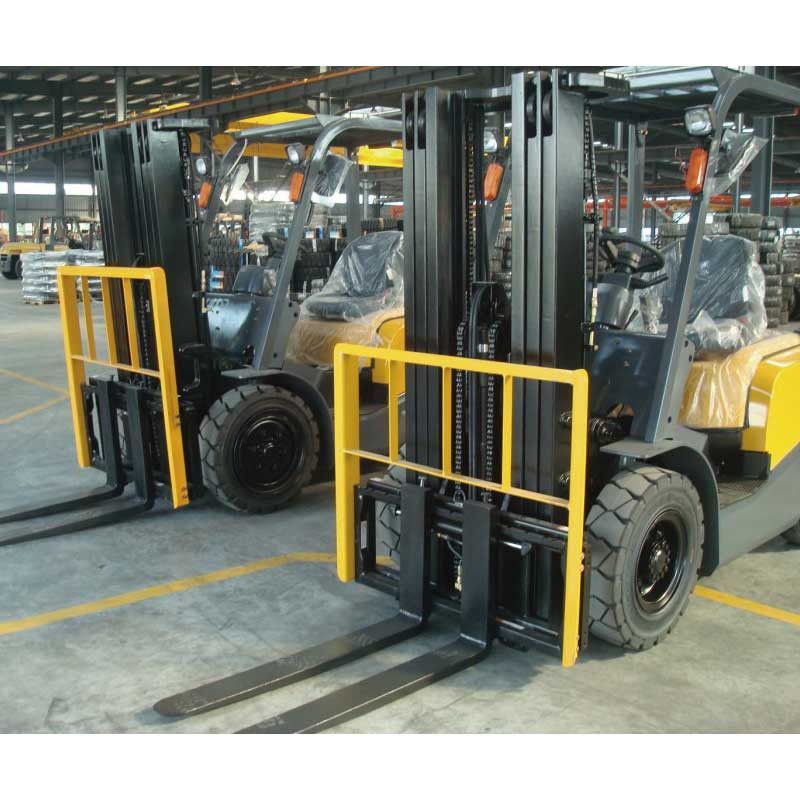

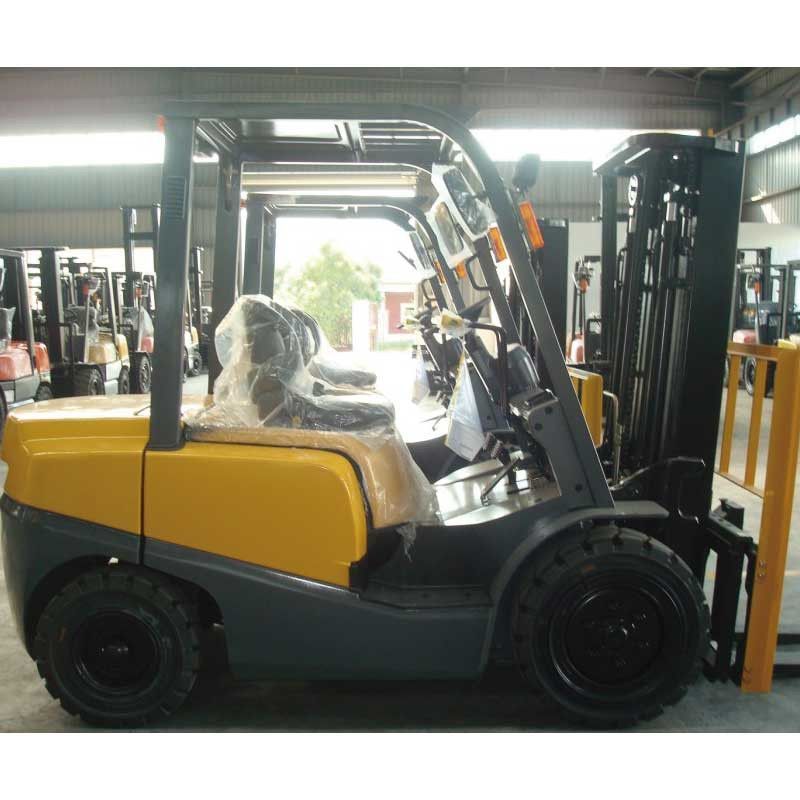

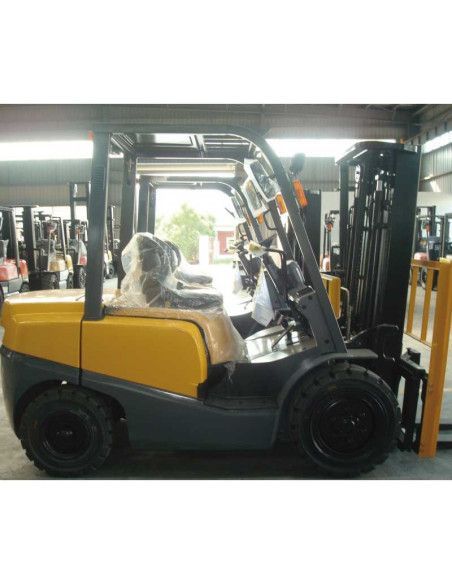

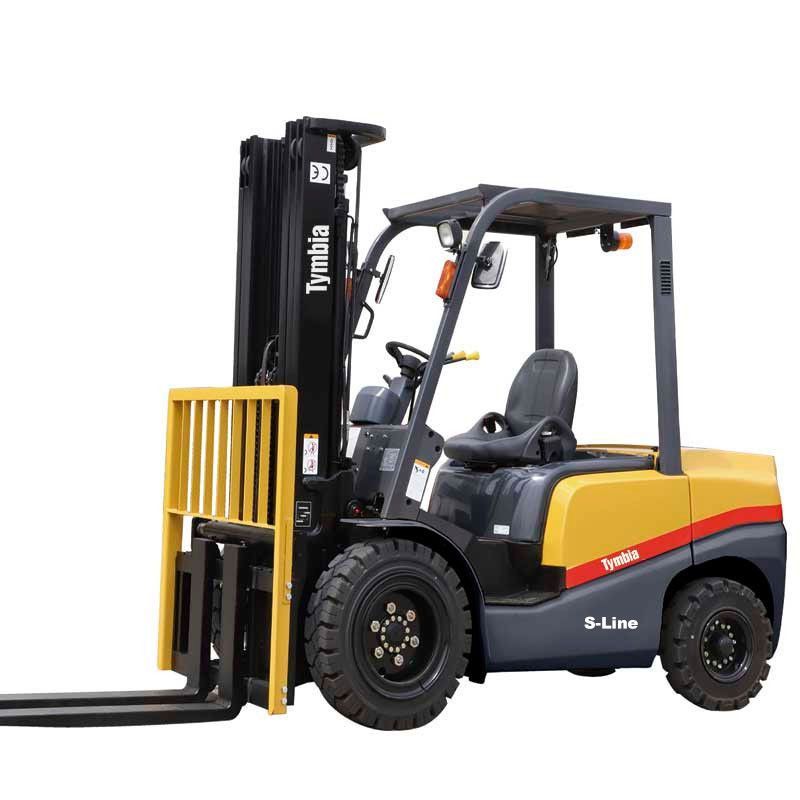

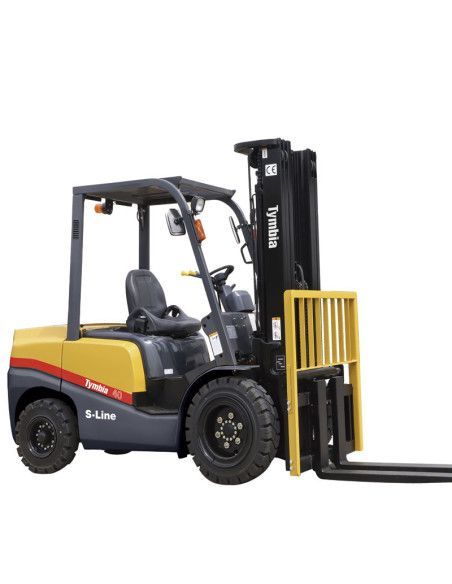

Forklift Diesel 4000kg - triplex mast 4500mm

Power, Reliability and Height: The Tymbia Diesel Forklift combines a robust design with high performance, allowing handling loads of up to 4000 kg effortlessly.

Its trilex mast offers an elevation of up to 4.5 meters, perfect to optimize space and streamline work in warehouses and logistics centers.

Main features:

• Lifting capacity: You can lift loads up to 4000 kg, allowing you to work with a wide range of products safely and efficiently.

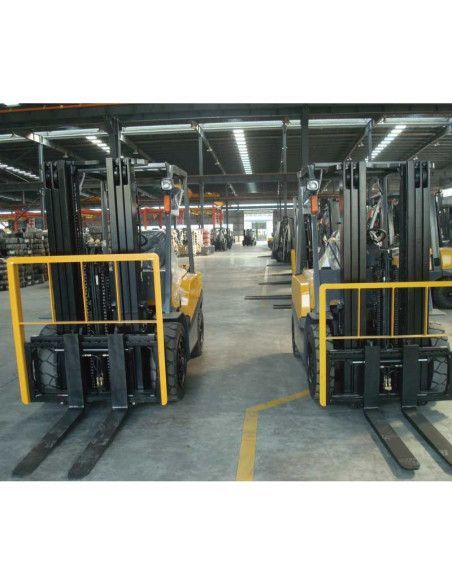

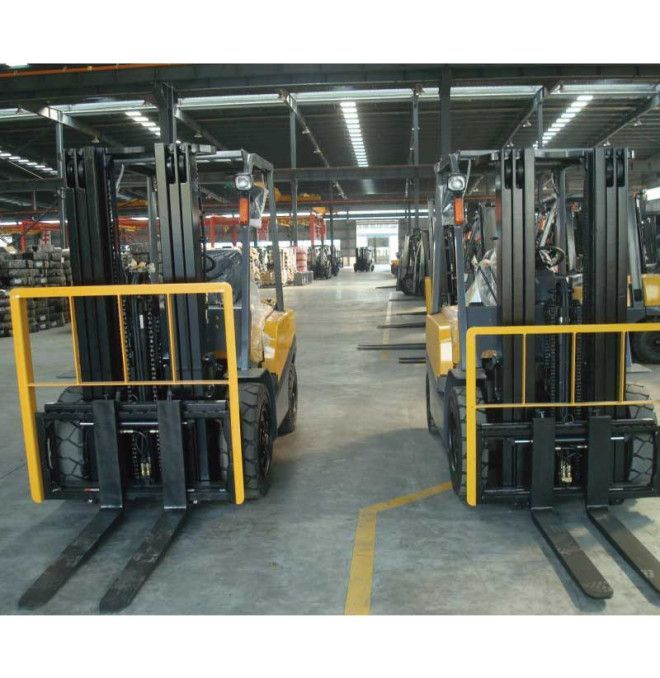

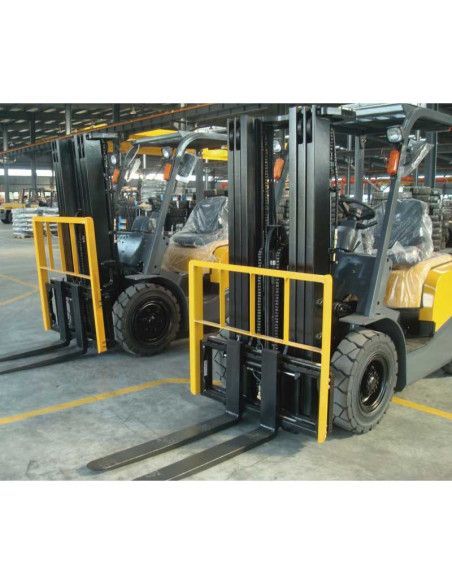

• Three-stage mast: Its trilex mast reaches a height of 4500 mm, optimizing the use of vertical space in warehouses or operating areas.

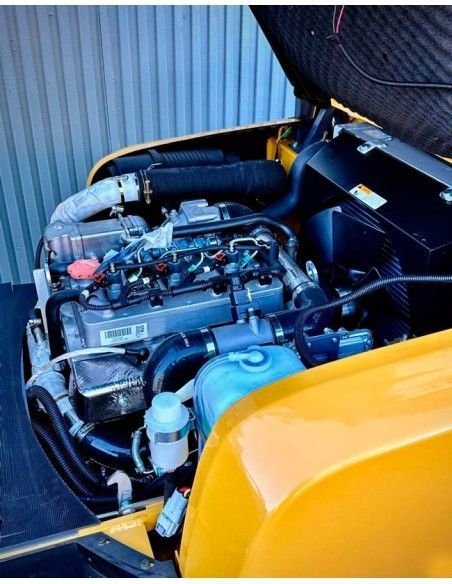

• High performance diesel engine: It incorporates a reliable and powerful diesel engine, ideal to execute intensive lifting and transfer tasks, even at full load.
• Resistant construction: Its structure is manufactured with high durability materials, designed to withstand demanding work environments and offer a long service life.
• Excellent maneuverability: Despite its load capacity, it maintains great ease of movement, which makes it suitable for different types of workspaces.

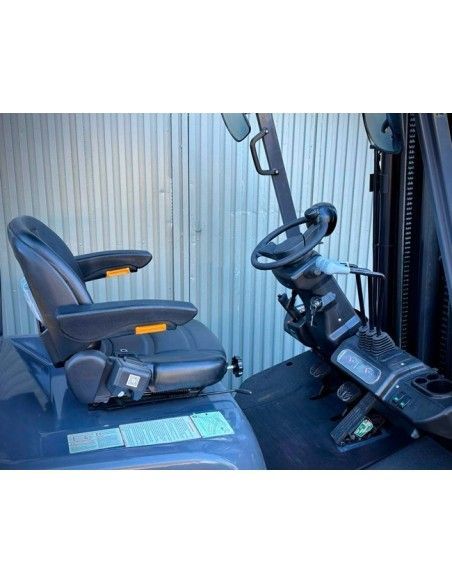

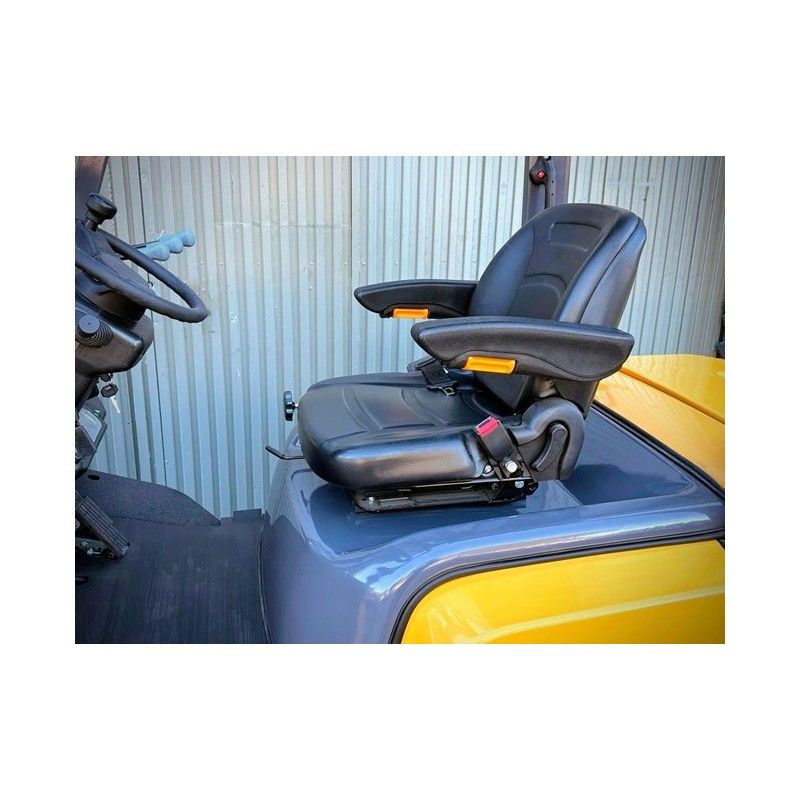

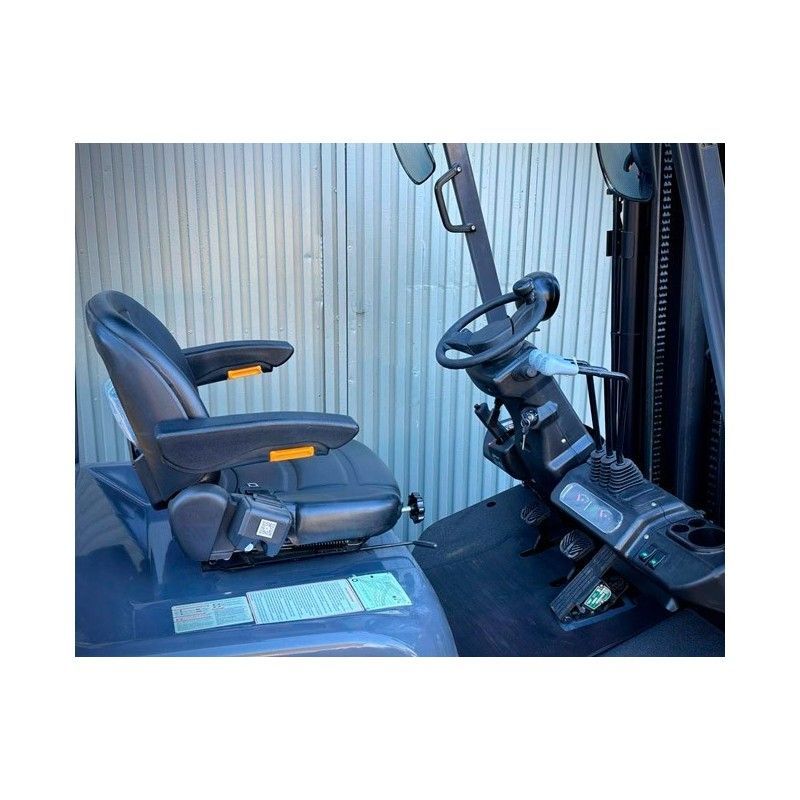

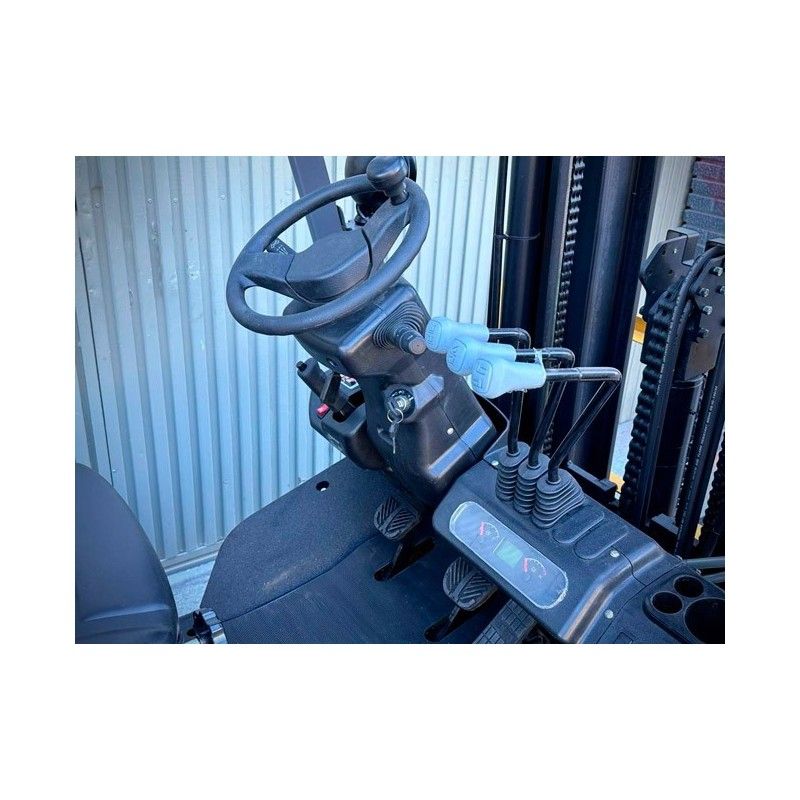

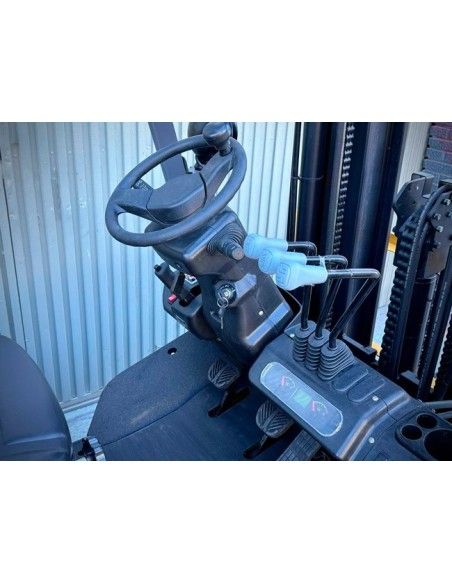

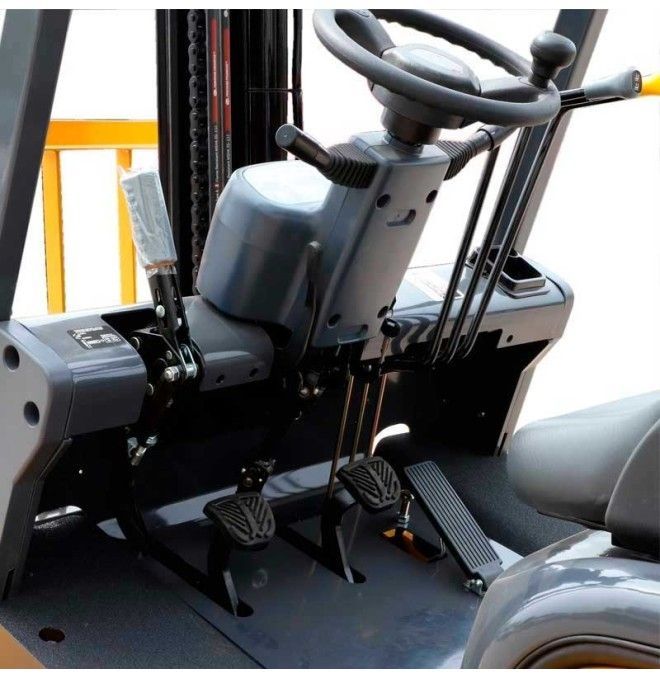

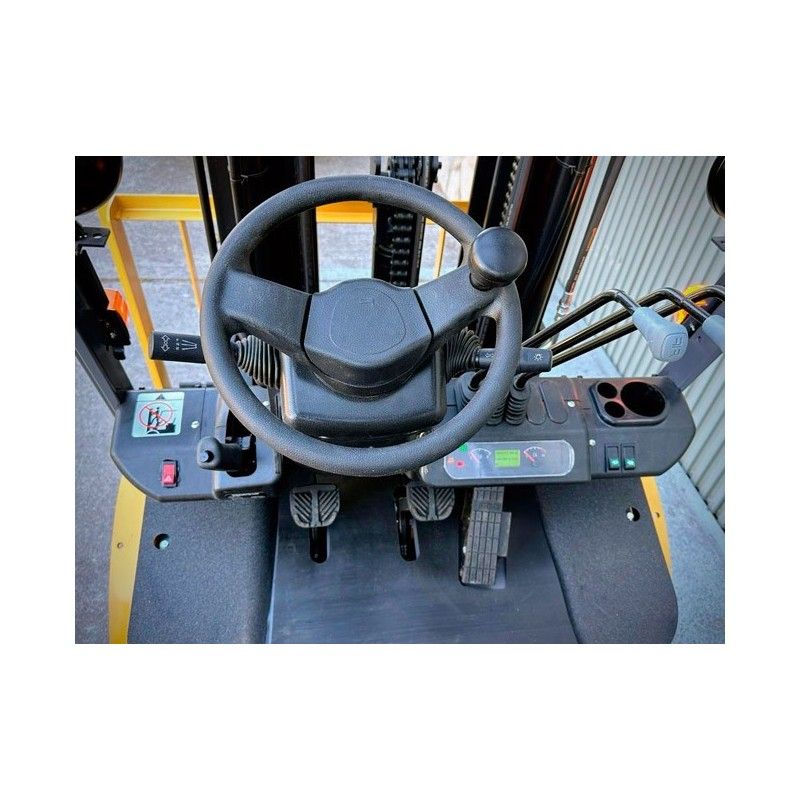

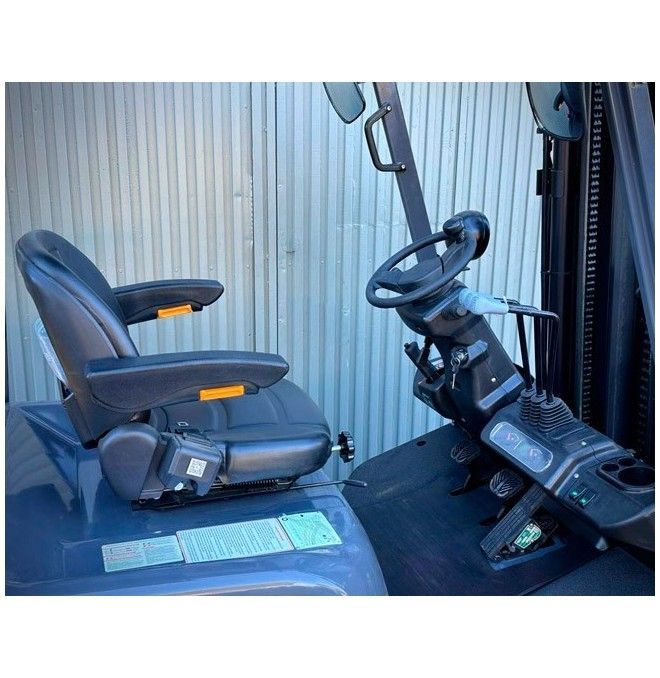

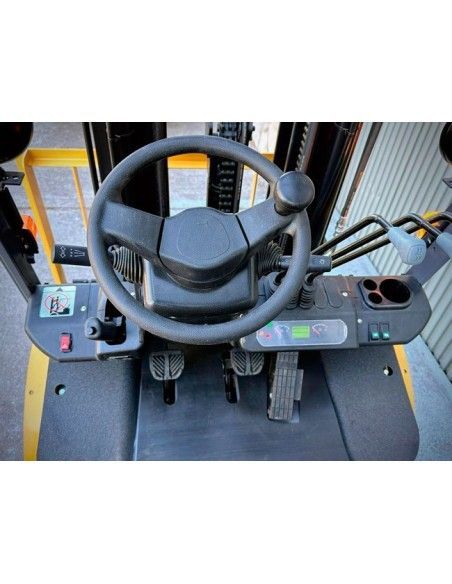

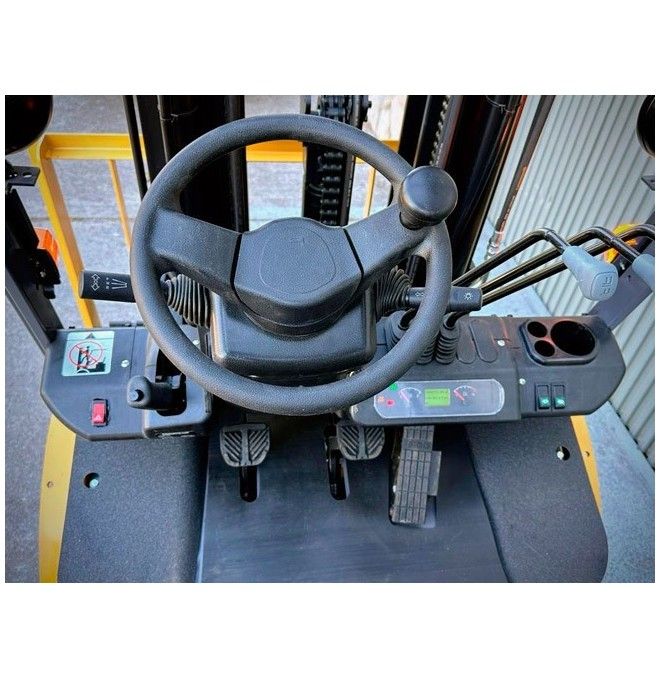

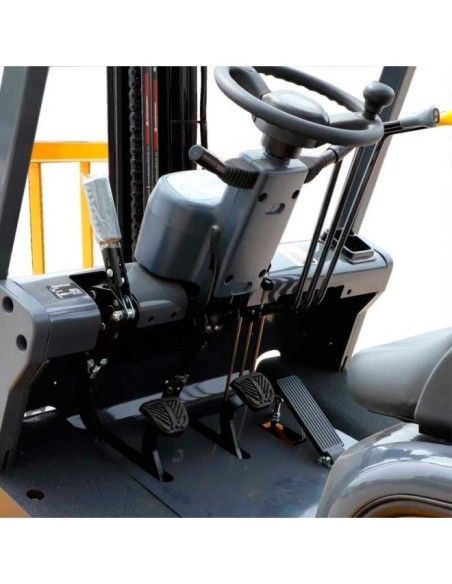

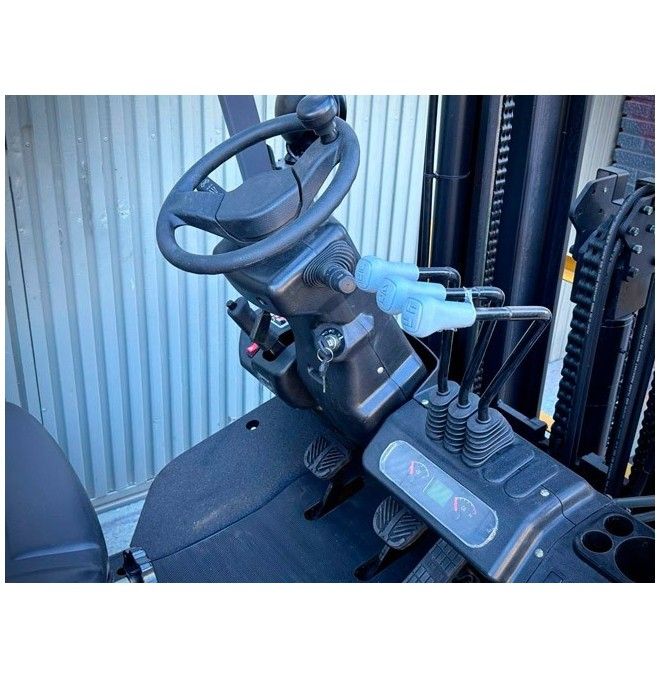

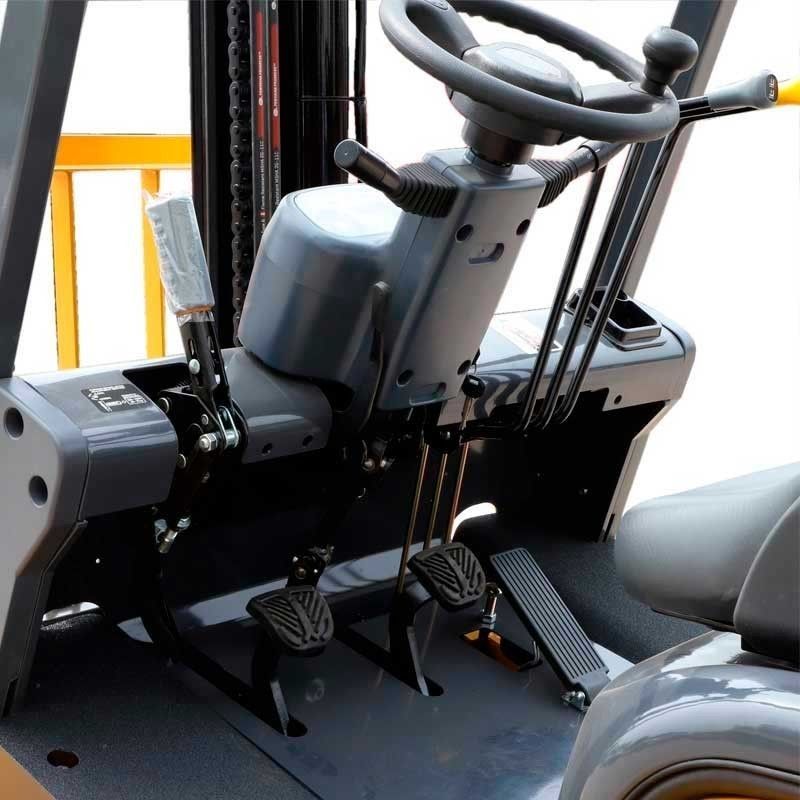

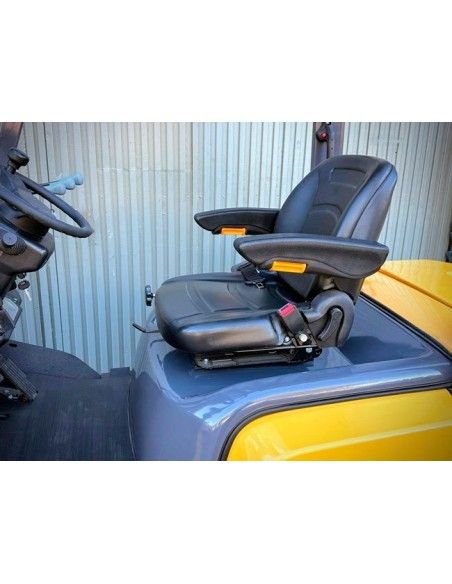

• Simple operation: Its ergonomic and intuitive control system facilitates its handling, helping to minimize operator fatigue.
• Integrated security system: It has essential safety functions to protect both the operator and load during operations.

Technical specifications:

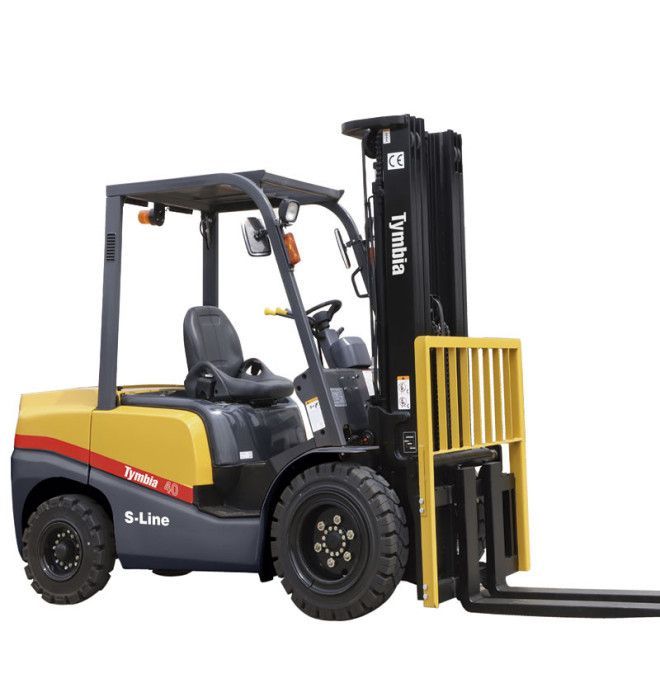

• Model: FD40T (Tymbia)
• Load capacity: 4000 kg

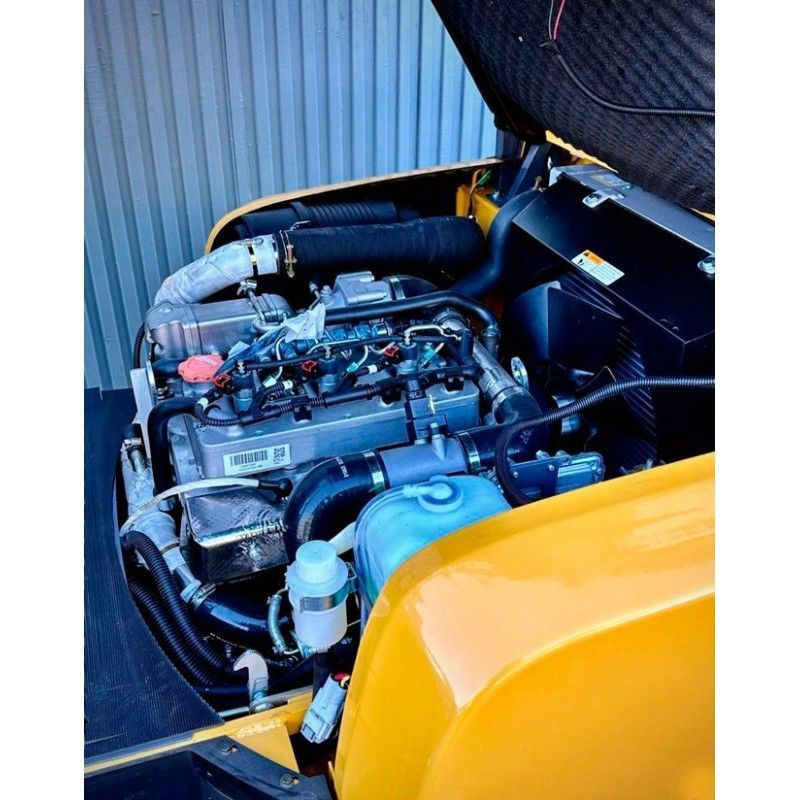

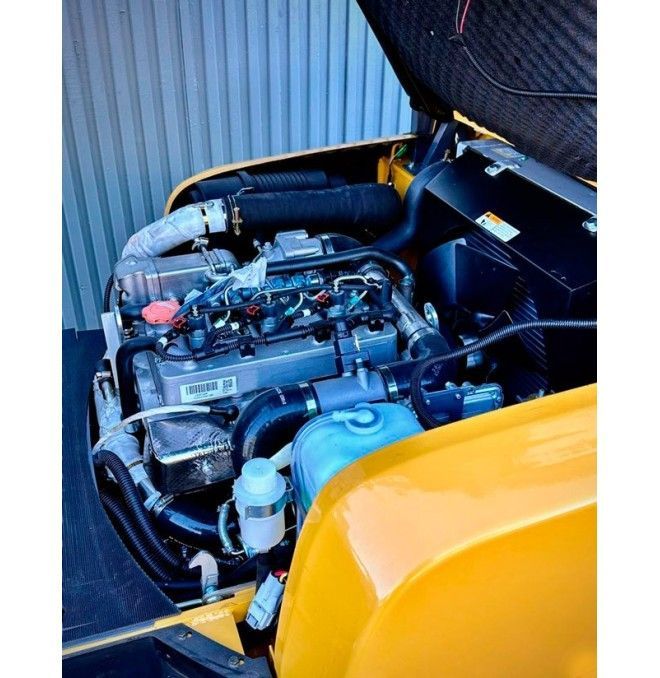

• Engine: Diesel XC 4 cylinders
• Maximum lifting height: 4500 mm (TriPlex mast)

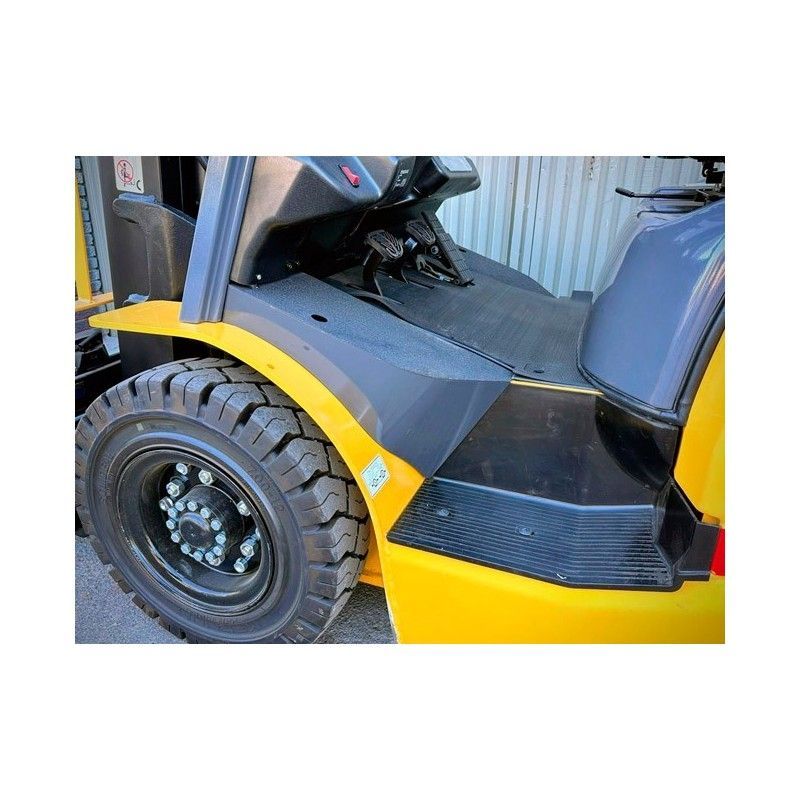

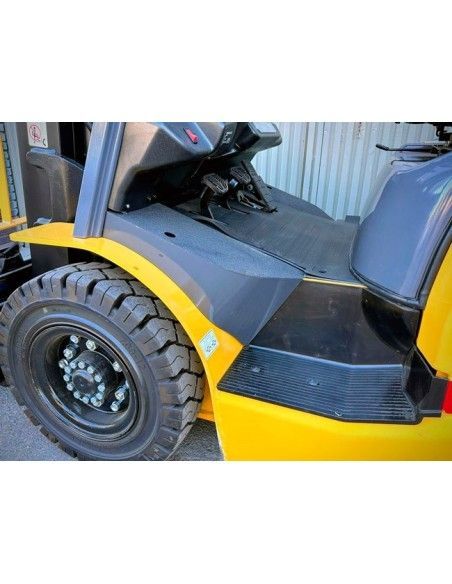

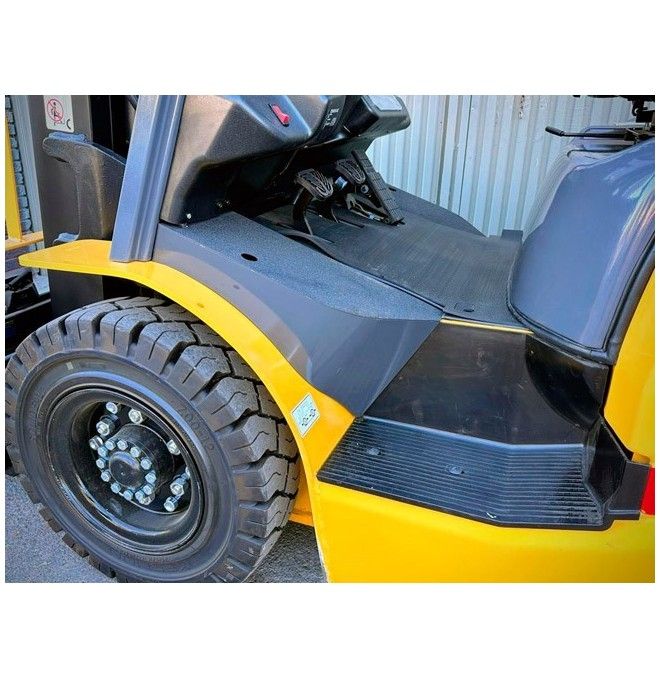

• Solid wheels
• Wheels size (front / rear): 28x9-15-12pr / 6.50-10-10pr
• Fork Size (L X W X T): 1070x125x50
• Tilt angle (Further / Back): 6/12
• Total length (without fork): 2870 mm
• Total width: 1345 mm
• Radio of rotation: 2530 mm
• Mast height downloaded: 2150 mm
• Head protector height: 2140 mm
• Weight: 5220 kg
• Scroll speed (without load / with loading): 18 / 16.5 km / h
• Lifting speed (without load / with loading): 480/380 mm / s
• Drop speed (without load / load): 420/450 mm / s
• Overlap slope (without load / with loading): 20 / 18º

Key Benefits:

• Efficient use of the vertical space: With its 4500 mm triplex mast, it allows you to easily access the highest levels of the shelves, maximizing the storage capacity in height.
• Reliable power for intensive work: the diesel engine, robust and efficient, ensures stable performance even in demanding applications and long-runs, both indoors and outdoors.
• Built to withstand extreme conditions: its robust structure offers high wear resistance and a long durability, ideal for operating in demanding industrial environments.
• Versatility in the handling of loads: Its flexible design adapts to multiple types of logistics operations, facilitating the management of different materials and work situations.

** They must have their own discharge means.
