MiniExcavator Yuchai YC210 - 22000kg

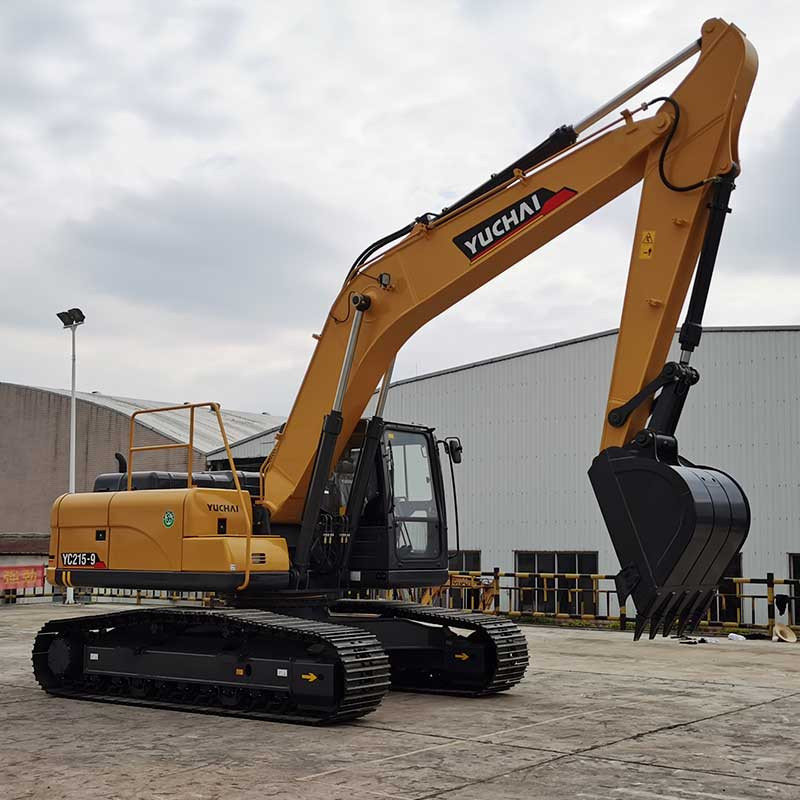

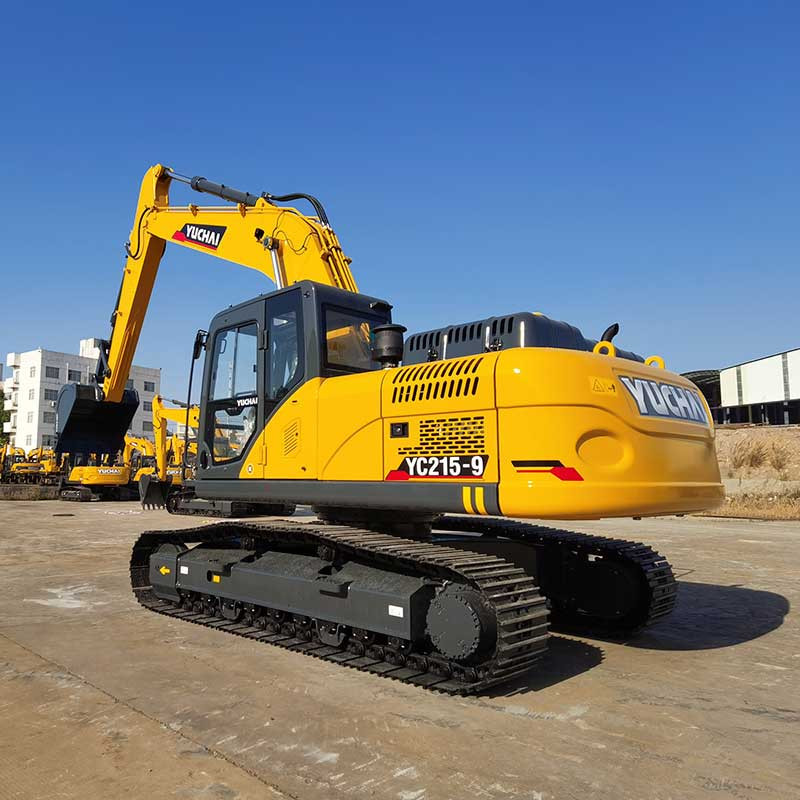

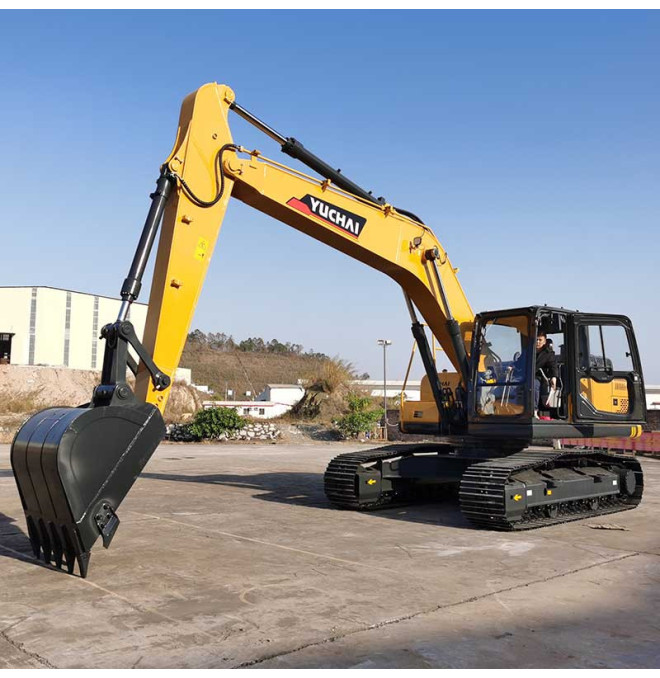

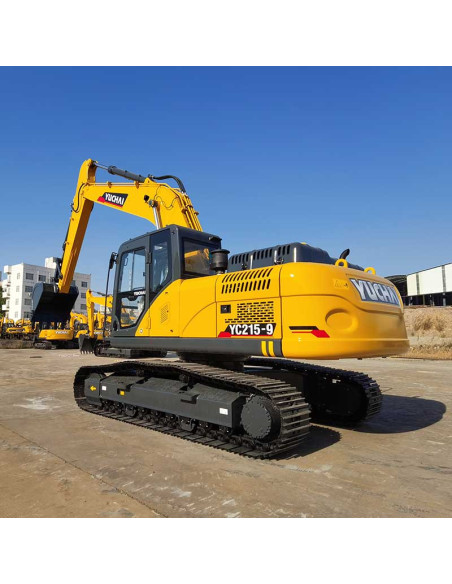

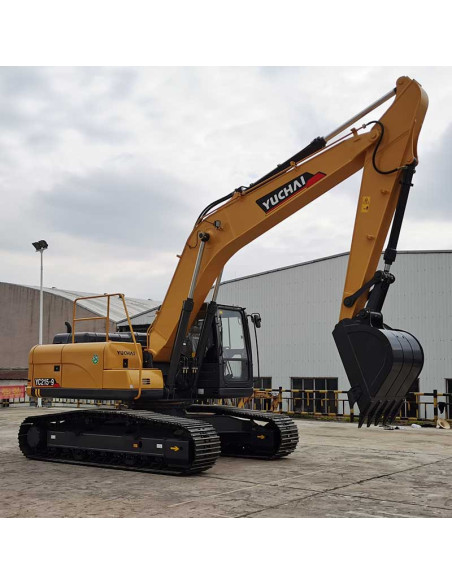

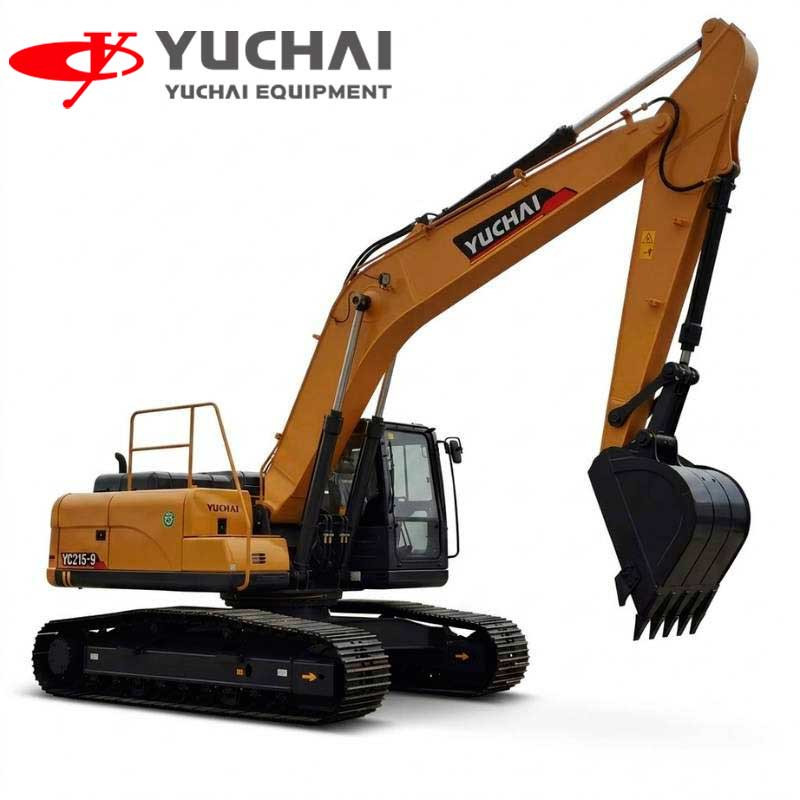

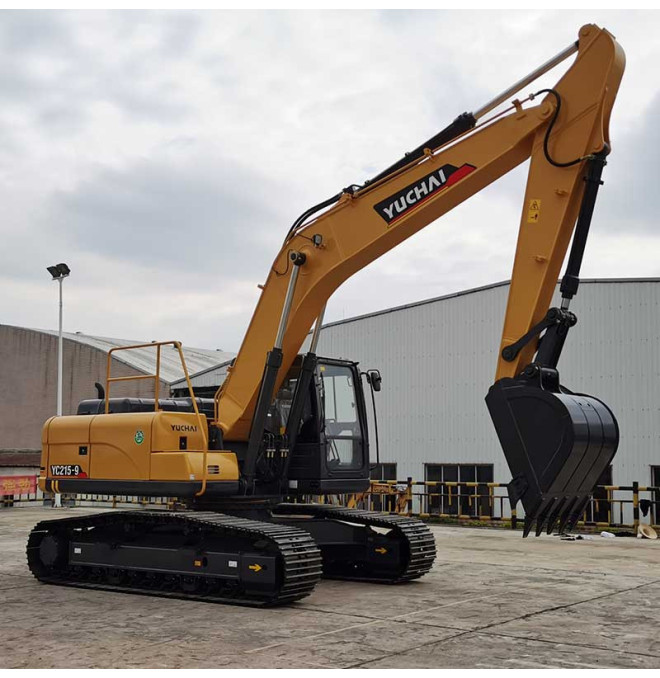

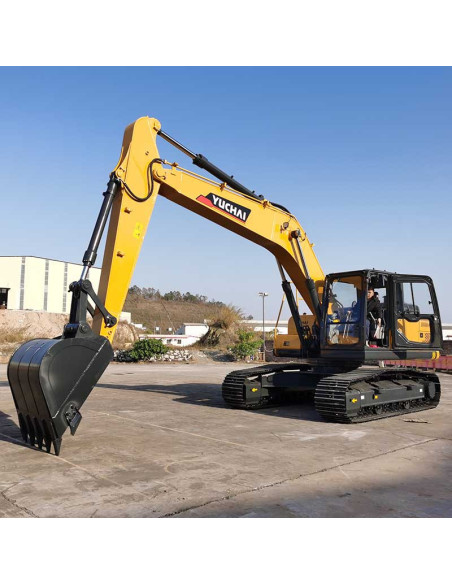

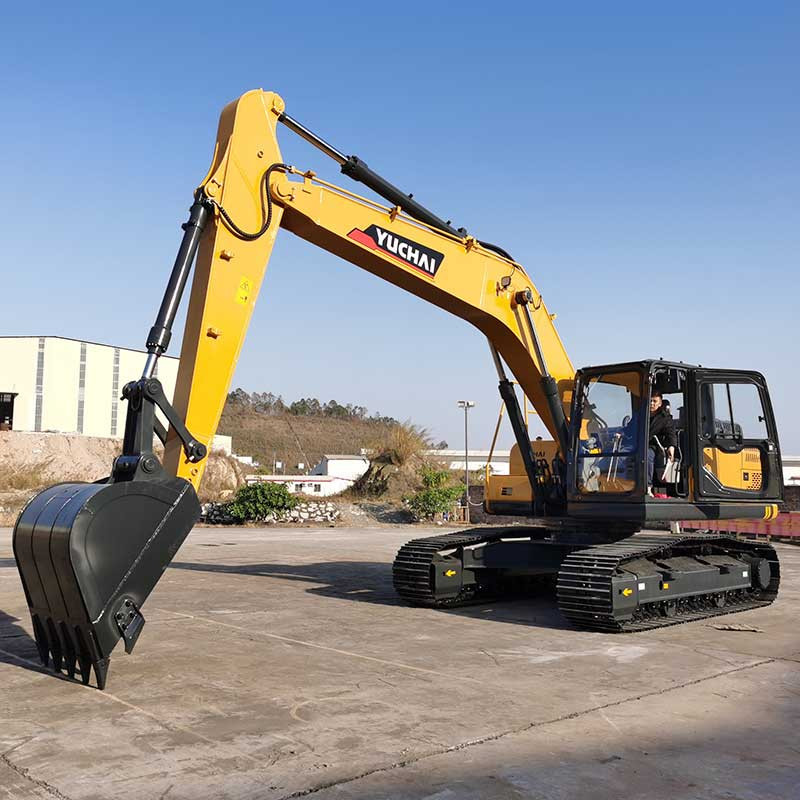

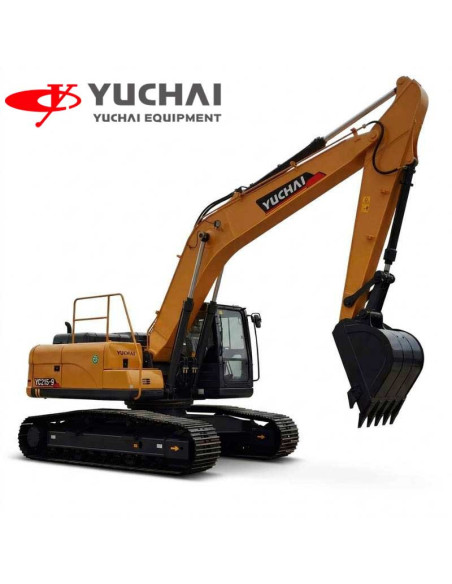

The Tymbia excavator by Yuchai YC215 is a professional solution designed for excavation, land movement, channeling, civil works and applications where a large capacity machine, robust structure and constant performance is needed. Its design is oriented to demanding work, combining power, stability and a wide operating range to face intensive tasks in different work environments.

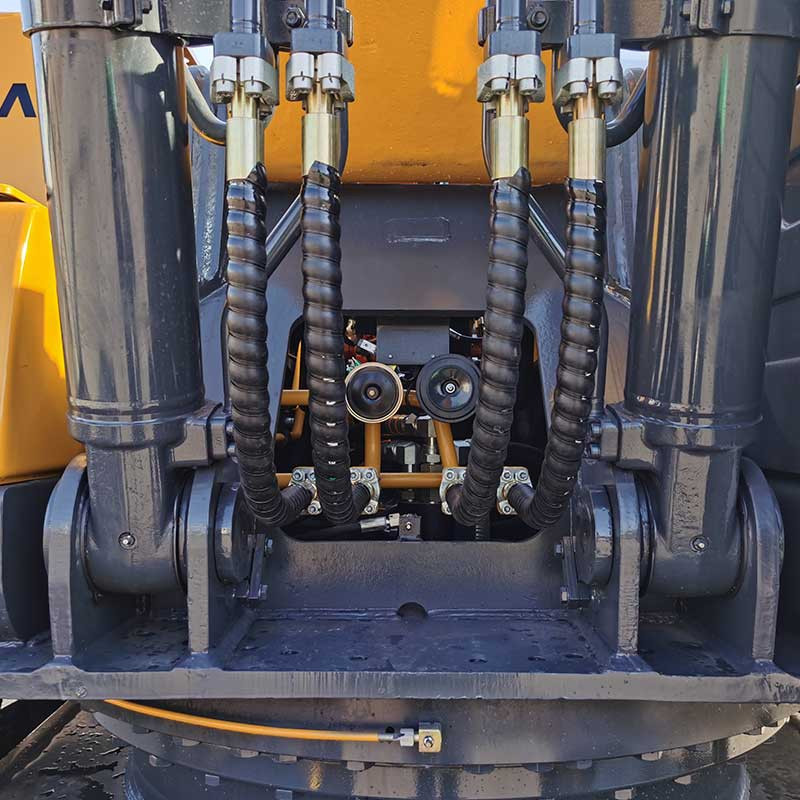

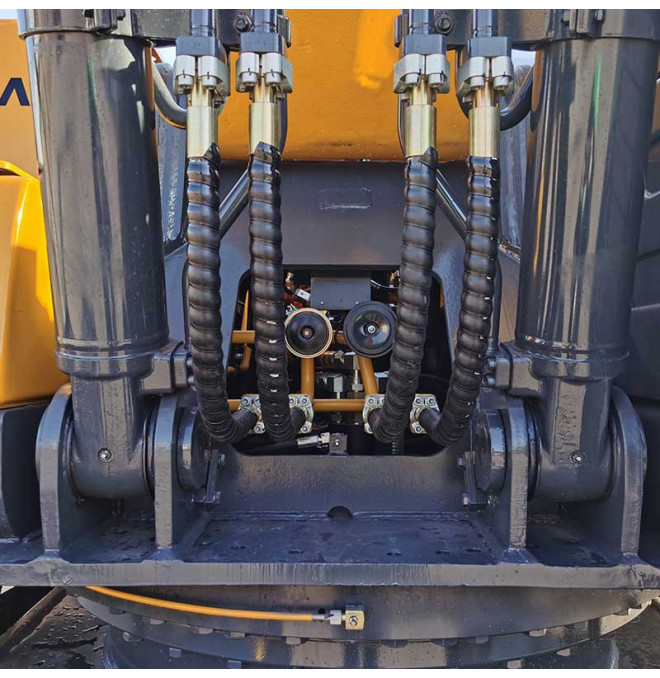

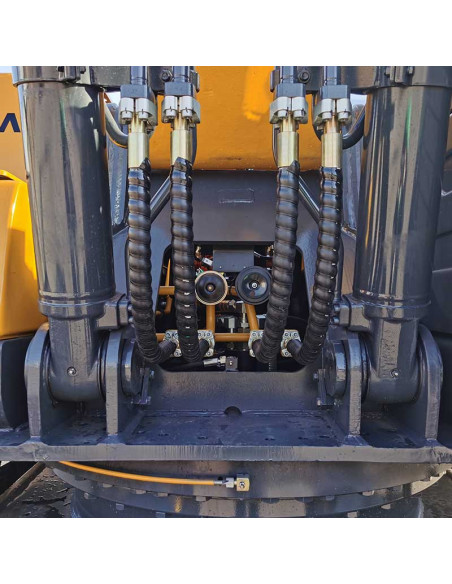

Equipped with Yuchai YCA05 engine and Euro V-approval, this excavator offers a powerful and reliable response for professional applications. Its hydraulic system works with a pressure of 35.2MPA and a flow rate of 217 x 2 + 19.5 l / min, providing a fluid and effective operation in excavation, loading and displacement.

The YC215 incorporates a spoon of 1.0m³, a maximum excavation force of the 98.6kn arm and a maximum excavation force of the 141.5kn spoon, which allows it to face more volume work with solvency. In addition, it offers a maximum excavation depth of 7210mm, a maximum excavation height of 10042mm and a maximum excavation radius of 9935mm, providing a very broad work range for land and movement.

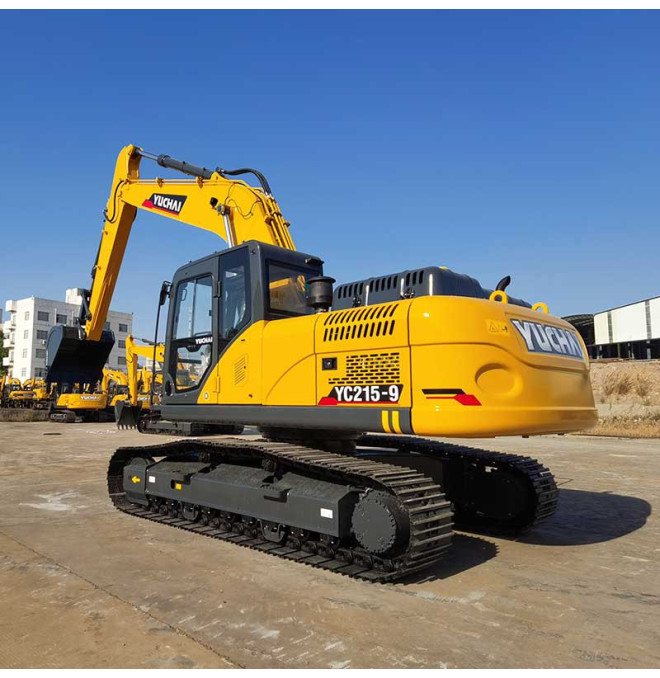

Its structure incorporates a total width of 2990mm, a total length of 9620 mm, a total height of 3254mm and a robust lower train with 600mm caterpillars. With 430L fuel tank and 200L hydraulic tank, it is prepared for continuous work and intensive applications.

Featured features:

• Excavator of 22 tons
• Ychai Motor YCA05
• Operating weight of 22300kg
• 1,0m³ spoon capacity
• Maximum depth of excavation of 7210mm
• Maximum excavation height of 10042mm
• Maximum excavation radius of 9935mm
• 141.5 kN spoon excavation force
• Hydraulic flow of 217 x 2 + 19.5 l / min
• Overbrable maximum pending of 35%

Advantages:

• Excellent excavation capacity for demanding work
• High performance Yuchai engine
• Great height, depth and working radius
• High Arm Excavation Force and Spoon
• Robust structure for intensive use in work
• Stable lower train to improve traction
• High hydraulic flow for a fluid operation
• Suitable configuration for excavation, loading and movement of land

Uses:

• General excavations
• Land movement
• Pipes
• Urban works
• Construction and civil work
• Material load
• Ditch opening
• Maintenance and infrastructure work

** They must have their own discharge means.
