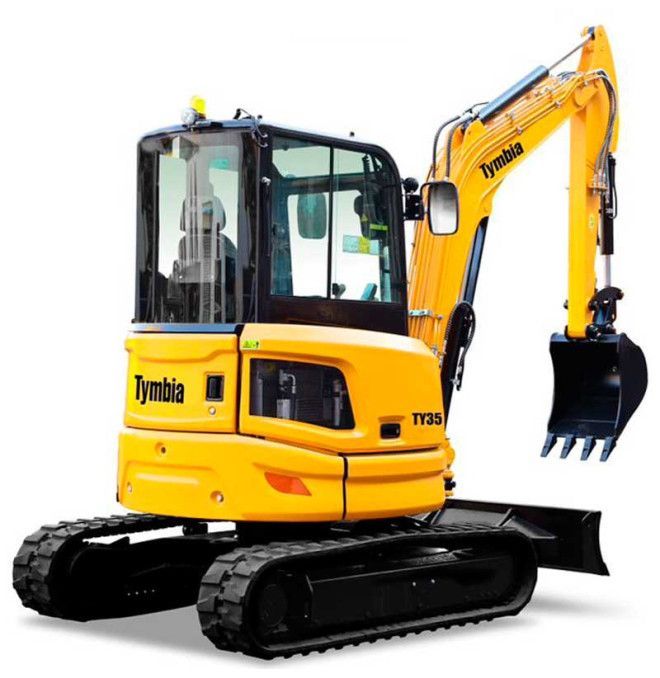

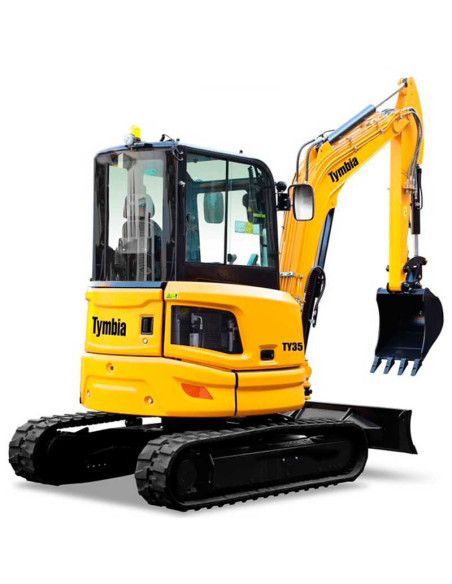

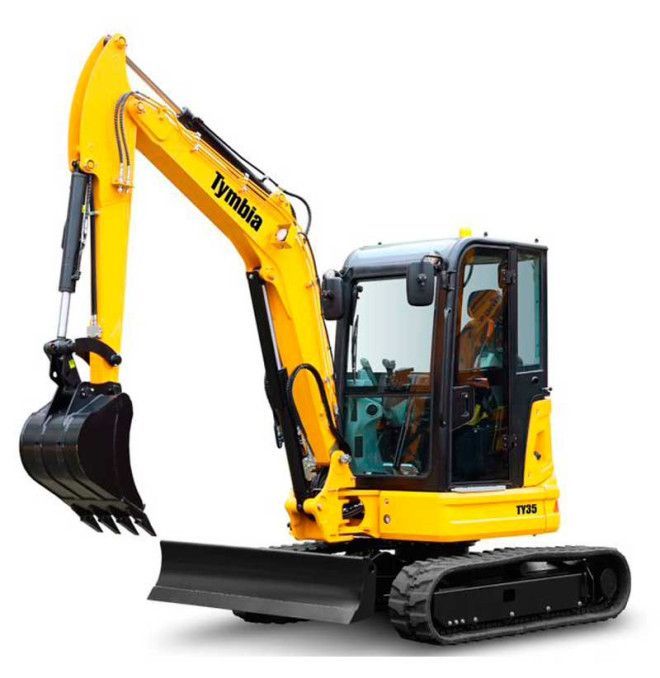

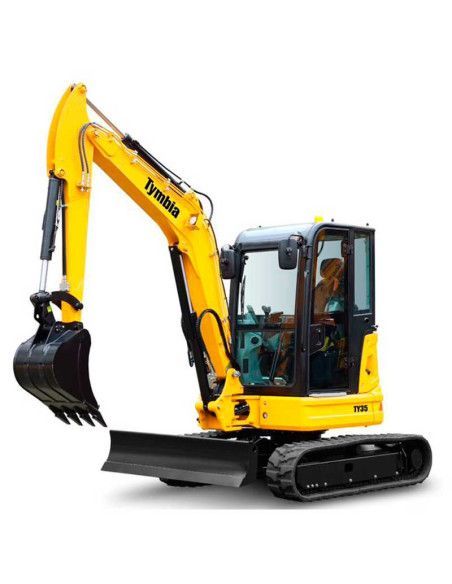

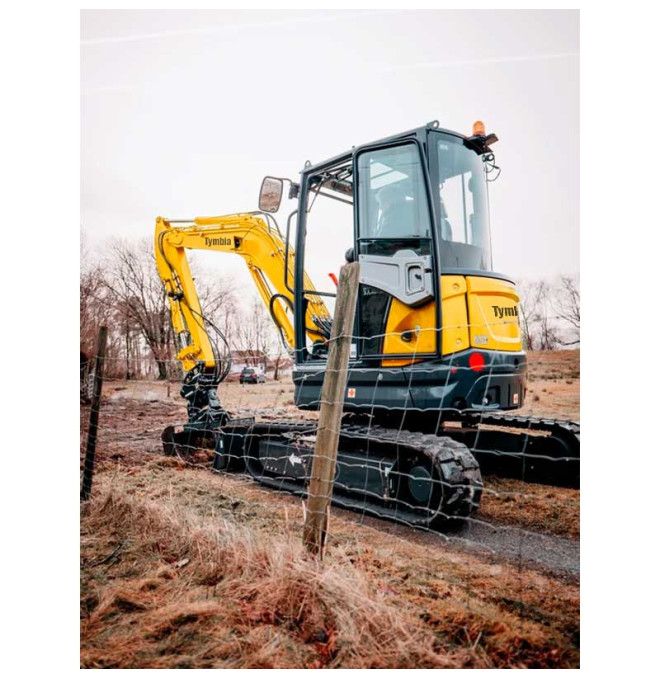

The Tymbia Ty35S mini -cavator is a high-performance machine designed for construction professionals, civil works and infrastructure maintenance. With a perfect balance between power, stability and maneuverability, this compact excavator is ideal for demanding projects in urban environments, difficult lands or areas with limited space.
Equipped with the Kubota engine d1703 of 18.2 kW (25 hp), recognized for its reliability and energy efficiency, TY35S delivers a constant motor and a maximum excavation force of 30 kN, which makes it a tool Essential for heavy work as deep ditches, foundations or unbroce.
Main technical characteristics - TY35S

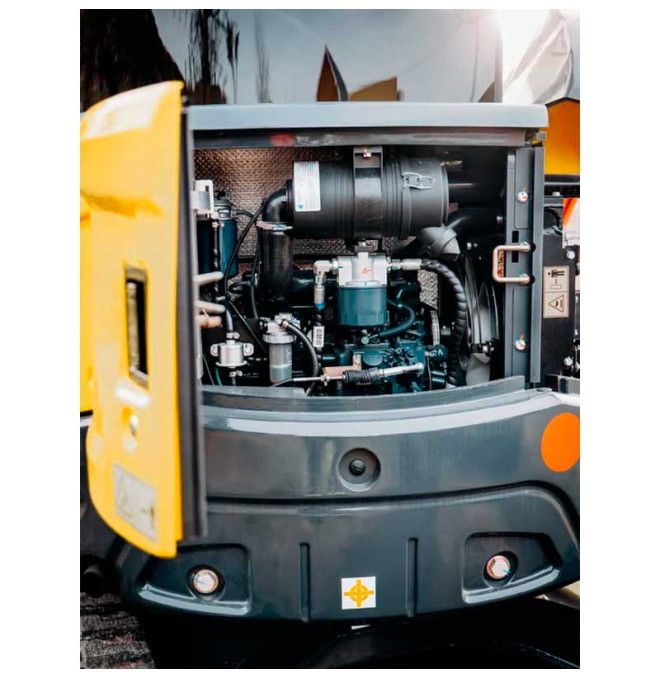

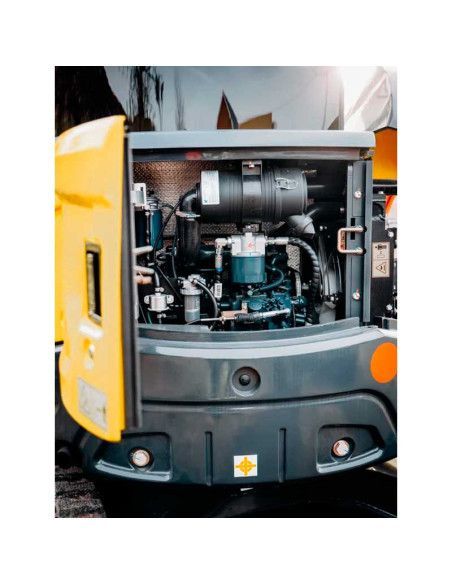

- Engine: Kubota D1703 - 3 cylinders, water cooled
- Nominal power: 18.5 kW (25 HP)
- Weight in service: 3500 kg
- Standard bucket capacity: 0.12 m³
- Maximum excavation force: 30 kN
- Hydraulic work pressure: 33.6 MPa
- Hydraulic tank: 50 liters
- Fuel tank: 48 liters
- Turning speed: 9.5 rpm
- Scroll speed: 4.5 km / h (high) / 2.7 km / h (Baja)
- Slope capacity: 70% (35 ° approx.)

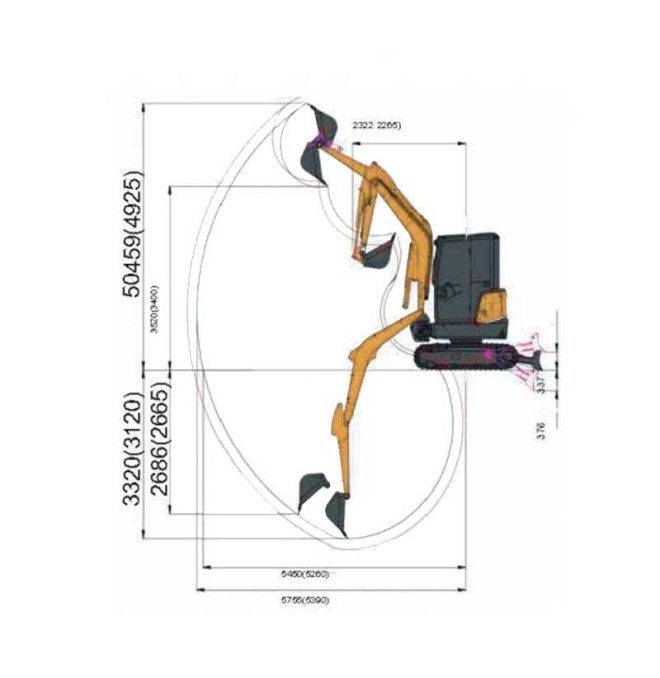

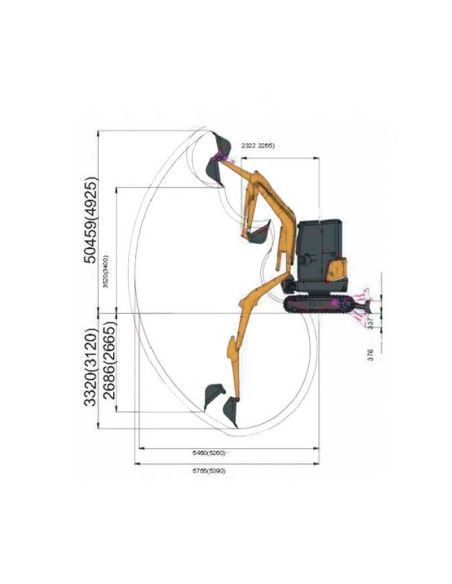

- Maximum excavation height: 4920 mm
- Maximum discharge height: 3490 mm
- Maximum excavation depth: 3165 mm
- Maximum depth with vertical arm: 2630 mm
- Maximum excavation distance: 5260 mm
- Front minimum turning radius: 3785 mm
- Maximum distance to the ground (excavation): 5135 mm

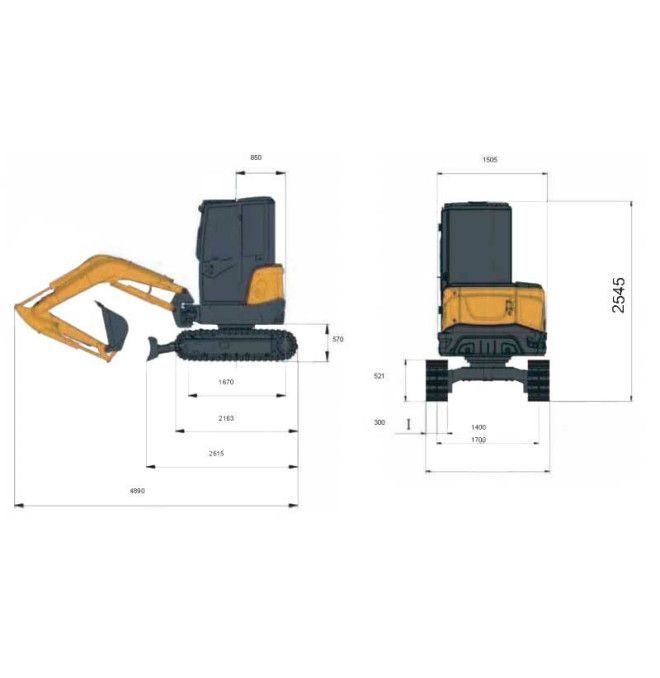

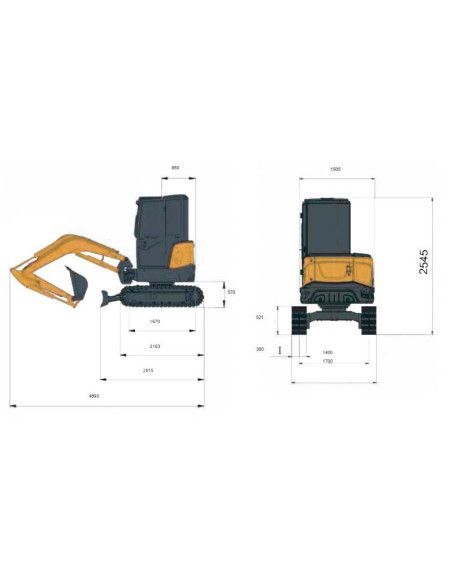

- Total dimensions (L x a x h): 4800 x 1740 x 2480 mm
Regulation: Complies with EEC UNE-EN 13775 and EURO 5 Emissions
Key advantages of TY35S:

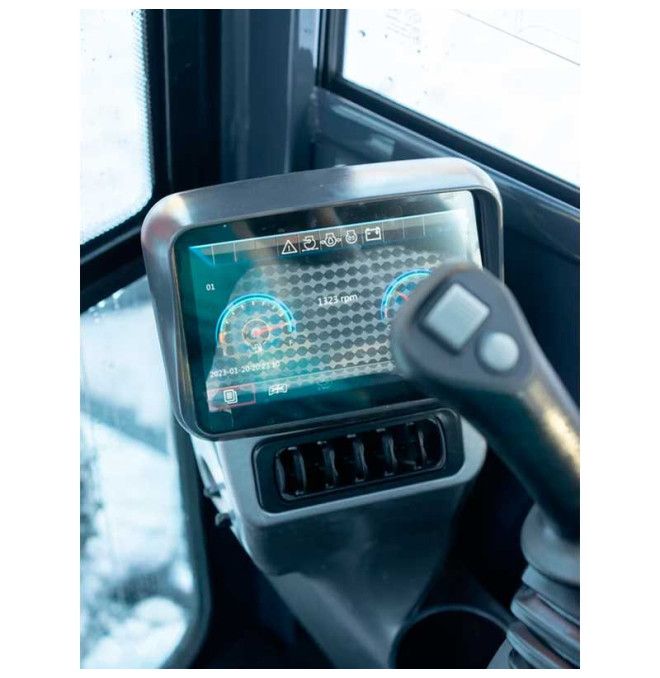

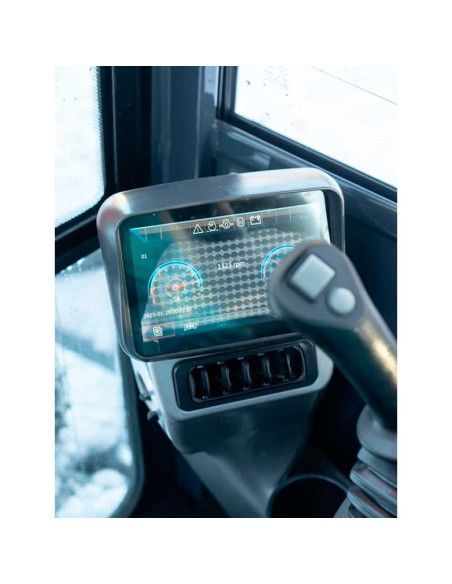

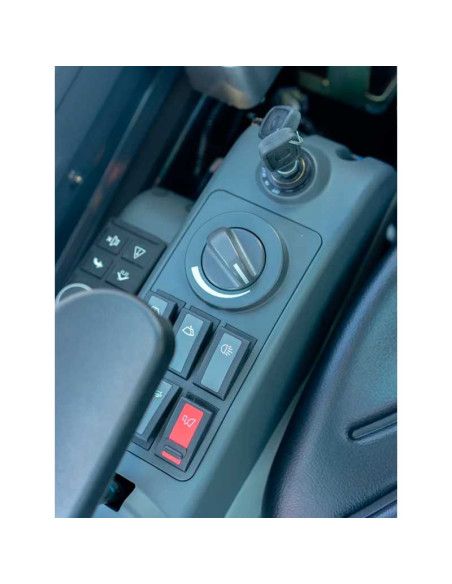

- Advanced digital panel: intuitive screen in the cabin with hour indicators, hour counter and tachometer. Easy reading and alerts in real time.

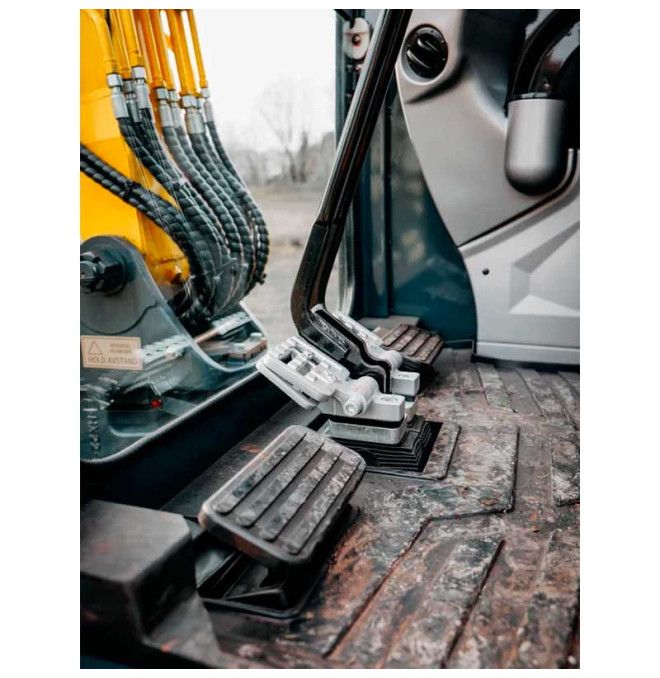

- Quick and comfortable access to the cabin: Large entrance that makes it easy to enter and exit, ideal for jobs that require frequent movements (such as pipe installation or ditches).
- Ergonomic operation: Design designed to reduce operator fatigue, with controls at hand and excellent 360 ° visibility.

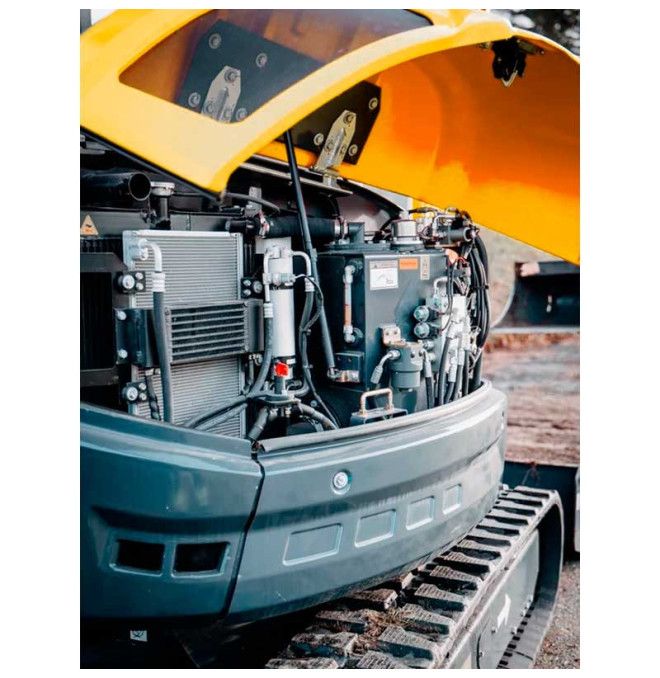

- High performance hydraulic system: greater precision and power in each movement, ideal for use with accessories (hydraulic hammer, clamp, rotator, etc.).
- Low fuel consumption: Kubota engine optimized for efficiency, reducing operating costs.

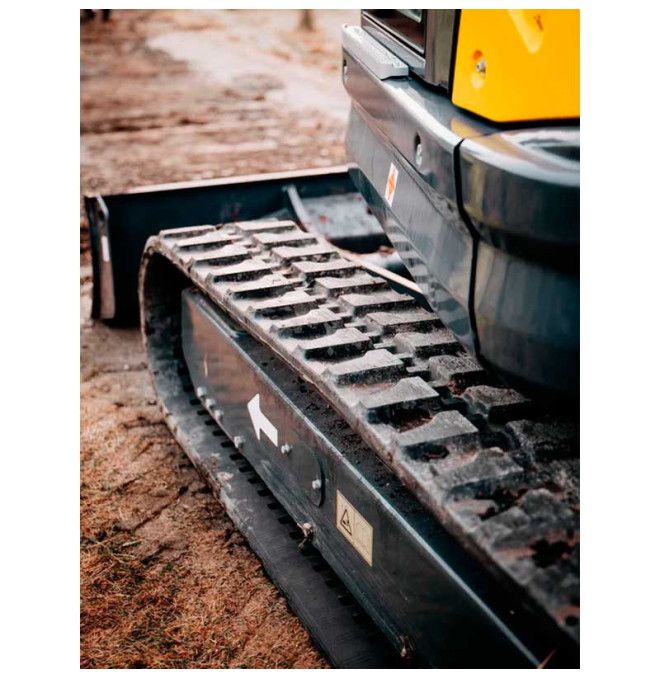

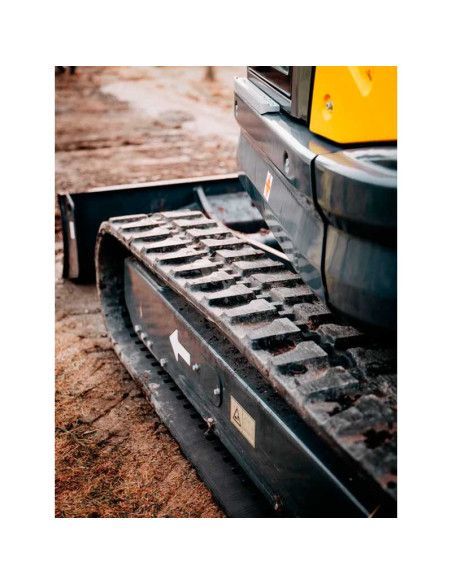

- Standard rubber caterpillars: Ideal to protect paved surfaces and work in urban areas without damaging the ground.
- EURO 5: List to operate in areas with emissions restrictions.
Recommended uses - Professional applications: The Ty35S mini-excavator is perfect for a wide range of sectors and applications, such as:
- Civil and Urbanization: Excavation of ditches for water, gas, electricity and telecommunications networks.
- Residential and commercial construction: Foundations, basements, despecurs and land movement.
- Infrastructure maintenance: Road repair, sewer and bridges.
- Agriculture and rural work: wells, cumbers, unbridine and preparation of land.
- Public service companies: installation and maintenance of underground networks.
- Rental of machinery: High demand for its versatility, reliability and low maintenance.
Optional configurations available
- Hydraulic hammer
- Demolition clamp or unbroce
- Arm rotation system
- Closed cabin with heating and air conditioning
- Steel caterpillars for extreme land
- Automatic recoil system
(Check with your dealer for more personalized options)
Optional In stock:
- Hazard 1200mm (ref .. c202100034): 980 €
- 400mm saucepan (ref. C202100033): € 460
- Rapid hook MEC. (Ref. C202100035): 400 €
- Hammer MiniExcavator: € 1,895
Why choose the Tymbia Ty35S miniexcavator?
Because it combines Japanese technology, European design and a highly competitive price. It is a profitable investment for autonomous, contractors and rental companies that look for a powerful, durable and easy to operate machine.
With its great depth of excavation (3165 mm) and its controlled turning radius, the 3500kg Tymbia Ty35S mini -cavator stands out in demanding work where other miniexcavadoras do not arrive. In addition, its digital panel and ergonomic cabin improve the productivity and comfort of the operator.
** They must have their own discharge means.
