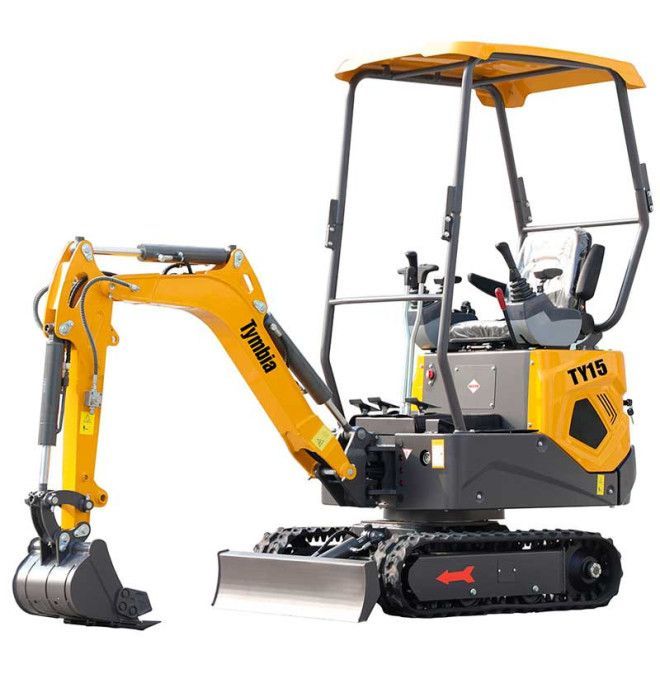

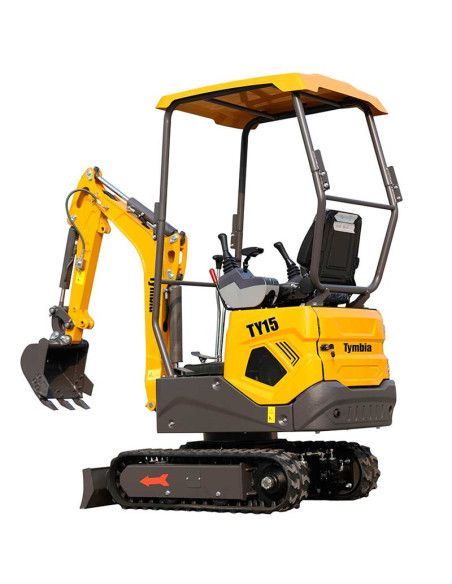

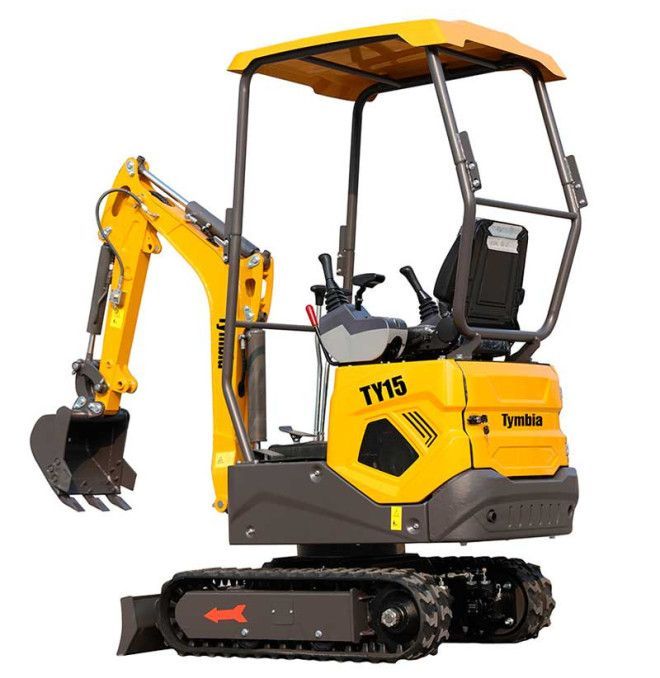

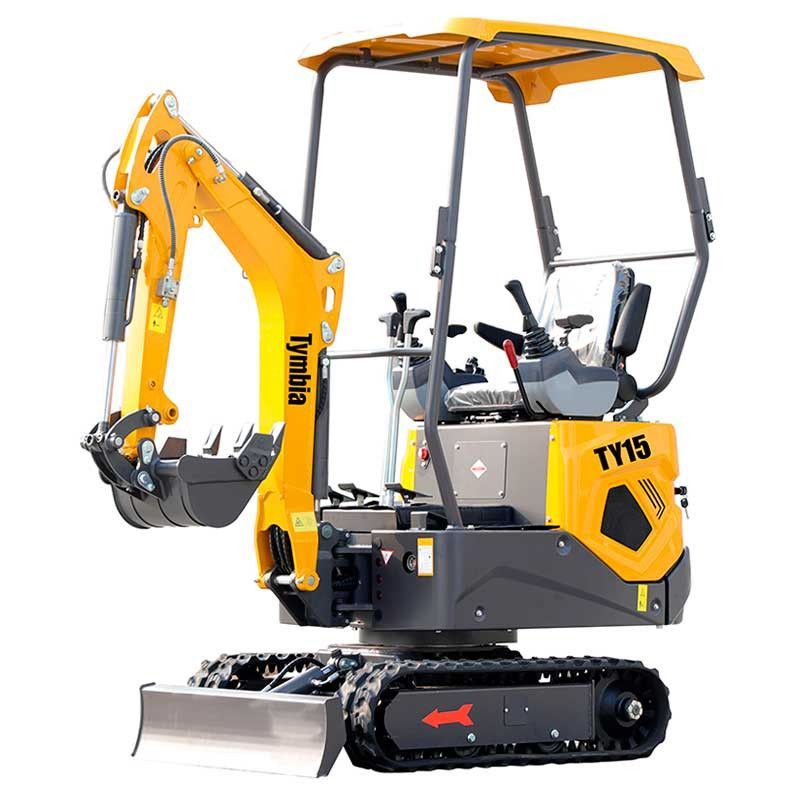

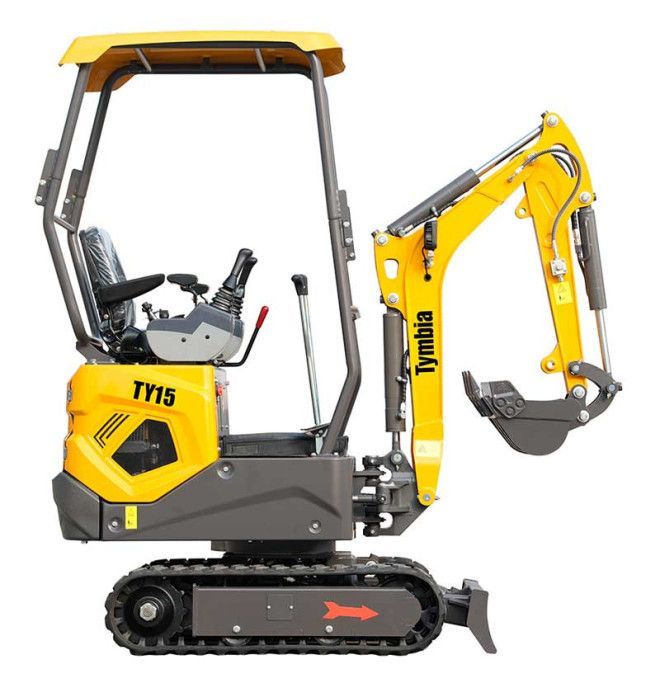

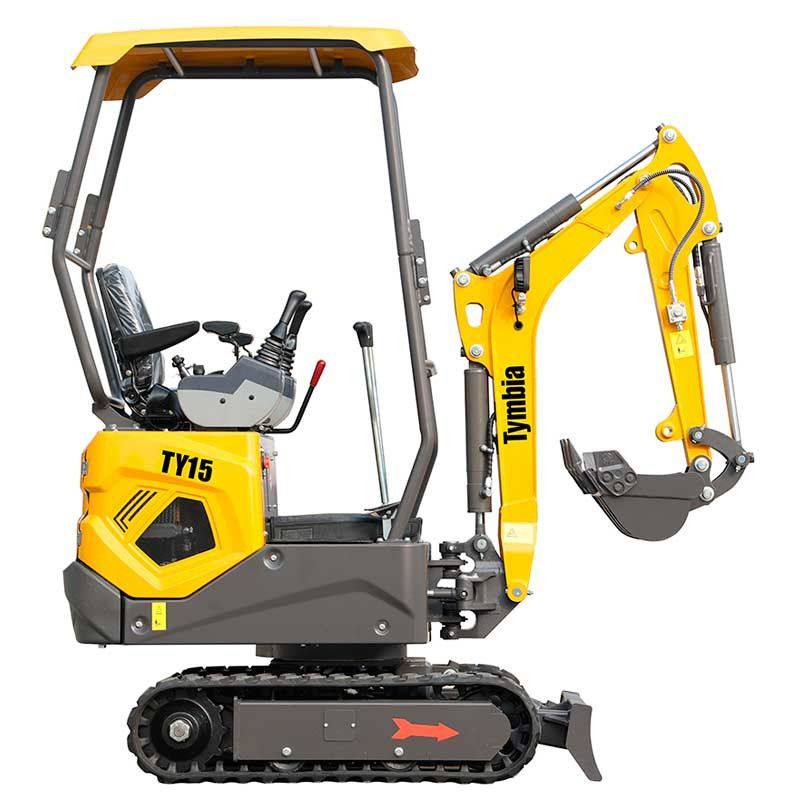

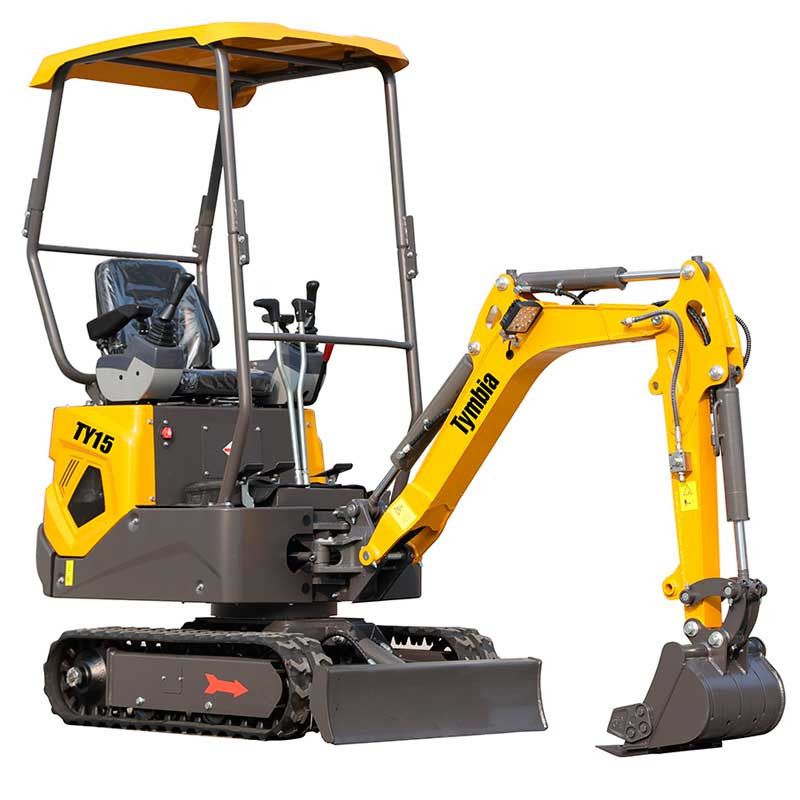

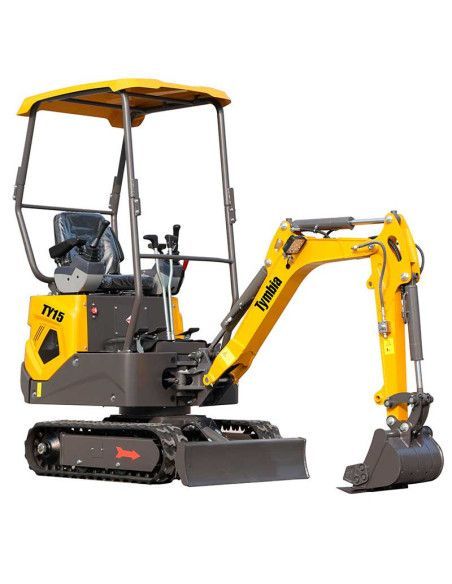

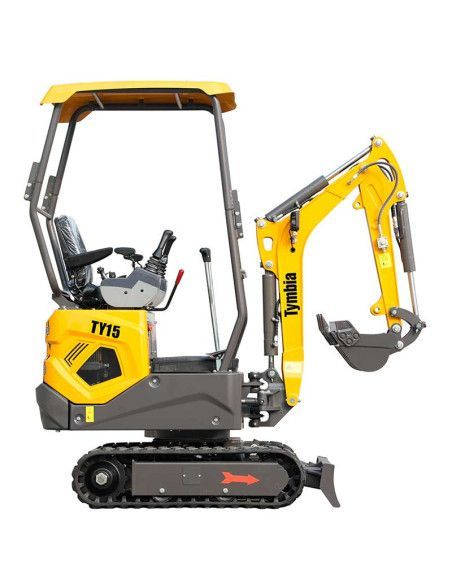

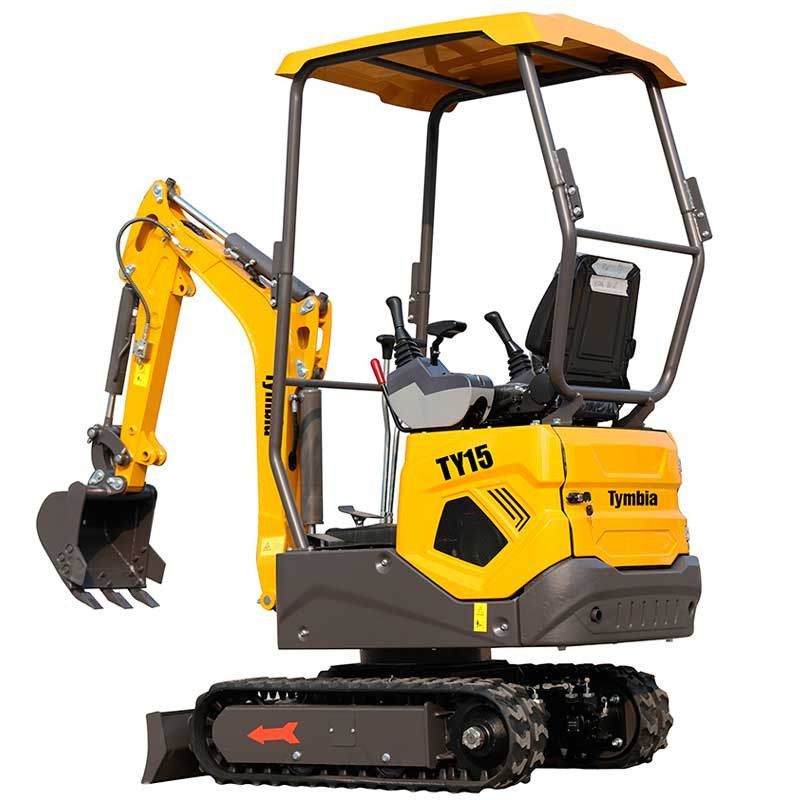

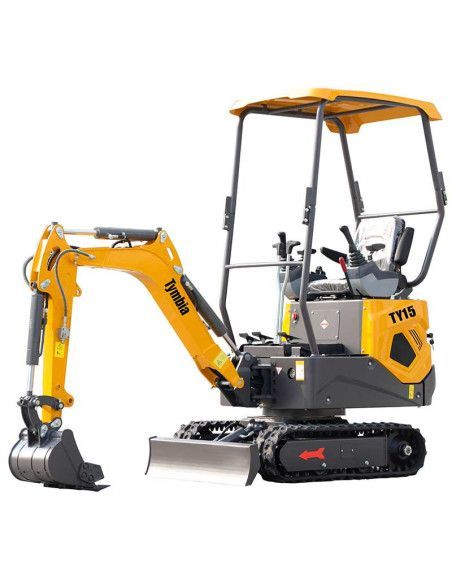

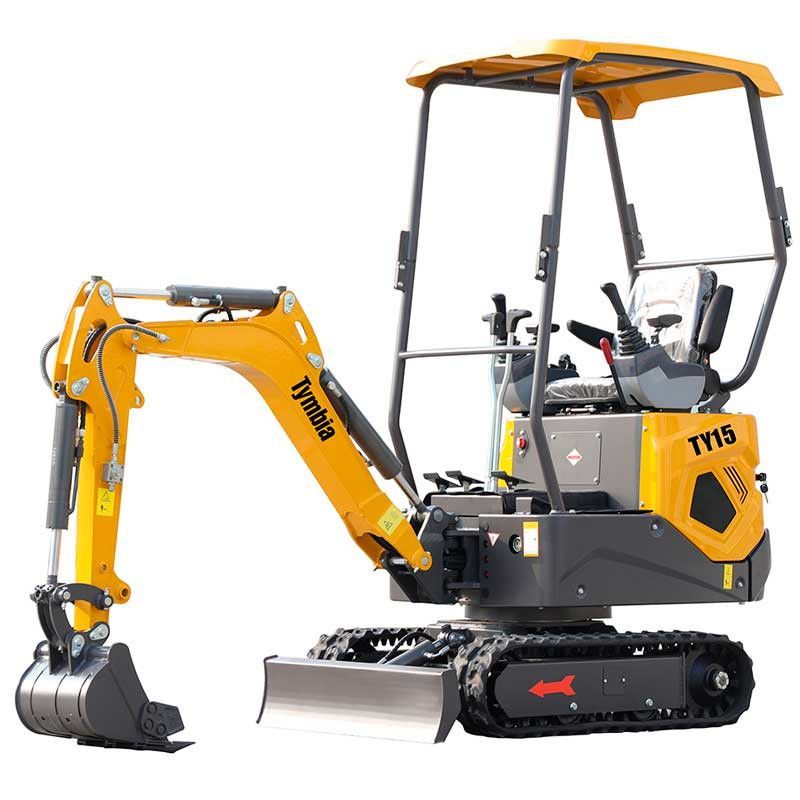

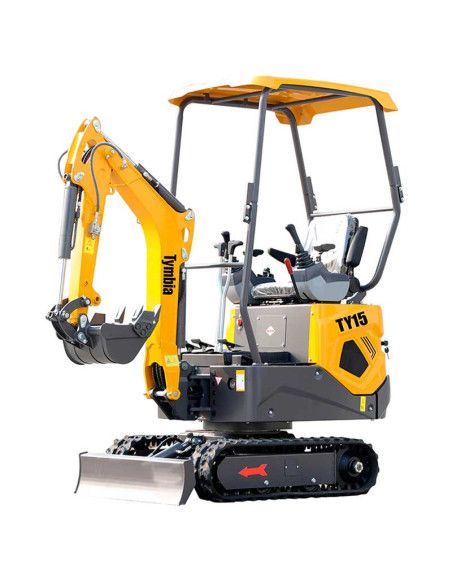

The mini-scapery TYMBIA TY15 of 1500KG with diesel engine Kubota of 3 cylinders, depth of excavation 1725mm, retractable caterpillar 880-1100 and fast hitch. Includes bucket of 40mm.
Compact MiniExcap essential for multiple applications, especially useful in environments such as greenhouses, interior spaces and gardening works. Its versatility makes it perfect for tasks such as spreading fertilizers, digging in orchards, open channels, planting trees or ditches for electric wiring or irrigation systems. Its compact design facilitates work in areas with limited access or reduced space, guaranteeing efficiency and comfort.
The mini-scapery TYMBIA TY15 of 1500KG with diesel engine Kubota of 3 cylinders, depth of excavation 1725mm, retractable caterpillar 880-1100 and fast hitch. Includes bucket of 40mm.
Compact MiniExcap essential for multiple applications, especially useful in environments such as greenhouses, interior spaces and gardening works. Its versatility makes it perfect for tasks such as spreading fertilizers, digging in orchards, open channels, planting trees or ditches for electric wiring or irrigation systems. Its compact design facilitates work in areas with limited access or reduced space, guaranteeing efficiency and comfort.
The Tymbia Ty15 Compact MiniExcavator is the ideal solution for a wide variety of work, especially in sectors such as agriculture in greenhouses, landscaping and indoor projects. Its versatile and functional design allows you to carry out tasks as a fertilizer application, excavation in orchards, opening of ditches for electrical or hydraulic installations, and planting trees quickly and efficiently.
Thanks to its reduced size, this minixcavator is perfect for operating in narrow or difficult access spaces, such as closed structures or urban areas. In addition, its use is intuitive, which allows any operator to learn to handle it in a few minutes.
Main advantages of this compact mini-cavator:
Maximum durability: Designed for demanding work, guarantees reliable performance and a long service life.
Agile and compact design: Its light structure facilitates mobility and efficient work in reduced areas or irregular land.
High strength materials: Made of reinforced steel and quality technical plastics, it ensures greater wear resistance.
360 ° rotation: The total turning system improves accuracy and allows great freedom of movement in any direction.
Safe and stable operation: includes a front gear mechanism that provides greater control and safety during use.
Technical characteristics:
Model: TY15
Engine: Kubota D722
Power: 10.2kw
Bucket capacity: 0.022m³

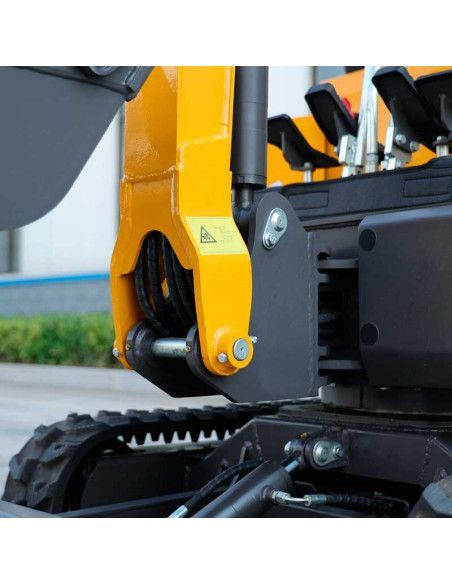

Quick mechanical coupling.
Maximum driving speed: 1.2 km / h
Working pressure: 16MPa
Hydraulic tank capacity: 18L
Engine oil capacity: 1.65L
Fuel tank capacity: 5.5L
Operating weight: 1500kg
Machine size (L * AN * AL): 2870 * 1100 * 2285mm
Maximum excavation height: 2840mm
Maximum discharge height: 2082mm
Maximum excavation depth: 1725mm
Maximum depth of excavation of the vertical arm: 1605mm
Maximum excavation distance: 3080mm
Minimum turning radius of the front end: 1190mm
Maximum excavation distance on the floor: 3020mm
Standard configuration:
3-cylinder diesel engine Kubota

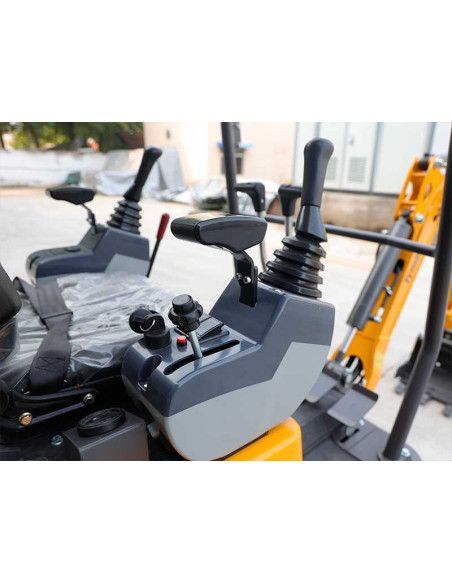

High precision multiple valve
High quality motor
Adjustable blade
Rubber caterpillar wear resistant
Adjustable driver's seat
Buckets included: 40cm standard.
Light on arm.
Battery disconnector.

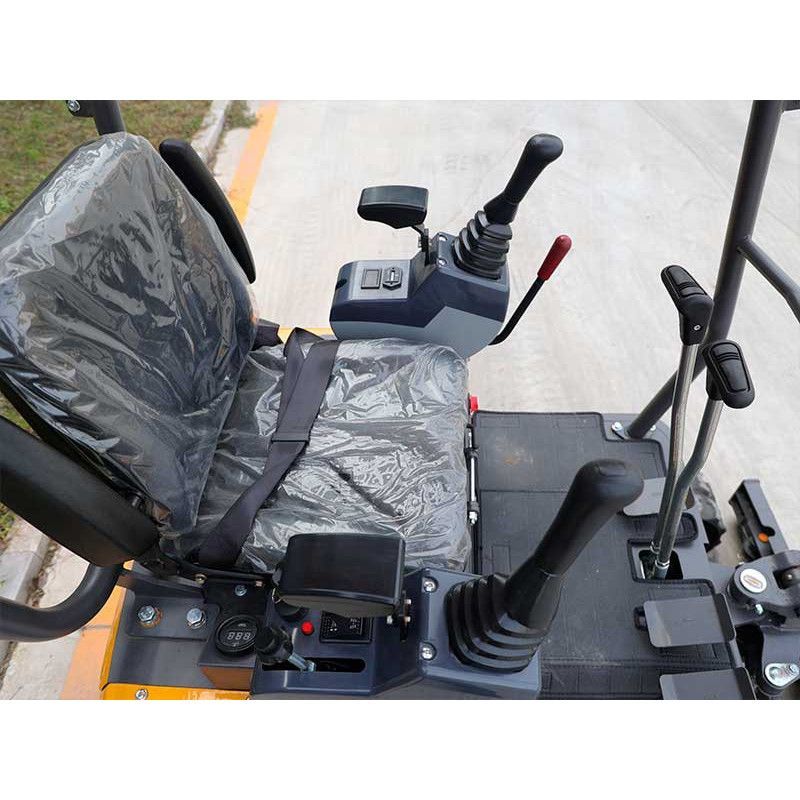

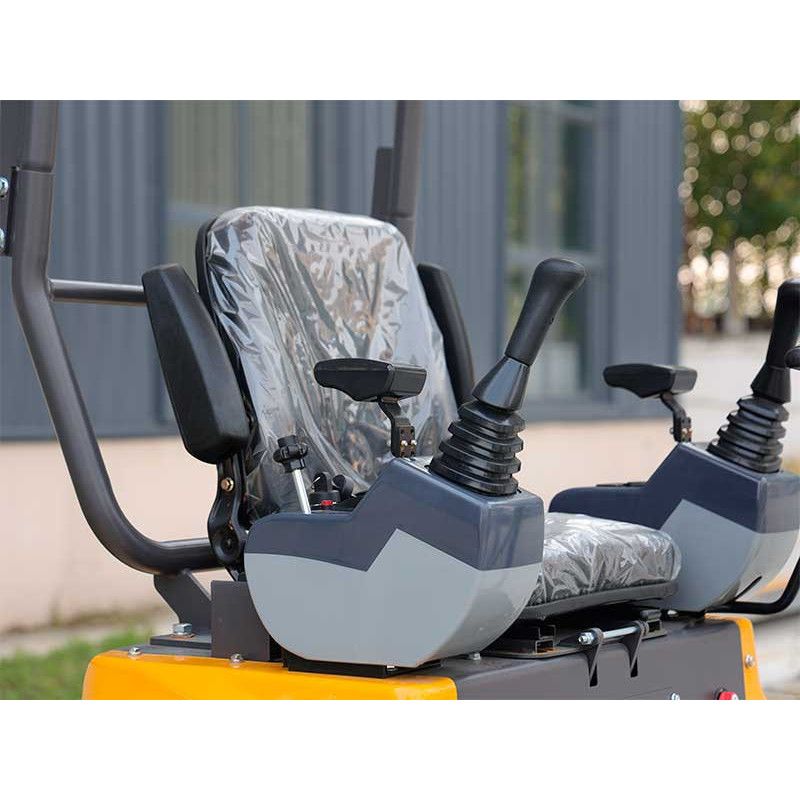

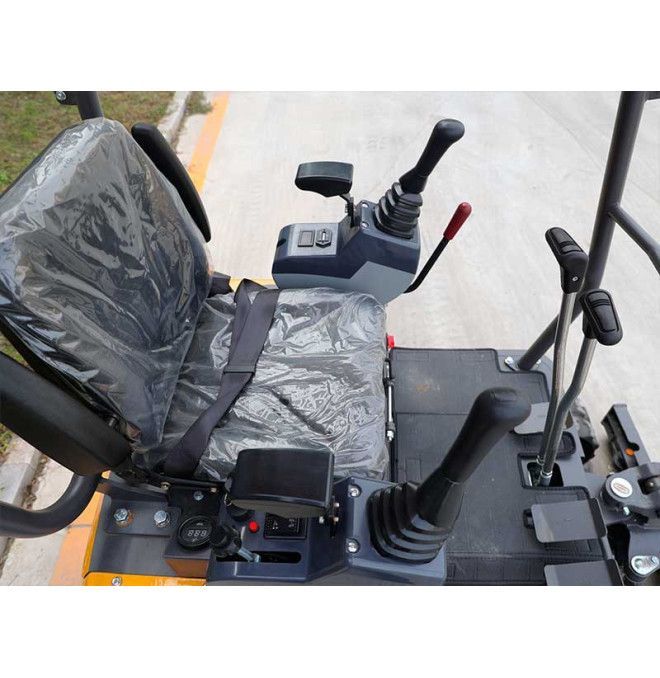

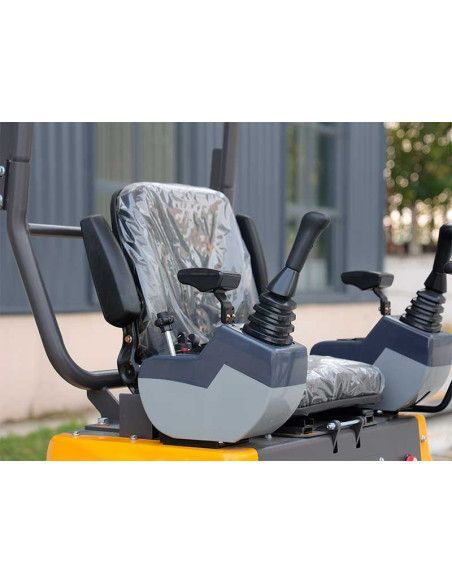

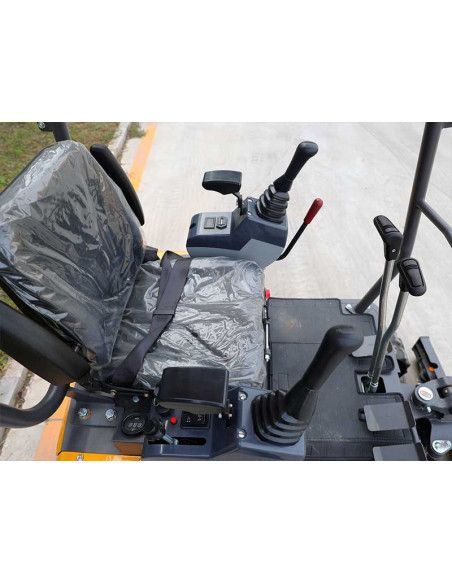

Ergonomic seat with armrest
Safety belt.
Detachable upper tumble for work at a lower height as well as reinforced with 4 support points.
The miniExcavator Tymbia TY15 it combines a compact design with powerful performance, becoming the tool ideal for operating in reduced spaces without compromising efficiency. Its ergonomic structure and advanced functionality make it perfect for agricultural work, landscaping, construction light and more.
Thanks to its optimized dimensions, this miniexcavator can easily maneuver in narrow areas such as greenhouses, basements and urban areas. Ideal for projects that require precision and mobility in demanding environments.

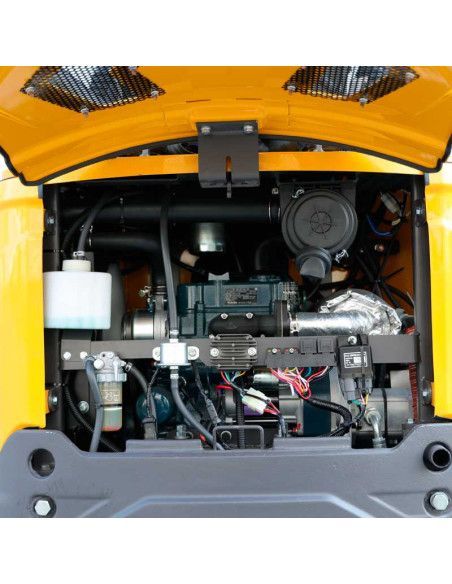

Kubota motor - strength and reliability
Equipped with a Kubota engine, recognized worldwide for its durability and high performance, TY15 offers constant power and smooth performance, guaranteeing professional results even in the most challenging conditions.

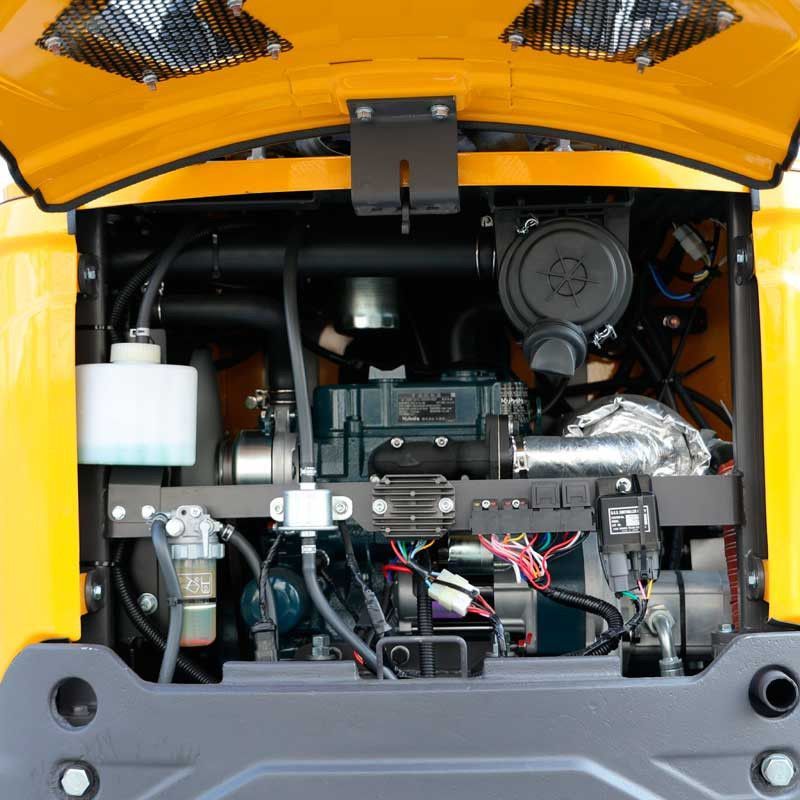

Easy and efficient maintenance
Its design designed in the user allows quick and safe access to the key components of the equipment. The chassis is built to facilitate daily maintenance tasks, while the rear engine compartment simplifies inspection and regular care. This reduces downtime and improves the useful life of the equipment.
Rubber caterpillars in V format - maximum stability
The rubber caterpillars in the form of "V" offer an adhesion superior to the ground, ensuring stability and safety during displacement. This allows to work on delicate surfaces without damaging the ground, always maintaining an absolute control over the machine.
Professional Applications
TY15 adapts to a wide variety of industries and specialized tasks:
Agriculture and agroforestry: preparation of land, planting of trees and culture tasks.
Gardening and Landscaping: Accurate excavation, preparation of pots and gardens, and plantation of shrubs or grass.
Construction Interior: perfect for digging and leveling in basements, indoor patios or existing buildings.
Urban repair and maintenance: Fast and efficient solution for minor works, repair of pavements and underground networks.
Greenhouses and orchards: facilitates the installation of irrigation systems and preparation of growing beds.
Key advantages:
High quality Kubota engine: power, reliability and low consumption.
Compact design: Ideal for small spaces and detailed works.
Rubber tracks in V: greater tensile and floor protection.
Easy access to the engine: Fast and safe maintenance.
Multipurpose: from agriculture up construction urban.
Intelligent Investment for Professionals: The Tymbia Ty15 MiniExcavator is the perfect choice for entrepreneurs, contractors and farmers seeking a robust, versatile and easy-to-operate machine. With a balanced combination of strength, maneuverability and comfort, this excavator is designed to maximize productivity and minimize operating costs.
Maximize your performance with the Tymbia TY15 mini-cavator!
Acquire today the ideal solution for your projects: compact, powerful and ready for any professional challenge.
** Transportation costs have been estimated considering that the download will be made with the customer's own means.
