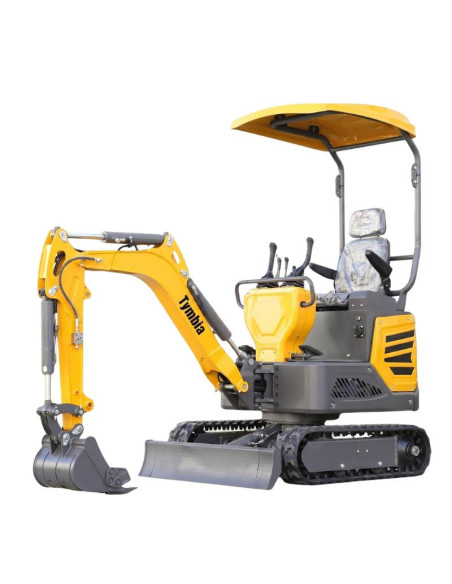

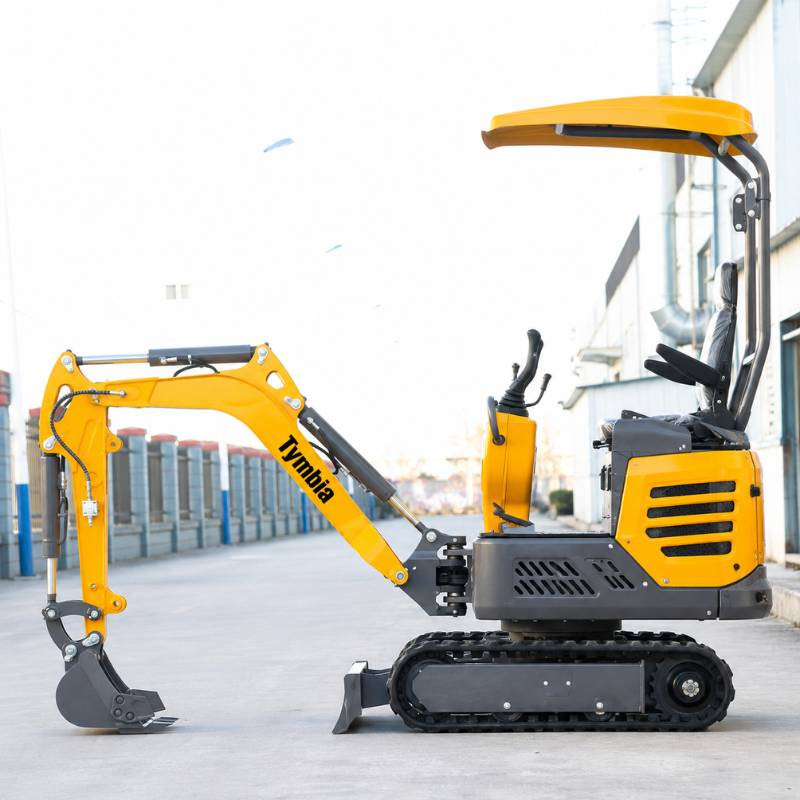

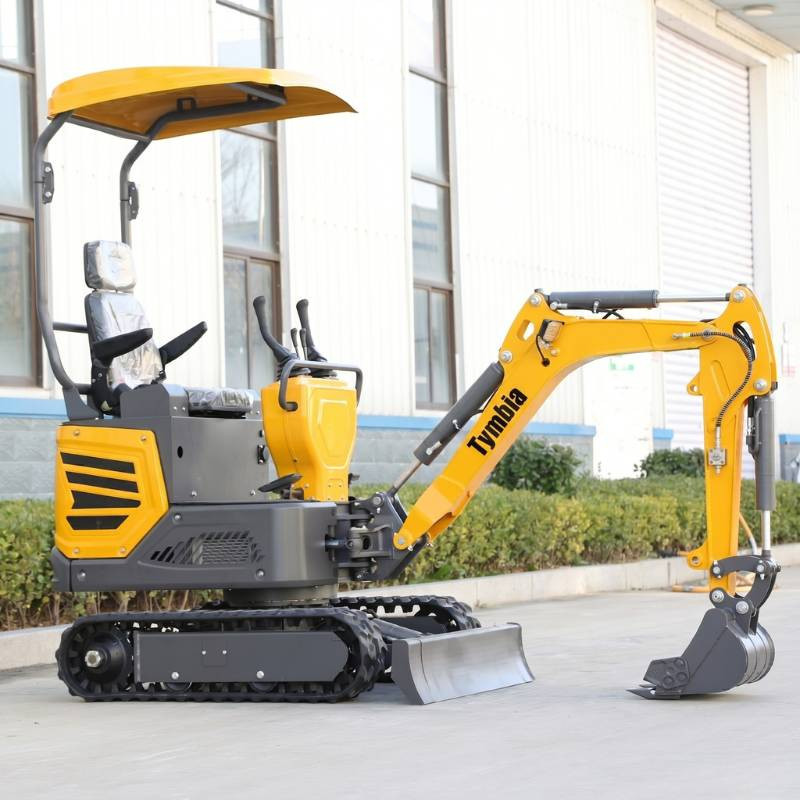

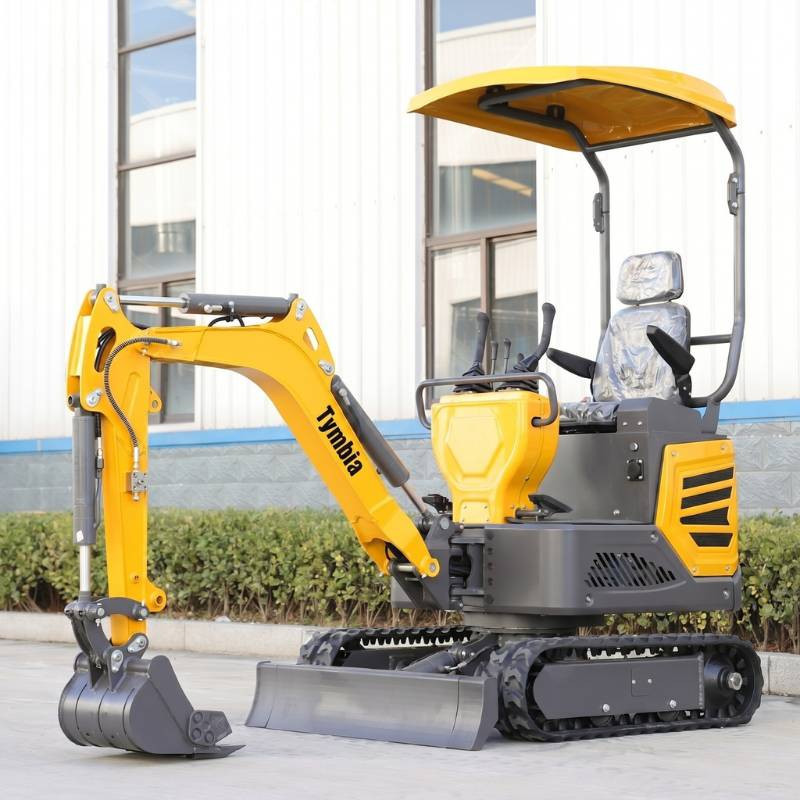

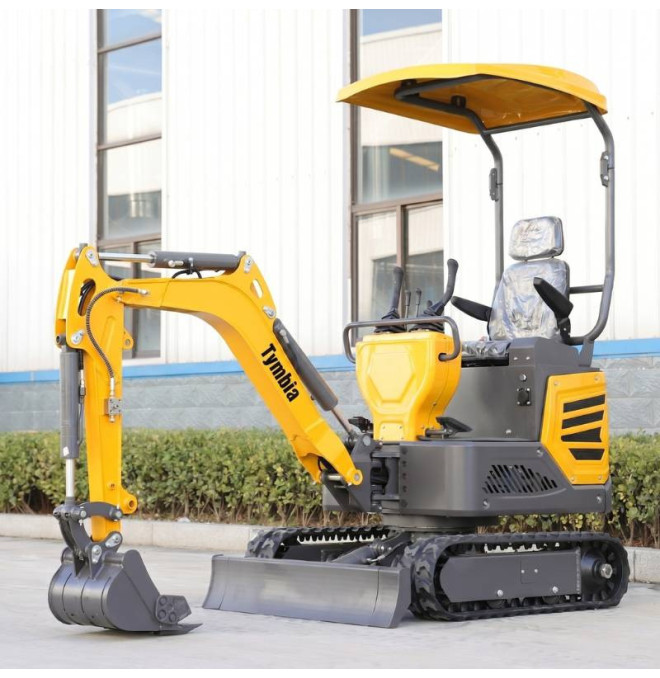

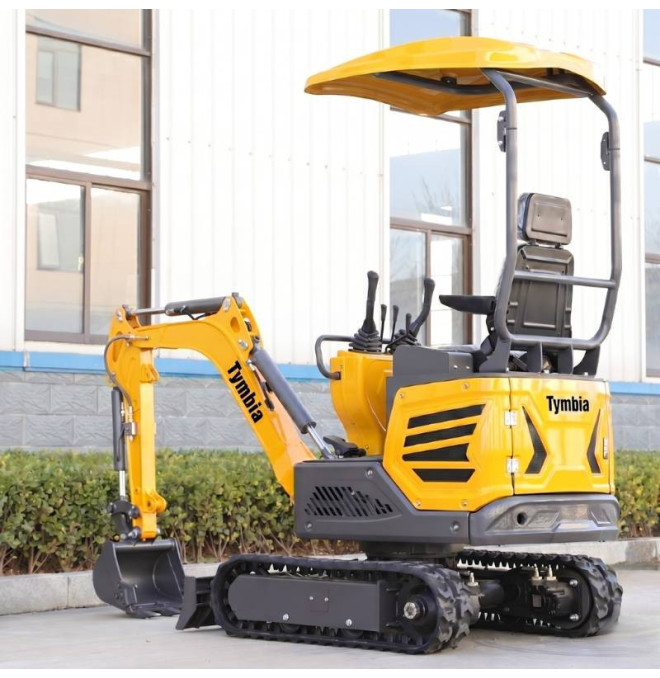

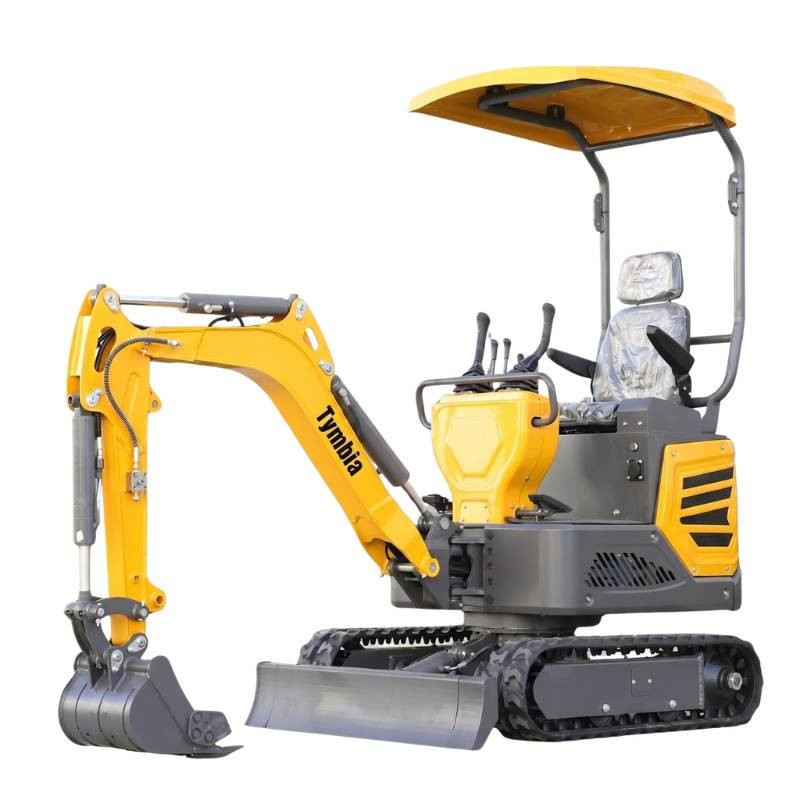

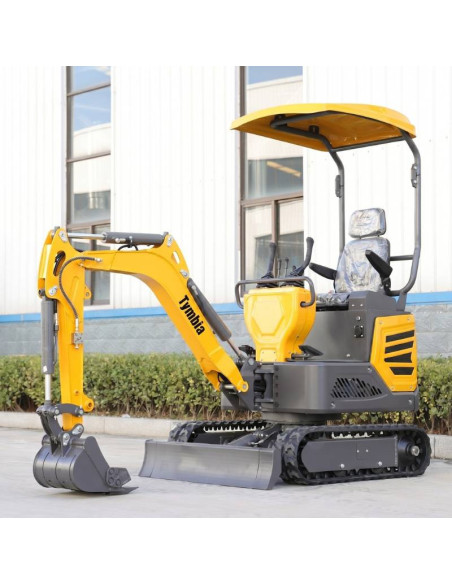

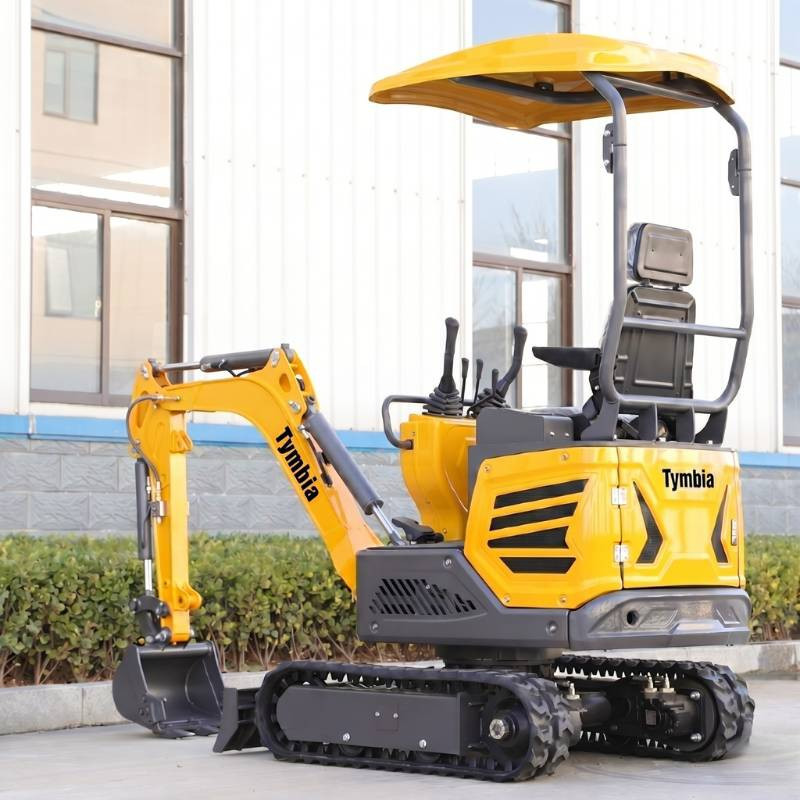

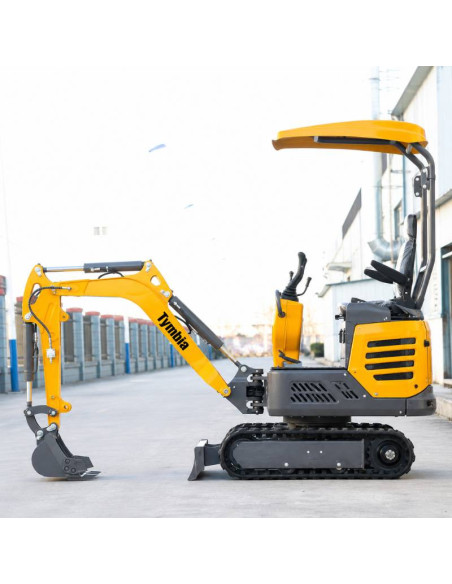

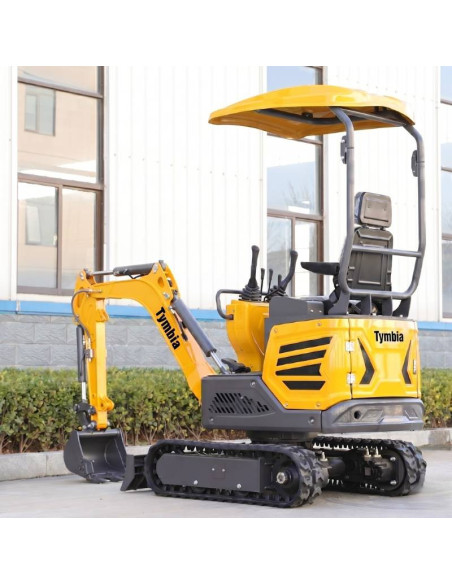

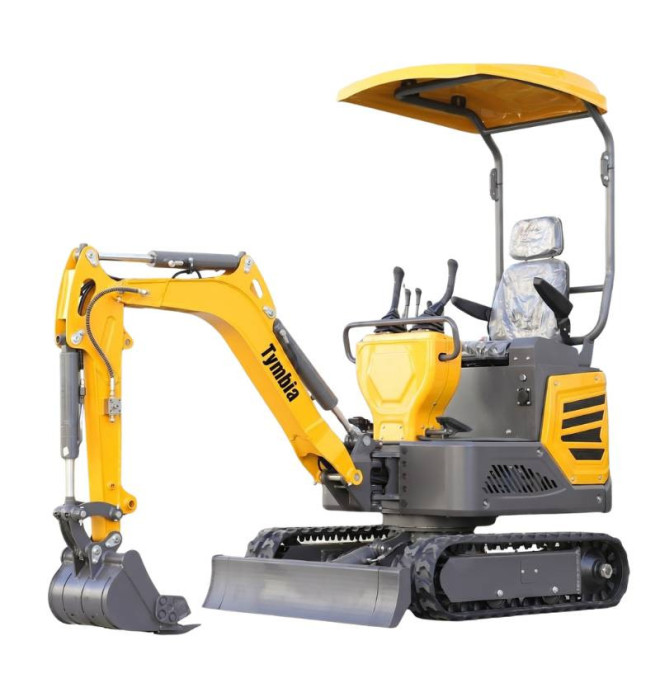

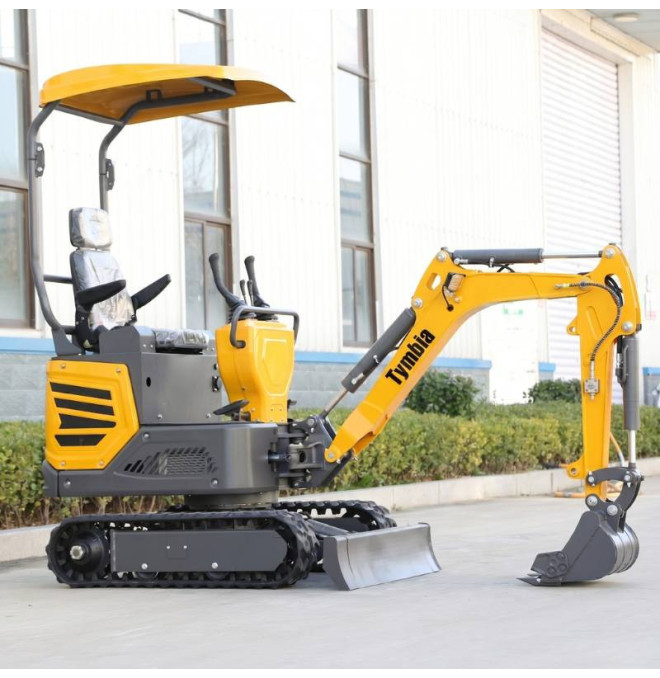

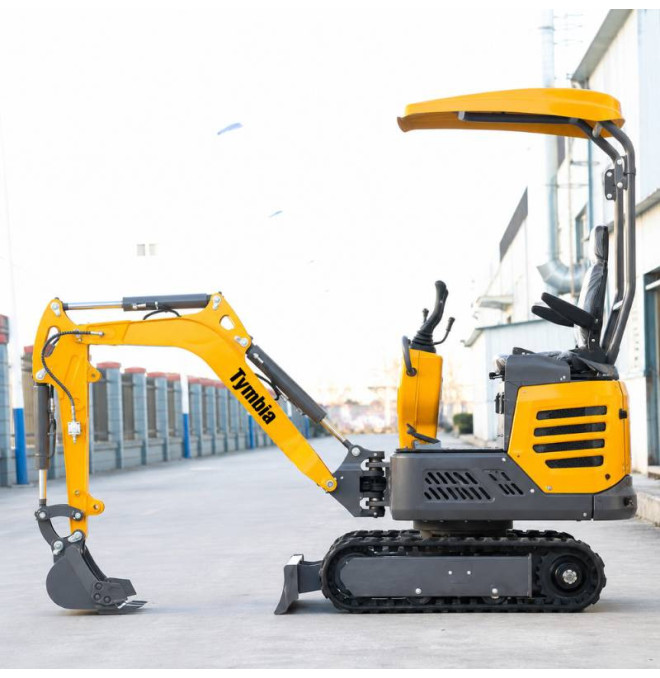

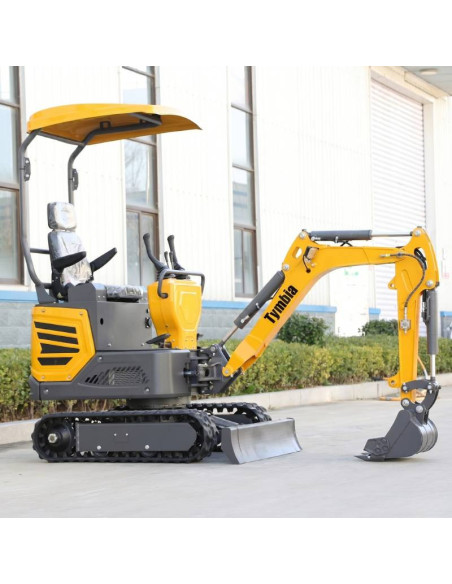

The Tymbia Ty12L electric mini-scapero is a compact and efficient machine designed for excavation, zanjeo and lands movement in reduced spaces. Thanks to its electrical system with a ternary lithium battery, it offers silent, accurate and cleaner operation, being an ideal solution for urban works, maintenance, gardening and work in noise sensitive areas.

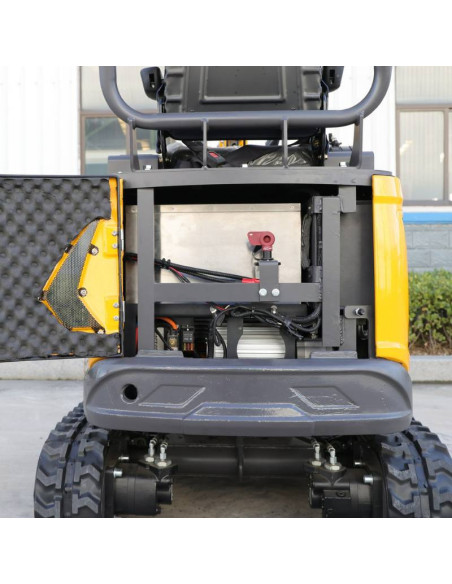

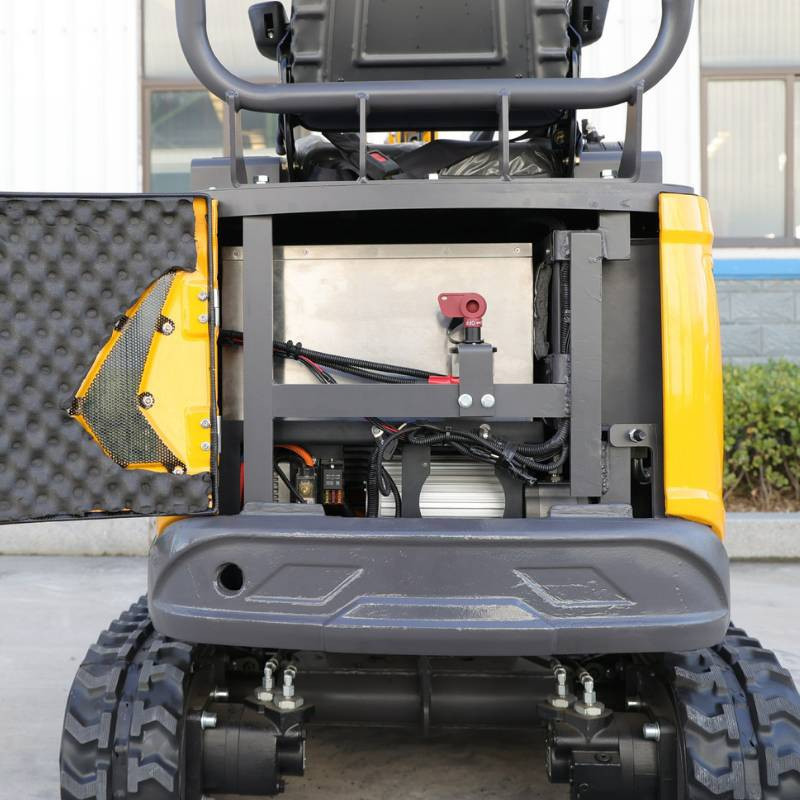

Its configuration combines a 72V / 150Ah lithium battery, a 6,5kw nominal power and a maximum 13KW power, providing an efficient response for professional use.
In addition, it incorporates IP65 protection, quality hydraulic components and a traction system prepared for demanding work.
Technical characteristics:
- Model: TY12L
- Battery voltage: 72V
- Battery capacity: 150Ah
- Battery type: Lithium

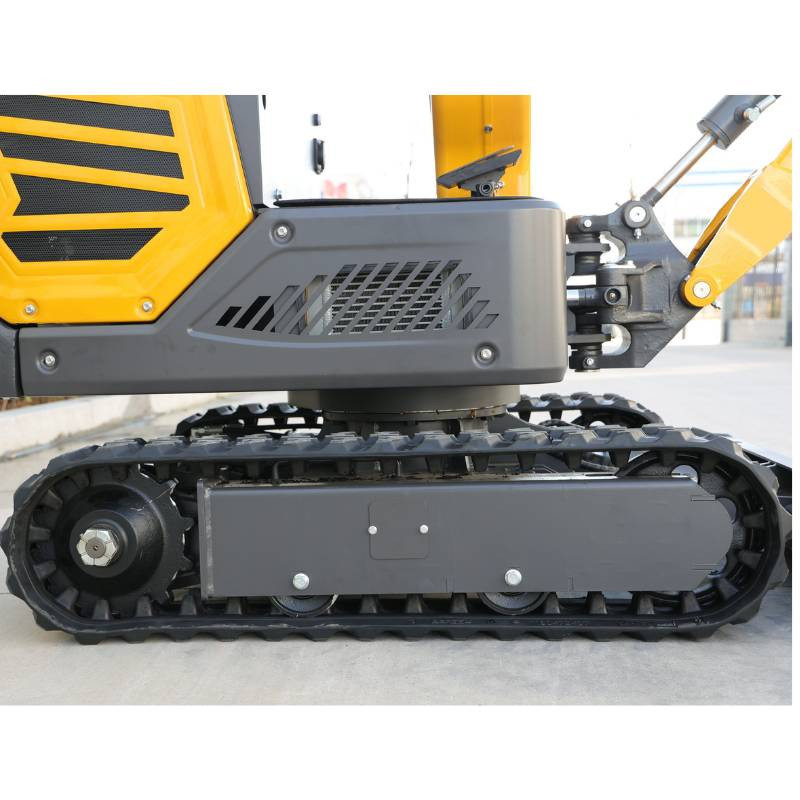

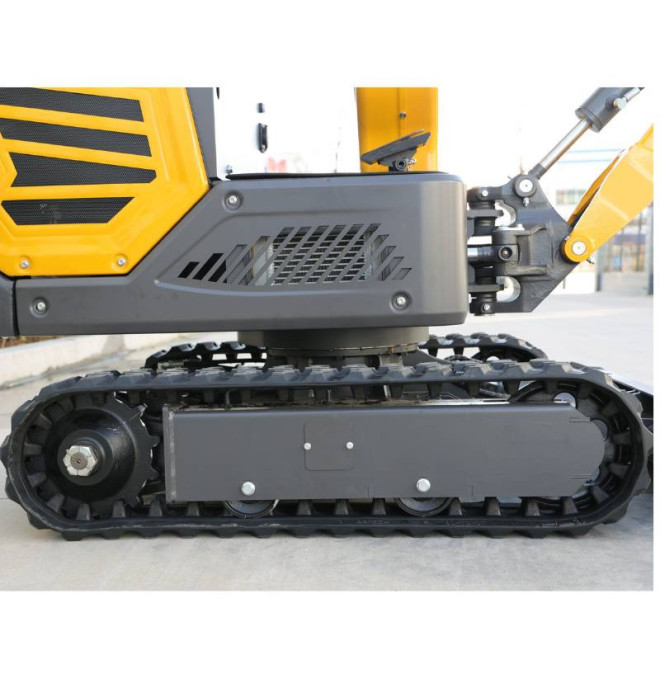

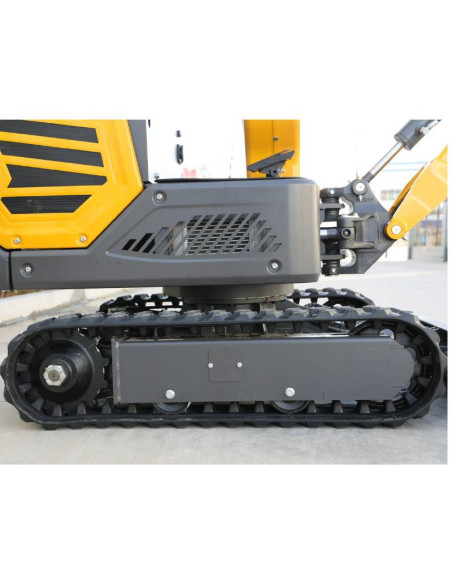

- Retractive caterpillars of 880 to 1,100 mm
- Nominal motor speed: 2500RPM
- Maximum engine speed: 3500rpm
- Nominal engine pair: 25N · M
- Maximum engine torque: 95N · M
- Nominal motor power: 6,5KW
- Maximum power power: 13KW
- Maximum controller output current: 450A
- Operating voltage range of the controller: 24V-90V
- Protection: IP65
- Silent performance
Standard configuration:

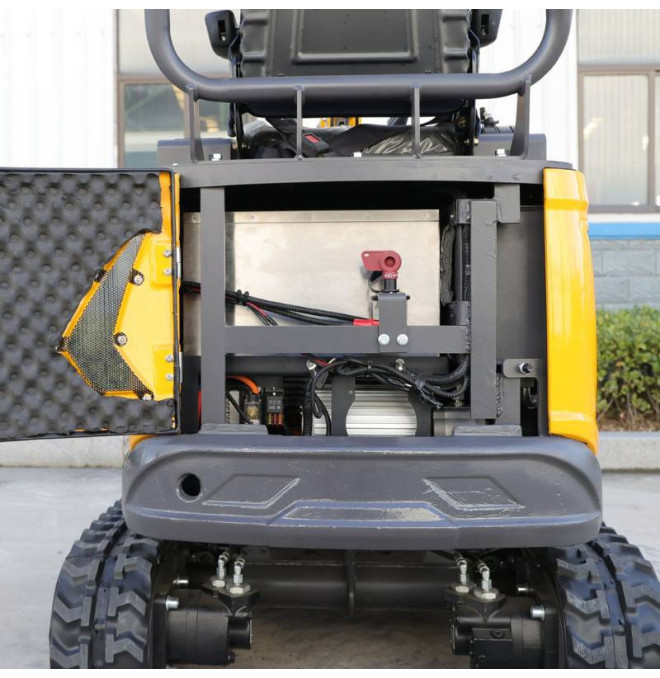

- 72V / 150Ah lithium battery

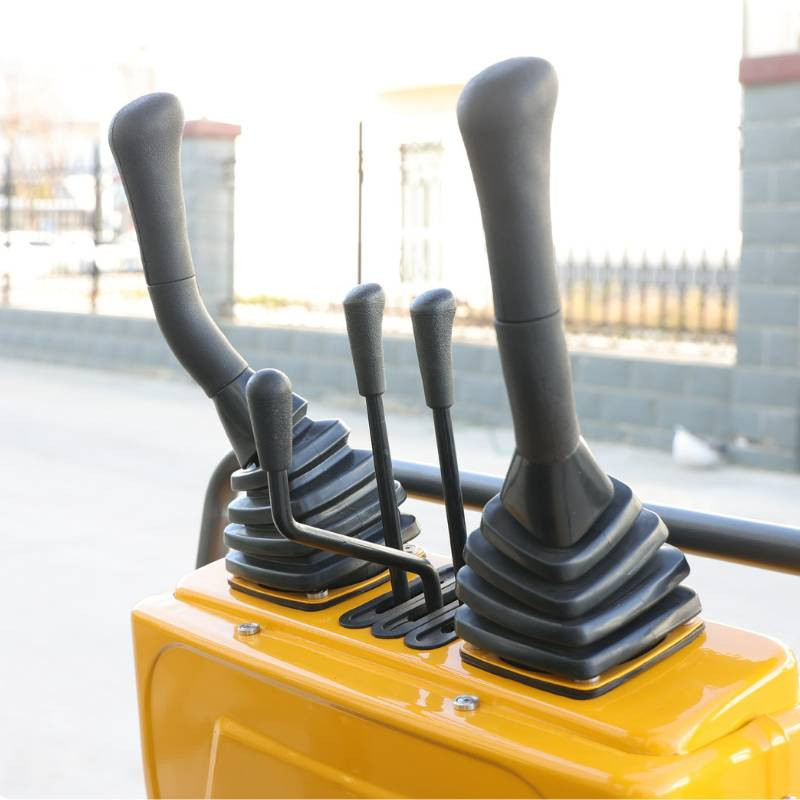

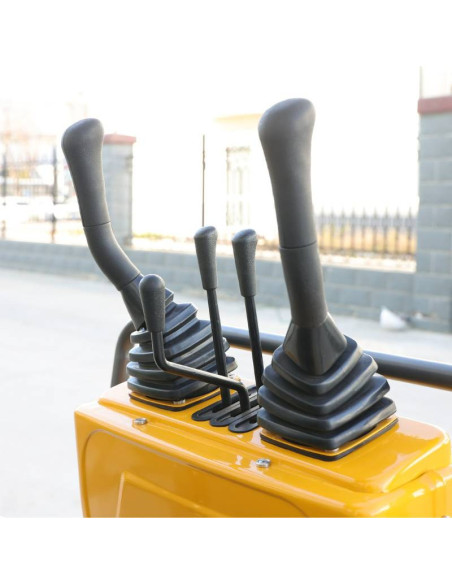

- High precision multiple valve
- High quality motor
- High performance electrical system
- Compact configuration for professional jobs
Advantages:
- Electric and silent performance: Ideal for work in urban, interior environments or noise sensitive areas.
- Greater energy efficiency: Lithium battery offers a modern and efficient solution for excavation and movement of land.
- Good work performance: With a maximum power of 13KW and maximum torque of 95n · M, it offers a powerful and stable response.
- IP65 protection: Prepared to work under demanding conditions with good resistance against water and dust.
- Compact and maneuverable: suitable for work in reduced spaces and complicated access.
Customizable configurations: It offers various optional configurations to adapt to different types of projects.
Applications:
- Construction: Light excavations, ditches and small ground movements.
- Gardening and landscaping: preparation of land, plantation and external conditioning work.
- Urban maintenance: repairs, channeling and small works in city.
- Interior works or noise sensitive areas: thanks to its electrical system and lower sound level.
- Technical services and light work: Practical solution for companies seeking a compact and efficient mini -cavator.
Optional configuration:
- Spoon 20 cm (ref.c202100029)
- Spoon 80 cm (cleaning spoon) (ref.c202100030)
- Hammer (ref.c202100031) - See video
- Ripper - heartbreaking (ref.c202100041)
- Digger Perforator (Ref. C202100039) See video
- KT Hydraulic thumb (Ref. C202100046) See video
- Clip for trunks (ref.c202100040)
- Rake (ref.c202100038)
- Drill endlessDigger) (Ref.c202100039)
- Filter kit: air, oil and gas (ref.c202100100)
- Hydraulic filter (ref.c202100102)

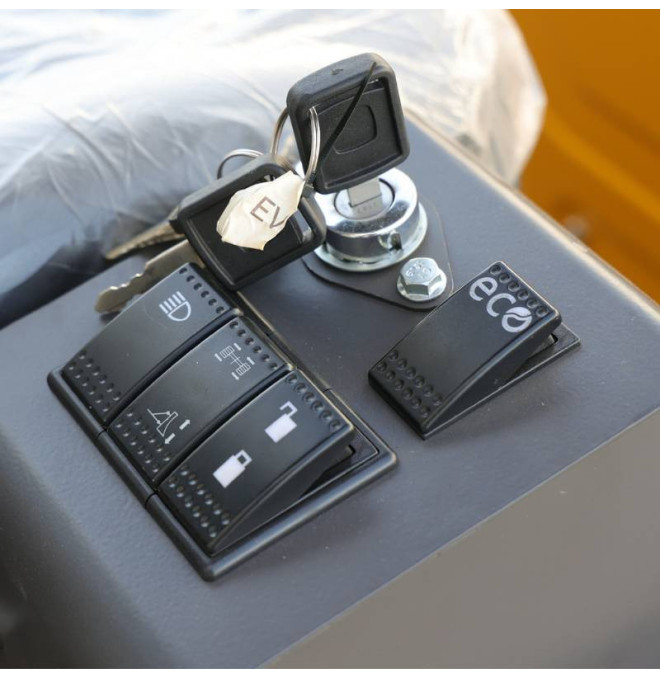

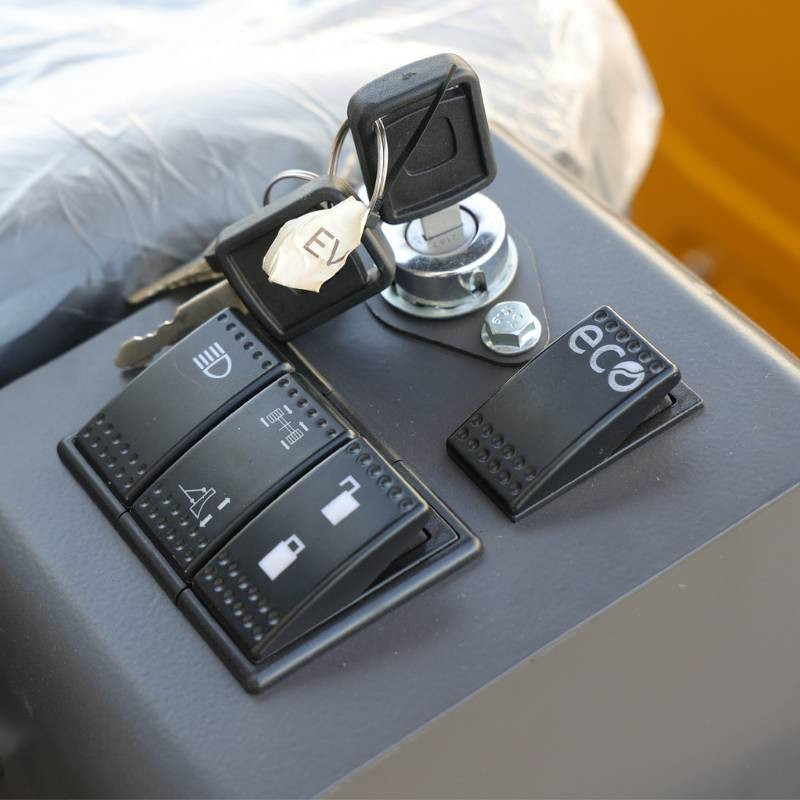

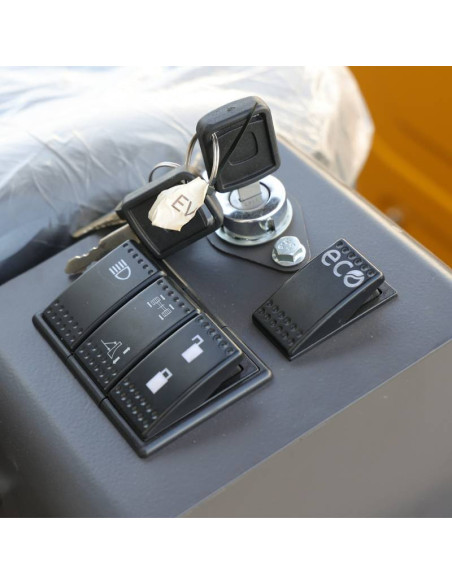

- Ignition switch (ref.c202100103)
- Hydraulic Tube Cylinder Arm (Ref.C202100104)
- Injectors (ref.c202100105)
- Other options consult
For more information about the Tymbia Ty12L miniXCAVER or to request a quote, contact our business team
** They must have their own discharge means.
