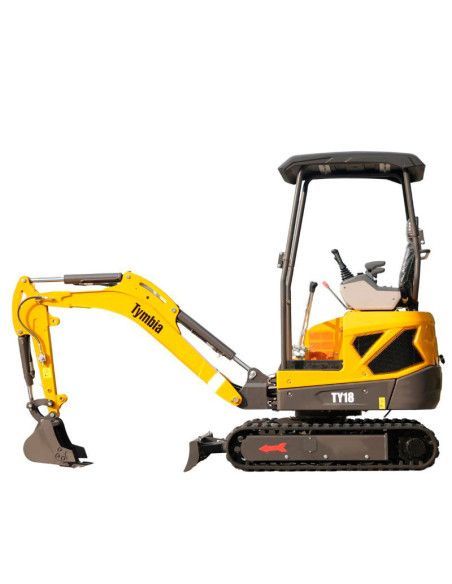

The mini-scapery TYMBIA TY18 of 1800KG with diesel engine Kubota of 3 cylinders, excavation depth 2137mm, retractable caterpillar of 1000 to 1250 mm, double speed and fast hitch. Includes bucket of 40mm.
Indispensable equipment for a wide variety of uses, especially effective in spaces as greenhouses, interior areas and gardening projects. Its functionality allows to carry out tasks such as the distribution of fertilizers, deep excavations in orchards, opening of channels, tree planting and creation of tinkle for electrical installations or irrigation systems.
Thanks to its compact size, it is the ideal option to work comfortably in places with restricted space.
The mini-scapery TYMBIA TY18 of 1800KG with diesel engine Kubota of 3 cylinders, excavation depth 2137mm, retractable caterpillar of 1000 to 1250 mm, double speed and fast hitch. Includes bucket of 40mm.
Indispensable equipment for a wide variety of uses, especially effective in spaces as greenhouses, interior areas and gardening projects. Its functionality allows to carry out tasks such as the distribution of fertilizers, deep excavations in orchards, opening of channels, tree planting and creation of tinkle for electrical installations or irrigation systems.
Thanks to its compact size, it is the ideal option to work comfortably in places with restricted space.
This minixcavator becomes a tool Indispensable for different sectors such as agriculture in greenhouses, landscaping work and indoor projects. Thanks to its great adaptability, it allows to perform tasks such as the application of fertilizers, excavation in orchards, opening of ditches for cables or pipes, and planting of trees with ease. Its compact size makes it perfect for operating in reduced spaces, as within buildings or closed structures. In addition, its intuitive handling allows anyone to learn to operate it with just a few minutes of practice.
Featured features:
High durability: Designed to support demanding jobs, this minixcavator offers reliable performance and a long life.
Compact and maneuverable design: Thanks to its reduced structure and great agility, it is ideal to operate efficiently in limited spaces and difficult land.
Construction With resistant materials: its structural components are made of high quality stainless steel and plastics, which guarantees greater resistance and longevity.
Full rotation of 360 °: Your total rotation system allows precise maneuvers and operating versatility in any direction.
Secure operation: incorporates a front gear system that provides greater stability and protection during work.
Technical characteristics:
Model: TY18
Engine: Kubota D722
Power: 10.2 kW
Operating weight: 1800kg
Bucket capacity: 0.035 m³
Quick mechanical coupling.
Maximum driving speed: 2 km / h
Working pressure: 16 MPa
Hydraulic tank capacity: 21 L
Engine oil capacity: 3.2 L
Fuel tank capacity: 11 L
Maximum climb capacity: 30 °
Maximum excavation force: 12/7 kN
Total long: 3237 mm
Total width: 1000 mm
Total height: 2282 mm
Maximum excavation height: 3047 mm
Maximum discharge height: 2270 mm
Maximum excavation depth: 2137 mm
Maximum depth of excavation of the vertical arm: 2122 mm
Maximum excavation distance: 3370 mm
Minimum turning radius of the front end: 1416 mm
Maximum distance of excavation on the ground: 3295 mm
Standard configuration:
3-cylinder diesel engine Kubota
High precision multiple valve
High quality motor
Adjustable blade
Rubber caterpillar wear resistant
Adjustable driver's seat
Buckets Included: 40cm standard.
Light on arm.
Battery disconnector

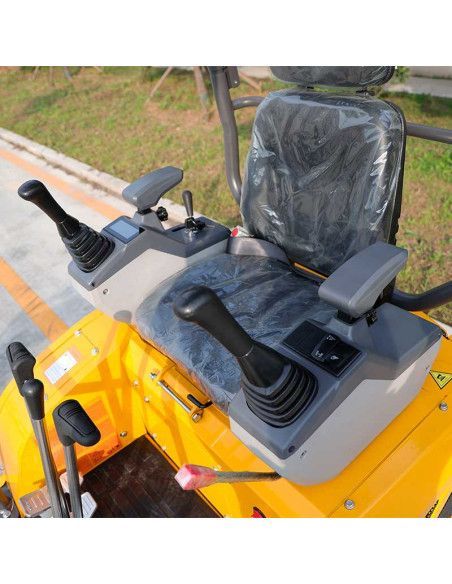

Ergonomic seat with armrest
Safety belt
Detachable upper tumble for work at a lower height as well as reinforced with 4 support points.
Its design of reduced dimensions It allows operating in narrow spaces without sacrificing performance.
Branding engine and superior performance: The whole series of our excavators is equipped with Kubota engines that ensures great power and facilitates work.
Easy maintenance: The design of the chassis facilitates mechanical accessibility, which makes the maintenance of the machine simple and fast task. It incorporates a resistant security frame and a motor compartment with rear opening, which facilitates inspection and daily maintenance quickly, safely and efficiently

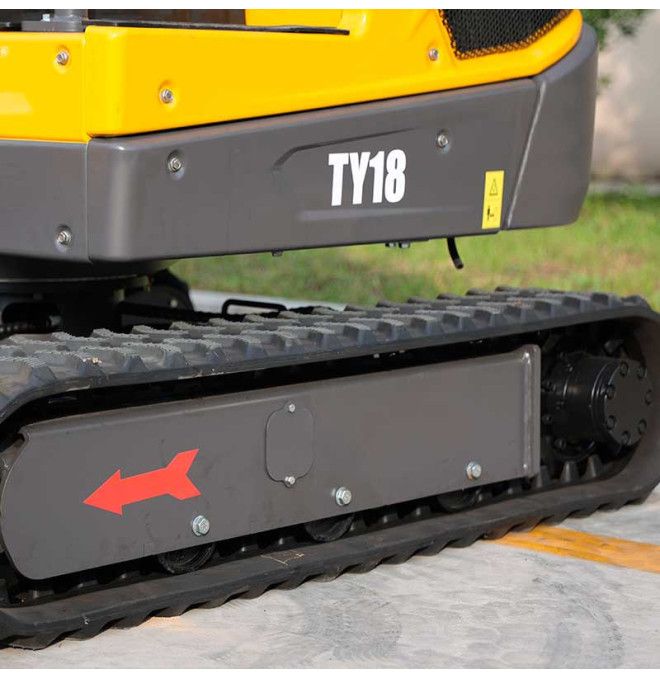

Rubber caterpillar: With a V-shaped pattern, it guarantees that the excavator maintains an optimal contact with the soil while traveling, providing a stable and secure gear. With these features, our excavators are designed to offer exceptional performance and a work experience without complications. Discover the difference today!
Compact power for great challenges!
The MiniExcavator is the perfect ally for those seeking efficiency, versatility and professional results in each project. Thanks to its compact design and great functionality, it adapts to a wide variety of applications:
Agroforestry plantations: accelerates the preparation of the terrain and planting of trees.
Leveling agricultural land: optimizes the culture space with flat and well-worked surfaces.
Gardening and Landscaping: Ideal for digging, preparing green areas and planting flowers or shrubs accurately.
Repair of pavements: an effective solution for urban or residential maintenance work.
Indoor and basement excavations: its reduced size allows you to easily maneuver in places of difficult access.
Agricultural tasks: From sowing to collection, it facilitates all kinds of work in the field.
Work in greenhouses: Perfect to prepare the terrain and install irrigation systems quickly and easily.
Compact, powerful and adaptable, this minixcavator is an intelligent investment for demanding professionals and entrepreneurs of the agricultural sector or construction. Maximize your productivity with a machine designed to surrender!
