MiniExcavator 2500kg Yanmar Diesel TY25

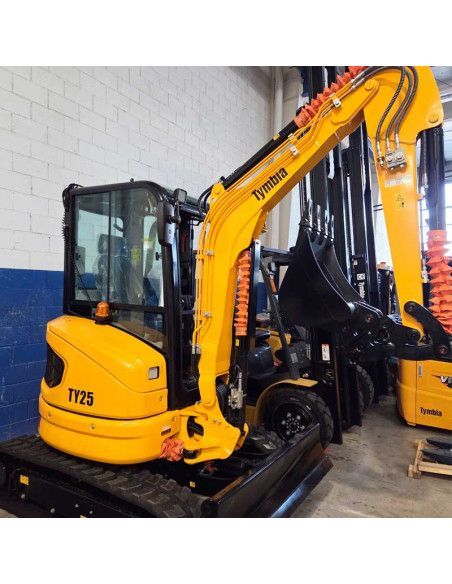

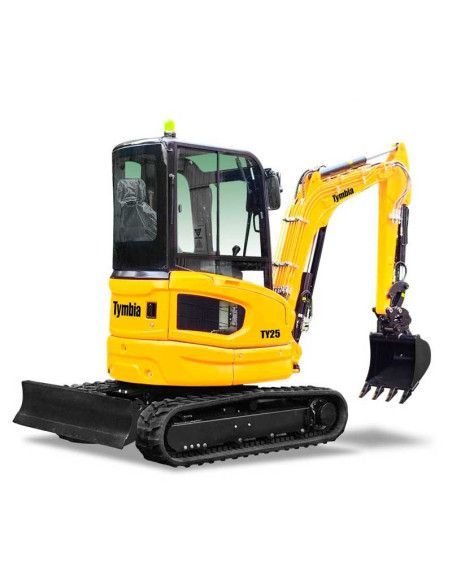

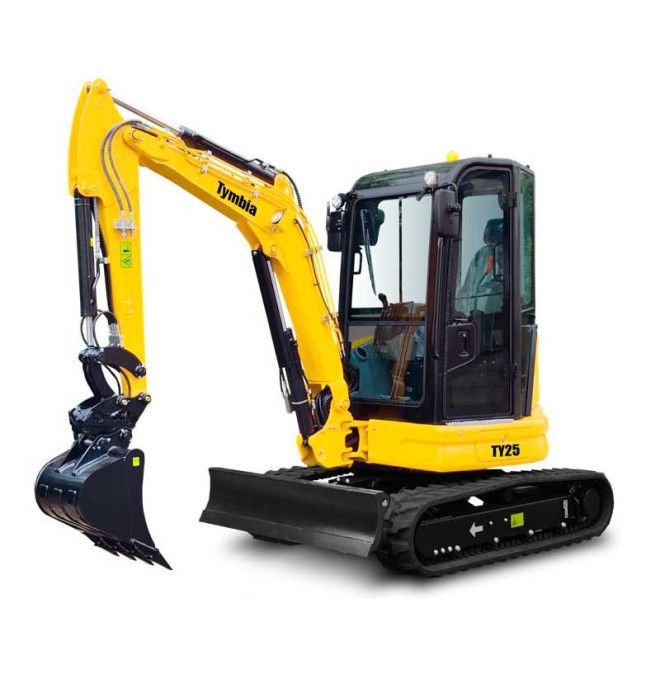

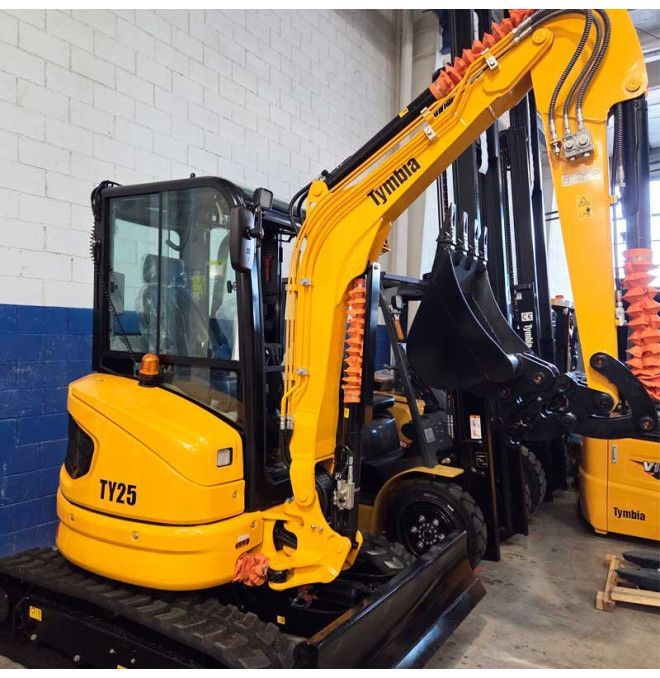

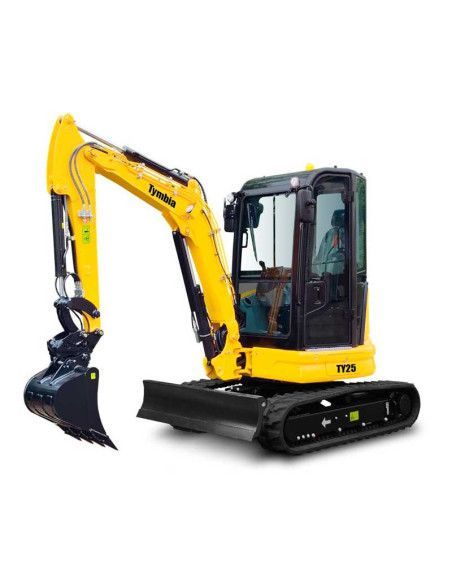

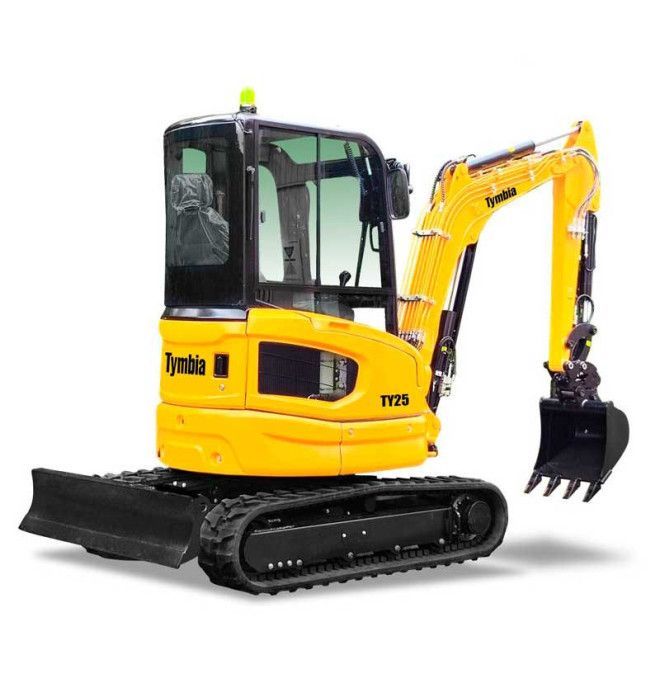

Miniexcavator TYMBIA TY25S: Compact Power for Precision Works

The mini-excavator TYMBIA TY25S is the perfect solution for projects construction, maintenance and civil work in small spaces. Designed with advanced technology and high-quality components, this compact excavator combines professional performance, ease of handling and low fuel consumption, making it one of the preferred in the light machinery sector.

Equipped with the 14 kW Yanmar 3TNV80F engine (19 CV), the TY25S offers a perfect balance between power and energy efficiency. Its compact design and its 1850 mm minimum turn radius allow you to work in urban environments, residential areas, gardens or narrow corridors with total comfort and without compromising performance.

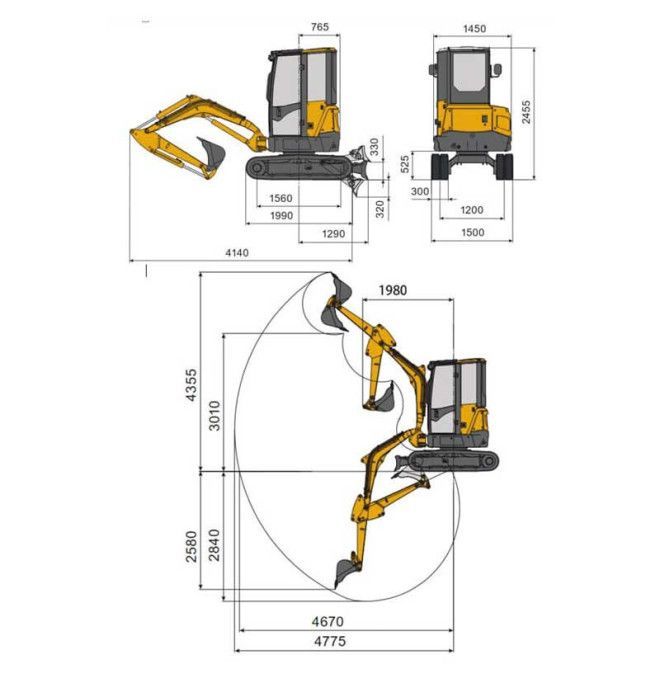

Main technical characteristics - TY25S

• Motor: Yanmar 3TNV80F – 3 cylinders, water-cooled
• Nominal power: 14 kW (19 HP)
• Service weight: 2500 kg
• Capability of the bucket: 0.066 m3
• Fuel tank: 28 litres
• Turn speed: 9.2 rpm

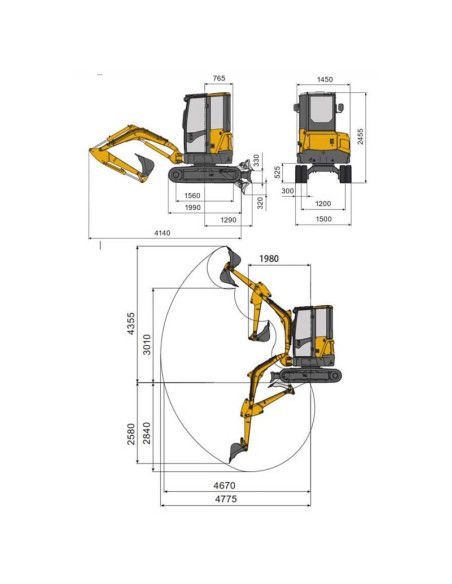

• Maximum excavation height: 3700 mm
• Maximum discharge height: 2500 mm
• Maximum depth of excavation: 2430 mm
• Maximum depth with vertical arm: 1850 mm
• Maximum excavation force: 18.4 kN
• Slope capacity: 30° (30% incl.)
• Tracking length: 2300 mm

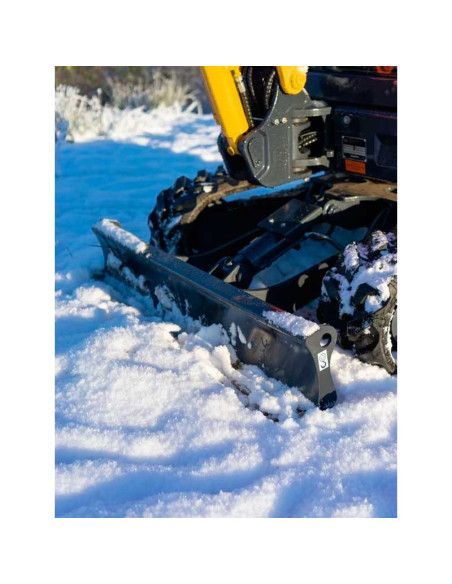

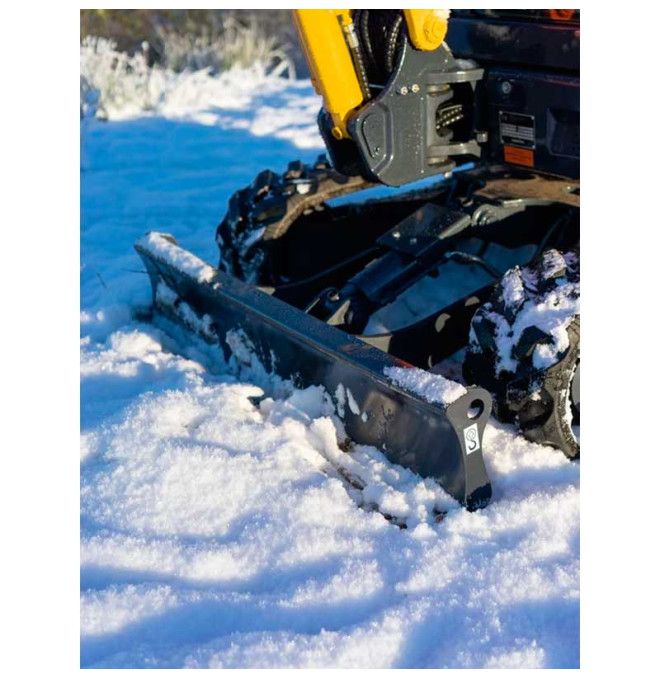

• Motriz blade height: 280 mm

Standard: Comply with CEE UNE-EN 13775 and Euro 5 emissions

Key advantages of the TY25S mini-excavator

• High maneuverability: Ideal for works in small spaces thanks to its compact design and restricted twist.
• Confidence Yanmar Engine: Recognized for its durability, low noise and efficiency in fuel consumption.
• Upper stability: Optimized operating weight (2500 kg) and balanced caterpillar system for greater traction and control.
• Easy maintenance: Direct access to service points and filters, reducing stop times.

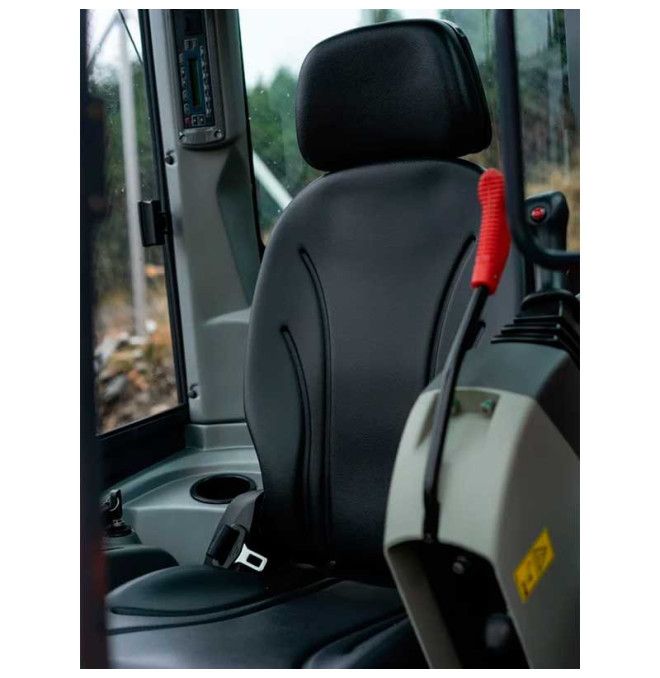

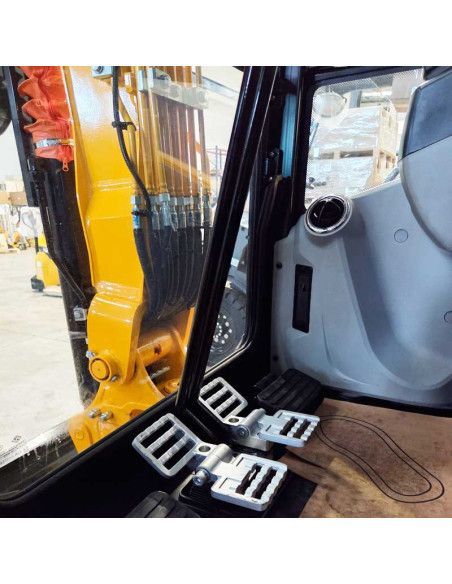

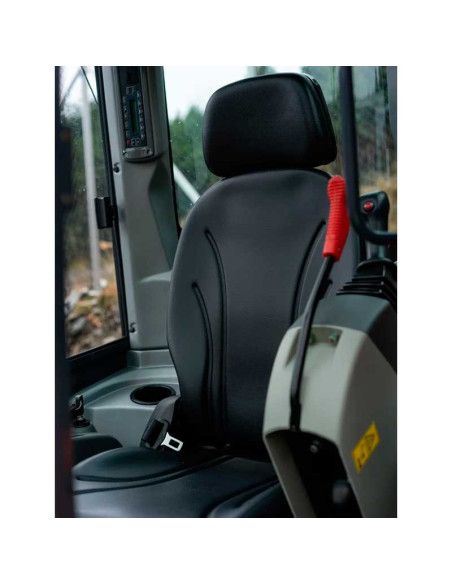

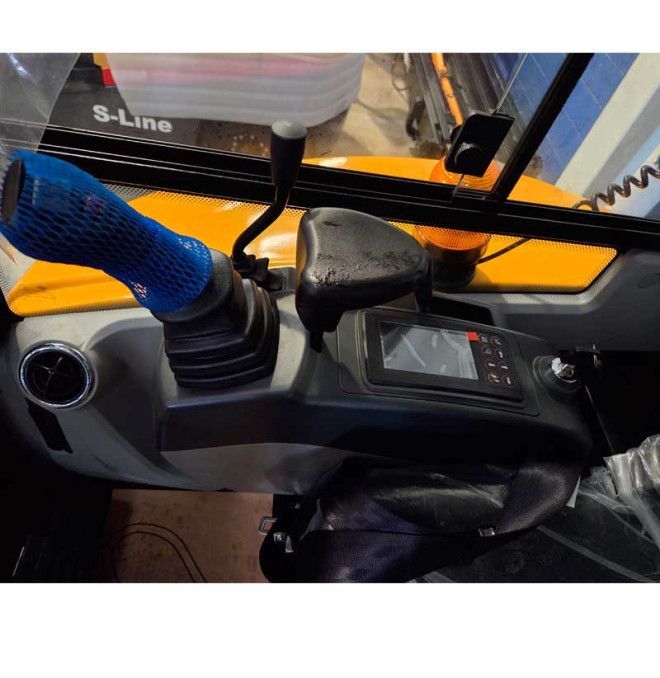

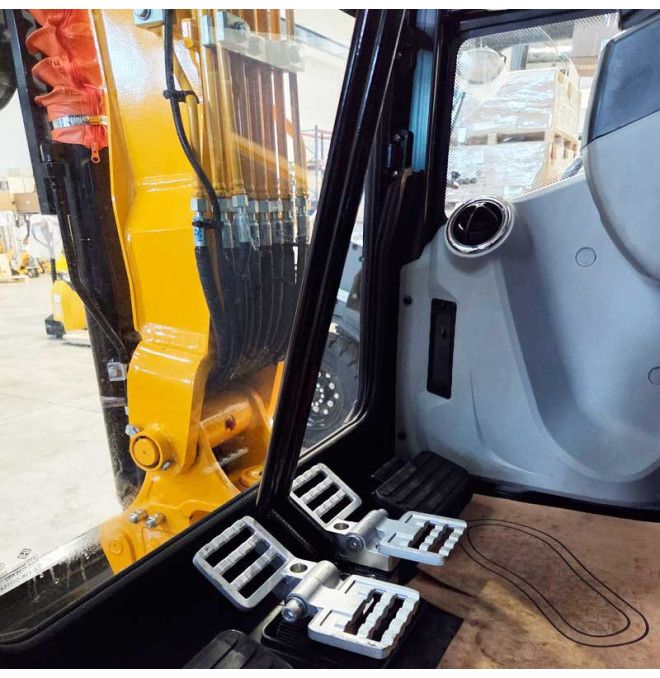

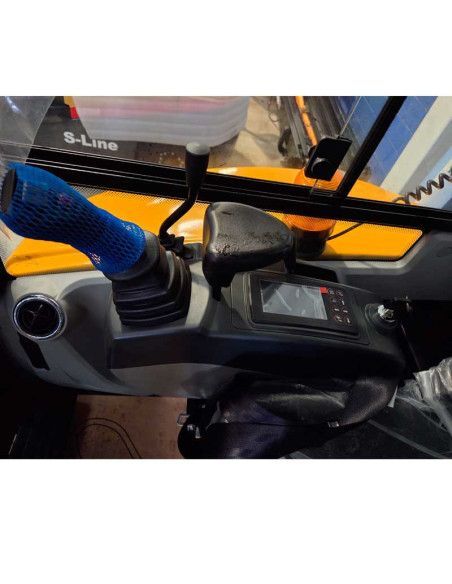

• Comfortable operation: Ergonomic cabin (according to version), intuitive controls and low vibration.
• Total versatility: Compatible with multiple accessories such as hydraulic hammer, interchangeable spoons, rotator, etc. (See optional settings).
• Compliance: Designed according to European standards of safety and emissions (Euro 5), ideal for urban areas with restrictions.

Recommended uses – Professional applications: The Tymbia TY25S mini-excavator is perfect for a wide range of applications, including:

• Civil work and urbanization: Zanjas for pipes, cables, drainage.
• Gardening and landscaping: Land movement, tree planting, terraces.
• Construction residential: Excavations in patios, foundations, basements.
• Road maintenance and networks: Repair of sidewalks, sewerage, lighting.
• Agriculture and rural work: Cunetas, wells, debroce.
• Internal work or sensitive areas: Thanks to its low impact and compact size.

Optional configurations available

• Hydraulic hammer

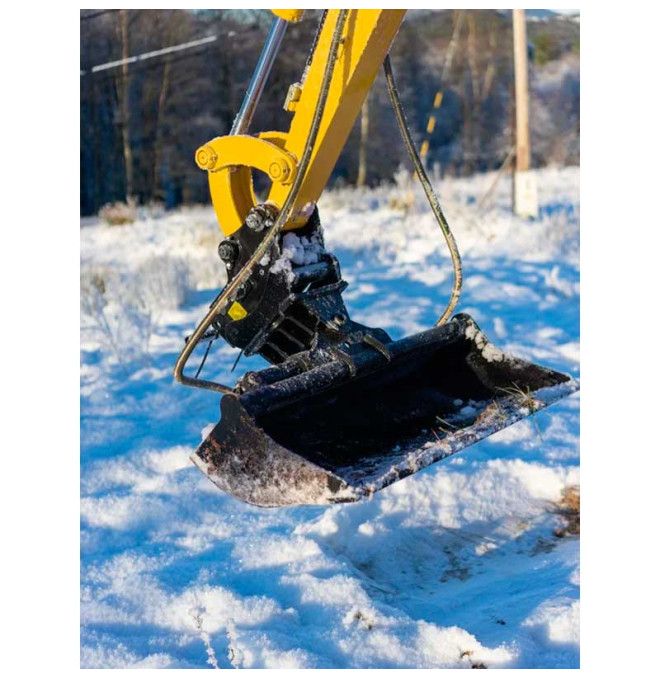

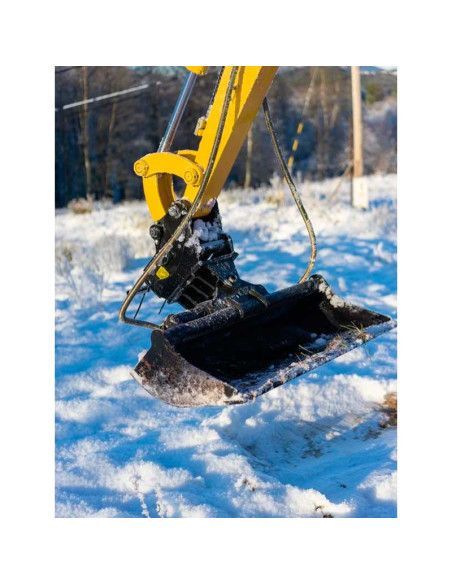

• Rotation system of bucket

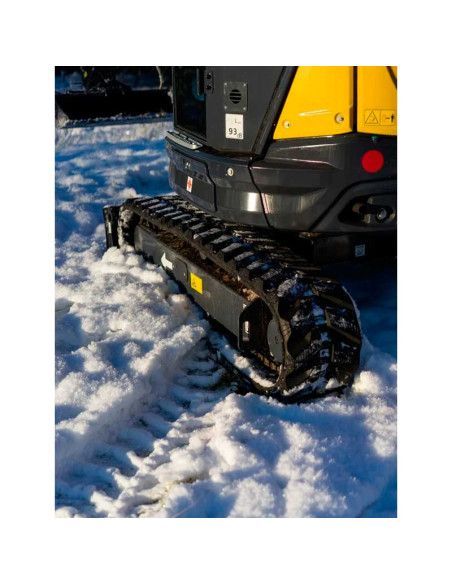

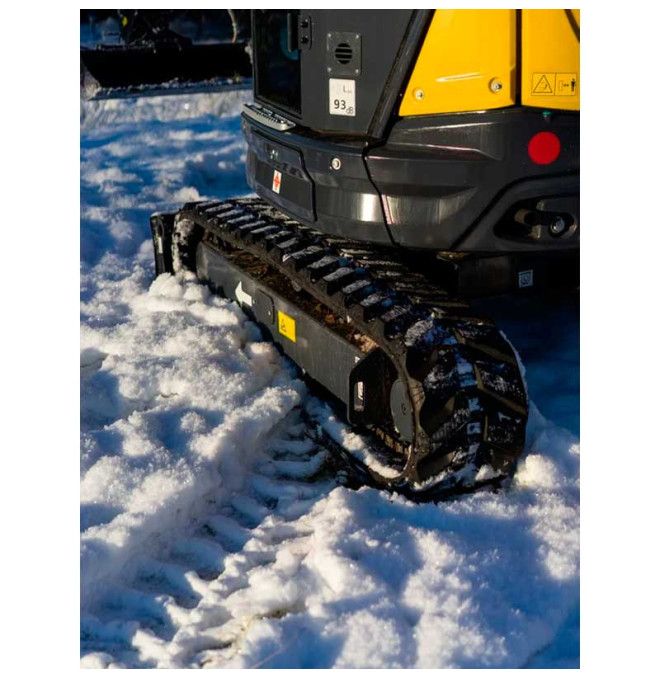

• Rubber or steel tracks
• Closed cabin with heating
• Automatic backwards system

(See your distributor for more custom options)

OPCIONAL IN STOCK:

• Bucket 1000mm (Ref. C202100036): 570€
• Bucket 300mm (Ref. C202100037): 400€

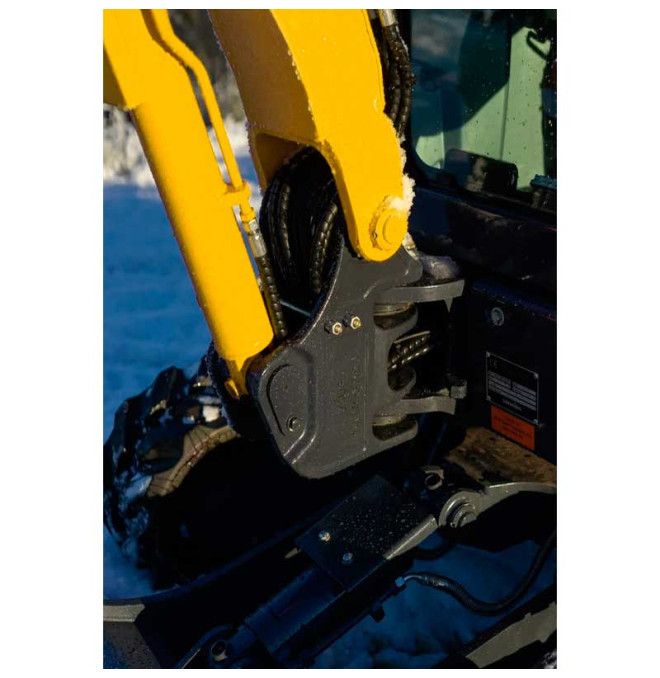

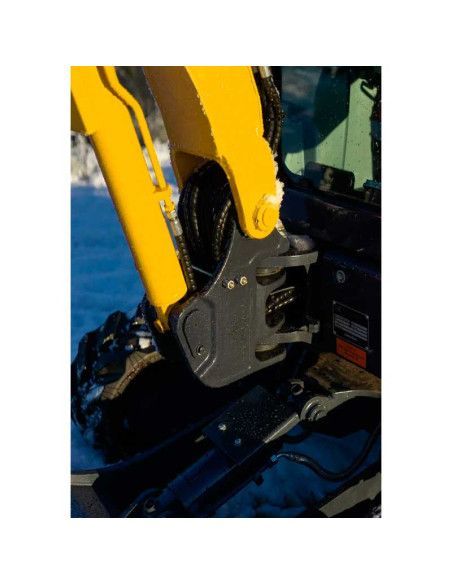

• Enganche rápìdo mec. (Ref. C202100035): 400€
• Mini-excavator hammer:1.895€

Why choose the mini-excavator TYMBIA TY25S?

Because it combines Japanese quality with European design and competitive price. It's a smart investment for self-employed, corporate construction and rental of machinery that seek reliability, low operating cost and high productivity.

** They must have their own means of downloading.
