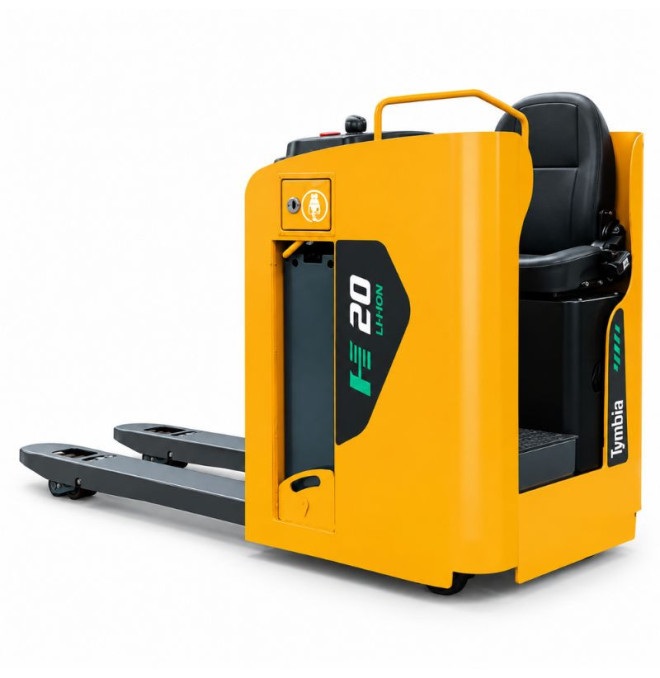

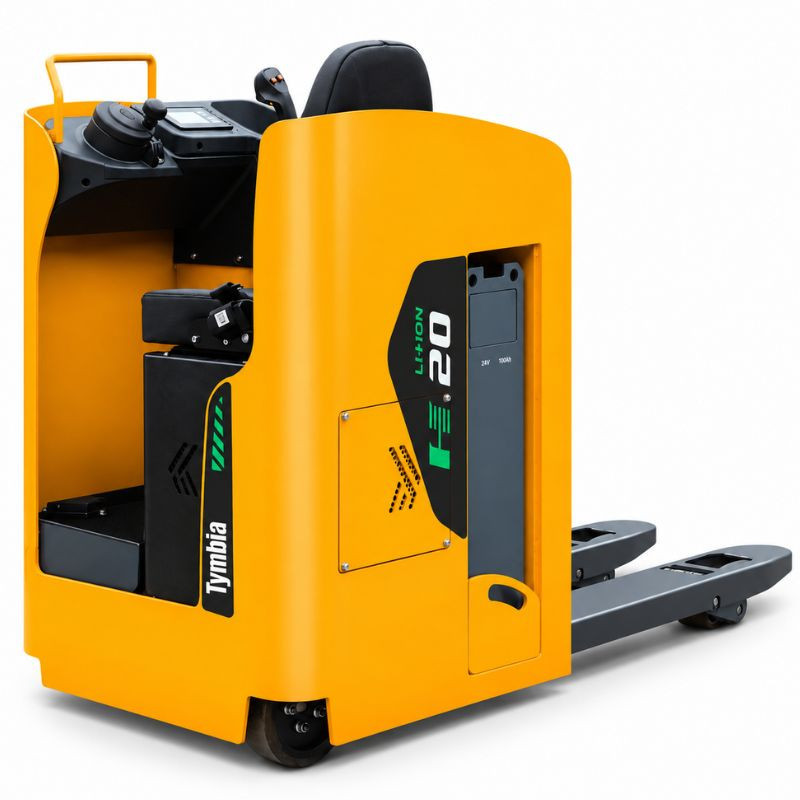

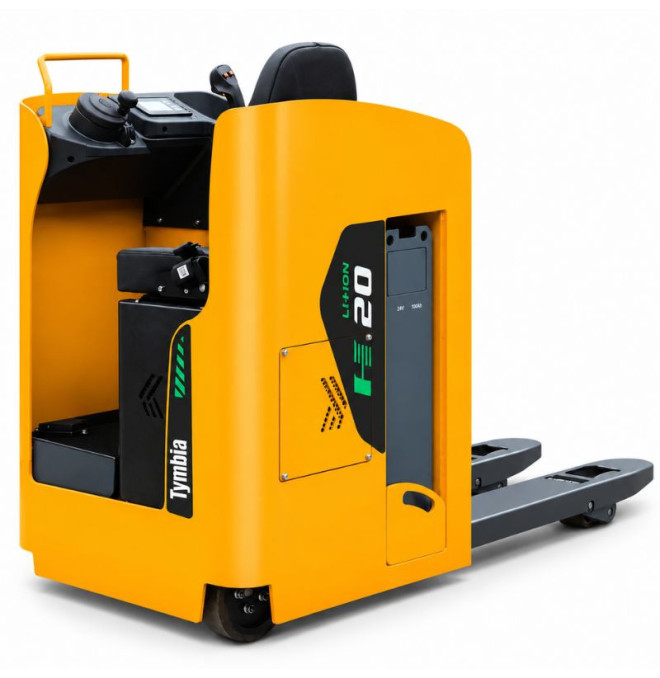

The electric pallet truck lithium Tymbia of 2000kg with a sitting driver is designed for professional transport operations of pallets in warehouses, logistics centers, distribution centers and industrial facilities.
Its nominal capacity of 2000kg and its 600mm cargo center allow transporting heavy goods efficiently, while the sitting driving position provides greater comfort to the operator during prolonged traveles and intensive work days.
The power supply is made by means of a powerful 24V / 404Ah ion-lithium battery, with a weight of 350kg. This high energy capacity is aimed at high intensity professional applications and allows us to take advantage of lithium technology, such as the possibility of carrying out of opportunity and reducing maintenance needs.
The machine tools a 3KW AC traction motor and a 2KW lifting motor, managed by a ZAPI controller. This combination offers a rapid and progressive response both during displacement and during pallet handling operations.
The maximum speed reaches 12.5km / h without load and 11km / h with load, allowing considerably increased productivity in internal displacements with respect to a pallet truck Conventional pedestrian.
Its compact design maintains a total length of 2019mm, a width of 820 mm and a spinning radius of 1700mm, facilitating maneuvers even in areas of work with limited space.
The EPS electric address provides light and precise operation, while different electronic systems automatically adjust the speed and acceleration depending on the operating conditions.

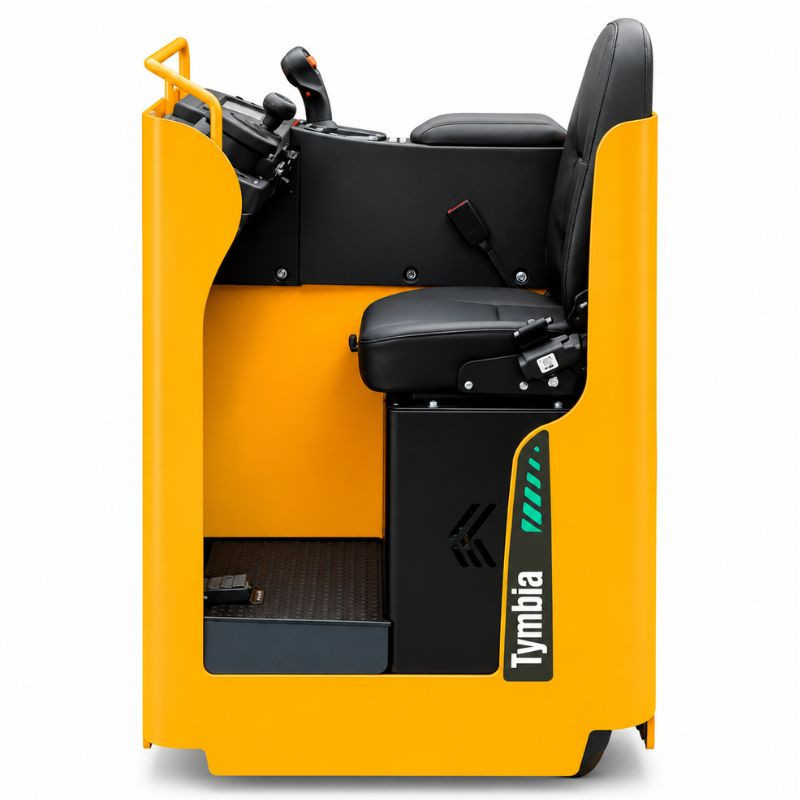

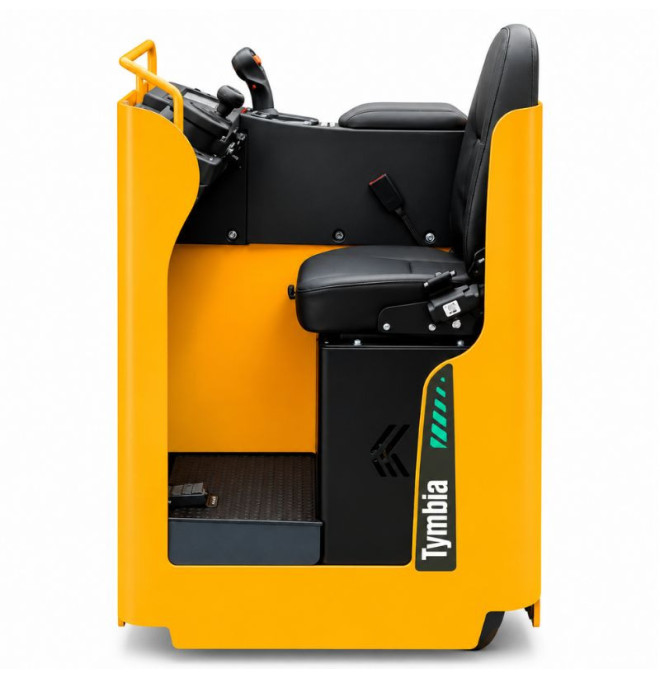

The driving position combines adjustable seat, armrest, multifunction control and instrumentation screen, offering a comfortable environment for continued operations.
Featured features:
- Nominal capacity of 2000kg
- 600mm cargo center
- 24V / 404Ah Ion-Lithium Battery
- Battery weight of 350kg
- 3KW AC traction engine
- 2KW lifting engine
- Maximum speed of 12.5km / h
- Electric address EPS
- ZAPI controller
- Sitting
- 1150mm forks
- 900mm spinning radius
- Electric brake
- Instrumentation screen
- Multifunction
- Different intelligent braking systems
- Silent performance
- Zero emissions during use
- Reduced maintenance
Advantages:
- 2000kg capacity
- Large capacity lithium battery 24V / 404Ah
- Maximum speed of 12.5km / h
- Driver sitting for long tours
- 3kw motor AC
- Electric address EPS
- 900mm spinning radius
- High autonomy
- Charging
- Silent performance
- Zero emissions during use
- Under maintenance
- Ergonomic
- Different safety and braking systems
- Suitable for intensive operations
Uses:
- Pallets internal transport
- High rotation stores
- Logistic and distribution centers
- Displacement of medium and long distance
- Preparation of orders
- Production centers
- Expedition zones
- Industry
- Department store
- Intensive maintenance operations
