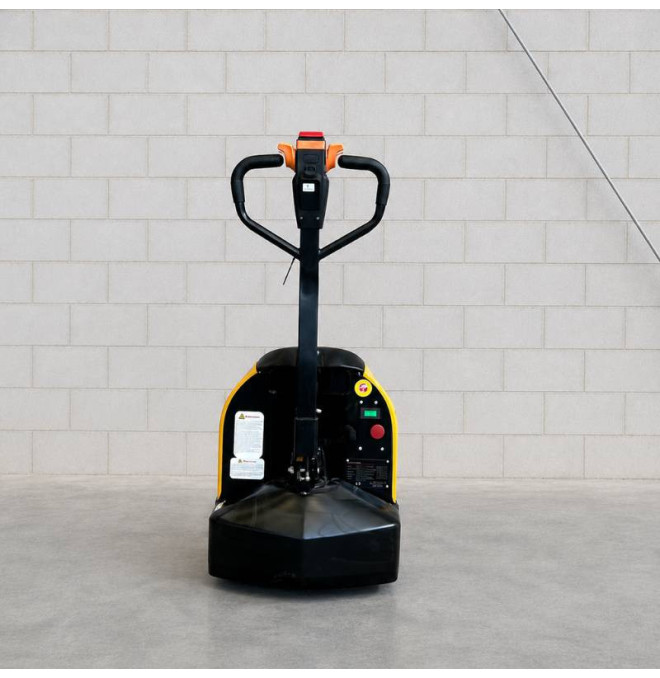

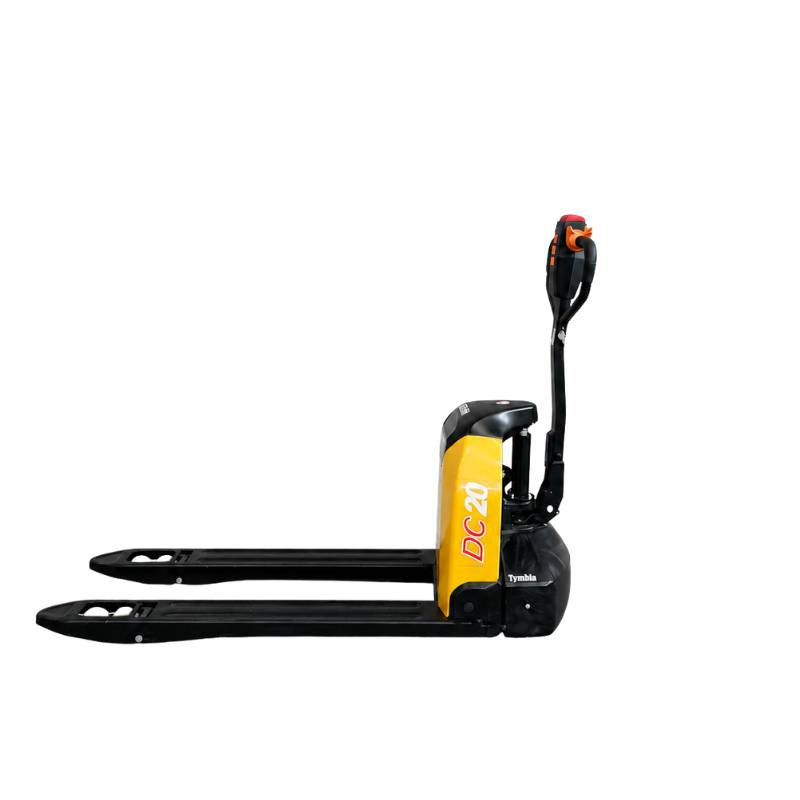

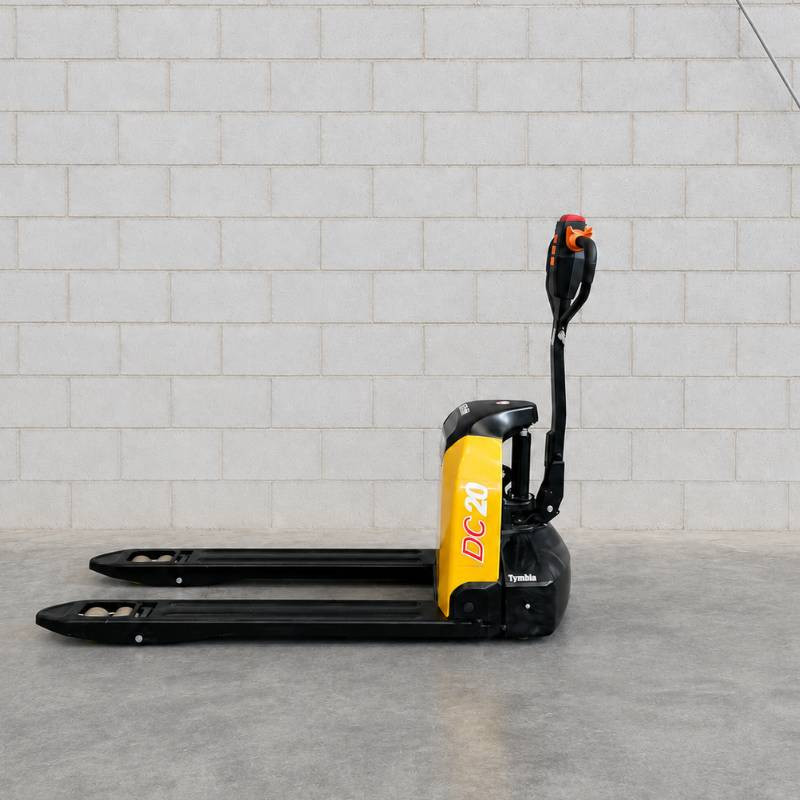

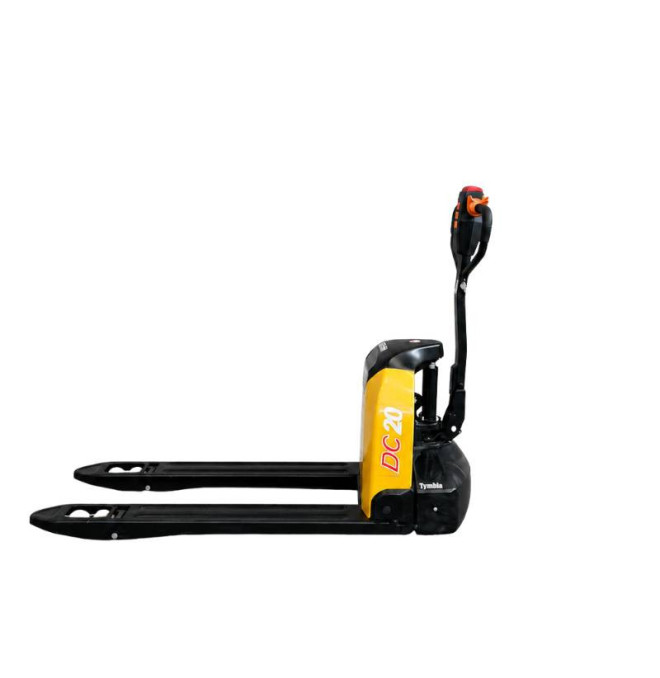

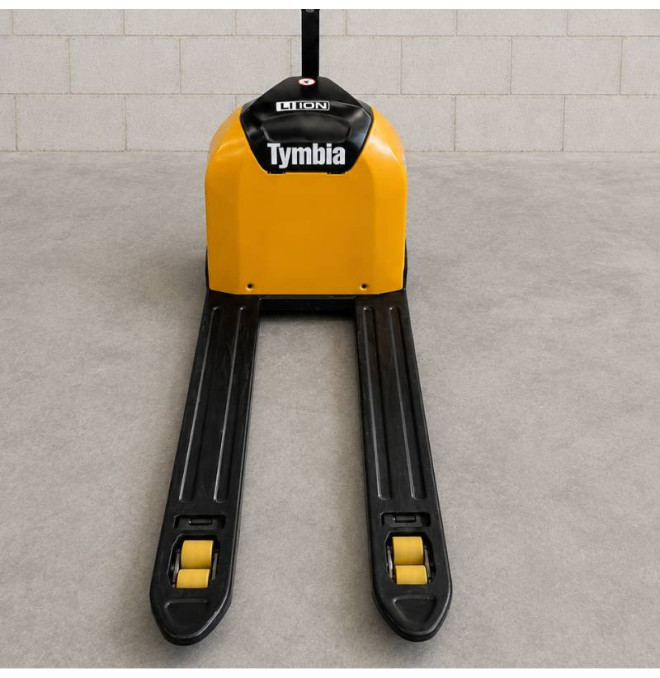

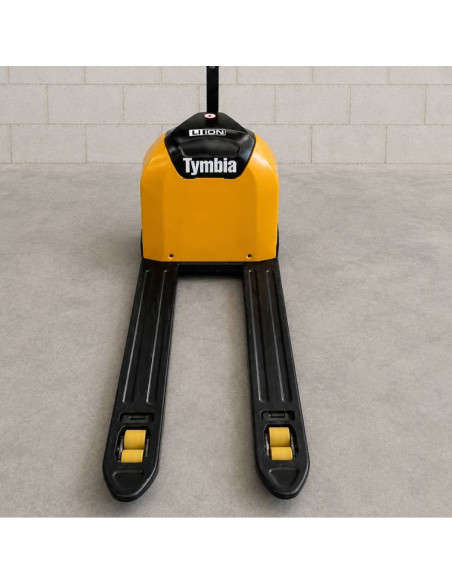

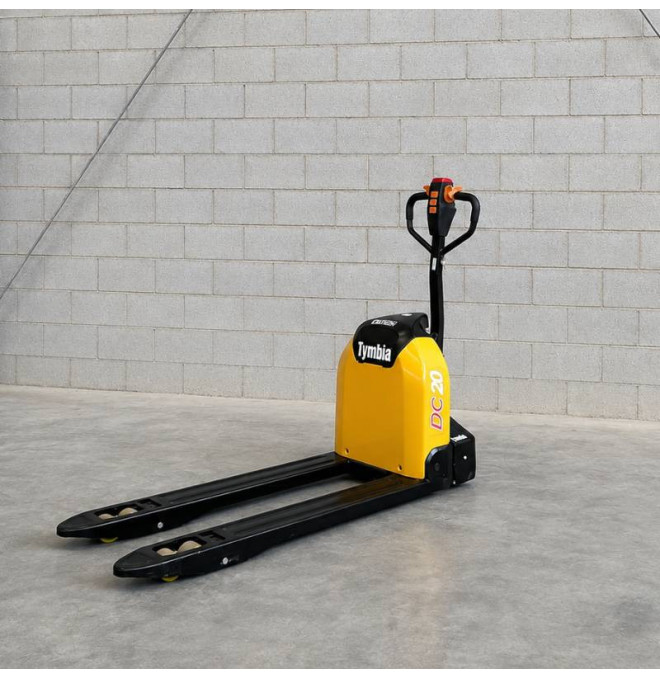

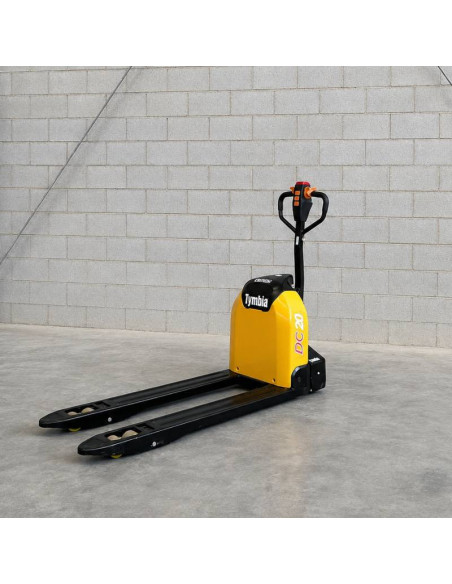

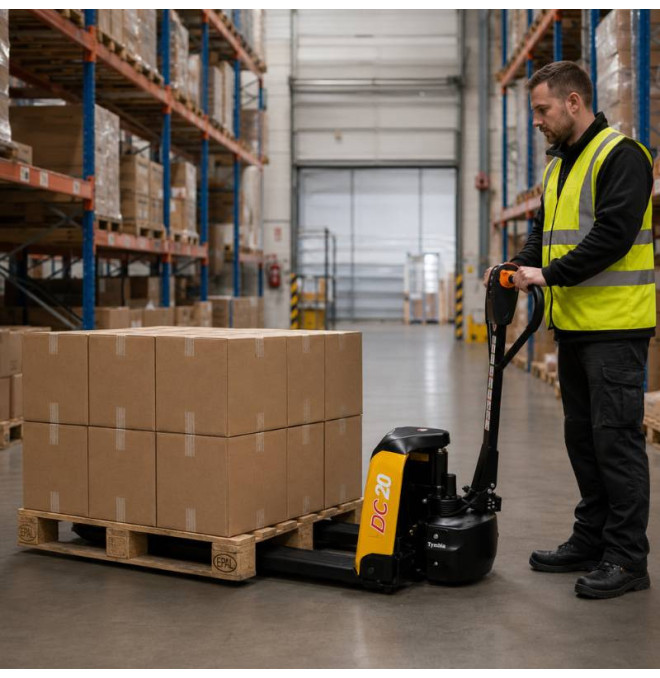

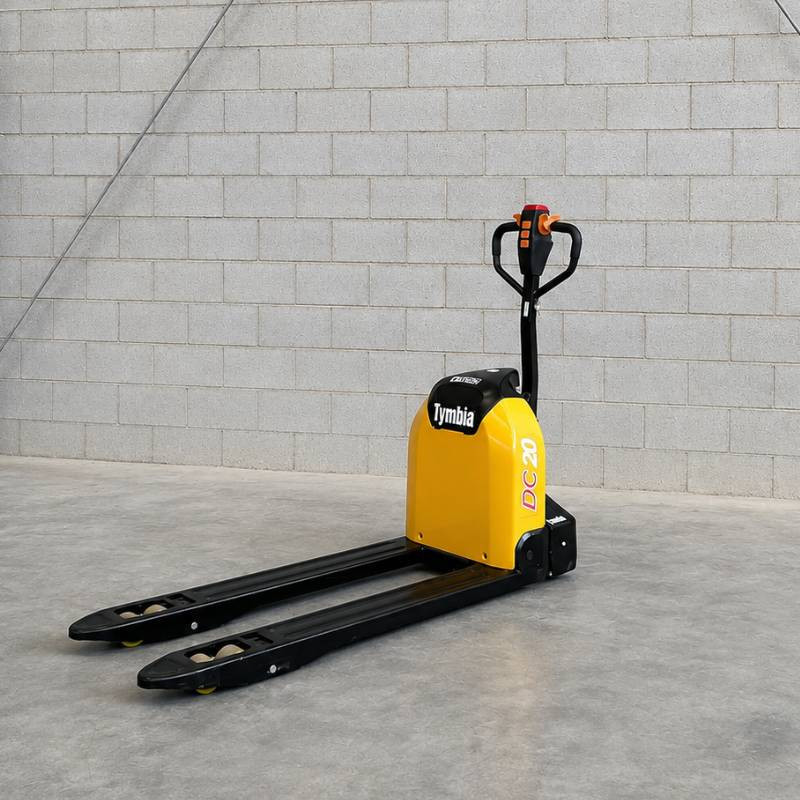

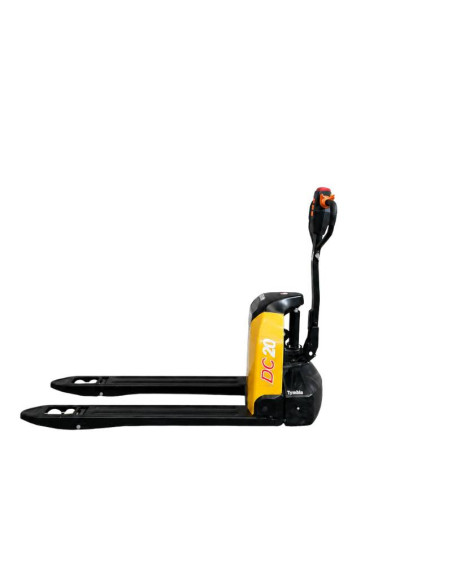

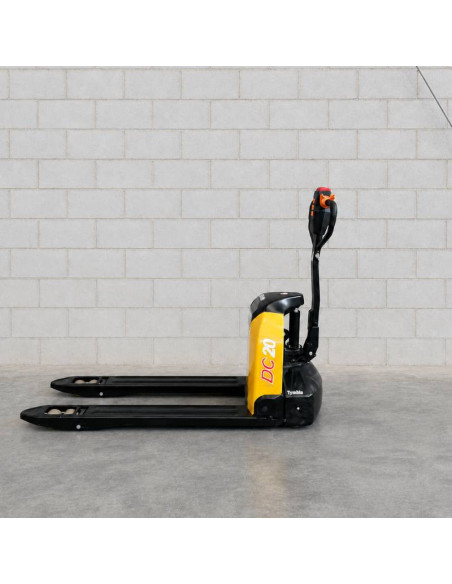

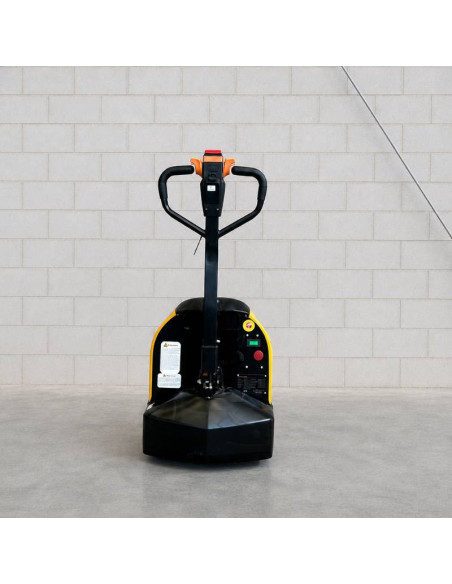

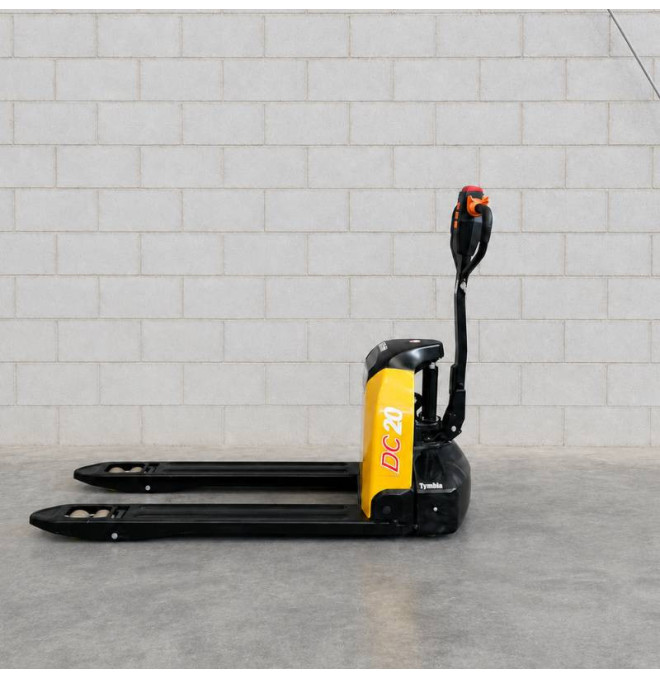

Pallet truck Lithium Li3 with load of 2000kg - 48V / 20Ah battery

Explanatory video of operation:

The electric pallet truck Lithium Li3 combines avant-garde technology, compact design and robustness in a single team. With a load capacity of up to 2000 kg, stabilizing wheels and forks with standard 550x1150 mm measures. They ensure optimal performance. Is pallet truck It is the perfect choice for those seeking an economic, efficient and reliable solution for the transport of materials.

Perfect for limited spaces thanks to its compact design and easy maneuverability.

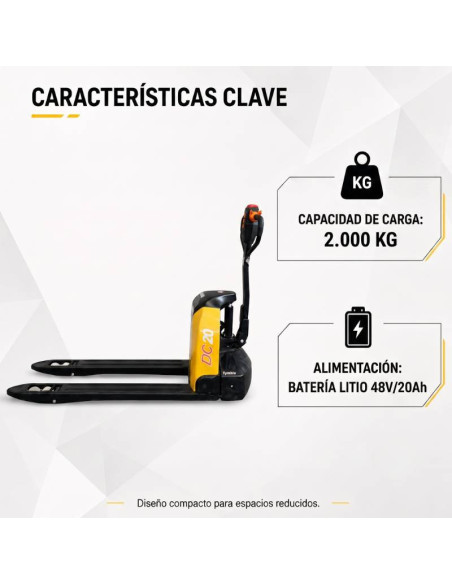

Features:

• Pallet truck fully electric

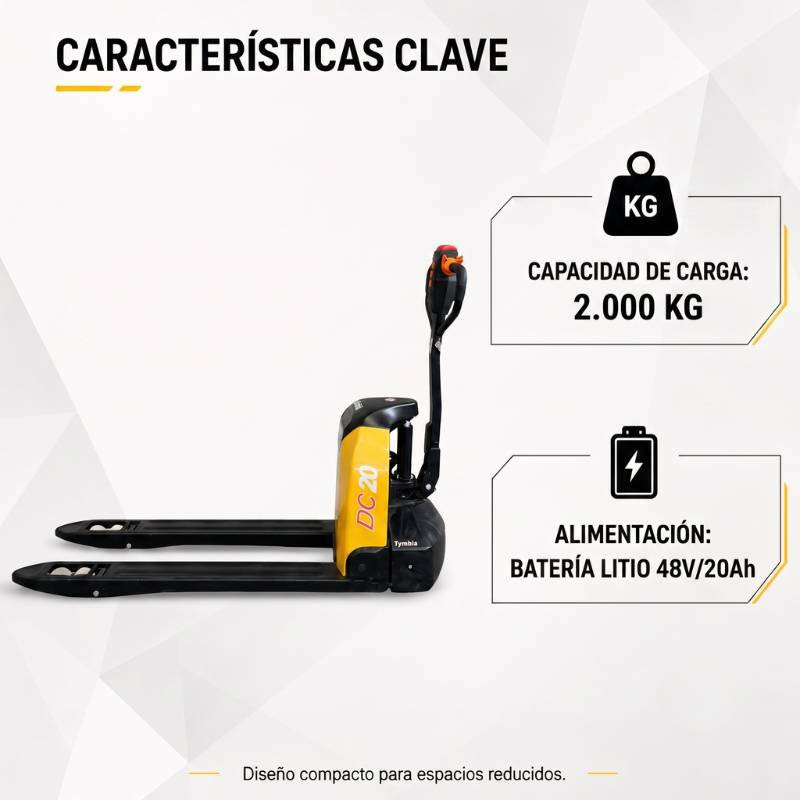

• Load capacity 2000 kg
• Compact chassis, perfect for small spaces
• 48V / 20Ah Ferro-Phosphate Lithium Battery (Ref.b402010062)
• External charger included (Ref.b402010063)

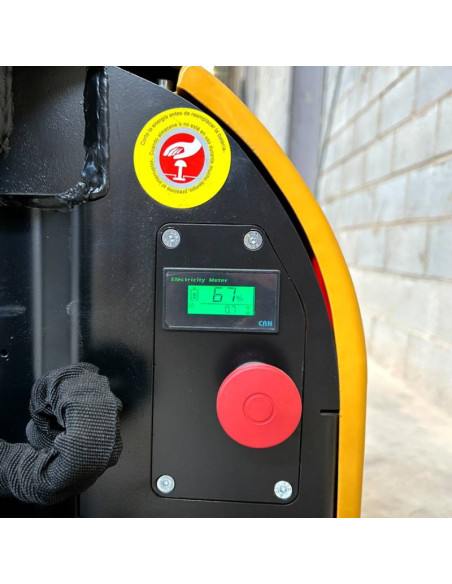

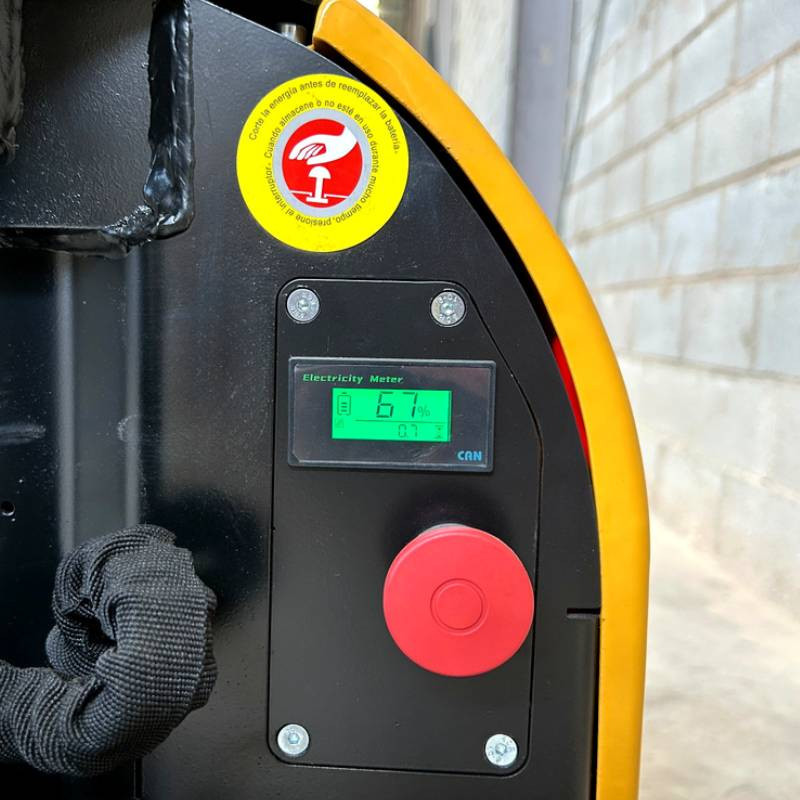

• Indicator battery charge
• Robust and resistant forks
• Electronic speed control
• Removable battery in 5 seconds
• Brushless traction motor and no maintenance

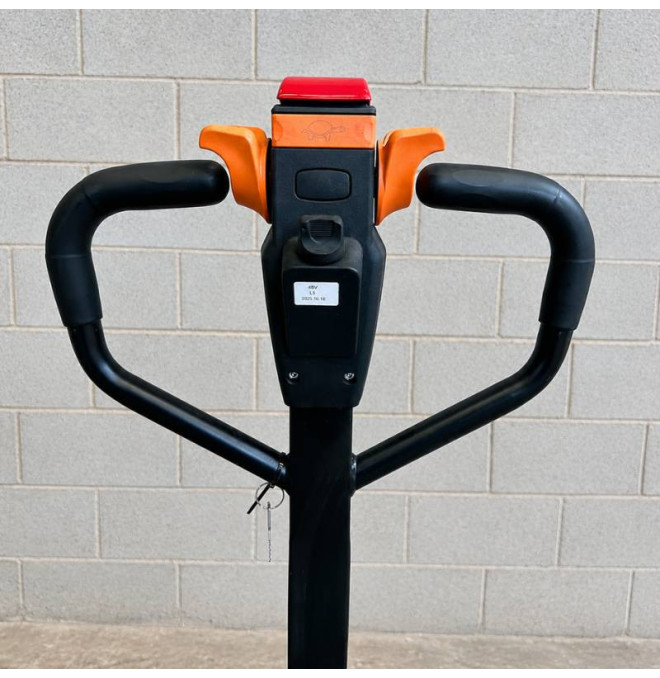

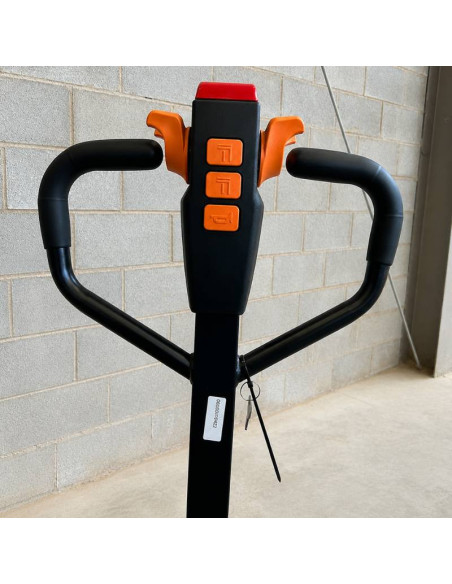

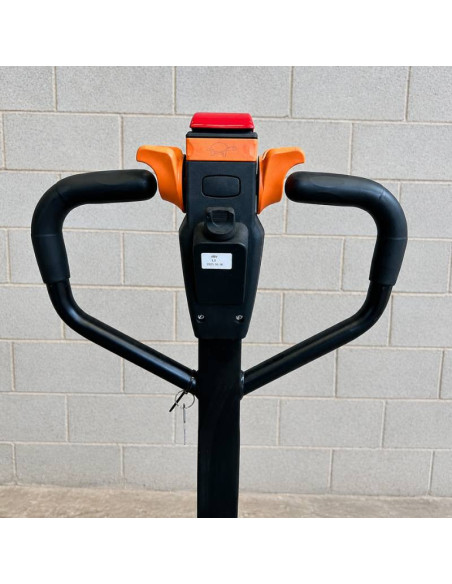

• Emergency button

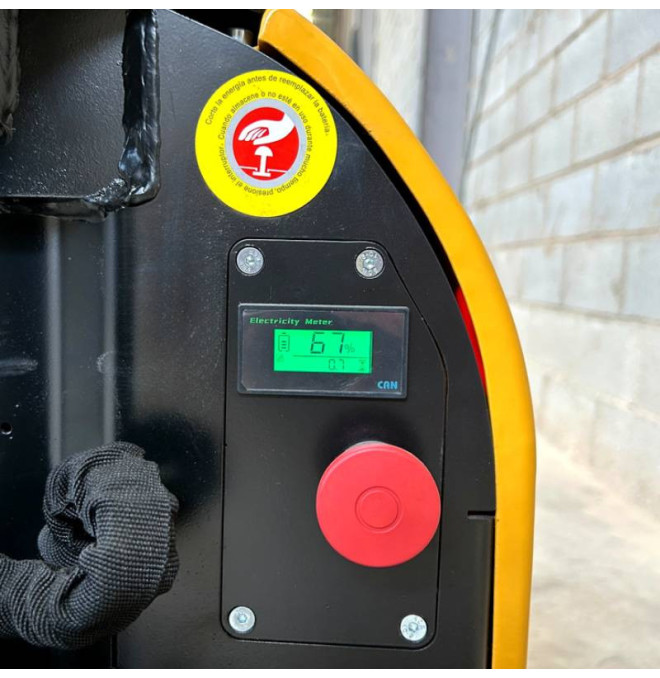

• Screen with indicator cargo

The pallet truck Lithium Tymbia, equipped with a powerful 48V / 20Ah lithium battery, redefines efficiency in material handling. One of its main advantages is its ability to fully charge in just 2 hours, guaranteeing a minimum time of inactivity and maximizing productivity in each working day.

Fast and practical load: Thanks to its advanced lithium battery technology, this pallet truck Not only is it loaded at a record time, but also offers great operational flexibility. Its innovative design allows you to recharge it in any standard power outlet, eliminating the need for special loading equipment or additional installations. This facilitates its use in any environment, from warehouses to rural land, without worrying about the cargo infrastructure.

Easy to handle: The lithium battery of this pallet truck It is light and compact, which makes it easy to handle both during use and maintenance processes. In addition, its prolonged duration ensures long hours of continuous work, minimizing the necessary interruptions to recharge.

Includes Charger: For greater comfort, this electric pallet truck It comes equipped with an included charger, ready to use from the first day. This detail further simplifies its implementation and guarantees that it is always ready to work when you need it most.

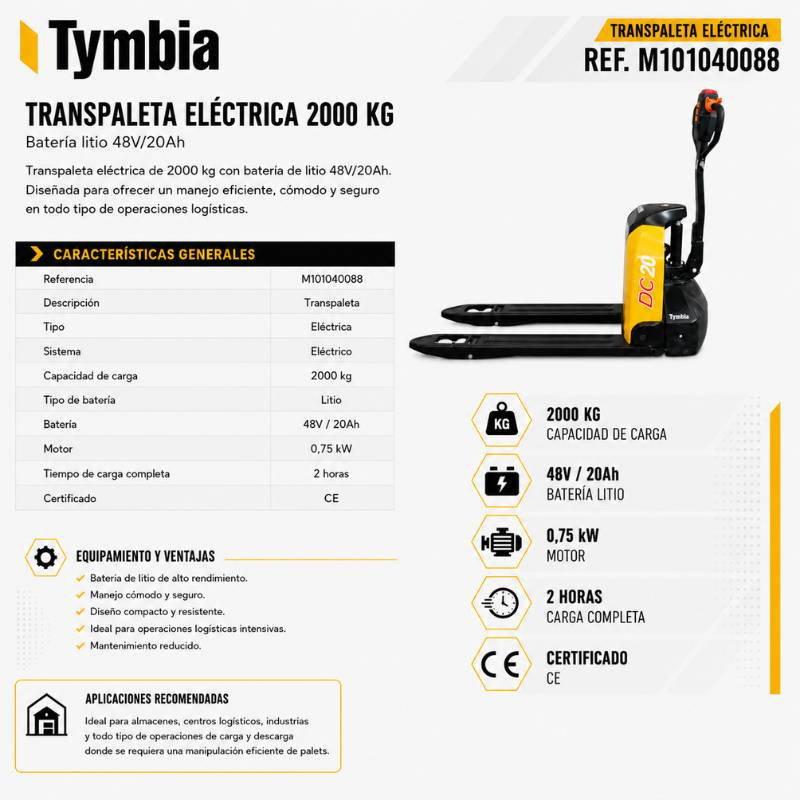

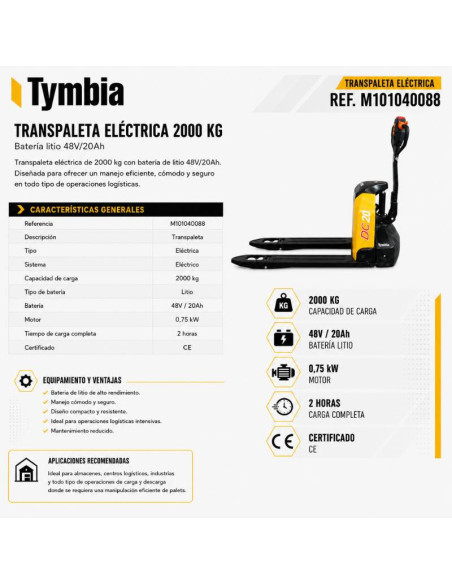

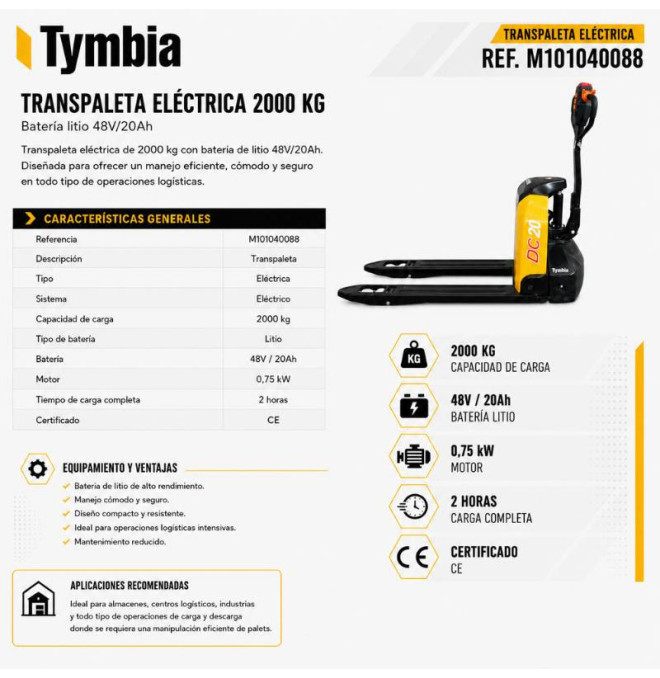

Technical specifications:

• (Q) Loading capacity: 2000kg
• (c) Cargo center: 600mm
• (x) Load distance: 944mm
• (y) Axles distance: 1243mm
• Removable battery lithium
• Type of wheel drive: Polyurethane
• Roller type: Polyurethane
• Size of the wheel drive: 210x70mm
• Rollers size: 80x60mm
• Motor wheels: 1
• Rollers: 4
• (H3) Lifting height: 200mm
• (H13) Hall down: 85mm

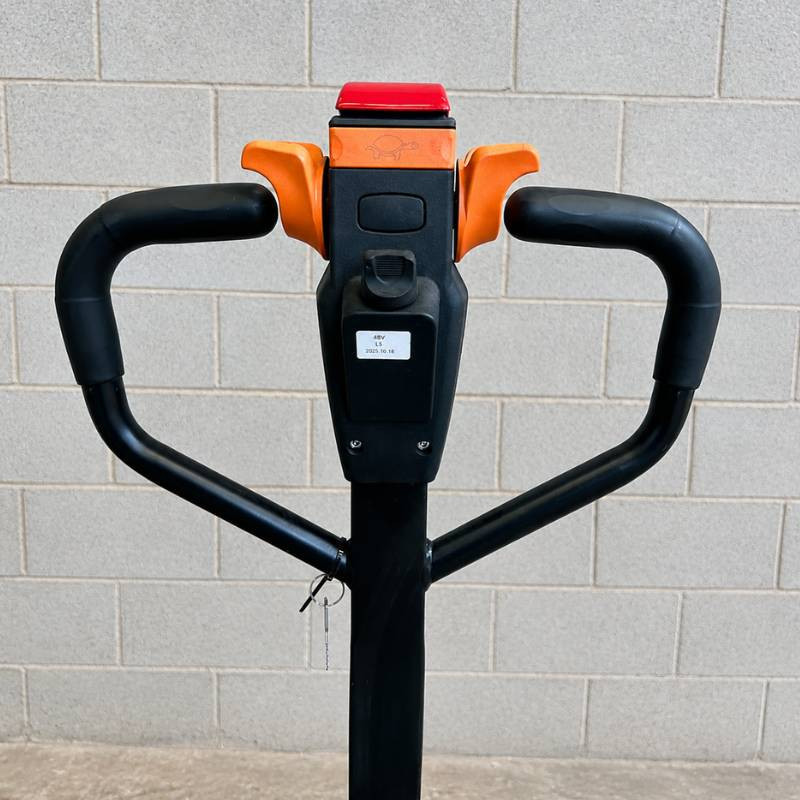

• (H14) Max height of the rudder: 1160mm

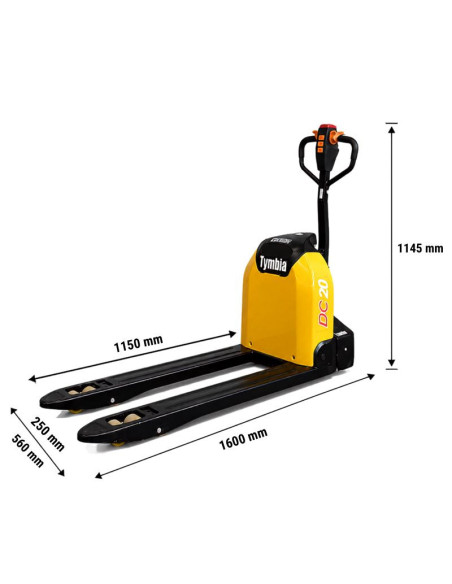

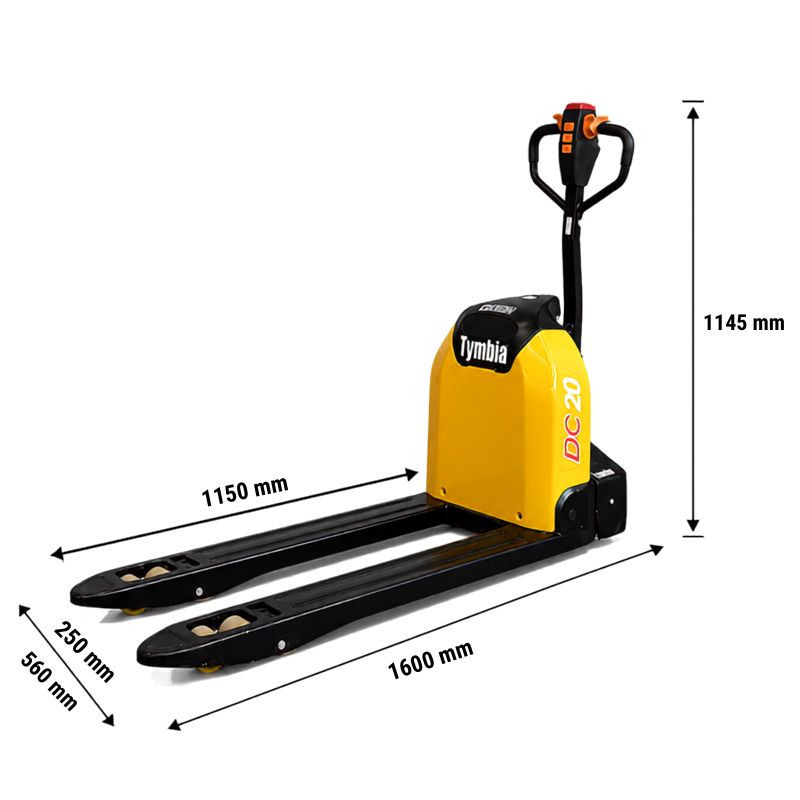

• (L1) Total length: 1550mm
• (B1) Total width: 550mm
• (S / E / l) Dimensions of the fork: 50x150x1150mm
• (B5) Distance between forks (width): 550mm
• (WA) Radio rotation: 1345mm
• Scroll speed, with / without load: 4.2 / 4.5 km / h
• Overlably pending, with / without load: 5% / 10%
• Brake type: Electromagnetic
• Push engine power: 0.75KW
• Lifting engine power: 0,8kw
• Battery voltage / nominal capacity: 48V / 20Ah
• Battery weight: 7kg
• Controller: DC
• Type of address: Mechanics
• Weight: 150 kg

CE certificate

* The color may vary, according to availability: yellow or red.
