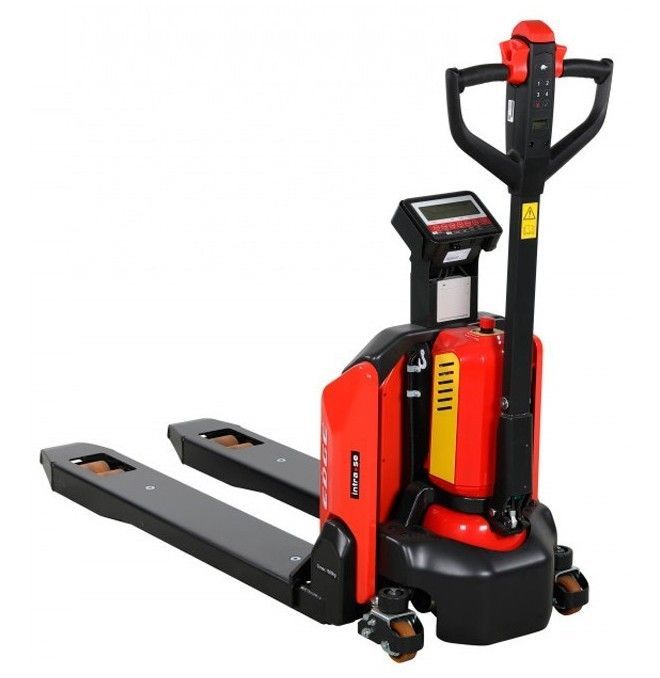

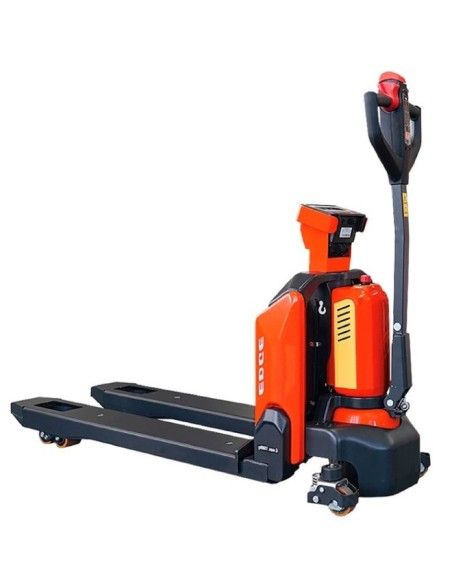

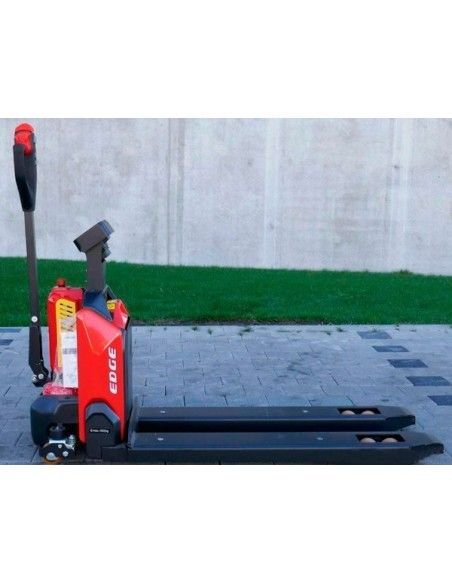

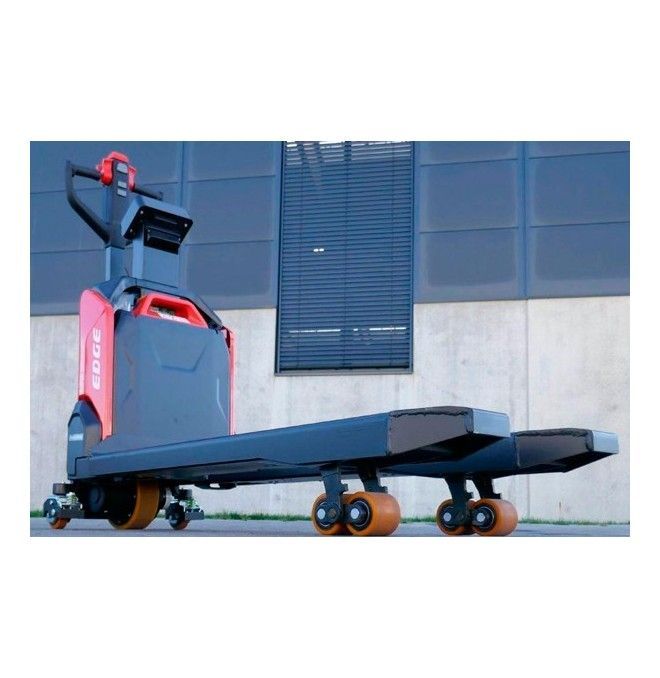

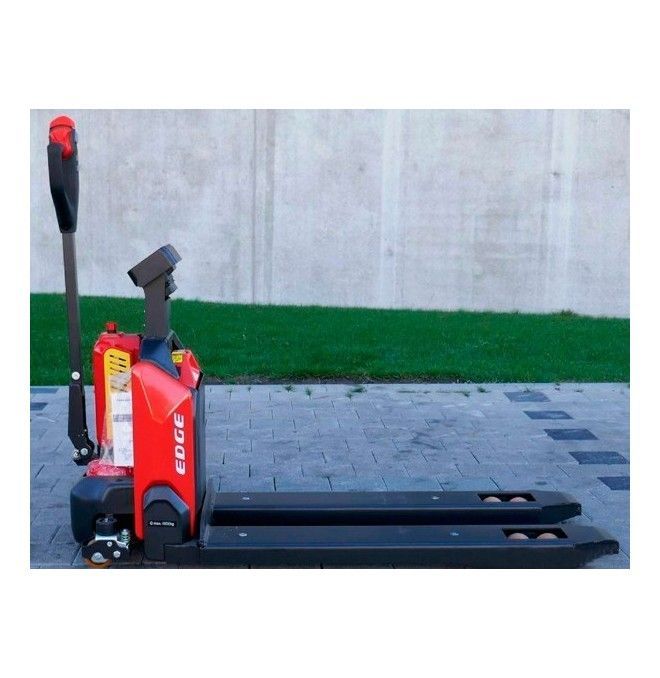

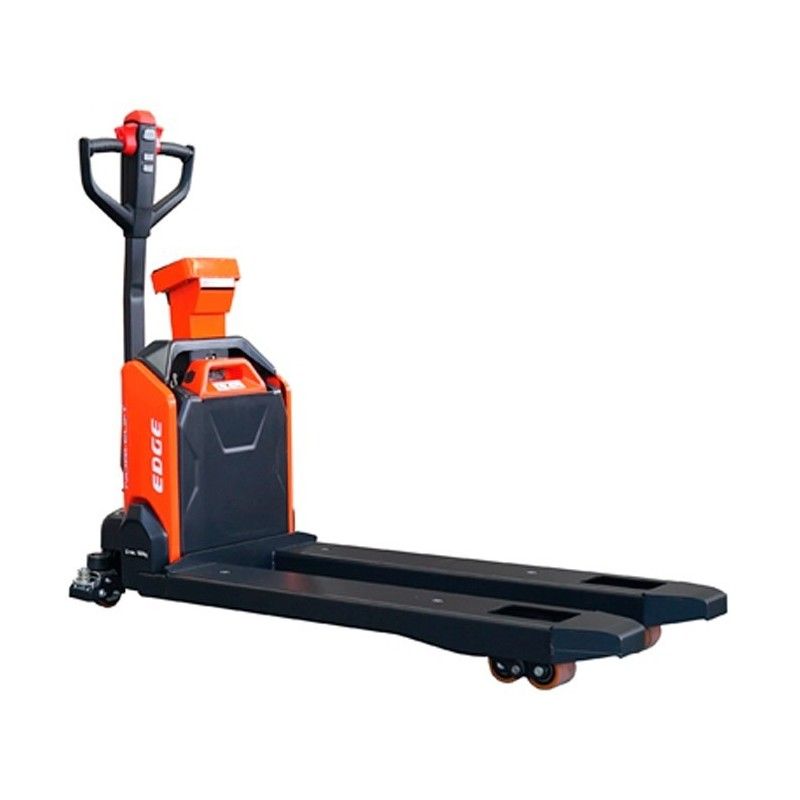

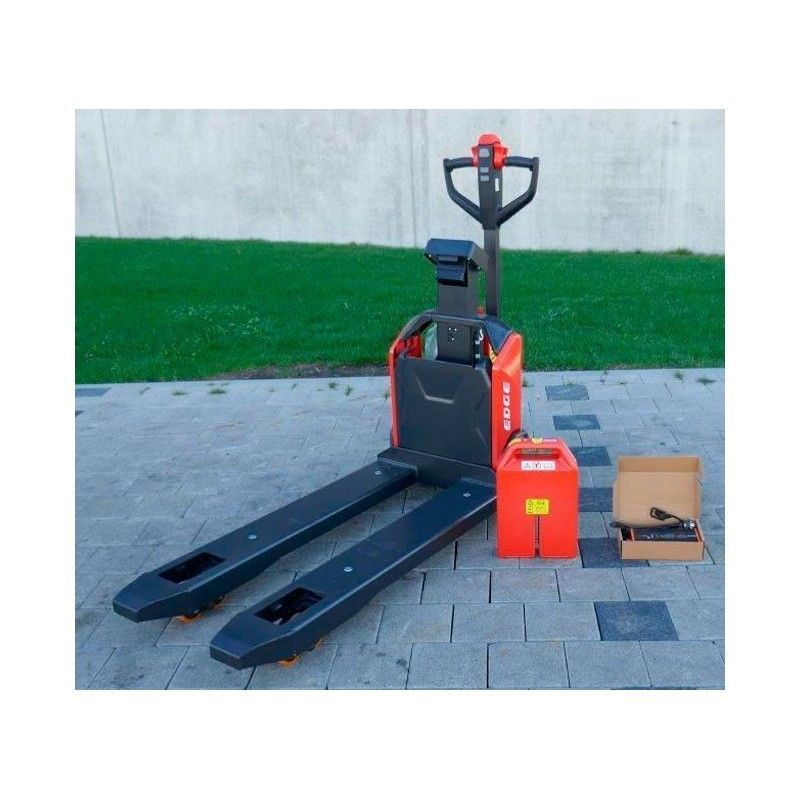

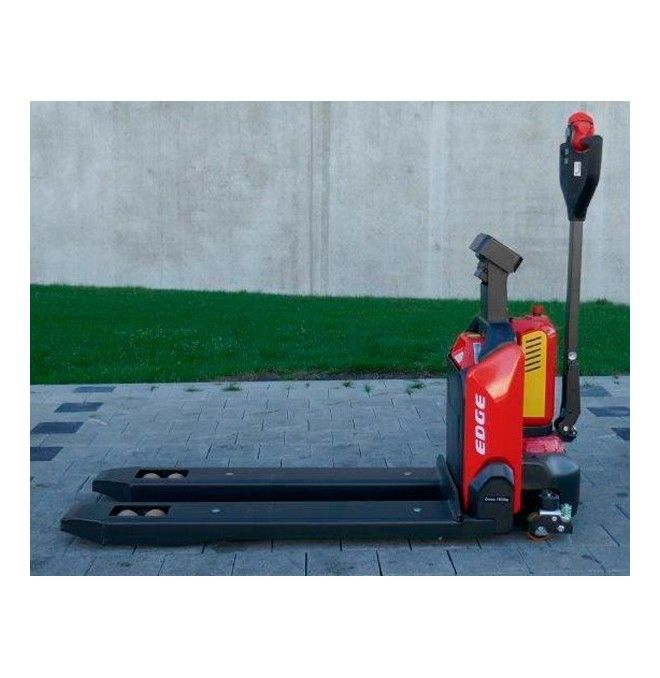

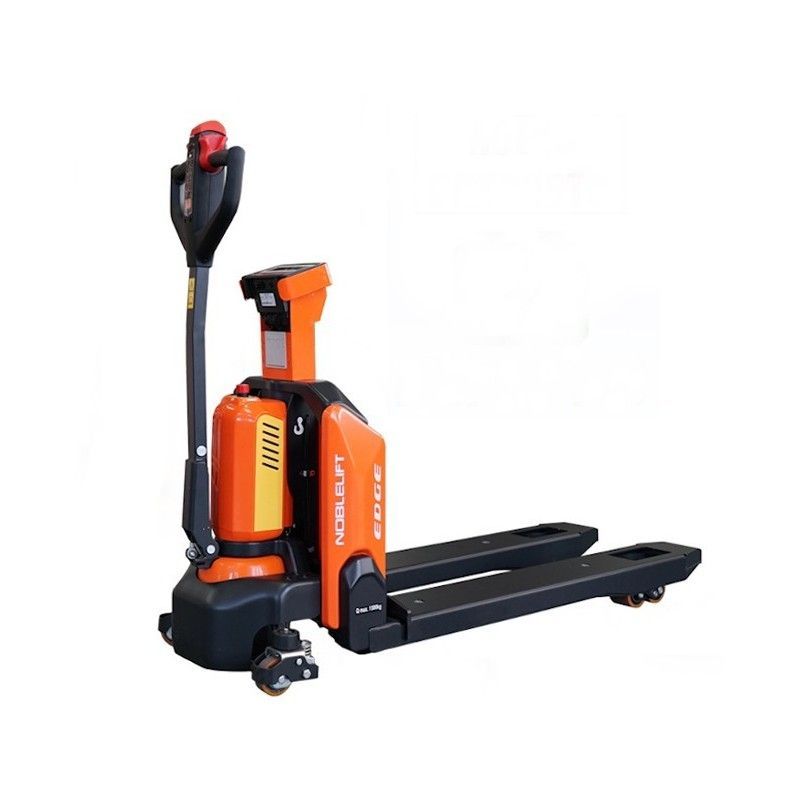

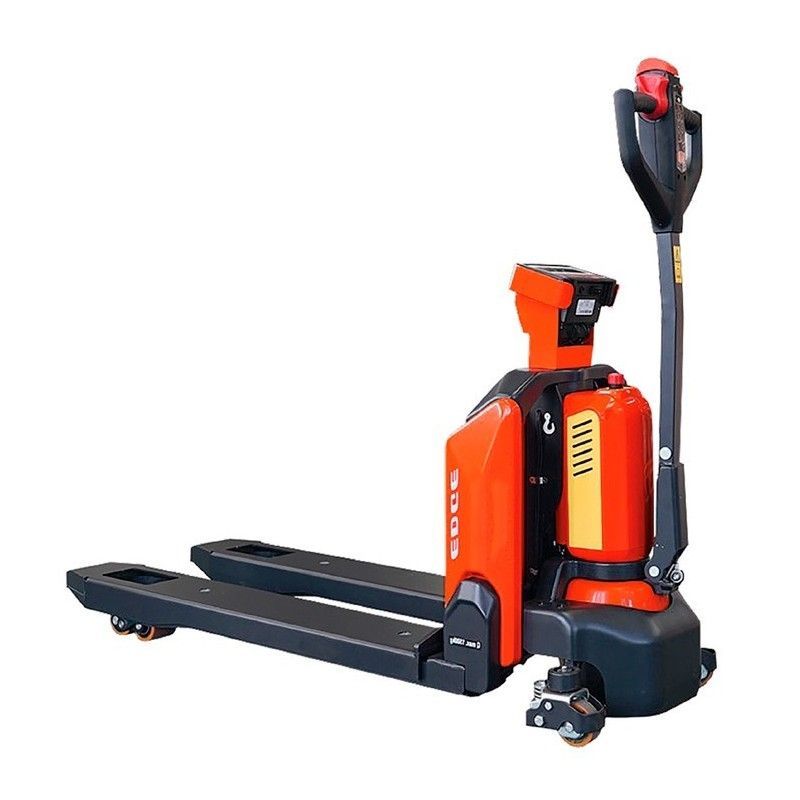

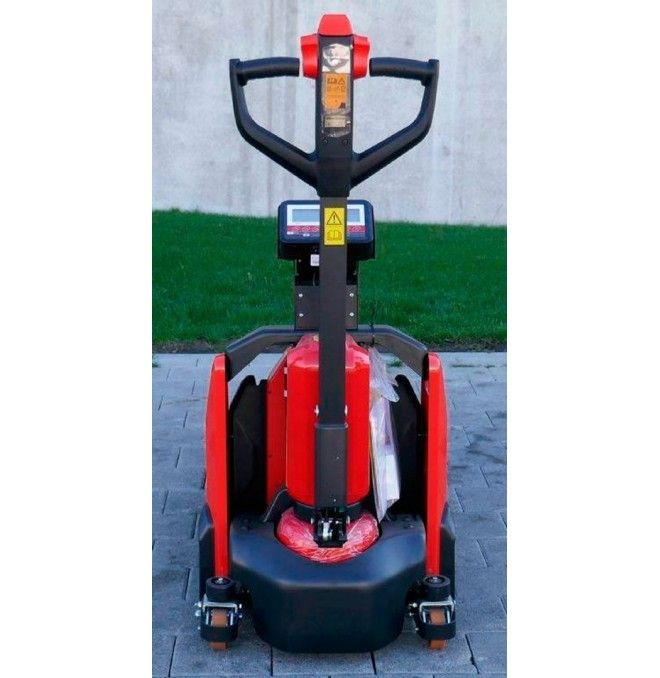

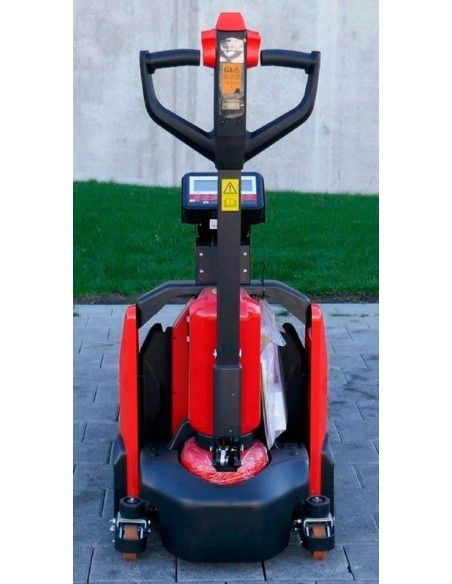

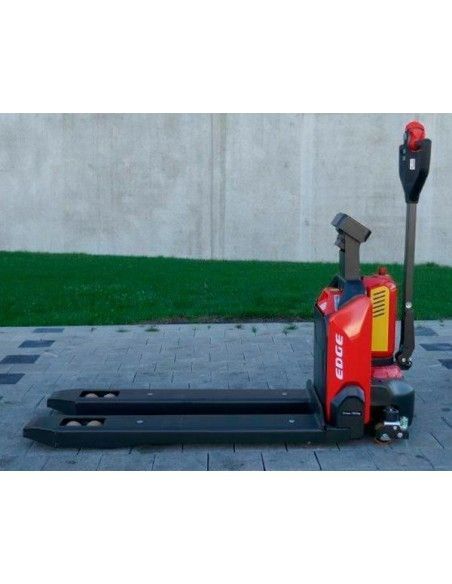

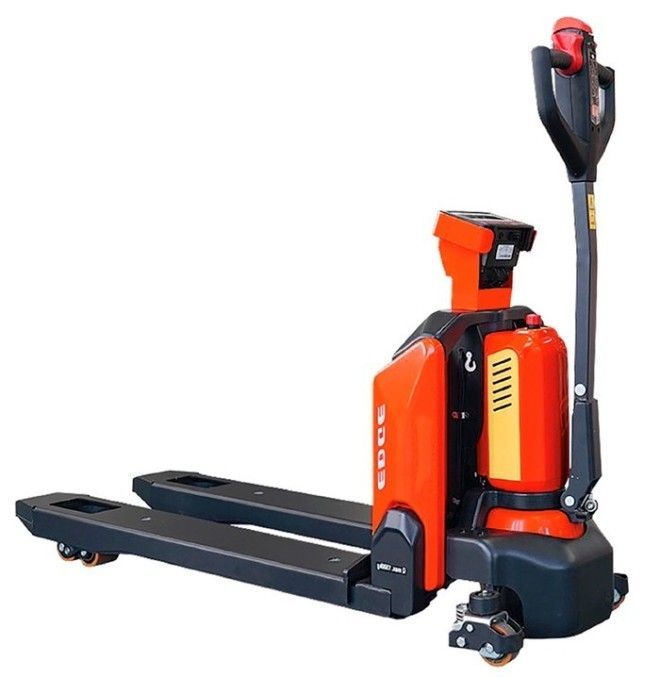

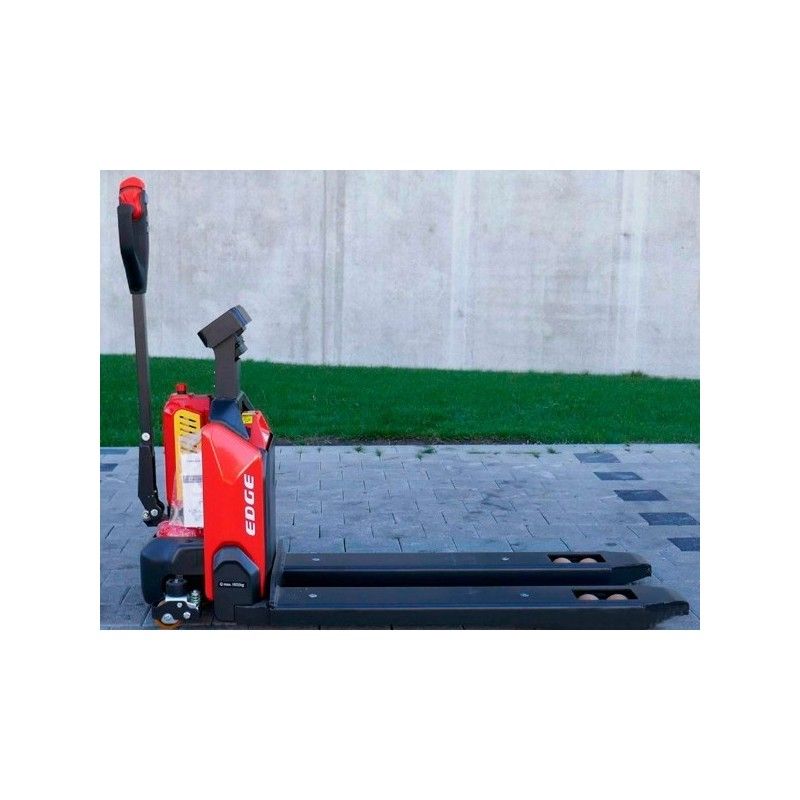

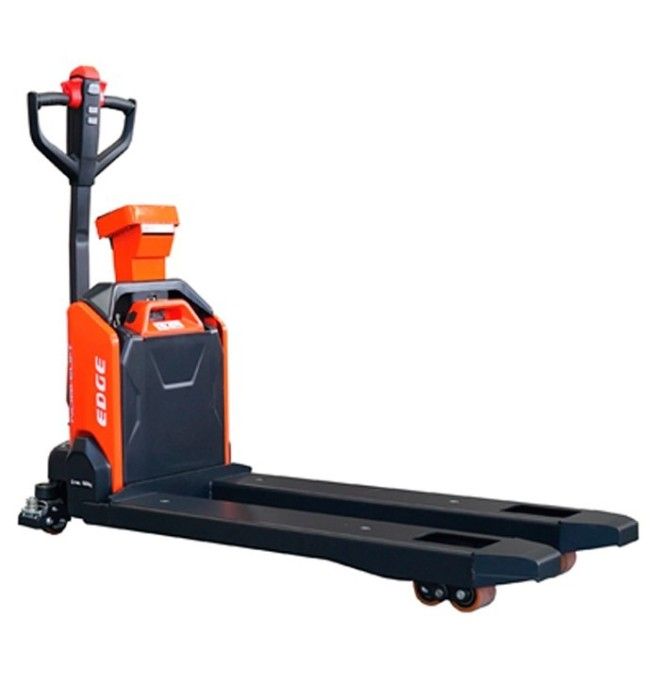

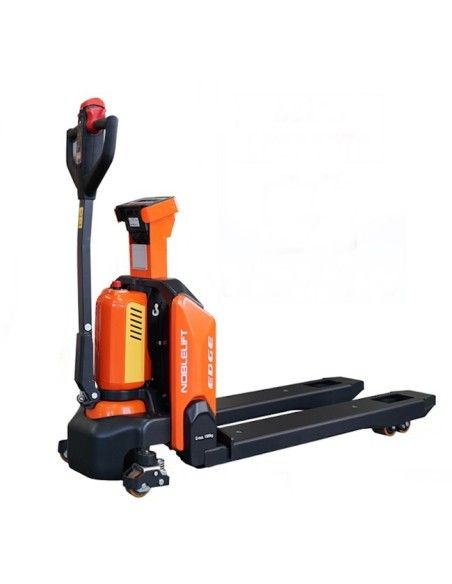

TRANSPALET 1500KG Electric Heavy Heavy Heavy

The new model electric pallet truck noblelift weigher, up to 1500kg load capacity. It is an innovative product that, thanks to its robust and intelligent design, this pallet truck offers an electrical solution for the transport of light and medium loads.

Also thanks to its robust and compact chassis structure it helps ensure a long life of the wheelbarrow, without sacrificing its light weight or high resistance.

The electric pallet truck offers several advantages compared to one manual pallet truck. First, it eliminates the need for physical effort by the operator, as it has an electric motor that drives the movement of the load. This can be particularly beneficial in situations where frequent transport of heavy loads or long distances is required.

In addition, the electric pallet truck heavyweight, offers greater efficiency in terms of time and productivity. The electric motor allows faster and smoother displacement, which can result in higher working speed and a reduction in the time required to complete the transport tasks.

Another advantage is ease of use. Compared to one manual pallet truck, which requires considerable physical effort to move the load, the electric pallet truck it's easier to operate. This can be especially useful for operators who do not have the physical strength to handle a manual pallet truck or for those who want to minimize the risk of work-related injuries.

In addition to the above benefits electric pallet truck can also be a more economical option in the long term. Although it may have a higher initial cost than a manual pallet truck, saving in terms of labor and productivity can offset this difference over time.

In short, the new model electric pallet truck heavyweight (without printer) manufactured by Noblelift appears to be a competent option for the transport of light and medium loads.

FUNTIONS - SALE

• Speed reduction in turn
• Access via PIN

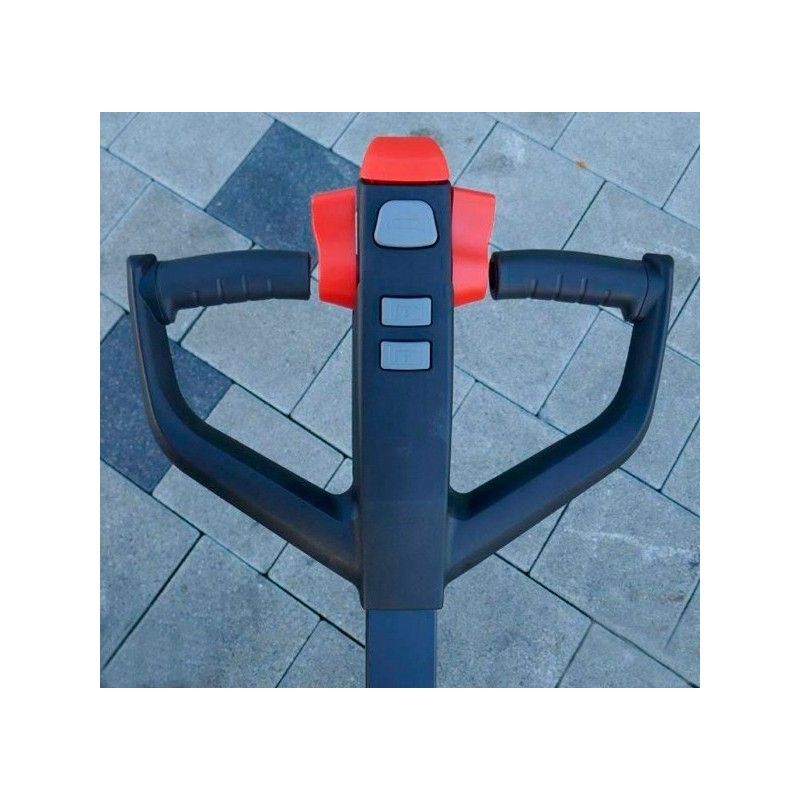

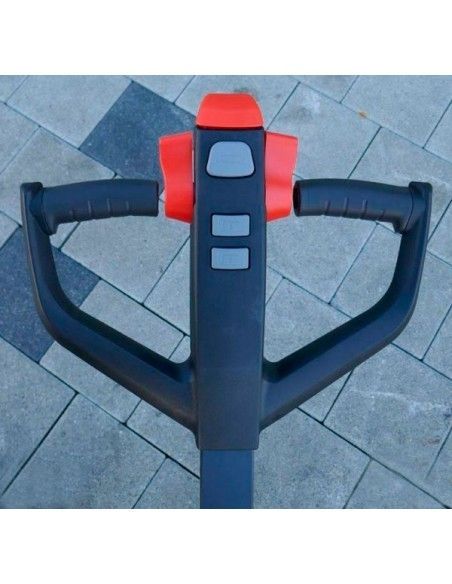

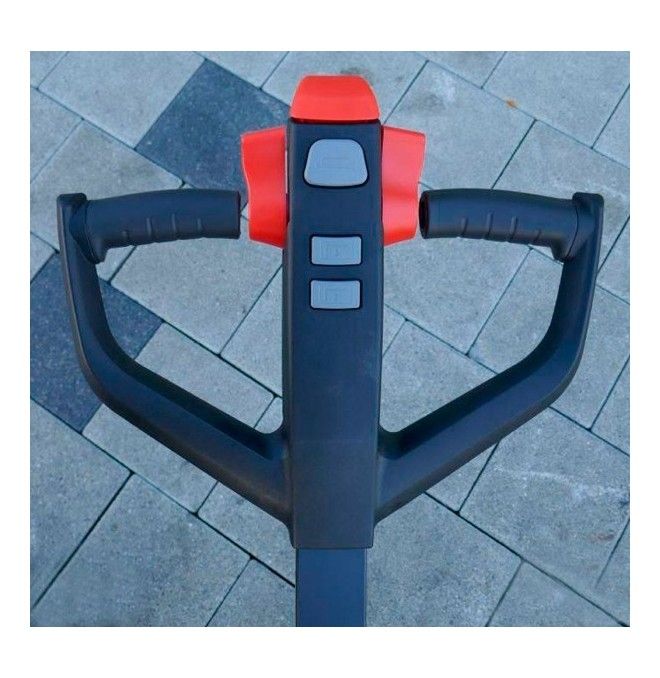

• Driving with the rudder in vertical position (ergonomic mit)

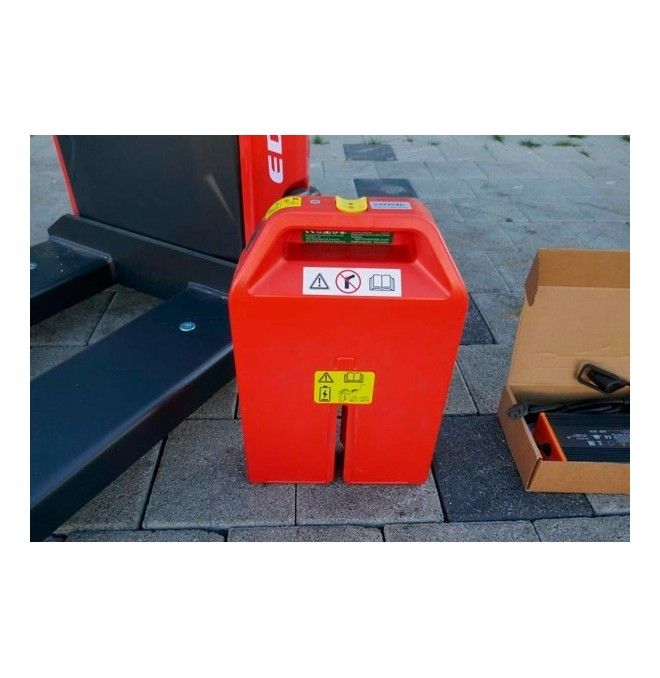

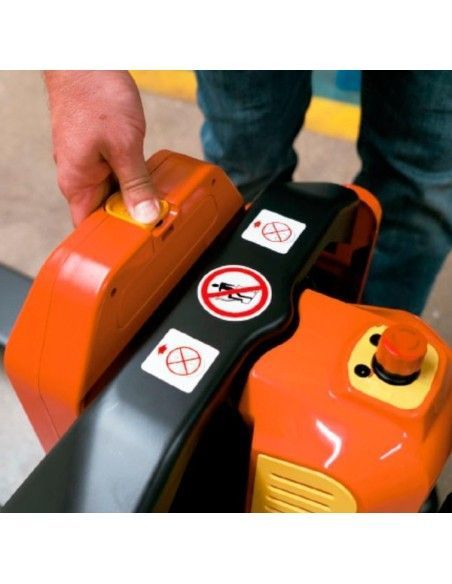

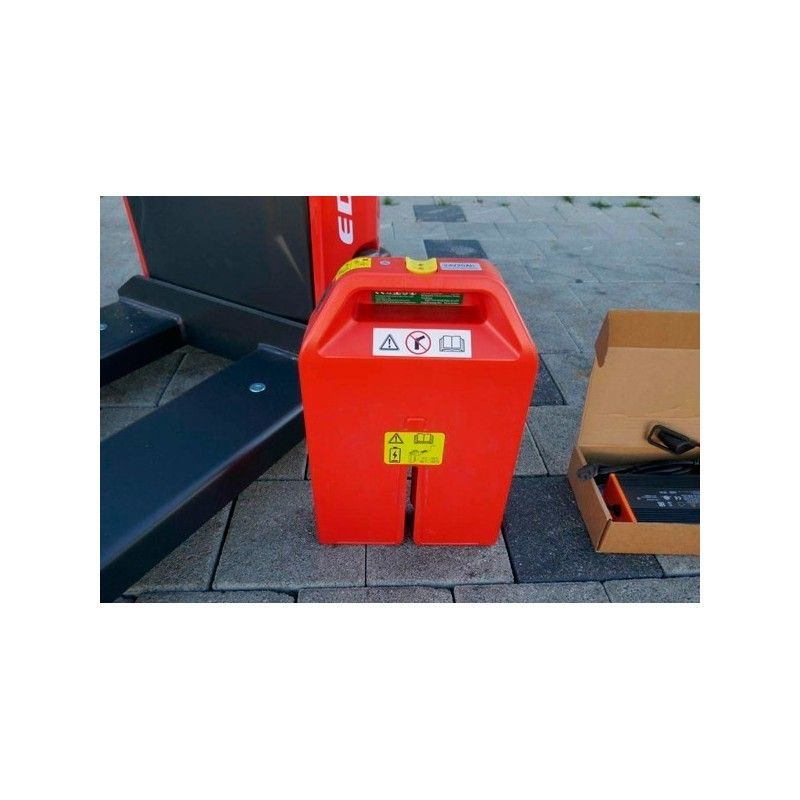

• Lithium battery with fast charge

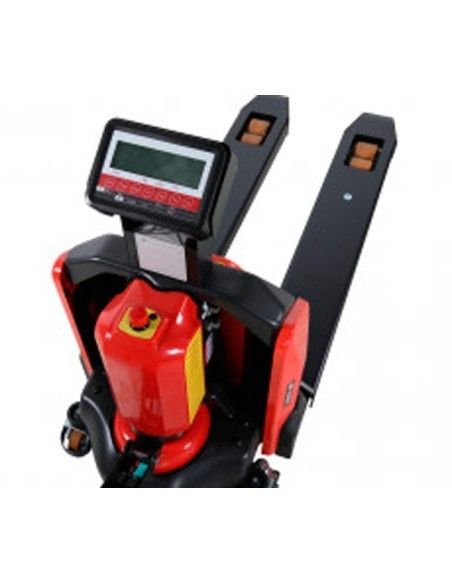

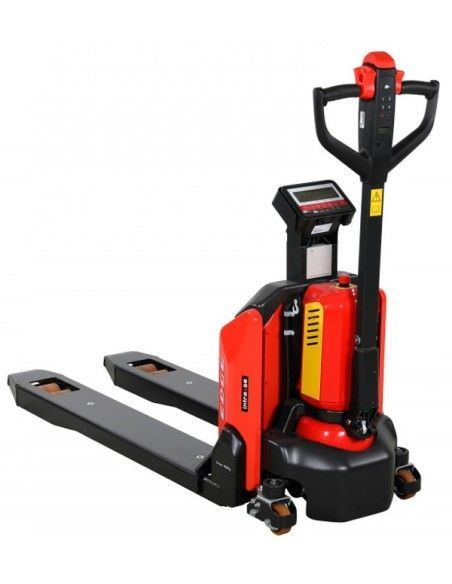

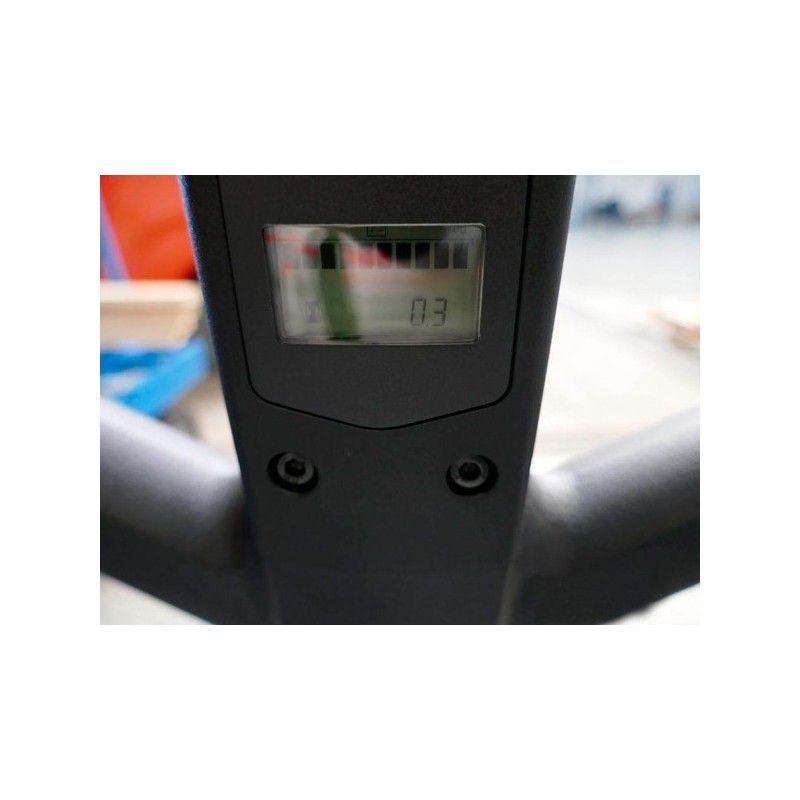

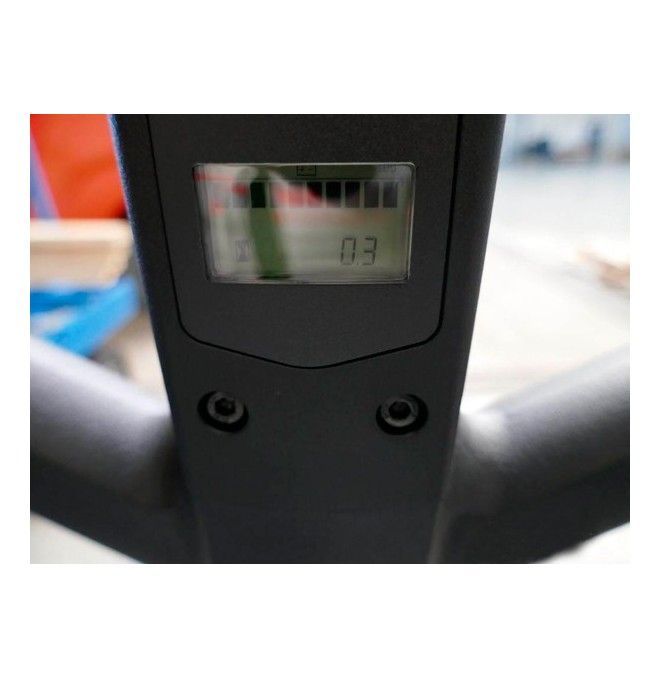

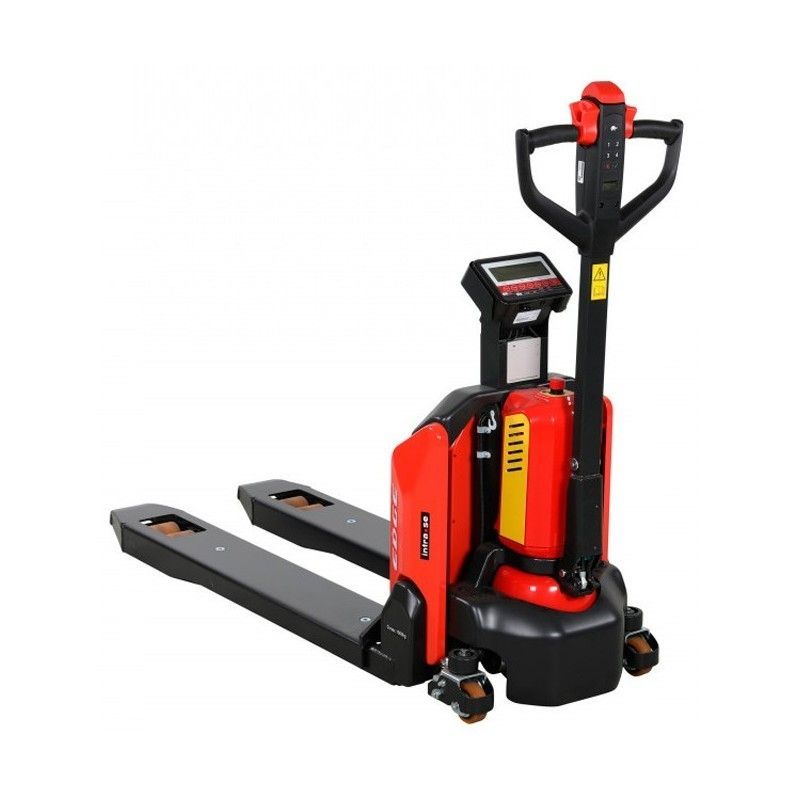

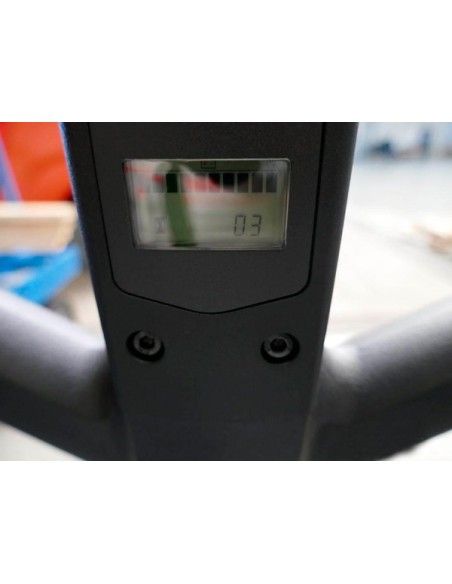

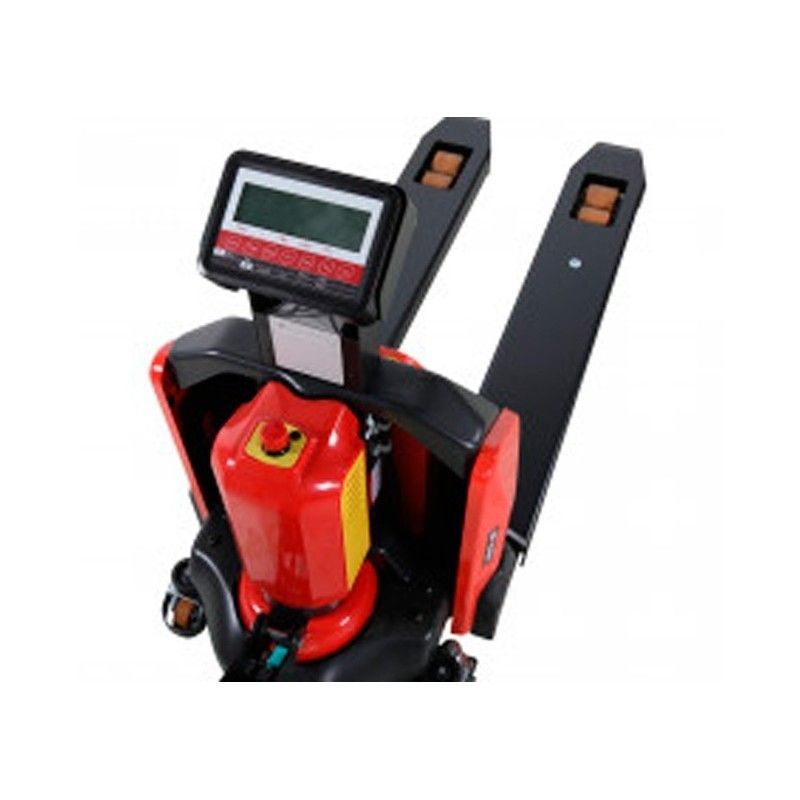

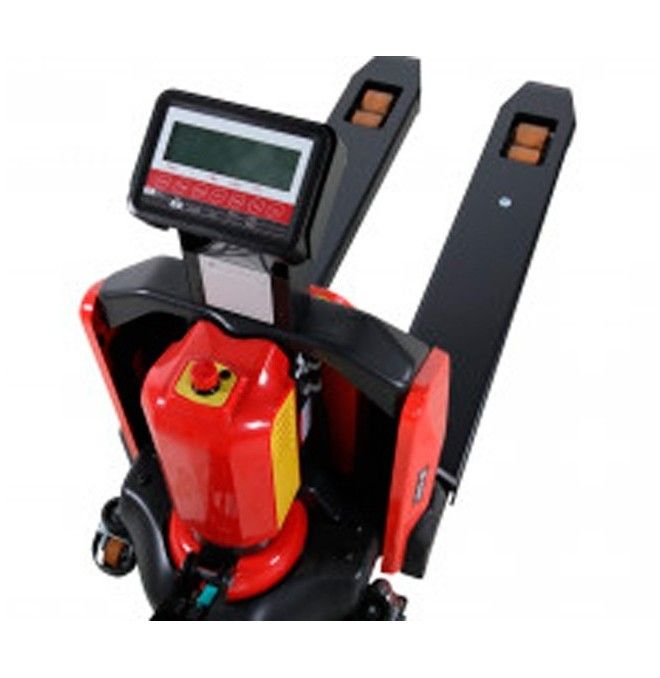

• Screen weighing high precision (accessive calculation, unit change, push buttons). The digits of the LCD screen have a height of up to 30mm so that the data can be clearly seen. It also includes lighting, suitable for use in dark environments.

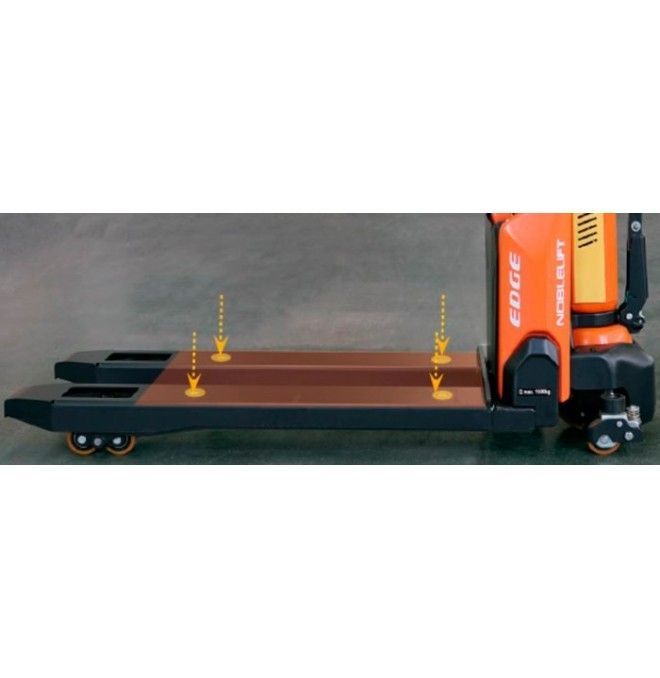

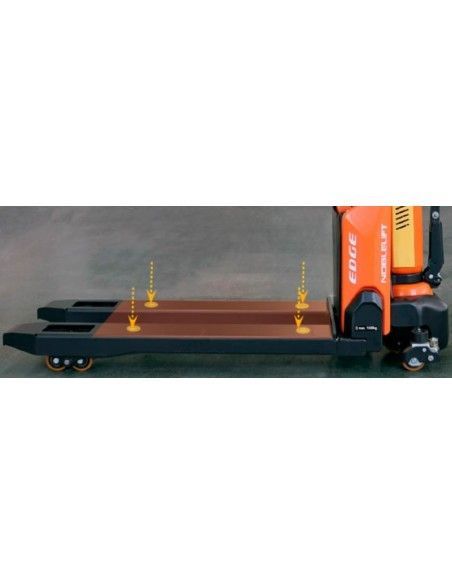

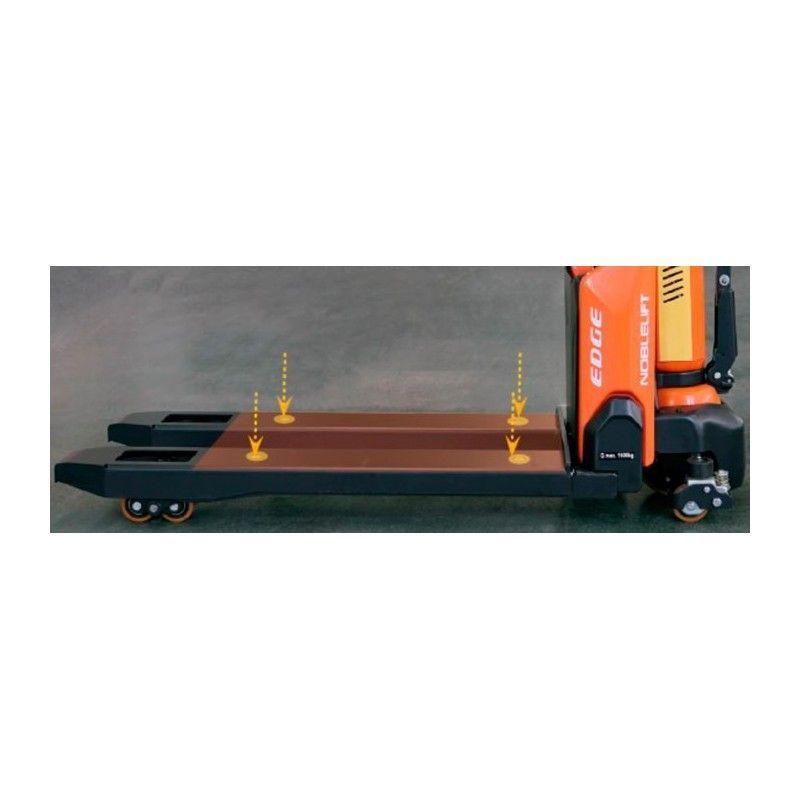

• High-precision sensor; the accuracy of the four sensors is 3kg, the minimum measuring unit is 0.5kg.
• Terminal weighing with built-in rechargeable battery (4,5Ah) – large capacity, does not need to be dismantled and offers low power consumption. When fully charged, the battery can be used for 3-6 months (off when not running).

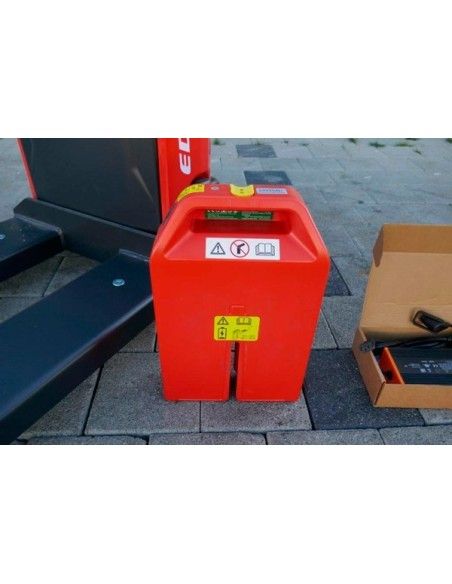

• Litio Smart Battery (minimum 2.5h charge).

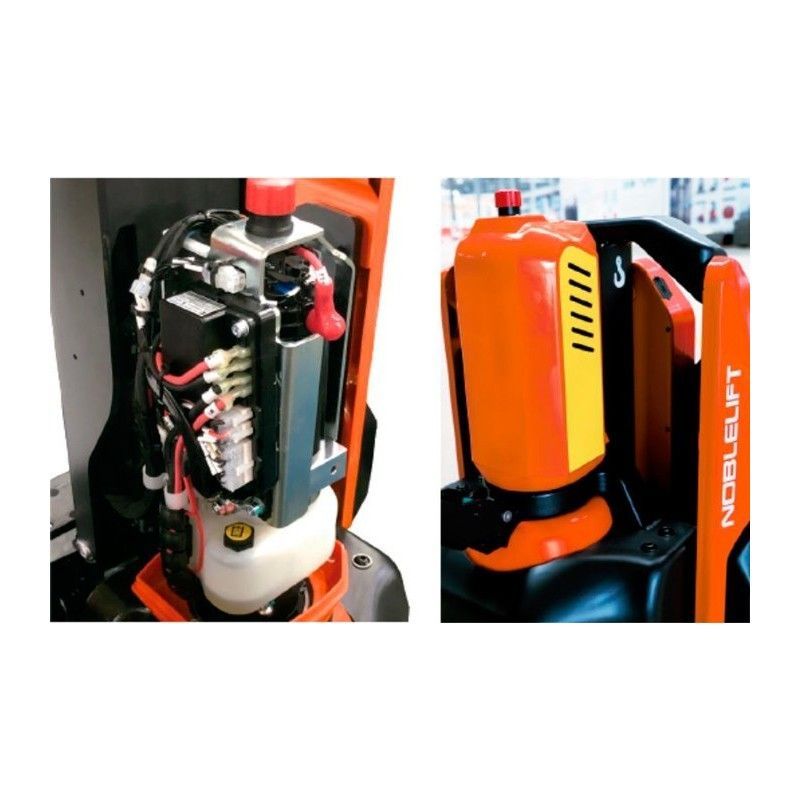

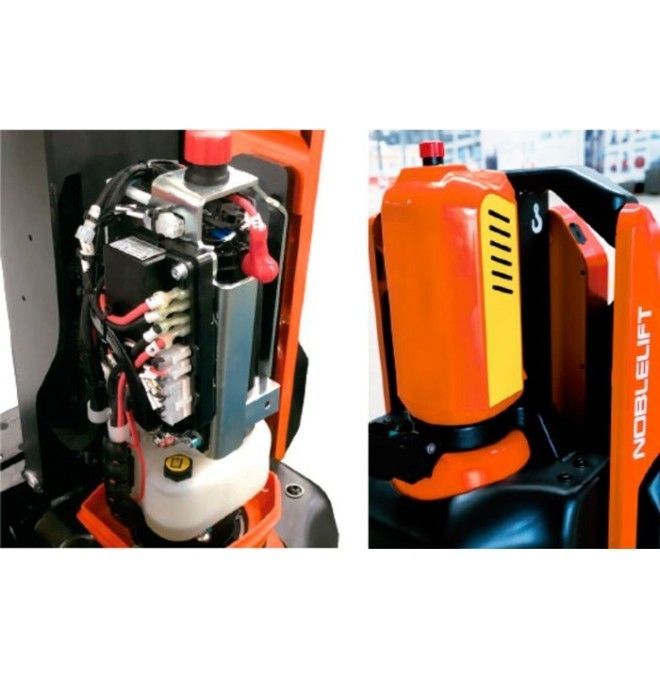

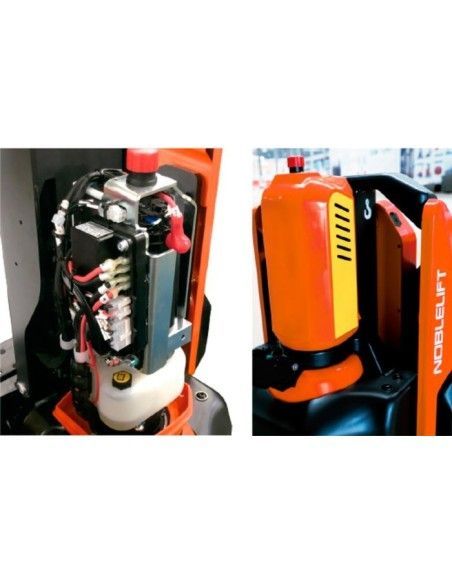

• Engine with CURTIS controller, CAN-bus technology, facilitates diagnosis and troubleshooting.
• Possibility to overcome ramps up to 4/16% (with/without load), make the pallet truck be suitable for working in load springs and delivery operations in different conditions.

TECHNICAL CHARACTERISTICS

• Charging capacity: 1500kg
• Freight center distance: 600mm
• Distance from the axis load center to the fork: 928mm
• Distance between axles: 1183mm
• Pneumatics: Polyurethane (PU)
• Elevation: 115mm
• Height of the helm, driving position min/max.: 740/1162mm
• Height descended: 88mm
• Total length: 1560mm
• Total width: 540mm

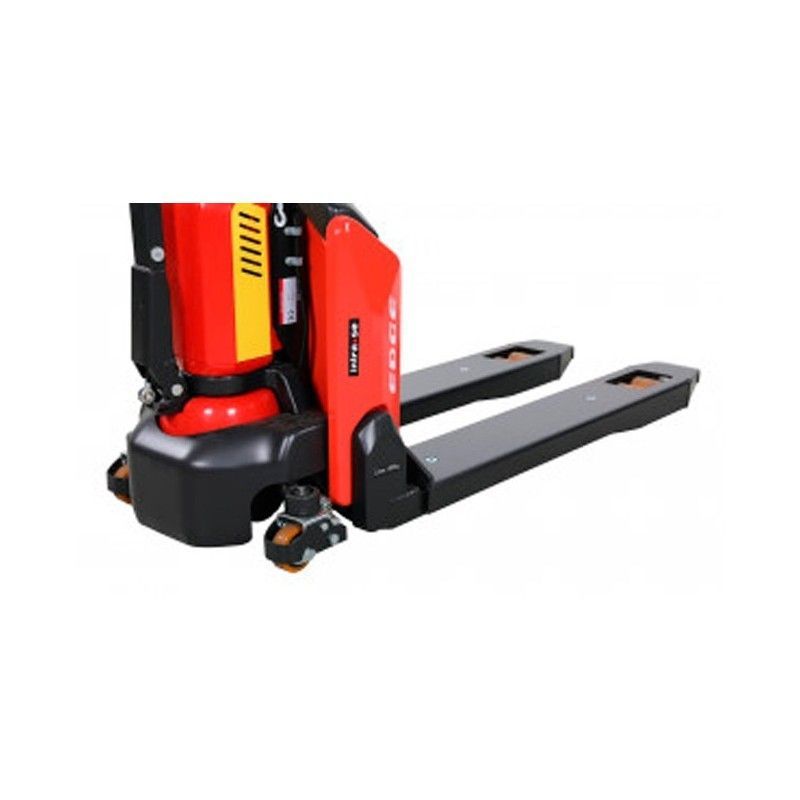

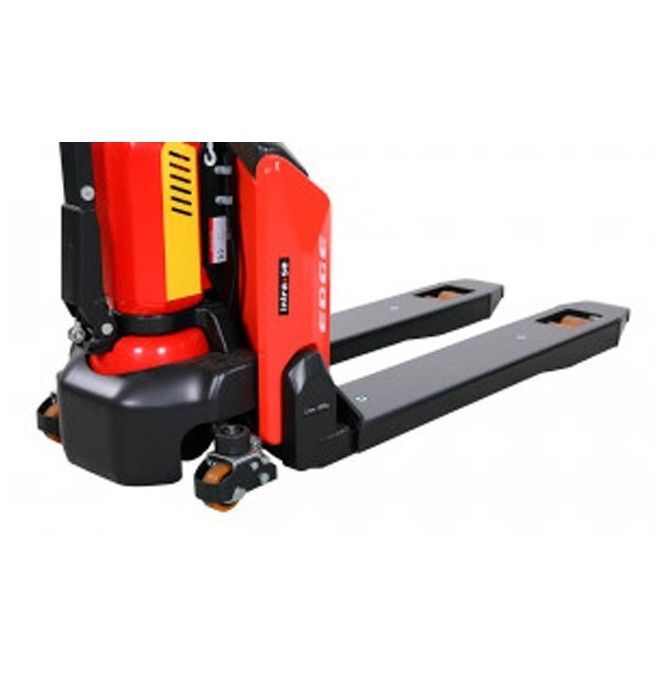

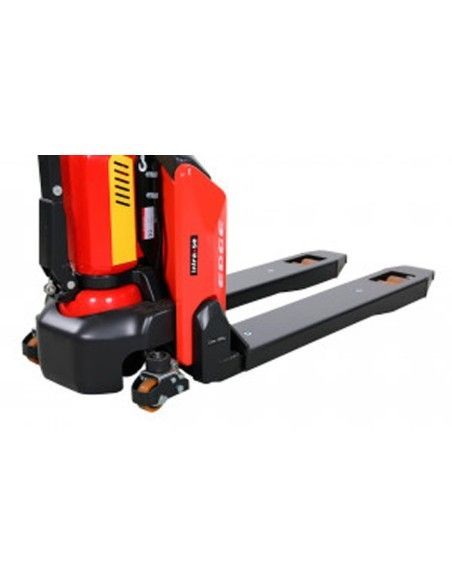

• Fork measures: 64x182x1150mm
• Width of forks: 562/707mm
• Distance to the floor, center of the distance between axles: 21mm
• Aisle width for pallets 800x1200 cross-section: 2000mm
• Turn radio: 1387mm
• Charge/free speed: 4.2/4.4 km/h
• Lift speed with charge/free charge: 0.015/0.022 m/s
• Decreasing speed with load/free: 0.05/0.04 m/s
• Max bow. with charge/free charge: 4/16 %
• Brake: electromagnetic
• Driving engine power: 0.65 kW
• Lift engine power: 0.50 kW
• Battery voltage, nominal capacity: 24V/20Ah

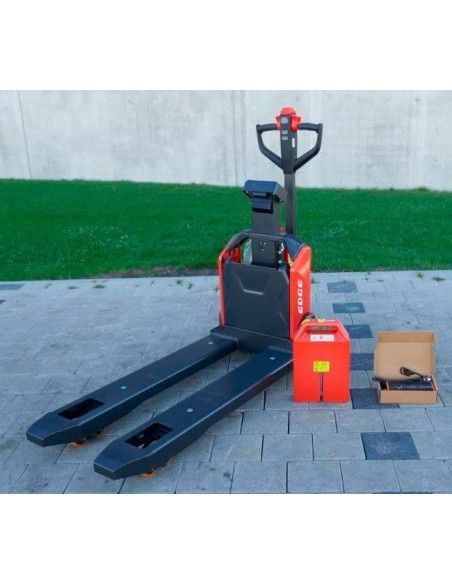

• External charger (including): 24V/8A
• Battery weight: 4.6kg
• Energy consumption according to VDI cycle: 0.19 kWh/h
• Type of driving control: speed control CC
• Weight: 185kg
