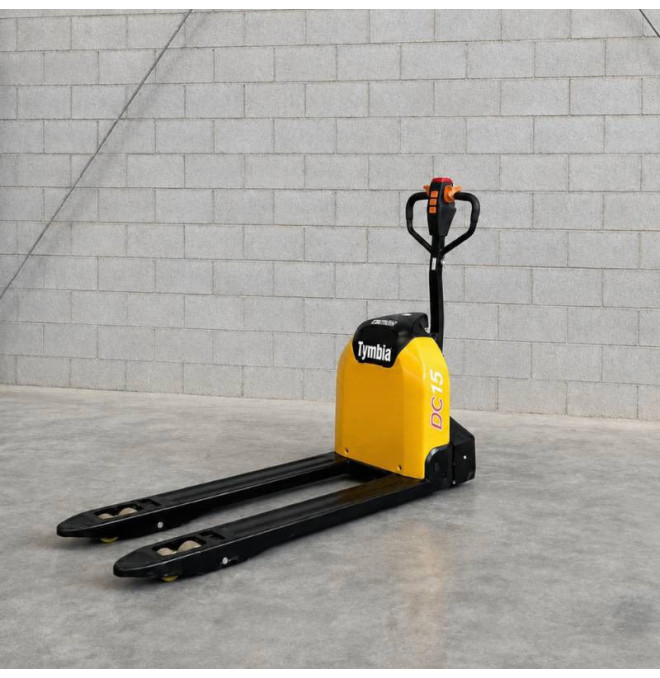

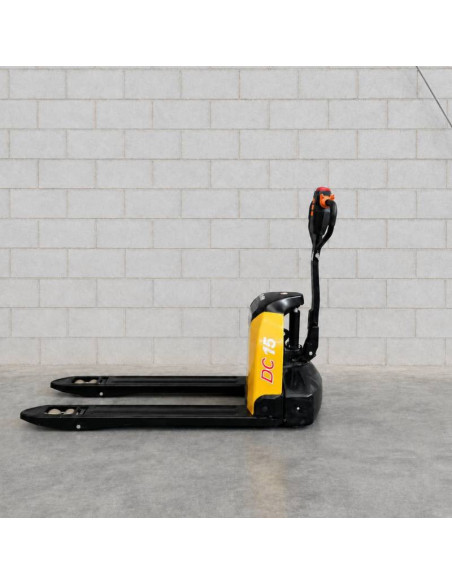

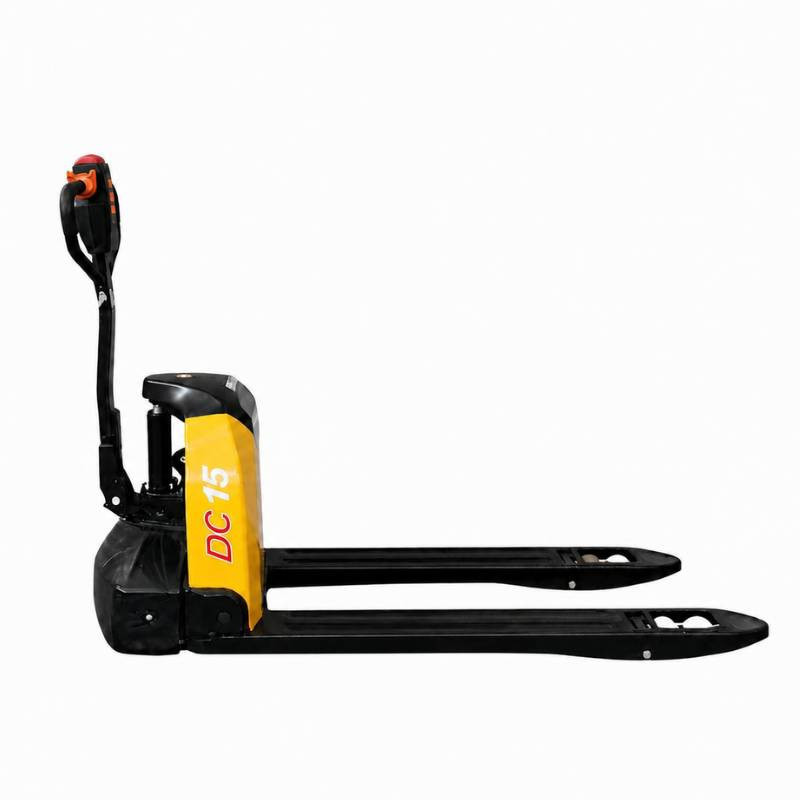

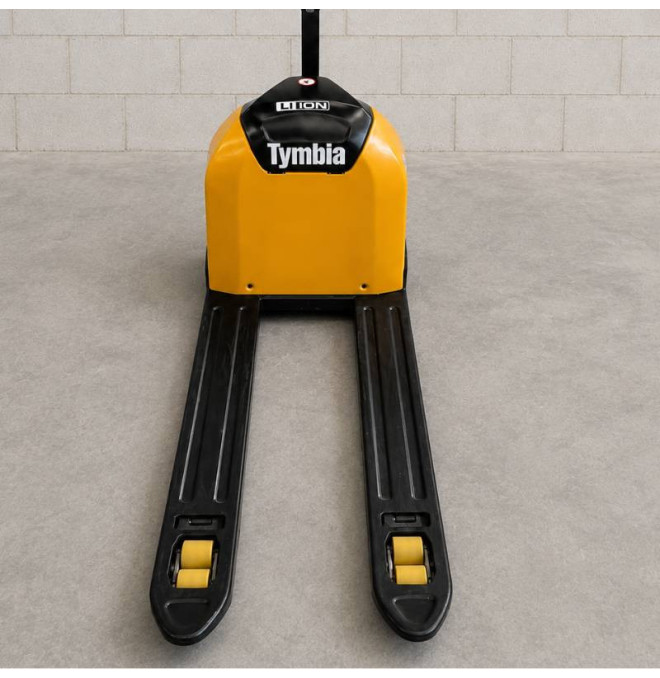

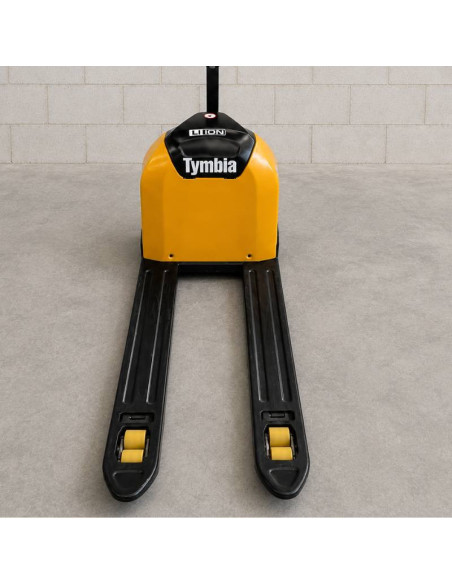

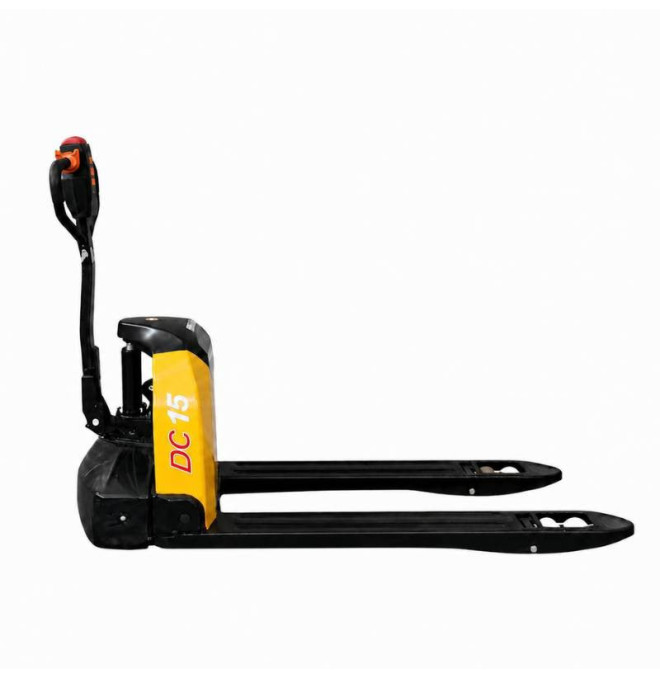

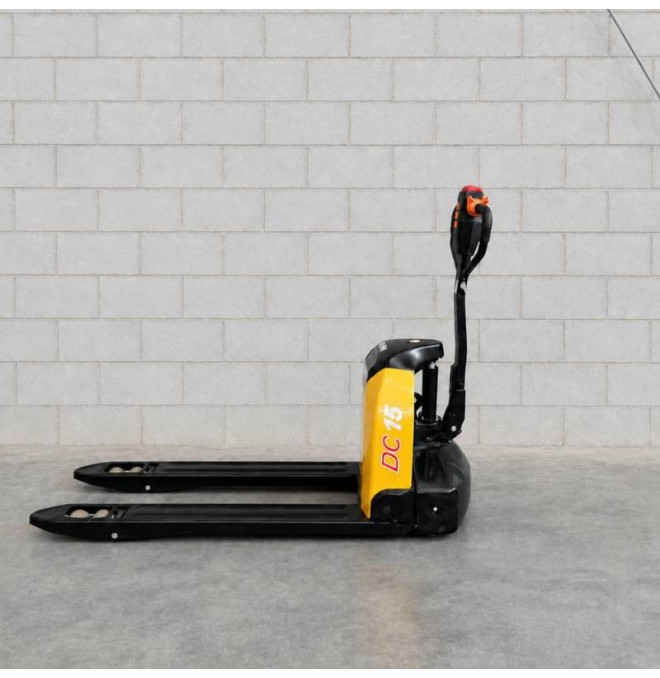

Pallet truck Lithium 1500kg Li3 - 24V / 30Ah Battery

Explanatory video of operation:

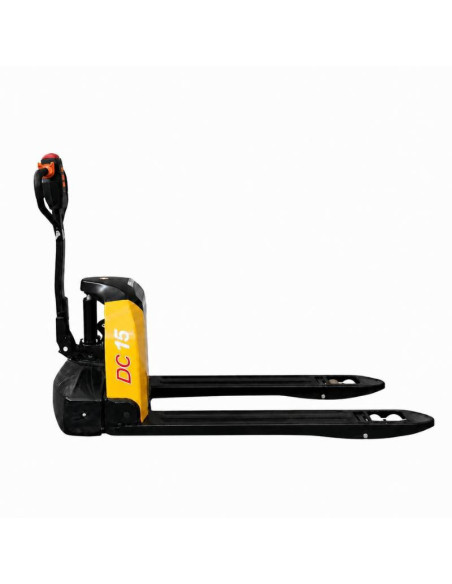

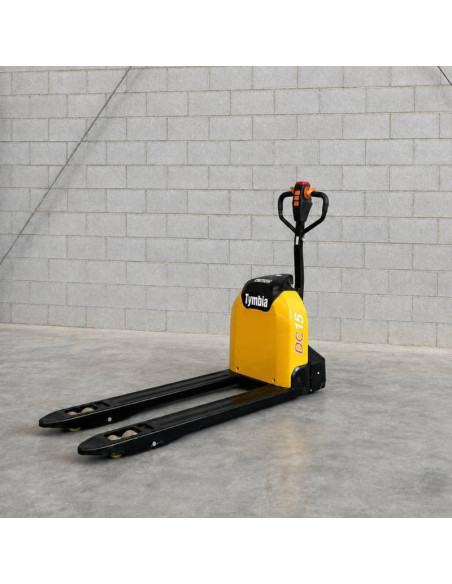

Pallet truck Lithium Li3 with new design and compact structure with stabilizing wheels. Load capacity of up to 1500 kg, with standard fork dimensions of 550x1150 mm.

Designed and built to optimize your experience in the management and transport of materials. Perfect for limited spaces thanks to its compact design and easy maneuverability. An economical solution to move your loads comfortably and efficiently.

Features:

• Pallet truck fully electric
• Load capacity from 1500 to 2000 kg
• Compact chassis, perfect for small spaces
• Ferro-phosphate lithium battery (Ref.b402010060)
• External charger included (Ref.b402010061)

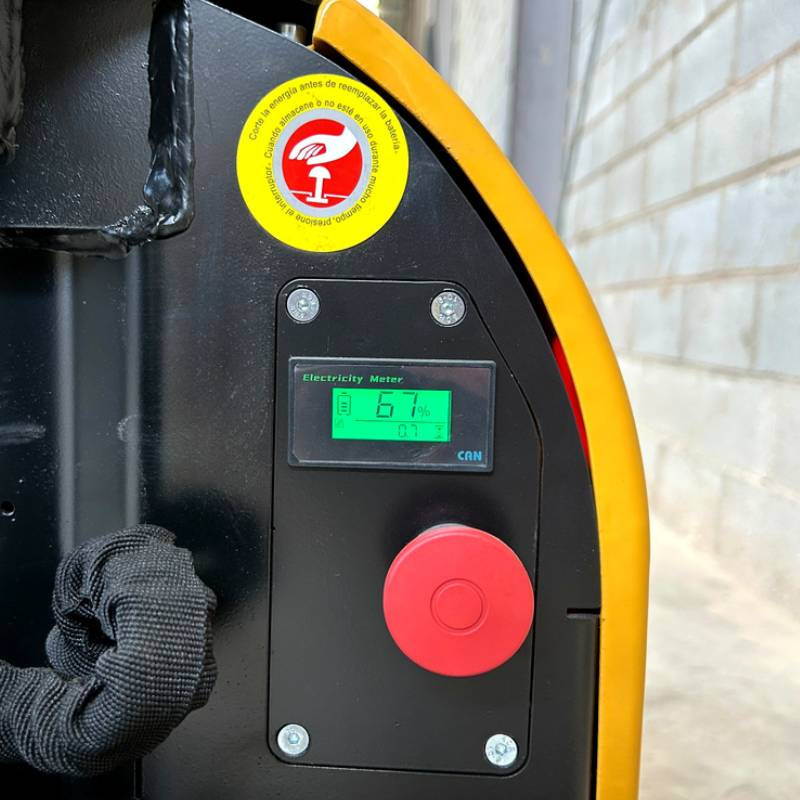

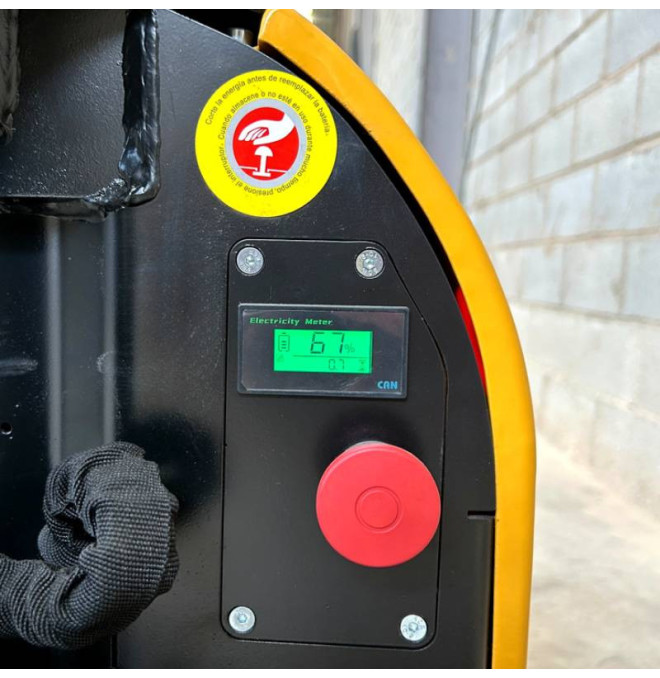

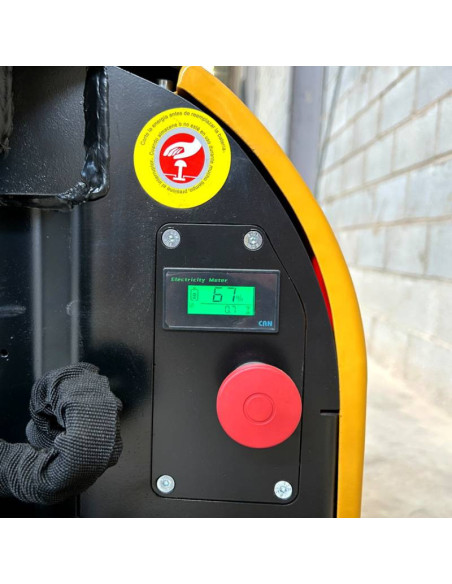

• Indicator battery charge
• Robust and resistant forks
• Electronic speed control
• Removable battery in 5 seconds
• Brushless traction motor and no maintenance
• Emergency button
• Screen with indicator cargo

Given from a 30Ah lithium battery, it is fully charged in just 2 hours. This battery is easy to handle and can be recharged in any standard outlet without the need for special loading equipment. Includes a charger.

Technical specifications:

• (Q) Load capacity: 1500kg
• (c) Cargo center: 600mm
• (x) Load distance: 944mm
• (y) Axles distance: 1243mm
• Weight in service includes battery: 138kg
• Removable battery lithium
• Type of wheel drive: Polyurethane
• Roller type: Polyurethane
• Size of the wheel drive: 210x70mm
• Rollers size: 80x60mm
• Motor wheels: 1
• Rollers: 4
• (H3) Lifting height: 200mm
• (H13) Hall down: 85mm
• (H14) Max height of the rudder: 1160mm

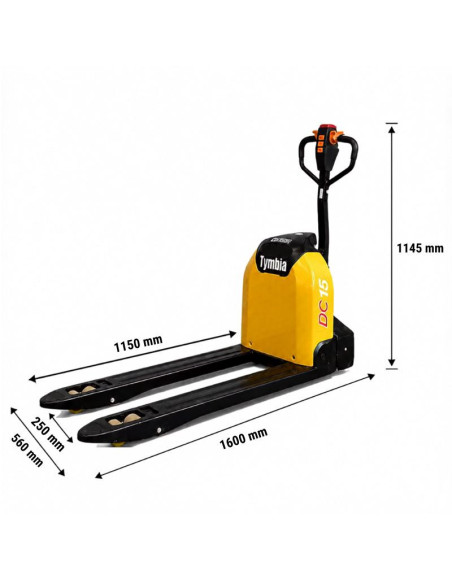

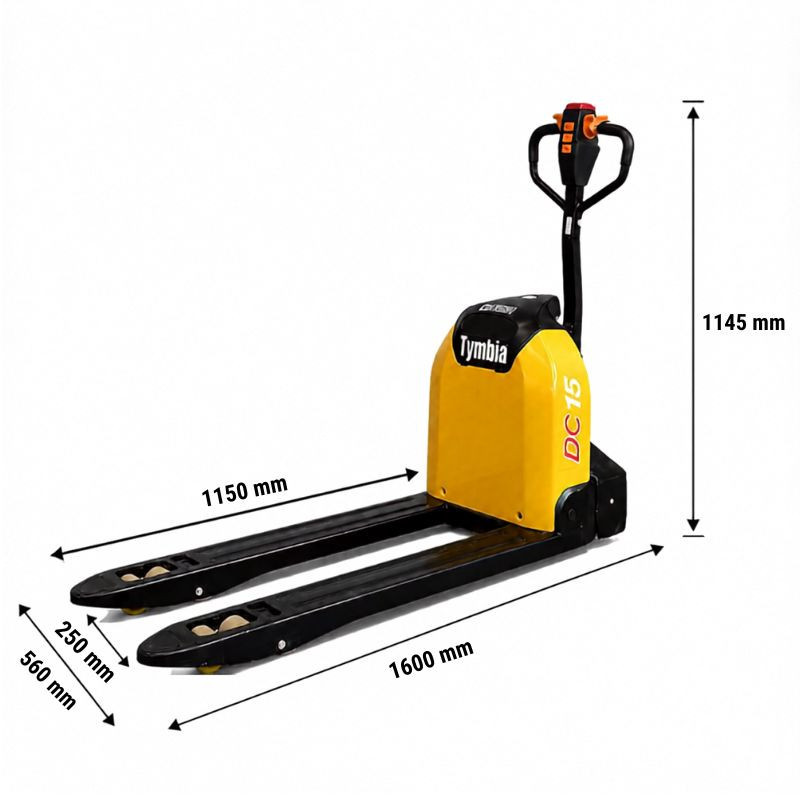

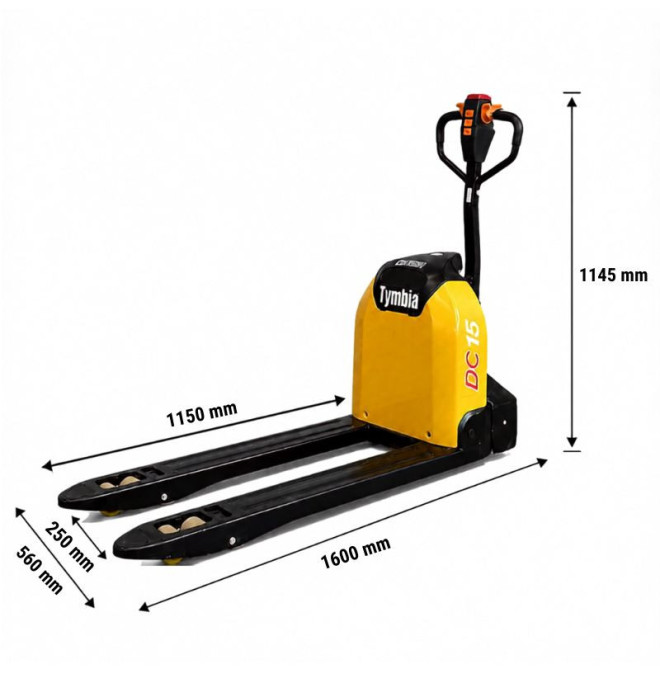

• (L1) Total length: 1550mm
• (B1) Total width: 550mm
• (S / E / l) Dimensions of the fork: 50x150x1150mm
• (B5) Distance between forks (width): 550mm
• (WA) Radio rotation: 1345mm
• Scroll speed, with / without load: 4.2 / 4.5 km / h
• Overlably pending, with / without load: 5% / 10%
• Brake type: Electromagnetic
• Push engine power: 0.75KW
• Lifting engine power: 0,8kw
• Battery voltage / Nominal capacity: 24V / 30Ah
• Battery weight: 7kg
• Controller: DC
• Type of address: Mechanics
• Weight: 138 kg

CE certificate

* The color may vary, according to availability: yellow or red.
