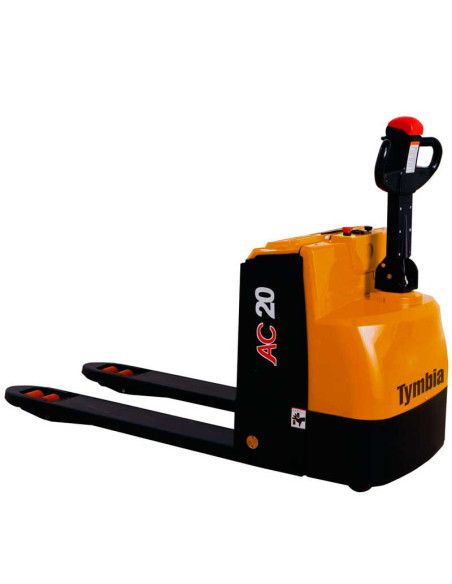

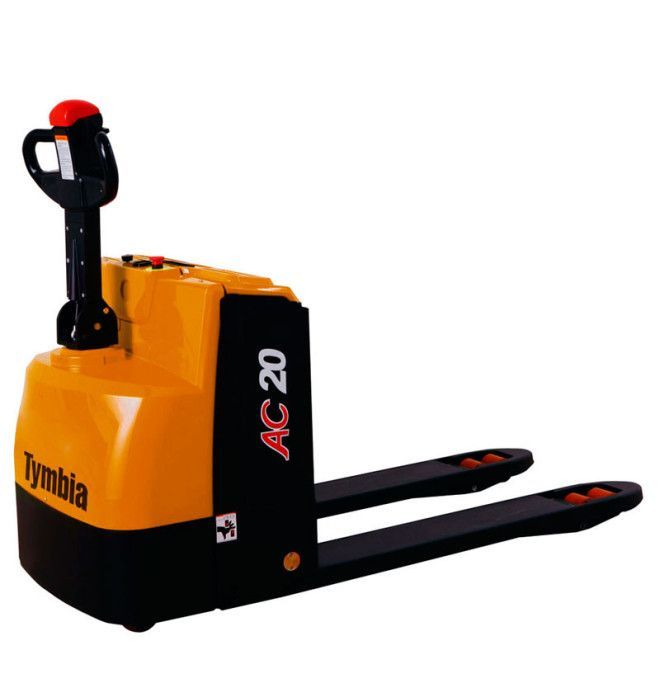

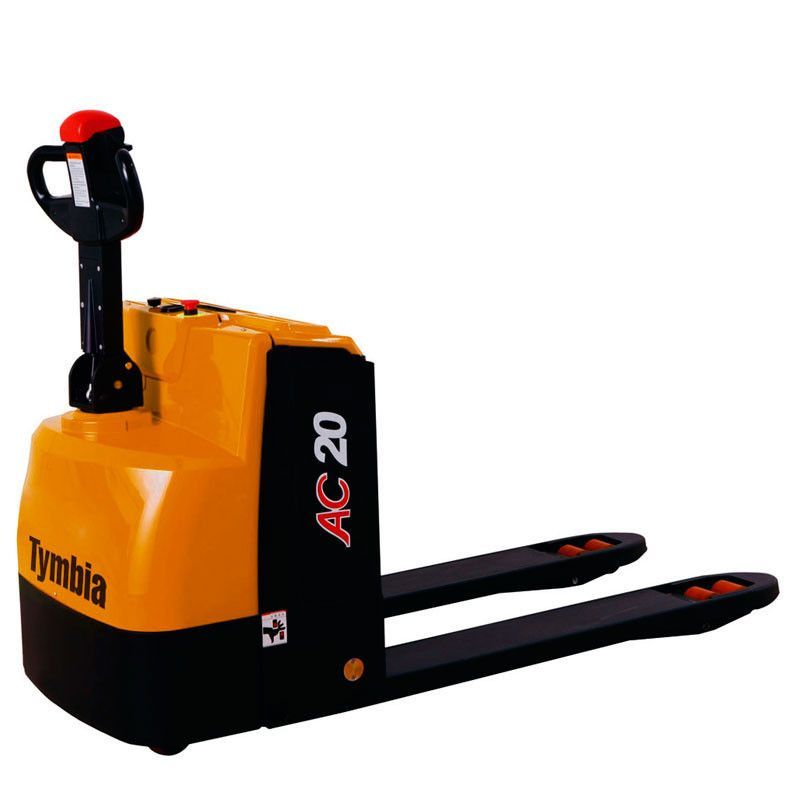

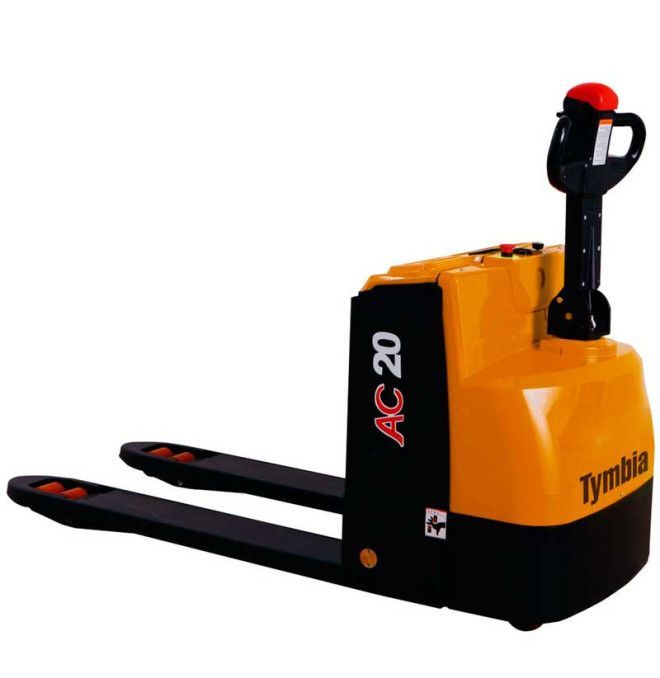

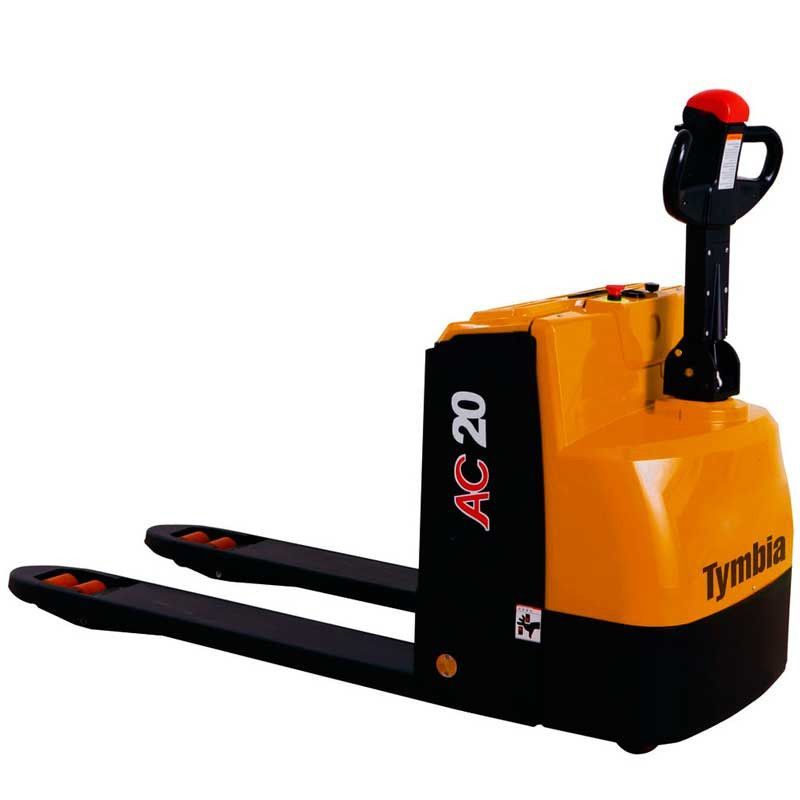

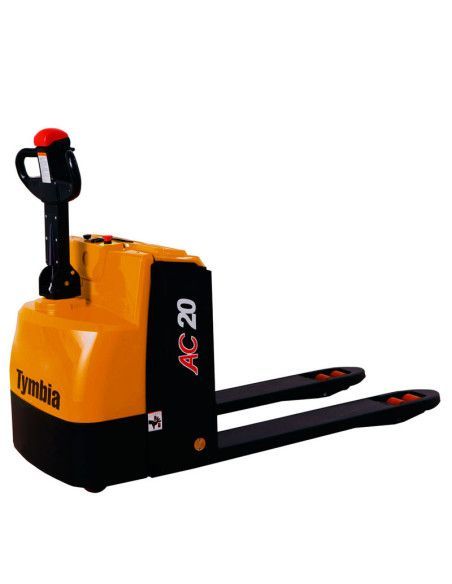

Electric Transparent 2000kg - 24v / 210Ah Battery

Electric Transpara with 24V / 210Ah Lead Battery It is a robust, efficient and safe manipulation solution, designed for loads up to 2,000 kg. Equipped with EPS Electronic address, it offers comfortable, precise and silent handling, ideal for operators that require constant mobility in demanding environments.

It stands out for its AC traction engine without brushes, which guarantees low noise level, minimum maintenance and high energy efficiency. In addition, it includes electromagnetic brake with regenerative braking, which improves safety and battery life.

The lifting system is fast and efficient, with serial limiter for more control. The high-power AC controller incorporates multiple automatic protection systems, ensuring reliable operation in intensive use.

Technical characteristics:

• Charging capacity: 2,000 kg
• Center of gravity: 600 mm
• Body distance: 1,390 mm
• Type of operation: Accompany driver (pedestrian)

Wheels:

• Motor: 1 × Ø 248 x 75 mm (PU)
• Stabilizers: 1 × Ø 115 x 55 mm (PU)
• Support (double roller): 4 × Ø 84 x 80 mm (PU)

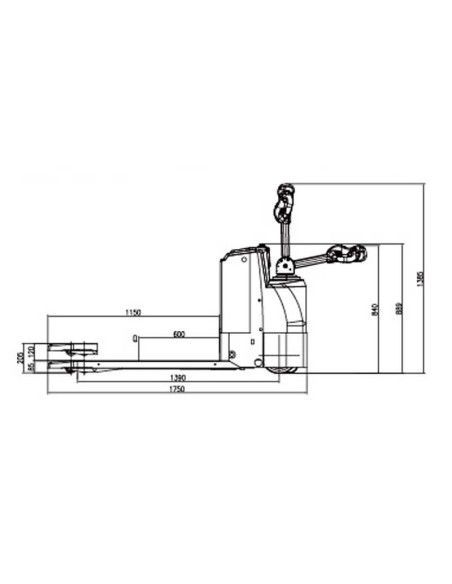

Dimensions forks:

• Length: 1,150 mm
• Outside width: 550 mm
• Thickness: 75 mm
• Handful forks: 85 mm
• High forks: 195 mm
• Maximum lifting height: 110 mm

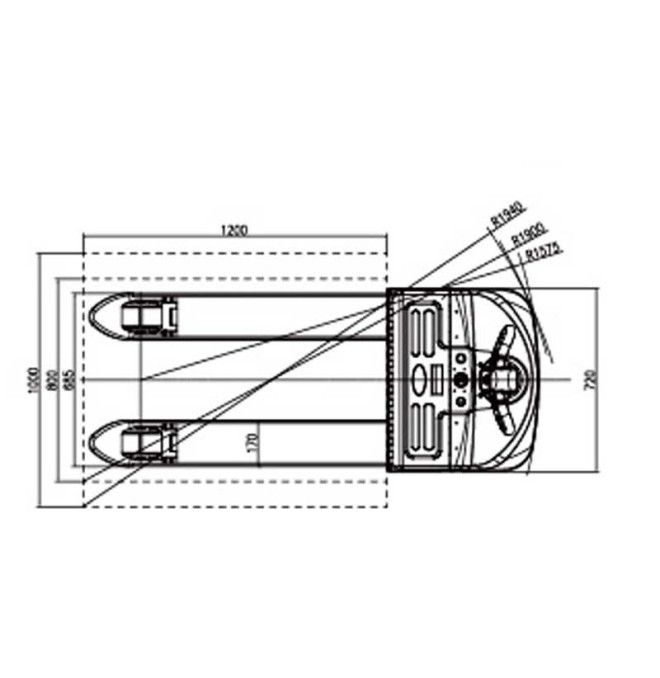

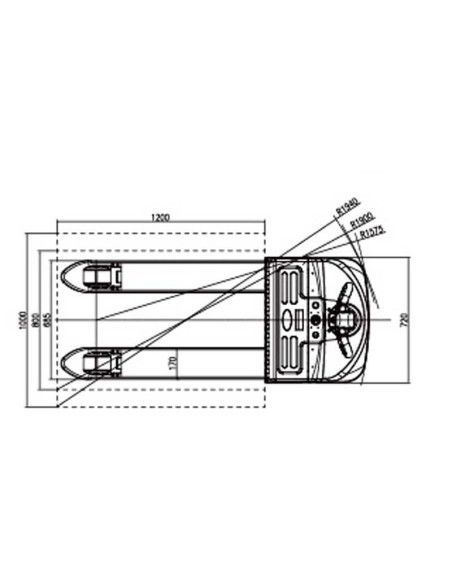

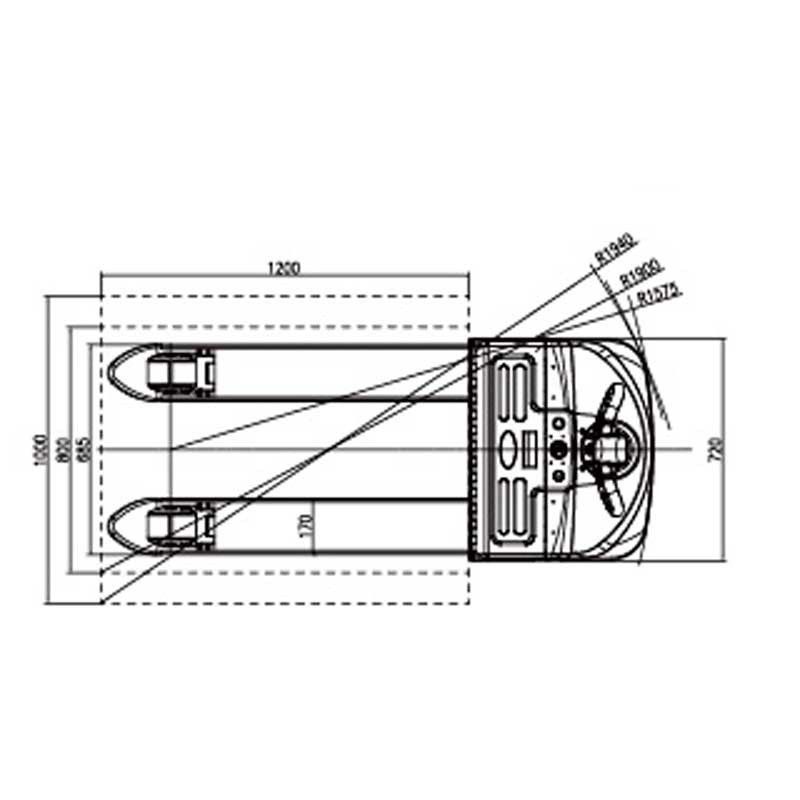

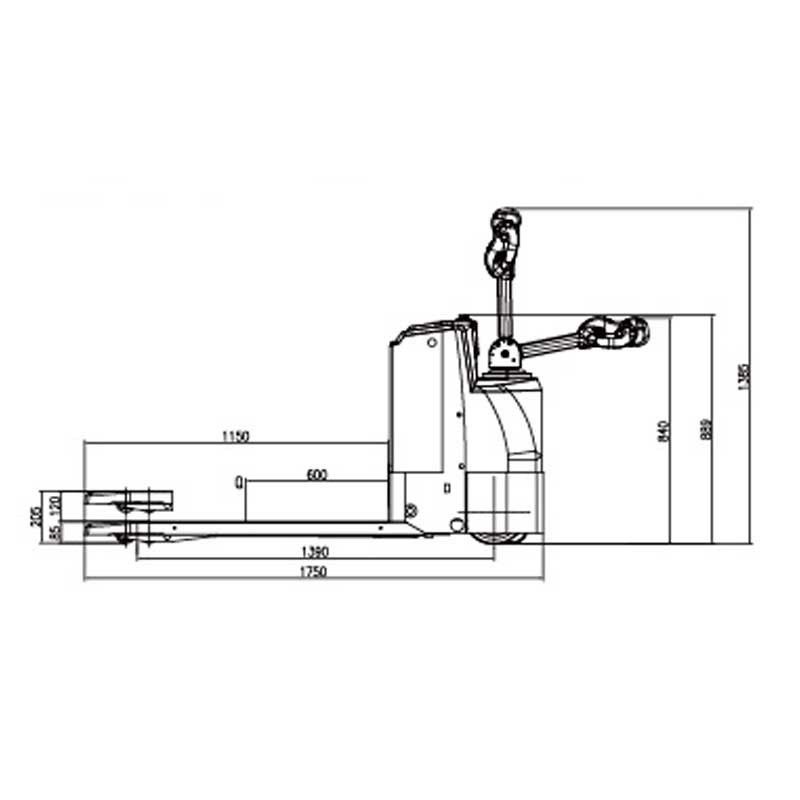

General dimensions:

• Total length: 1,750 mm
• Total width: 720 mm
• Total height (with / without rudder): 1.385 / 850 mm
• Minimum spin radius: 1.575 mm
• Working hall width:
• With pallet 800x1200: 1,900 mm
• With pallet 1.000x1200: 1,940 mm

Benefits:

• Maximum speed (with / without load): 3.5 / 4.0 km / h
• Speed lifting (with / without load): 20/25 mm / s
• Drop speed (with / without load): 40/30 mm / s
• Ramp rise (with / without load): 5% / 7%

Electrical configuration:

• Traction motor: AC 1.5 KW
• Elevation engine: DC 1.2 kW
• Engine Address: DC 0.15 kW
• Lead acid battery: 24 V / 210 Ah (without maintenance, built-in charger)
• Brake: Electromagnetic with regenerative braking
• Controller: Curtis
• Total weight in service (with batteries): 600 kg
• Battery weight: 202 kg

Advantages

• Electronic address EPS: Soft, silent and precise management
• AC motorless motor: No maintenance, low noise and high efficiency
• Regenerative brake: greater security and energy savings
• Rapid elevation with limiter: Total movement control
• Curtis controller: powerful, reliable and with integrated protection
• 24V / 210Ah Sleed Acid Battery Lead with Built-in Charger: List to use
• Automatic speed reduction in turns: more security in maneuvers
• Compact and agile: Operates effectively in azzles of just 1.90 m

Recommended uses

• Daily manipulation of pallets in warehouses and logistics centers
• Loading / download on truck platforms
• Operations in narrow corridors or congested areas
• Sectors with low noise requirements (food, pharmacy, electronics)
• Environments that require high reliability and low maintenance

CE certificate

* The color may vary, according to availability: yellow or red.
