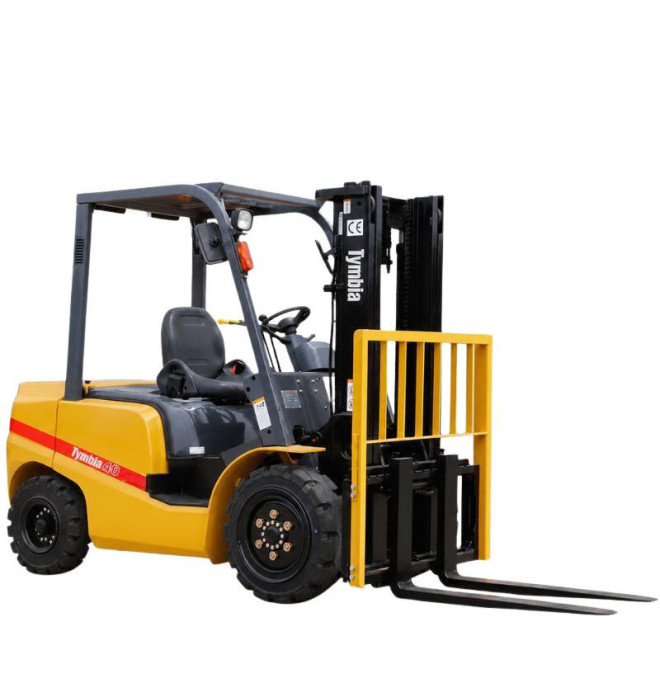

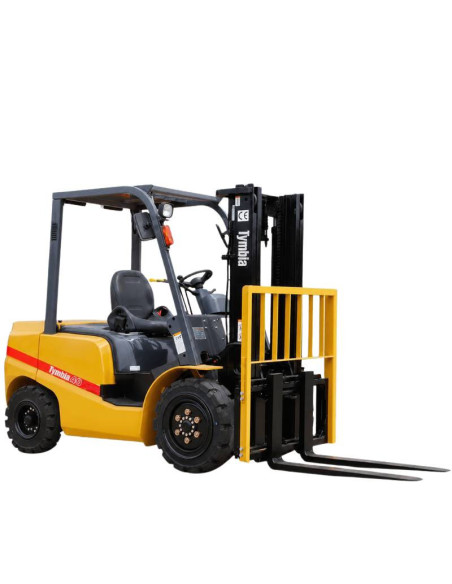

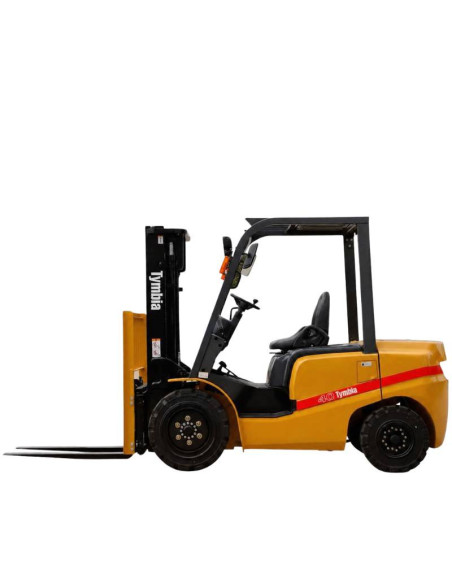

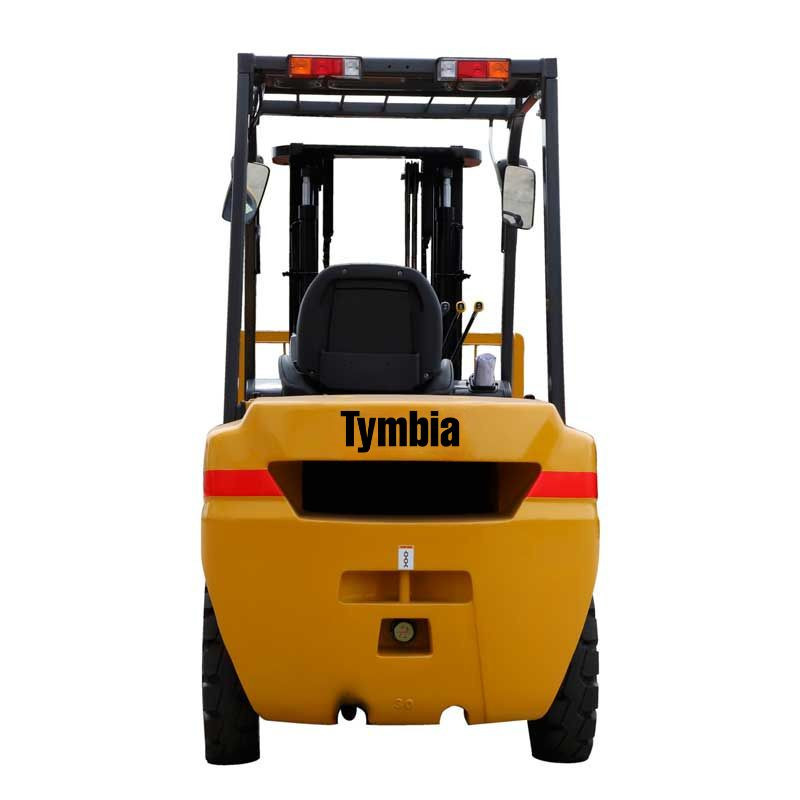

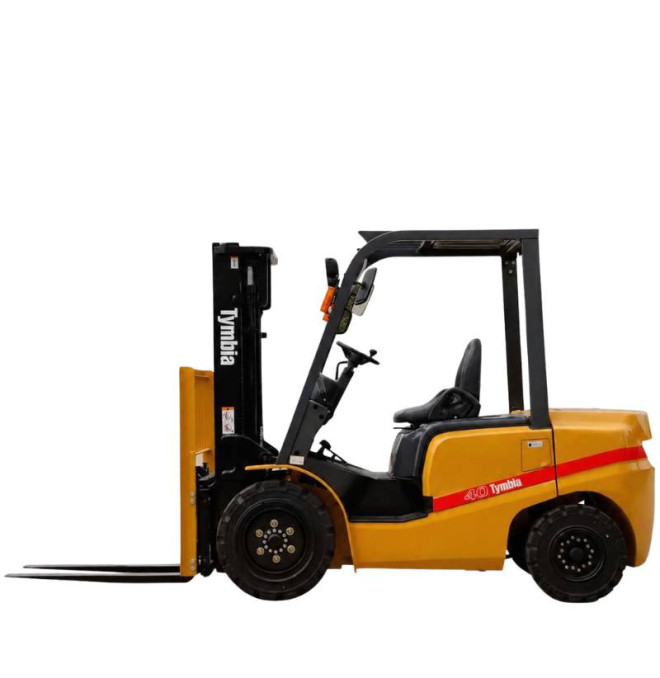

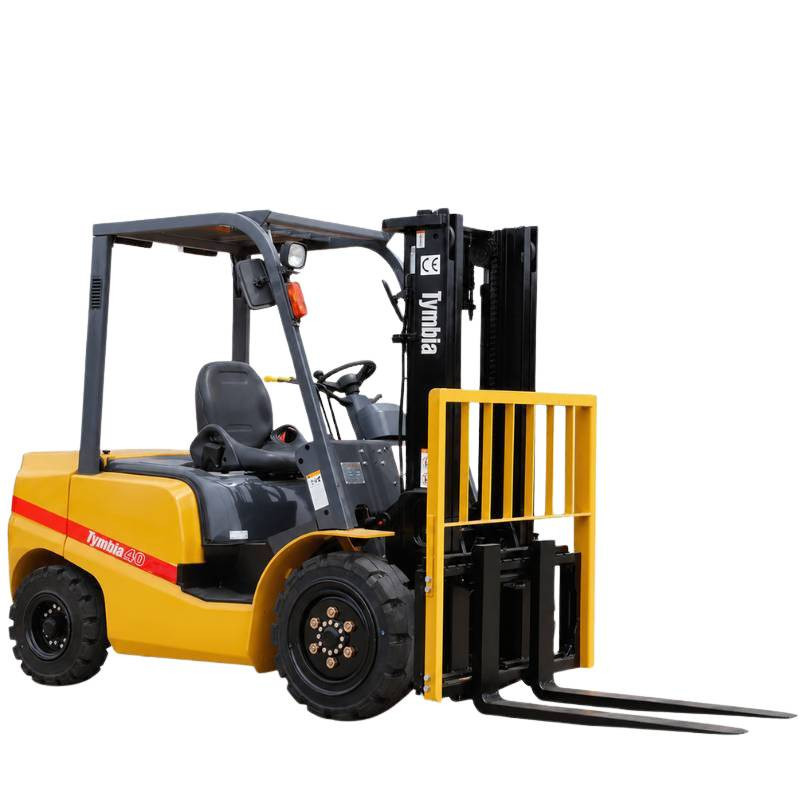

The forklift diesel TYMBIA 4TN is designed to offer power, stability and efficiency in demanding industrial and logistical environments. With a maximum lifting capacity of 4,000kg and a 500mm cargo center, this model integrates a diesel engine compatible with Euro5 regulations, guaranteeing a cleaner and efficient operation. Its automatic transmission Power SHIFT (1-1) and its hydraulic system with working pressure of 180kg / cm² allow fluid work cycles, with lifting speeds of up to 480mm / s (without load) and 420mm / s
Equipped with tires and a battle of 1.800mm, the FD40 offers a solid traction and an outer turn radius of 2.530mm, facilitating maneuver in industrial environments and loading / unloading areas (stinging hall at right angle: 2.940mm). It includes hydraulic service and mechanical parking brake brakes, 12V / 80Ah battery and a fuel tank of 70 liters for prolonged days. Its operating weight of 5.050kg and balanced load distribution ensure ramp stability of up to 18% with maximum load.
Featured features (FD40 model):
- Maximum capacity: 4,000kg | Loading center: 500mm
- Engine and regulations: diesel (euro compliance)
- Transmission: Power SHIFT T / M (1 March / 1 March)
- Tires: Tires | Strikers: 250-15-16pr | Rear: 6.50-10-10pr
Main dimensions:
- Total length without forks: 2.870mm
- Total width: 1.365mm
- Mast height (forks lowered): 2.150mm
- Total height with elevated forks (with backup): 4.250mm
Lifting performance:
- Height Lifting: 4.500mm | Free elevation: 150mm
- Speed Lifting: 380mm / s (load) / 480mm / s (without load)
- Raised speed: 420mm / s (load) / 420mm / s (without load)
Maneuverability and traction:
- Outdoor spin radius: 2.530mm
- Hall Stacking 90 °: 2.940mm
- Max tensile force: 2.200kg (load) / 1,000kg (without load)
- Overlavable pending (1.6 km / h): 18% (load) / 20% (without load)
Systems and autonomy:

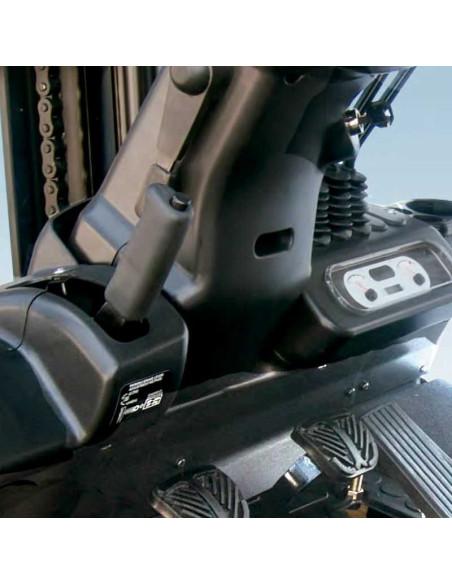

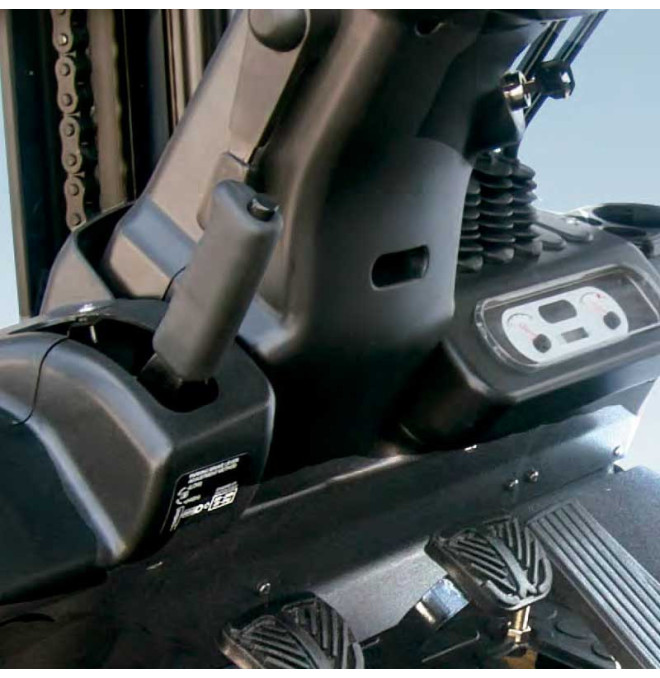

- Brakes: Hydraulic service (pedal) | Mechanical parking (lever)

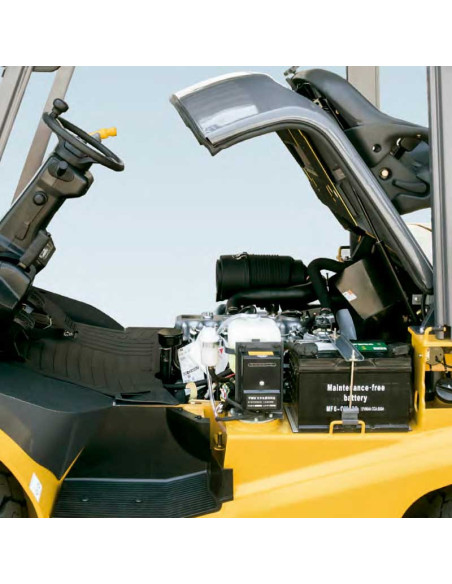

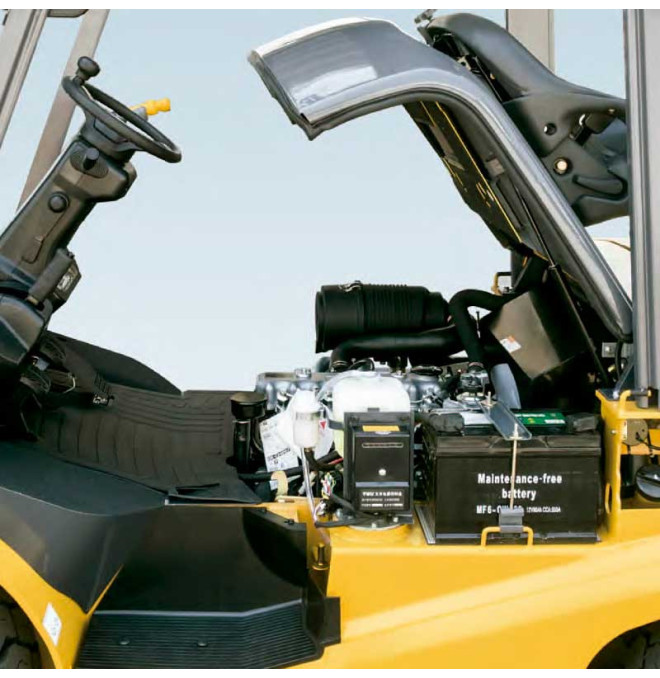

- Battery: 12V / 80AH | Fuel tank: 70 L
- Pressure Hydraulic System: 180kg / cm²
- Team weight: 5.050kg
Advantages:
- Regulatory compliance and efficiency: diesel technology aligned to Euro5, combined with a 70 L tank that allows extensive days without frequent interruptions.
- Greater load capacity: Its maximum capacity of 4,000kg allows to work with heavy loads in warehouses, cargo springs, manufacturing industry and demanding logistics environments.
- Maneuverability in industrial spaces: A rotation radius of 2.530mm and a 2,940mm stacking corridor optimize the use of space in work areas where maneuver precision is required.
- Stable hydraulic operation: 180kg / cm² pressure and lifting / lowered speeds calibrated for controlled loading cycles, maintaining stability and safety during handling.
- Traction and slope capacity: Configuration with tires and chassis of 5.050kg that guarantees an 18% slope capacity with full load, ideal for ramps, cargo yards and industrial surfaces.
- Double operational security: Precision hydraulic braking for daily service and hand mechanical brake for secure parking, backed by a balance weight distribution
Recommended uses:
- Logistics and warehouses: Movement of pallets and unitary loads up to 4,000kg in loading, unloading and storage areas.
- Manufacturing and heavy industry: Manipulation of raw materials, metallic components, auxiliary machinery and finished products in production environments.
- Mixed environments Interior / outdoor: Thanks to its tires and robust traction, it is suitable for cargo, docks, works of construction And warehouses with unpaved surfaces.
- Sectors with slope requirements: operations in access ramps, high platforms or terrains with unevenness of up to 18% with maximum load.
- High Autonomy Applications: Long Distribution Days, Materials construction, industry and agriculture where the 70 l deposit and the reliability of the Power Shift diesel system are critical.
** They must have their own discharge means.
