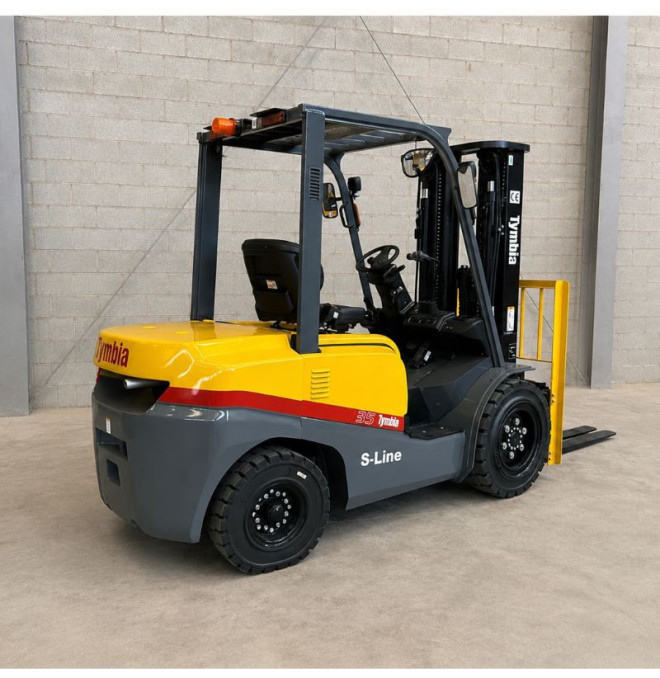

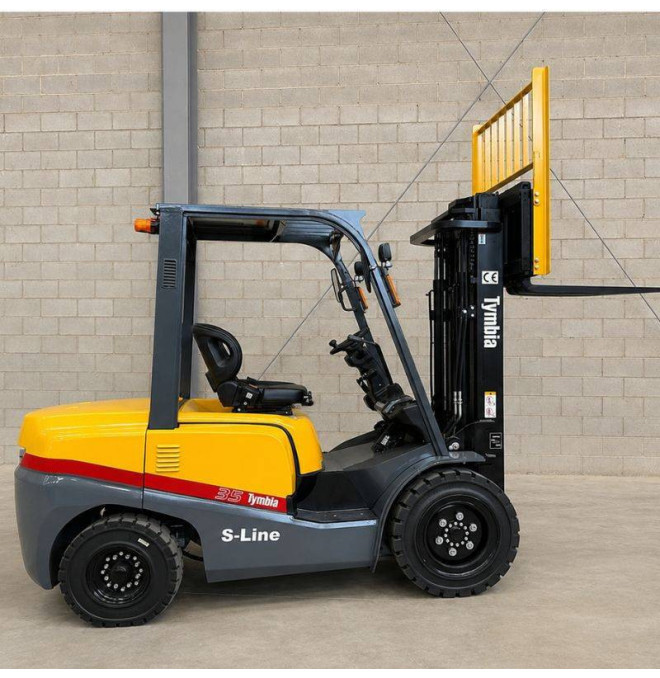

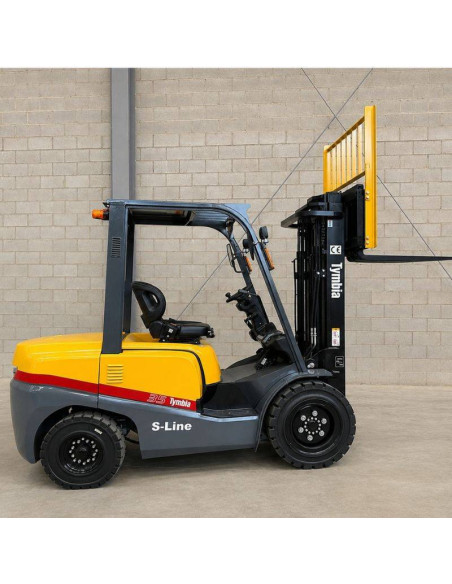

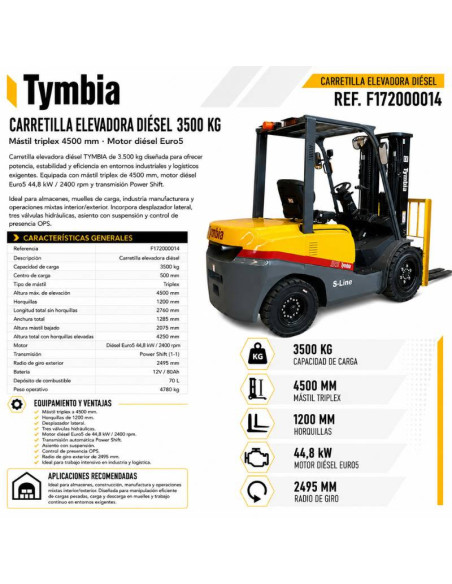

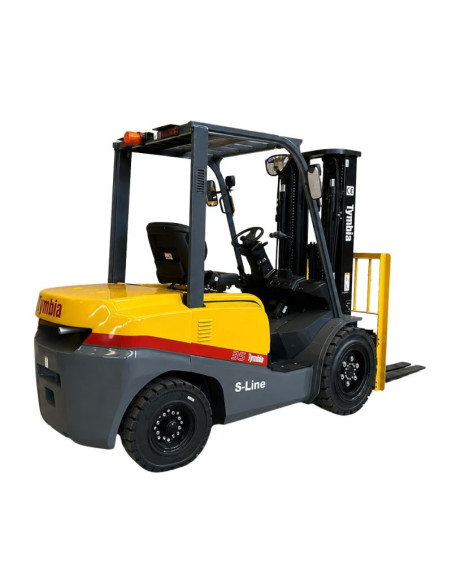

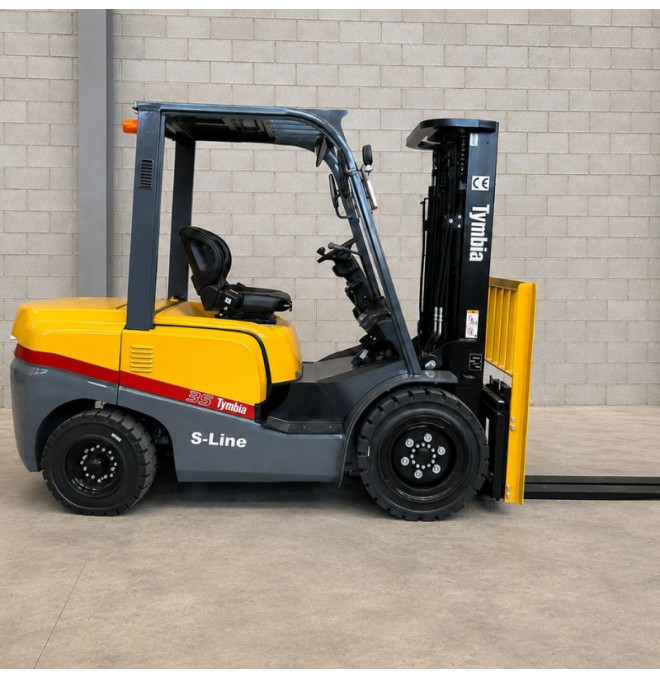

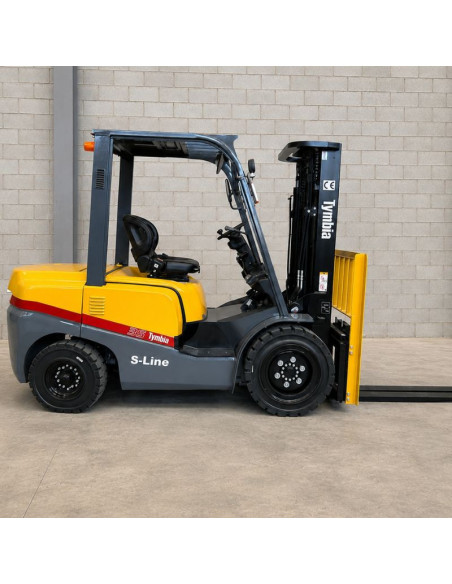

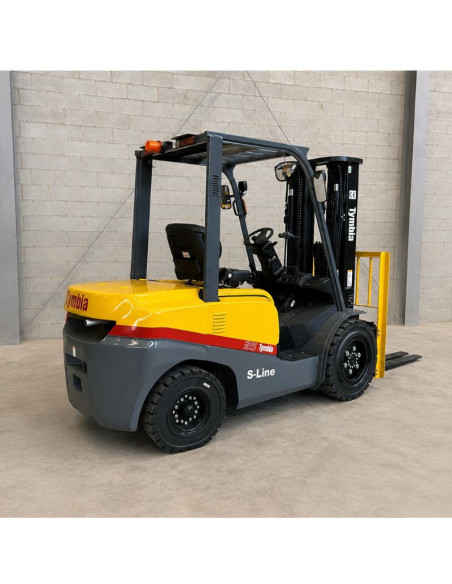

The forklift diesel TYMBIA 3,5TN is designed to offer power, stability and efficiency in demanding industrial and logistics environments. With a maximum lifting capacity of 3,500kg and a 500mm load center, this model integrates a diesel engine compatible with Euro5 regulations, guaranteeing a cleaner and more efficient operation. Its automatic transmission Power SHIFT (1-1) and its hydraulic system with working pressure of 180kg / cm² allow fluid work cycles, with lifting speeds of up to 500mm / s (without load) and 450mm / s
Equipped with tires and a battle of 1.700mm, the FD35 offers a solid traction and an outer turning radius of 2.495mm, facilitating the maneuver in industrial environments and loading / unloading areas (stacking hall at right angle: 2.975mm). It includes hydraulic service and mechanical parking brake brakes, 12V / 80Ah battery and a fuel tank of 70 liters for prolonged days. Its operating weight of 4.780kg and balanced load distribution ensure ramp stability of up to 18% with maximum load.

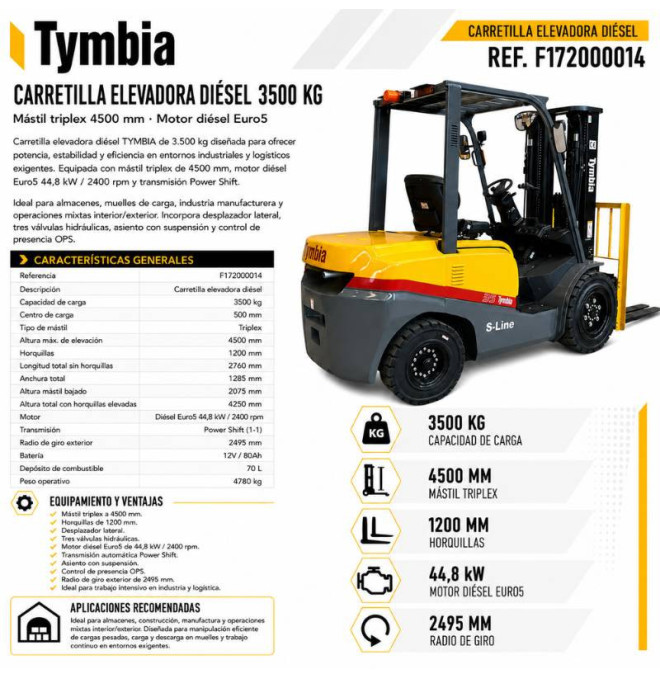

Featured features (Model FD35):
- Maximum capacity: 3.500kg | Loading center: 500mm
- Engine and regulations: diesel (euro compliance)
- Transmission: Power SHIFT T / M (1 March / 1 March)

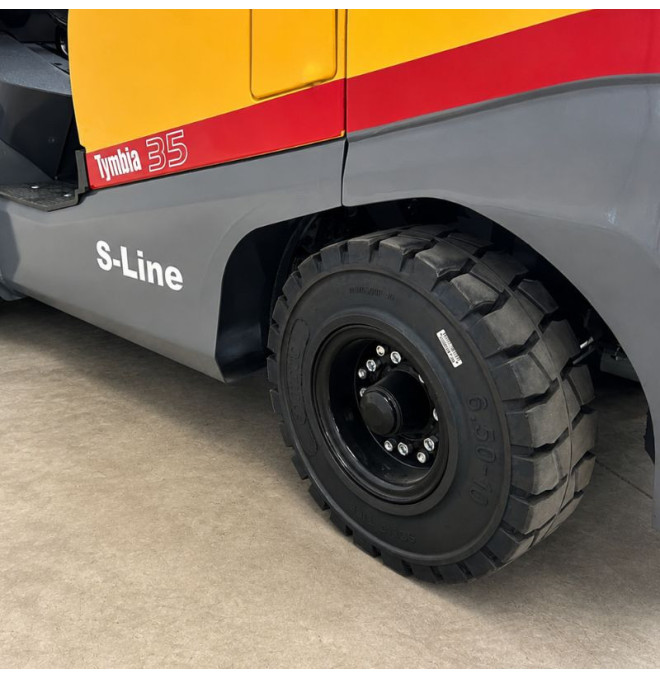

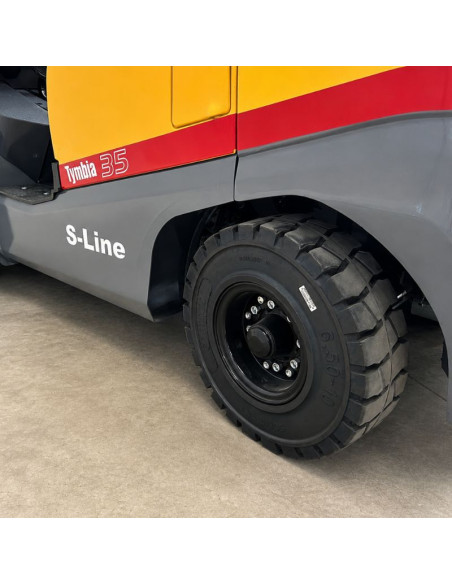

- Tires: Tires | Strikers: 28x9-15pr | Rear: 6.50-10-10pr

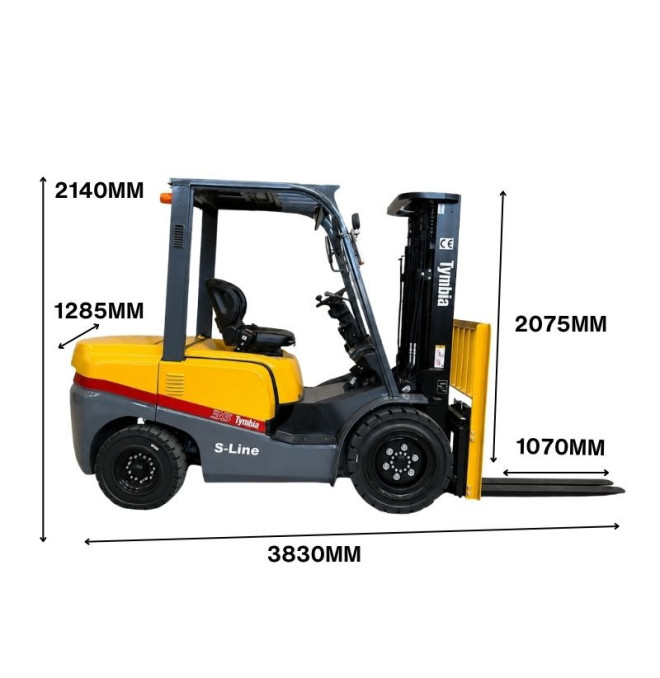

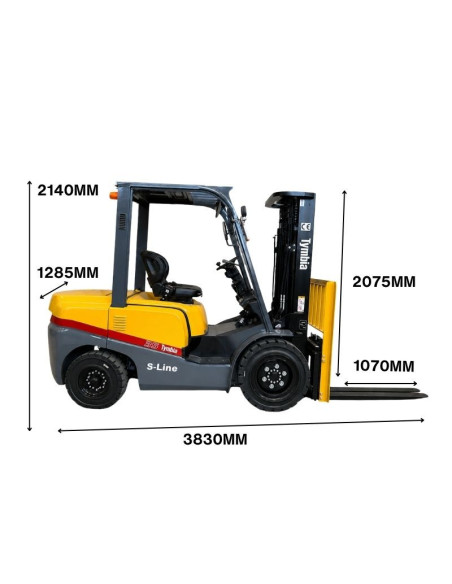

Main dimensions:
- Total length without forks: 2.760mm
- Total width: 1.285mm
- Mast height (forks lowered): 2.075mm

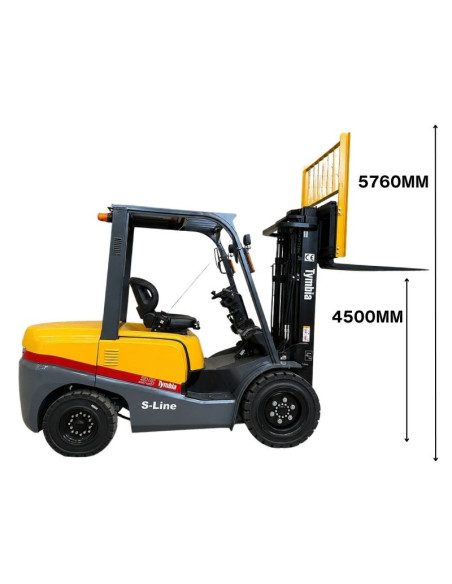

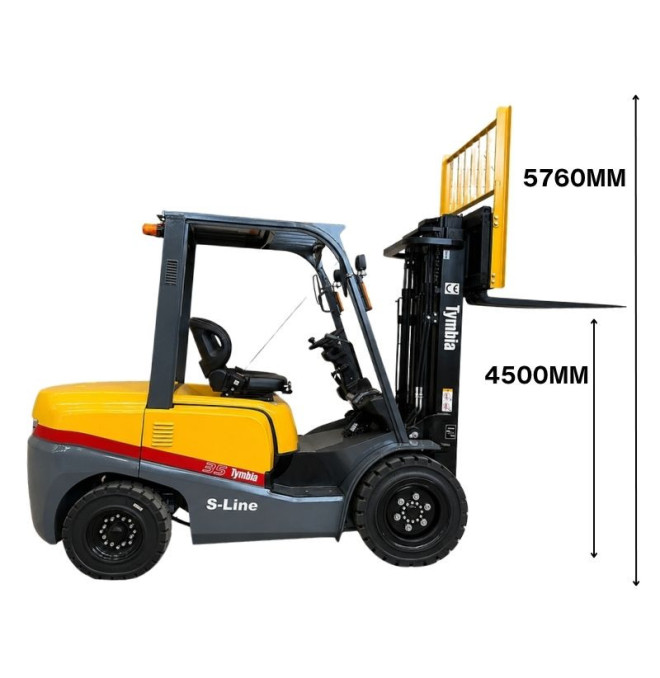

- Total height with elevated forks (with backrest): 4.250mm
Lifting performance:
- Height Lifting: 4.500mm | Free elevation: 150mm
- Speed Lifting: 450mm / S (Load) / 500mm / S (without load)
- Raised speed: 450mm / s (load) / 450mm / s (without load)
Maneuverability and traction:
- Outdoor turning radius: 2.495mm
- Hall Stacking 90 °: 2.975mm
- Max tensile force: 2.100kg (load) / 1,000kg (without load)
- Overlavable pending (1.6 km / h): 18% (load) / 20% (without load)
Systems and autonomy:
- Brakes: Hydraulic service (pedal) | Mechanical parking (lever)

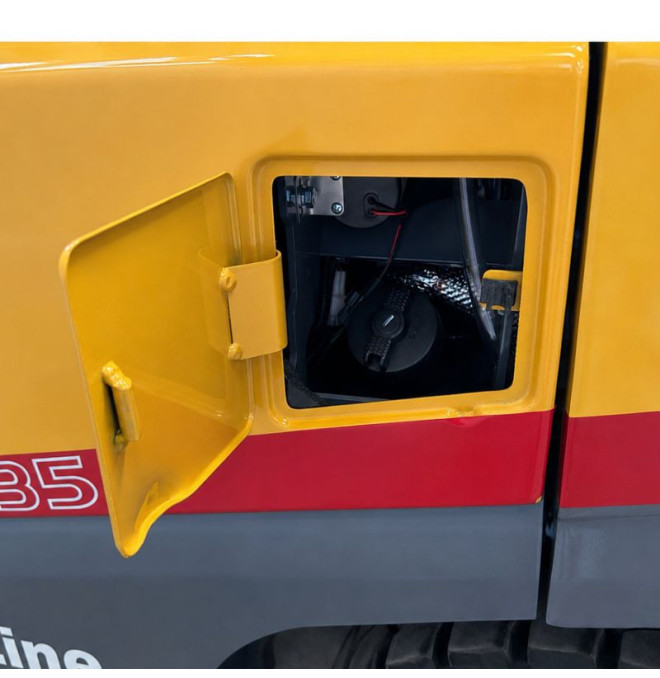

- Battery: 12V / 80AH | Fuel tank: 70 L
- Pressure Hydraulic System: 180 kg / cm²
- Team weight: 4,780 kg
Advantages:
- Regulatory compliance and efficiency: diesel technology aligned to Euro5, combined with a 70 L tank that allows extensive days without frequent interruptions.
- Greater load capacity: Its maximum capacity of 3,500kg allows you to work with heavy loads in warehouses, cargo springs, manufacturing industry and demanding logistics environments.
- Maneuverability in industrial spaces: a spinning radius 2.495mm and a stacking hall of 2.975mm They optimize the use of space in work areas where maneuver precision is required.
- Stable hydraulic operation: pressure of 180 kg / cm² and lifting speeds / lowered calibrated for controlled load cycles, maintaining stability and safety during handling.
- Traction and slope capacity: Configuration with tires and chassis of 4,780kg that guarantees a pending capacity of 18% with full load, ideal for ramps, cargo patios and industrial surfaces.
- Double operational security: Precision hydraulic braking for the daily service and mechanical hand brake for secure parking, backed by a balanced weight distribution.
Recommended uses

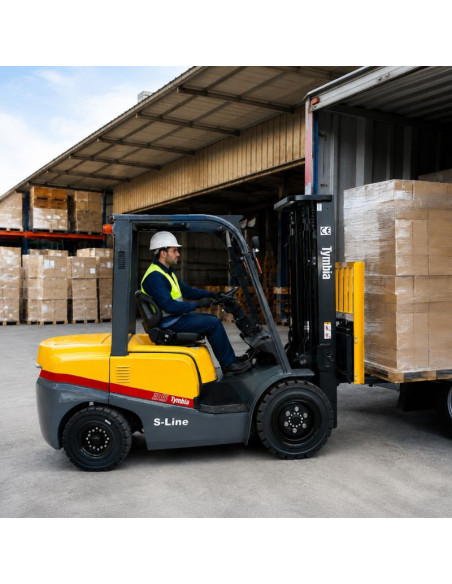

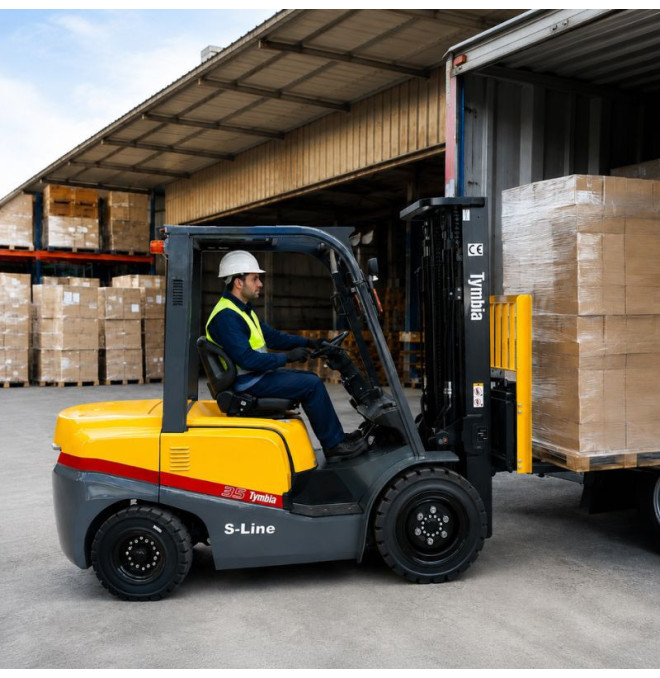

- Logistics and warehouses: movement of pallets and unit loads of up to 3,500kg in loading, unloading and storage areas.
- Manufacturing and heavy industry: Manipulation of raw materials, metallic components, auxiliary machinery and finished products in production environments.
- Mixed environments Interior / outdoor: Thanks to its tires and robust traction, it is suitable for cargo, docks, works of construction And warehouses with unpaved surfaces.
- Sectors with slope requirements: operations in access ramps, high platforms or terrains with unevenness of up to 18% with maximum load.
- High Autonomy Applications: Long Distribution Days, Materials construction, industry and agriculture where the 70 l deposit and the reliability of the Power Shift diesel system are critical.
** They must have their own discharge means.
