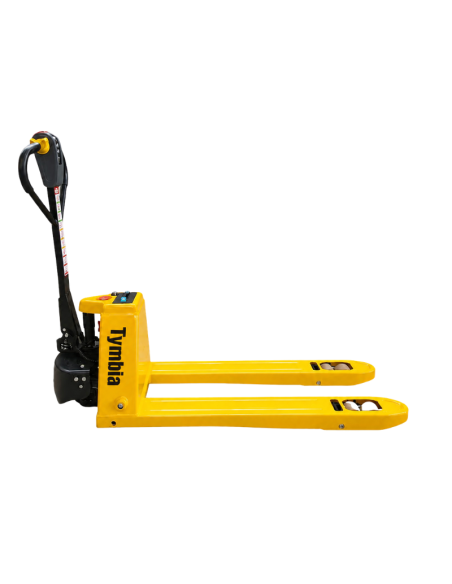

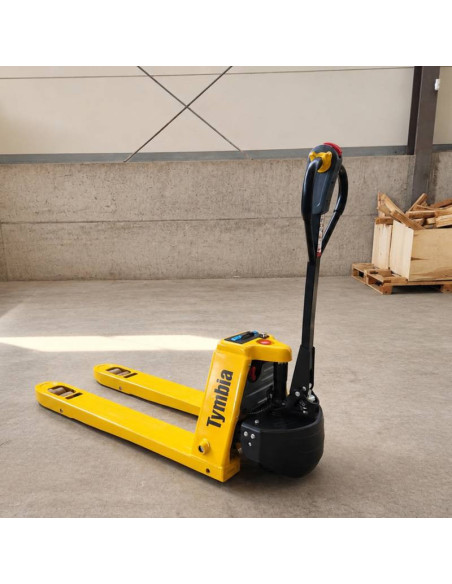

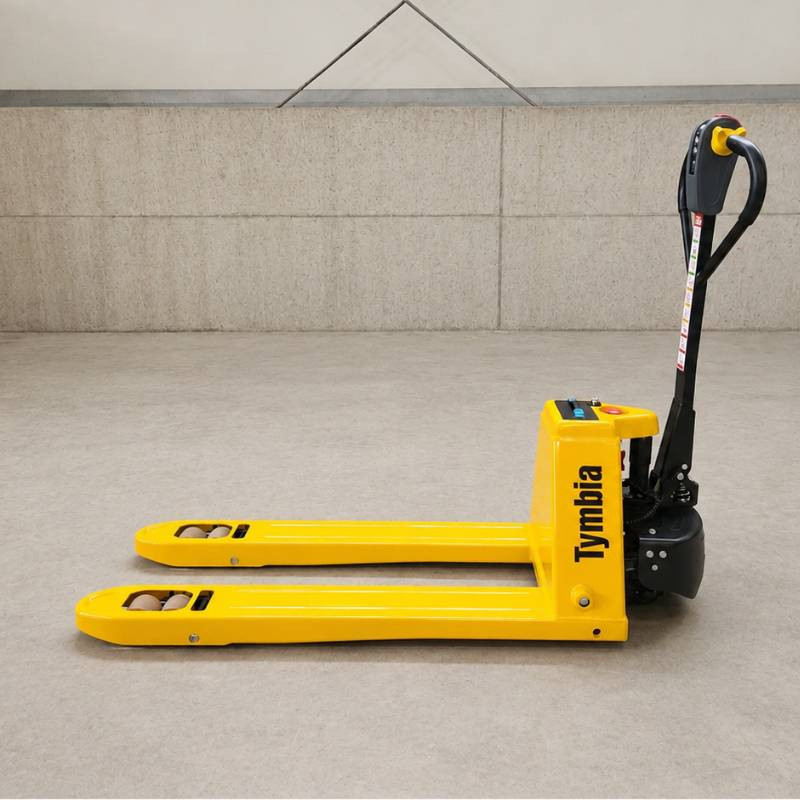

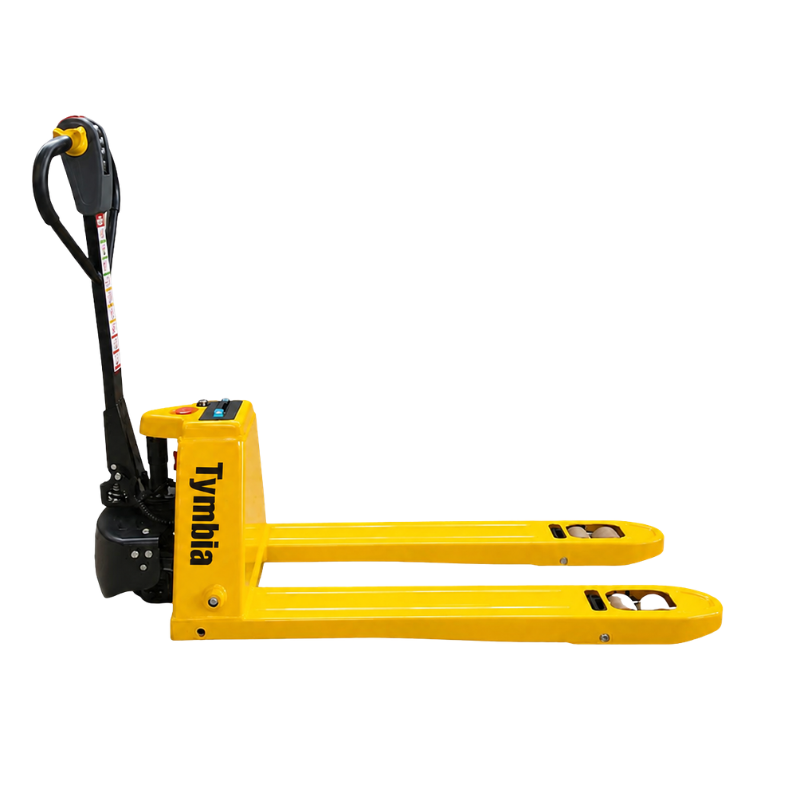

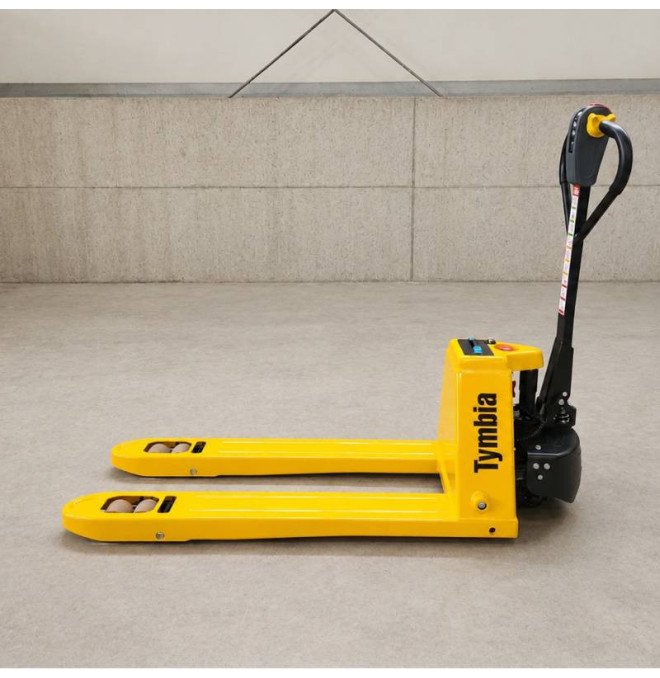

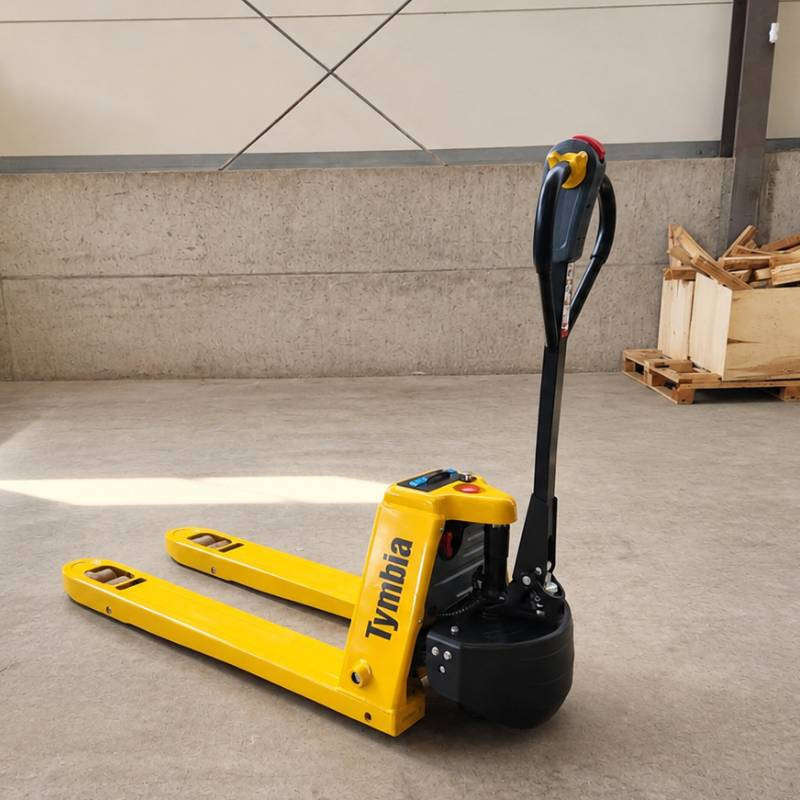

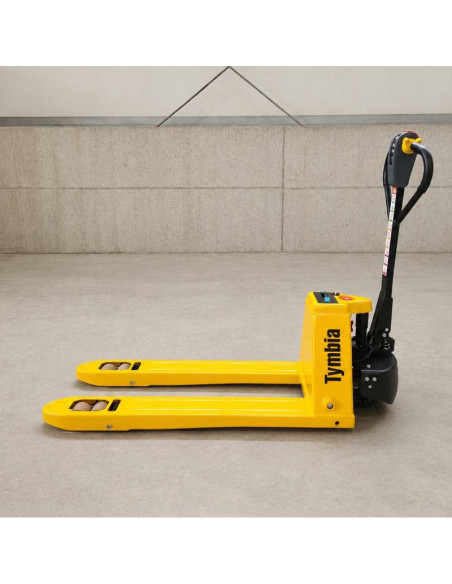

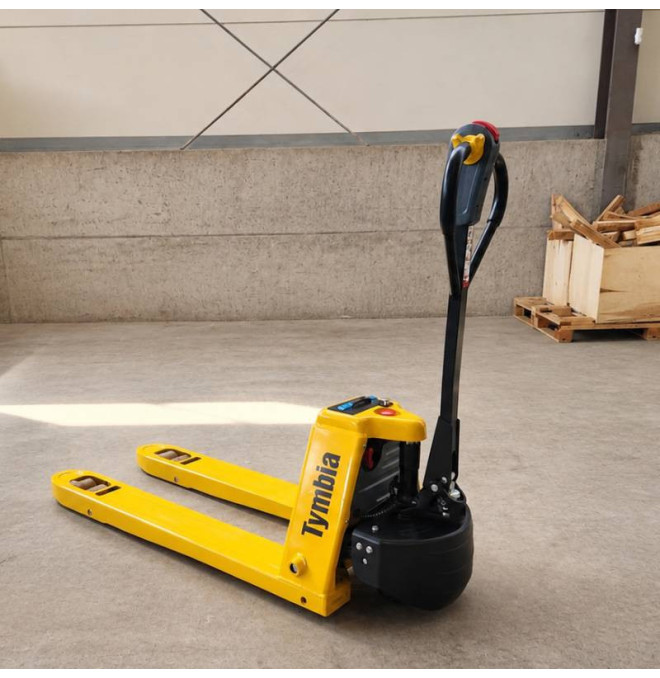

Lithium pallet truck 2000kg - 48V / 10AH - 550x1150mm

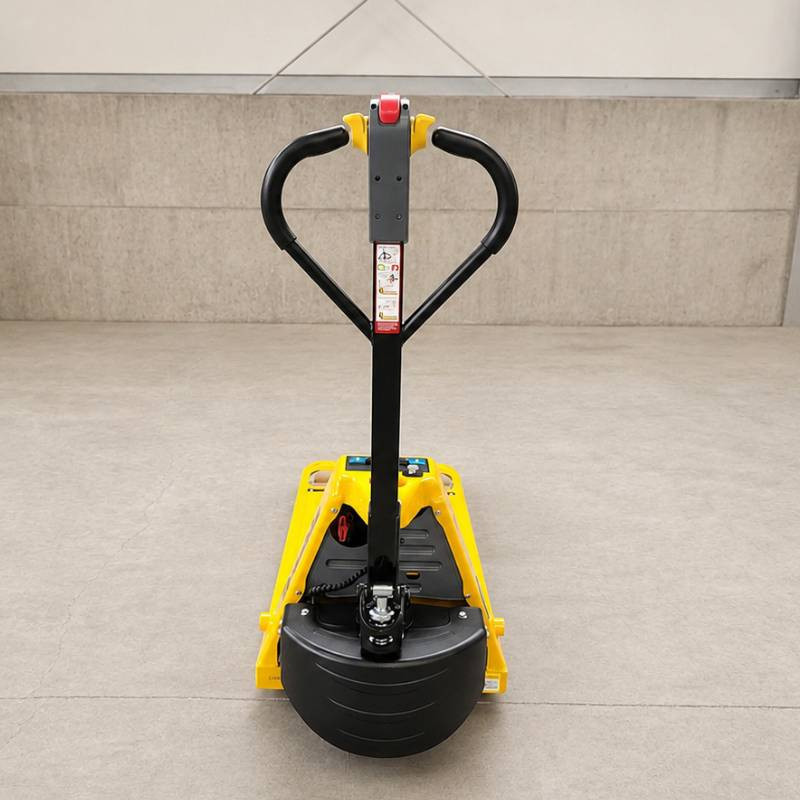

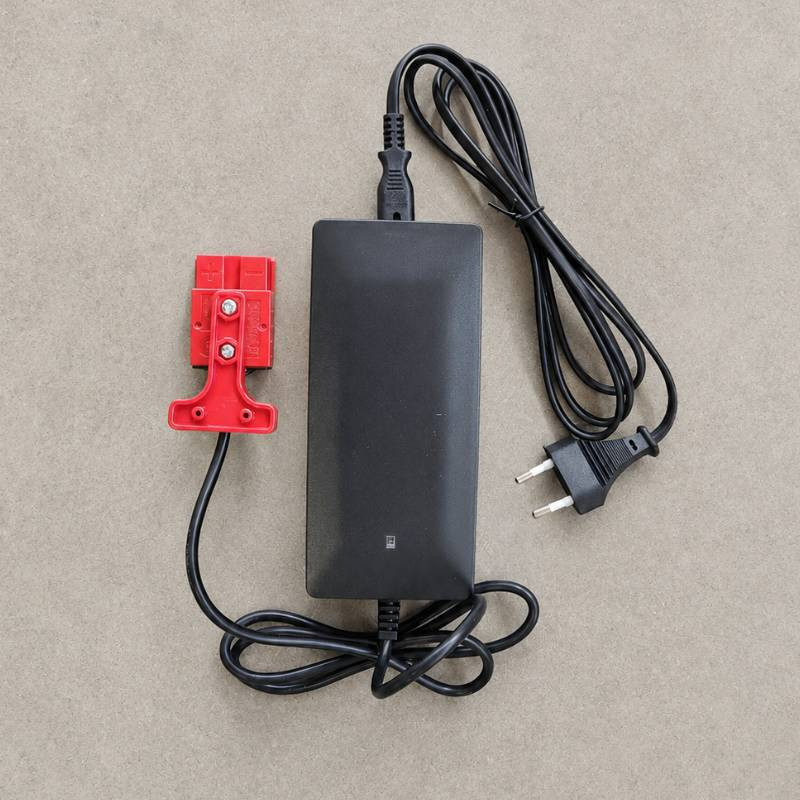

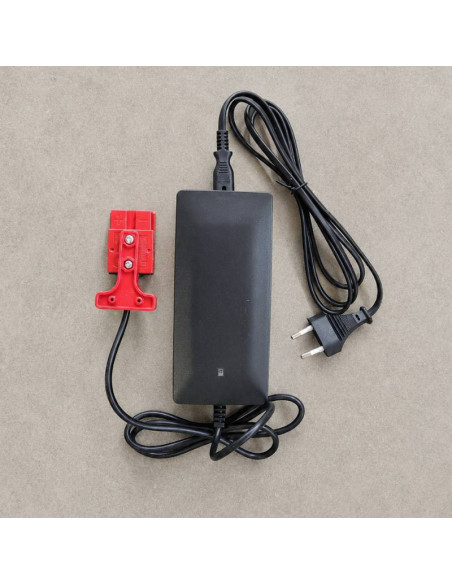

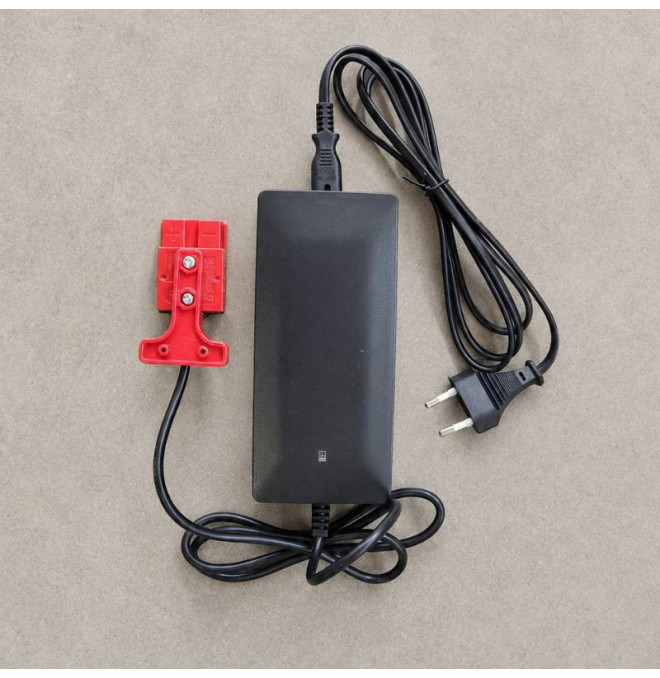

Electric pallet truck of 2000 kg with 48V / 10Ah lithium battery and 48V / 2A external charger. Includes 550 × 1150 mm forks, double polyurethane rollers, tensile wheel protector and ergonomic handle with LCD display, emergency reverse button and speed control. Compact design, rapid battery change in 6 seconds and brushless engine without maintenance. Available in yellow. Ideal for operations in warehouses, logistics and retail.

Featured features:

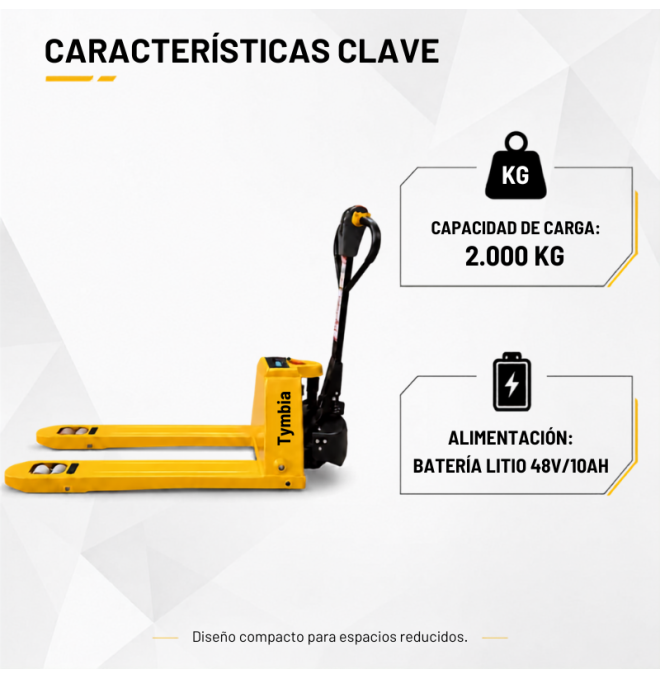

• Loading capacity: 2000kg

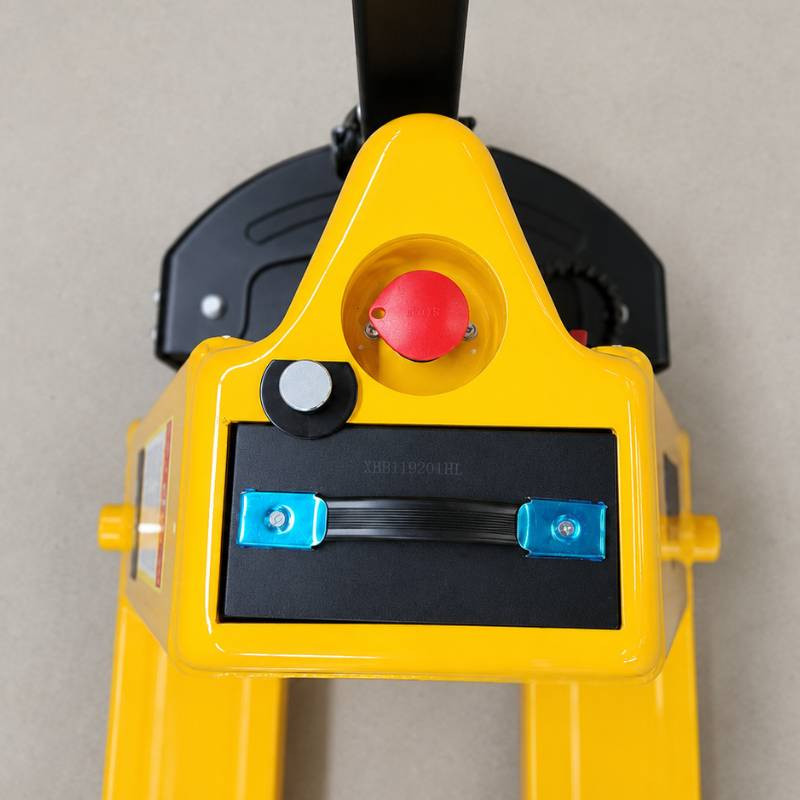

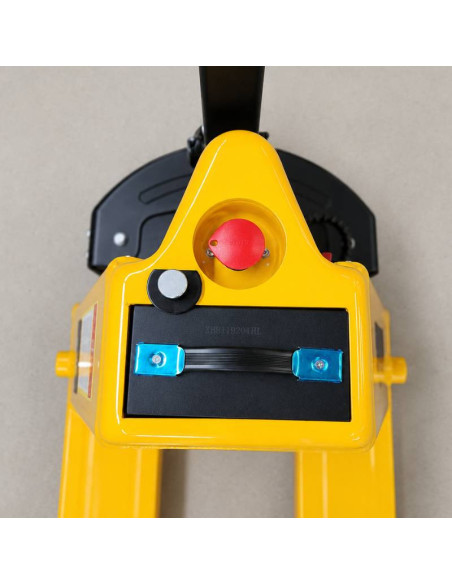

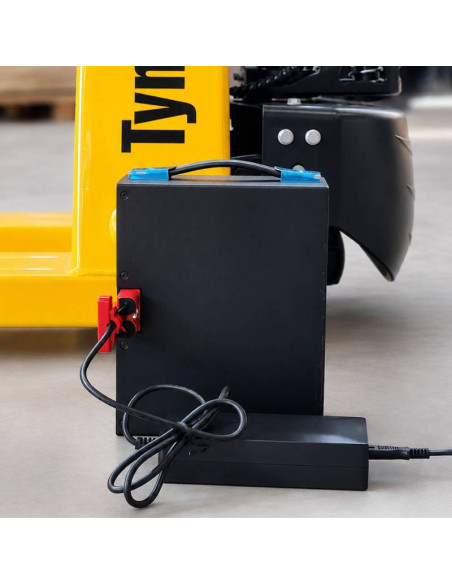

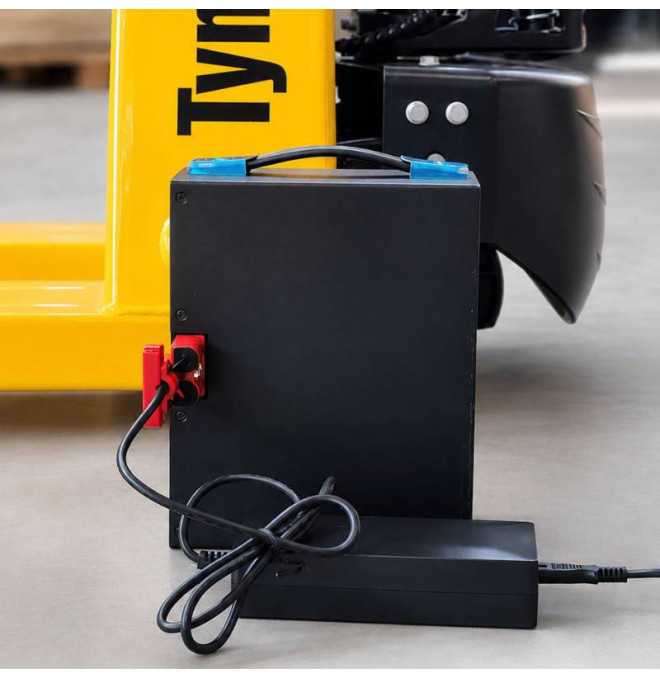

• 48V / 10Ah lithium battery. (Ref. B402010079)

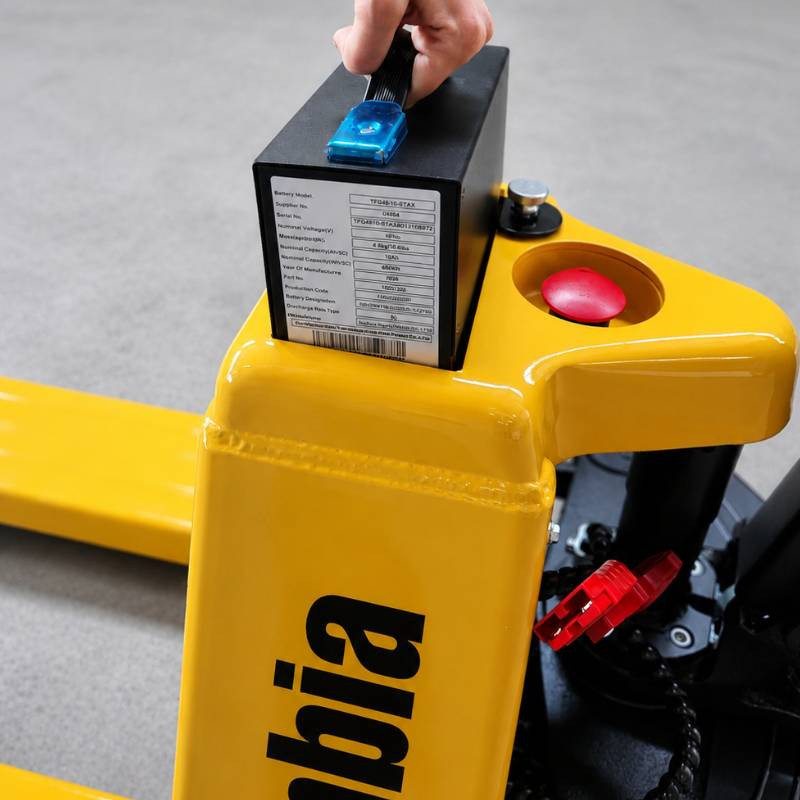

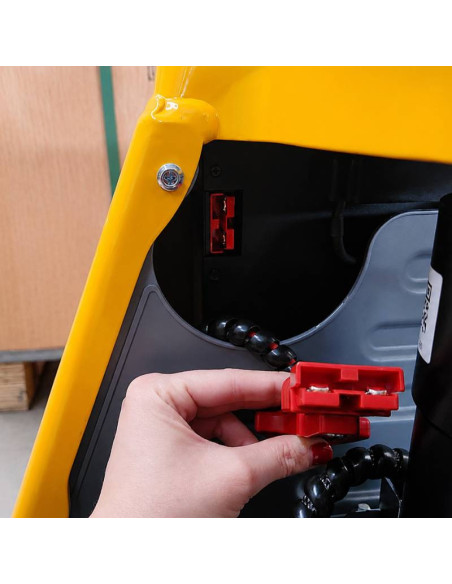

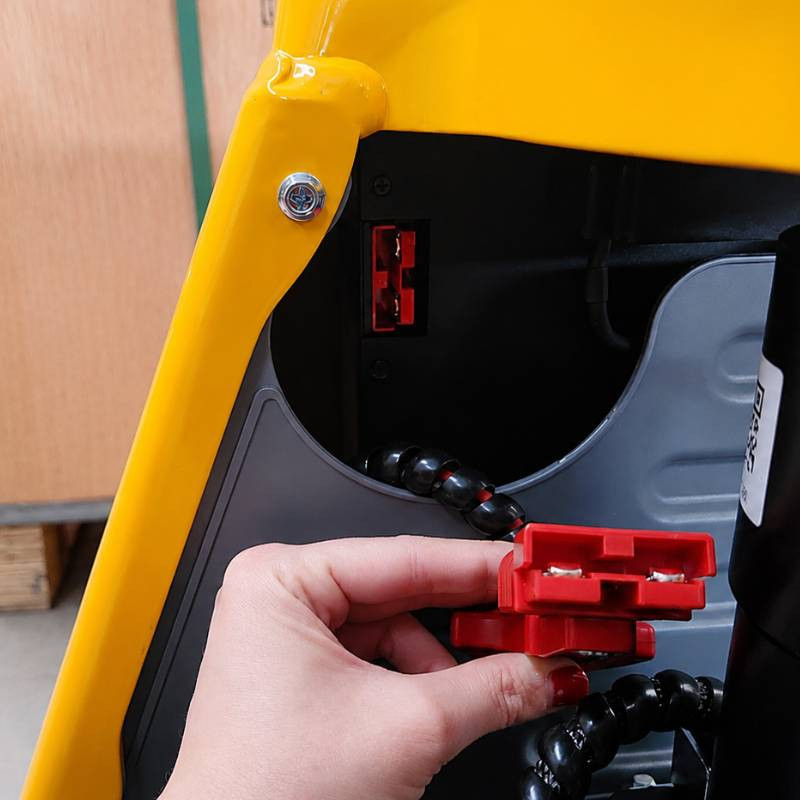

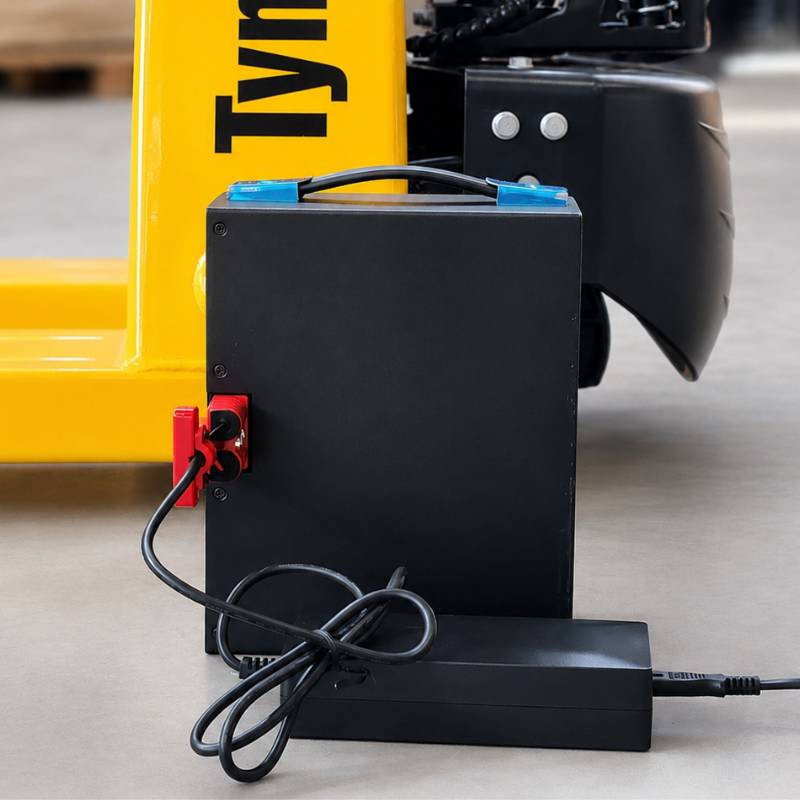

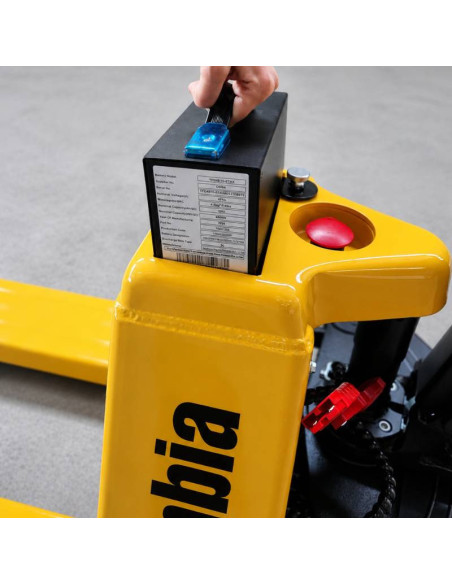

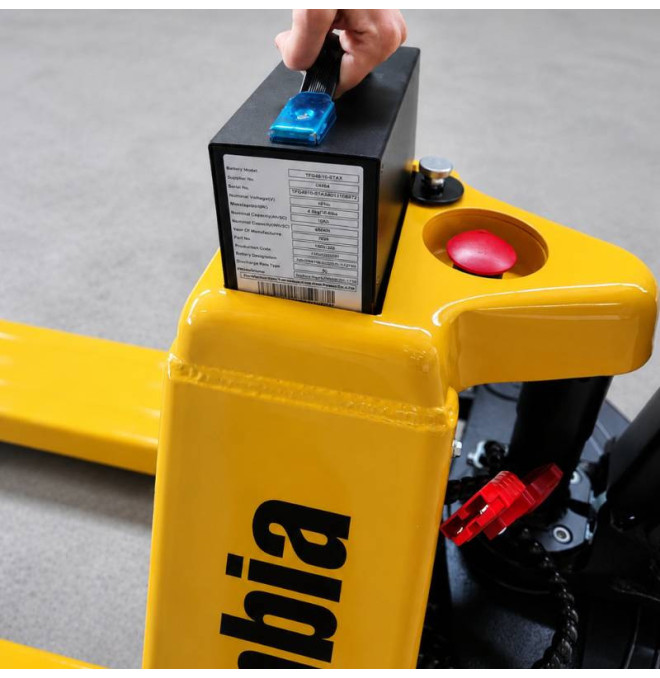

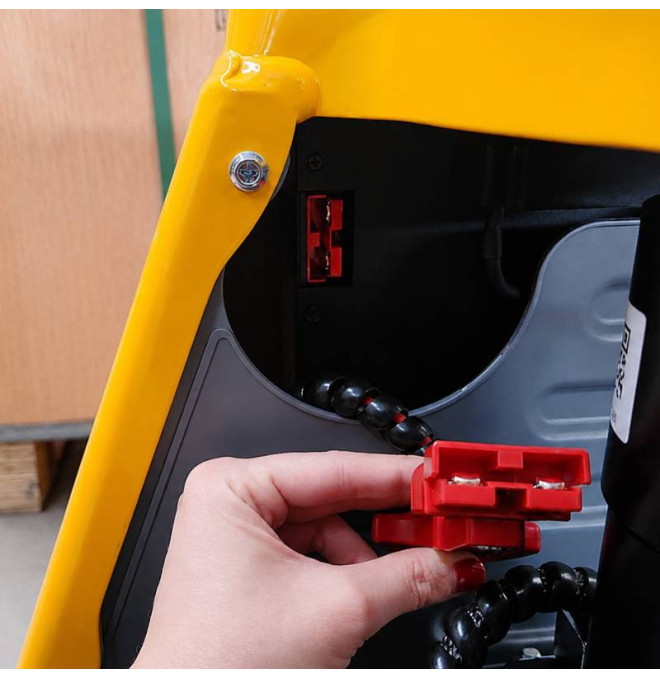

• Changing battery in 6 seconds
• Compact and lightweight design (120-125 kg with battery)
• Triplicate efficiency in front of manual Pallet Trucks

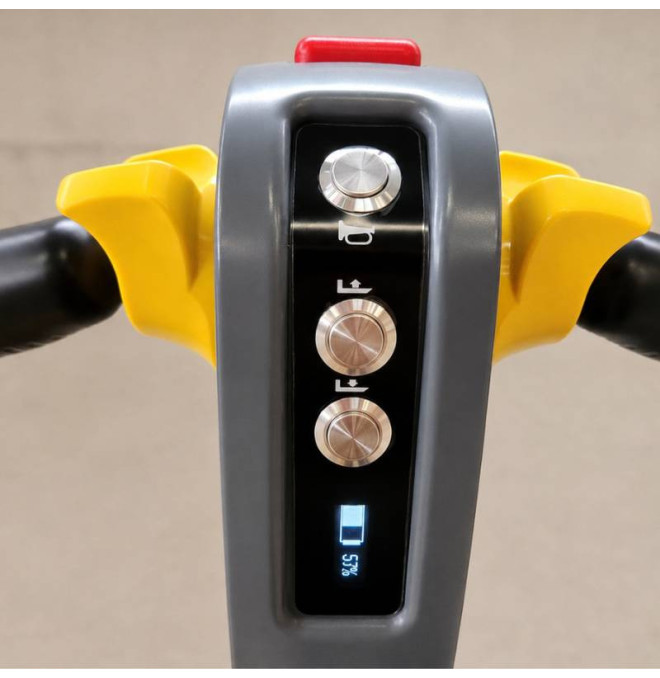

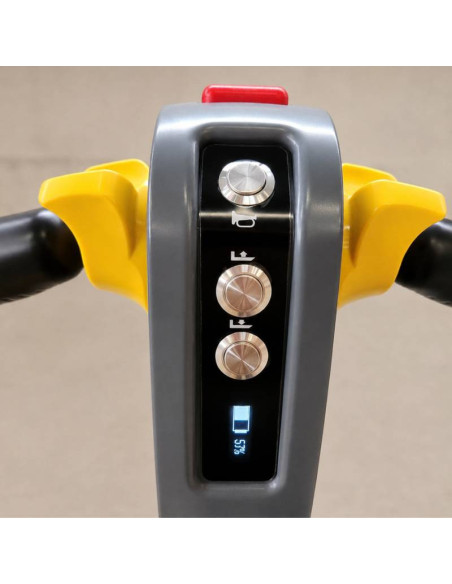

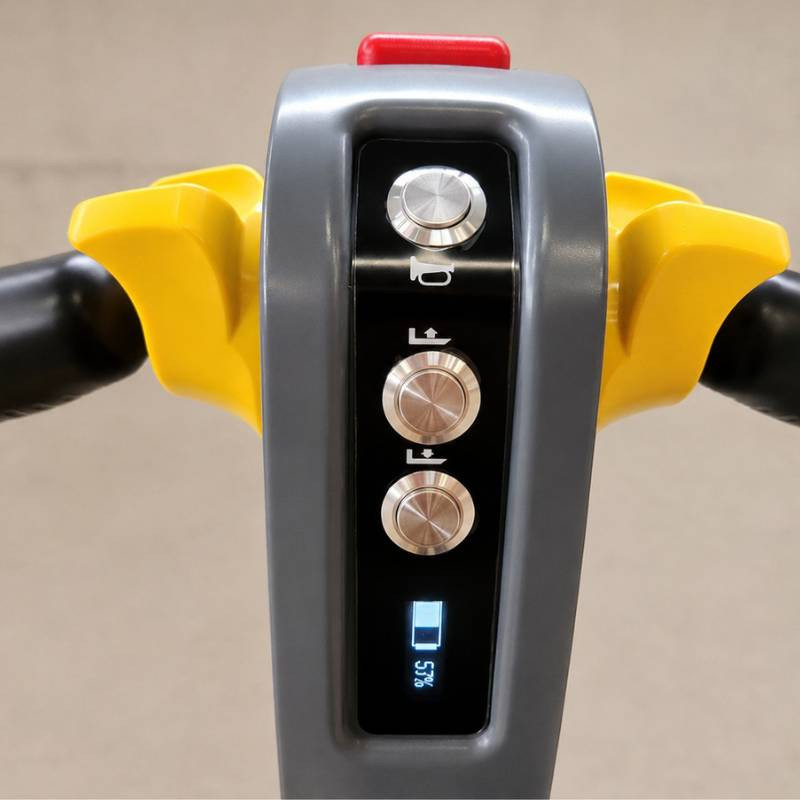

• Ergonomic handbag with LCD display

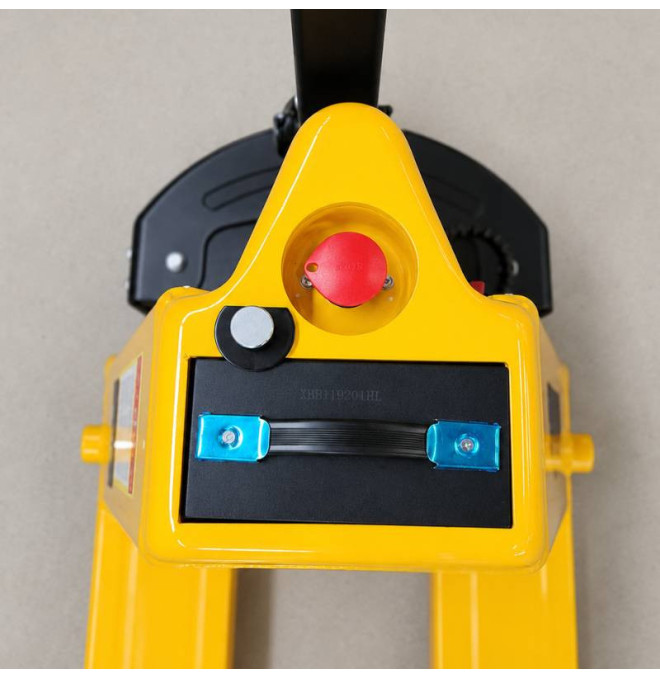

• Emergency reverse button type "belly button"
• Brushless engine without maintenance
• Scroll speed: 4.0 km / h (loaded) / 4.5 km / h (without load)
• Remote control option

Technical characteristics:

• Type of operator: pedestrian
• Nominal capacity (Q): 2000 kg
• Cargo Center (c): 600 mm

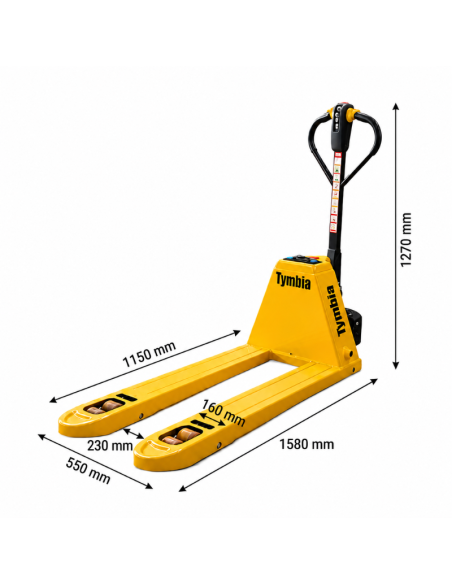

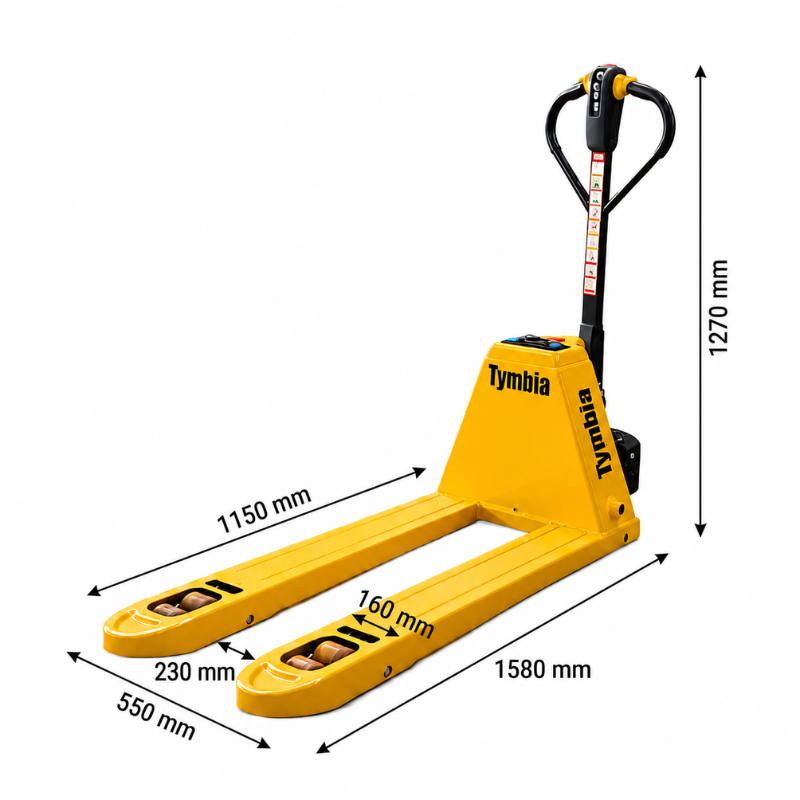

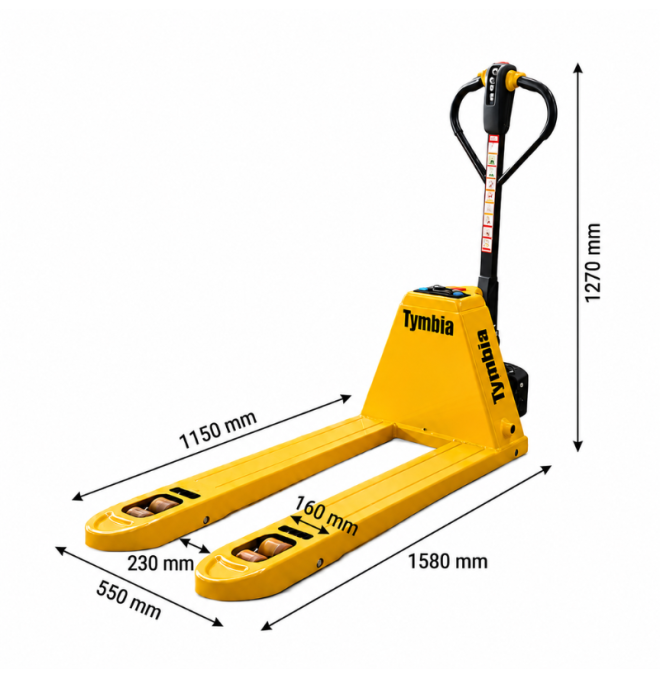

• Horquilla dimensions (S × E × L): 58 × 160 × 1150 mm
• Total width of hairpins (B1): 550 mm
• Distance between axles (Y): 1197 mm
• Total length (L1): 1552 mm
• Radio of rotation (WA): 1353 mm
• Low height (H): 82 mm
• Total lifting height (H3): 115 mm
• Rudder height (min. / Max.): 820/1150 mm
• Maximum pending (loaded / free): 6% / 20%
• Scroll speed: 4.0 / 4.5 km / h
• Lifting speed (loaded / free): 0.018 / 0.023 m / s
• Drop speed (loaded / without load): 0.056 / 0.046 m / s
• Traction / Lifting Engine: 0.75 kW / 0.5 kW
• Weight in service (incl. Battery): 120/125 kg

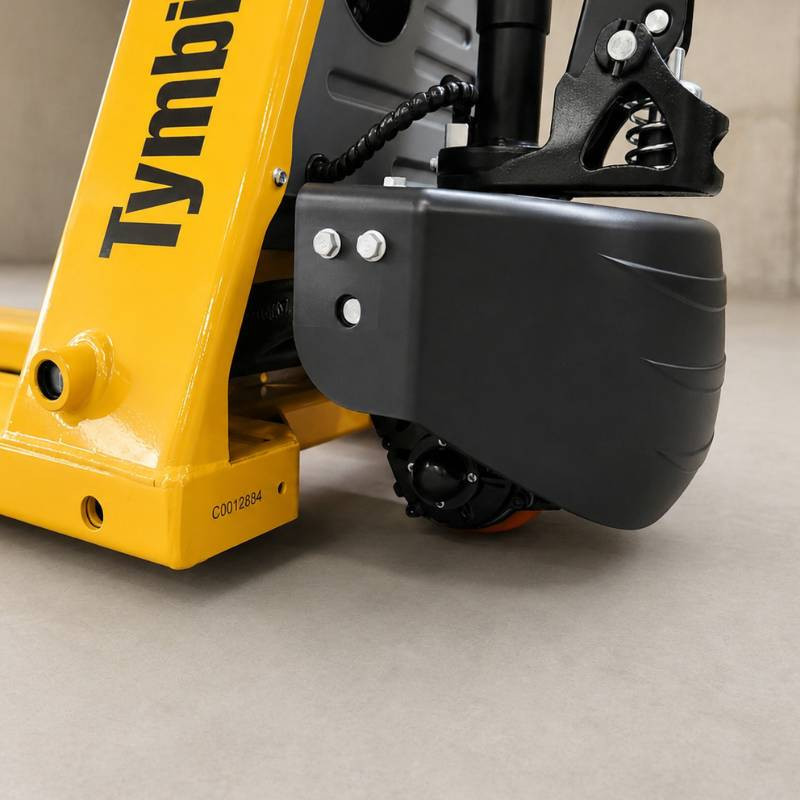

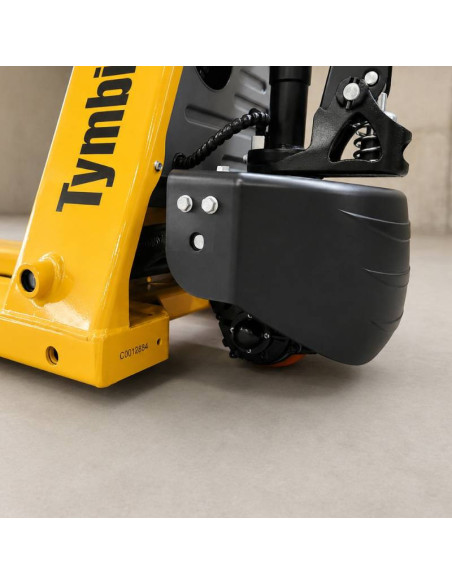

• Motor wheel: 140 × 55 mm (polyurethane)

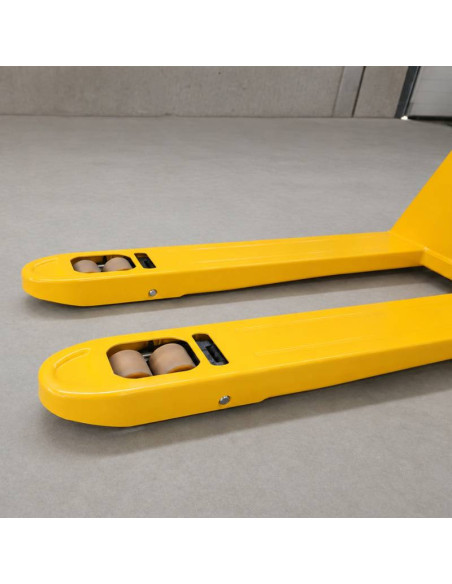

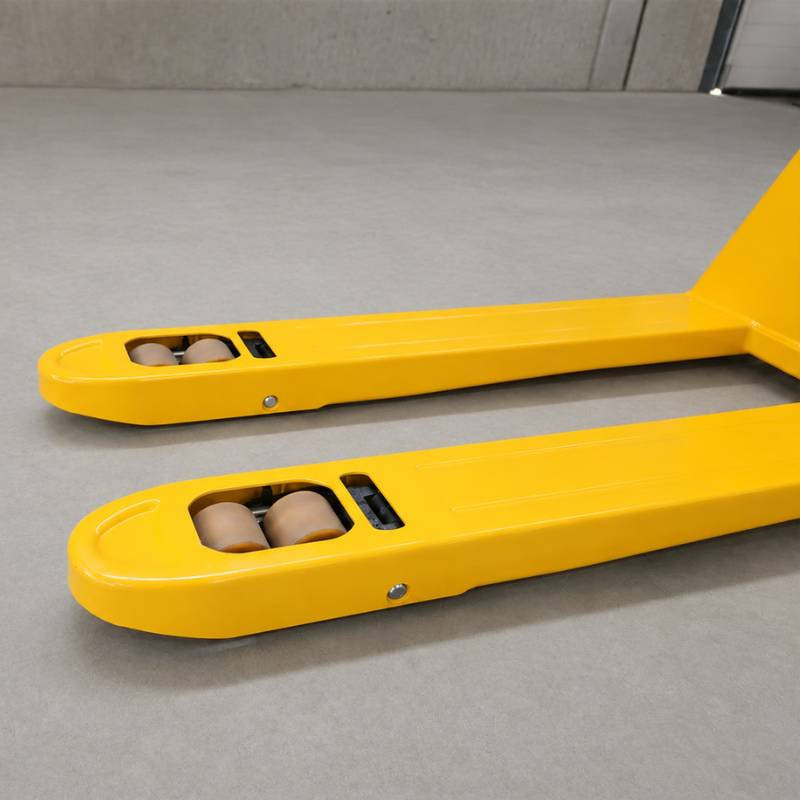

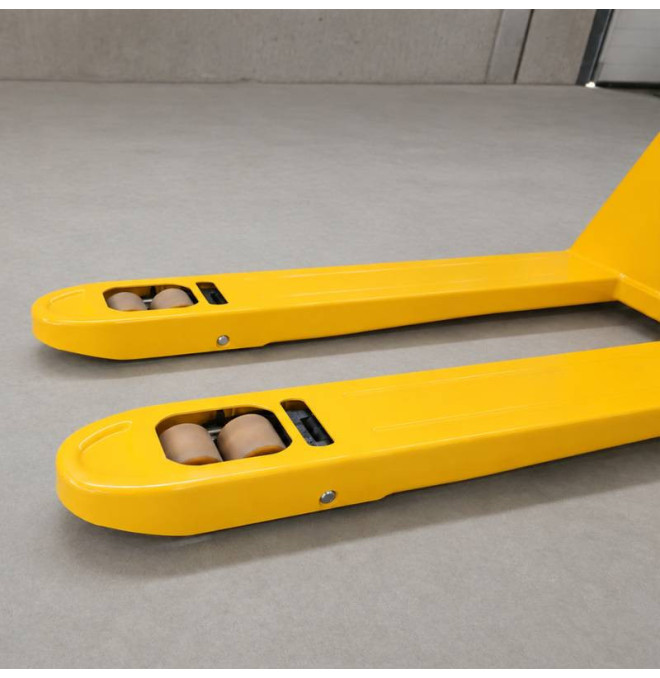

• Charging wheels: Simple 80 × 93 mm or double 80 × 70 mm (polyurethane)
• Energy consumption (VDI cycle): 0.42 kWh / h
• Sound level (EN12053): 69 dB (A)

Advantages:

• High productivity: up to 3 times more efficient than a manual pallet truck
• Minimum Maintenance: Brushless motor and lithium battery without maintenance
• Continuous operation: Quick change of battery in 6 seconds
• Reinforced security: Emergency reverse button and electromagnetic brake

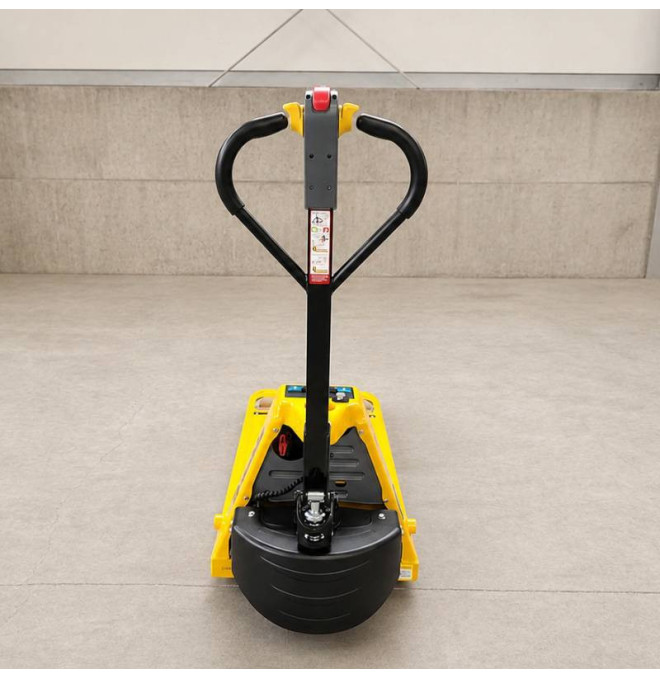

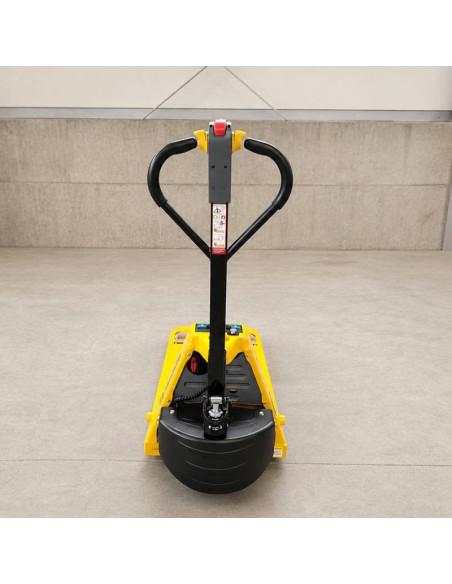

• Top ergonomics: multifunction handle with LCD display and speed adjustment
• Durability: Steel chassis and protective cover
• Ideal for shifts: Recharge alert and hours meter for use

Uses:

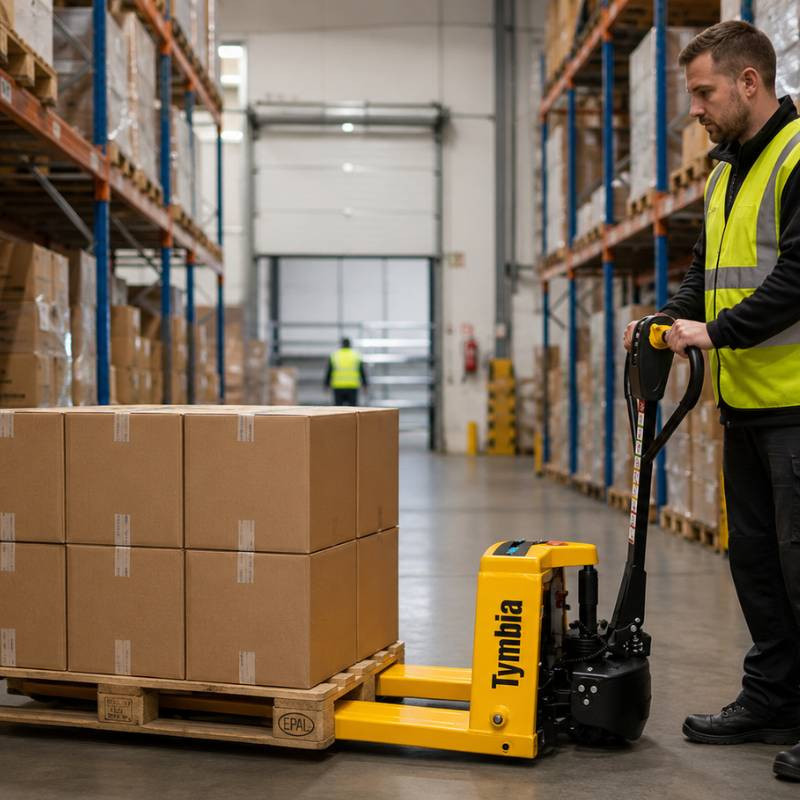

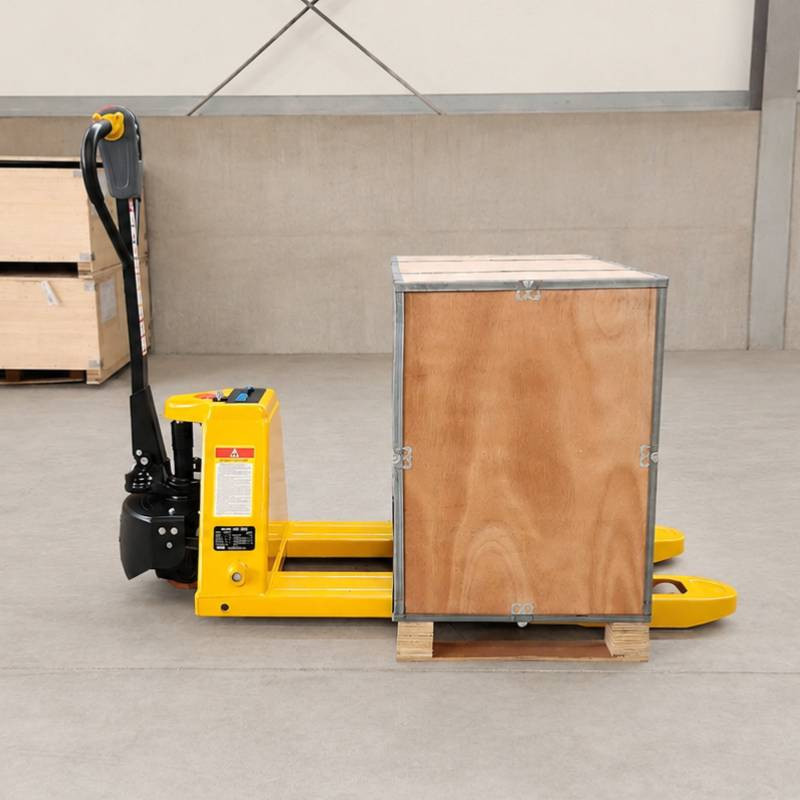

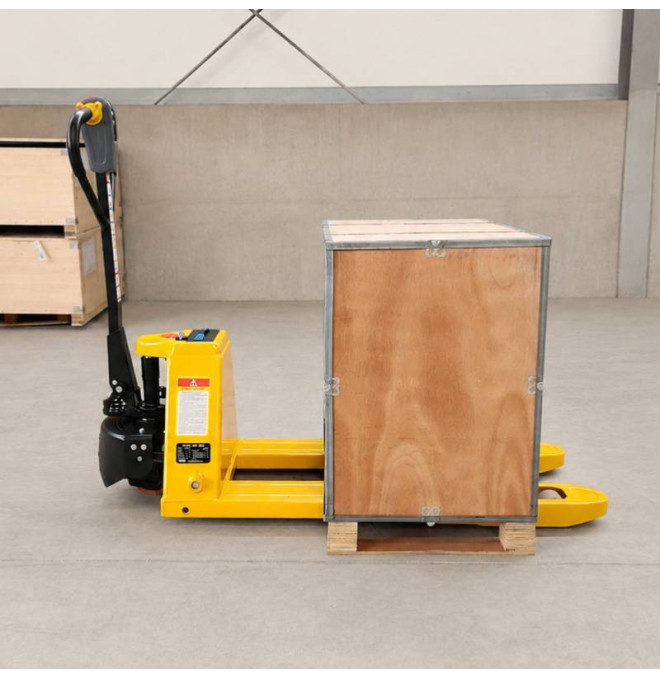

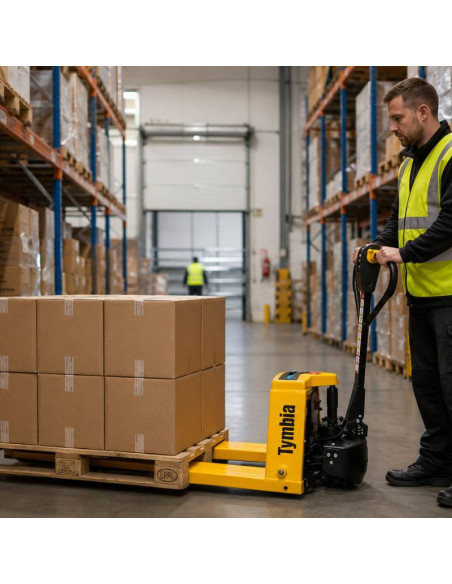

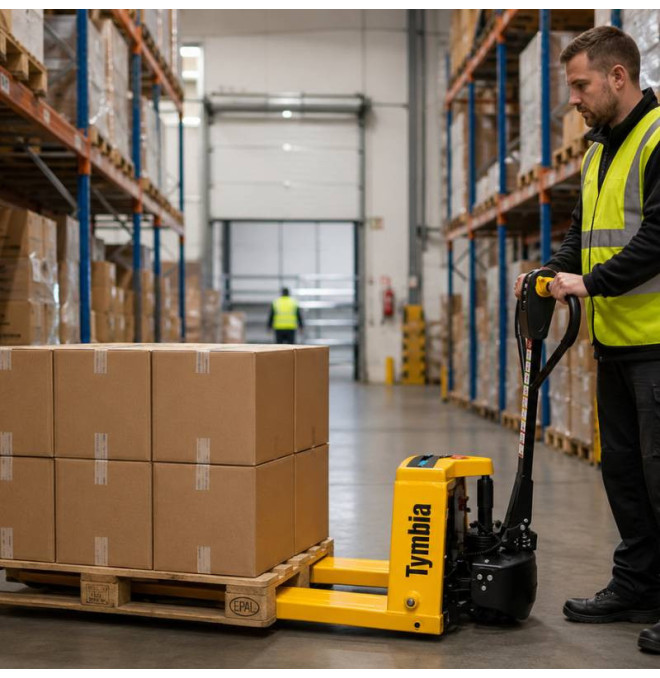

• Movement of pallets in warehouses and distribution centers
• Loading and unloading in Docks and logistics platforms
• Operations in supermarkets, pharmacies and retail
• Applications in food industry, pharmaceutical and manufacturing
