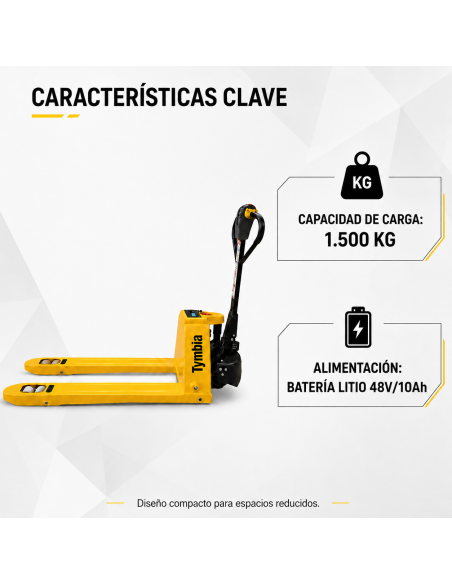

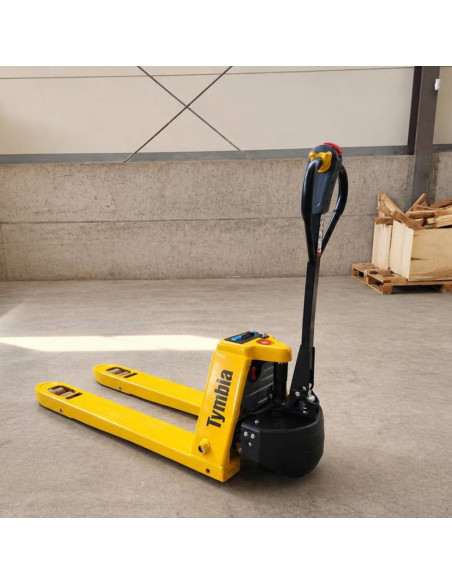

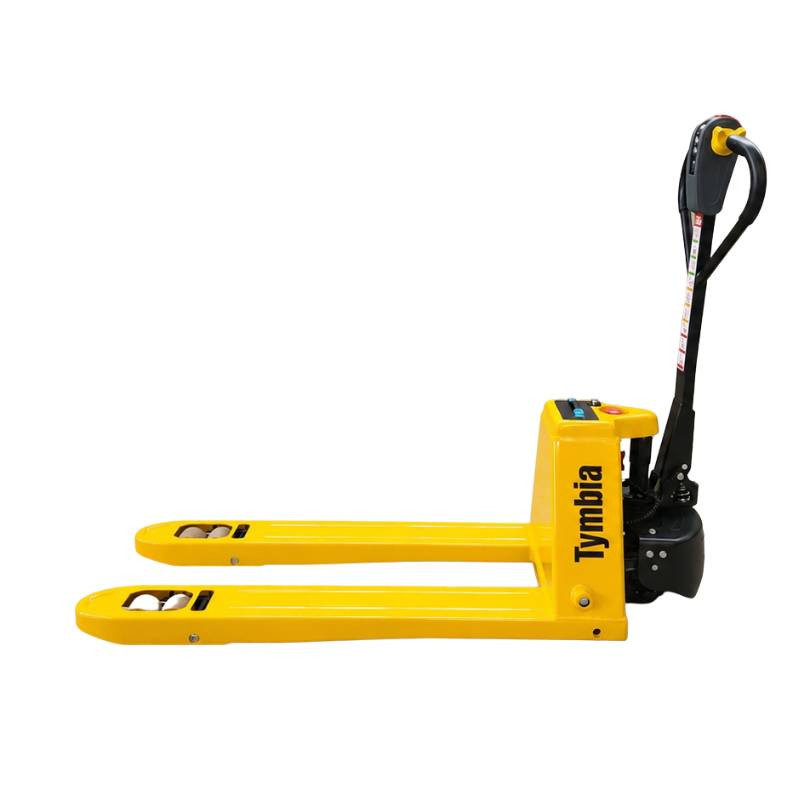

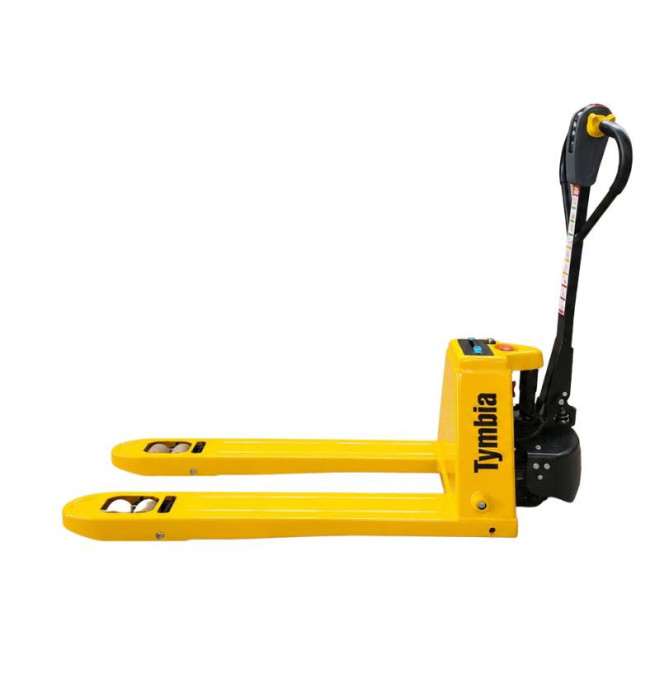

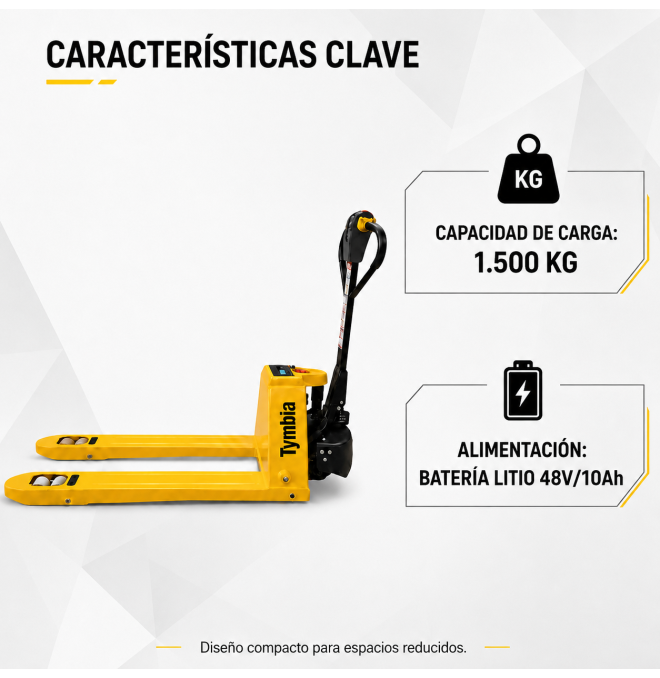

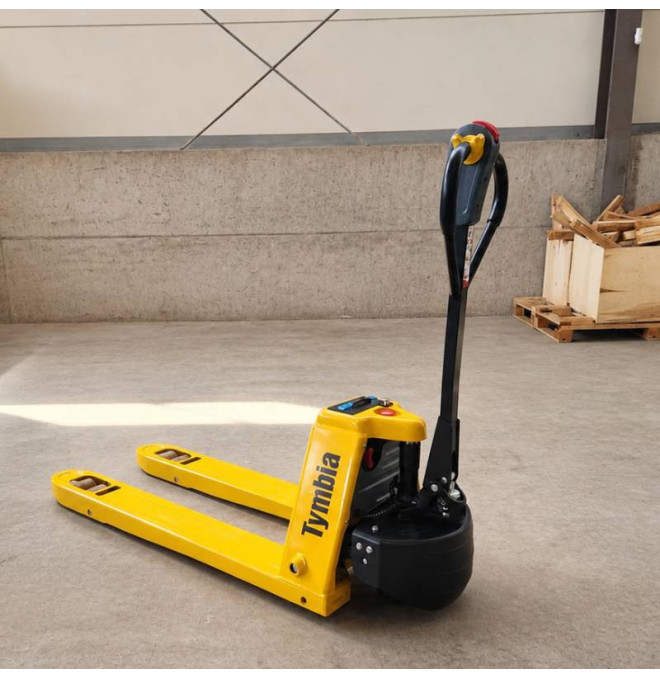

Lithium transparent 1500kg - 48V / 10Ah - 550x1150mm

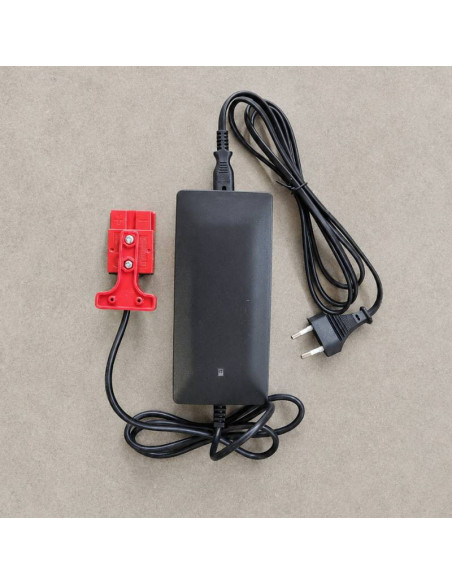

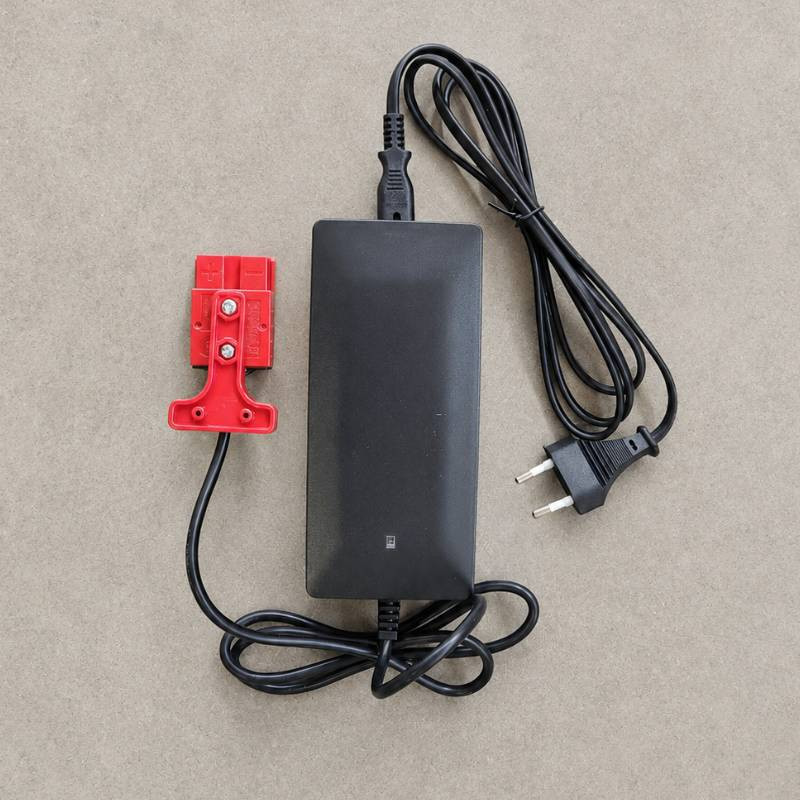

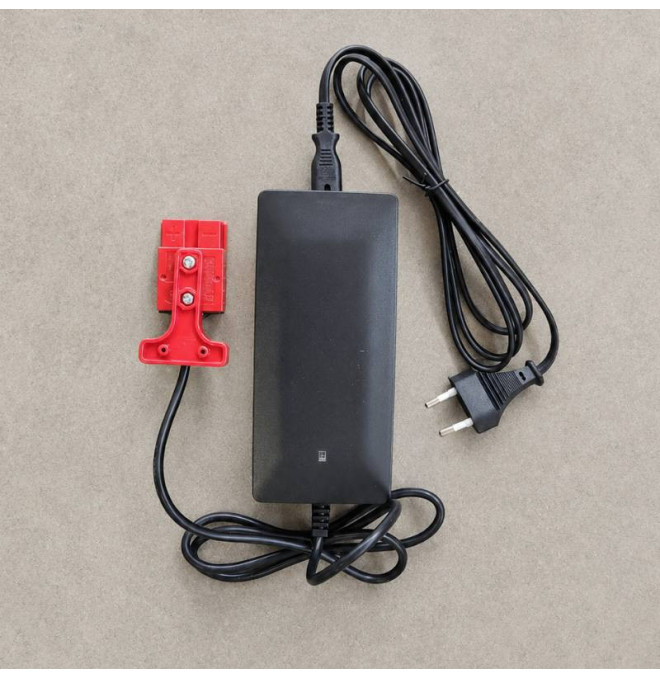

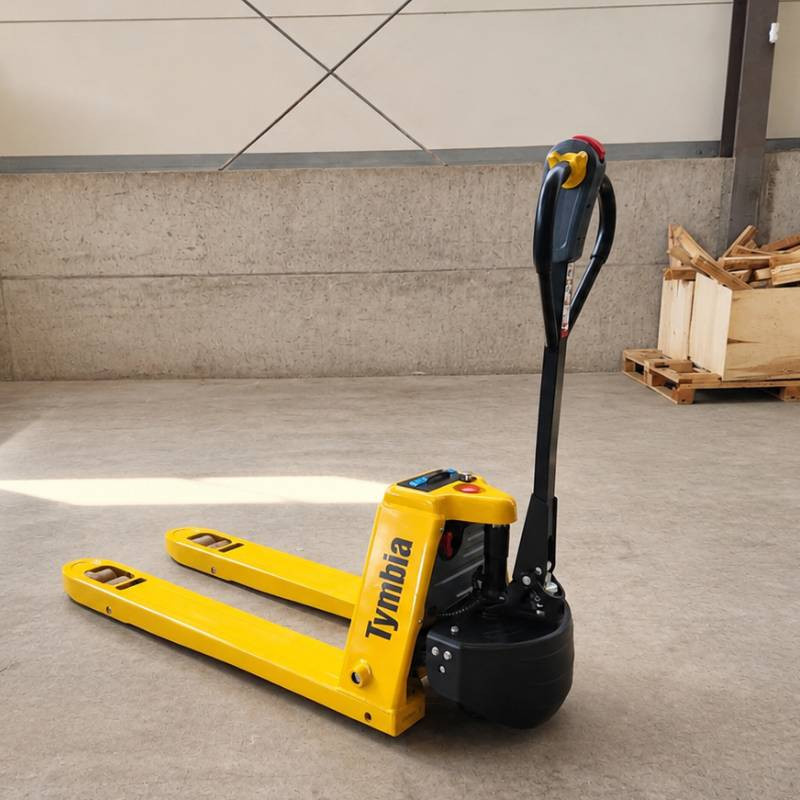

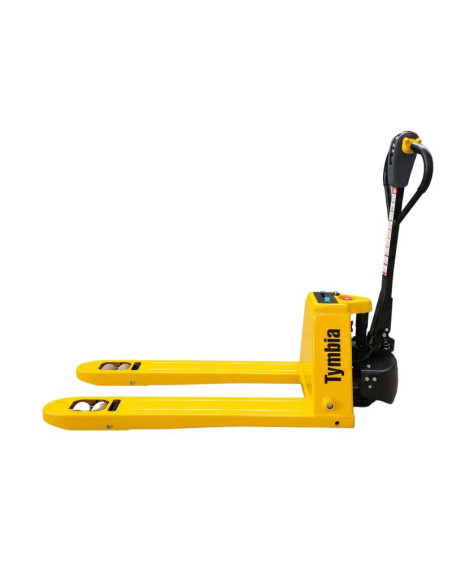

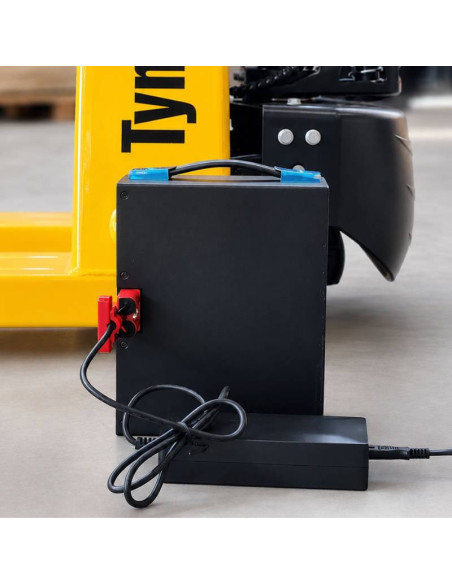

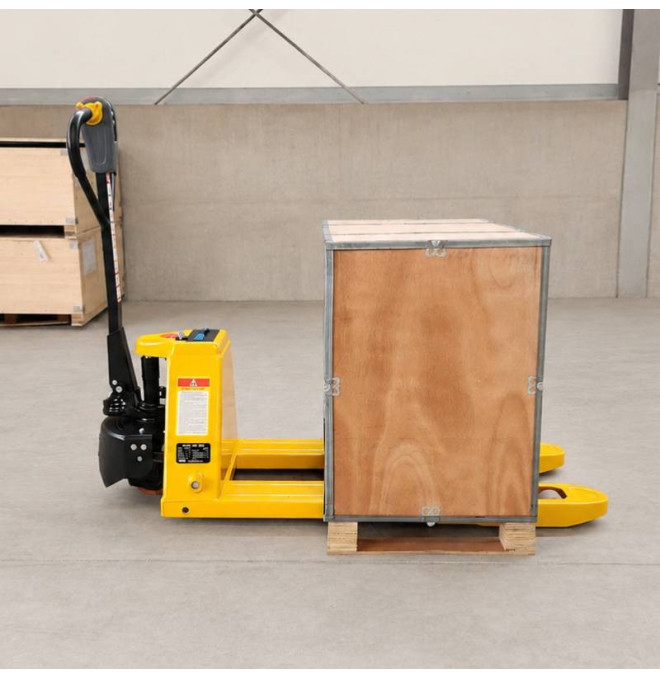

Electric pallet truck 1500 kg capacity, with 48V / 10Ah lithium battery and 48V / 2A external charger. Compact and lightweight design in yellow, ideal for continuous operations thanks to the rapid battery change in 6 seconds.

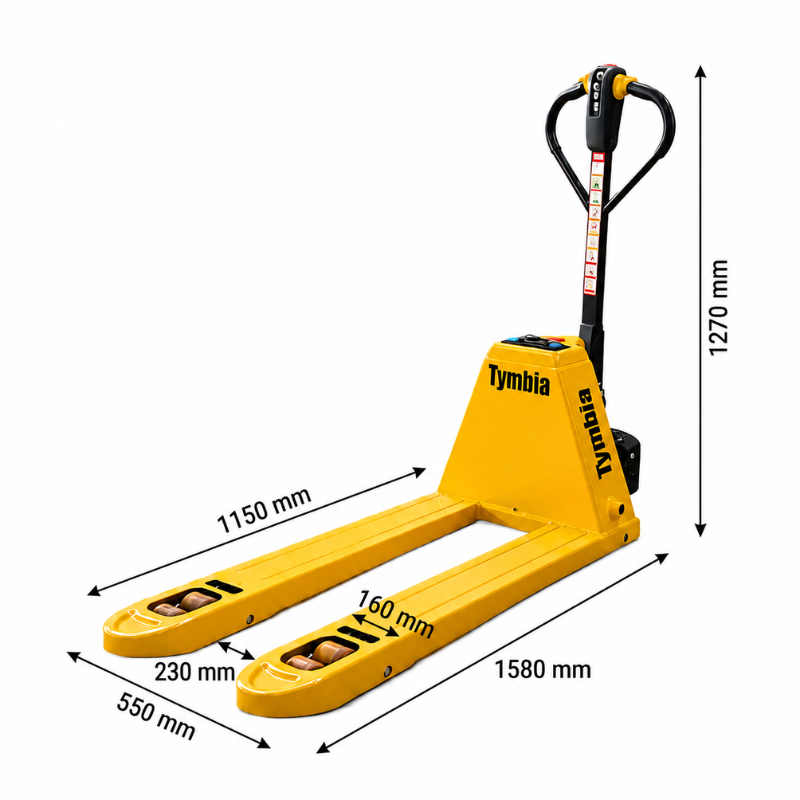

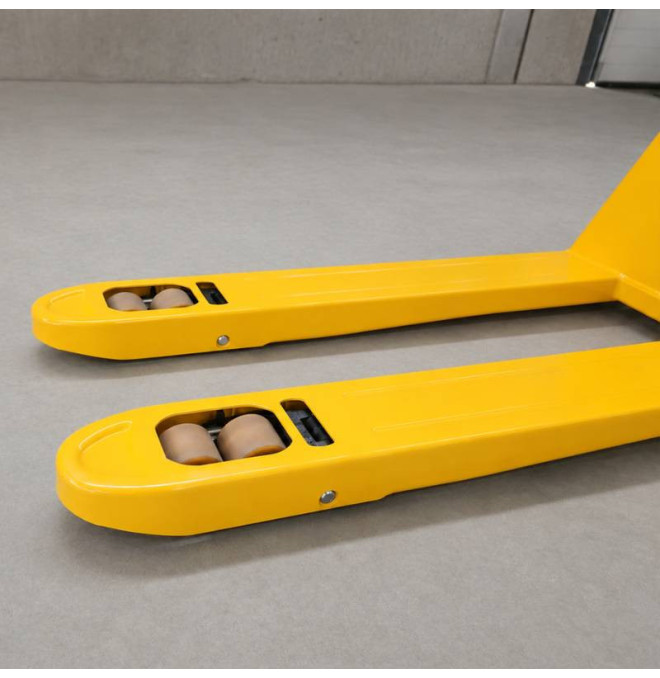

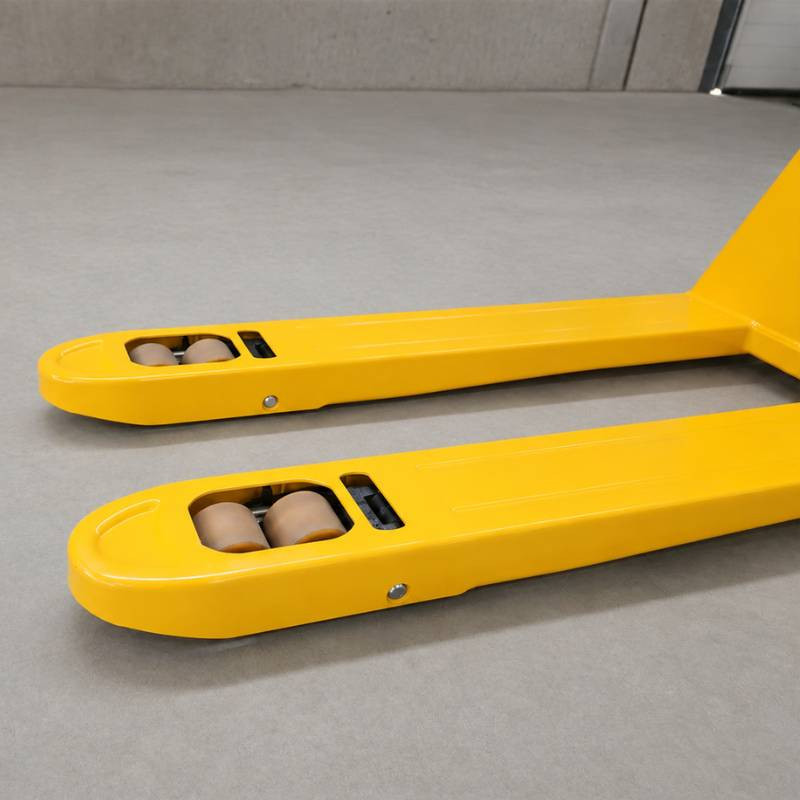

550 × 1150 mm forks, double polyurethane rollers and traction wheel protector.

Includes ergonomic handle with LCD screen, emergency reverse button and brushless engine without maintenance. Yield up to three times more than a manual pallet truck and it works effectively in light pending. Perfect for warehouses.

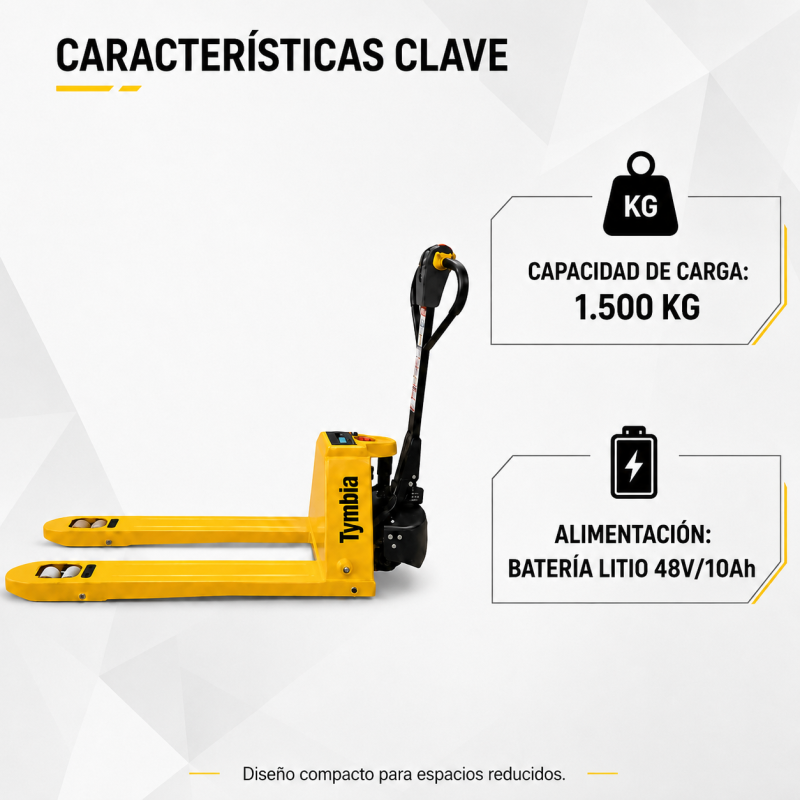

• Load capacity: 1500 kg

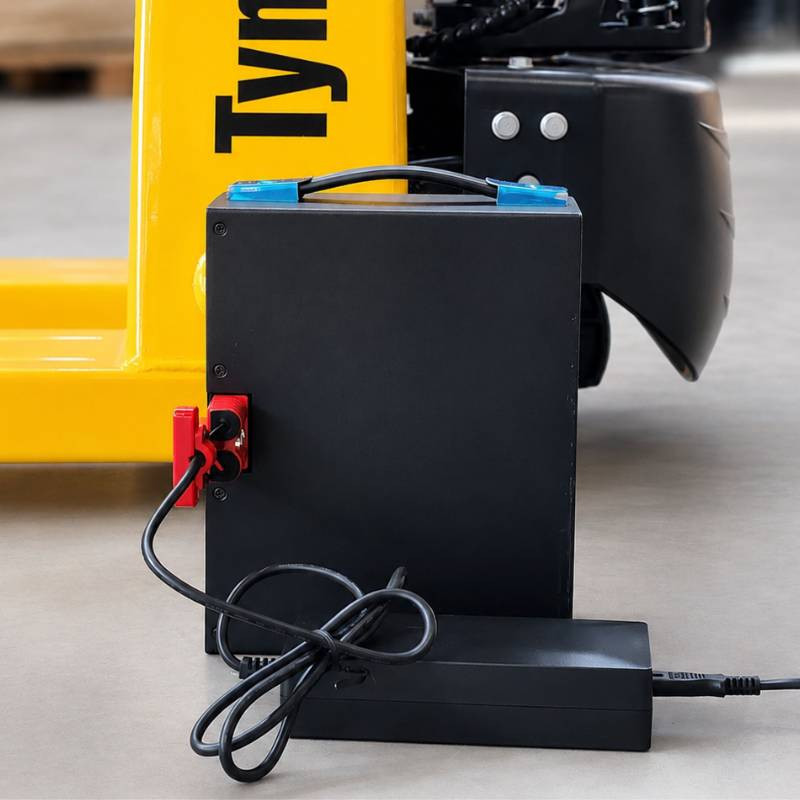

• 48V / 10AH lithium ion battery (ref. B402010079)

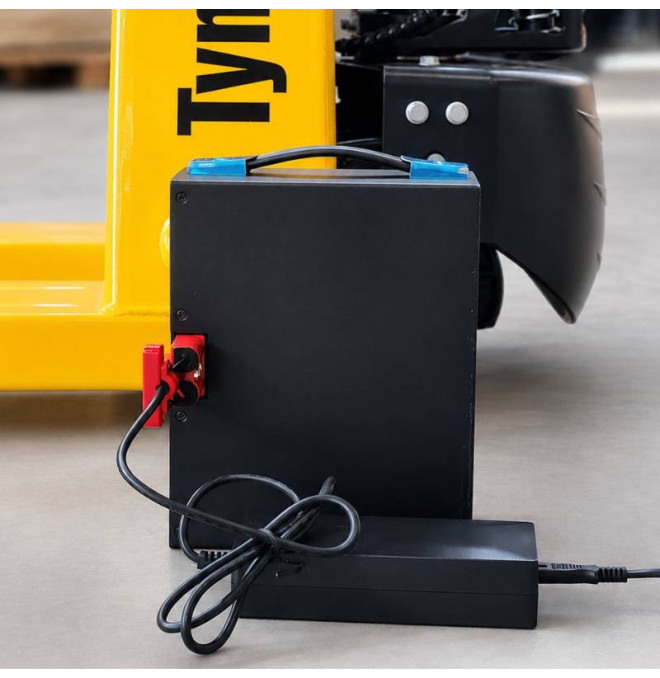

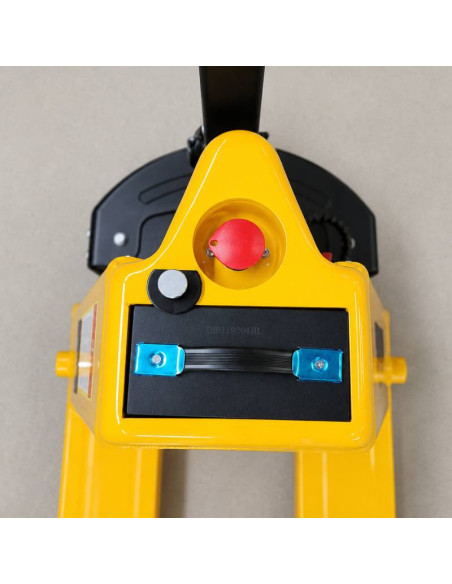

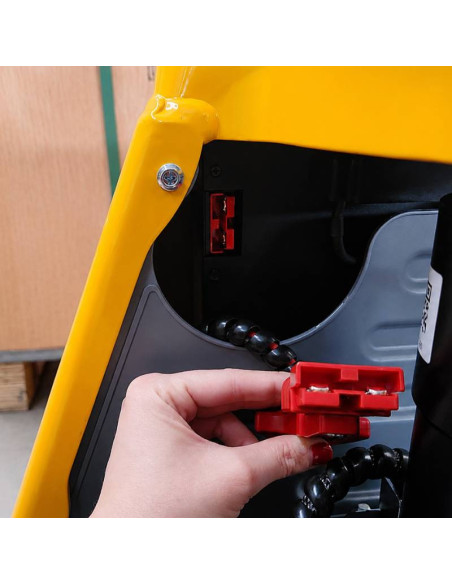

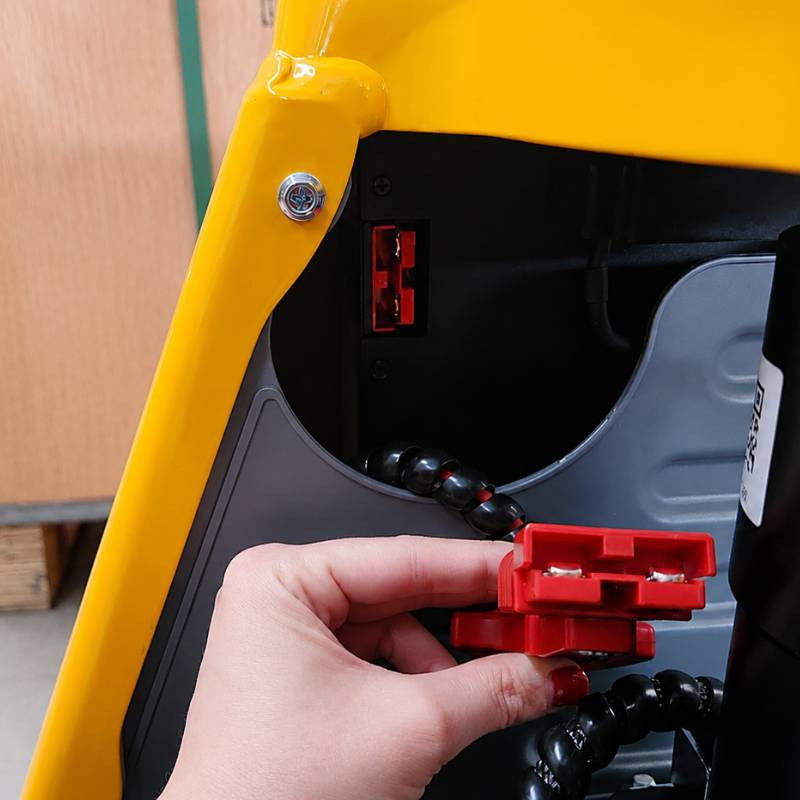

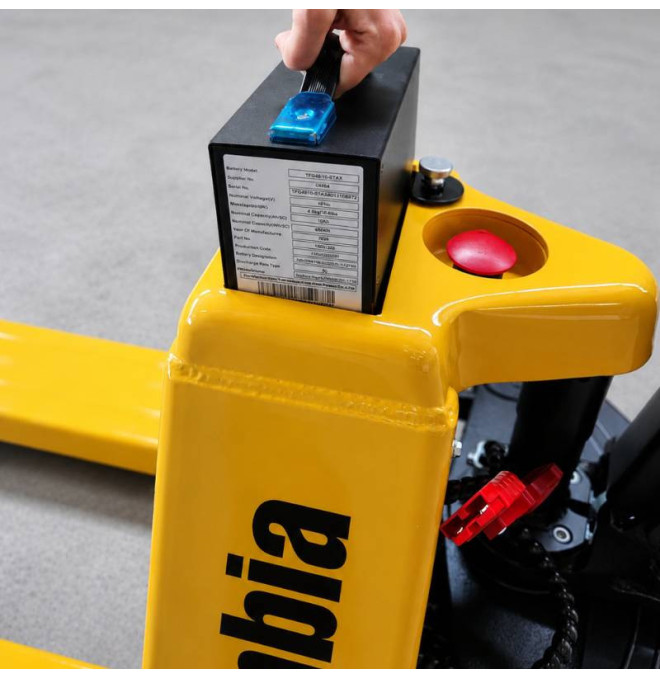

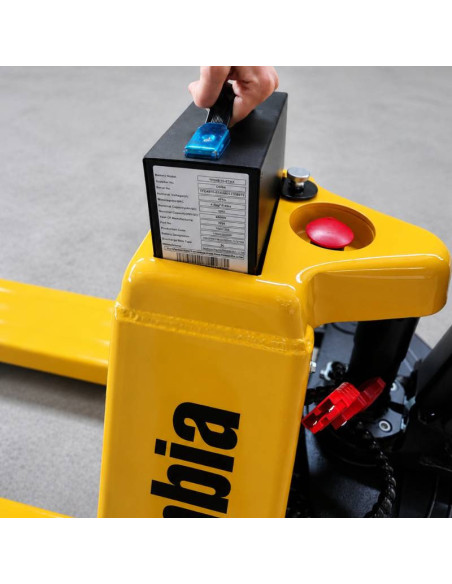

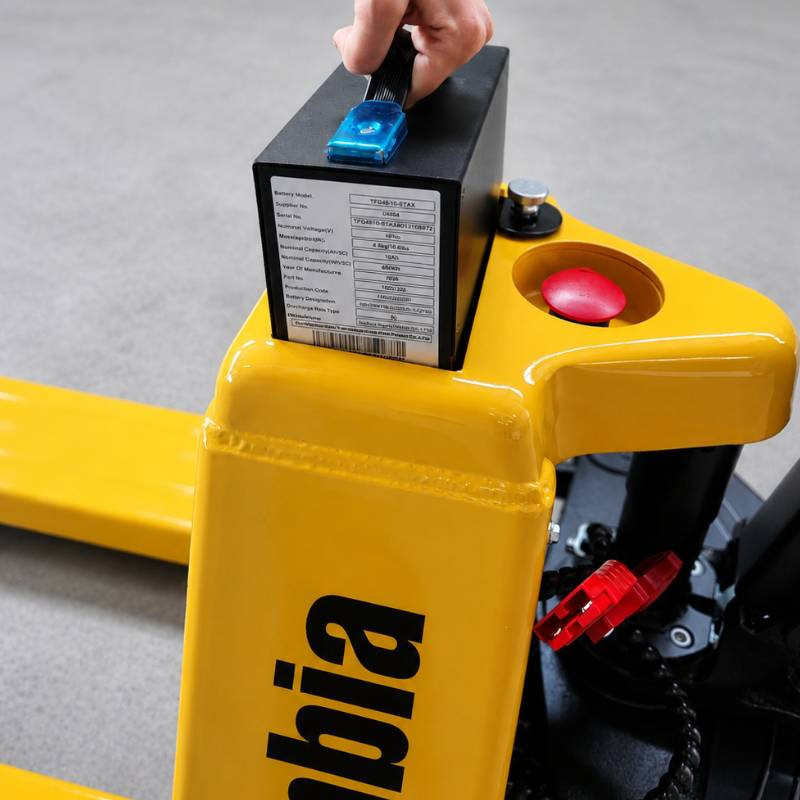

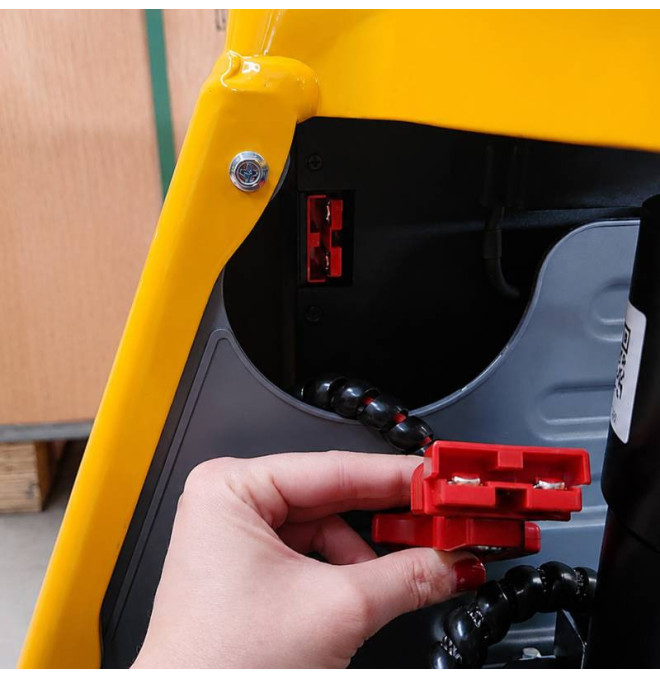

• Changing battery in 6 seconds
• Triplicate performance against manual pallet truck

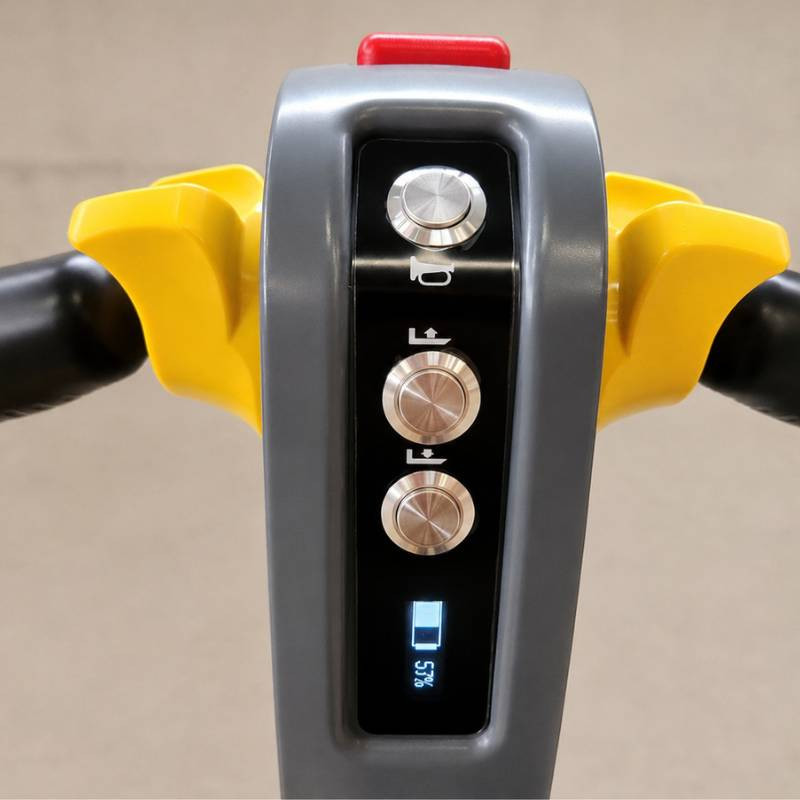

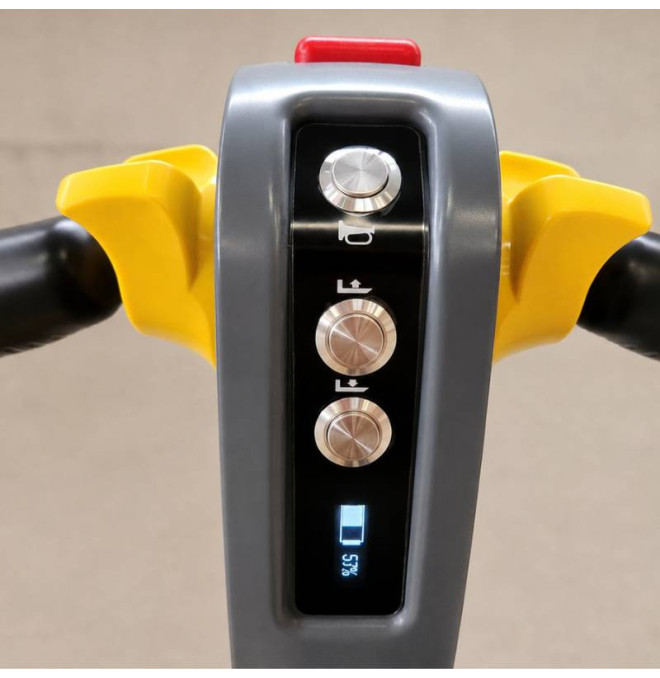

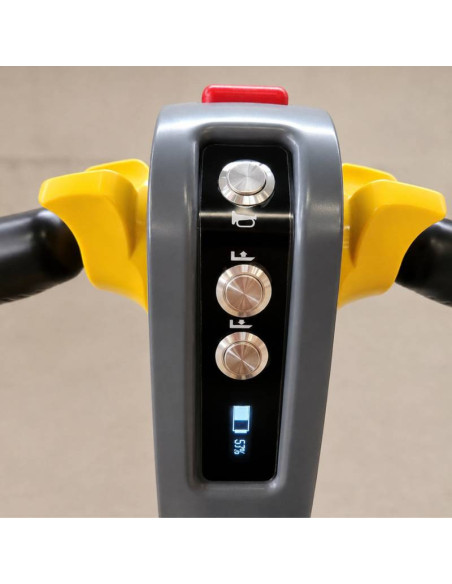

• Ergonomic handbag with LCD screen (indicator Battery, Horometer, Error Codes)

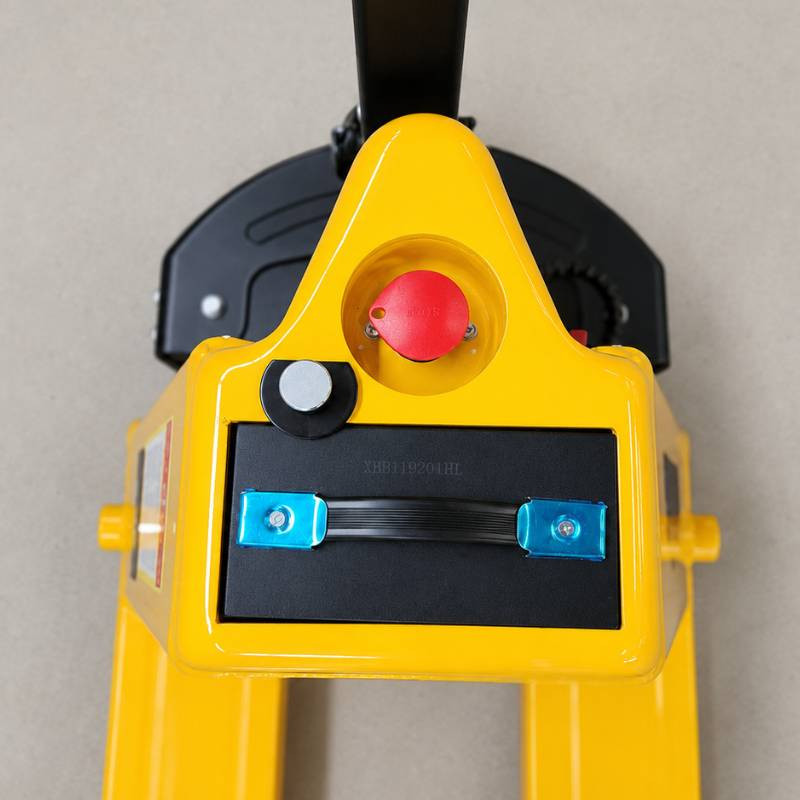

• Emergency reverse button ("Belly Button")
• Brushless engine without maintenance

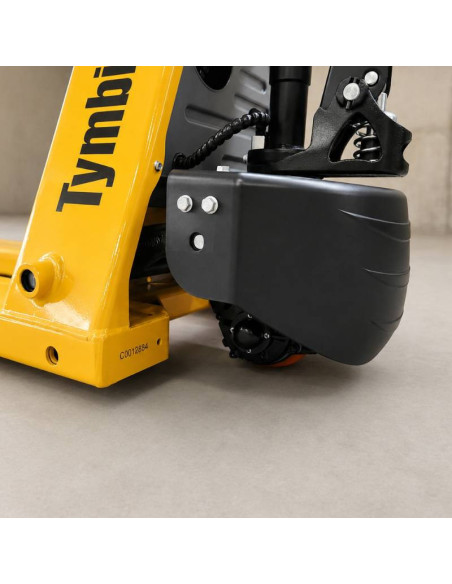

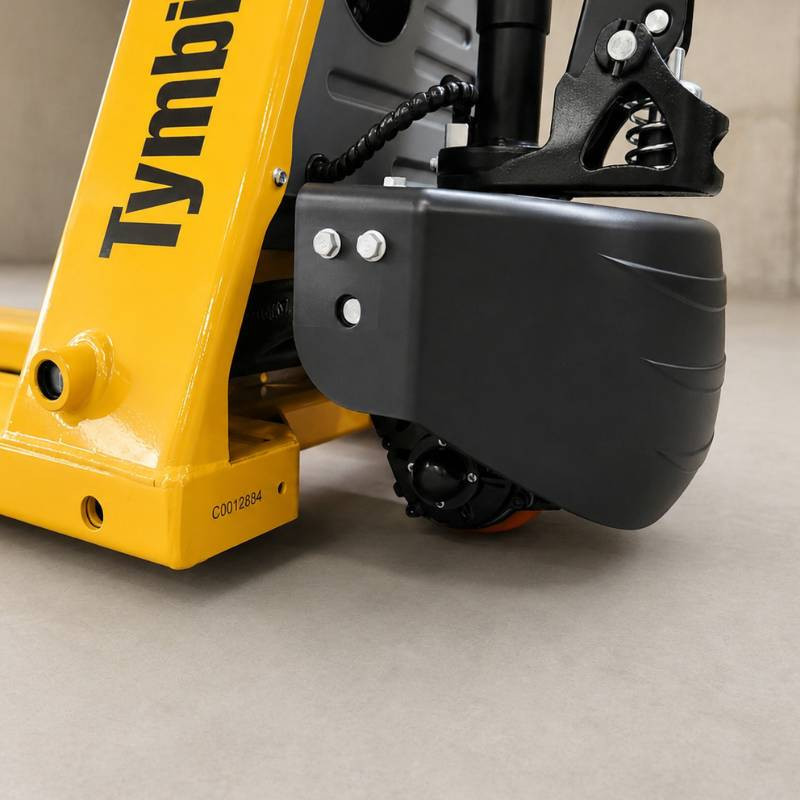

• Motor wheel replacement in 60 seconds
• It works well on earrings (up to 6% charged / 20% downloaded)

Technical characteristics:

• Type of operator: pedestrian
• Nominal capacity (Q): 1500 kg
• Cargo Center (c): 600 mm

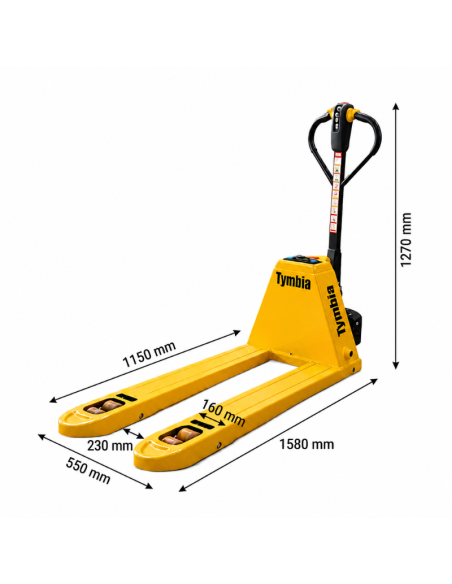

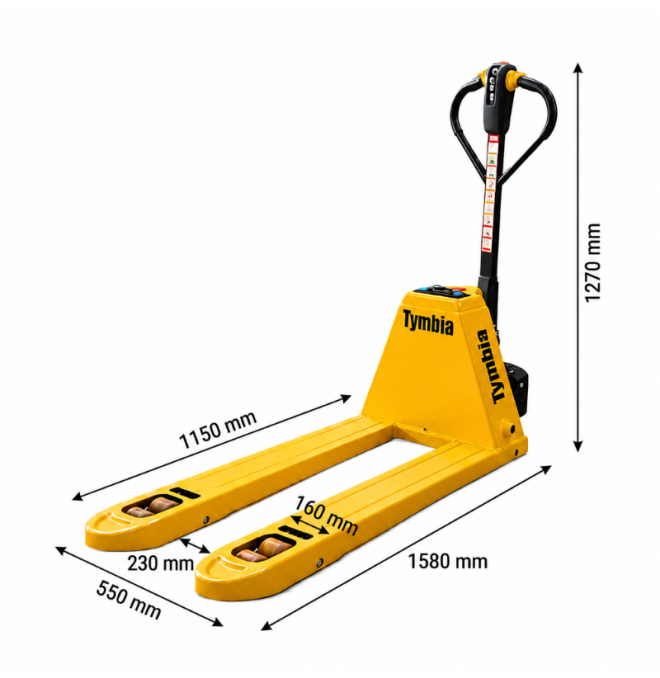

• Horquilla dimensions (S × E × L): 58 × 160 × 1150 mm
• Top Width Forks: 550 mm
• Distance between axles (Y): 1197 mm
• Total length (L1): 1552 mm
• Radio of rotation (WA): 1353 mm
• Subweof height (H): 82 mm
• Total lifting height (H3): 115 mm
• Rudder height (min. / Max.): 820/1150 mm
• Scroll speed (loaded / free): 4.0 / 4.5 km / h
• Lifting speed (loaded / free): 0.018 / 0.023 m / s
• Drop speed (loaded / without load): 0.056 / 0.046 m / s
• Traction engine / lift: 0.75 / 0.5 kW
• Weight in service (incl. Battery): 120kg
• Motor wheel: 140 × 55 mm (polyurethane)

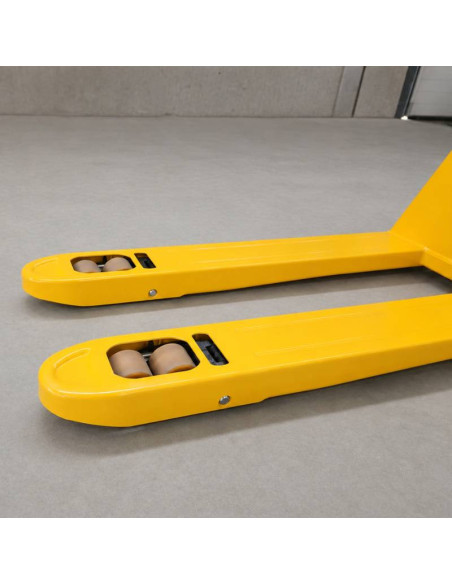

• Charging wheels: Simple 80 × 93 mm or double 80 × 70 mm (polyurethane)
• Energy consumption (VDI cycle): 0.42 kWh / h
• Sound level (EN12053): 69 dB (A)

Advantages:

• Triplicate efficiency with respect to manual Pallet Trucks
• Low property cost thanks to maintenance-free components
• Continuous operation with rapid battery change
• Compact and lightweight design, similar to a manual pallet truck
• High durability with steel frame and protective cover
• Easy maintenance: replaceable motor wheel in 60 seconds
• Improved security: emergency reverse button, horn, regenerative brake

Uses:

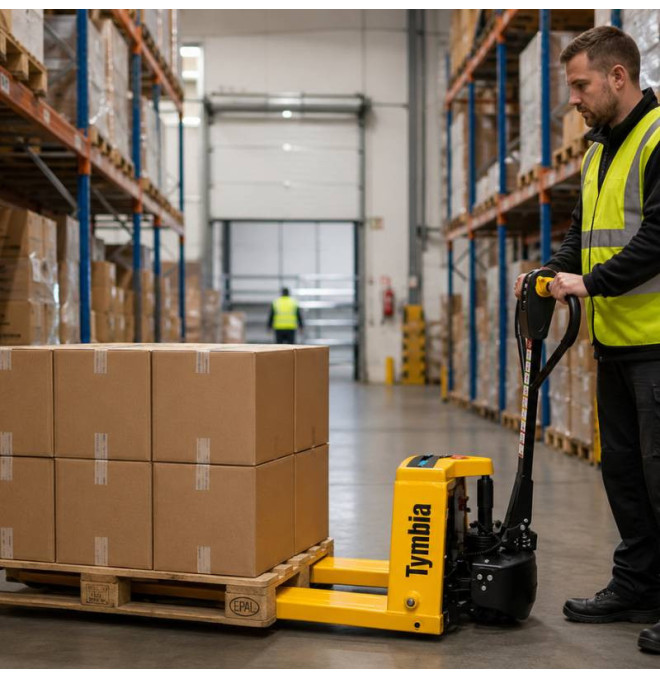

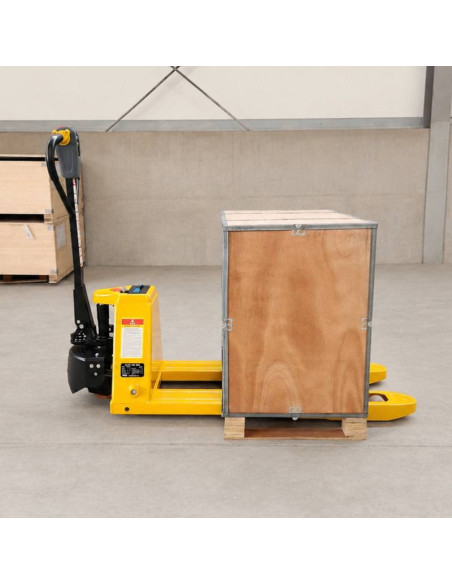

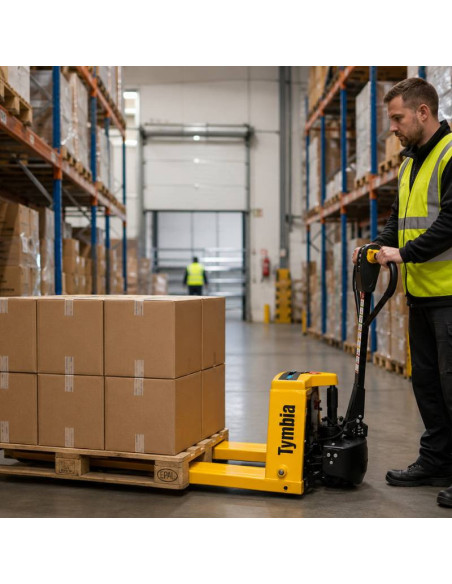

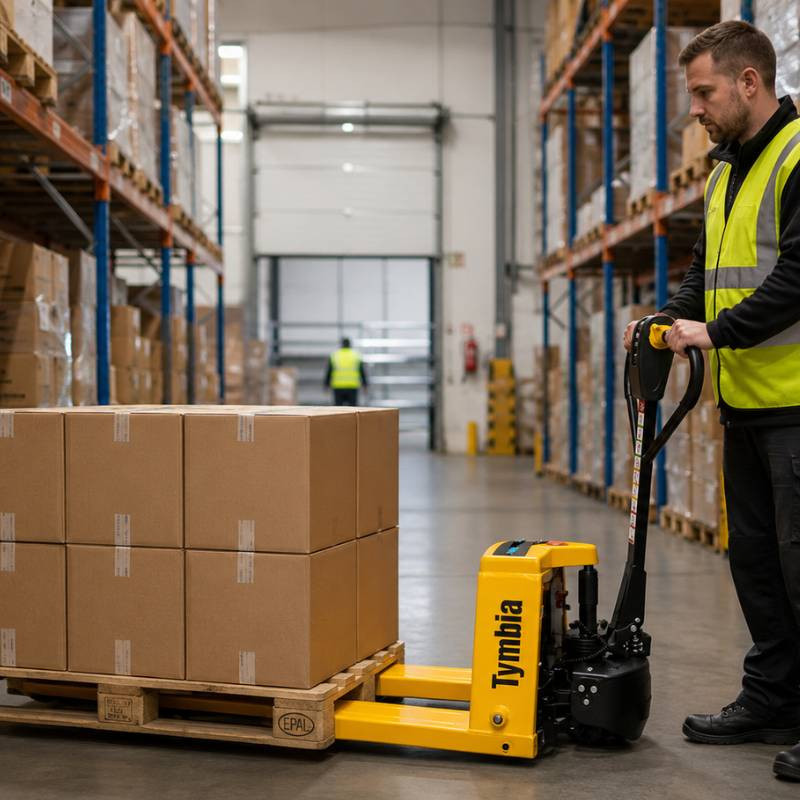

• Movement of pallets in warehouses and distribution centers
• Logistics Operations
• Areas with reduced spaces thanks to its compact rotation radius
• Applications that demand loading handling up to 1500 kg
