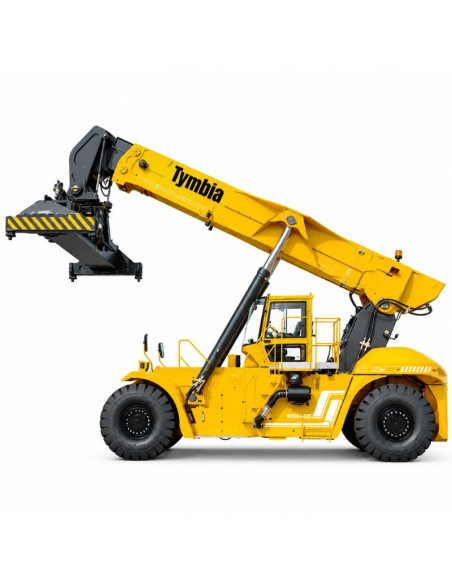

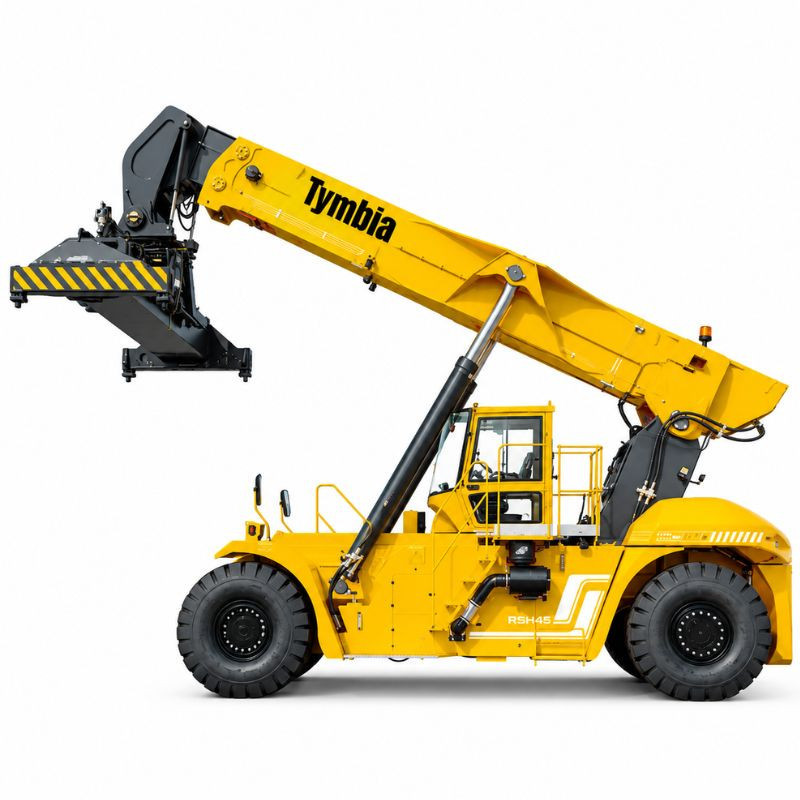

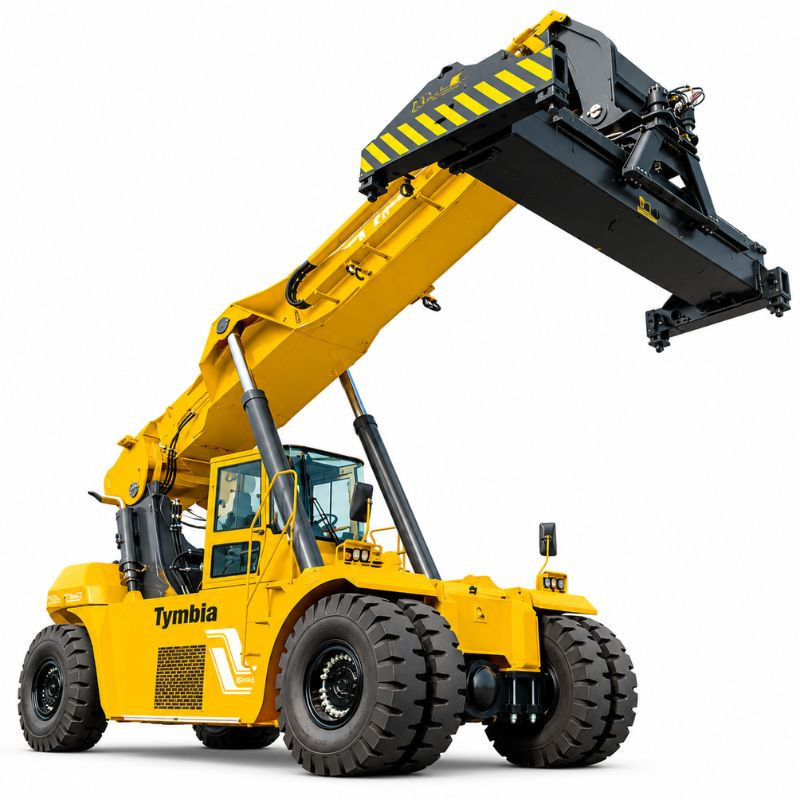

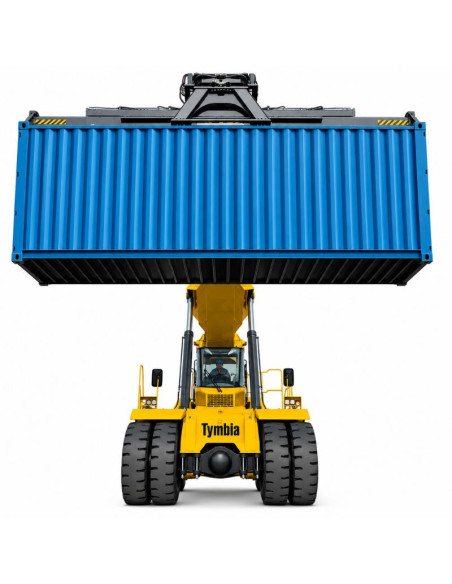

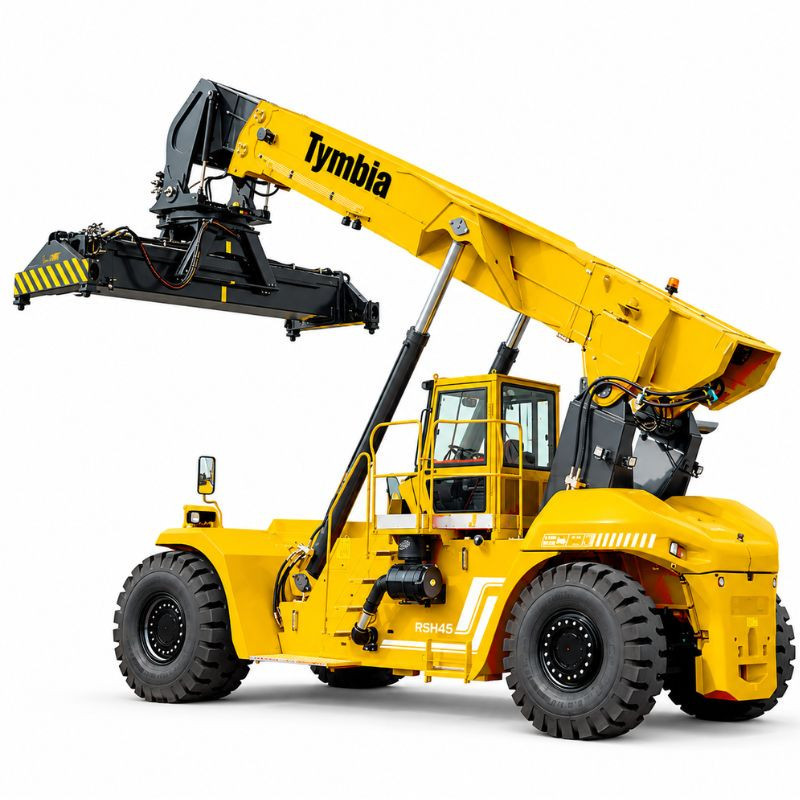

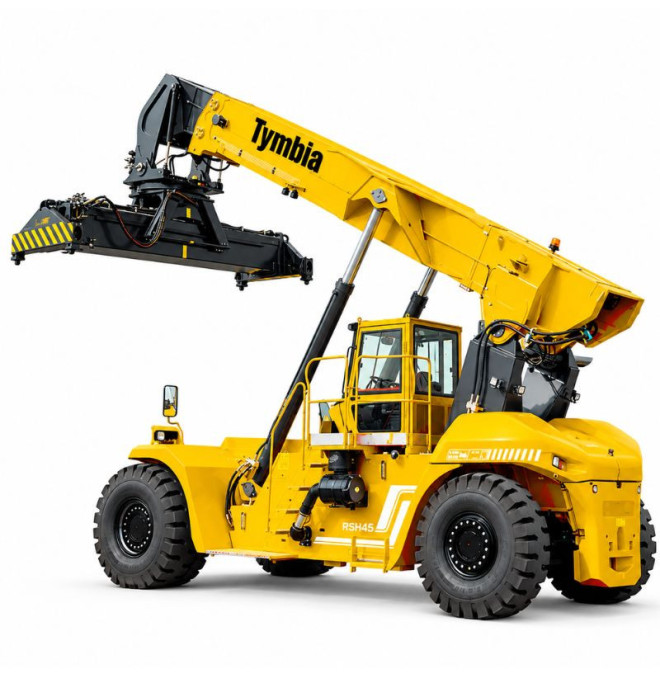

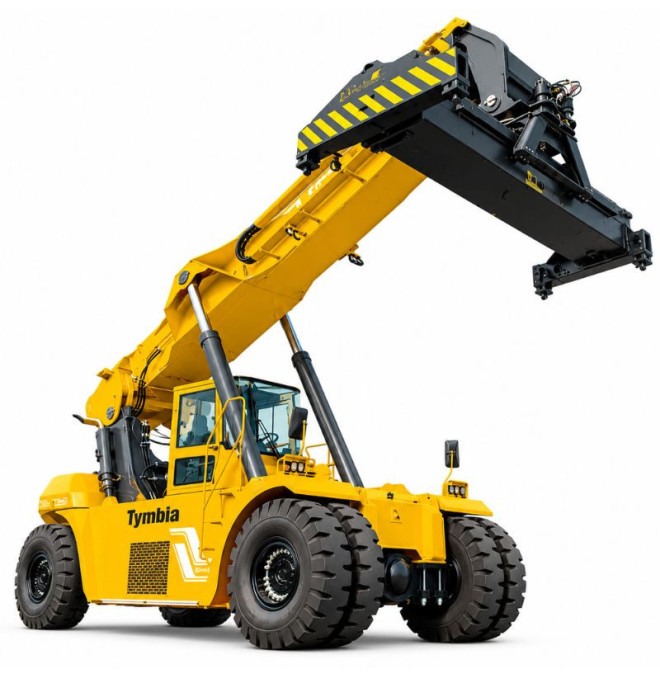

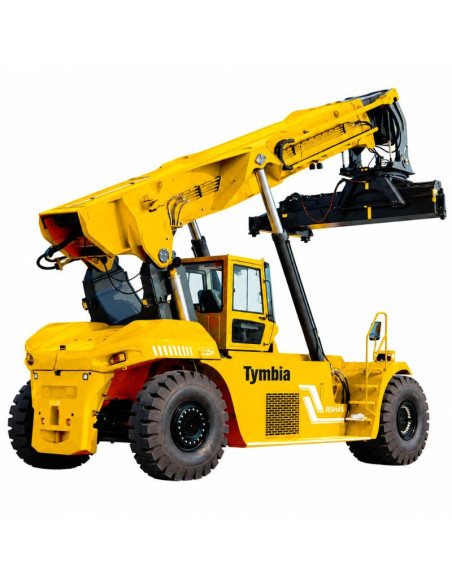

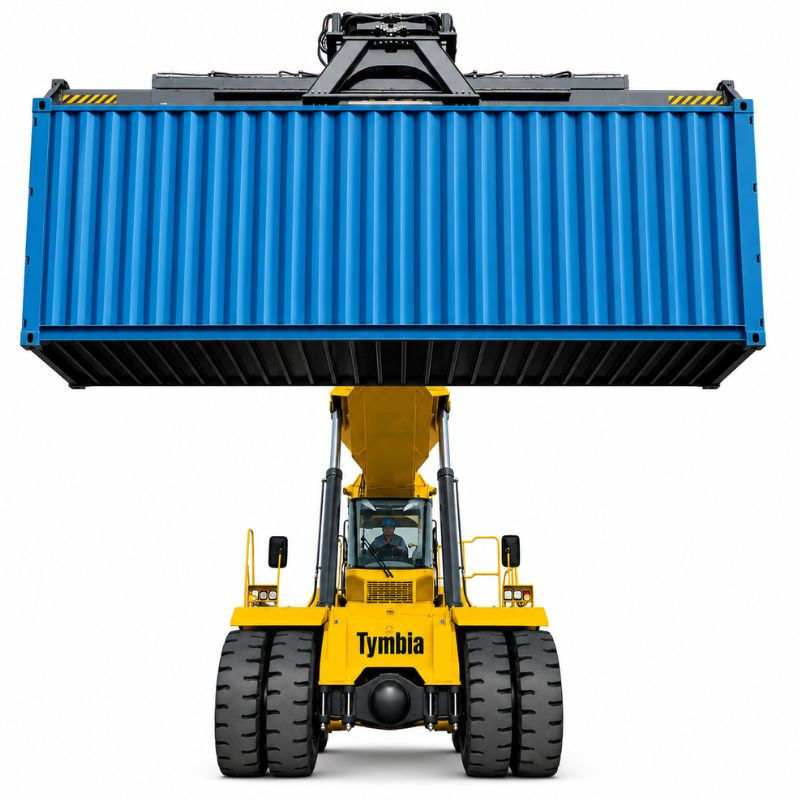

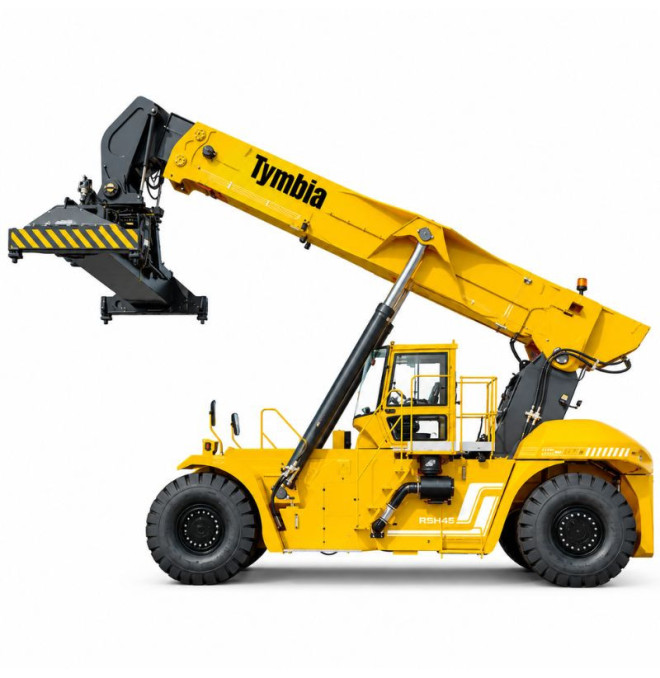

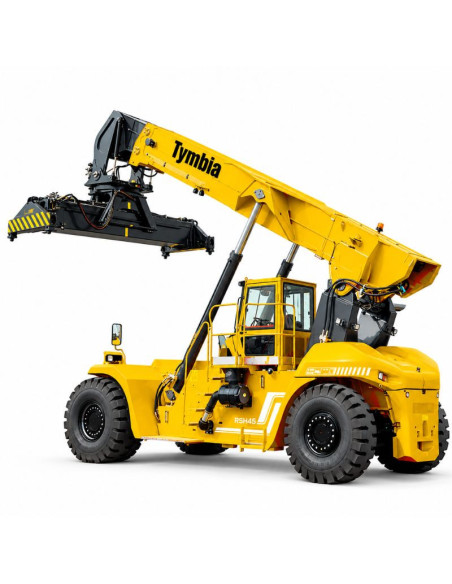

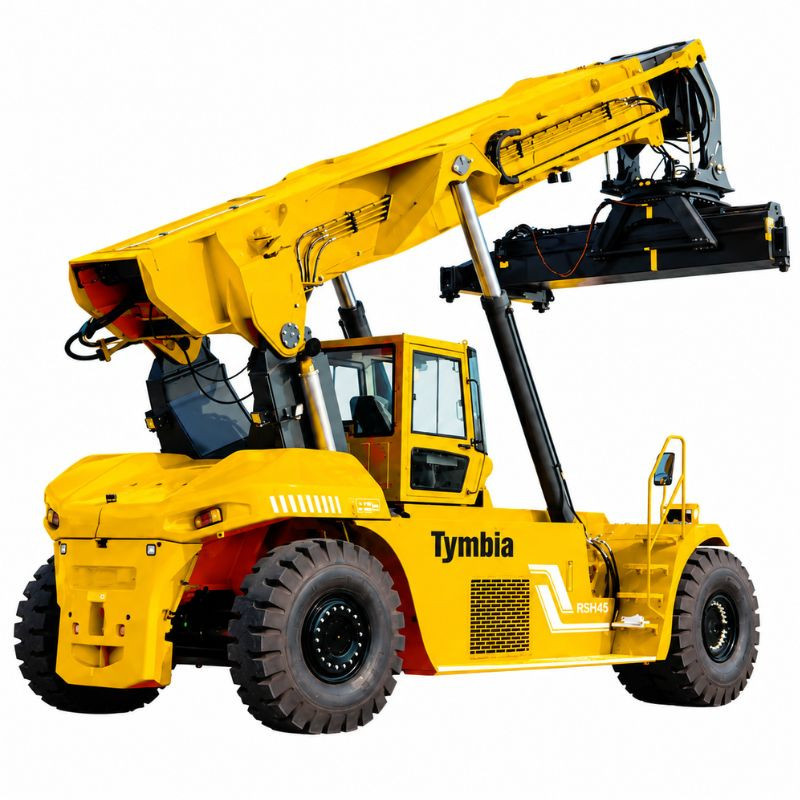

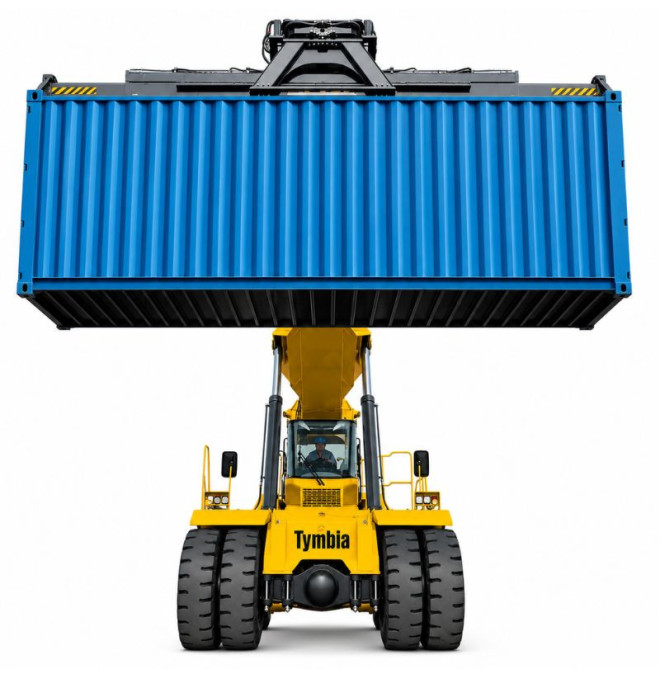

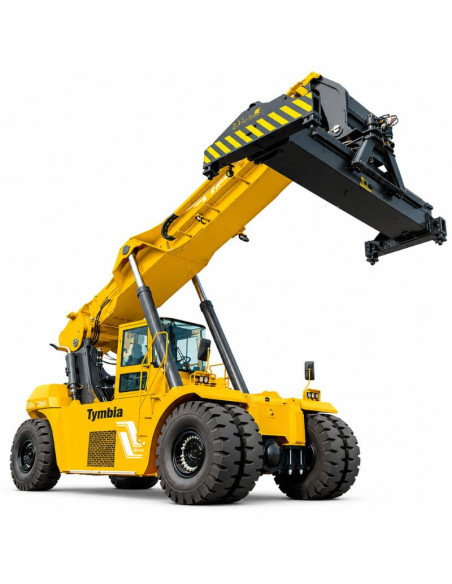

Reach Stacker diesel 45 tons G2 series

The Reach Stacker Diesel Tymbia G2 Series of 45 Tons is a high-capacity professional team developed for handling, stacked, loading and unloading containers in port terminals, logistics centers, container deposits and large industrial facilities.

Its maximum capacity reaches 45.00 kg in the front row, also allowing to work in second and third row with residual capabilities adapted to the distance of the cargo center. Depending on the selected configuration, you can handle up to 31,000kg in second row and up to 15,000kg in third row.

The machine offers a maximum lifting height of 15,050mm, allowing high-rise container stacking operations. Its spreader incorporates lateral displacement of ± 800 mm and a wide range of rotation of -105 ° to + 195 °, facilitating the precise alignment and positioning of the container.

It tools a Volvo Tad1181ve diesel engine, with a nominal power of 265KW at 2100RPM and a nominal torque of 1785nm to 1316rpm. The motorization complies with EU Stage V / China Stage IV regulation, offering the necessary power for intensive heavy handling work.

The Dana TE30 transmission and the Kessler Motor Axis are oriented to high demand applications, providing a robust configuration for continued operations.

The G2 series also incorporates solutions aimed at improving the stability, safety, visibility and comfort of the operator, including a cabin designed to offer good visibility on the load and work environment.

Featured features:

• Maximum capacity: 45,000kg
• Capacity in second row of up to 31,000kg
• Capacity in third row of up to 15,000kg
• Maximum lifting height: 15.050mm
• Volvo engine TAD1181VE
• Nominal power of 265KW
• Nominal couple of 1785nm
• EU Emission Regulations Stage V
• Dana TE30 transmission
• Motor axis Kessler
• Spreader with lateral displacement
• Wide spreader rotation
• Professional design for container manipulation
• High cabin with wide visibility
• Construction Robust for intensive work

Advantages:

• Maximum capacity of 45 tons
• Handling of containers in the first, second and third row
• Elevation up to 15,05 meters
• Volvo Stage V motor
• High residual capacity
• Spreader with lateral displacement and rotation
• Danch
• Motor axis Kessler
• Great stability during loading operations
• High cabin with excellent visibility
• Suitable for continuous and high demand operations
• Designed specifically for terminals and container handling

Uses:

• Maritime ports
• Container terminals
• Container deposits
• Intermodal Logistics Centers
• Railway terminals
• Heavy industry
• Handling of ISO containers
• Charging and unloading containers
• Stacked containers
• Logistics operations of great tonnage

** They must have their own discharge means.
