Flow for heavy loads, hot galvanized
m500002763
€2,057.00
2.057,00 € (tax incl.)

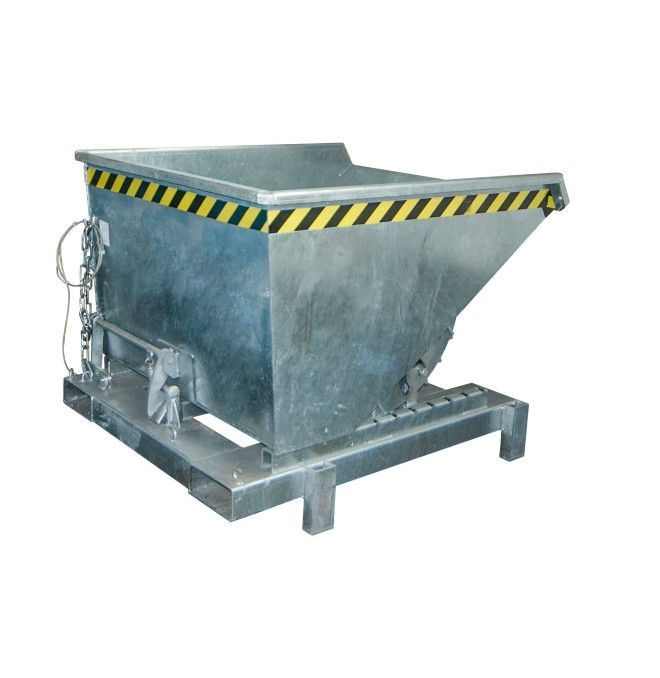

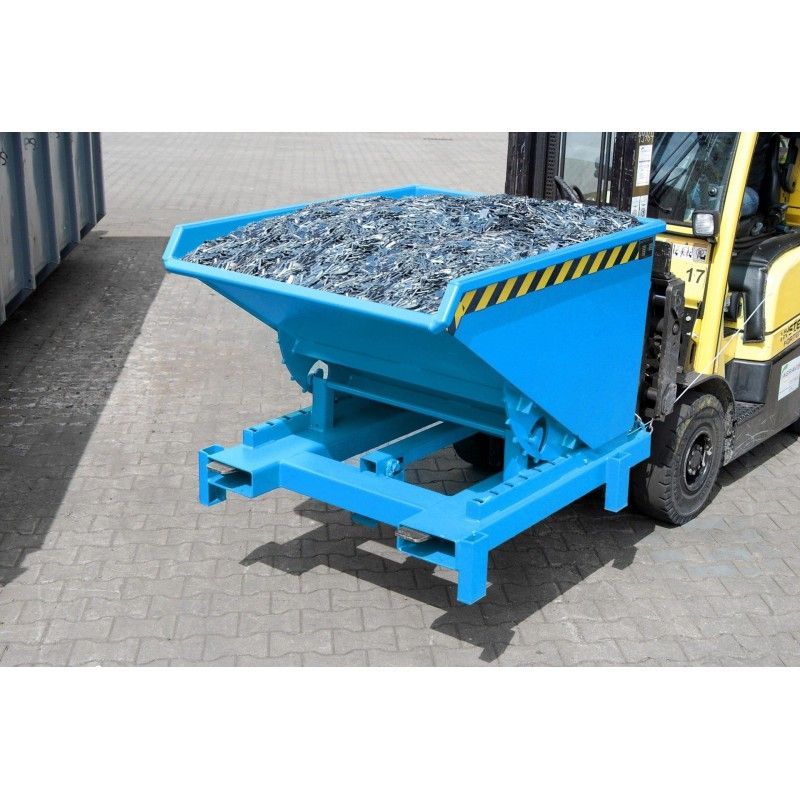

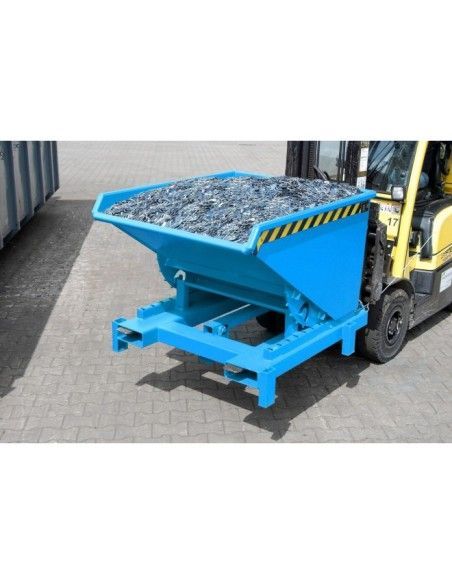

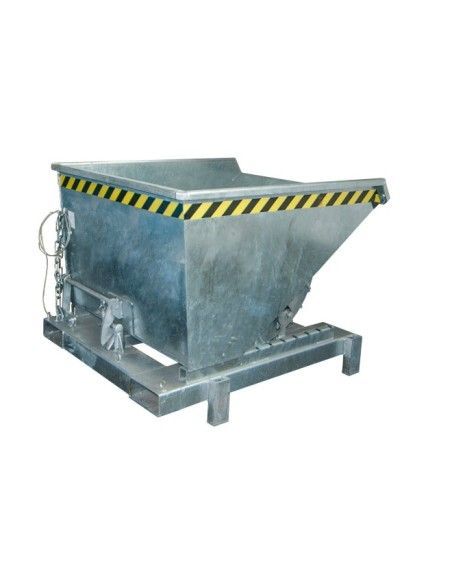

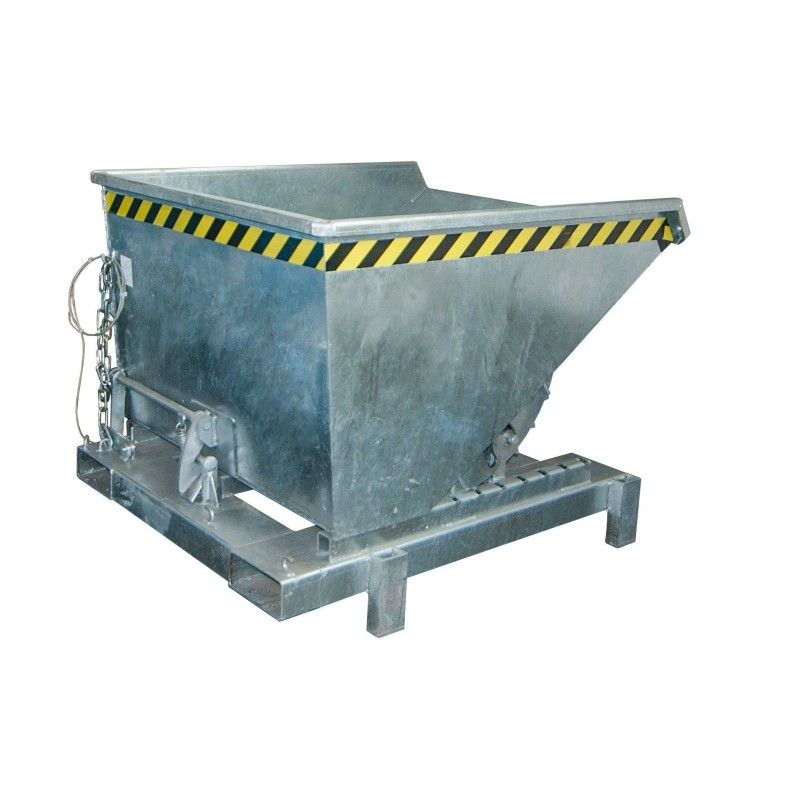

Vollette for heavy loads designed for the handling of loads and automated emptying of heavy materials in warehouses and industrial environments.
- Steel structure: Construction High strength with 5 mm walls and 6 mm closed sleeves.
- Charging capacity: Support of 4000 kg with volume of 0.6 cubic meters for intensive use.
- Discharge mechanism: Automatic release system by means of pressure foot and unlocking manual by cable.
- Galvanized finish: Hot treatment with integrated protection against corrosion for a long service life.
Heavy duty flap with automatic and manual release function
Attributes
- Construction robust steel with reinforced edge
- Material resistance: body wall of 5 mm and sleeves fork 6 mm especially for heavy materials
- Manguitos fork full length, construction closed: make the unit very resistant
- Optimized loading center
- rolling mechanism
- Automatic release function activated when the release foot is placed on the edge of the container
- Manual unlocking by traction cable
- It can be ensured to avoid slip and involuntary emptying.
- Suitable for pallet Trucks
- The wheels can be mounted later.
- Total length (mm)
- 1310.0
- can be stacked
- Not
- Finish
- hot galvanized
- Weight (kg)
- 304.0
- GTIN (Previous EAN)
- 4052462027503.0
- Mounting status for dispatch
- assembly
- load capacity
- 4000.0
- charging capacity per unit of measurement
- kg
- type of collection
- pockets for forks
- distance between forks (mm)
- 600.0
- inner width fork cavities (mm)
- 200.0
- inner height fork cavities (mm)
- 80.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 588.0
- open/closed fork cavities
- total length
- High discharge surface (mm)
- 875.0
- Total height (mm)
- 970.0
- Width (mm)
- 1105.0
- volume in M³
- 0.6
New
4052462027503
