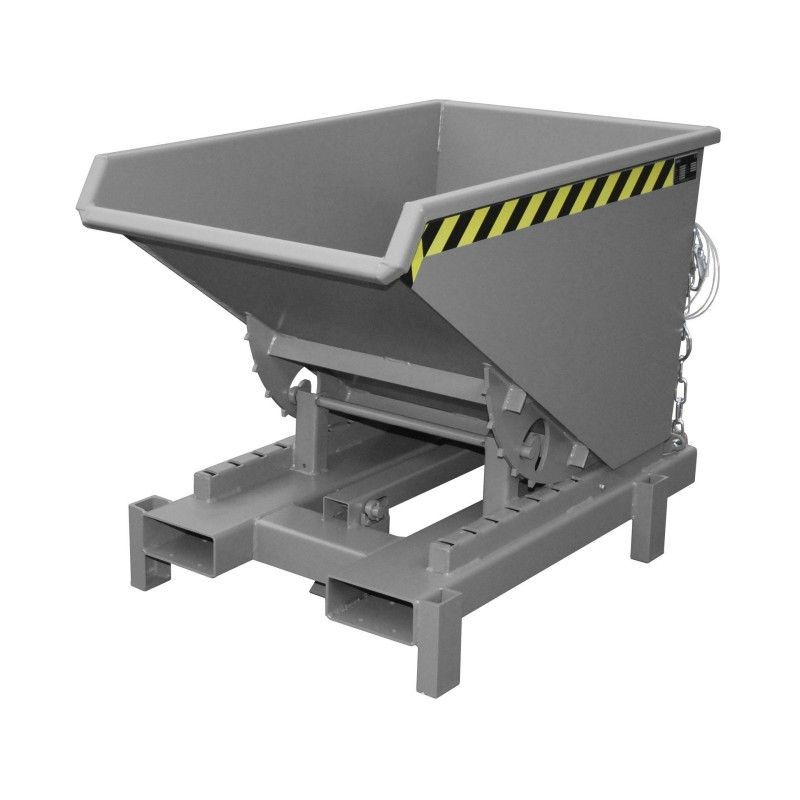

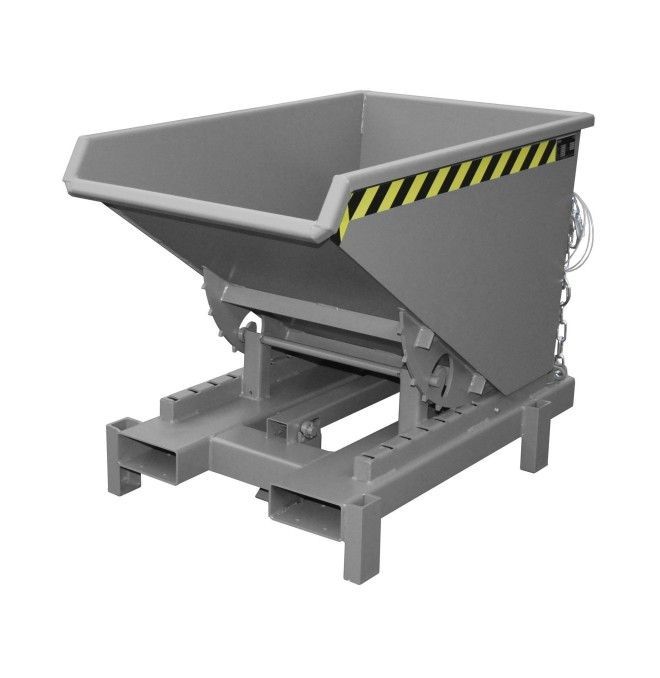

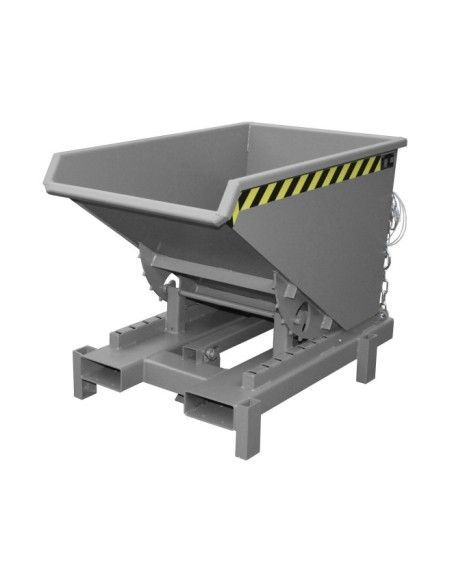

Heavy Duty Dumper, Painted, Mouse Grey

m500002756
€1,564.00
1.564,00 € (tax incl.)

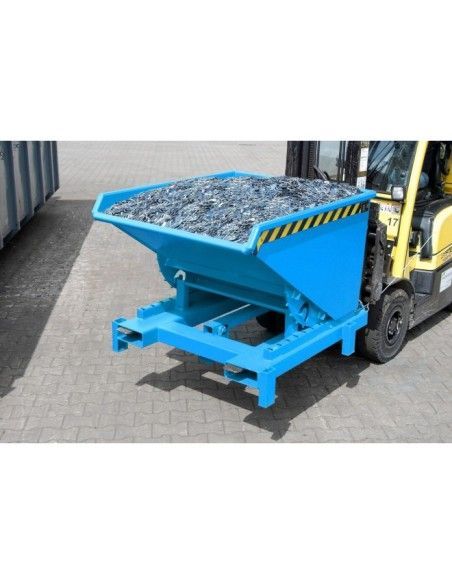

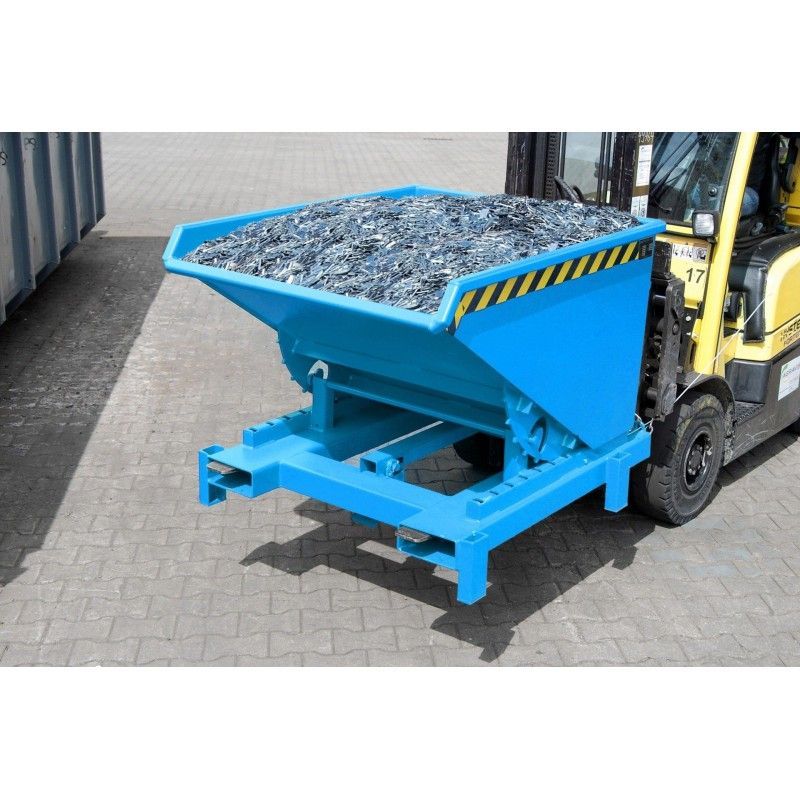

Heavy dump forklift Trucks Designed for the handling of heavy loads and automated emptying in industrial environments. It facilitates the management of waste and materials in the logistics sector.

  • Charging capacity: It supports up to 4000 kg with a volume of 0.3 cubic meters for intensive use.
  • Steel structure: Construction Robust with 5 mm wall and sleeves fork Closed 6 mm.
  • Emptying mechanism: Automatic release system by means of foot pressure or unlocking manual by cable.
  • Integrated security: Locking device against accidental slides and dimensions adapted for pallet Trucks.

** Delivery time 15 working days
candado.png 100% secure payment
Share product to friend
Download technical sheet in PDF
Print


Heavy duty flap with automatic and manual release function

Attributes

  • Construction robust steel with reinforced edge
  • Material resistance: body wall of 5 mm and sleeves fork 6 mm especially for heavy materials
  • Manguitos fork full length, construction closed: make the unit very resistant
  • Optimized loading center
  • rolling mechanism
  • Automatic release function activated when the release foot is placed on the edge of the container
  • Manual unlocking by traction cable
  • It can be ensured to avoid slip and involuntary emptying.
  • Suitable for pallet Trucks
  • The wheels can be mounted later.
Total length (mm)
1310.0
can be stacked
Not
Finish
painted
Weight (kg)
244.0
GTIN (Previous EAN)
4052462036451.0
Mounting status for dispatch
assembly
load capacity
4000.0
charging capacity per unit of measurement
kg
ral
RAL 7005 gray mouse
cod
RAL 7005
type of collection
pockets for forks
distance between forks (mm)
300.0
inner width fork cavities (mm)
200.0
inner height fork cavities (mm)
80.0
pick-up address
along (low narrow)
position of collection
down
position of the loading hook (mm)
589.0
open/closed fork cavities
total length
High discharge surface (mm)
867.0
Total height (mm)
970.0
Width (mm)
805.0
Color
grey mouse
volume in M³
0.3
New
4052462036451
