Kippomat, hot galvanized
m500002584
€2,173.00
2.173,00 € (tax incl.)

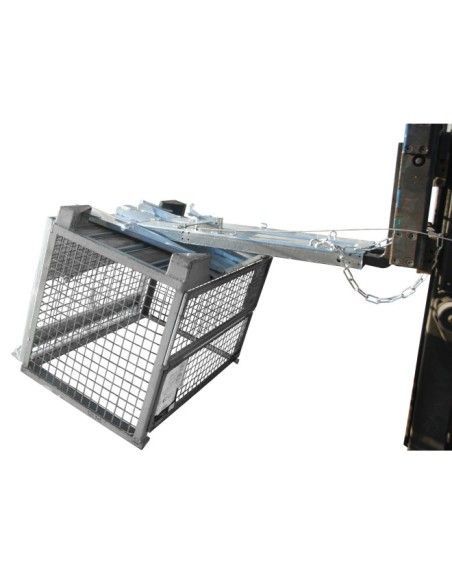

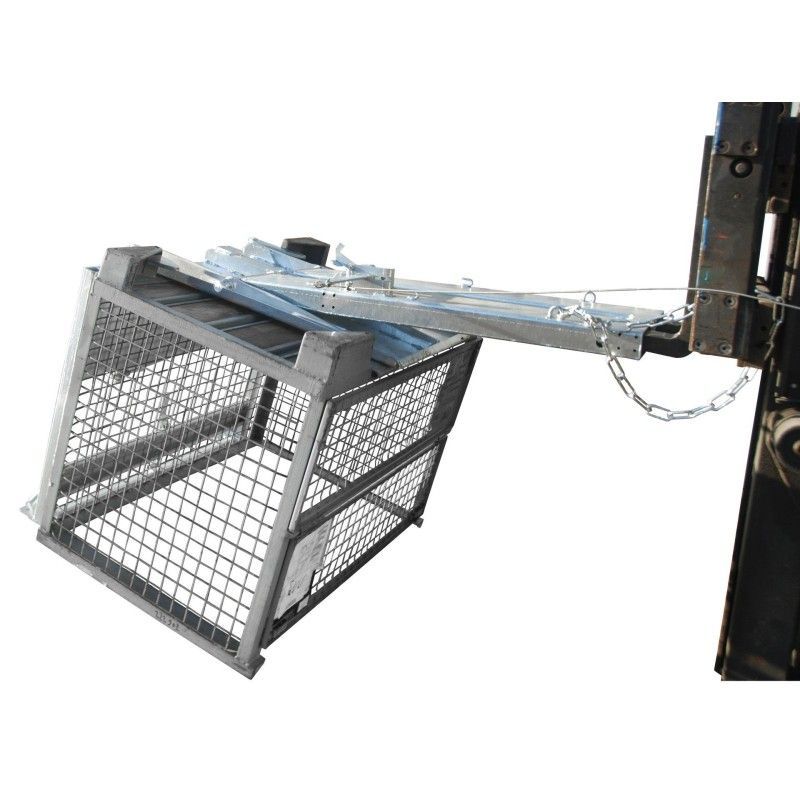

Hot galvanized Kippomat implement designed for transport, emptying and cleaning of cages for europhals according to DIN 15155 standard in warehouses and industrial environments of intensive use.
- Charging capacity: It supports up to 500.0 kg of weight for the handling of heavy loads in logistics.
- Hydraulic Drive: It works through the system of the forklift With a minimum pressure of 130 bar.
- Fixation system: It has folding bolts and arms to ensure steel or plastic containers.
- Sleeves fork: Internal dimensions of 200.0 mm wide and 65.0 mm high with open end.
For transport, emptying and cleaning of cages for europalés manufactured according to DIN 15155
Attributes
- Robust frame with sleeves fork
- It can be secured to avoid slips.
- 2 bolts (for steel containers) 2 folding fixing arms (for plastic containers) ensure the containers during emptied
- A steel cable keeps the lid open.
- Hydraulic vacuum, operated by the hydraulic system forklift; operating pressure: min. 130 bars
- Movement controlled (back and forward)
- Continuous capacity regulation valve controls emptied speed
- Accessory for connecting hydraulic hoses, steel cable and safety chain
- Manual emptied
- Total length (mm)
- 1845.0
- can be stacked
- Not
- Finish
- hot galvanized
- Weight (kg)
- 160.0
- GTIN (Previous EAN)
- 4052462044647.0
- Mounting status for dispatch
- assembly
- load capacity
- 500.0
- charging capacity per unit of measurement
- kg
- type of collection
- pockets for forks
- distance between forks (mm)
- 115.0
- inner width fork cavities (mm)
- 200.0
- inner height fork cavities (mm)
- 65.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 1350.0
- open/closed fork cavities
- Open end
- Total height (mm)
- 1020.0
- Width (mm)
- 1160.0
- Tilting angle (degrees)
- 160.0
New
4052462044647
