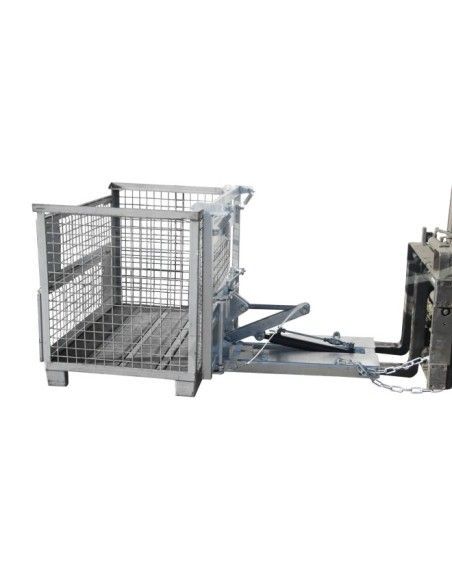

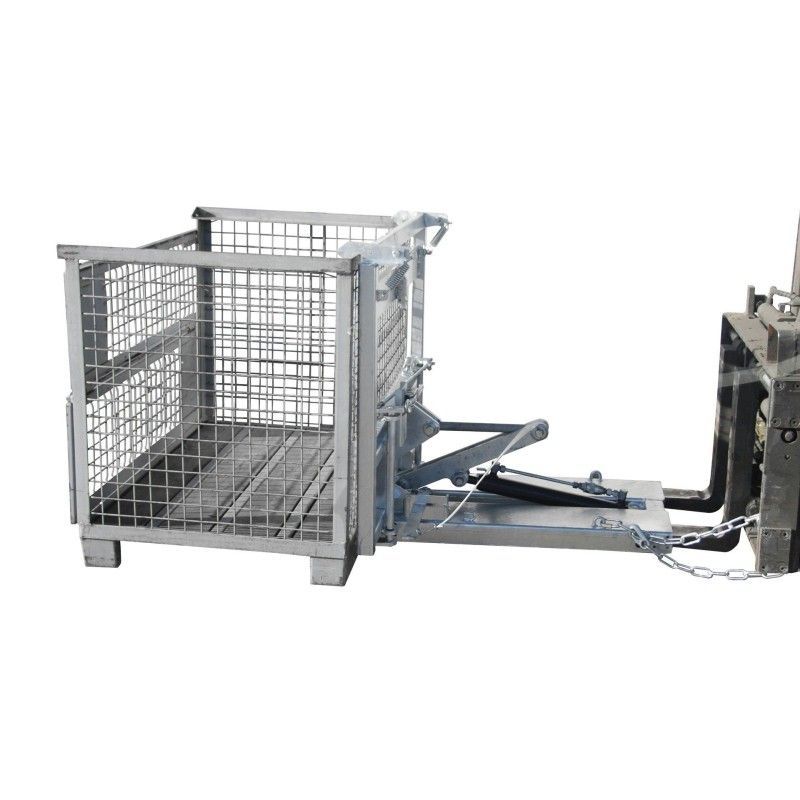

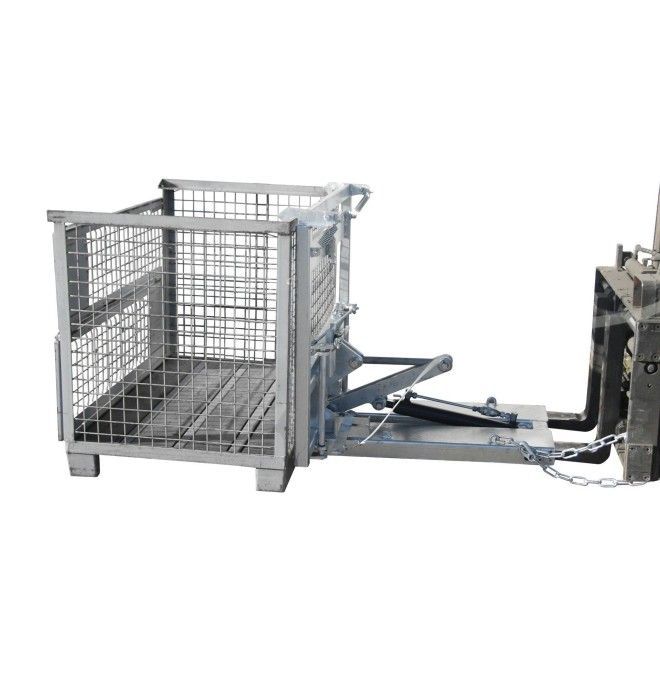

Kippomat, hot galvanized
m500002583
€3,260.00
3.260,00 € (tax incl.)
Hot galvanized kippomat implement for transport, emptying and cleaning of cages for europalés in industrial environments. It facilitates the handling of loads under the DIN 15155 regulations.
- Emptying system: Hydraulic drive by forklift With minimum pressure of 130 bars for controlled movement.
- Charging capacity: Supports up to 500.0 kg of weight for safe handling of industrial containers.
- Security fixation: It has folding bolts and arms to ensure steel or plastic containers.
- Galvanized finish: High strength structure and long life suitable for intensive use in logistics.
For transport, emptying and cleaning of cages for europalés manufactured according to DIN 15155
Attributes
- Robust frame with sleeves fork
- It can be secured to avoid slips.
- 2 bolts (for steel containers) 2 folding fixing arms (for plastic containers) ensure the containers during emptied
- A steel cable keeps the lid open.
- Hydraulic vacuum, operated by the hydraulic system forklift; operating pressure: min. 130 bars
- Movement controlled (back and forward)
- Continuous capacity regulation valve controls emptied speed
- Accessory for connecting hydraulic hoses, steel cable and safety chain
- Manual vacuuming; equipped with adjustable discharge brake
- Total length (mm)
- 1845.0
- can be stacked
- Not
- Finish
- hot galvanized
- Weight (kg)
- 195.0
- GTIN (Previous EAN)
- 4052462044630.0
- Mounting status for dispatch
- assembly
- load capacity
- 500.0
- charging capacity per unit of measurement
- kg
- type of collection
- pockets for forks
- distance between forks (mm)
- 115.0
- inner width fork cavities (mm)
- 200.0
- inner height fork cavities (mm)
- 65.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 1350.0
- open/closed fork cavities
- Open end
- Total height (mm)
- 1020.0
- Width (mm)
- 1160.0
- Tilting angle (degrees)
- 135.0
New
4052462044630
