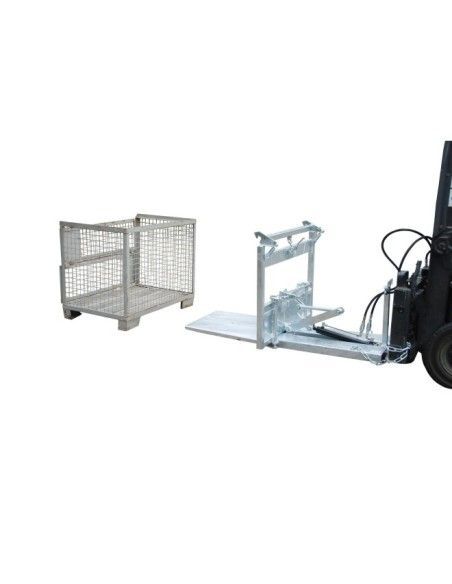

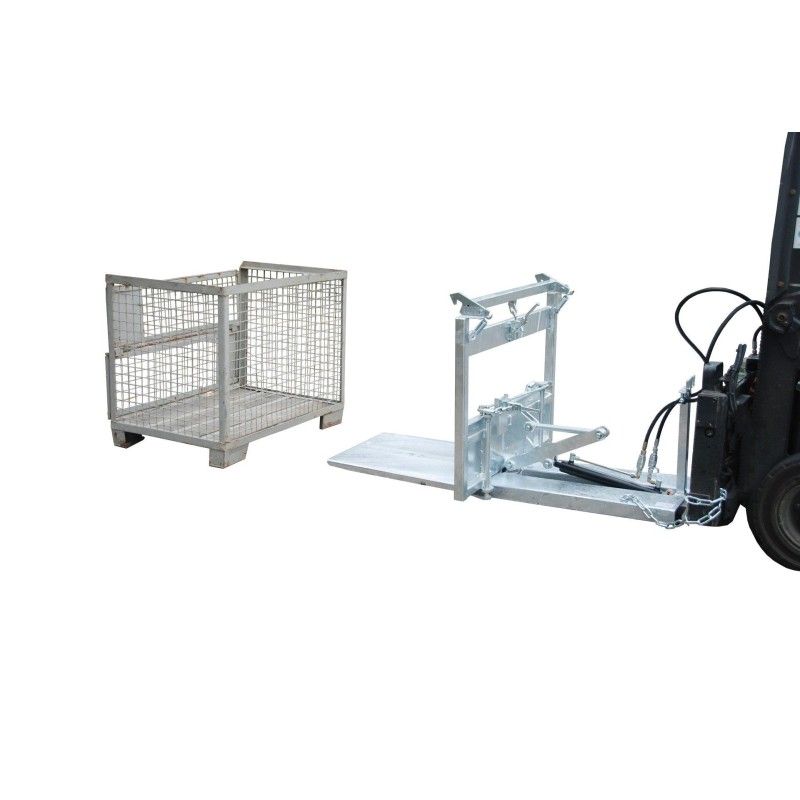

Kippomat, hot galvanized
m500002582
€3,334.00
3.334,00 € (tax incl.)
Hot galvanized kippomat implement designed for transport, emptying and cleaning of cages for europhals in industrial environments. It facilitates the handling of charges in heavy logistics warehouses and operations.
- Emptying system: Hydraulic drive through the circuit of the forklift With minimum pressure of 130 bar.
- Charging capacity: Supports a maximum weight of 500 kg for secure handling of industrial containers.
- Fixation mechanism: It has two bolts and two folding arms to ensure containers during turning.
- Steel structure: Chassis with hot galvanized finish to guarantee high strength and long life.
For transport, emptying and cleaning of cages for europalés manufactured according to DIN 15155
Attributes
- Robust frame with sleeves fork
- It can be secured to avoid slips.
- 2 bolts (for steel containers) 2 folding fixing arms (for plastic containers) ensure the containers during emptied
- A steel cable keeps the lid open.
- Hydraulic vacuum, operated by the hydraulic system forklift; operating pressure: min. 130 bars
- Movement controlled (back and forward)
- Continuous capacity regulation valve controls emptied speed
- Accessory for connecting hydraulic hoses, steel cable and safety chain
- Hydraulic vacuum (operated by the hydraulic system of the forklift)
- Total length (mm)
- 1845.0
- can be stacked
- Not
- Finish
- hot galvanized
- Weight (kg)
- 200.0
- GTIN (Previous EAN)
- 4052462025806.0
- Mounting status for dispatch
- assembly
- load capacity
- 500.0
- charging capacity per unit of measurement
- kg
- type of collection
- pockets for forks
- distance between forks (mm)
- 115.0
- inner width fork cavities (mm)
- 200.0
- inner height fork cavities (mm)
- 65.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 1350.0
- open/closed fork cavities
- Open end
- Total height (mm)
- 1020.0
- Width (mm)
- 1160.0
- Tilting angle (degrees)
- 135.0
