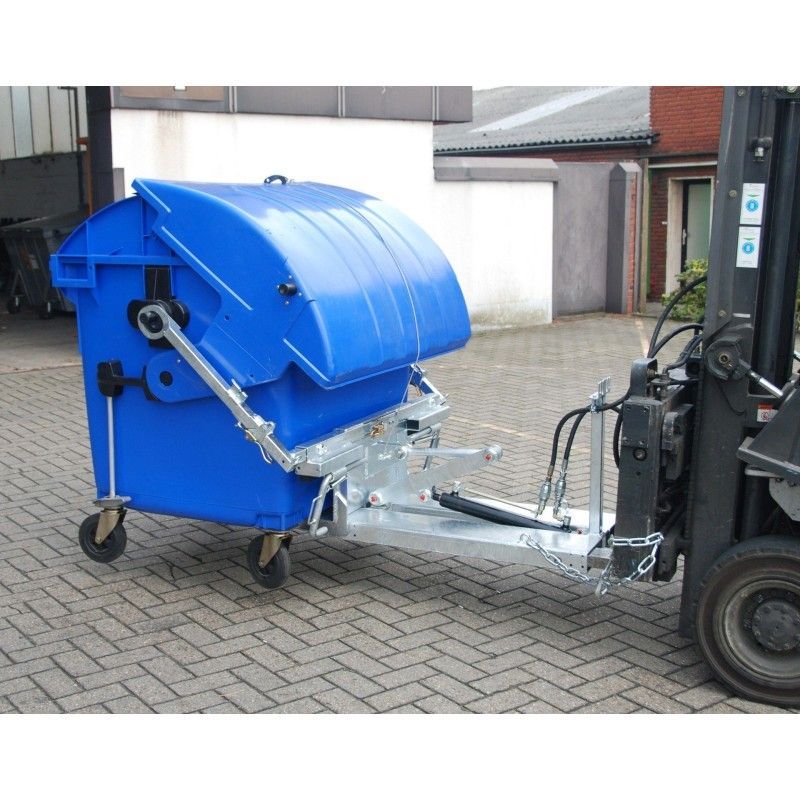

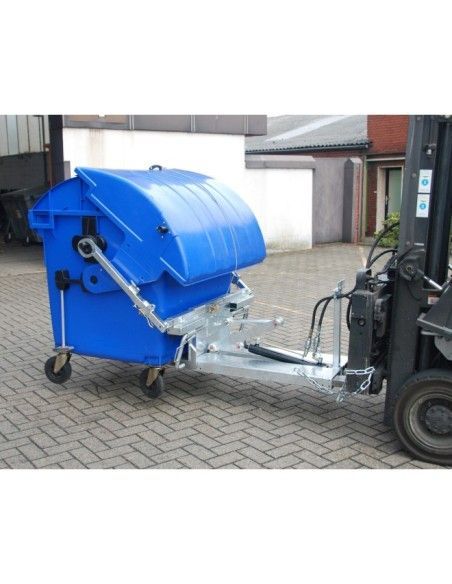

Implement to transport and empty galvanized containers
m500002581
€3,213.00
3.213,00 € (tax incl.)
Implement to transport and empty galvanized containers designed for the handling and cleaning of large volume containers. It facilitates waste management in industrial environments and logistics sector.
- Charging capacity: Supports up to 600 kg for containers of 1100 liters under DIN regulations at 840-3.
- Fixation system: It incorporates steel bolts and folding arms to ensure containers during emptying.
- Hydraulic Drive: It allows a rollover angle of 135 degrees controlled by the wheelbarrow system.
- Galvanized structure: Manufactured with hot galvanized finish for high strength and protection in intensive use.
The KM is an indispensable aid for the transport, emptying and cleaning of containers with large volume wheels (1100 liters with 4 wheels) and manufactured according to DIN EN 840-3
Attributes
- Robust frame with sleeves fork
- It can be secured to avoid slips.
- 2 bolts (for steel containers) 2 folding fixing arms (for plastic containers) ensure the containers during emptied
- A steel cable keeps the lid open.
- Hydraulic vacuum, operated by the hydraulic system forklift; operating pressure: min. 130 bars
- Movement controlled (back and forward)
- Continuous capacity regulation valve controls emptied speed
- Accessory for connecting hydraulic hoses, steel cable and safety chain
- Total length (mm)
- 1845.0
- can be stacked
- Not
- Finish
- hot galvanized
- Weight (kg)
- 177.0
- GTIN (Previous EAN)
- 4052462025790.0
- Mounting status for dispatch
- assembly
- load capacity
- 600.0
- charging capacity per unit of measurement
- kg
- type of collection
- pockets for forks
- distance between forks (mm)
- 115.0
- inner width fork cavities (mm)
- 200.0
- inner height fork cavities (mm)
- 65.0
- pick-up address
- along (low narrow)
- position of the loading hook (mm)
- 1320.0
- open/closed fork cavities
- Open end
- Total height (mm)
- 960.0
- Width (mm)
- 1370.0
- Tilting angle (degrees)
- 135.0
