Hydraulic Hydraulic Galvanized Hydraulic Biddler Stacker 350kg 350kg

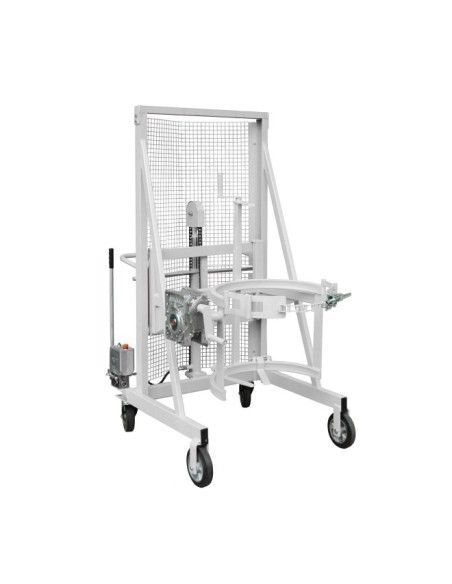

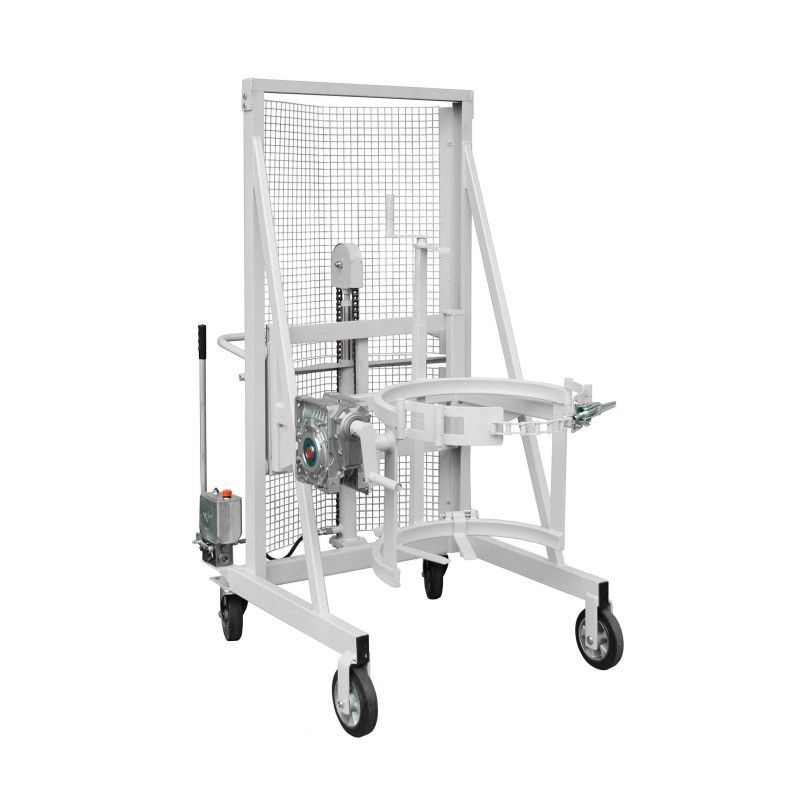

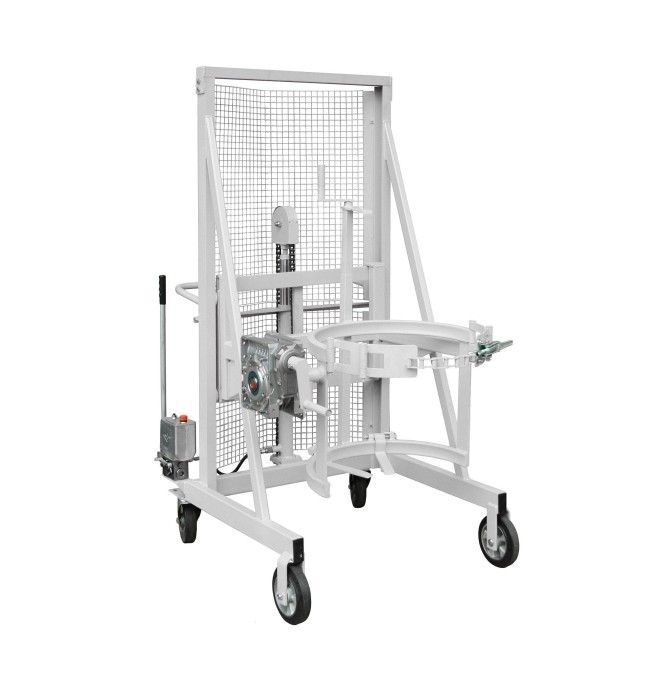

Hydraulic hot galvanized hydraulic driving stacker is a sturdy and accurate solution to raise, rotate and empty controlled drums in industrial, logistic and storage environments. Designed to facilitate secure handling of drums during transfer, pouring and positioning operations, it allows to work with greater stability, control and resistance in demanding applications.

This model has a hydraulic construction with manual pump, which makes it a practical option for jobs where mechanical reliability, precise management and a simple operation. It is prepared for the controlled emptying of steel drums with plug, steel drums with lid, steel drums with rolling ring, plastic hinges with L-ring, plastic drums and plastic drums with Cap, in capacities of 110 to 220 liters.

The equipment incorporates a range of rotation of up to 270º and a secure clamping system by front voltage band and upper spindle, guaranteeing a firm collection of the drum over the entire maneuver. In addition, it has a crank with self-gauging gearbox, 2 Ø 175mm rotating wheels and 2 fixed Ø 200mm solid rubber wheels, with brake on both rotating wheels. Its hot galvanized finish improves resistance against corrosion and makes it especially suitable for wet, aggressive or intensive use environments. With a capacity of 350kg, lifting height of 1.100mm and 1,300mm empty height, it is a professional solution for handling and diverted drums.

Featured features:

• Load capacity of 350kg
• Hydraulic construction with manual pump
• Hot galvanized finish
• For drums from 110 to 220 liters
• Lifting height of 1.100mm
• Emptying height of 1.300mm
• Controlled turn up to 270º
• Front tension band and top spindle
• Crank with self-gain gearbox
• 2 rotating wheels with brake and 2 fixed solid rubber wheels

Advantages:

• Allows you to raise, turn and empty drums safely
• Simple and reliable manual operation
• It facilitates a controlled and precise emptying
• Compatible with different types of drums
• Reduces the effort in handling
• It offers a firm clamping throughout the maneuver
• Greater corrosion resistance thanks to hot galvanized
• Good stability and maneuverability in industrial use

Uses:

• Controlled Emptying of Bidons
• Transfer of liquids or substances
• Handling of drums in industry and warehouses
• Positioning of drums in work areas
• Maintenance, production and storage operations
• Applications in humid or aggressive environments
