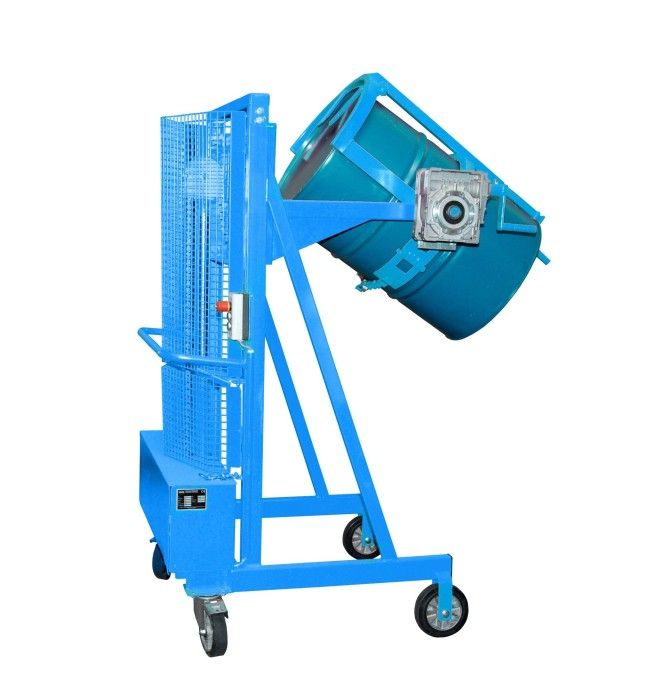

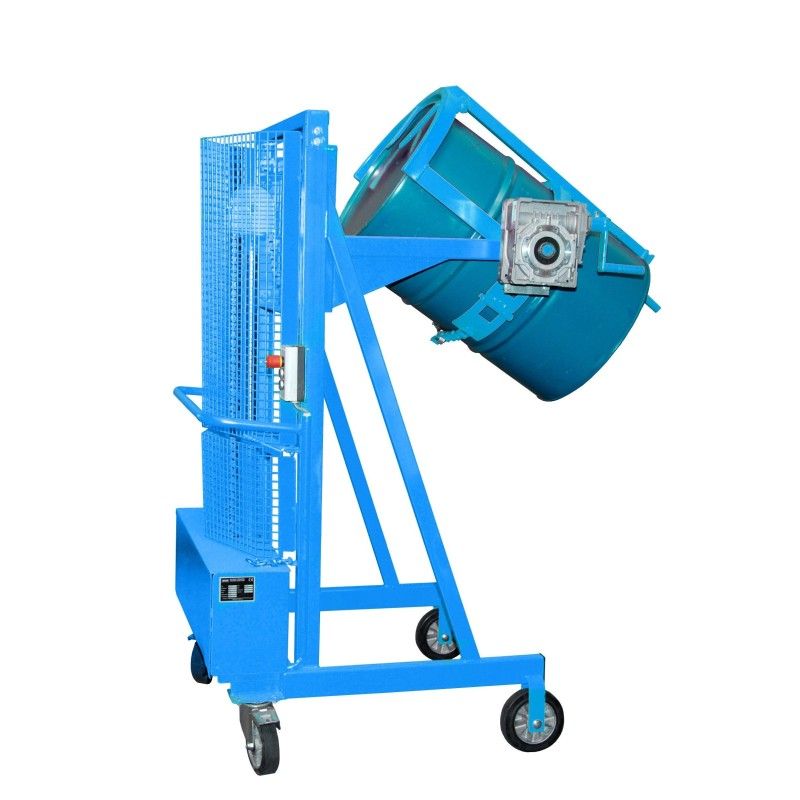

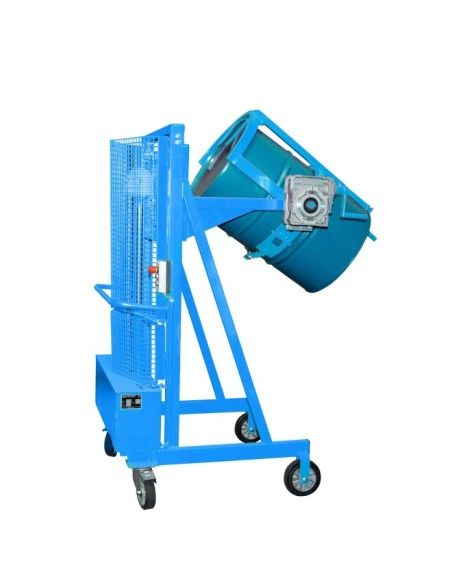

Semi-electric 350kg drum rotator stacker

The semi-electric drum rotating stacker is a robust and precise solution to raise, turn and empty controlled drums in industrial, logistics and storage environments. It is designed to facilitate secure handling manipulation during transfer, pouring and positioning operations, improving ergonomics and reducing operator effort.

This model is suitable for steel drums with plug, steel drums with lid, steel drums with rolling ring, plastic bays with L-ring, plastic drums and plastic drums with lid, Capabilities of 110 to 220 liters. Thanks to its front voltage and upper tension band holding system, it guarantees a firm and secure collection of the drum throughout the maneuver.

The equipment incorporates controlled rotation of up to 270º, driven by crank and self-gain gearbox, which allows a precise and stable emptying. It has 2 Ø 175mm rotating wheels and 2 fixed Ø 200mm solid rubber wheels, with brake on both rotating wheels. With a load capacity of 350kg, a lifting height of 1,100 mm and an emptying height of 1.300mm, is a professional solution for intensive drum manipulation.

Featured features:

• Load capacity of 350kg
• For drums from 110 to 220 liters
• Lifting 1.100mm
• Emptying height of 1.300mm
• Controlled turn up to 270º
• Front tension band and top spindle
• Crank with self-gain gearbox
• 2 rotating wheels with brake
• 2 Solid rubber fixed wheels
• Ideal solution for drum controlled drums

Advantages:

• Allows you to raise, turn and empty drums more safely
• It facilitates a controlled and precise emptying
• Compatible with different types of drums
• Reduces manual effort in manipulation
• It offers a firm clamping throughout the maneuver
• Good stability and maneuverability in industrial use
• Robust solution for demanding work

Uses:

• Controlled Emptying of Bidons
• Transfer of liquids or substances
• Handling of drums in industry and warehouses
• Positioning of drums in work areas
• Maintenance, production and storage operations
