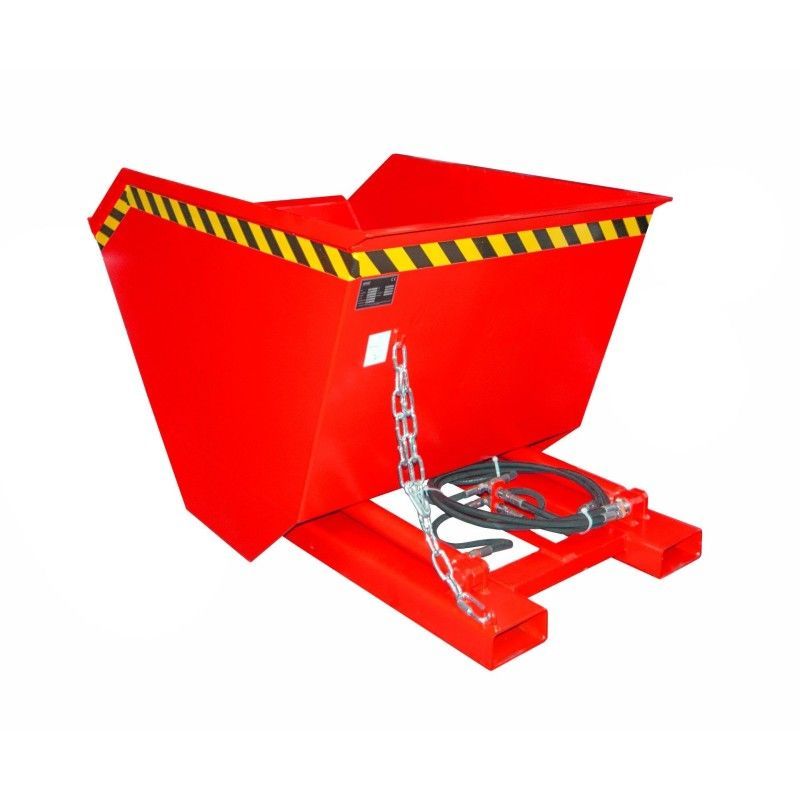

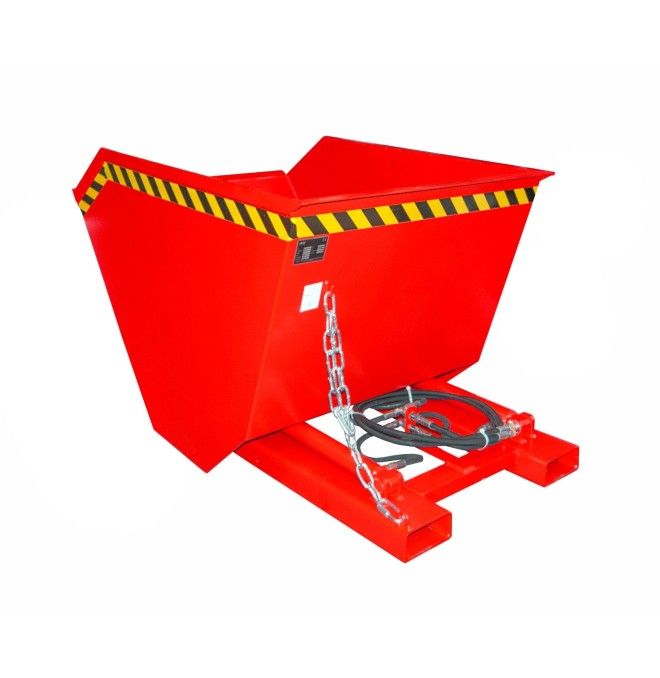

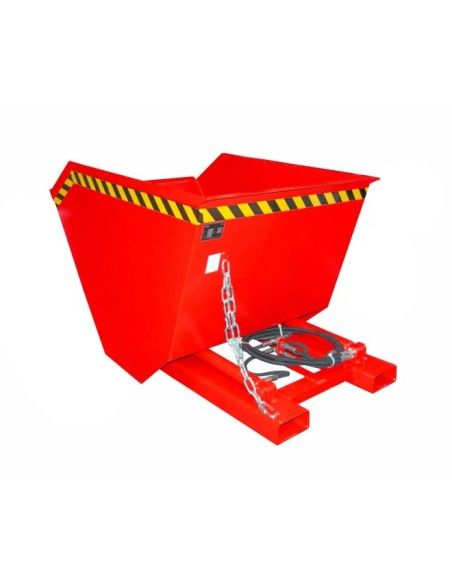

Pala, painted, Red fire
m500001667
€4,225.00
4.225,00 € (tax incl.)
Hydraulic two-cylinder blade for the controlled emptying of materials in industrial environments. Facilitates the handling of loads by forklift Trucks In the logistics sector.
- Charging capacity: Supports up to 1600.0 kg with a load volume of 0.8 cubcic meters.
- Pockets for forks: Open end entry with distance between 420.0 mm cavities for coupling.
- Hydraulic system: Two-cylinder mechanism for a movement controlled forward and backward.
- Structural robustness: Special steel body with protective trim designed for intensive use.
2-cylinder hydraulic blade for controlled emptying
Attributes
- Robust structure and shovel with special steel protection embellisher
- Movement controlled (back and forward)
- Hydraulic vacuum (operated by the hydraulic system of the forklift)
- Simple collection: inserting forks
- It can be secured to avoid slips.
- Total length (mm)
- 1705.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 310.0
- GTIN (Previous EAN)
- 4052462050365.0
- Mounting status for dispatch
- assembly
- load capacity
- 1600.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 3000 Red fire
- cod
- RAL 3000
- type of collection
- pockets for forks
- distance between forks (mm)
- 420.0
- inner width fork cavities (mm)
- 160.0
- inner height fork cavities (mm)
- 65.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 1345.0
- open/closed fork cavities
- Open end
- Total height (mm)
- 925.0
- Width (mm)
- 1030.0
- Color
- red flame
- volume in M³
- 0.8
- body width of container (mm)
- 1000.0
- jump body height (mm)
- 925.0
- length jumping body (mm)
- 1352.0
- position of load hook (02) (mm)
- 1510.0
New
4052462050365
