Pala, painted, Red fire
m500001657
€3,495.00
3.495,00 € (tax incl.)

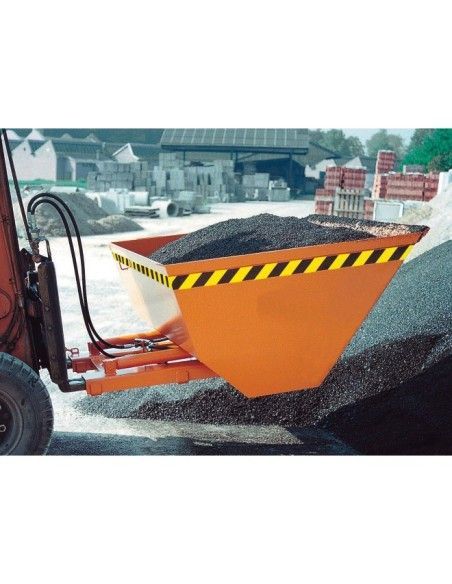

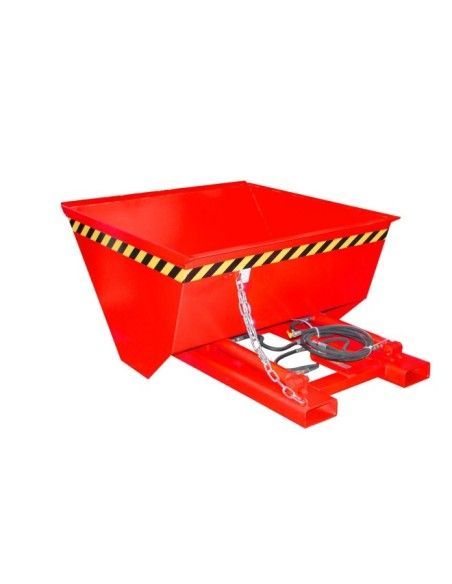

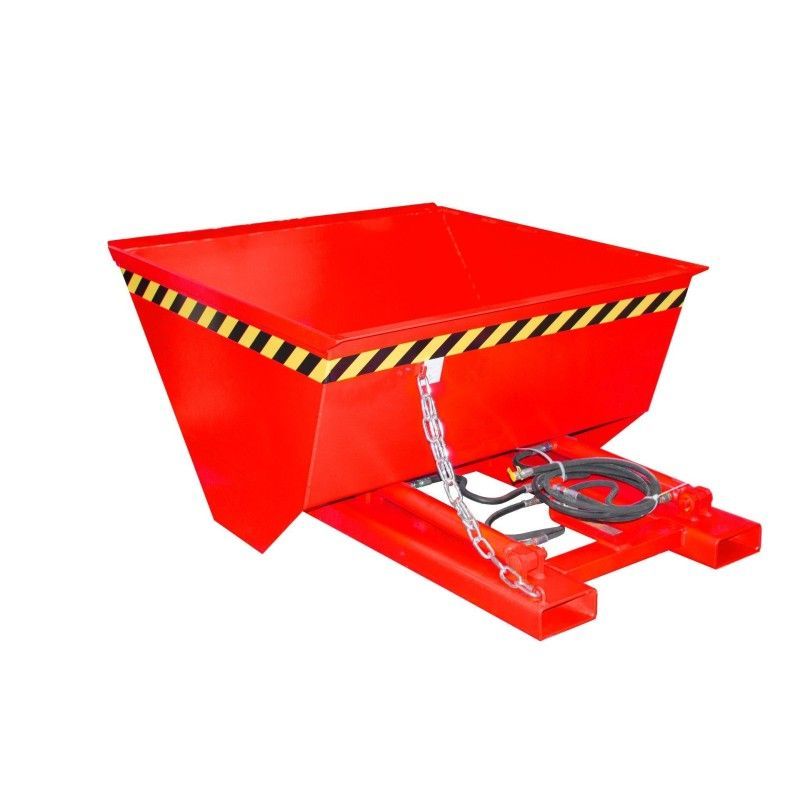

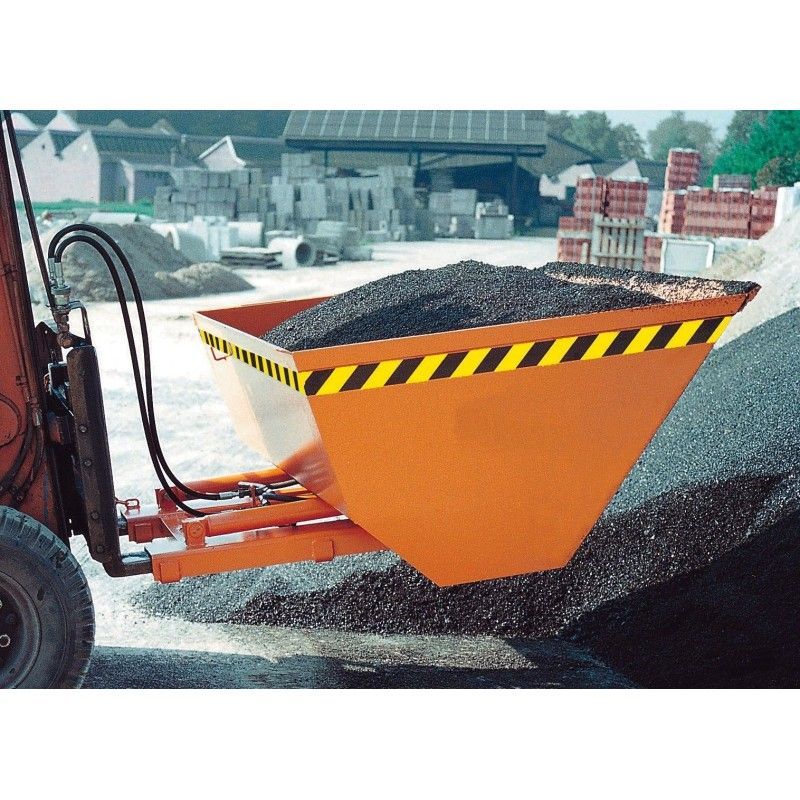

Hydraulic shovel for forklift Designed for the controlled emptying of materials in industrial environments. It allows the handling of heavy loads by direct hydraulic actuating.
- Charging capacity: Supports up to 1600 kg with a load volume of 0.5 cubic meters.
- Hydraulic Drive: Two-cylinder system for a movement controlled forward and backward.
- Steel structure: Robust chassis painted in RAL 3000 red with special protection trim.
- Insert pockets: Input for forks with distance of 420 mm for secure fixation.
2-cylinder hydraulic blade for controlled emptying
Attributes
- Robust structure and shovel with special steel protection embellisher
- Movement controlled (back and forward)
- Hydraulic vacuum (operated by the hydraulic system of the forklift)
- Simple collection: inserting forks
- It can be secured to avoid slips.
- Total length (mm)
- 1645.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 275.0
- GTIN (Previous EAN)
- 4052462018877.0
- Mounting status for dispatch
- assembly
- load capacity
- 1600.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 3000 Red fire
- cod
- RAL 3000
- type of collection
- pockets for forks
- distance between forks (mm)
- 420.0
- inner width fork cavities (mm)
- 160.0
- inner height fork cavities (mm)
- 65.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 1260.0
- open/closed fork cavities
- Open end
- Total height (mm)
- 680.0
- Width (mm)
- 1230.0
- Color
- red flame
- volume in M³
- 0.5
- body width of container (mm)
- 1200.0
- jump body height (mm)
- 680.0
- length jumping body (mm)
- 1106.0
- position of load hook (02) (mm)
- 1375.0
