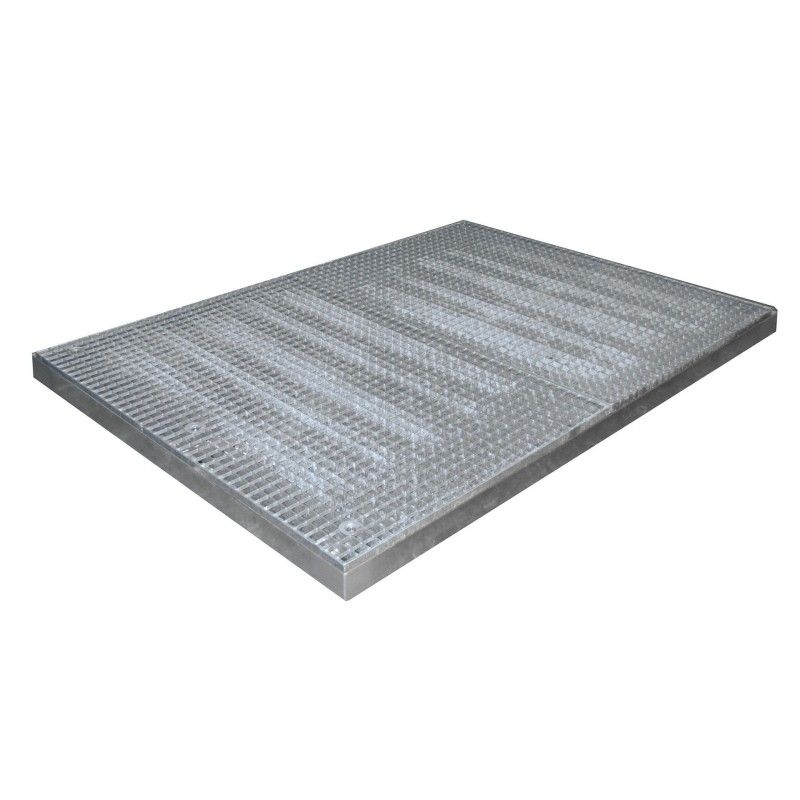

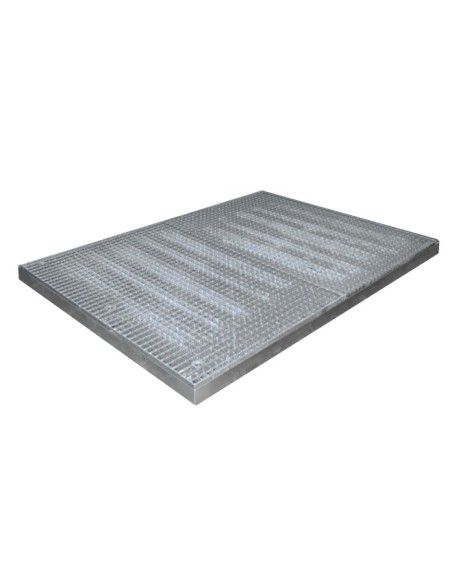

Bandeja derrames de protección de suelo, galvanized
m500001391
€849.00
849,00 € (tax incl.)

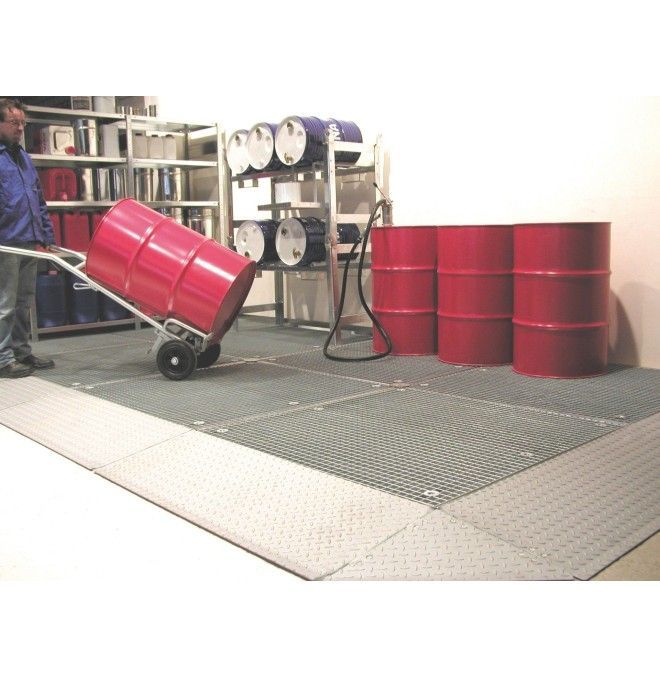

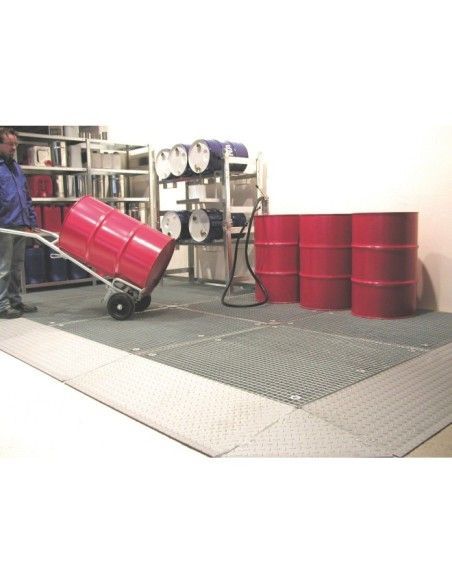

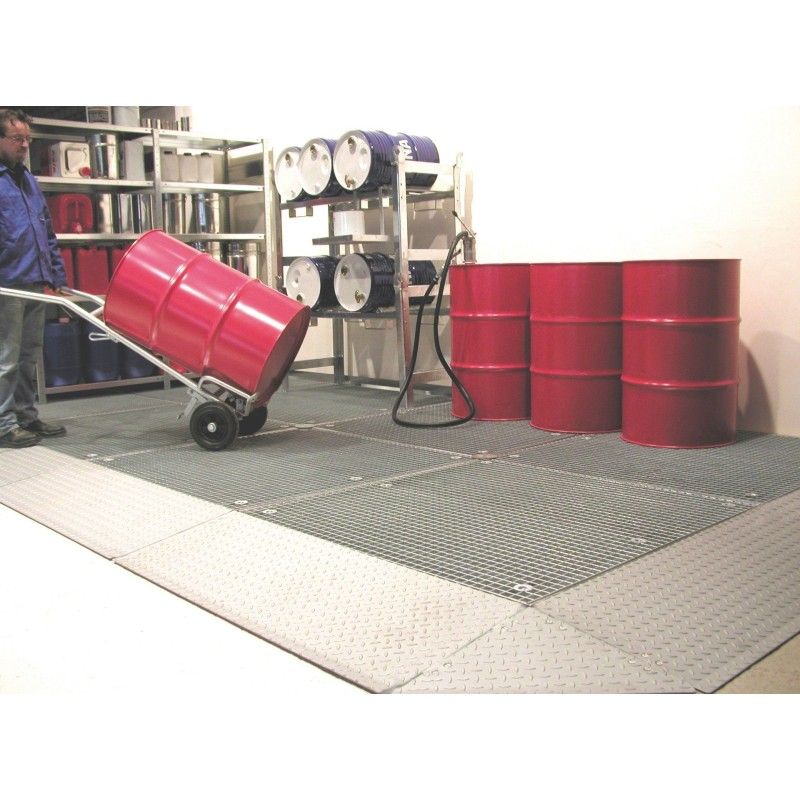

Galvanized Soil Protection Spill Tray for Storage and Filling Dangerous Substances in Industrial Environments with Transit pallet Trucks and forklift Trucks.
- Charging capacity: Supports a surface load of 5000 kg / m² and wheel load of 500 kg.
- DIBT Certification: Approved under DIBT Normative Z-38.5-102 to store flammable liquids and harmful substances.
- Retention capacity: Collection volume of 118 liters with a structure of 1900 mm wide.
- Modular design: Galvanized steel structure with a transitable 78 mm height by ramps.
Storm-protecting spools for storage and filling; driving
Attributes
- Max surface load. 5000kg/m2
- Max wheel load. 500 kg
- Accessible for pallet Trucks and forklift Trucks
- Modular design, choose between:
- Access ramps Type AR
- Access corners Type AE
- Cross-shaped connectors type KV , galvanized
- Tray connector strip type WV , galvanized
- Height of construction 78 mm, with galvanized grid
- Has a National Technical Approval of DIBt, Berlin
- Approved for flammable liquids assigned to GHS 1 - 3 categories
- Approved for hazardous substances for the aquatic environment assigned to the GHS categories 1 - 4
- can be stacked
- Not
- Finish
- galvanized
- Weight (kg)
- 160.0
- GTIN (Previous EAN)
- 4052462016552.0
- Mounting status for dispatch
- assembly
- load capacity
- 5000.0
- charging capacity per unit of measurement
- kg/m2
- Total height (mm)
- 78.0
- Width (mm)
- 1900.0
- retention capacity (l) (Germany)
- 118.0
- measured retention capacity to the edge of the sink (l)
- 190.0
- grid
- grid
- suitable for drums and small cans.
- for small boats and boats
- dIBt approval
- Z-38.5-102 DIBt
- Depth (mm)
- 1350.0
- wheel load (kg)
- 500.0
