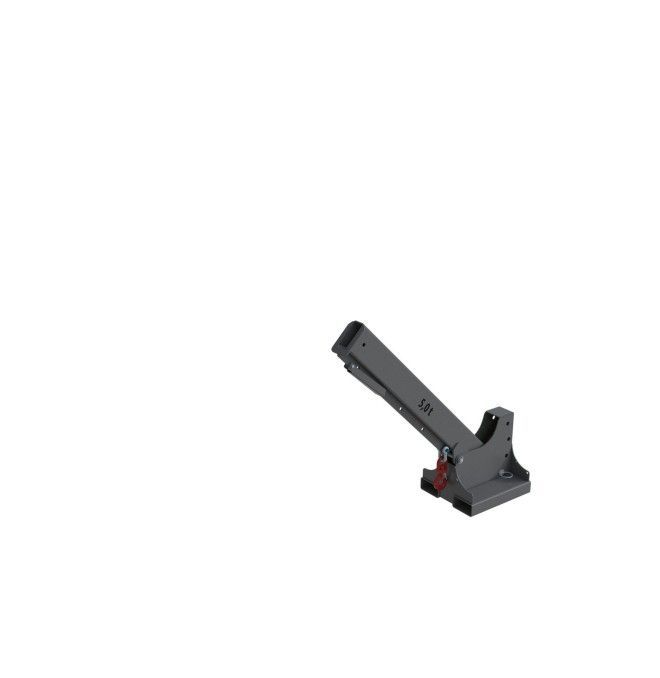

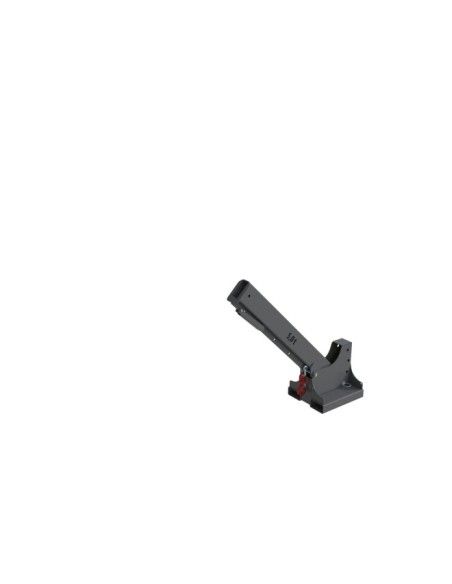

Arms crane extensible, painted, gray mouse
m500000996
€1,964.00
1.964,00 € (tax incl.)
Arm crane extendable for forklift Trucks Designed to expand lifting scope and facilitate the handling of suspended loads in industrial environments and logistics sector.
- Charging capacity: It supports from 5000 kg to 1950 kg according to the position of the loading hook.
- Operational Safety: System insured by chain to avoid slips with height blocking by pins.
- Working angle: It allows a selection of three inclination angles at 15 °, 30 ° or 45 °.
- Link: Pockets for forks with internal width of 184 mm and inner height of 84 mm.
An arm of crane extendable increases the scope of the forklift
Attributes
- Chain-insured to avoid slips.
- Variable working height, blocked in position by a pin
- A selection of 3 angles: 15°, 30° or 45°
- 1 rotary hook; 5 possible positions
- Construction fixed length
- Total length (mm)
- 2050.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 184.0
- GTIN (Previous EAN)
- 4052462066717.0
- Mounting status for dispatch
- assembly
- load capacity
- 5000.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 7005 gray mouse
- cod
- RAL 7005
- type of collection
- pockets for forks
- distance between forks (mm)
- 166.0
- inner width fork cavities (mm)
- 184.0
- inner height fork cavities (mm)
- 84.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 695.0
- open/closed fork cavities
- total length
- Total height (mm)
- 600.0
- Width (mm)
- 550.0
- Color
- grey mouse
- position of load hook (02) (mm)
- 990.0
- Position of load hook (03) (mm)
- 1285.0
- position of load hook (04) (mm)
- 1580.0
- position of load hook (05) (mm)
- 1825.0
- load capacity (02)
- 3550.0
- load capacity (03)
- 2750.0
- load capacity (04)
- 2250.0
- load capacity (05)
- 1950.0
New
4052462066717
