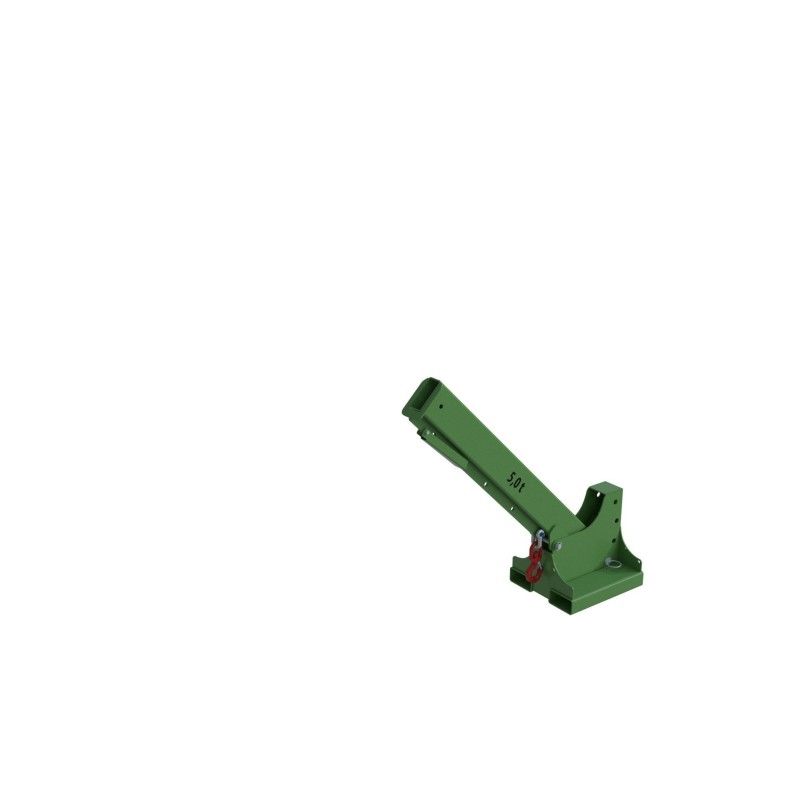

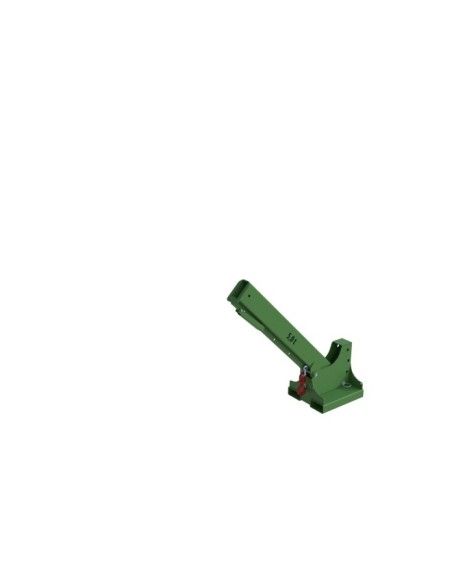

Arms Crane Extensible, painted, green
m500000995
€1,964.00
1.964,00 € (tax incl.)
Arm crane extendable for forklift Trucks Designed to expand the operating range in the handling of heavy loads. It facilitates the safe elevation in warehouses and industrial environments.
- Charging capacity: It supports up to 5000 kg in the first position of the rotating hook.
- Integrated security: High strength safety chain to avoid sliding of the forks.
- Working angle: Variable configuration blocked by pin in positions of 15, 30 or 45 degrees.
- Fork coupling: Input pockets with distance of 166 mm for fast fixation.
An arm of crane extendable increases the scope of the forklift
Attributes
- Chain-insured to avoid slips.
- Variable working height, blocked in position by a pin
- A selection of 3 angles: 15°, 30° or 45°
- 1 rotary hook; 5 possible positions
- Construction fixed length
- Total length (mm)
- 2050.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 184.0
- GTIN (Previous EAN)
- 4052462066700.0
- Mounting status for dispatch
- assembly
- load capacity
- 5000.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 6011 green reseda
- cod
- RAL 6011
- type of collection
- pockets for forks
- distance between forks (mm)
- 166.0
- inner width fork cavities (mm)
- 184.0
- inner height fork cavities (mm)
- 84.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 695.0
- open/closed fork cavities
- total length
- Total height (mm)
- 600.0
- Width (mm)
- 550.0
- Color
- green
- position of load hook (02) (mm)
- 990.0
- Position of load hook (03) (mm)
- 1285.0
- position of load hook (04) (mm)
- 1580.0
- position of load hook (05) (mm)
- 1825.0
- load capacity (02)
- 3550.0
- load capacity (03)
- 2750.0
- load capacity (04)
- 2250.0
- load capacity (05)
- 1950.0
New
4052462066700
