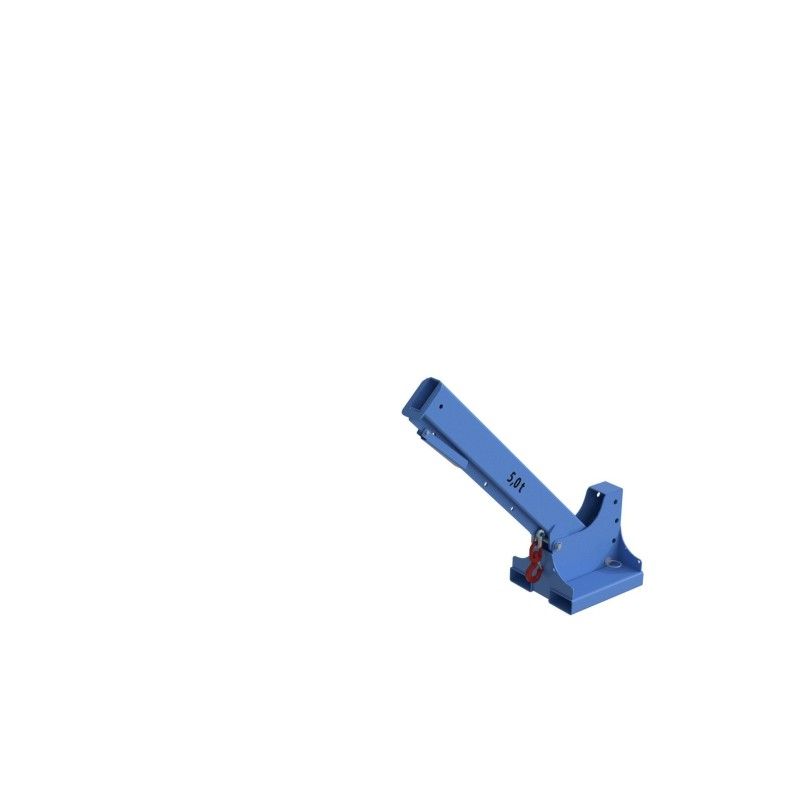

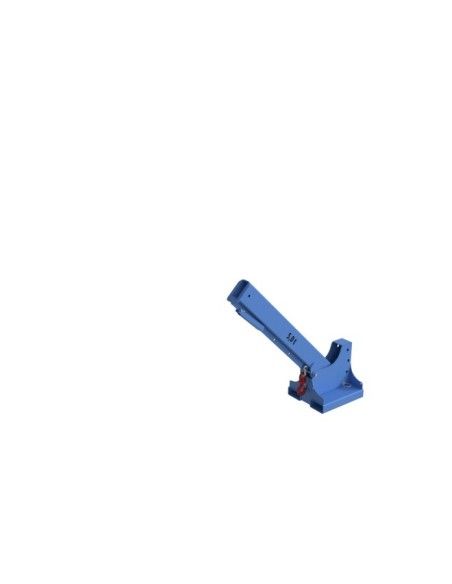

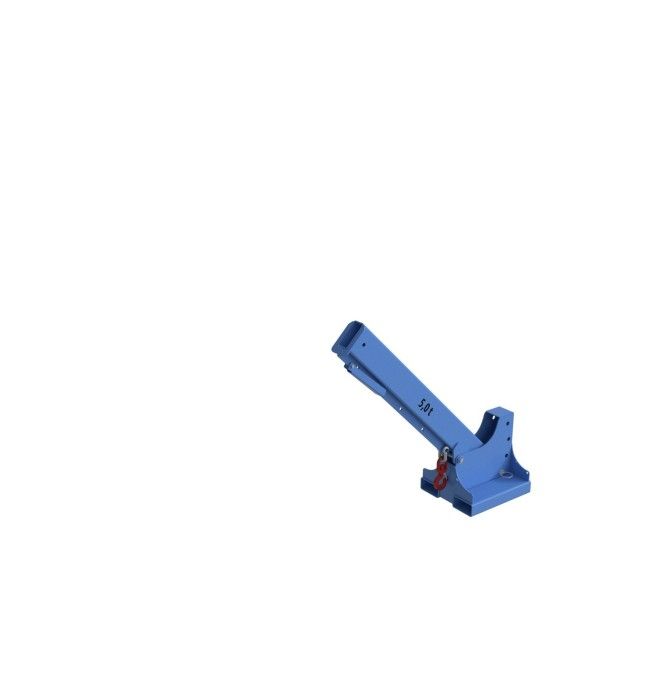

Arms Crane Extensible, painted, Light Blue
m500000994
€1,964.00
1.964,00 € (tax incl.)
Arm crane extendable for forklift Trucks Designed to expand the scope and lifting of heavy loads in warehouses and industrial environments. It allows the handling of suspended loads safely.
- Charging capacity: It supports up to 5000 kg with five adjustable hook positions according to the required distance.
- Integrated security: It has a chain assurance system to avoid slipping from the forks.
- Working angle: It allows a variable inclination of fifteen, thirty or forty-five degrees by pins.
- Link: Pockets for forks with distance of 166 mm designed for a quick and stable installation.
An arm of crane extendable increases the scope of the forklift
Attributes
- Chain-insured to avoid slips.
- Variable working height, blocked in position by a pin
- A selection of 3 angles: 15°, 30° or 45°
- 1 rotary hook; 5 possible positions
- Construction fixed length
- Total length (mm)
- 2050.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 184.0
- GTIN (Previous EAN)
- 4052462066694.0
- Mounting status for dispatch
- assembly
- load capacity
- 5000.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 5012 Light Blue
- cod
- RAL 5012
- type of collection
- pockets for forks
- distance between forks (mm)
- 166.0
- inner width fork cavities (mm)
- 184.0
- inner height fork cavities (mm)
- 84.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 695.0
- open/closed fork cavities
- total length
- Total height (mm)
- 600.0
- Width (mm)
- 550.0
- Color
- blue
- position of load hook (02) (mm)
- 990.0
- Position of load hook (03) (mm)
- 1285.0
- position of load hook (04) (mm)
- 1580.0
- position of load hook (05) (mm)
- 1825.0
- load capacity (02)
- 3550.0
- load capacity (03)
- 2750.0
- load capacity (04)
- 2250.0
- load capacity (05)
- 1950.0
New
4052462066694
