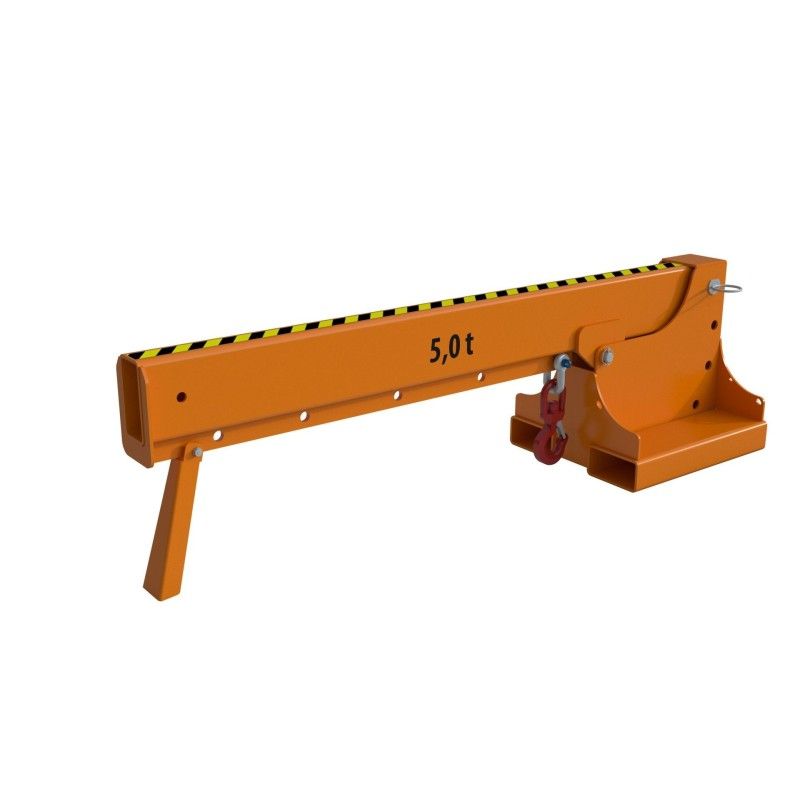

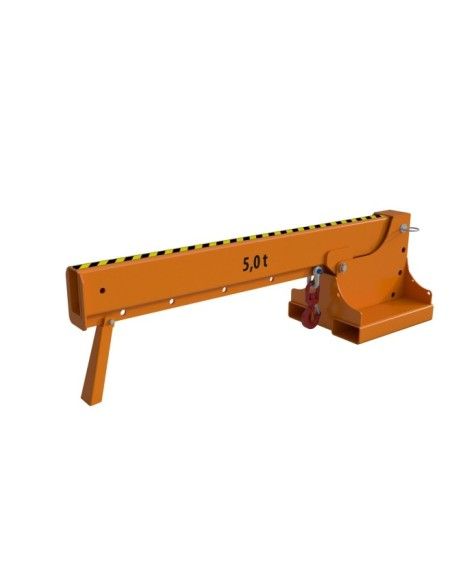

Arms Crane Extensible, painted, Orange Yellow
m500000992
€1,964.00
1.964,00 € (tax incl.)
Arm crane extendable for forklift Trucks Designed to expand lifting scope in the handling of heavy loads. Its structure allows adapting the height of work in industrial environments and warehouses.
- Charging capacity: It supports up to 5000 kg with five rotary hook positions for intensive use.
- Angle of inclination: It allows a selection of three angles of 15, 30 or 45 degrees.
- Fixation security: Secured by chain to avoid slips and ensure stability during handling.
- Collection pockets: Cavities of fork 184 mm wide and 84 mm height for coupling.
An arm of crane extendable increases the scope of the forklift
Attributes
- Chain-insured to avoid slips.
- Variable working height, blocked in position by a pin
- A selection of 3 angles: 15°, 30° or 45°
- 1 rotary hook; 5 possible positions
- Construction fixed length
- Total length (mm)
- 2050.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 184.0
- GTIN (Previous EAN)
- 4052462066540.0
- Mounting status for dispatch
- assembly
- load capacity
- 5000.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 2000 Orange yellow
- cod
- RAL 2000
- type of collection
- pockets for forks
- distance between forks (mm)
- 166.0
- inner width fork cavities (mm)
- 184.0
- inner height fork cavities (mm)
- 84.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 695.0
- open/closed fork cavities
- total length
- Total height (mm)
- 600.0
- Width (mm)
- 550.0
- Color
- orange
- position of load hook (02) (mm)
- 990.0
- Position of load hook (03) (mm)
- 1285.0
- position of load hook (04) (mm)
- 1580.0
- position of load hook (05) (mm)
- 1825.0
- load capacity (02)
- 3550.0
- load capacity (03)
- 2750.0
- load capacity (04)
- 2250.0
- load capacity (05)
- 1950.0
