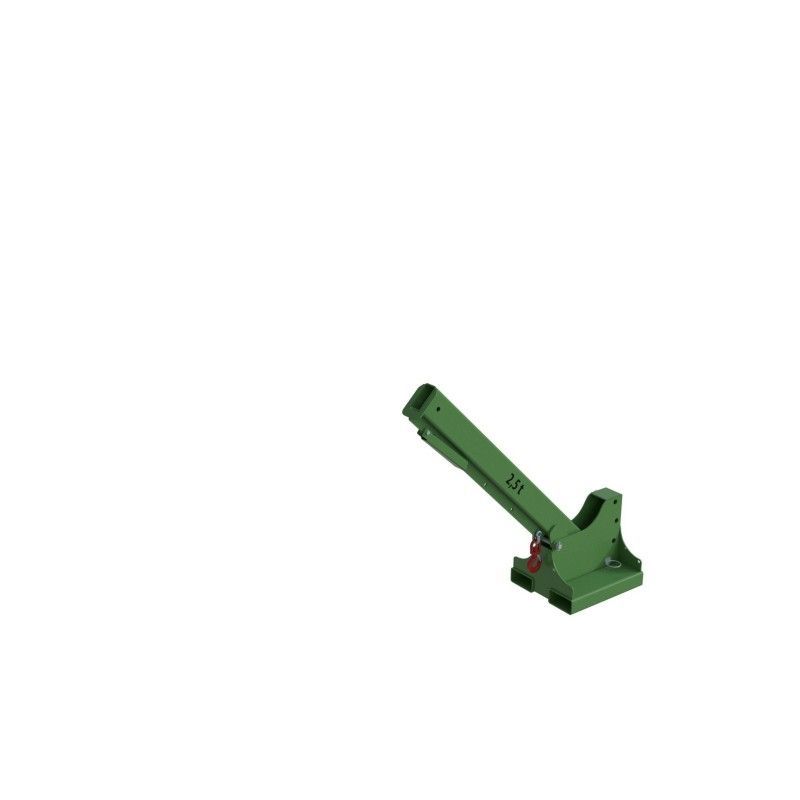

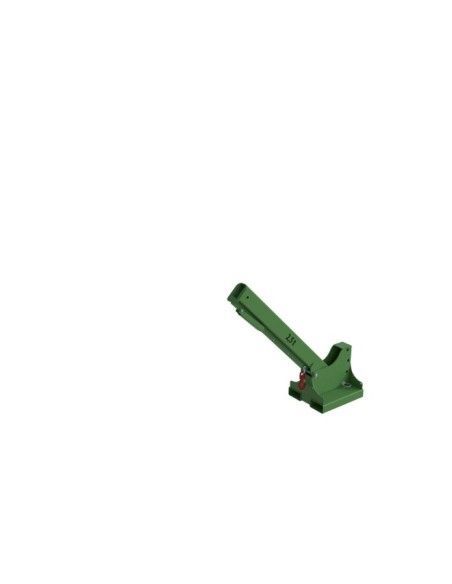

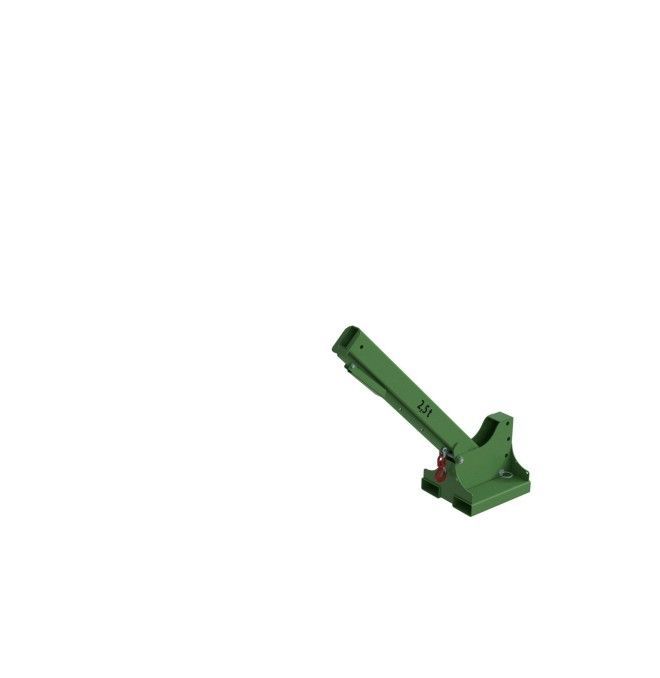

Arms Crane Extensible, painted, green
m500000989
€1,740.00
1.740,00 € (tax incl.)
Arm crane extendable for forklift Trucks Designed to expand lifting range in warehouses and industrial environments. It allows the handling of heavy loads by means of an adjustable positioning system.
- Charging capacity: It supports up to 2500 kg in initial positions and reduces 1400 kg in maximum extension.
- Integrated security: High strength safety chain to avoid accidental sliding of the forks.
- Working angle: Three inclination positions at 15, 30 and 45 degrees blocked by a pin.
- Pockets for forks: Cavities of 184 by 84 millimeters with intermediate distance of 156 millimeters for coupling.
An arm of crane extendable increases the scope of the forklift
Attributes
- Chain-insured to avoid slips.
- Variable working height, blocked in position by a pin
- A selection of 3 angles: 15°, 30° or 45°
- 1 rotary hook; 5 possible positions
- Construction fixed length
- Total length (mm)
- 2050.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 160.0
- GTIN (Previous EAN)
- 4052462066663.0
- Mounting status for dispatch
- assembly
- load capacity
- 2500.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 6011 green reseda
- cod
- RAL 6011
- type of collection
- pockets for forks
- distance between forks (mm)
- 156.0
- inner width fork cavities (mm)
- 184.0
- inner height fork cavities (mm)
- 84.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 695.0
- open/closed fork cavities
- total length
- Total height (mm)
- 560.0
- Width (mm)
- 540.0
- Color
- green
- position of load hook (02) (mm)
- 990.0
- Position of load hook (03) (mm)
- 1285.0
- position of load hook (04) (mm)
- 1580.0
- position of load hook (05) (mm)
- 1825.0
- load capacity (02)
- 2500.0
- load capacity (03)
- 2500.0
- load capacity (04)
- 1800.0
- load capacity (05)
- 1400.0
