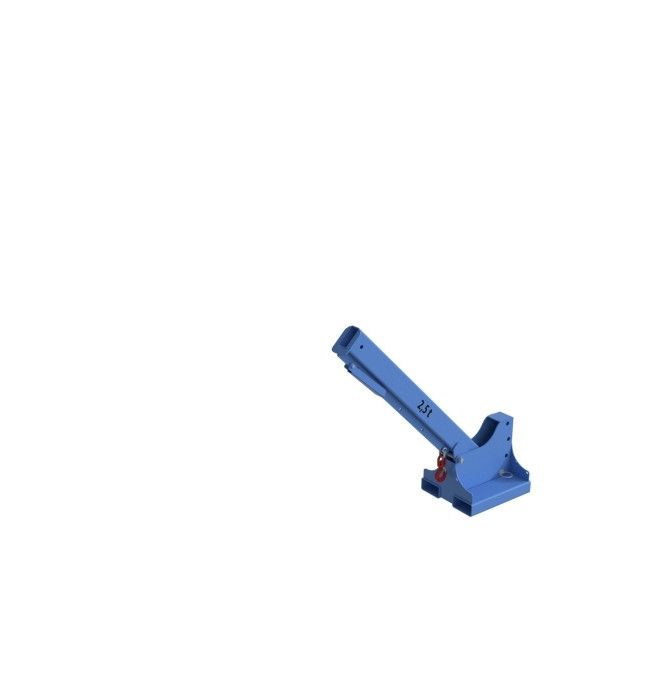

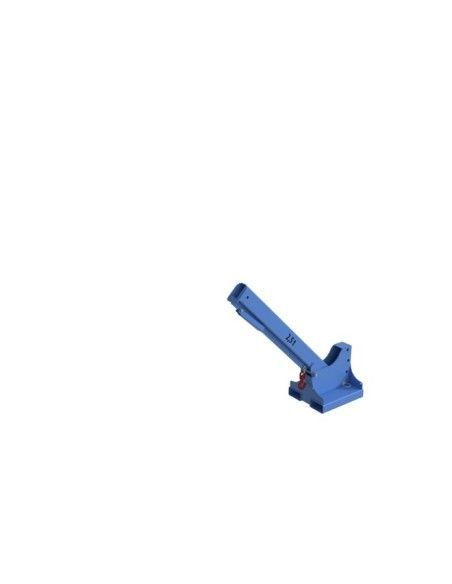

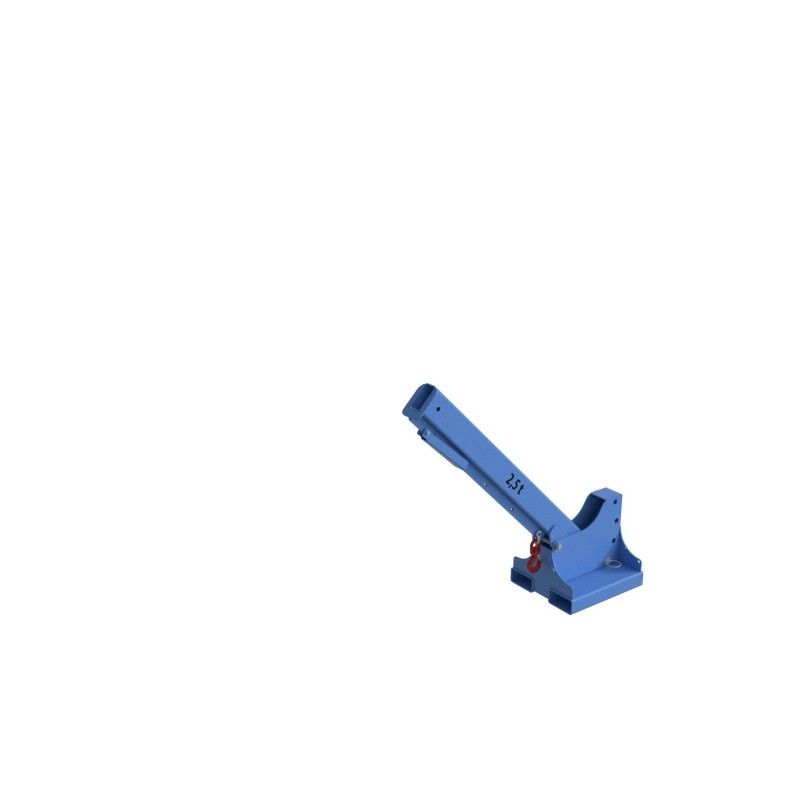

Arms Crane Extensible, painted, Light Blue
m500000988
€1,740.00
1.740,00 € (tax incl.)
Arm crane extendable for forklift Trucks Designed to expand the scope and handling of suspended loads in warehouses and industrial environments. It allows safe elevation in the logistics sector.
- Charging capacity: It supports up to 2500 kg with variations according to the position of the rotating hook.
- Pockets for forks: Narrow-based entry with internal dimensions of 184x84 mm for direct coupling.
- Working angles: Adjustable configuration in three positions of 15, 30 and 45 degrees of inclination.
- Integrated security: High strength retention chain to avoid accidental sliding of the forks.
An arm of crane extendable increases the scope of the forklift
Attributes
- Chain-insured to avoid slips.
- Variable working height, blocked in position by a pin
- A selection of 3 angles: 15°, 30° or 45°
- 1 rotary hook; 5 possible positions
- Construction fixed length
- Total length (mm)
- 2050.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 160.0
- GTIN (Previous EAN)
- 4052462066656.0
- Mounting status for dispatch
- assembly
- load capacity
- 2500.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 5012 Light Blue
- cod
- RAL 5012
- type of collection
- pockets for forks
- distance between forks (mm)
- 156.0
- inner width fork cavities (mm)
- 184.0
- inner height fork cavities (mm)
- 84.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 695.0
- open/closed fork cavities
- total length
- Total height (mm)
- 560.0
- Width (mm)
- 540.0
- Color
- blue
- position of load hook (02) (mm)
- 990.0
- Position of load hook (03) (mm)
- 1285.0
- position of load hook (04) (mm)
- 1580.0
- position of load hook (05) (mm)
- 1825.0
- load capacity (02)
- 2500.0
- load capacity (03)
- 2500.0
- load capacity (04)
- 1800.0
- load capacity (05)
- 1400.0
New
4052462066656
