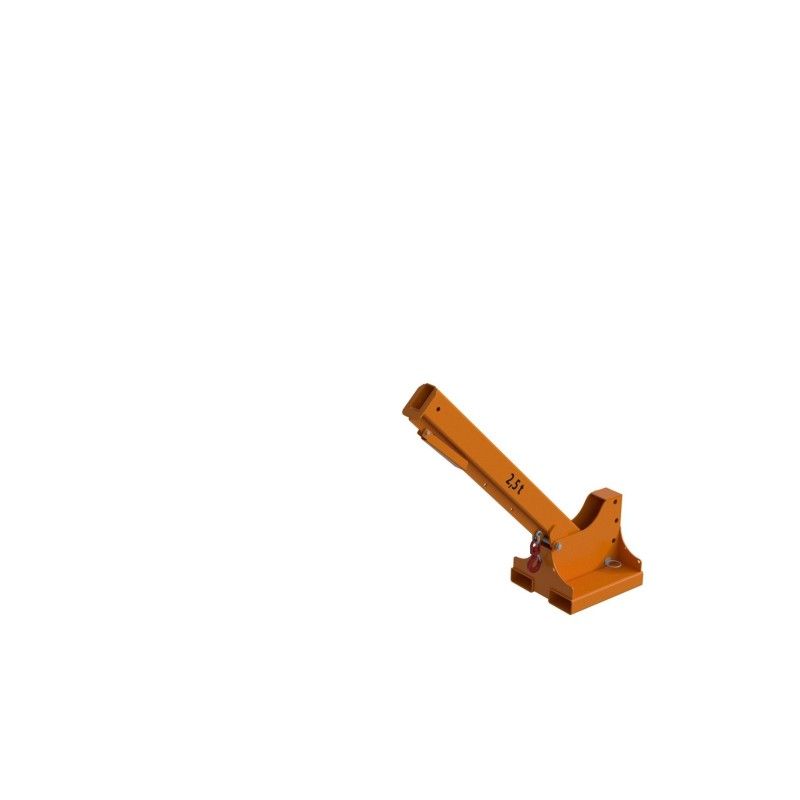

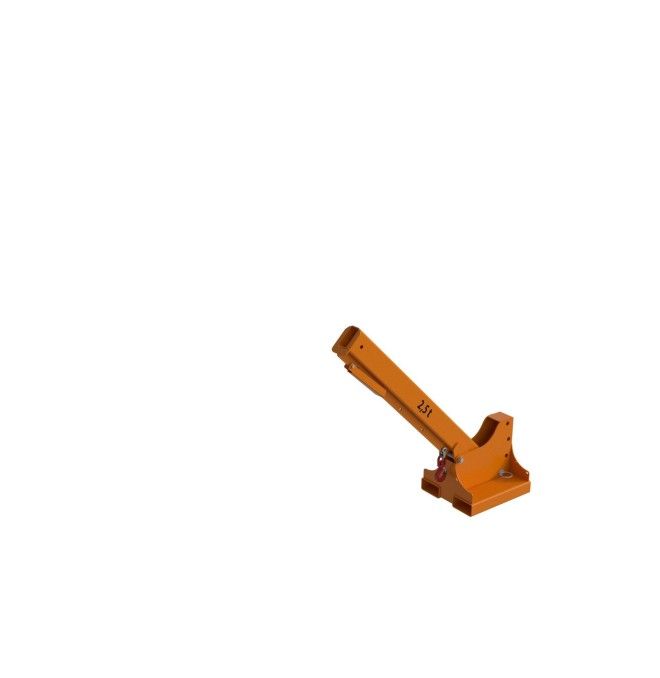

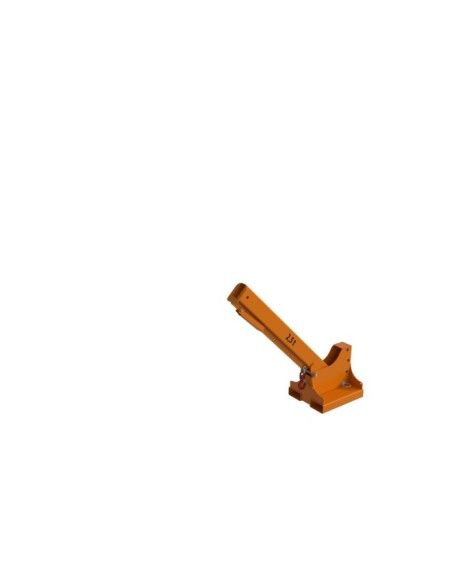

Arms Crane Extensible, painted, Orange Yellow
m500000986
€1,740.00
1.740,00 € (tax incl.)
Arm crane extendable for forklift Trucks Designed to increase the scope of lifting and handling of charges in warehouses and industrial environments of intensive use.
- Charging capacity: It supports up to 2500 kg with five hook positions for loading loads.
- Integrated security: Steel chain to avoid accidental slides of the forks in the logistics sector.
- Working angle: Three adjustable tilt positions at 15, 30 and 45 degrees by a pin.
- Dimensions of coupling: Cavities for forks of 184 by 84 millimeters that facilitate direct installation.
An arm of crane extendable increases the scope of the forklift
Attributes
- Chain-insured to avoid slips.
- Variable working height, blocked in position by a pin
- A selection of 3 angles: 15°, 30° or 45°
- 1 rotary hook; 5 possible positions
- Construction fixed length
- Total length (mm)
- 2050.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 160.0
- GTIN (Previous EAN)
- 4052462066526.0
- Mounting status for dispatch
- assembly
- load capacity
- 2500.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 2000 Orange yellow
- cod
- RAL 2000
- type of collection
- pockets for forks
- distance between forks (mm)
- 156.0
- inner width fork cavities (mm)
- 184.0
- inner height fork cavities (mm)
- 84.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 695.0
- open/closed fork cavities
- total length
- Total height (mm)
- 560.0
- Width (mm)
- 540.0
- Color
- orange
- position of load hook (02) (mm)
- 990.0
- Position of load hook (03) (mm)
- 1285.0
- position of load hook (04) (mm)
- 1580.0
- position of load hook (05) (mm)
- 1825.0
- load capacity (02)
- 2500.0
- load capacity (03)
- 2500.0
- load capacity (04)
- 1800.0
- load capacity (05)
- 1400.0
New
4052462066526
