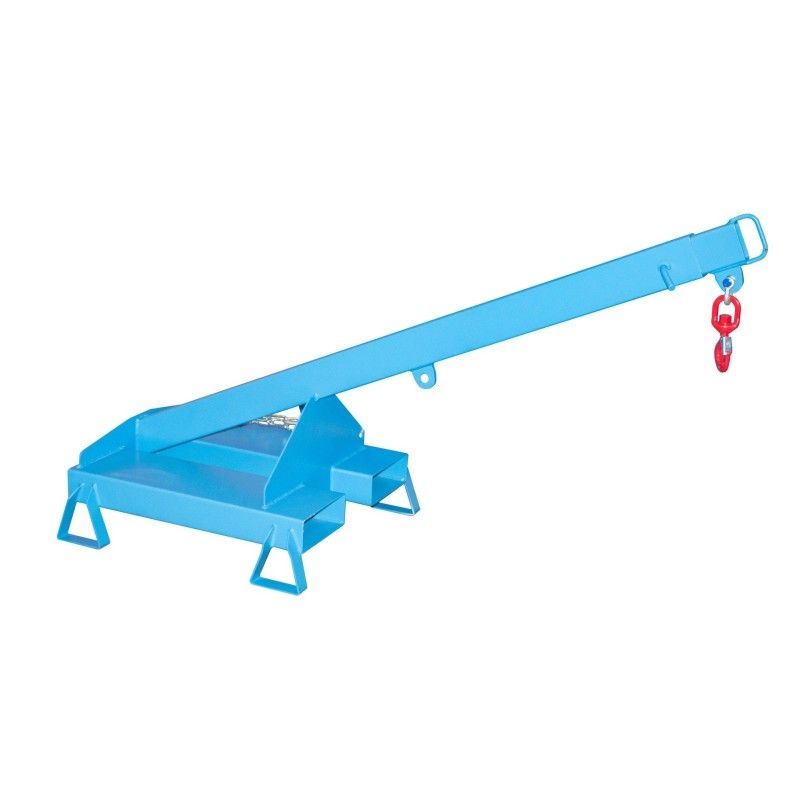

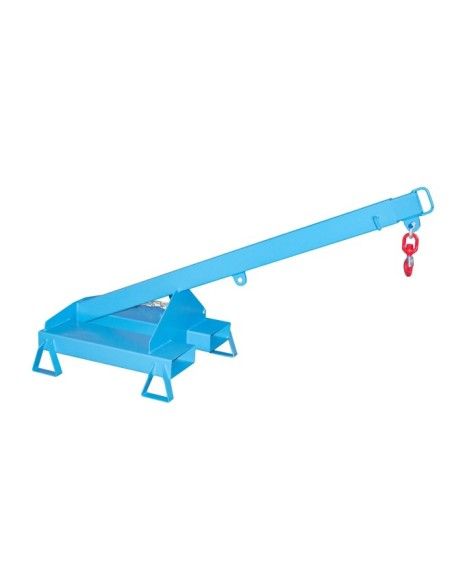

Charge arm, painted, Light blue
m500000982
€876.00
876,00 € (tax incl.)
Steel load arm designed to expand the scope of forklift Trucks in the handling of suspended loads. It facilitates the safe elevation in warehouses and industrial environments of the logistics sector.
- Charging capacity: It supports up to 1000 kg in the initial position and 125 kg at 2500 mm.
- Steel structure: Construction Robust with safety chain to avoid slippers during industrial use.
- Sleeves fork: 220x80 mm input pockets designed for collection with forklift Trucks.
- Extendable arm: Adjustable system with tilt of 25 degrees and fixation by means of a safety pin.
A load arm increases the reach of the forklift
Attributes
- Construction steel
- Manguitos fork for collection by forklift
- Also suitable for stackers portico
- Chain-insured to avoid slips.
- 1 rotary hook
- Inclination 25°
- Extensible, can be fixed at each position through the supplied pin
- Support legs, 100 mm floor manoeuvre margin
- Total length (mm)
- 1675.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 59.0
- GTIN (Previous EAN)
- 4052462012950.0
- Mounting status for dispatch
- assembly
- load capacity
- 1000.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 5012 Light Blue
- cod
- RAL 5012
- type of collection
- pockets for forks
- distance between forks (mm)
- 160.0
- inner width fork cavities (mm)
- 220.0
- inner height fork cavities (mm)
- 80.0
- pick-up address
- along (low narrow)
- position of the loading hook (mm)
- 875.0
- open/closed fork cavities
- total length
- Total height (mm)
- 1005.0
- Width (mm)
- 690.0
- Color
- blue
- position of load hook (02) (mm)
- 1600.0
- Position of load hook (03) (mm)
- 1780.0
- position of load hook (04) (mm)
- 1960.0
- position of load hook (05) (mm)
- 2140.0
- load capacity (02)
- 300.0
- load capacity (03)
- 225.0
- load capacity (04)
- 200.0
- load capacity (05)
- 175.0
- position of load hook (06) (mm)
- 2320.0
- position of load hook (07) (mm)
- 2500.0
- load capacity (06)
- 150.0
- load capacity (07)
- 125.0
New
4052462012950
