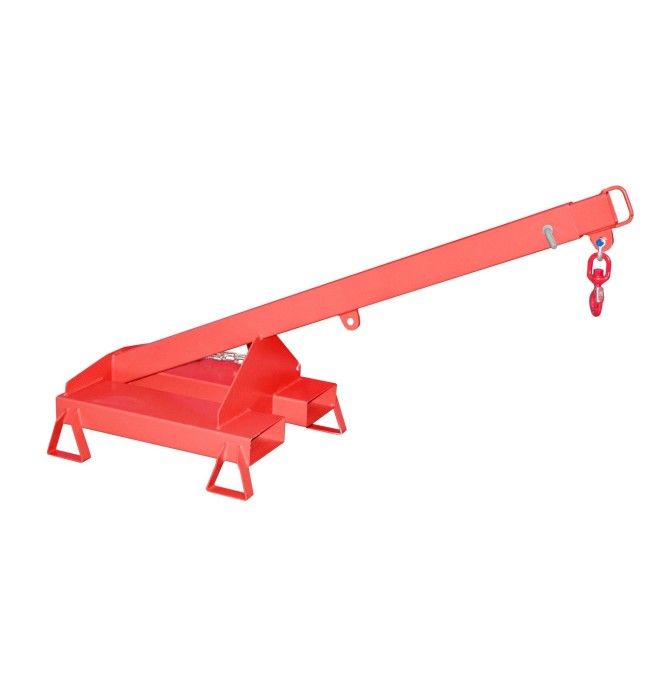

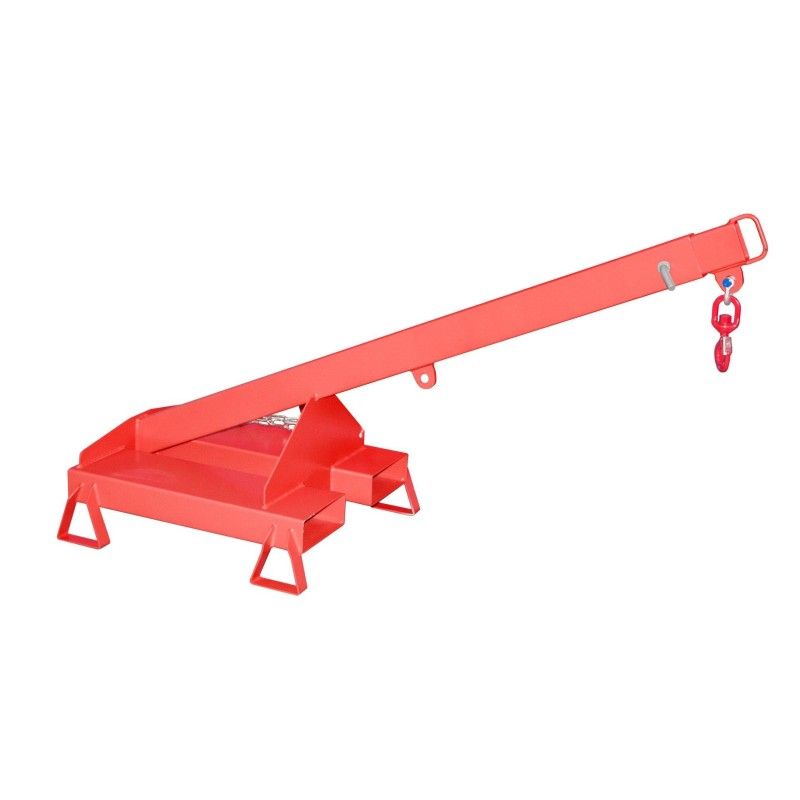

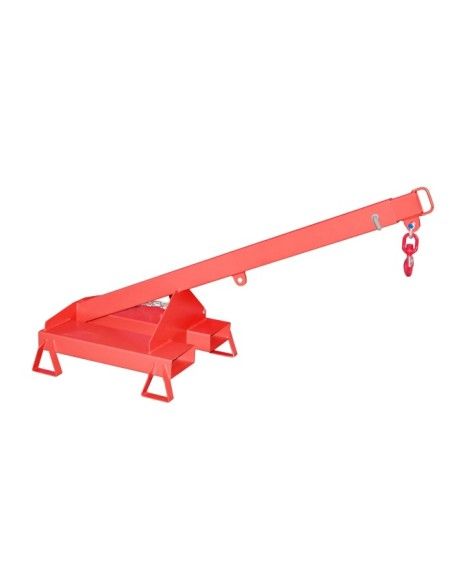

Cargo arm, painted, red fire
m500000981
€876.00
876,00 € (tax incl.)
Cargo arm forklift Trucks Designed to expand lifting scope in the handling of heavy loads. It facilitates the safe movement of goods in warehouses and industrial environments.
- Steel structure: Construction Robust with painted red 3000 fire wall for intensive use.
- Sleeves fork: 220x80 mm dimensional pockets with safety chain to avoid accidental slides.
- Charging capacity: It supports up to 1000 kg with adjustable hook positions by fixing pin.
- Rotary hook: System with fixed tilt of 25 degrees to facilitate elevation at different angles.
A load arm increases the reach of the forklift
Attributes
- Construction steel
- Manguitos fork for collection by forklift
- Also suitable for stackers portico
- Chain-insured to avoid slips.
- 1 rotary hook
- Inclination 25°
- Extensible, can be fixed at each position through the supplied pin
- Support legs, 100 mm floor manoeuvre margin
- Total length (mm)
- 1675.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 59.0
- GTIN (Previous EAN)
- 4052462012943.0
- Mounting status for dispatch
- assembly
- load capacity
- 1000.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 3000 Red fire
- cod
- RAL 3000
- type of collection
- pockets for forks
- distance between forks (mm)
- 160.0
- inner width fork cavities (mm)
- 220.0
- inner height fork cavities (mm)
- 80.0
- pick-up address
- along (low narrow)
- position of the loading hook (mm)
- 875.0
- open/closed fork cavities
- total length
- Total height (mm)
- 1005.0
- Width (mm)
- 690.0
- Color
- red flame
- position of load hook (02) (mm)
- 1600.0
- Position of load hook (03) (mm)
- 1780.0
- position of load hook (04) (mm)
- 1960.0
- position of load hook (05) (mm)
- 2140.0
- load capacity (02)
- 300.0
- load capacity (03)
- 225.0
- load capacity (04)
- 200.0
- load capacity (05)
- 175.0
- position of load hook (06) (mm)
- 2320.0
- position of load hook (07) (mm)
- 2500.0
- load capacity (06)
- 150.0
- load capacity (07)
- 125.0
New
4052462012943
