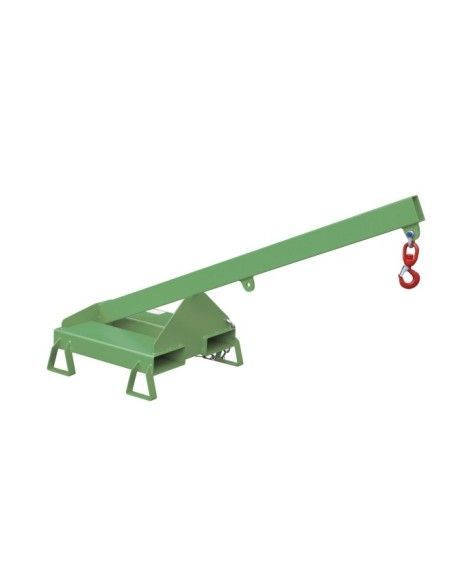

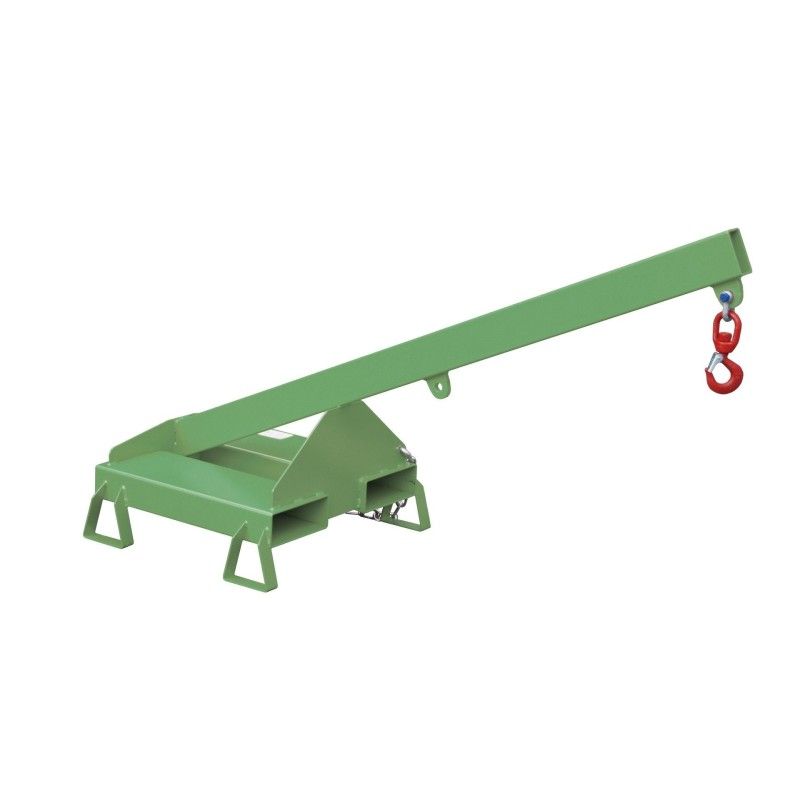

Charging arm, painted, green silk
m500000977
€753.00
753,00 € (tax incl.)
Steel load arm designed to expand the scope of forklift Trucks In manipulation of suspended loads within warehouses and industrial environments.
- Charging capacity: It supports 1000 kg at 875 mm away and 300 kg at 1600 mm.
- Operational Safety: Integrated security chain to avoid accidental sliding of the forks during transport.
- Sleeves fork: 220x80 mm cavities with distance of 160 mm for direct coupling in trucks.
- Rigid structure: Construction Steel painted in green RAL 6011 resigned with fixed tilt of 25 degrees.
A load arm increases the reach of the forklift
Attributes
- Construction steel
- Manguitos fork for collection by forklift
- Also suitable for stackers portico
- Chain-insured to avoid slips.
- 1 rotary hook
- Inclination 25°
- Construction rigid
- Support legs, 100 mm floor manoeuvre margin
- Total length (mm)
- 1635.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 51.0
- GTIN (Previous EAN)
- 4052462039278.0
- Mounting status for dispatch
- assembly
- load capacity
- 1000.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 6011 green reseda
- cod
- RAL 6011
- type of collection
- pockets for forks
- distance between forks (mm)
- 160.0
- inner width fork cavities (mm)
- 220.0
- inner height fork cavities (mm)
- 80.0
- pick-up address
- along (low narrow)
- position of the loading hook (mm)
- 875.0
- open/closed fork cavities
- total length
- Total height (mm)
- 985.0
- Width (mm)
- 690.0
- Color
- green
- position of load hook (02) (mm)
- 1600.0
- load capacity (02)
- 300.0
New
4052462039278
