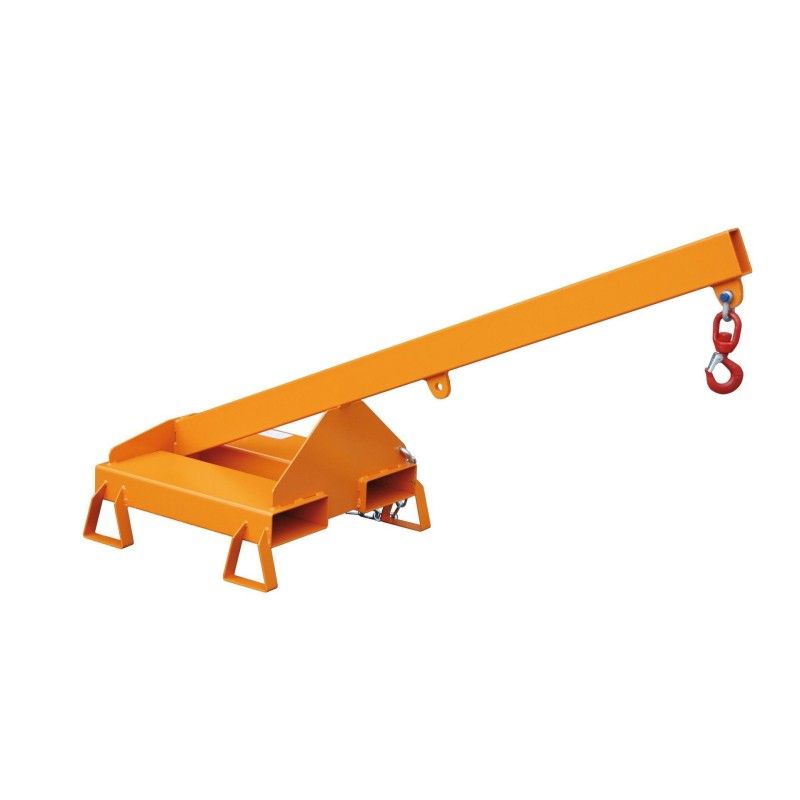

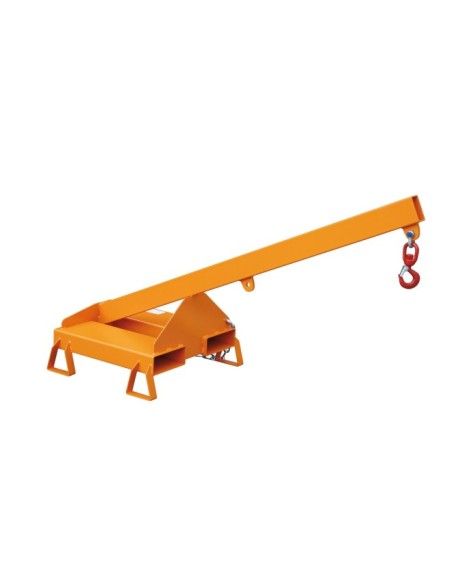

Charge bow, painted, Orange yellow
m500000974
€753.00
753,00 € (tax incl.)
Steel load arm designed to expand the scope of forklift Trucks In manipulation of suspended loads within warehouses and industrial environments.
- Charging capacity: It supports up to 1000 kg in the initial position and 300 kg in the extended position.
- Security system: Integrated retention chain to avoid accidental sliding of the forks.
- Construction Steel: Rigid structure with painted finish RAL 2000 for professional intensive use.
- Sleeves fork: 220x80 mm cavities with distance of 160 mm for quick coupling.
A load arm increases the reach of the forklift
Attributes
- Construction steel
- Manguitos fork for collection by forklift
- Also suitable for stackers portico
- Chain-insured to avoid slips.
- 1 rotary hook
- Inclination 25°
- Construction rigid
- Support legs, 100 mm floor manoeuvre margin
- Total length (mm)
- 1635.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 51.0
- GTIN (Previous EAN)
- 4052462012899.0
- Mounting status for dispatch
- assembly
- load capacity
- 1000.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 2000 Orange yellow
- cod
- RAL 2000
- type of collection
- pockets for forks
- distance between forks (mm)
- 160.0
- inner width fork cavities (mm)
- 220.0
- inner height fork cavities (mm)
- 80.0
- pick-up address
- along (low narrow)
- position of the loading hook (mm)
- 875.0
- open/closed fork cavities
- total length
- Total height (mm)
- 985.0
- Width (mm)
- 690.0
- Color
- orange
- position of load hook (02) (mm)
- 1600.0
- load capacity (02)
- 300.0
