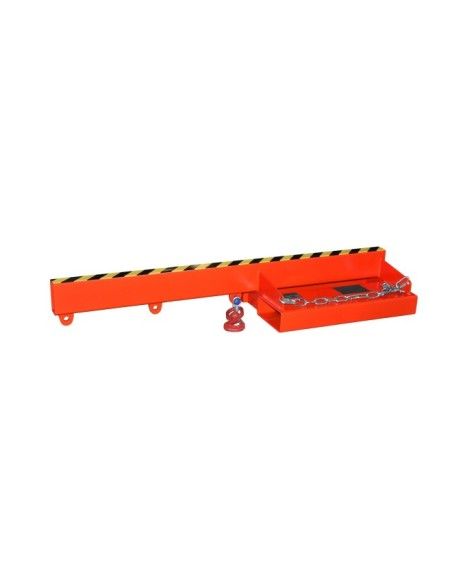

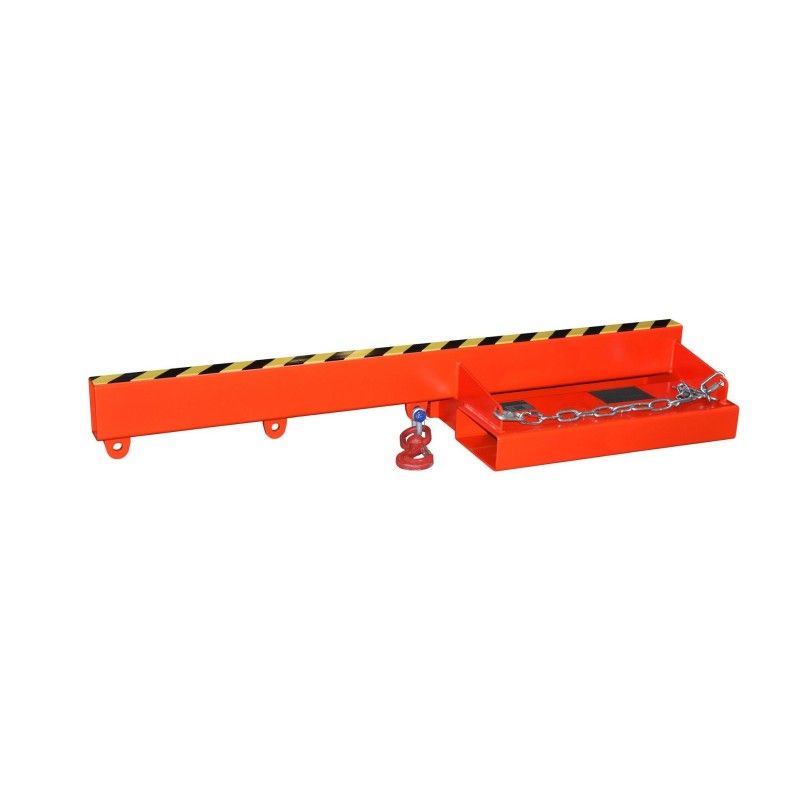

Cargo bow, painted, Red fire
m500000951
€894.00
894,00 € (tax incl.)
Cargo arm forklift Trucks Designed for the expansion of the operational scope and handling of loads in warehouses and industrial environments.
- Charging capacity: It supports up to 2500 kg in the initial position, reducing 850 kg and 500 kg in extended positions.
- Construction Steel: Rigid structure with finish painted in red 3000 RAL fire for high strength and integrated protection.
- Sleeves fork: 220x80 mm forks pockets with distance of 160 mm secured by chain to avoid slips.
- Rotary hook: It incorporates a loading hook with fixation positions at 780 mm, 1165 mm and 1550 mm.
A load arm increases the reach of the forklift
Attributes
- Construction steel
- Manguitos fork for collection by forklift
- Also suitable for stackers portico
- Chain-insured to avoid slips.
- 1 rotary hook
- Construction rigid
- Total length (mm)
- 1600.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 79.0
- GTIN (Previous EAN)
- 4052462012783.0
- Mounting status for dispatch
- assembly
- load capacity
- 2500.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 3000 Red fire
- cod
- RAL 3000
- type of collection
- pockets for forks
- distance between forks (mm)
- 160.0
- inner width fork cavities (mm)
- 220.0
- inner height fork cavities (mm)
- 80.0
- pick-up address
- along (low narrow)
- position of the loading hook (mm)
- 780.0
- open/closed fork cavities
- total length
- Total height (mm)
- 410.0
- Width (mm)
- 615.0
- Color
- red flame
- position of load hook (02) (mm)
- 1165.0
- Position of load hook (03) (mm)
- 1550.0
- load capacity (02)
- 850.0
- load capacity (03)
- 500.0
New
4052462012783
