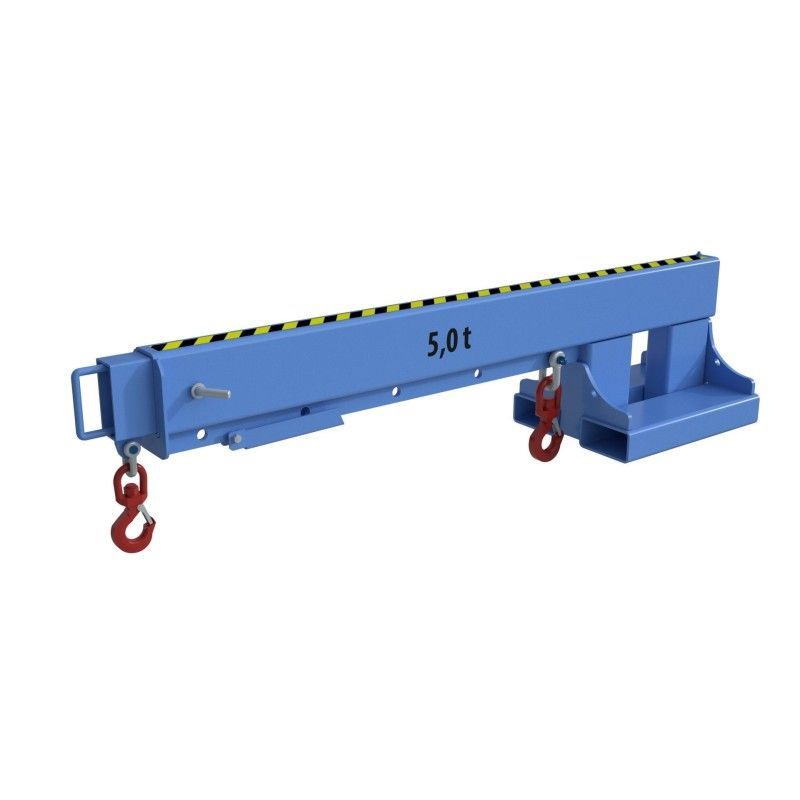

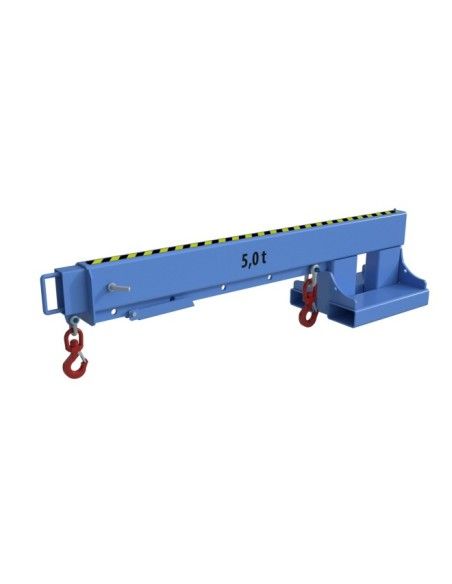

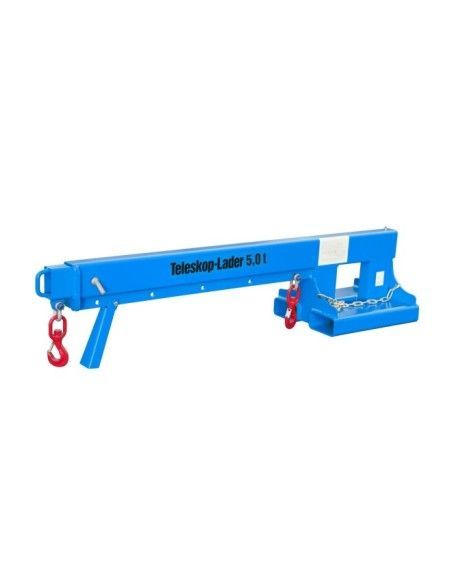

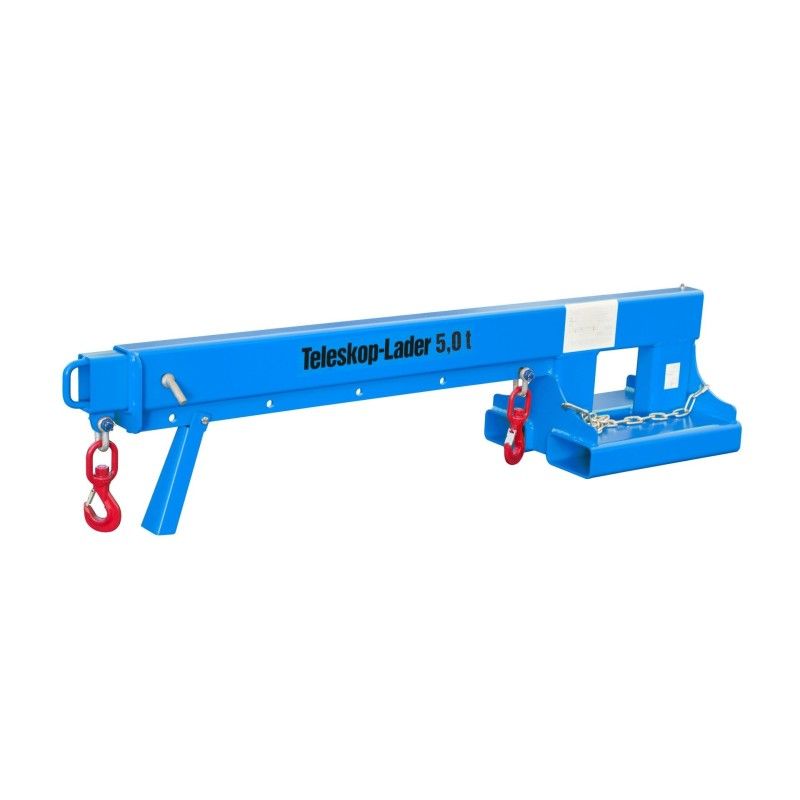

Arms Crane Extensible, painted, Light Blue
m500000934
€2,037.00
2.037,00 € (tax incl.)
Arm crane extendable for forklift Designed to increase the lifting scope and handling of suspended loads in warehouses and industrial environments from the logistics sector.
- Charging capacity: Supports up to 5000 kg with fourteen adjustment positions and eight extension steps.
- Steel structure: Construction High resistance rigid painted in RAL 5012 with integrated safety chain.
- Pockets for forks: Lower input of internal dimensions of 184x84 mm and distance between cavities of 116 mm.
- Rotary hooks: It incorporates two loading hooks for stable merchandise fastening during transport.
An arm of crane extendable increases the scope of the forklift
Attributes
- Construction steel
- Chain-insured to avoid slips.
- Construction rigid
- 2 rotary hooks; 14 possible positions
- It can be extended in 8 steps to reach the total length; locked in position by a pin
- Total length (mm)
- 2160.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 210.0
- GTIN (Previous EAN)
- 4052462012691.0
- Mounting status for dispatch
- assembly
- load capacity
- 5000.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 5012 Light Blue
- cod
- RAL 5012
- type of collection
- pockets for forks
- distance between forks (mm)
- 116.0
- inner width fork cavities (mm)
- 184.0
- inner height fork cavities (mm)
- 84.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 710.0
- open/closed fork cavities
- total length
- Total height (mm)
- 520.0
- Width (mm)
- 500.0
- Color
- blue
- position of load hook (02) (mm)
- 1000.0
- Position of load hook (03) (mm)
- 1290.0
- position of load hook (04) (mm)
- 1590.0
- position of load hook (05) (mm)
- 1870.0
- load capacity (02)
- 3550.0
- load capacity (03)
- 2750.0
- load capacity (04)
- 2250.0
- load capacity (05)
- 1950.0
- position of load hook (06) (mm)
- 2055.0
- position of load hook (07) (mm)
- 2255.0
- load capacity (06)
- 1700.0
- load capacity (07)
- 1550.0
- position of load hook (08) (mm)
- 2455.0
- position of load hook (09) (mm)
- 2655.0
- position of load hook (10) (mm)
- 2855.0
- position of load hook (11) (mm)
- 3055.0
- position of load hook (12) (mm)
- 3255.0
- position of load hook (13) (mm)
- 3455.0
- position of load hook (14) (mm)
- 3655.0
- load capacity (08)
- 1400.0
- load capacity (09)
- 1300.0
- load capacity (10)
- 1200.0
- load capacity (11)
- 1150.0
- load capacity (12)
- 1050.0
- load capacity (13)
- 1000.0
- load capacity (14)
- 950.0
New
4052462012691
