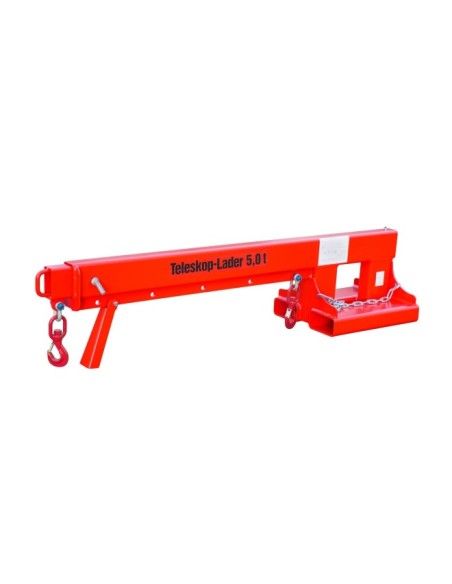

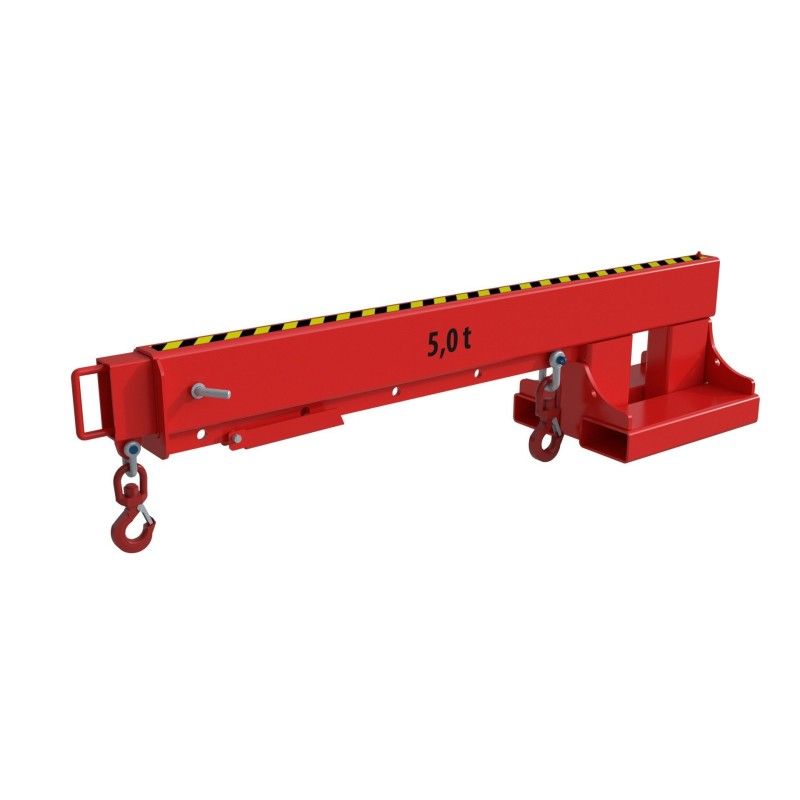

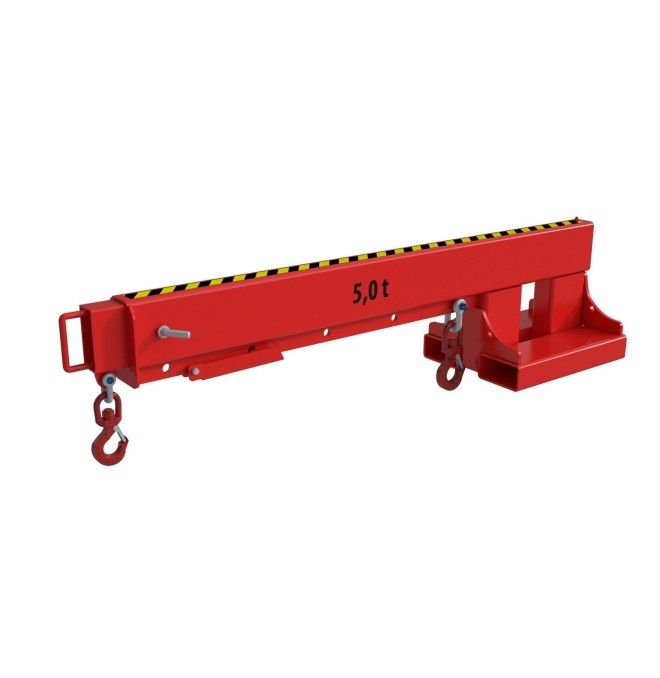

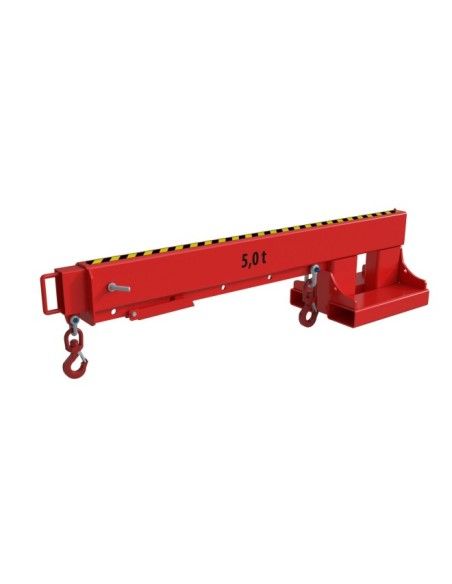

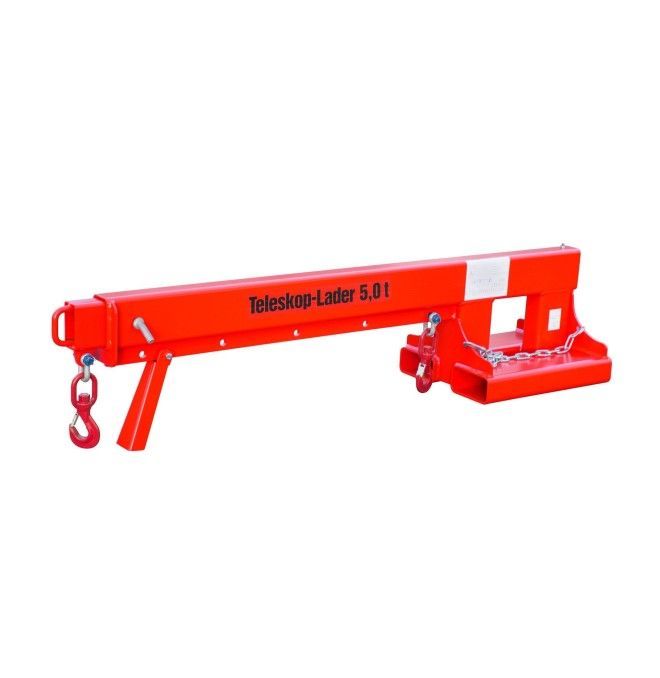

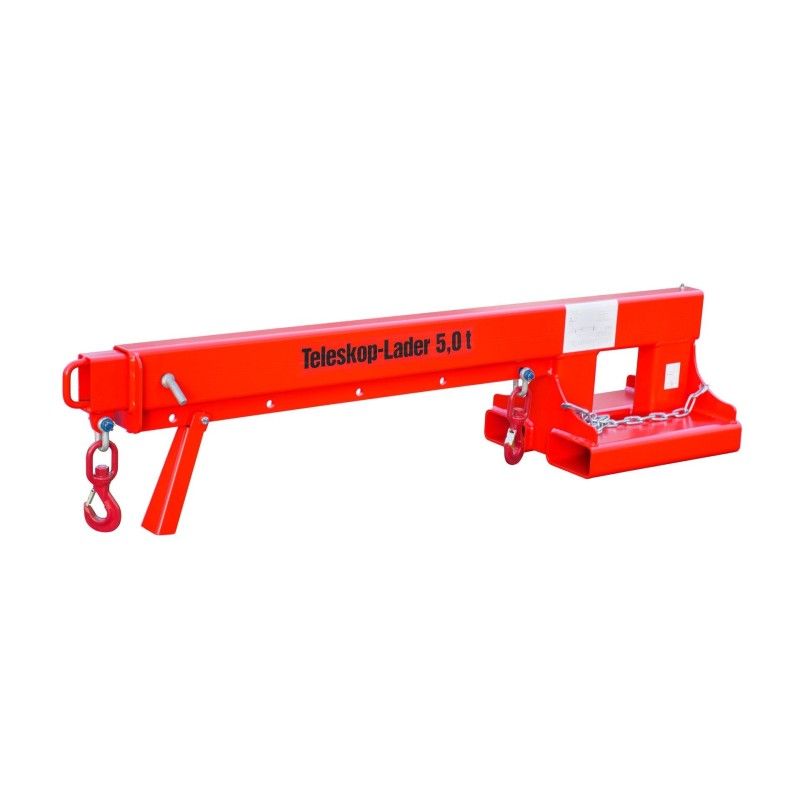

Arms Crane Extensible, painted, Red Fire
m500000933
€2,037.00
2.037,00 € (tax incl.)
Arm crane Extensible steel designed to increase the scope of forklift Trucks in the handling of suspended loads. It facilitates lifting operations in warehouses and industrial environments of the logistics sector.
- Charging capacity: It supports from 5000 kg in an initial position up to 950 kg in maximum extension.
- Hook positions: It has fourteen adjustment positions with two rotary hooks for accurate fixation.
- Security fixation: It incorporates a security chain to avoid accidental slides from the forks.
- Steel structure: Manufactured in steel with red painted RAL 3000 for high industrial resistance.
An arm of crane extendable increases the scope of the forklift
Attributes
- Construction steel
- Chain-insured to avoid slips.
- Construction rigid
- 2 rotary hooks; 14 possible positions
- It can be extended in 8 steps to reach the total length; locked in position by a pin
- Total length (mm)
- 2160.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 210.0
- GTIN (Previous EAN)
- 4052462012684.0
- Mounting status for dispatch
- assembly
- load capacity
- 5000.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 3000 Red fire
- cod
- RAL 3000
- type of collection
- pockets for forks
- distance between forks (mm)
- 116.0
- inner width fork cavities (mm)
- 184.0
- inner height fork cavities (mm)
- 84.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 710.0
- open/closed fork cavities
- total length
- Total height (mm)
- 520.0
- Width (mm)
- 500.0
- Color
- red flame
- position of load hook (02) (mm)
- 1000.0
- Position of load hook (03) (mm)
- 1290.0
- position of load hook (04) (mm)
- 1590.0
- position of load hook (05) (mm)
- 1870.0
- load capacity (02)
- 3550.0
- load capacity (03)
- 2750.0
- load capacity (04)
- 2250.0
- load capacity (05)
- 1950.0
- position of load hook (06) (mm)
- 2055.0
- position of load hook (07) (mm)
- 2255.0
- load capacity (06)
- 1700.0
- load capacity (07)
- 1550.0
- position of load hook (08) (mm)
- 2455.0
- position of load hook (09) (mm)
- 2655.0
- position of load hook (10) (mm)
- 2855.0
- position of load hook (11) (mm)
- 3055.0
- position of load hook (12) (mm)
- 3255.0
- position of load hook (13) (mm)
- 3455.0
- position of load hook (14) (mm)
- 3655.0
- load capacity (08)
- 1400.0
- load capacity (09)
- 1300.0
- load capacity (10)
- 1200.0
- load capacity (11)
- 1150.0
- load capacity (12)
- 1050.0
- load capacity (13)
- 1000.0
- load capacity (14)
- 950.0
New
4052462012684
