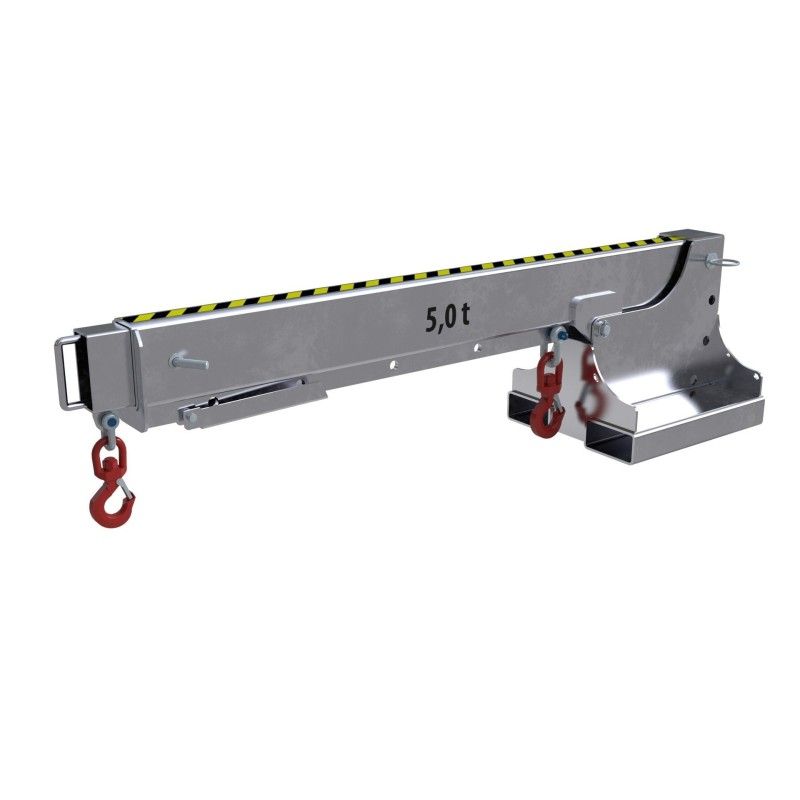

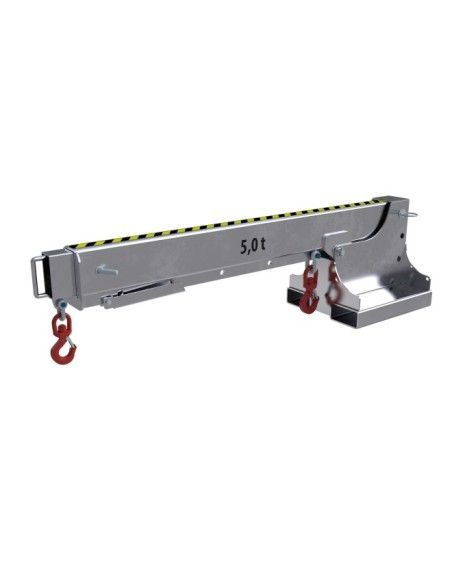

Arms crane extensible, hot galvanized
m500000931
€2,561.00
2.561,00 € (tax incl.)
Arm crane extendable for forklift Trucks Designed to expand the scope and handling of loads in industrial environments. It allows the elevation of goods by direct coupling on the forks.
- Charging capacity: It supports up to 5000 kg of maximum weight according to the position of the lifting hook.
- Working angle: It has three adjustable inclination positions at 15, 30 or 45 degrees.
- Galvanized finish: Steel structure with hot galvanized treatment for high strength and long service life.
- Pockets for forks: Entrance of 184 mm wide and 84 mm high with chain securing.
An arm of crane extendable increases the scope of the forklift
Attributes
- Construction steel
- Chain-insured to avoid slips.
- Variable working height, blocked in position by a pin
- A selection of 3 angles: 15°, 30° or 45°
- 2 rotary hooks; 14 possible positions
- It can be extended in 8 steps to reach the total length; locked in position by a pin
- Total length (mm)
- 2200.0
- can be stacked
- Not
- Finish
- hot galvanized
- Weight (kg)
- 253.0
- GTIN (Previous EAN)
- 4052462012660.0
- Mounting status for dispatch
- assembly
- load capacity
- 5000.0
- charging capacity per unit of measurement
- kg
- type of collection
- pockets for forks
- distance between forks (mm)
- 166.0
- inner width fork cavities (mm)
- 184.0
- inner height fork cavities (mm)
- 84.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 695.0
- open/closed fork cavities
- total length
- Total height (mm)
- 600.0
- Width (mm)
- 550.0
- position of load hook (02) (mm)
- 990.0
- Position of load hook (03) (mm)
- 1285.0
- position of load hook (04) (mm)
- 1580.0
- position of load hook (05) (mm)
- 1825.0
- load capacity (02)
- 3550.0
- load capacity (03)
- 2750.0
- load capacity (04)
- 2250.0
- load capacity (05)
- 1950.0
- position of load hook (06) (mm)
- 2090.0
- position of load hook (07) (mm)
- 2290.0
- load capacity (06)
- 1700.0
- load capacity (07)
- 1550.0
- position of load hook (08) (mm)
- 2490.0
- position of load hook (09) (mm)
- 2690.0
- position of load hook (10) (mm)
- 2890.0
- position of load hook (11) (mm)
- 3090.0
- position of load hook (12) (mm)
- 3290.0
- position of load hook (13) (mm)
- 3490.0
- position of load hook (14) (mm)
- 3690.0
- load capacity (08)
- 1400.0
- load capacity (09)
- 1300.0
- load capacity (10)
- 1200.0
- load capacity (11)
- 1150.0
- load capacity (12)
- 1050.0
- load capacity (13)
- 1000.0
- load capacity (14)
- 950.0
