Arms Crane Extensible, painted, Red Fire
m500000927
€2,232.00
2.232,00 € (tax incl.)

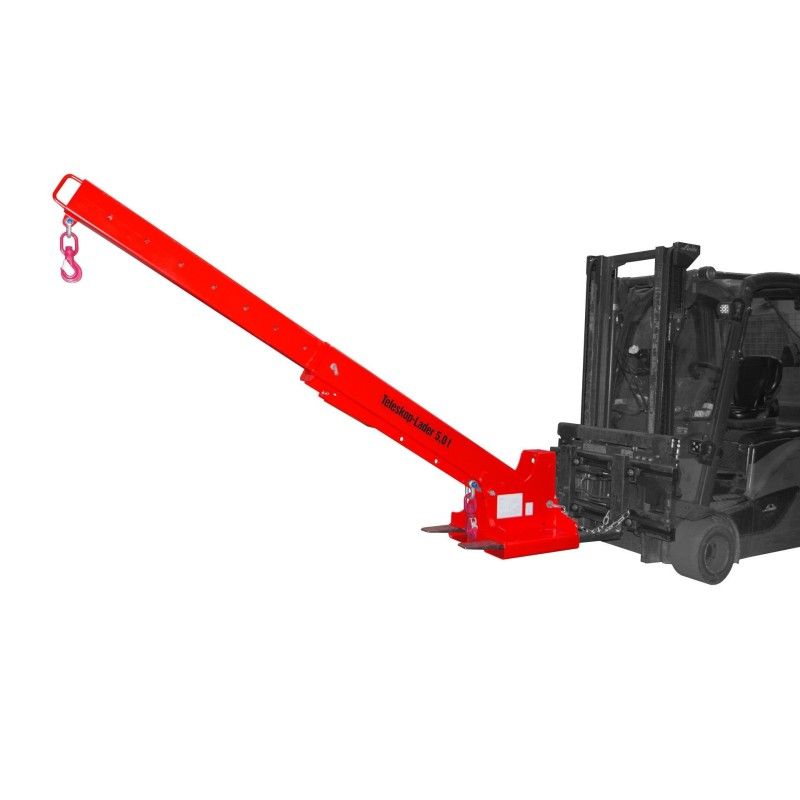

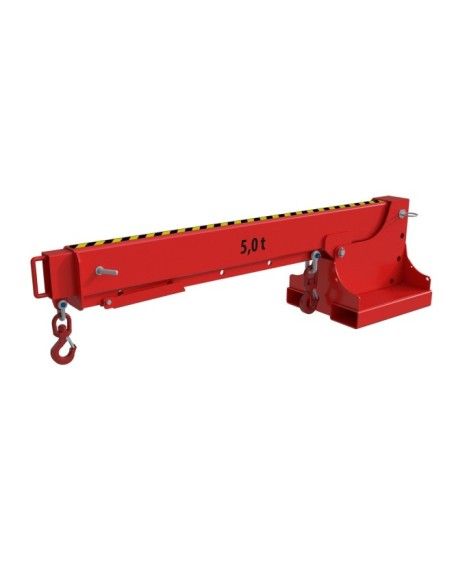

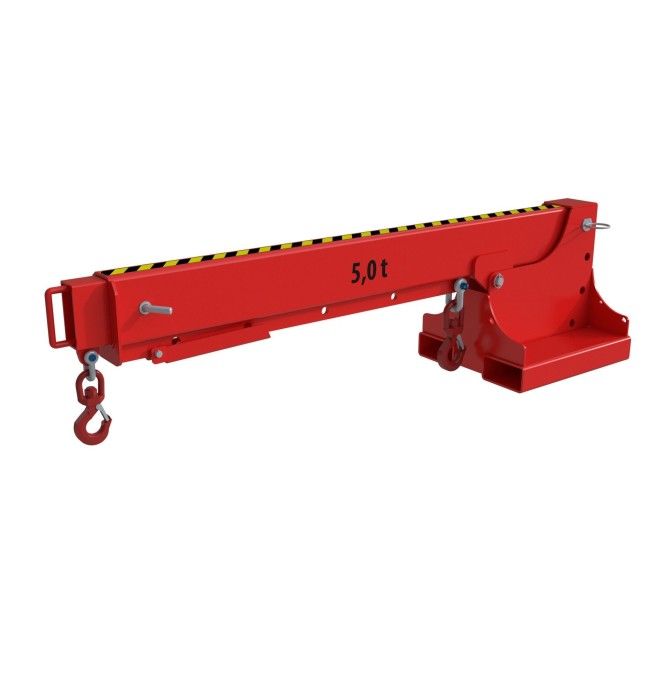

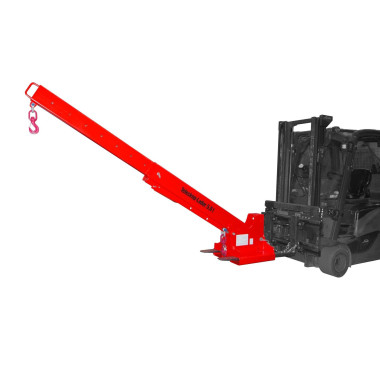

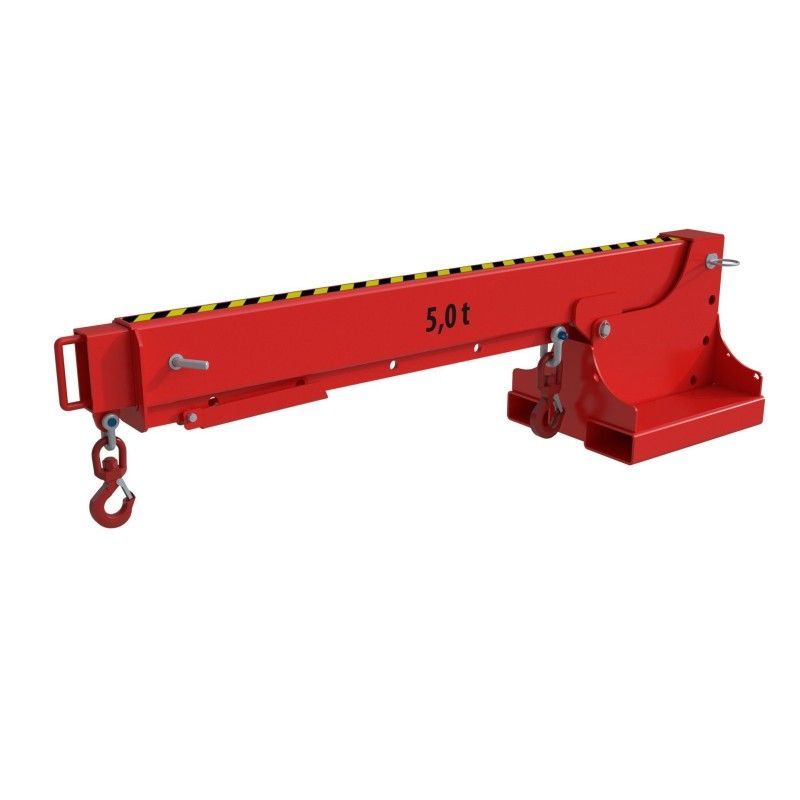

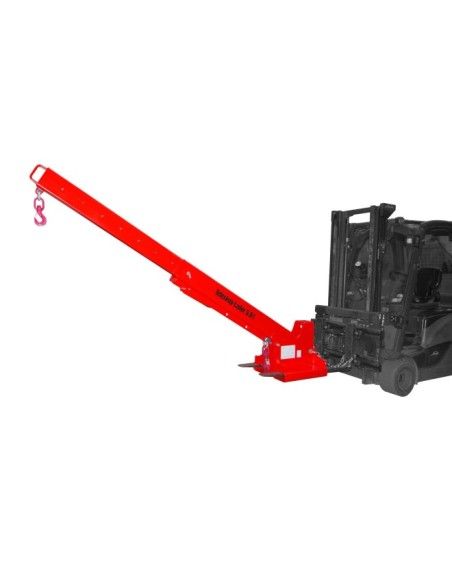

Arm crane extendable for forklift Trucks Designed for the handling of suspended loads in warehouses and industrial environments. It allows us to expand the operating range of machinery in the logistics sector.
- Charging capacity: Supports a maximum weight of 5000 kg distributed in fourteen hook positions.
- Steel structure: High strength manufacturing with safety chain to avoid sliding of the forks.
- Tilt adjustment: Variable angular positioning to fifteen, thirty or forty-five degrees by blocking pin.
- Fork coupling: Entry cavities with internal dimensions of 184 by 84 millimeters for direct installation.
An arm of crane extendable increases the scope of the forklift
Attributes
- Construction steel
- Chain-insured to avoid slips.
- Variable working height, blocked in position by a pin
- A selection of 3 angles: 15°, 30° or 45°
- 2 rotary hooks; 14 possible positions
- It can be extended in 8 steps to reach the total length; locked in position by a pin
- Total length (mm)
- 2200.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 235.0
- GTIN (Previous EAN)
- 4052462012639.0
- Mounting status for dispatch
- assembly
- load capacity
- 5000.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 3000 Red fire
- cod
- RAL 3000
- type of collection
- pockets for forks
- distance between forks (mm)
- 166.0
- inner width fork cavities (mm)
- 184.0
- inner height fork cavities (mm)
- 84.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 695.0
- open/closed fork cavities
- total length
- Total height (mm)
- 600.0
- Width (mm)
- 550.0
- Color
- red flame
- position of load hook (02) (mm)
- 990.0
- Position of load hook (03) (mm)
- 1285.0
- position of load hook (04) (mm)
- 1580.0
- position of load hook (05) (mm)
- 1825.0
- load capacity (02)
- 3550.0
- load capacity (03)
- 2750.0
- load capacity (04)
- 2250.0
- load capacity (05)
- 1950.0
- position of load hook (06) (mm)
- 2090.0
- position of load hook (07) (mm)
- 2290.0
- load capacity (06)
- 1700.0
- load capacity (07)
- 1550.0
- position of load hook (08) (mm)
- 2490.0
- position of load hook (09) (mm)
- 2690.0
- position of load hook (10) (mm)
- 2890.0
- position of load hook (11) (mm)
- 3090.0
- position of load hook (12) (mm)
- 3290.0
- position of load hook (13) (mm)
- 3490.0
- position of load hook (14) (mm)
- 3690.0
- load capacity (08)
- 1400.0
- load capacity (09)
- 1300.0
- load capacity (10)
- 1200.0
- load capacity (11)
- 1150.0
- load capacity (12)
- 1050.0
- load capacity (13)
- 1000.0
- load capacity (14)
- 950.0
