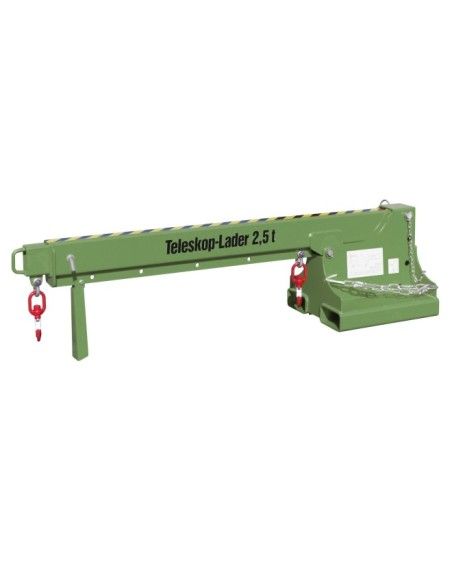

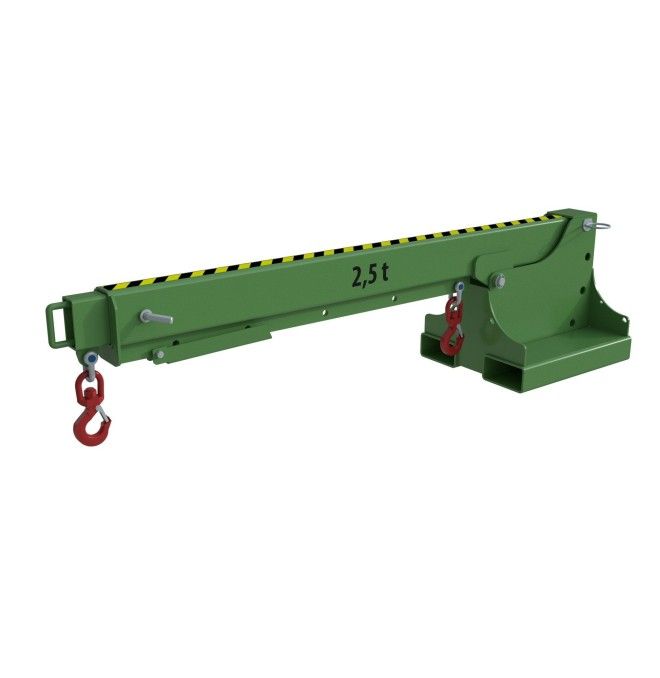

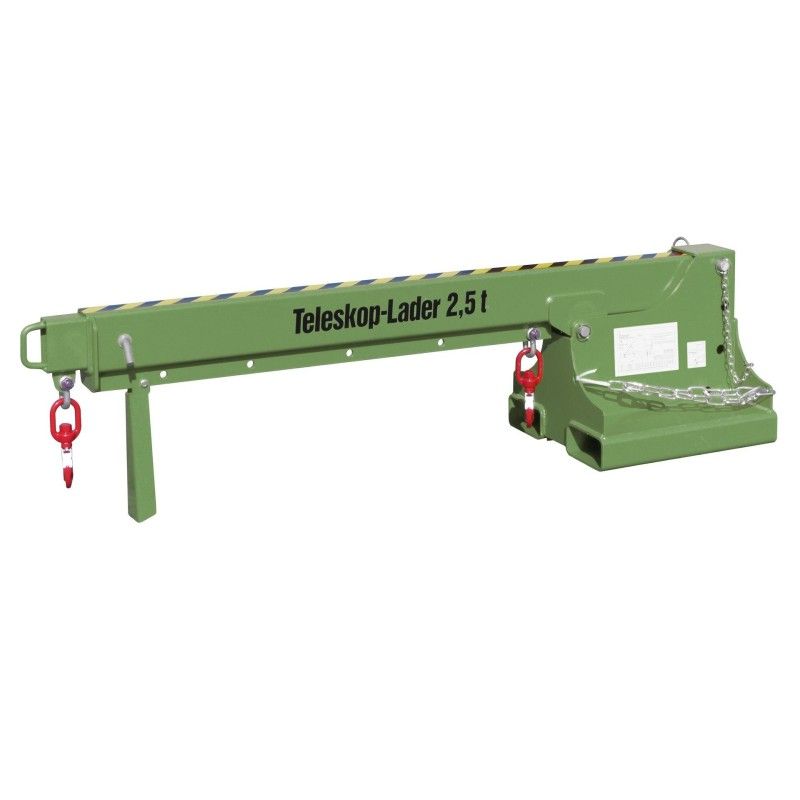

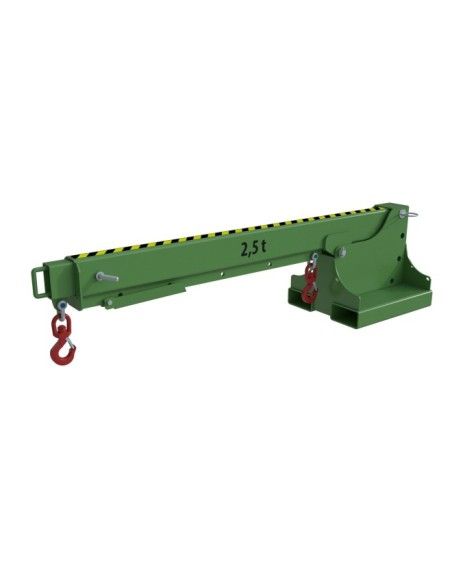

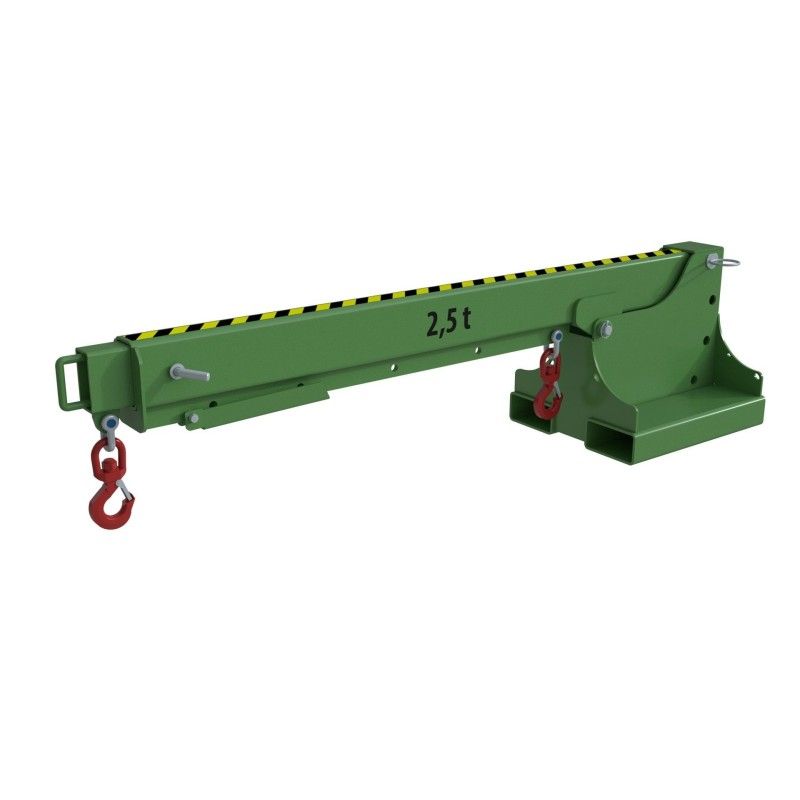

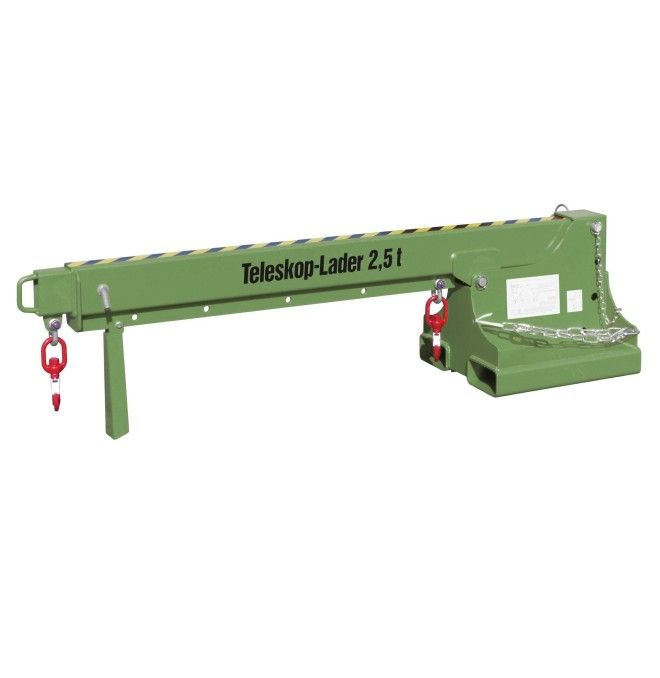

Arms Crane Extensible, painted, green
m500000923
€1,991.00
1.991,00 € (tax incl.)
Arm crane extendable for forklift Trucks Designed for the handling of suspended loads in the logistics sector. It allows us to expand the operating range of machinery in industrial environments.
- Steel structure: Construction High resistance with finish painted in green RAL RAL 6011.
- Integrated security: Fixation by chain to avoid slips and height adjustment blocked by a pin.
- Charging capacity: It supports up to 2500.0 kg with fourteen hook positions and eight extension steps.
- Pockets for forks: Lower input with distance between 156.0 mm cavities for direct coupling.
An arm of crane extendable increases the scope of the forklift
Attributes
- Construction steel
- Chain-insured to avoid slips.
- Variable working height, blocked in position by a pin
- A selection of 3 angles: 15°, 30° or 45°
- 2 rotary hooks; 14 possible positions
- It can be extended in 8 steps to reach the total length; locked in position by a pin
- Total length (mm)
- 2200.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 203.0
- GTIN (Previous EAN)
- 4052462012585.0
- Mounting status for dispatch
- assembly
- load capacity
- 2500.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 6011 green reseda
- cod
- RAL 6011
- type of collection
- pockets for forks
- distance between forks (mm)
- 156.0
- inner width fork cavities (mm)
- 184.0
- inner height fork cavities (mm)
- 84.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 695.0
- open/closed fork cavities
- total length
- Total height (mm)
- 560.0
- Width (mm)
- 540.0
- Color
- green
- position of load hook (02) (mm)
- 990.0
- Position of load hook (03) (mm)
- 1285.0
- position of load hook (04) (mm)
- 1580.0
- position of load hook (05) (mm)
- 1825.0
- load capacity (02)
- 2500.0
- load capacity (03)
- 2500.0
- load capacity (04)
- 1800.0
- load capacity (05)
- 1400.0
- position of load hook (06) (mm)
- 2090.0
- position of load hook (07) (mm)
- 2290.0
- load capacity (06)
- 1200.0
- load capacity (07)
- 1050.0
- position of load hook (08) (mm)
- 2490.0
- position of load hook (09) (mm)
- 2690.0
- position of load hook (10) (mm)
- 2890.0
- position of load hook (11) (mm)
- 3090.0
- position of load hook (12) (mm)
- 3290.0
- position of load hook (13) (mm)
- 3490.0
- position of load hook (14) (mm)
- 3690.0
- load capacity (08)
- 950.0
- load capacity (09)
- 850.0
- load capacity (10)
- 770.0
- load capacity (11)
- 700.0
- load capacity (12)
- 650.0
- load capacity (13)
- 600.0
- load capacity (14)
- 560.0
