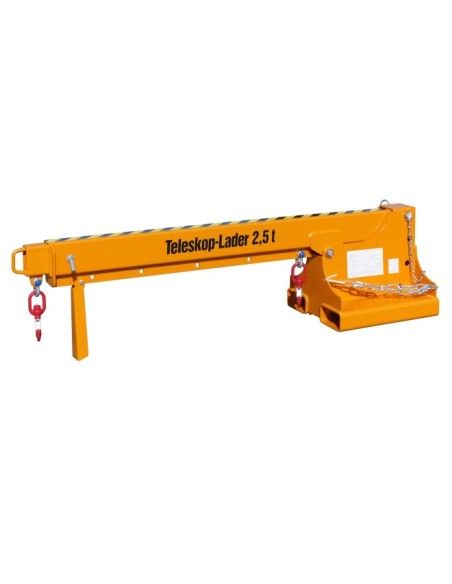

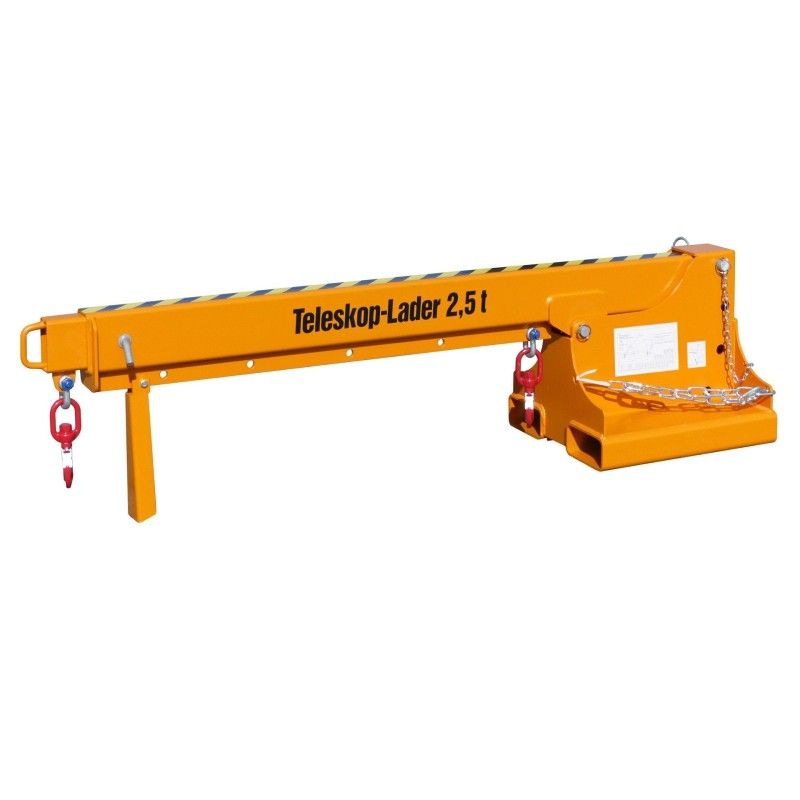

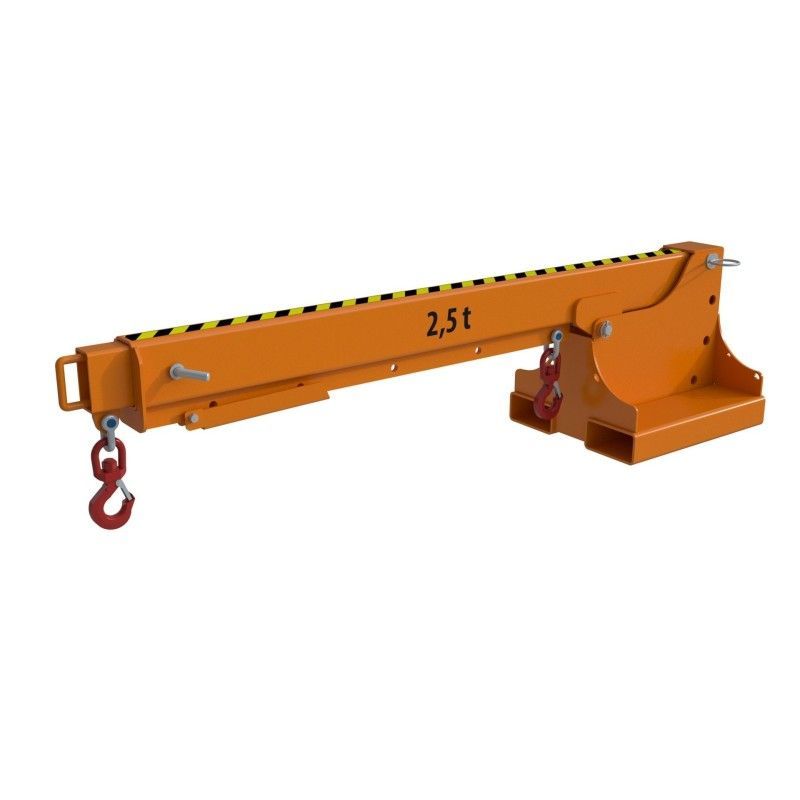

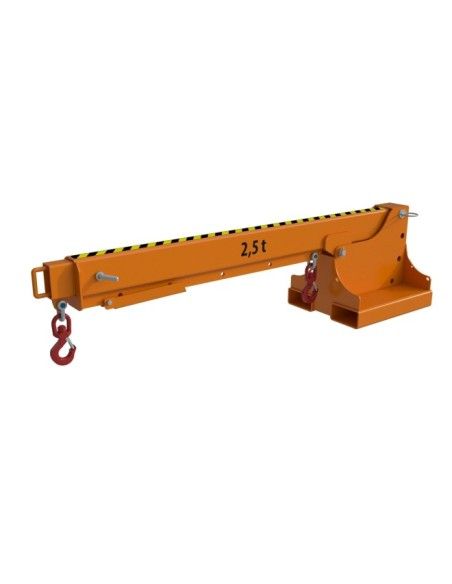

Arms Crane Extensible, painted, Orange Yellow
m500000920
€1,991.00
1.991,00 € (tax incl.)
Arm crane Extensible painted steel designed to increase the scope of the forklift During handling loads in warehouses and industrial environments of intensive use.
- Charging capacity: Supports up to 2500.0 kg with fourteen adjustable hook positions according to extension.
- Security structure: Construction Steel with safety chain to avoid slips during transport.
- Angular adjustment: Variable work configuration with three tilt angles blocked by pin.
- Lower coupling: Pockets for forks with distance of 156.0 mm for insertion along.
An arm of crane extendable increases the scope of the forklift
Attributes
- Construction steel
- Chain-insured to avoid slips.
- Variable working height, blocked in position by a pin
- A selection of 3 angles: 15°, 30° or 45°
- 2 rotary hooks; 14 possible positions
- It can be extended in 8 steps to reach the total length; locked in position by a pin
- Total length (mm)
- 2200.0
- can be stacked
- Not
- Finish
- painted
- Weight (kg)
- 203.0
- GTIN (Previous EAN)
- 4052462012554.0
- Mounting status for dispatch
- assembly
- load capacity
- 2500.0
- charging capacity per unit of measurement
- kg
- ral
- RAL 2000 Orange yellow
- cod
- RAL 2000
- type of collection
- pockets for forks
- distance between forks (mm)
- 156.0
- inner width fork cavities (mm)
- 184.0
- inner height fork cavities (mm)
- 84.0
- pick-up address
- along (low narrow)
- position of collection
- down
- position of the loading hook (mm)
- 695.0
- open/closed fork cavities
- total length
- Total height (mm)
- 560.0
- Width (mm)
- 540.0
- Color
- orange
- position of load hook (02) (mm)
- 990.0
- Position of load hook (03) (mm)
- 1285.0
- position of load hook (04) (mm)
- 1580.0
- position of load hook (05) (mm)
- 1825.0
- load capacity (02)
- 2500.0
- load capacity (03)
- 2500.0
- load capacity (04)
- 1800.0
- load capacity (05)
- 1400.0
- position of load hook (06) (mm)
- 2090.0
- position of load hook (07) (mm)
- 2290.0
- load capacity (06)
- 1200.0
- load capacity (07)
- 1050.0
- position of load hook (08) (mm)
- 2490.0
- position of load hook (09) (mm)
- 2690.0
- position of load hook (10) (mm)
- 2890.0
- position of load hook (11) (mm)
- 3090.0
- position of load hook (12) (mm)
- 3290.0
- position of load hook (13) (mm)
- 3490.0
- position of load hook (14) (mm)
- 3690.0
- load capacity (08)
- 950.0
- load capacity (09)
- 850.0
- load capacity (10)
- 770.0
- load capacity (11)
- 700.0
- load capacity (12)
- 650.0
- load capacity (13)
- 600.0
- load capacity (14)
- 560.0
